- Description
-
Print Details
- Brilliant textile graphics using dye-sublimation printing
- UV-resistant with high lightfastness
- Customizable single- or double-sided printing
Lightbox flex curved Exhibition Wall
The mobile LED exhibition wall with a curved front combines a lightweight click system with high-performance OSRAM LED lighting. It presents your graphics on elegantly curved, evenly backlit surfaces and can be modularly expanded with all elements of the Lightbox flex series.
Version – Print
- Cut all around and fitted with flat piping for insertion into the plastic frame
- Keder fastening ensures perfect, wrinkle-free tension
- Printing options:
- Double-sided: front and back, either identical or different
- Single-sided: front with custom motif, back optionally black or white
- Note: Slight misalignment may occur between panels when spanning one motif across multiple connected walls.
Materials
- Lighttex SE (approx. 260 g/m2): matte polyester fabric, flame-retardant
- Dye-sublimation printing: ink penetrates the fabric for vibrant colors and high detail fidelity
- Ideal for homogeneous, radiant illuminated surfaces
- Back panel materials for single-sided printing:
- Black reverse: Multisol® X Opak SE, matte-gloss polyester with black PU coating, 100% opaque
- White reverse: Multisol® X Opak SE, matte-gloss polyester with white PU coating, 100% opaque
Version – System

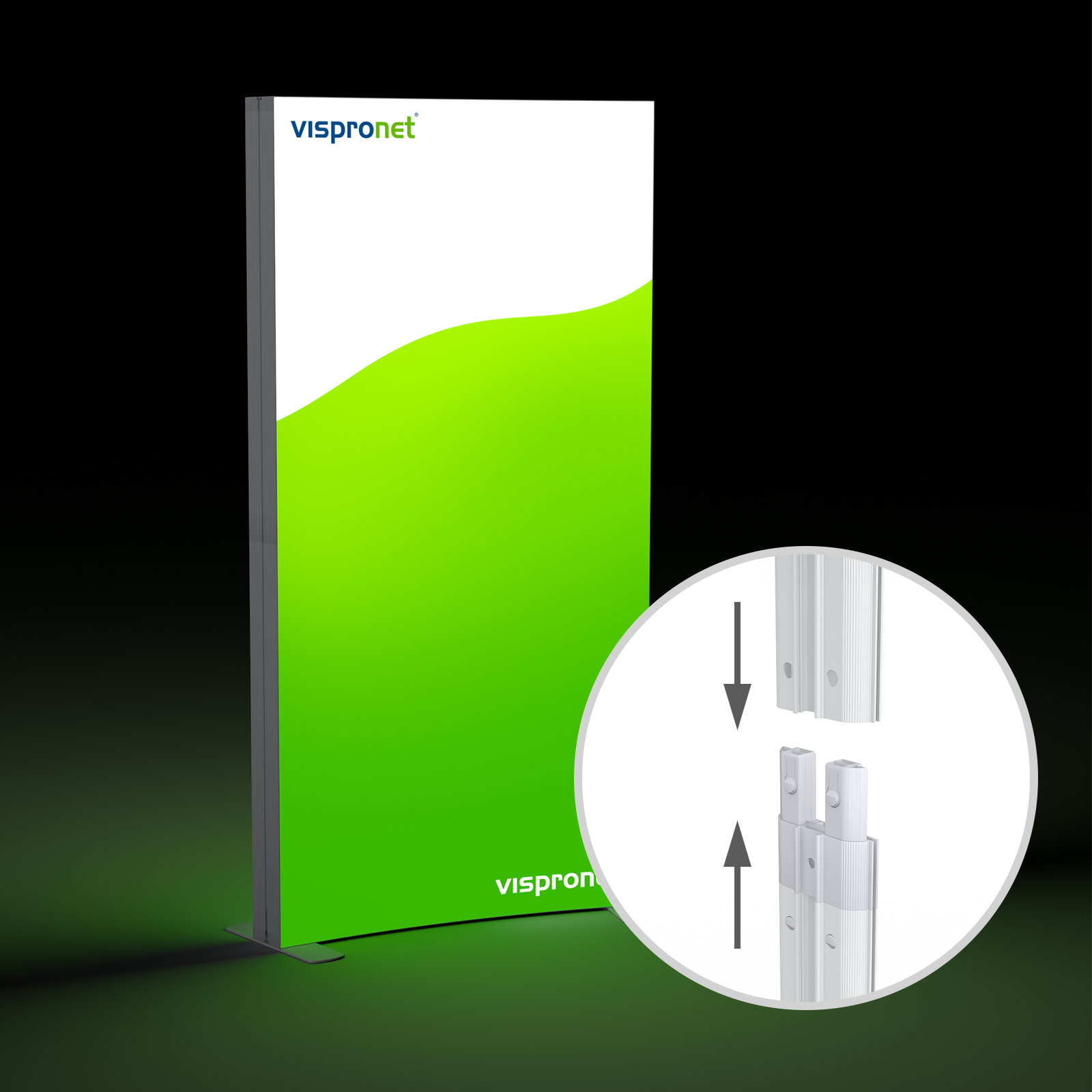

- Innovative frame system with registered design protection (GM: 20 2019 103 837)
- High-quality curved plastic frame with click profiles, white, certified to V0 fire protection
- Frame depth: 120 mm
- Includes support feet for stability

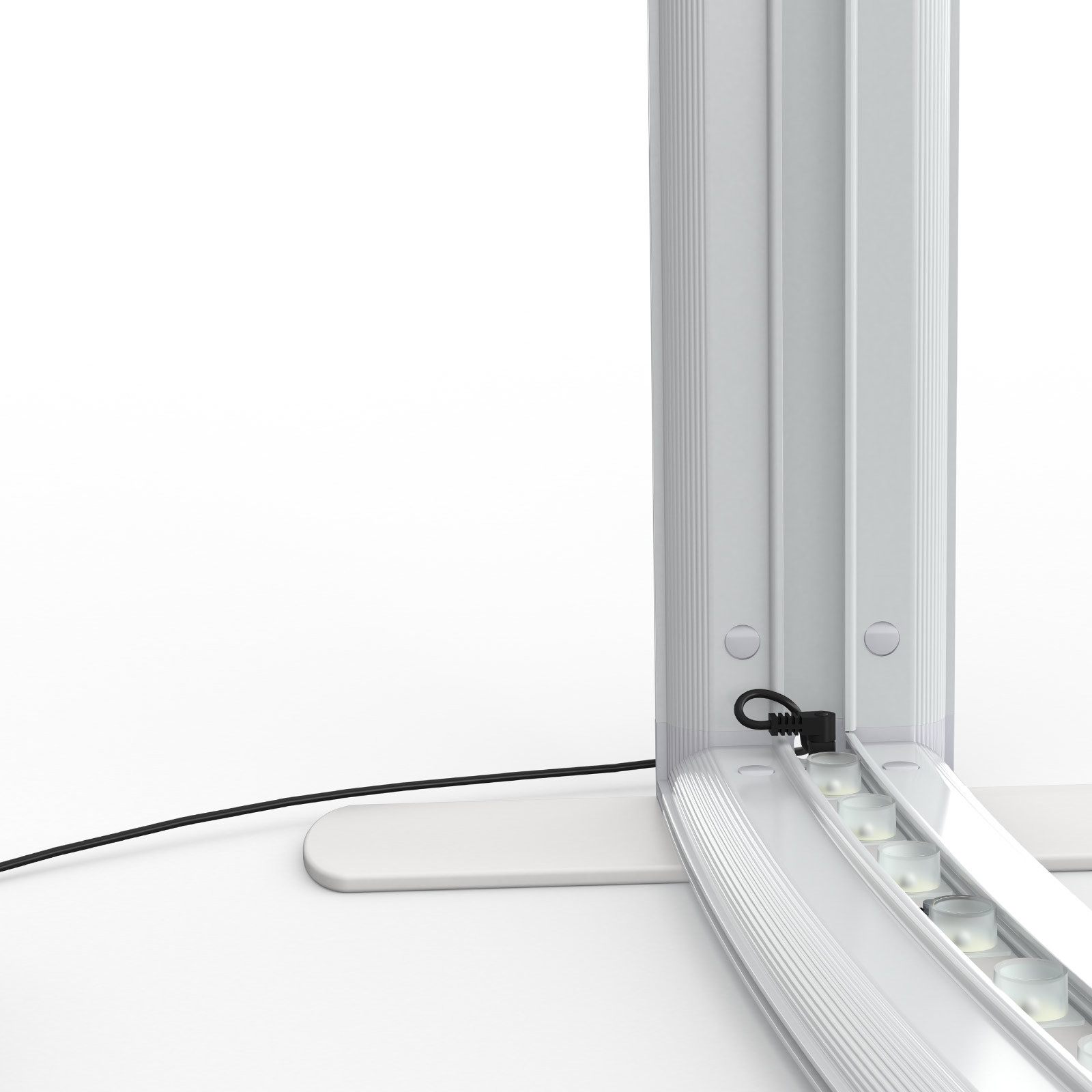

- LED Technology:
- Factory-installed OSRAM Power LED modules
- Energy-efficient with low heat output
- Long lifespan of up to 50,000 hours
- One system – endless possibilities: all exhibition walls and modules of the Lightbox flex series can be flexibly combined.
Sizes
- Available widths: 100, 200, 300 cm
- Available heights: 200, 225, 250 cm
Technical Specifications
Power Supply Mini Power Supply Midi Power Supply Maxi Power Output 96 W 126 W 152.4 W Current 4 A 5.25 A 6.35 A Voltage 24 V Luminous Flux 4,000 lumens Light Color Cool white Power Cable Length Approx. 280 cm Floor space
System Width Floor space (Width × Depth) 100 cm 110 × 45 cm 200 cm 215 × 55 cm 300 cm 315 × 65 cm Scope of delivery
- Complete set: Lightbox flex curved system, printed panel(s) or back panel, and trolley bag
- Print only: Printed motif(s) or back panel according to the selected option (without system)
- System only: Lightbox flex curved system and trolley bag (without textile graphics)
The systems are delivered disassembled – this reduces shipping volume and makes space-saving storage easier.
Packaging dimensions & weights
System height 200 cmSystem Width System Weight Total Weight Packaging Dimensions 100 cm 11.27 kg 17.27 kg 136 × 40 × 18 cm 200 cm 15.58 kg 21.08 kg 124 × 45.5 × 28.5 cm 300 cm 20.95 kg 26.45 kg 124 × 45.5 × 28.5 cm * All measurements and weights are approximate.
System height 225 cmSystem width System weight Total weight Packaging dimensions 100 cm 12.11 kg 18.11 kg 136 × 40 × 18 cm 200 cm 16.97 kg 22.47 kg 124 × 45.5 × 28.5 cm 300 cm 22.13 kg 27.63 kg 124 × 45.5 × 28.5 cm *All dimensions and weights are approximate.
System height 250 cmSystem width System weight Total weight Packaging dimensions 100 cm 12.11 kg 18.11 kg 136 × 40 × 18 cm 200 cm 16.97 kg 22.47 kg 124 × 45.5 × 28.5 cm 300 cm 22.13 kg 27.63 kg 124 × 45.5 × 28.5 cm *All measurements and weights are approximate.
Application
- For indoor use only
- Please observe the safety instructions for this product.
