Exhibition counter Lightbox Flex Basic

Print Details

• Brilliant textile print using dye sublimation
• UV-resistant with high lightfastness
• Customizable with single- or double-sided print

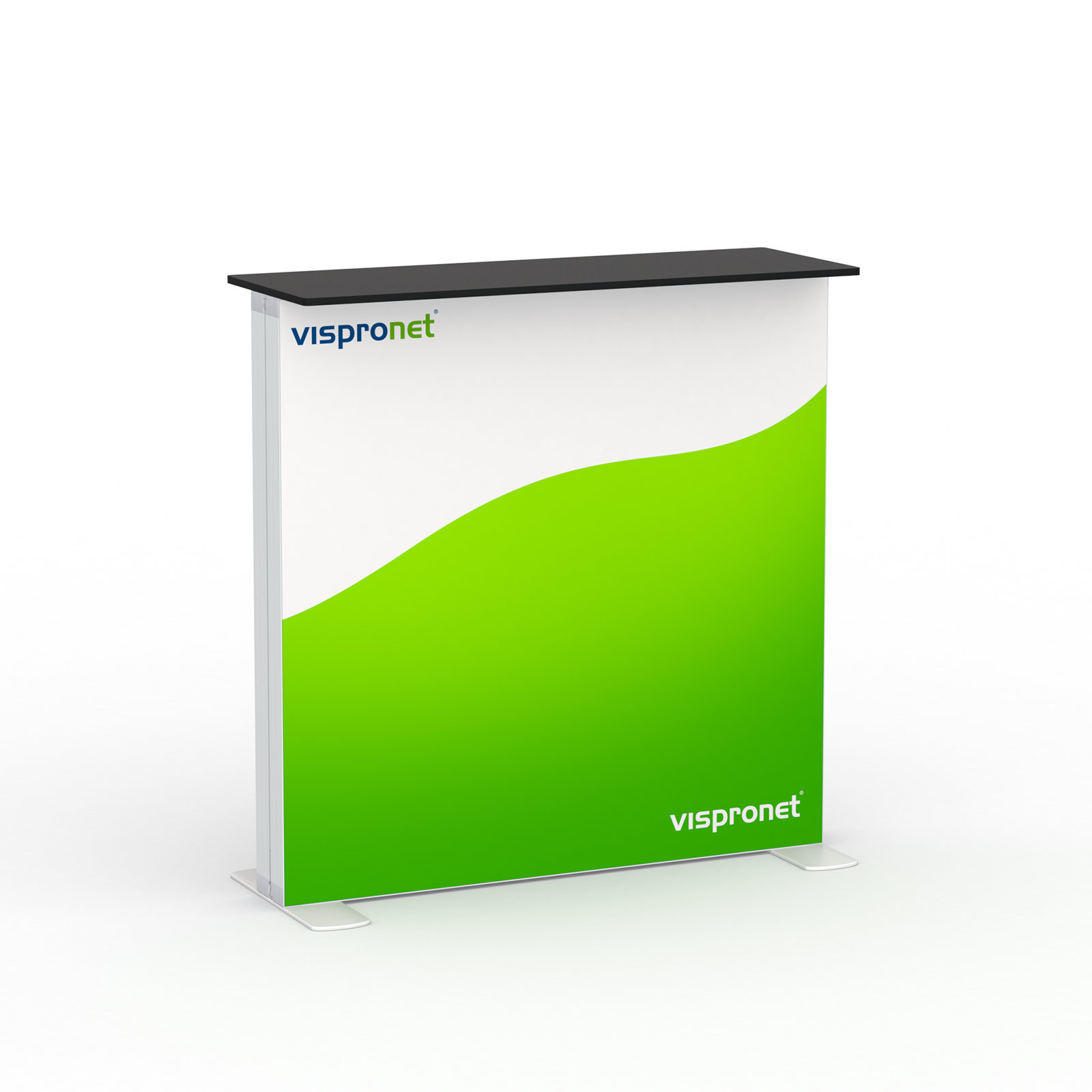

Lightbox flex Basic Exhibition Counter

The modular LED counter is lightweight and ideal for mobile use at trade fairs, events, and promotions. Energy-efficient OSRAM power LEDs showcase your advertising graphics with impact.

Version – Print

• Cut all around and fitted with flat piping (keder) for frame mounting
• Keder attachment ensures a perfectly stretched, wrinkle-free display of the graphics
• Print options:
  • Double-sided print: front and back with identical or different designs
  • Single-sided print: front with custom motif, reverse as blackout backing in black or white
• Quick and easy graphic change

Material

• Lighttex SE (approx. 260 g/m²): matte polyester fabric specially designed for backlit applications
  • Dye sublimation: ink penetrates the fabric for vibrant colors and high detail precision
  • Ideal for bright, uniform illuminated surfaces
• Materials for reverse side on single-sided prints:
  • Black backing: Multisol^® X Opak SE, matte-gloss polyester with black PU coating, 100% opaque
  • White backing: Multisol^® X Opak SE, matte-gloss polyester with white PU coating, 100% opaque

Version – System

• Mobile, modular exhibition counter with powerful LED lighting
• Innovative frame system with registered design GM: 20 2019 103 837
• High-quality plug-in frame with robust click connectors
• Material: white plastic (V0 fire safety certified)
• Frame depth: 120 mm
• Includes feet for stable positioning

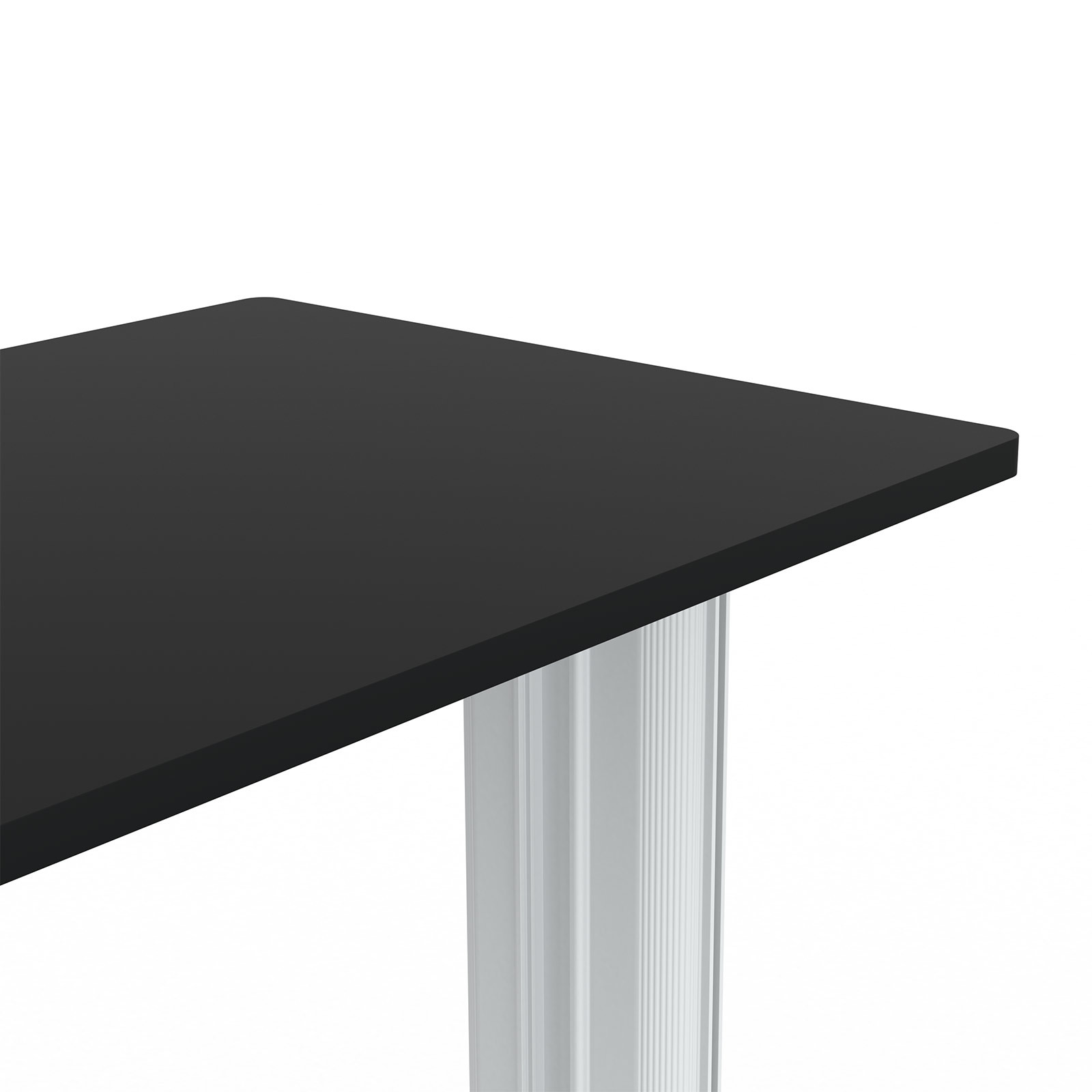

• Countertop made of black MDF board

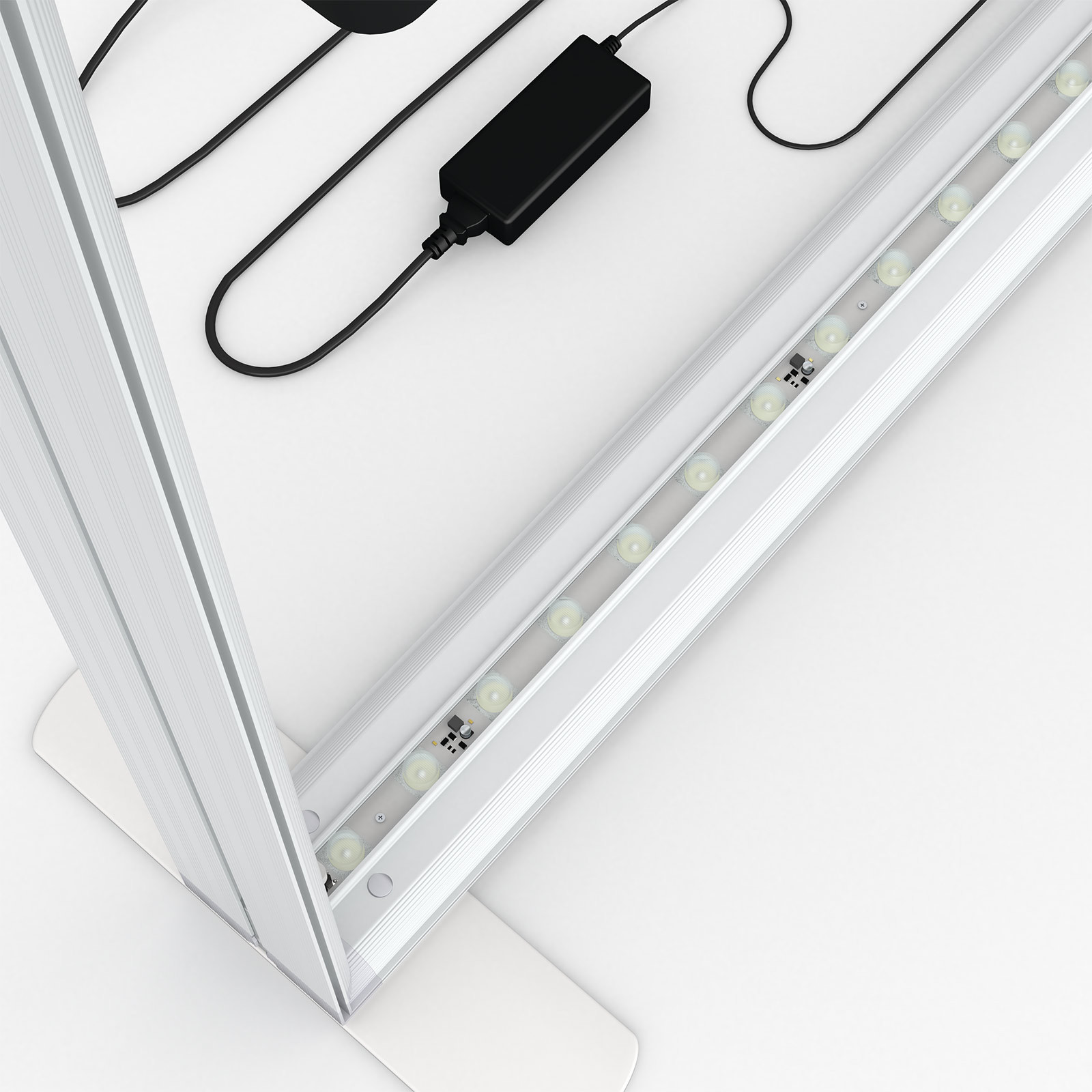

• Bright, energy-saving OSRAM power LEDs with long service life
• Low-heat LED modules, pre-installed at the factory

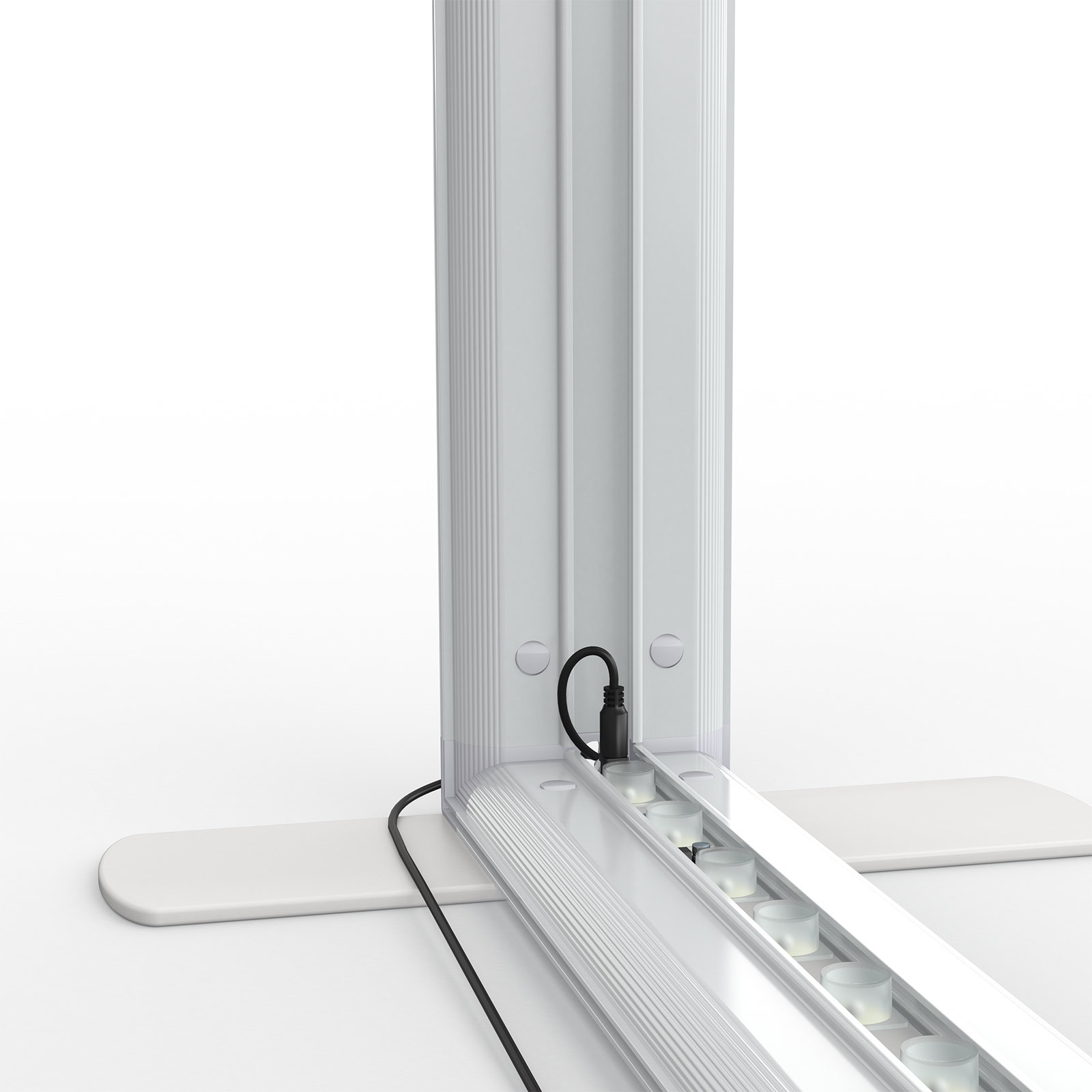

• Power cable with plug (cable length approx. 280 cm)

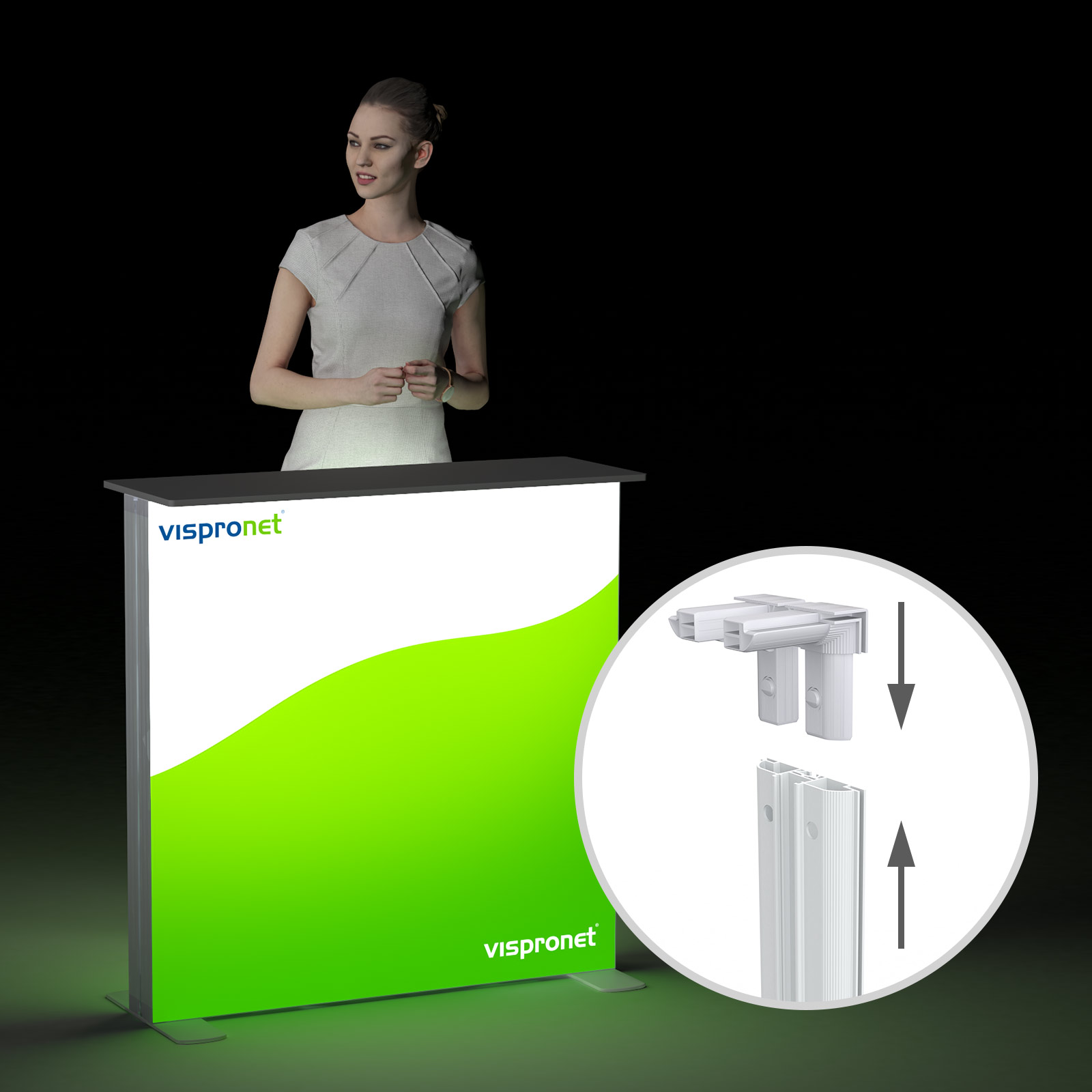

• Quick, tool-free assembly: simply plug the frame parts together – done

Modular system: All Lightbox flex walls and modules are fully compatible and connectable.

Technical Specifications

• Voltage: 24 V
• Power: 96 W
• Current: 4 A
• Luminous flux: 4,000 lumens
• Light color: cool white
• Power cable length with plug: approx. 280 cm

Sizes & Weights

*All dimensions are approximate; technical changes and tolerances reserved.

Scope of delivery

• Complete set: Lightbox flex Basic exhibition counter with LED components, print panel(s) or backing, incl. trolley bag
• Print panel: graphic motif(s) or backing as per selected option (without counter system)
• System only: Lightbox flex Basic counter including trolley bag (without print or backing)
• Delivered dismantled for space-saving transport

Usage

• For indoor use
• Please refer to the safety instructions for this product.
