- Description
-
Print details
- Brilliant sublimation or UV printing
- UV‑resistant, high lightfastness
- Customizable on one or both sides

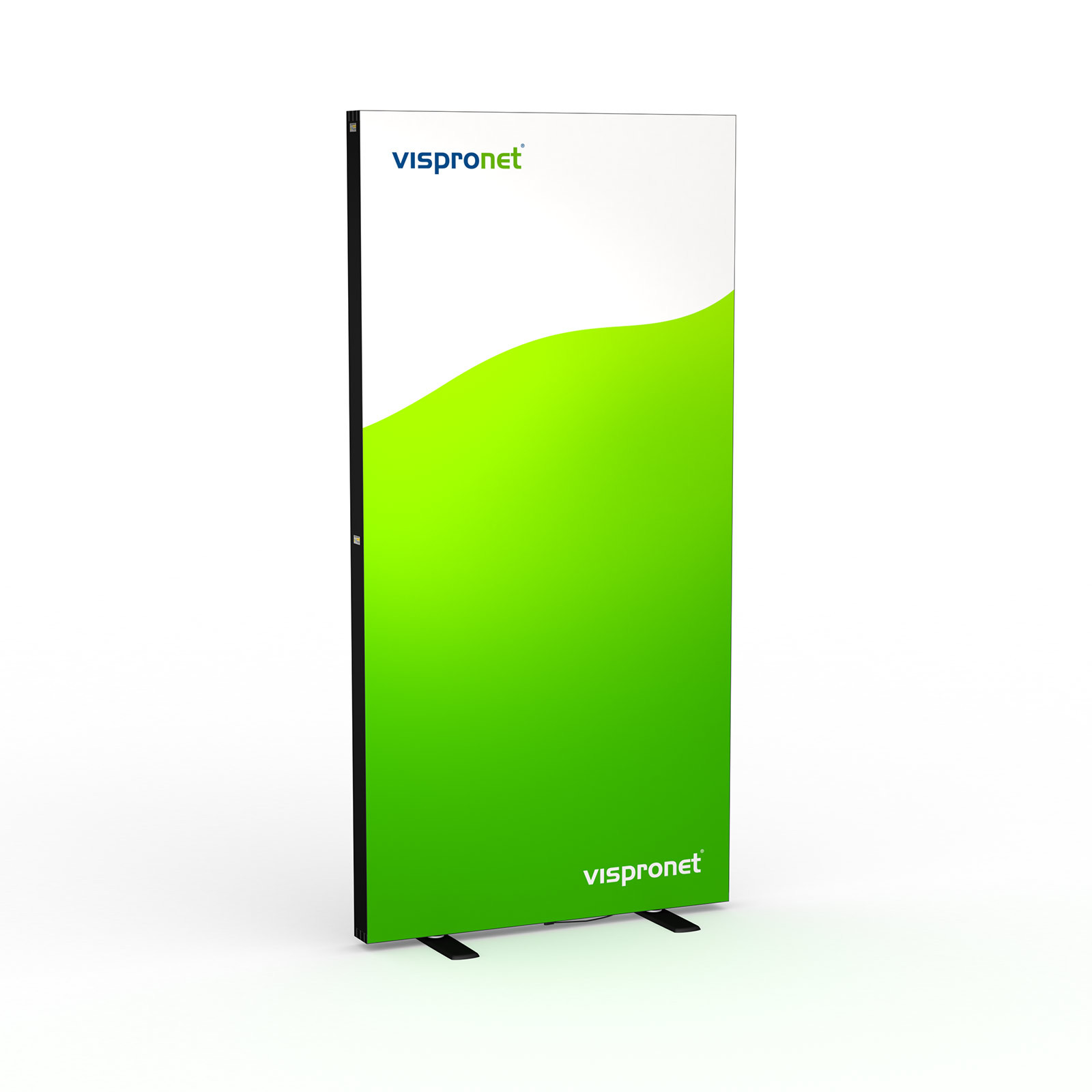

Lightbox click exhibition wall with black frame
High‑impact LED trade show wall with click system and elegant black frame: This innovative system combines lightweight aluminum frames with energy‑efficient LED lighting and tightly tensioned textile prints. Thanks to integrated magnets, multiple walls can be flexibly connected into straight or angled exhibit stands.
Version – Print panel
- Cut all around and equipped with sewn‑on flat keder for attachment in the aluminum frame
- The keder attachment ensures perfect, wrinkle‑free tension of the graphics.
- Print options:
- Double‑sided: front and back can have the same or different graphics

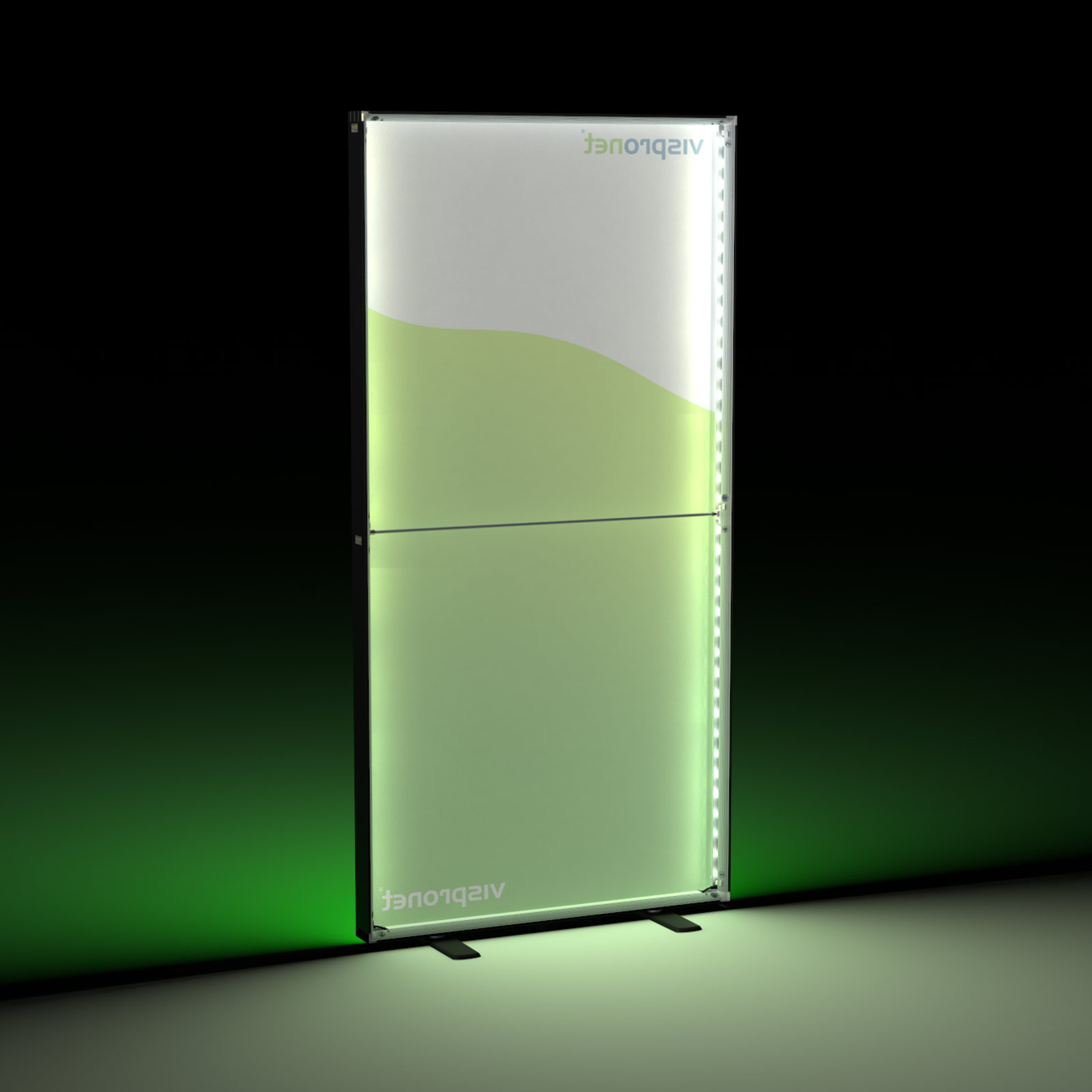

- Single‑sided: front with chosen design, back optionally white or black
- Note: For graphics that span multiple frames, slight misalignment between individual walls cannot be ruled out.
Materials
- Lighttex SE: matte polyester fabric, flame retardant
- Sublimation print: ink penetrates the material; vivid colors with high detail fidelity, durable
- Especially for optimally backlit advertising messages
- Variotex® Z SE: matte polyester fabric, UV‑resistant with high lightfastness (6–7), flame retardant
- UV print: ink remains on the surface; intense colors, razor‑sharp details, durable
- Special note: Recommended for permanent use only (not for frequent assembly/disassembly)*
- Materials for back panel when printed single‑sided:

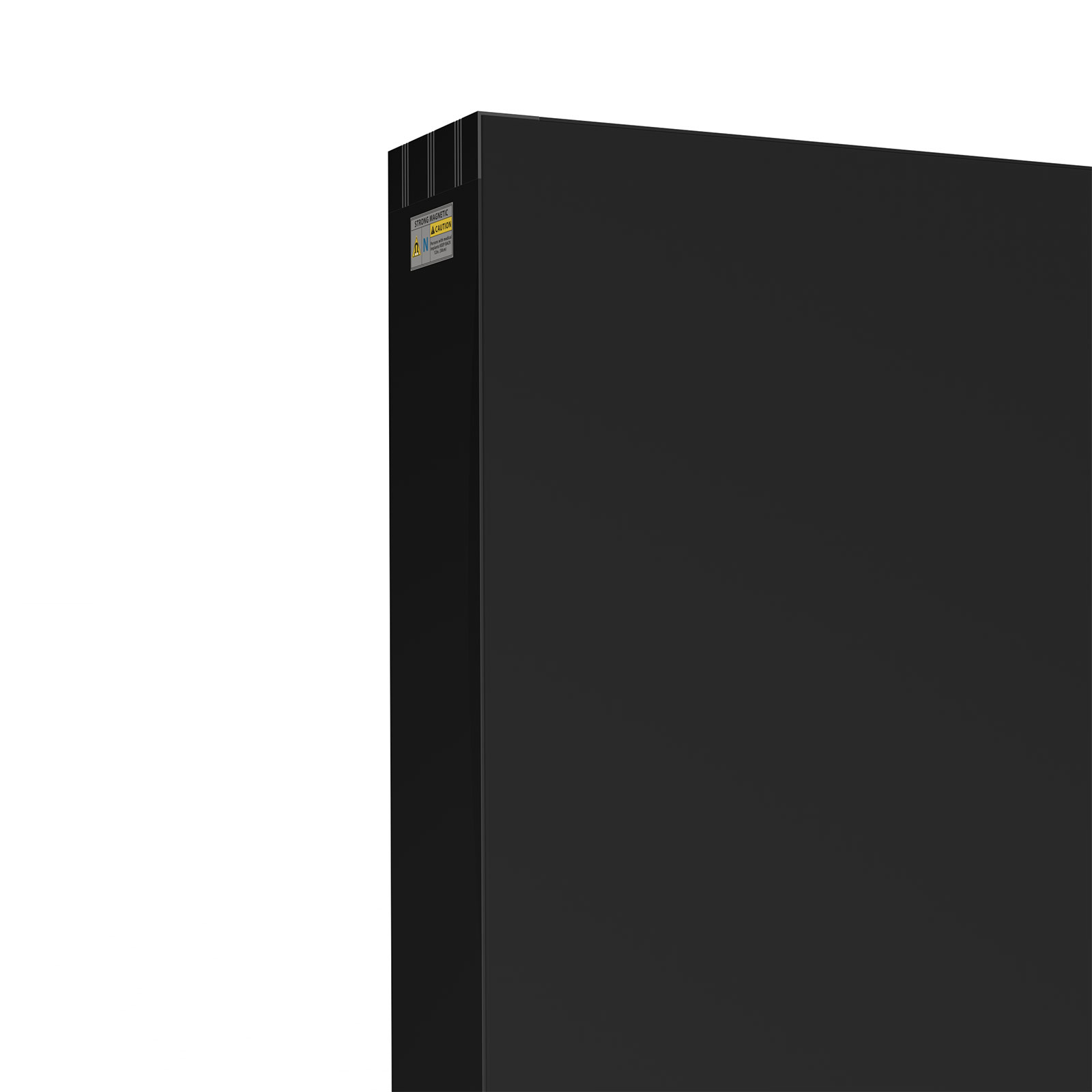

- Black back: Multisol® X Opak SE, matte glossy polyester with one‑sided black PU coating, 100% opaque

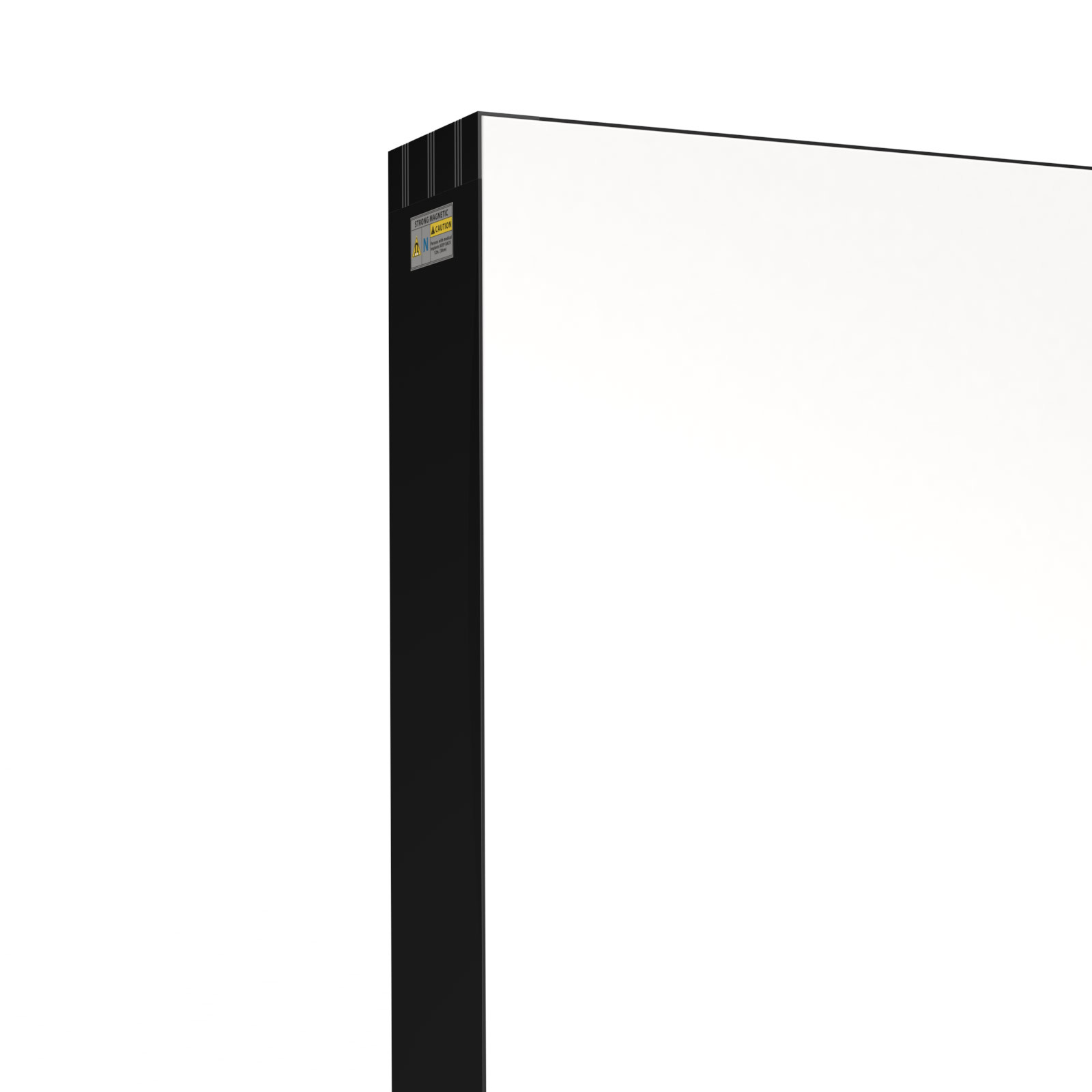

- White back: Multisol® X Opak SE, matte glossy polyester with one‑sided white PU coating, 100% opaque
Version – System
- Innovative frame system with utility model protection (GM: 20 2019 103 837)

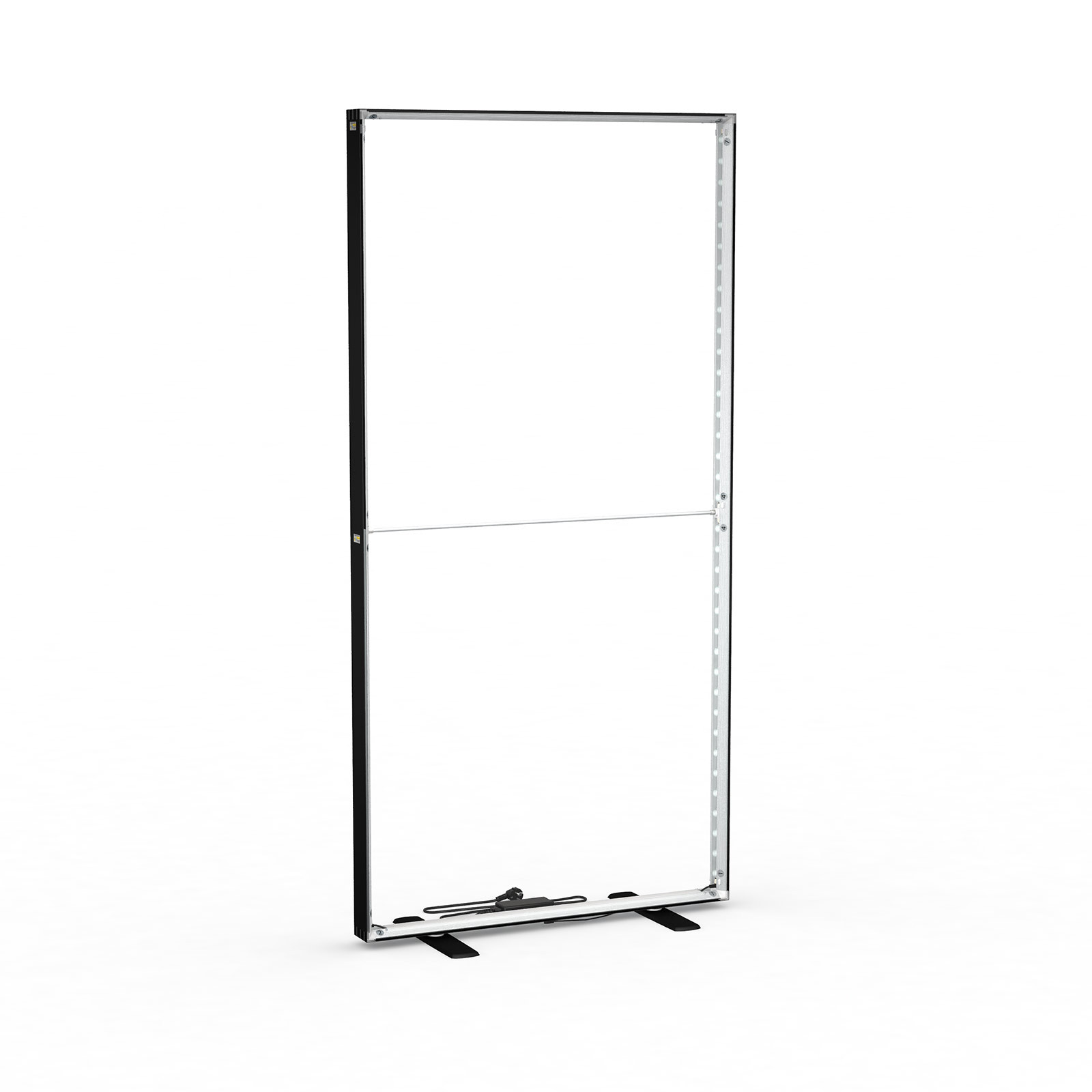

- Trade show wall made from plug‑in frames with click locking
- Material: aluminum
- Frame color: black (powder‑coated)
- System size per wall (W × H): approx. 100 x 200 cm
- Frame depth: 85 mm

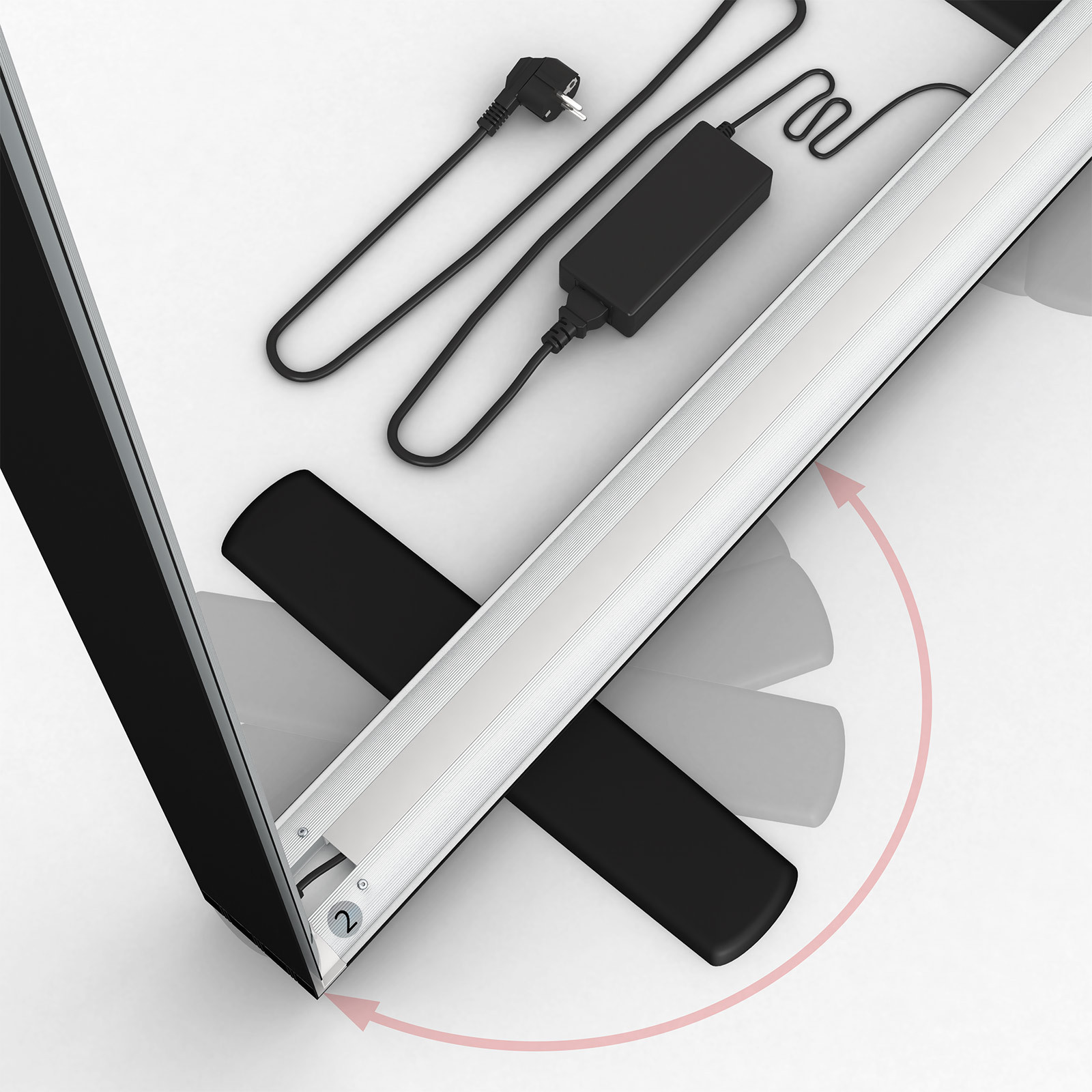

- Swivel feet (40 cm length) for stable stand

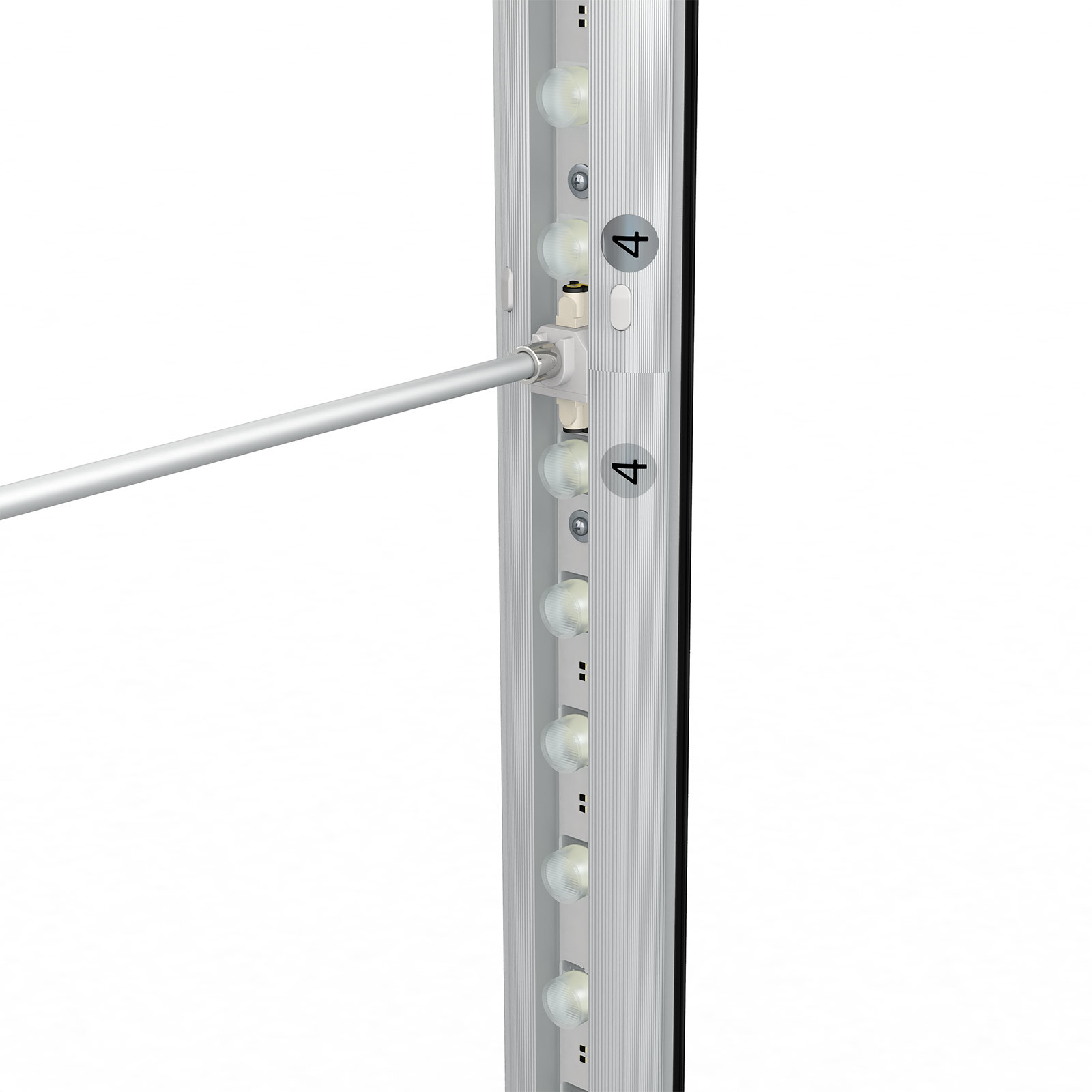

- Central support bar for additional stability

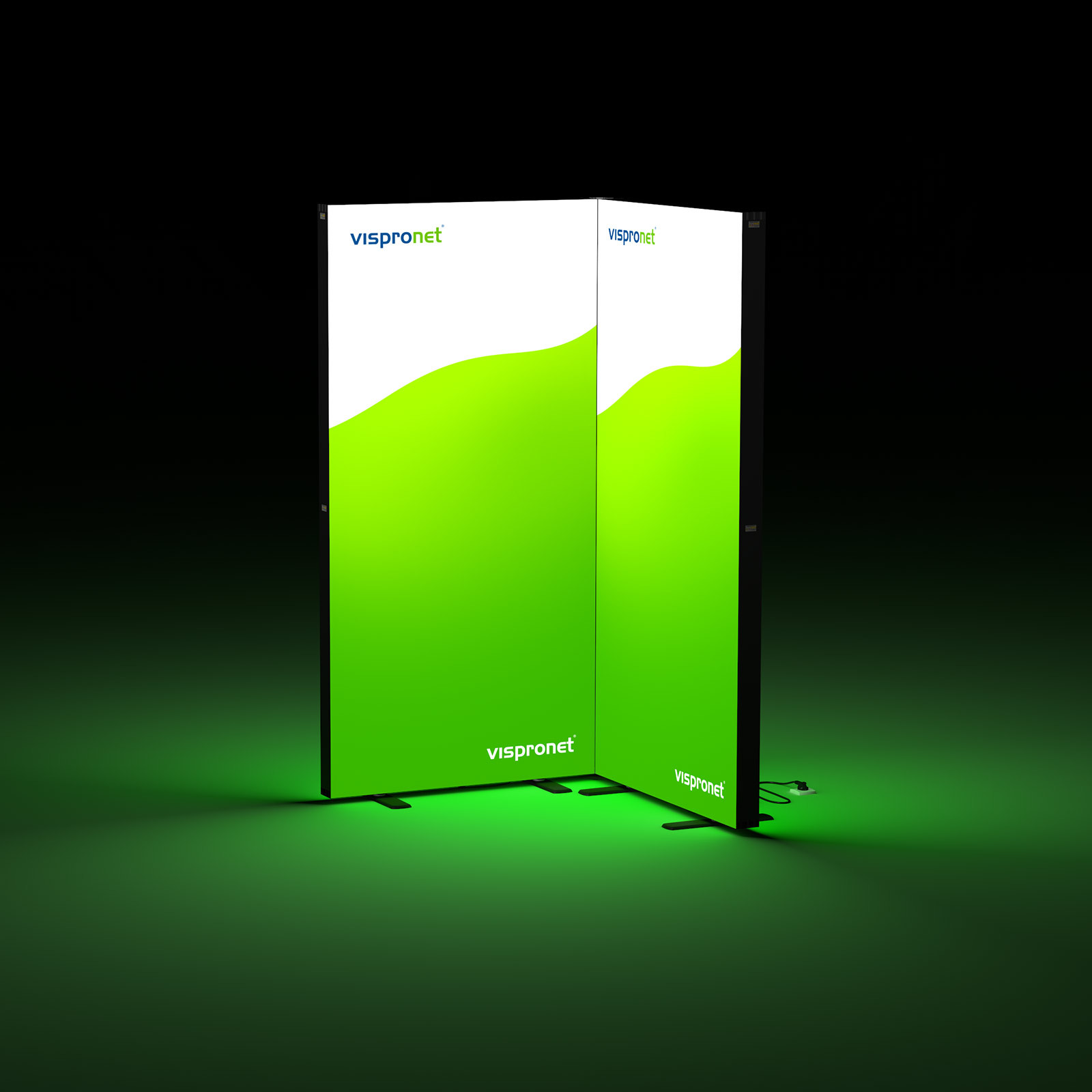

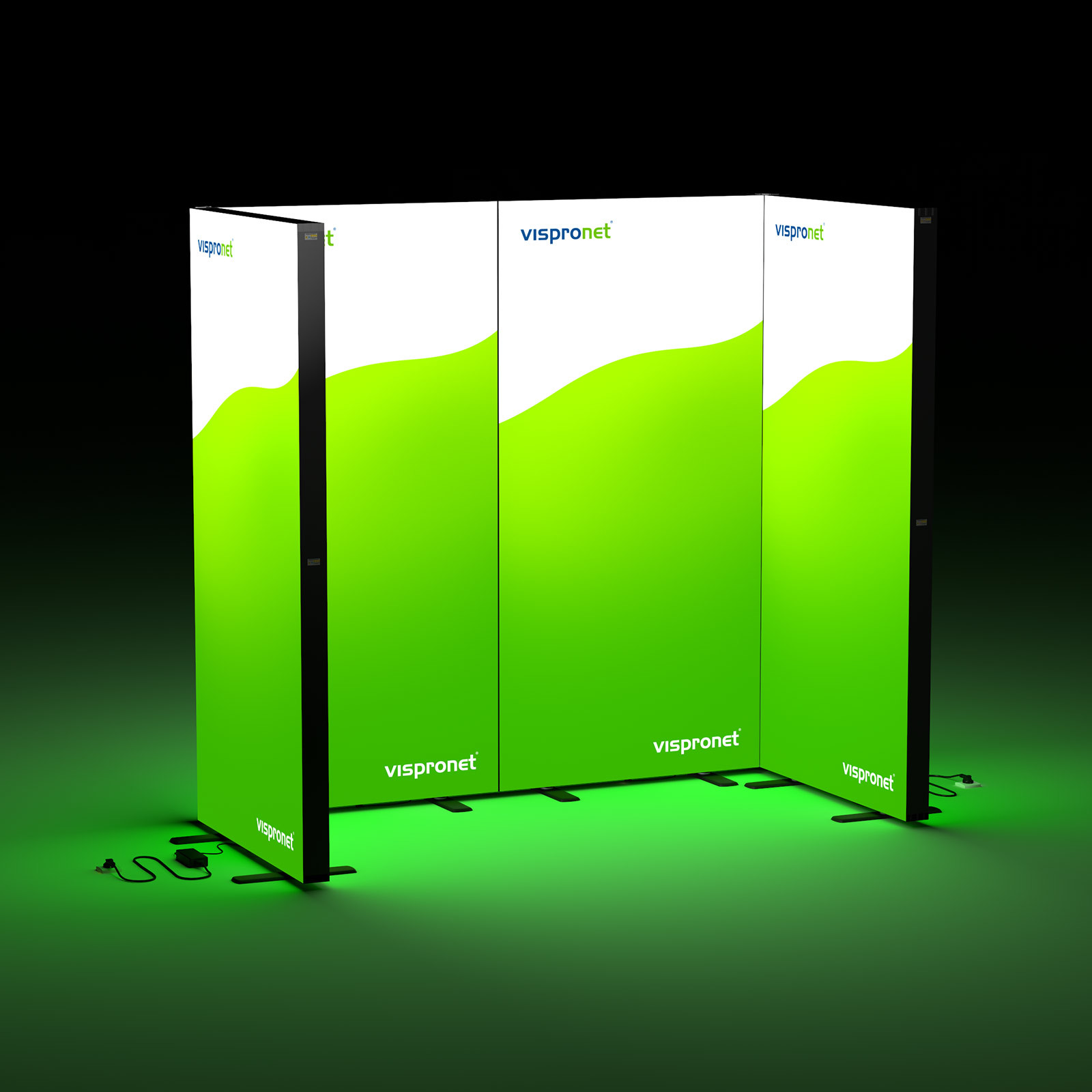

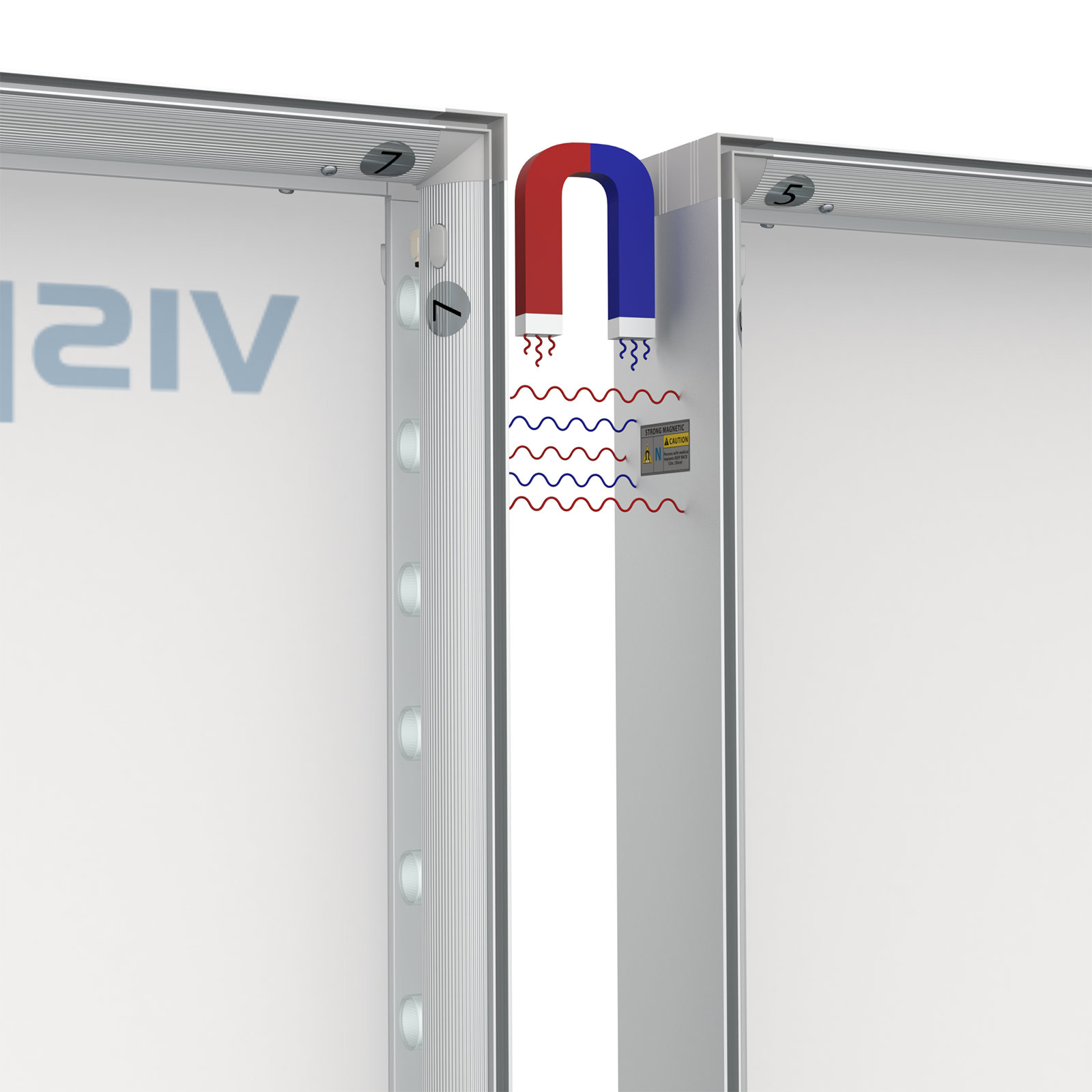

- One system – many possibilities: magnets integrated left and right in the frame for connecting multiple walls

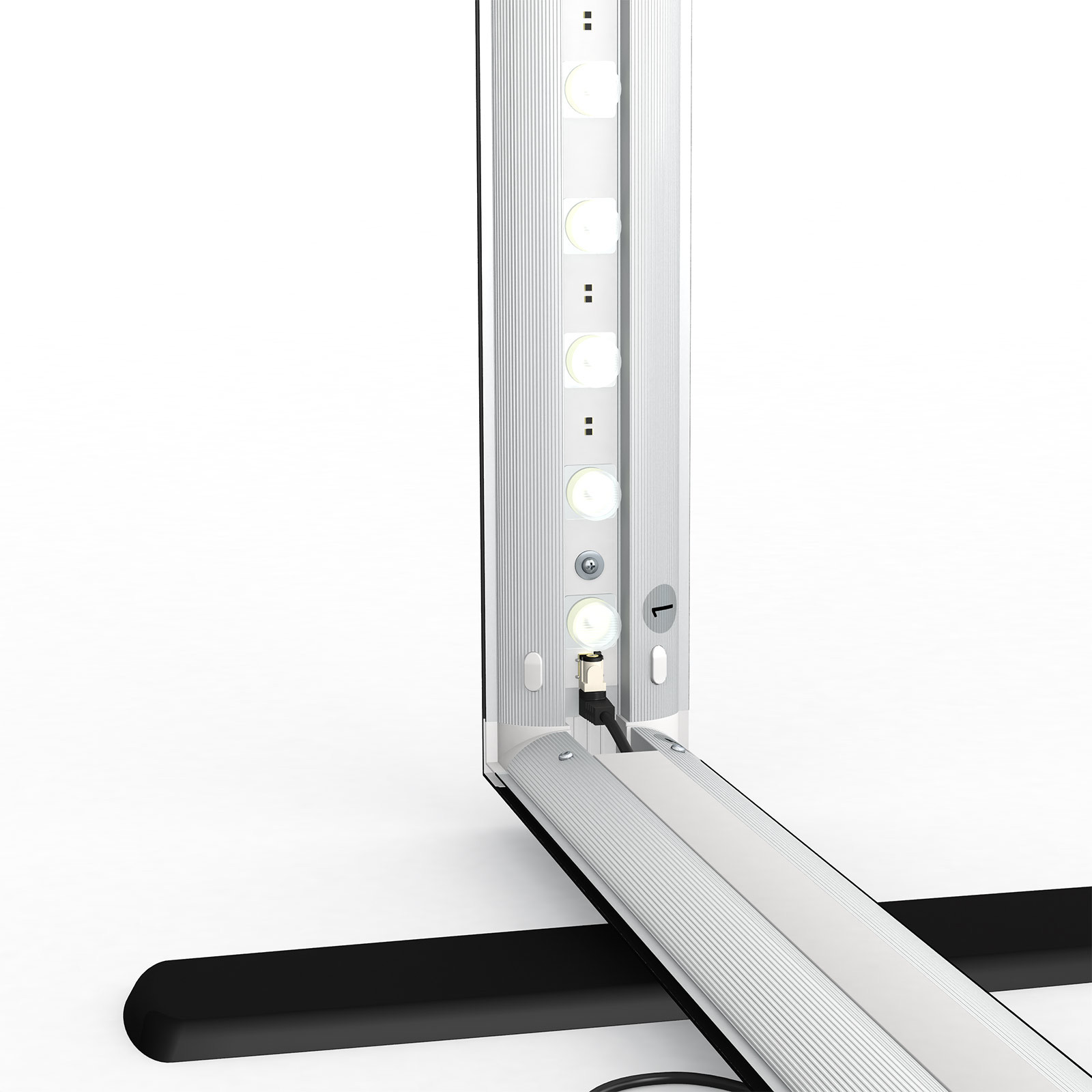

- LED modules with low heat output, pre‑assembled at the factory
- Power supply unit and cable with mains plug (cable length approx. 260 cm)

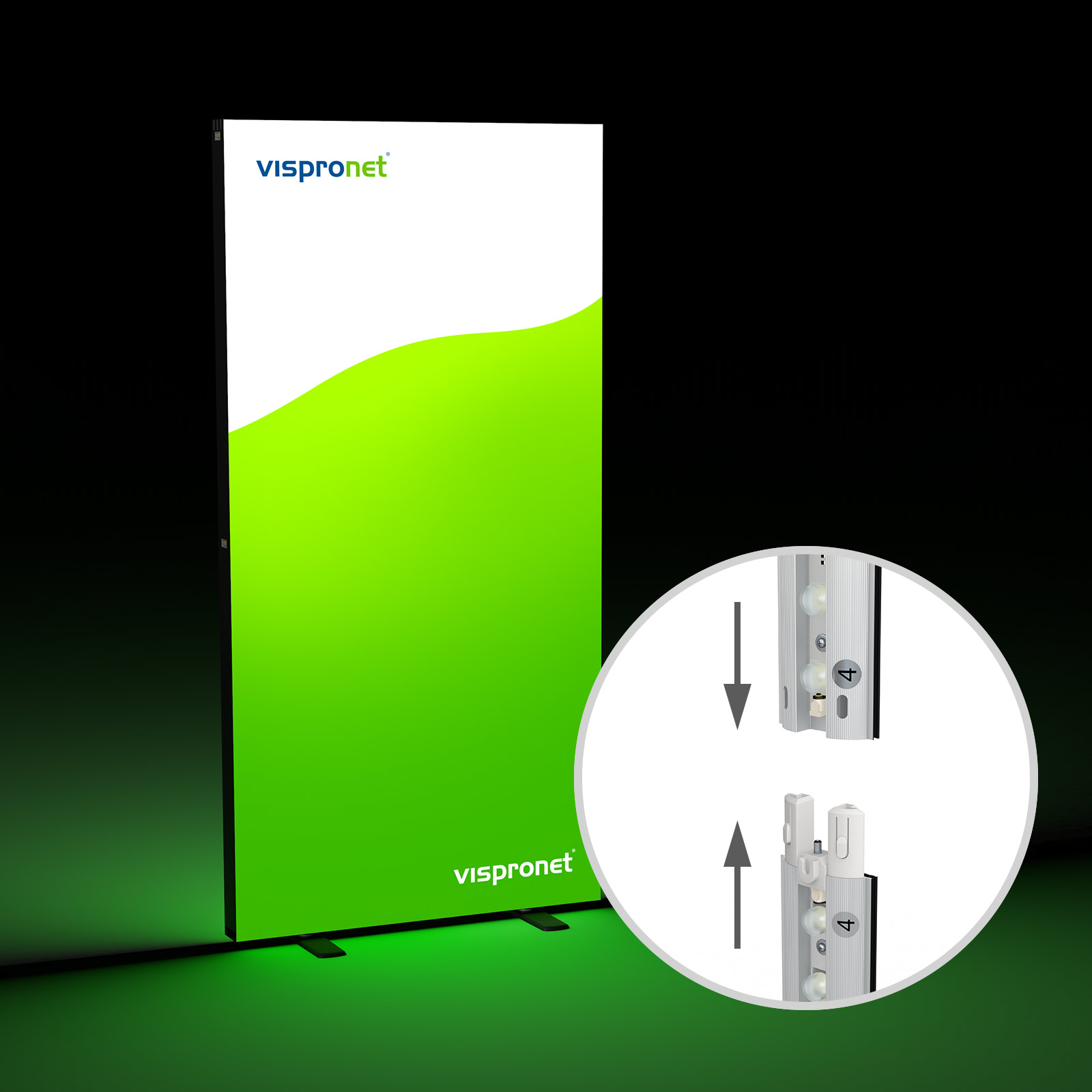

- Tool‑free assembly: align feet, connect frame elements via click system, insert support bar, connect power — done
Technical Data
- Voltage: 24V
- Power: 96W
- Current: 4A
- Luminous flux: 4000 lumens
- Light color: cool white
- Lifespan: up to 20,000 hours
Tip: Use without mains socket via a portable power station, e.g. with Powerstation AC 500 Wh, sufficient for approx. 5 hours of operation. (not included)
Sizes & Weights
Number of Walls System
(W × H)System Weight Packaging Size
(W × H × D)Total Weight 1 100 × 200 cm 8.15 kg 105 × 33 × 17 cm 9.65 kg 2 200 × 200 cm 2 × 8.15 kg 2 packages each 105 × 33 × 17 cm 2 × 9.65 kg 3 300 × 200 cm 3 × 8.15 kg 3 packages each 105 × 33 × 17 cm 3 × 9.65 kg 4 400 × 200 cm 4 × 8.15 kg 4 packages each 105 × 33 × 17 cm 4 × 9.65 kg *Values are approximate
Scope of delivery

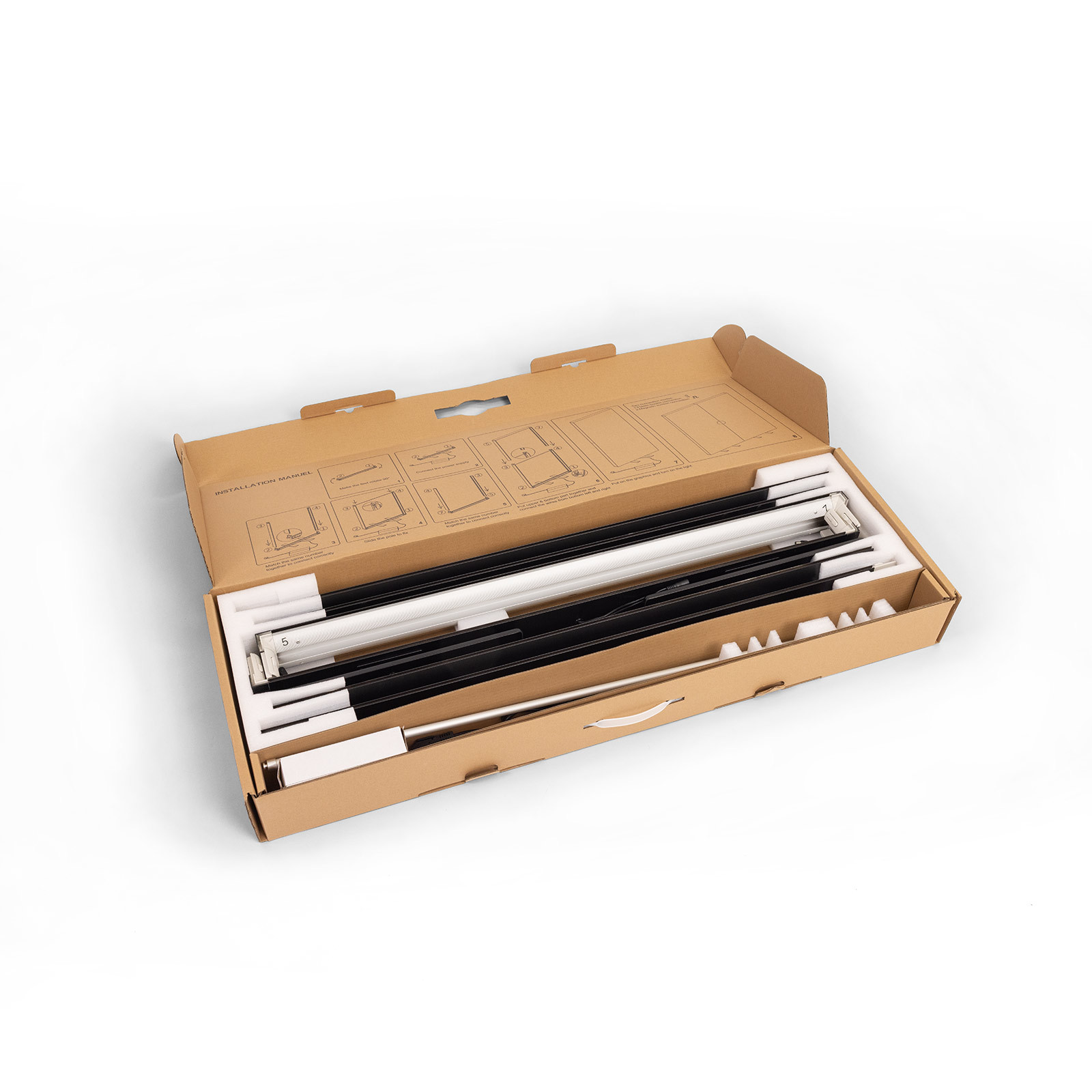

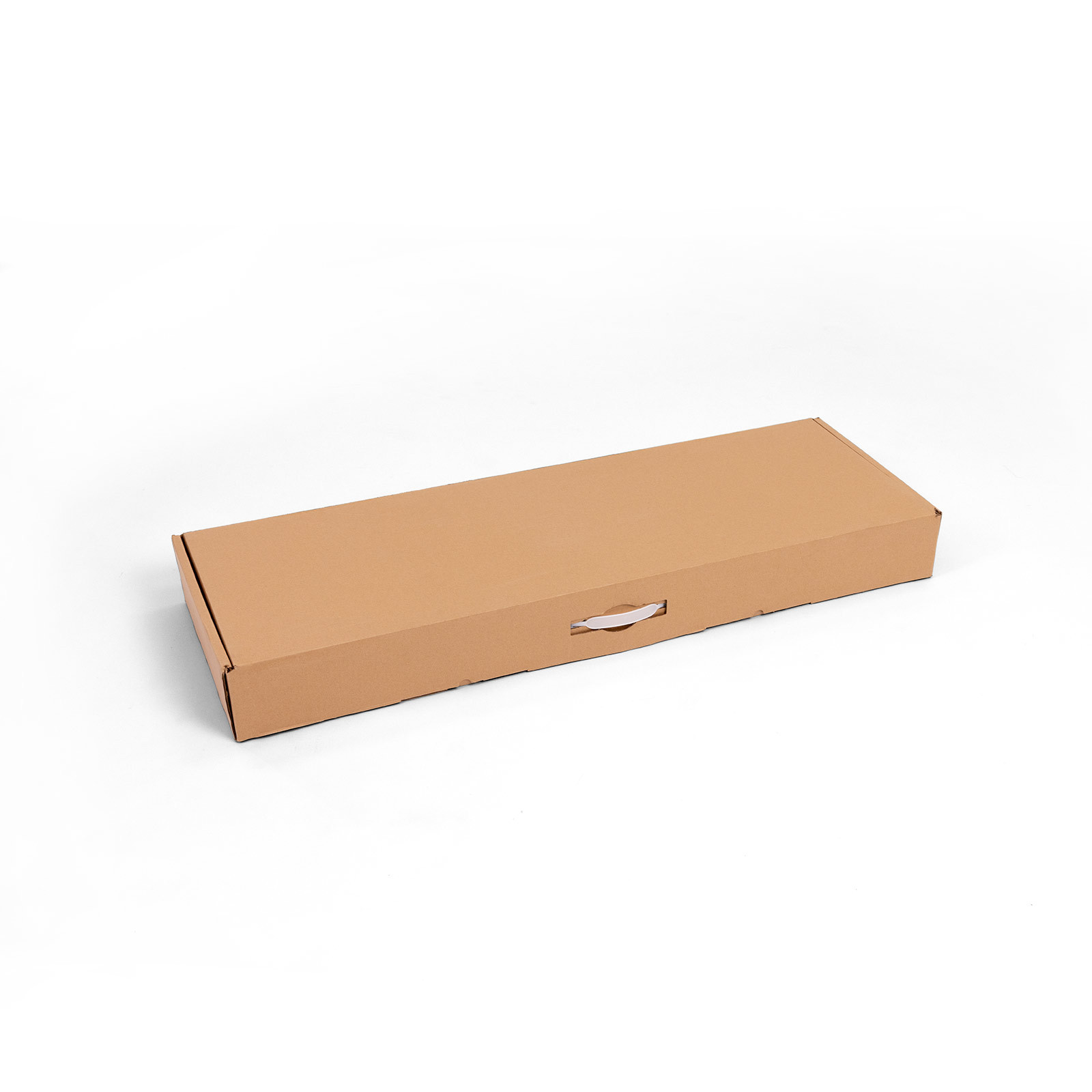

- Complete set: Lightbox click frame system, graphic prints or single‑color back panels, folding box
- Print panel: graphic(s) or back panel according to chosen option (without system)
- System: Lightbox click frame system, folding box (complete without textile panels)
Usage
- Indoor use
- Please observe the safety instructions for this product.
- * Notes on the use of Variotex® Z
- Cost‑effective alternative to Lighttex SE material, but requires careful handling.
- Recommended for permanent use only: not suitable for frequent assembly/disassembly.
- During transport and storage, always roll smoothly and wrinkle‑free onto a cardboard core with foam intermediate support.
- Creases in the material can lead to breaks, which are particularly visible under backlit applications.
