- Description
-
Print details
- bright colours with very good light fastness, special colours are possible
- advertising medium and shade provider in one

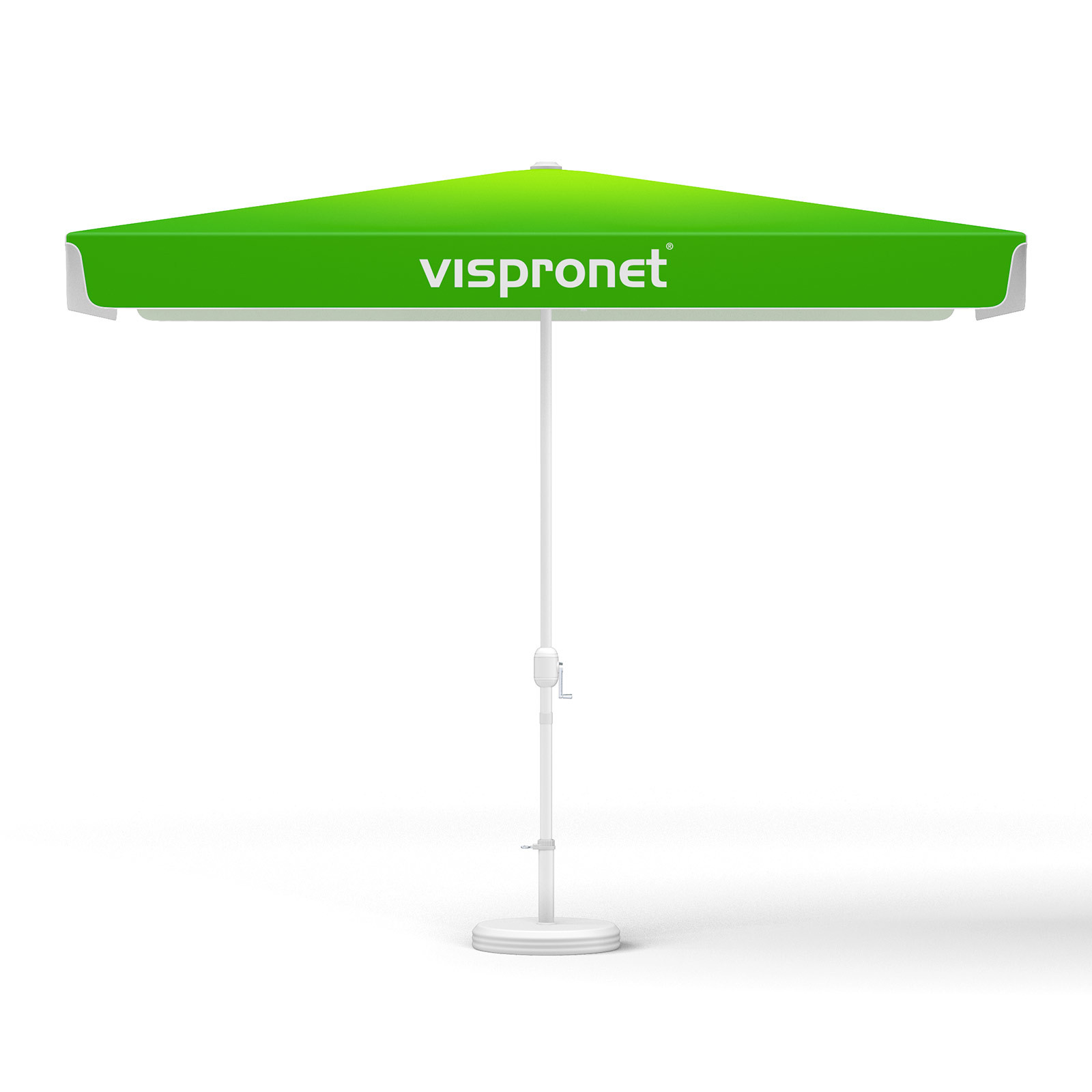

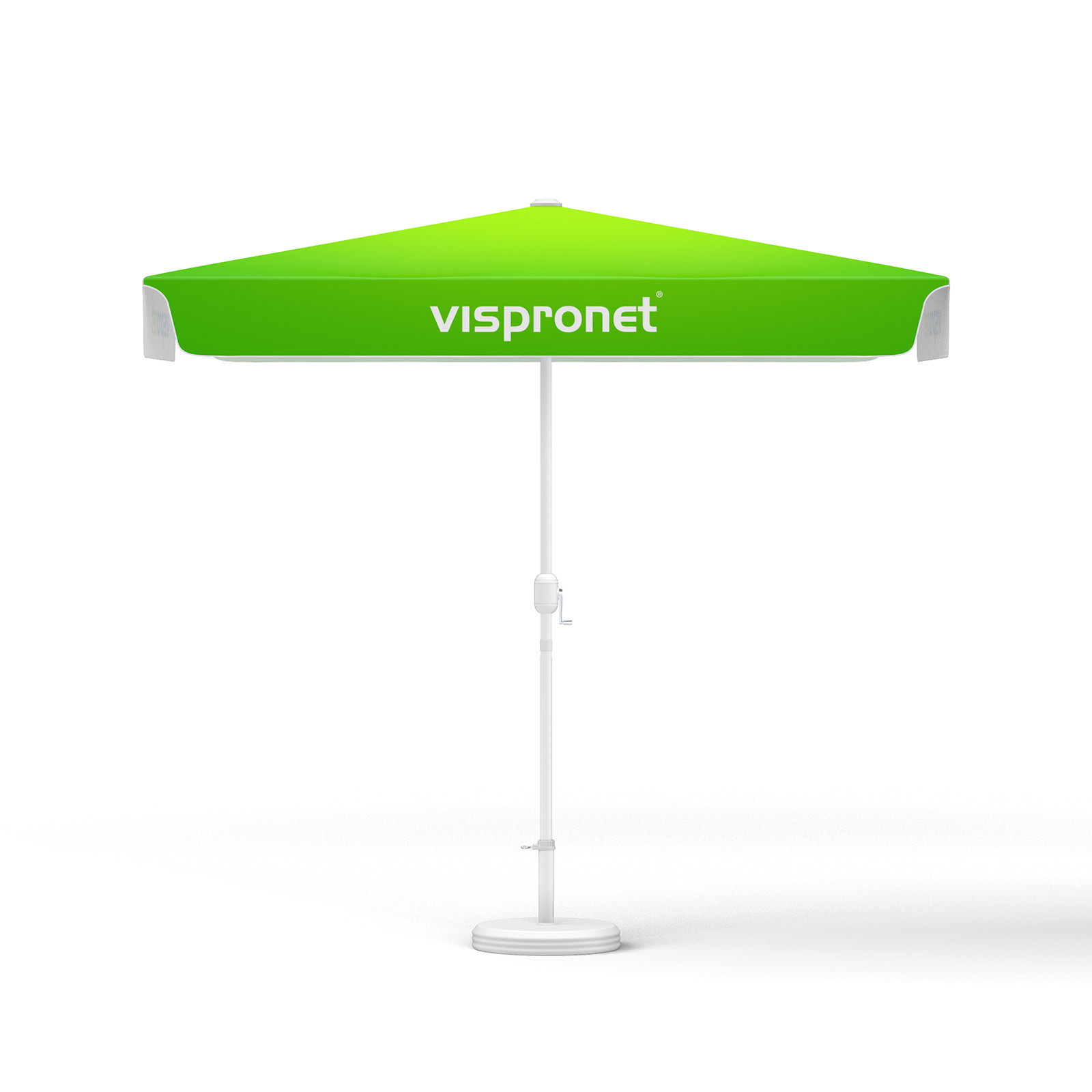

Rectangular parasol with crank
Rectangular parasol with a smooth-running crank for easy opening and closing. The 4-part rectangular canopy can be customised individually and makes the parasol a functional advertising medium and reliable shade provider.
Parasol sizes
- 250 × 150 cm, 4-part

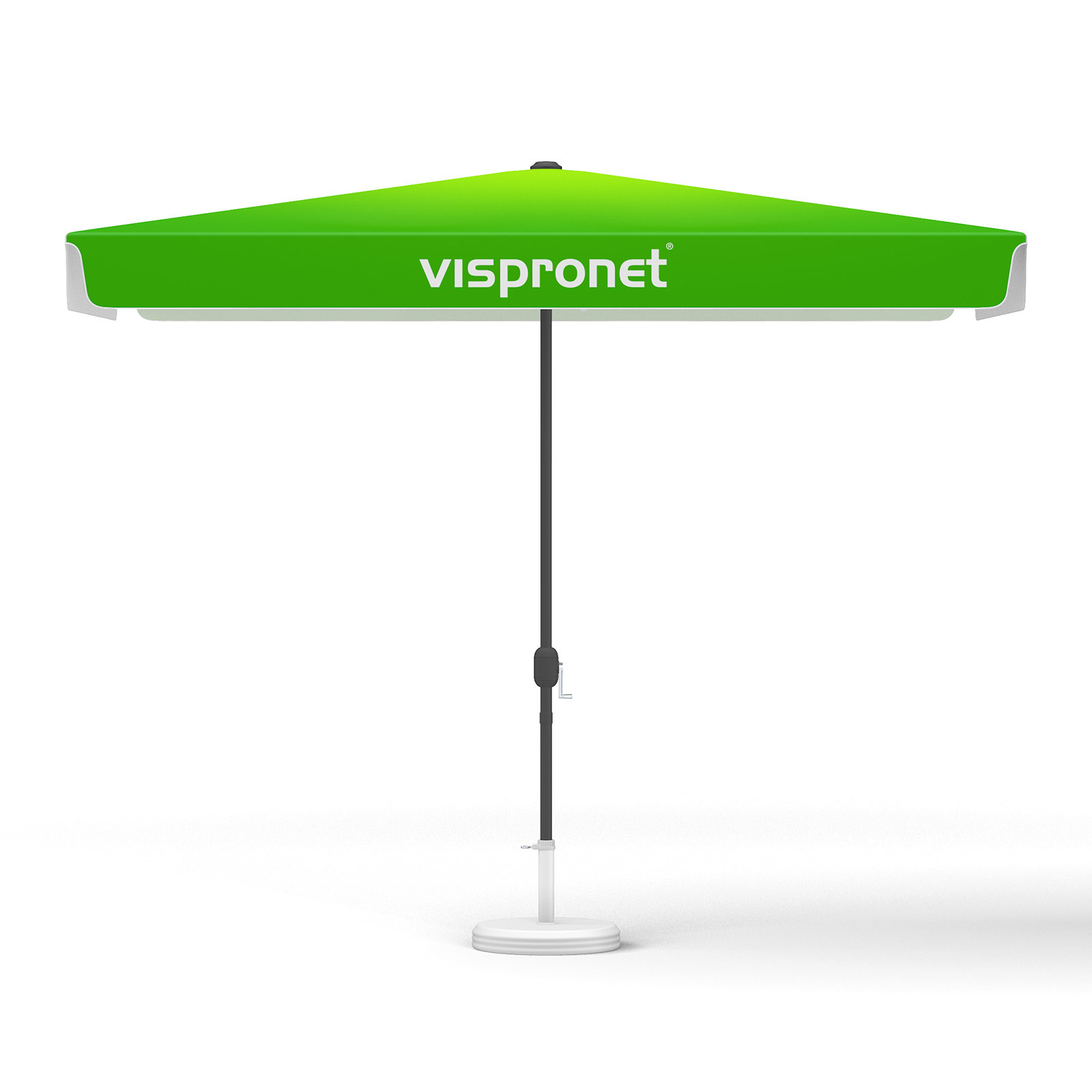

- 300 × 200 cm, 4-part

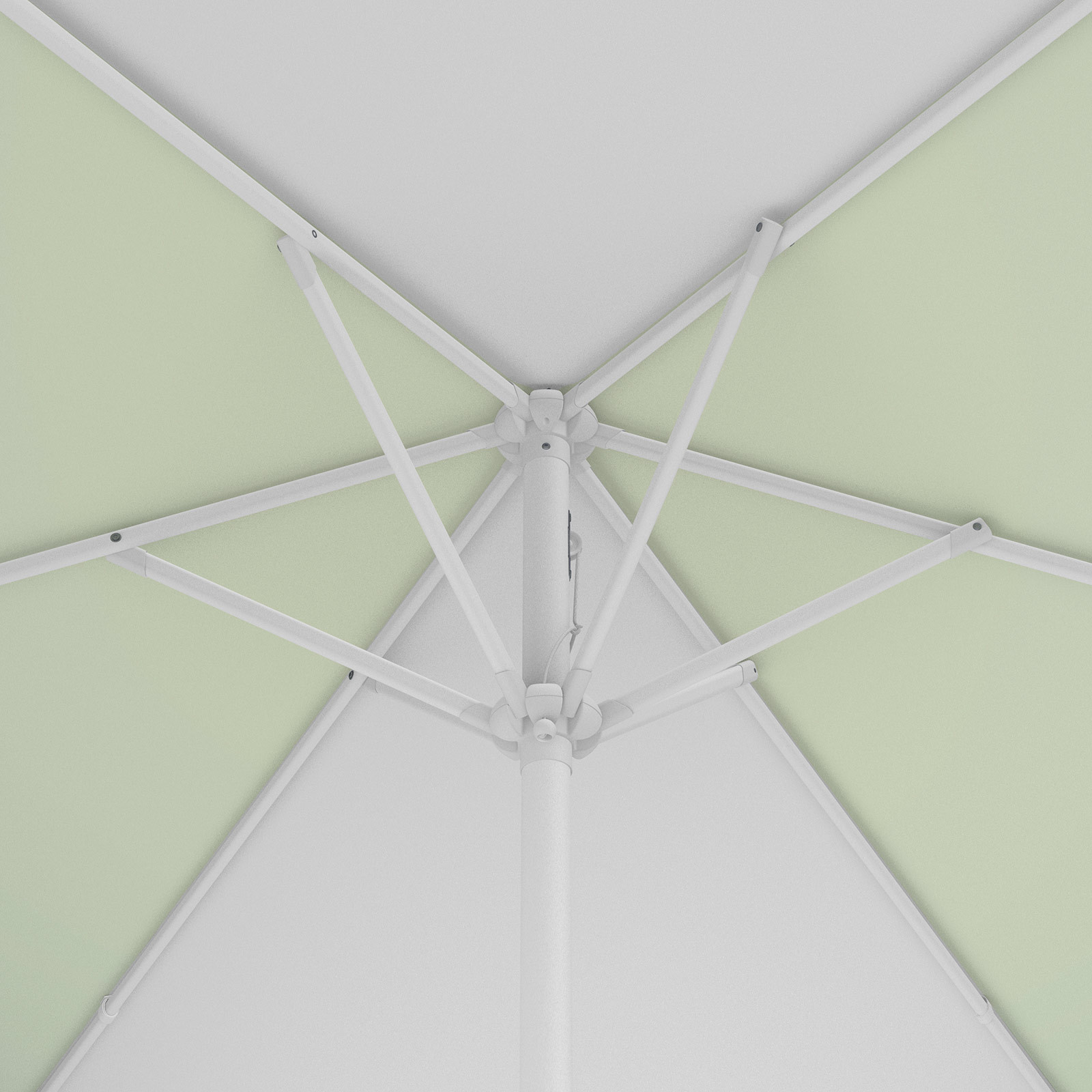

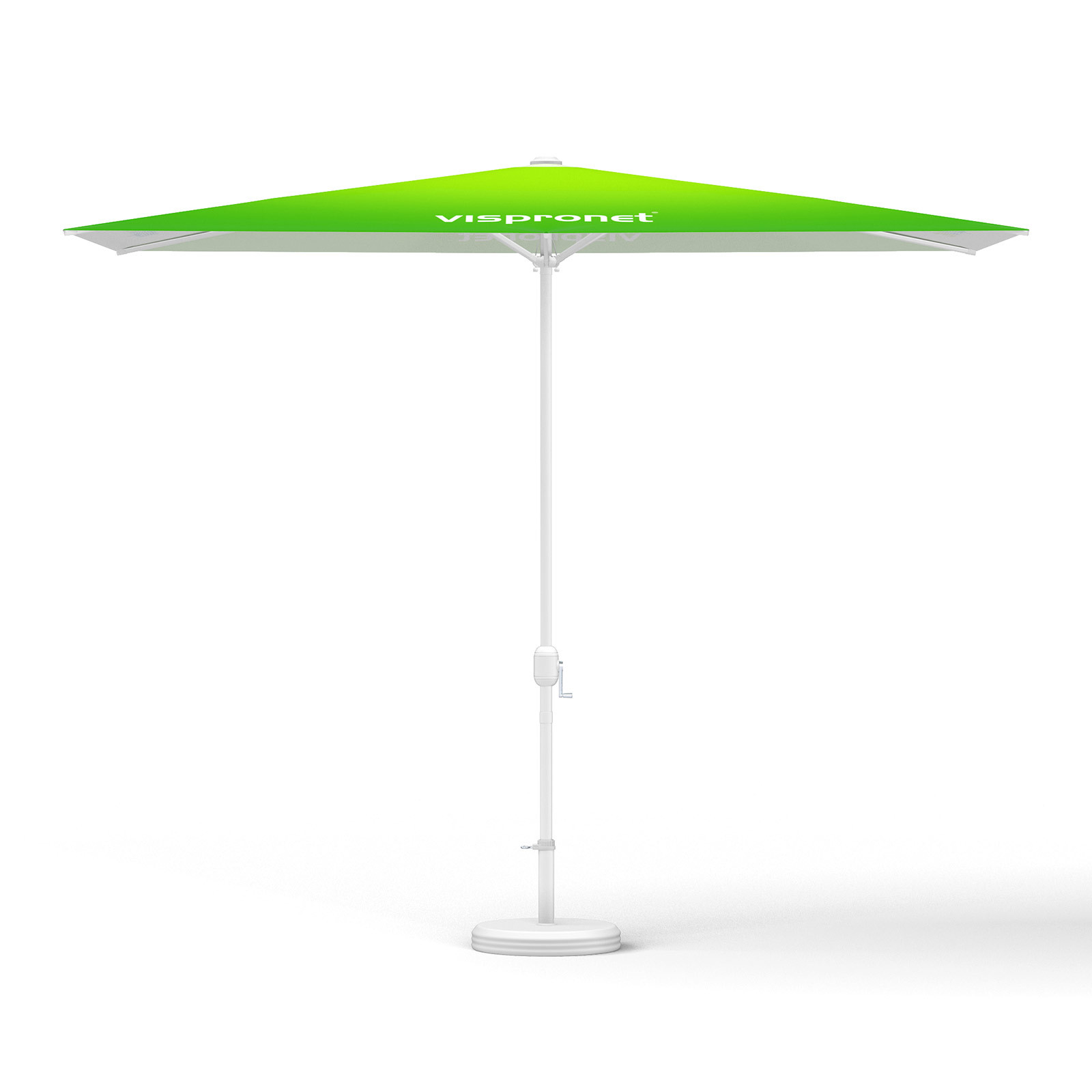

Parasol frame

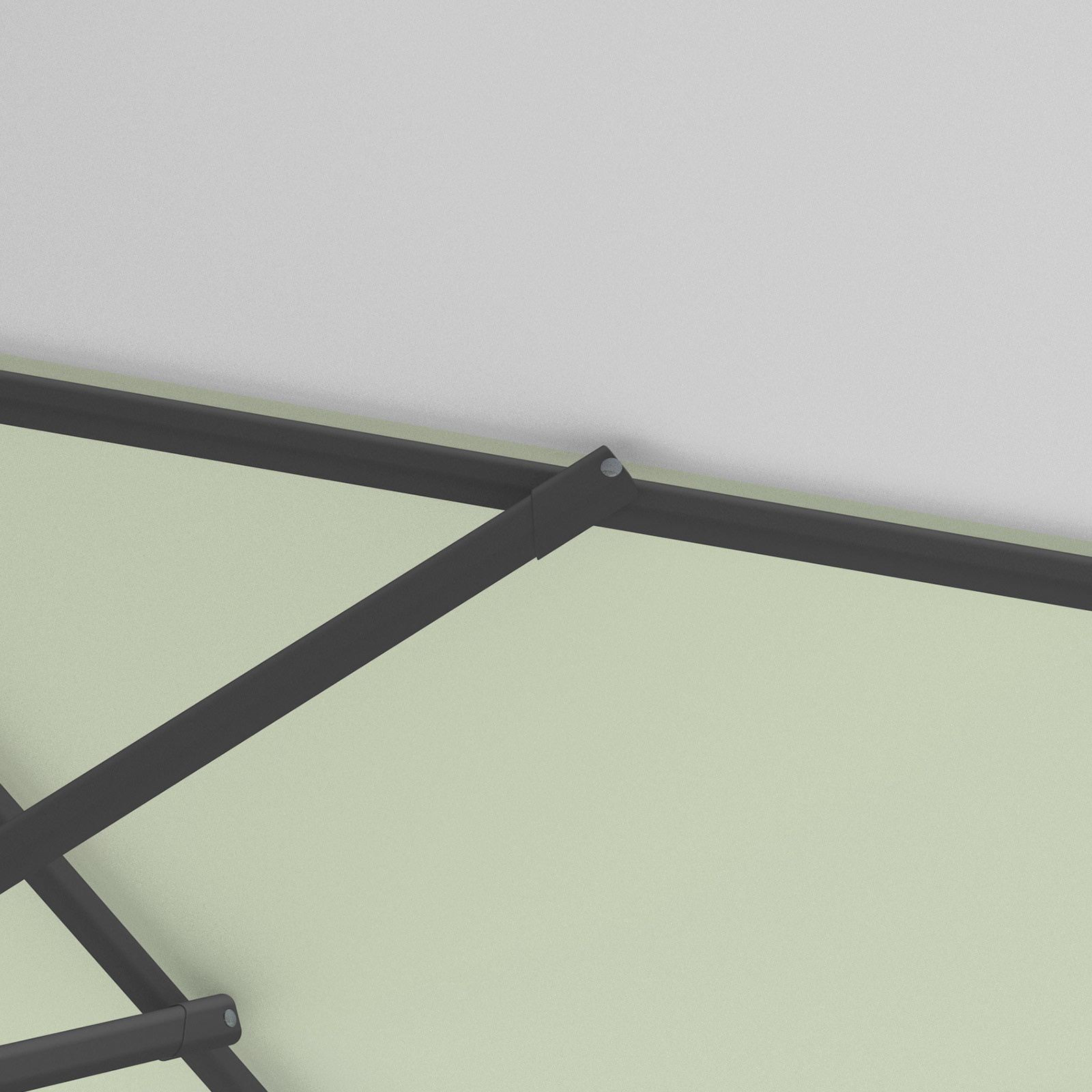

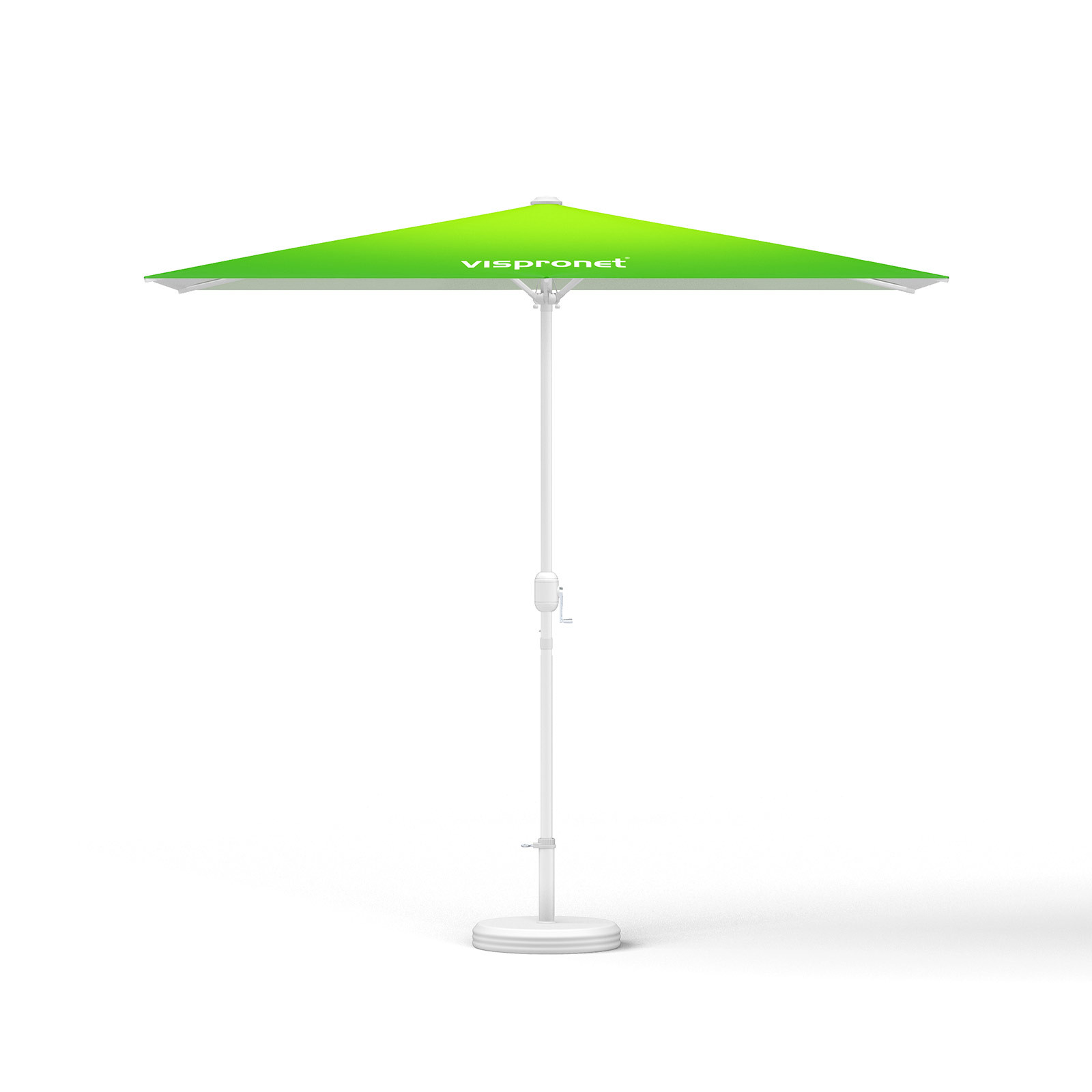

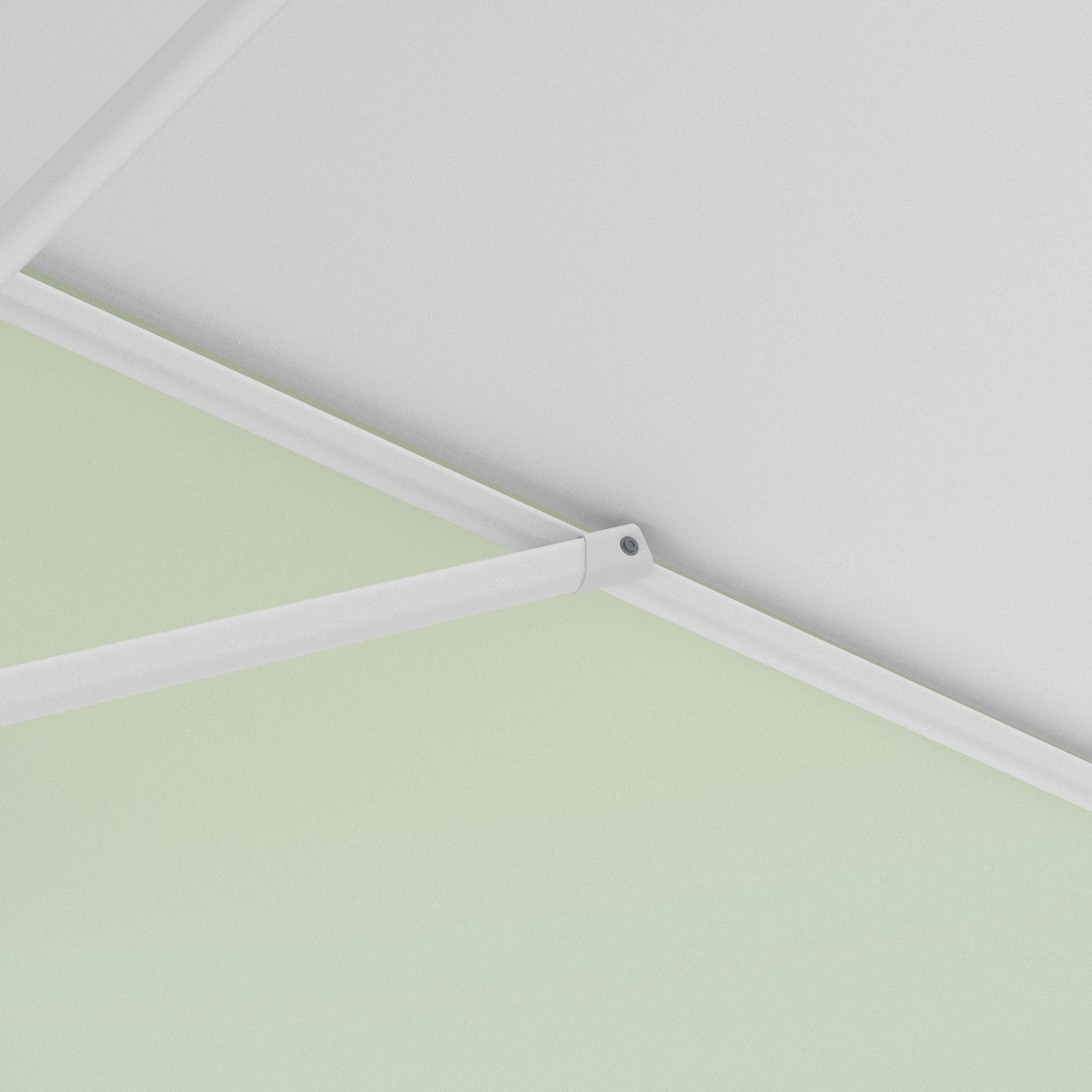

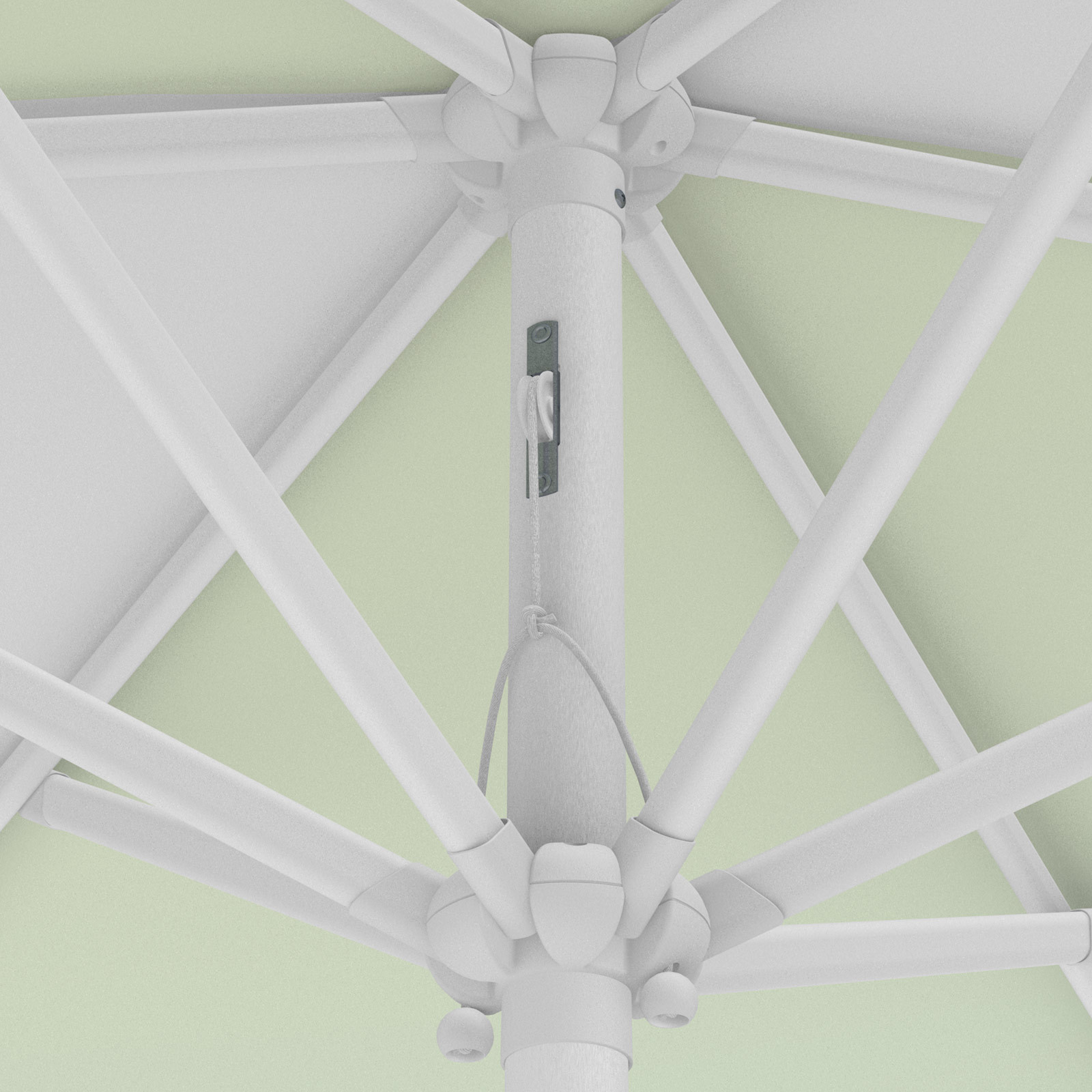

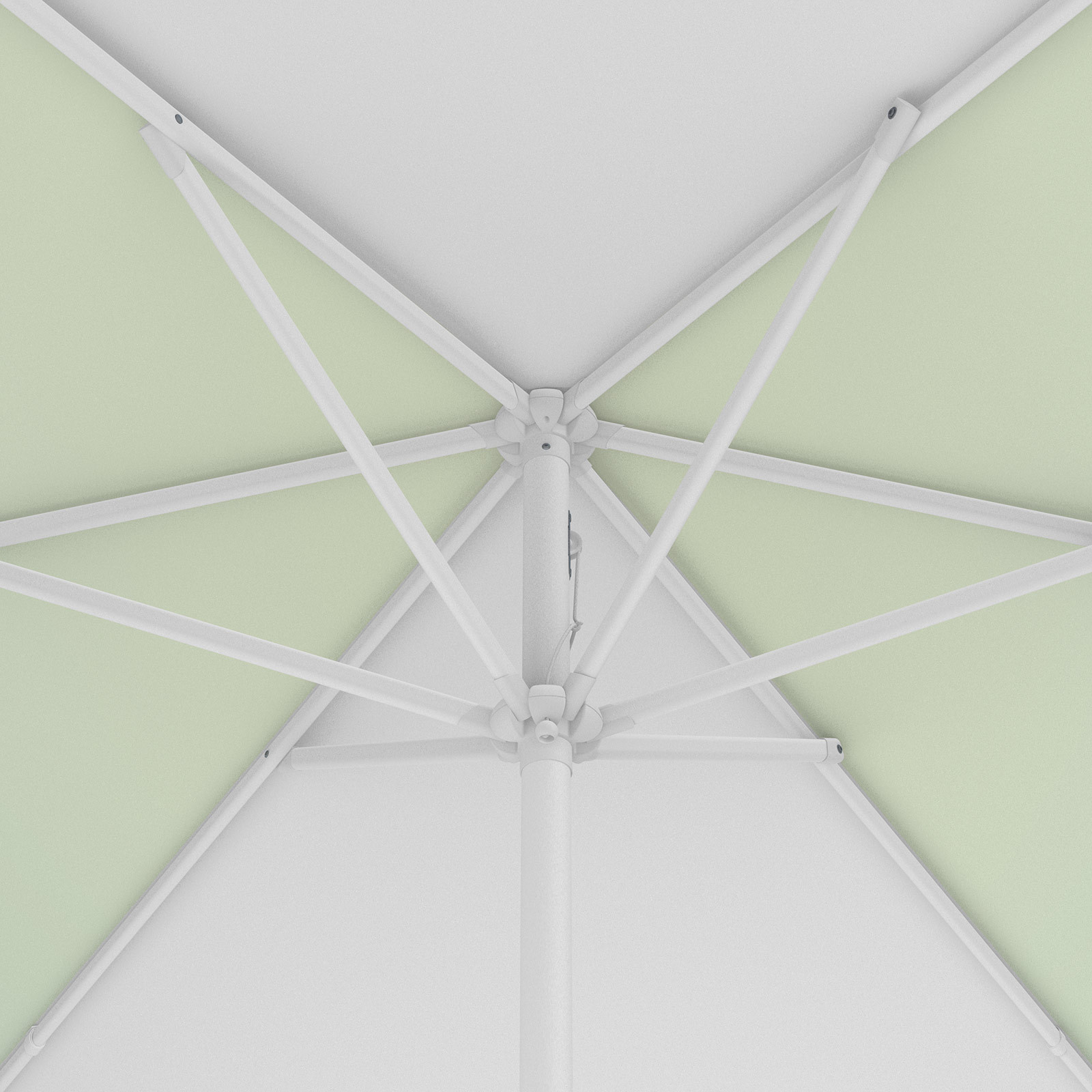

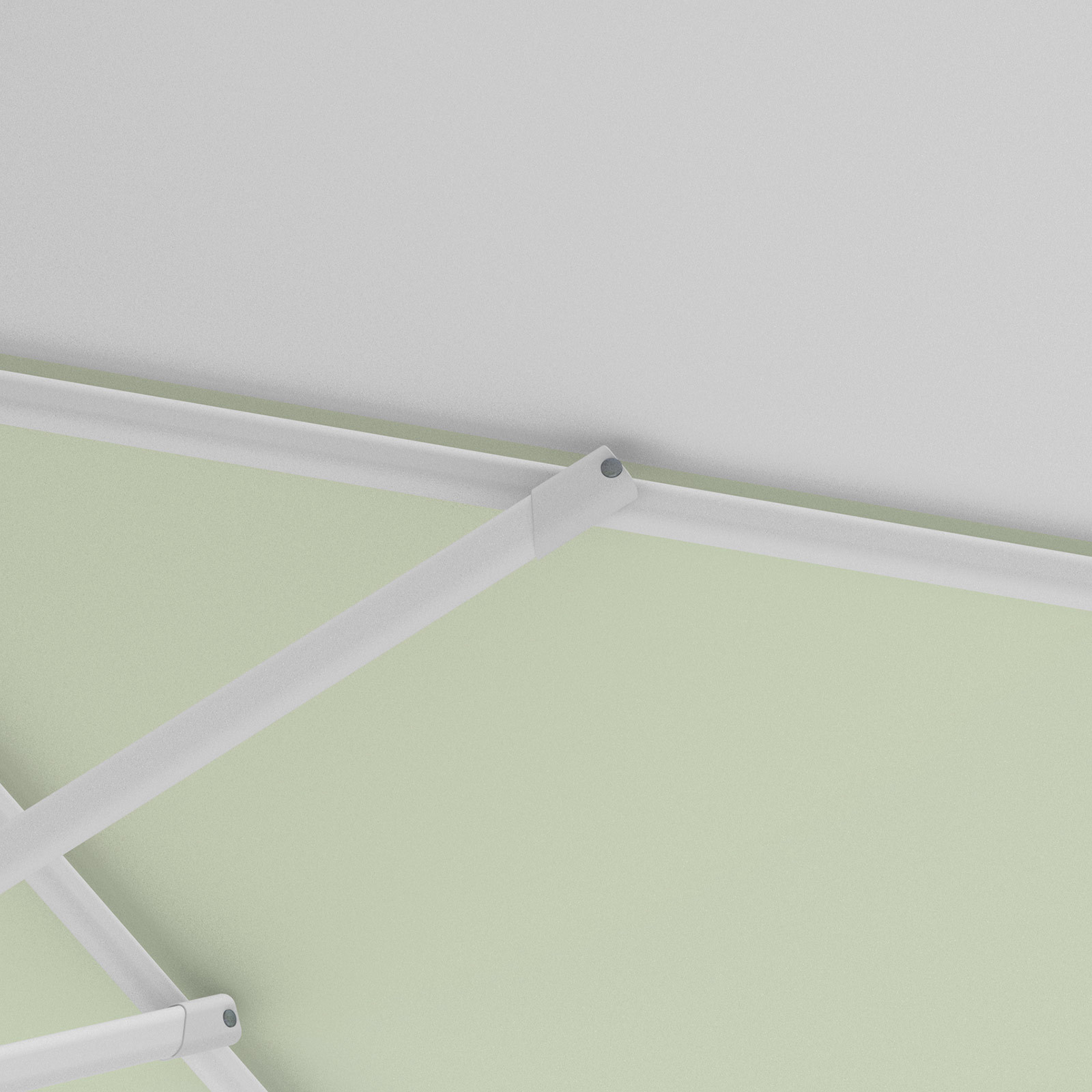

- aluminium tube with white powder coating, two-part parasol pole with plug-in connection, stable struts made of steel flat-oval hollow profiles
- screws and rivets made of rustproof materials

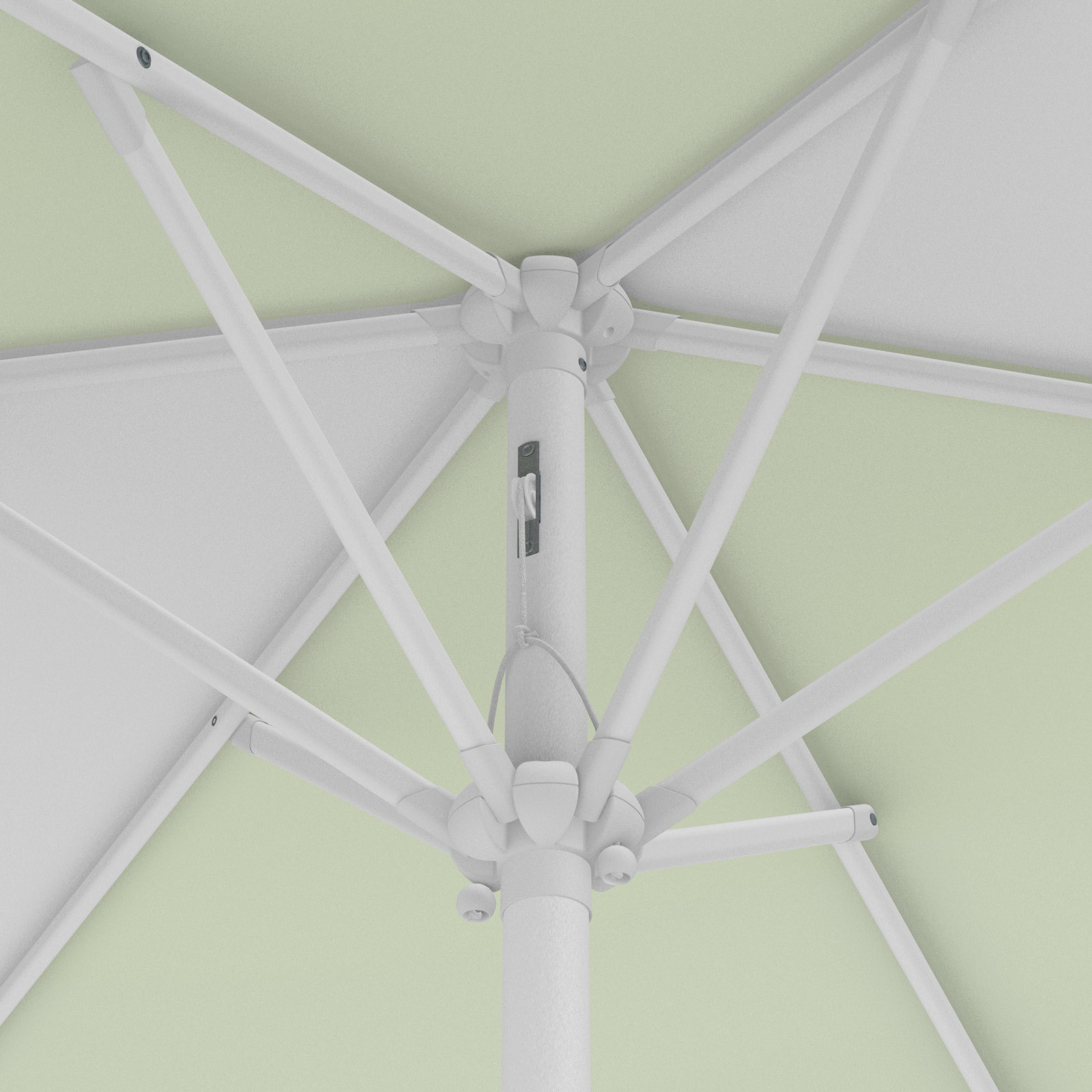

- incl. smooth-running crank operation
- incl. robust transport bag with draw loop

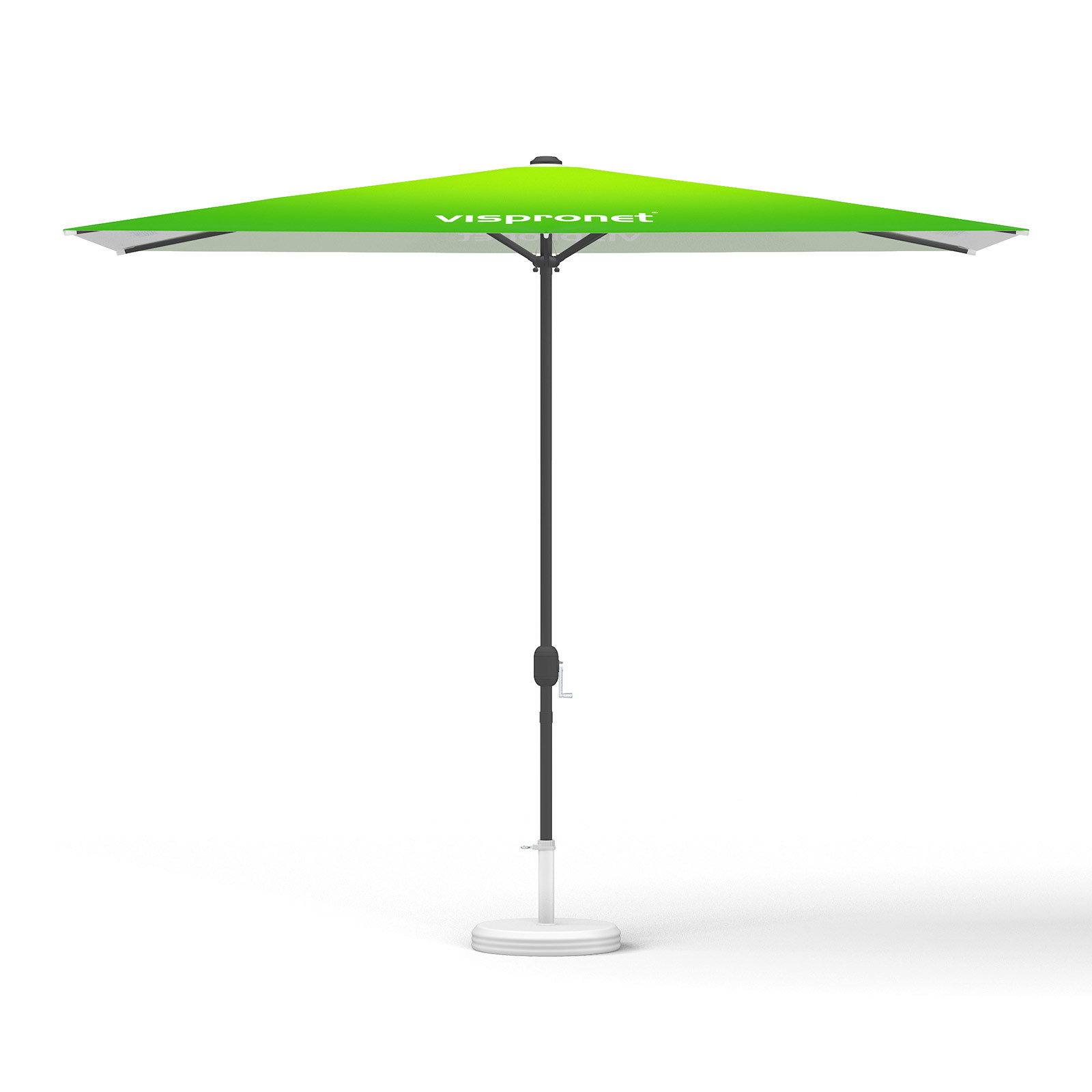

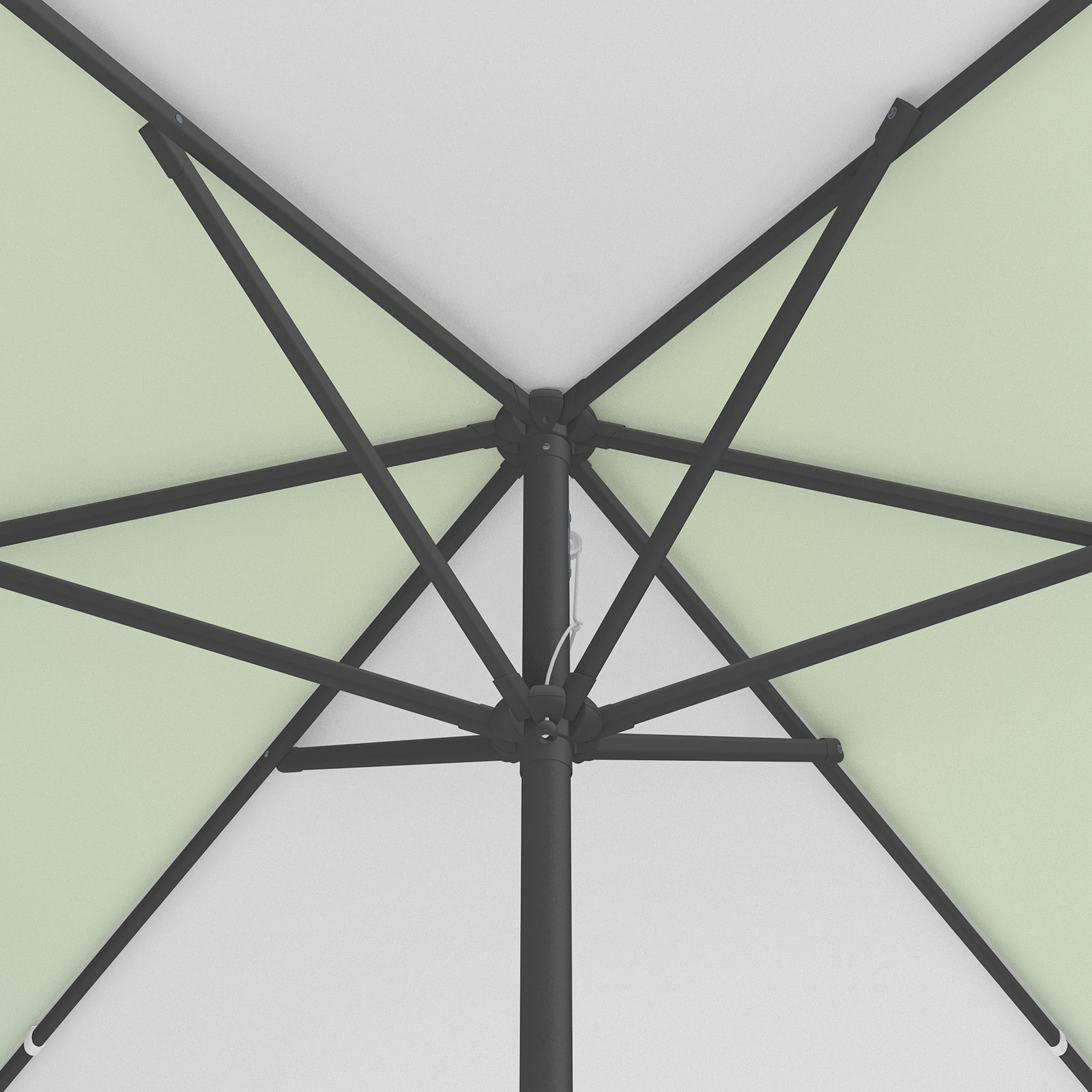

Parasol frame

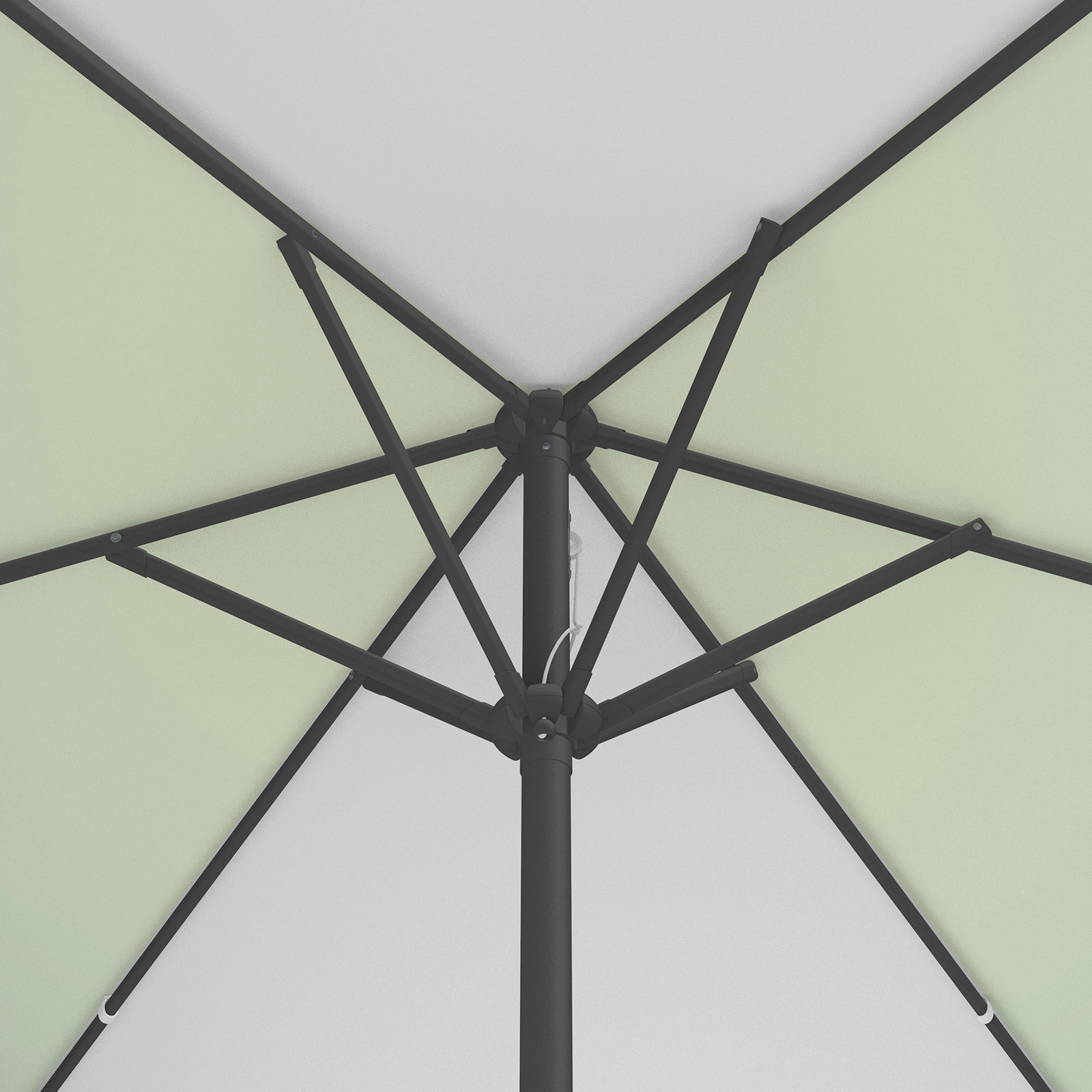

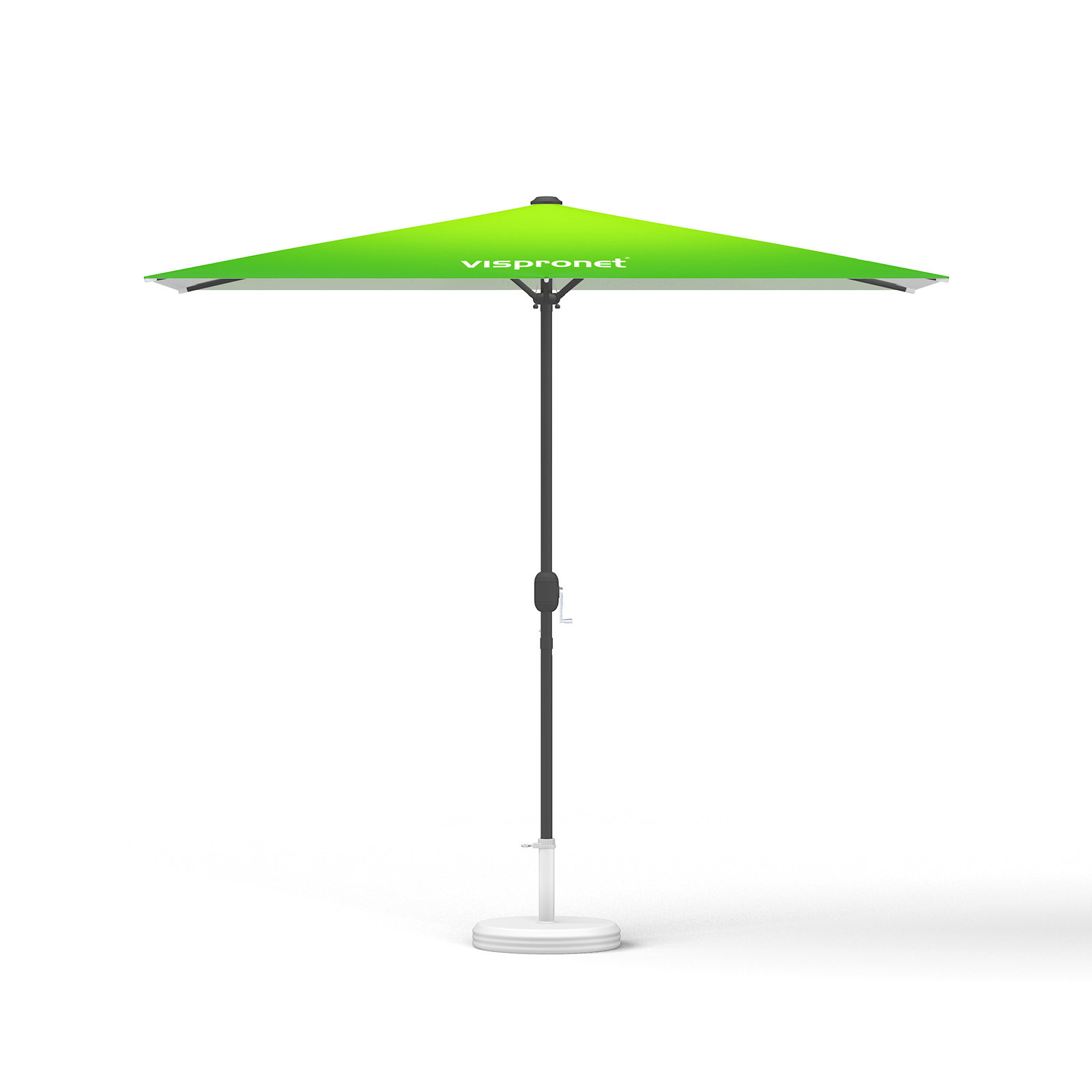

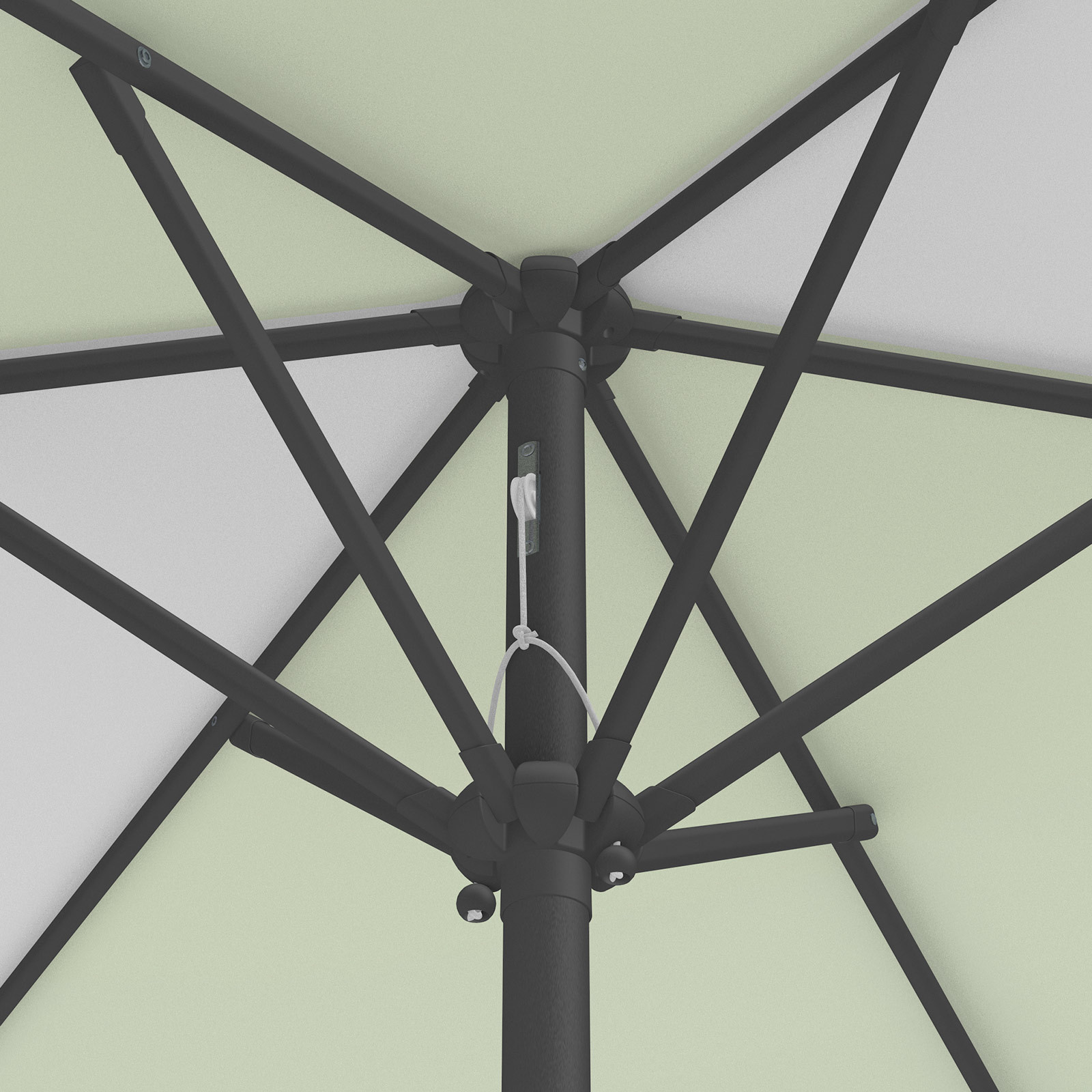

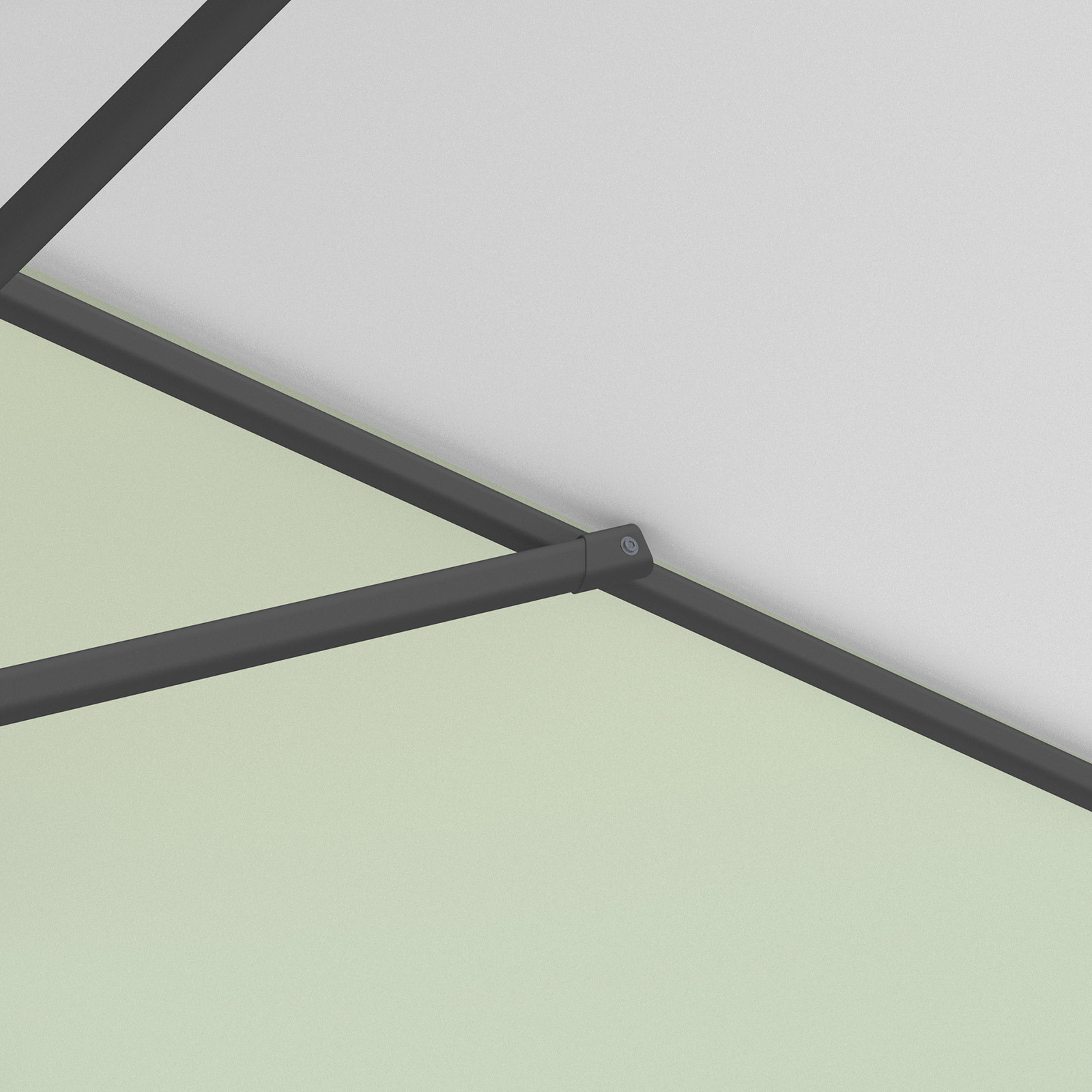

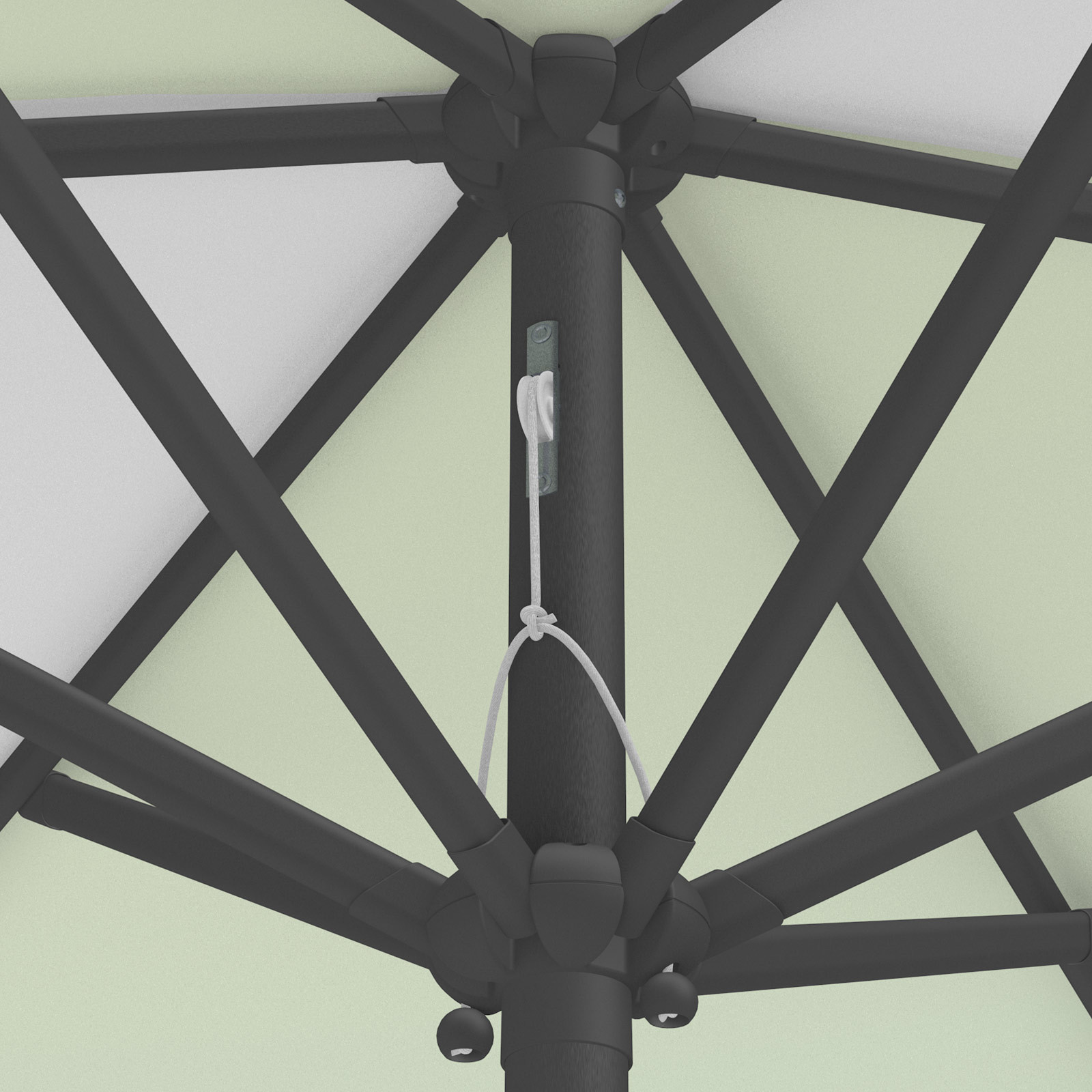

- aluminium tube with anthracite powder coating, two-part parasol pole with plug-in connection, stable struts made of steel flat-oval hollow profiles
- screws and rivets made of rustproof materials
- incl. smooth-running crank operation
- incl. robust transport bag with draw loop
Dimensions & weights
Canopy size Overall height Headroom
without valanceHeadroom
with valanceValance height ø pole
bottomCrank height Weight Packaging size 250 × 150 cm 244 cm 221 cm 190 cm 23 cm 38 mm 114 cm 4,9 kg 153 × 14 × 14 cm 300 × 200 cm 255 cm 232 cm 204 cm 23 cm 38 mm 90 cm 6,3 kg 186 × 13 × 13 cm *All dimensions are approximate; technical changes and tolerances reserved. The overall height and headroom may vary depending on the parasol stand used.
Canopy

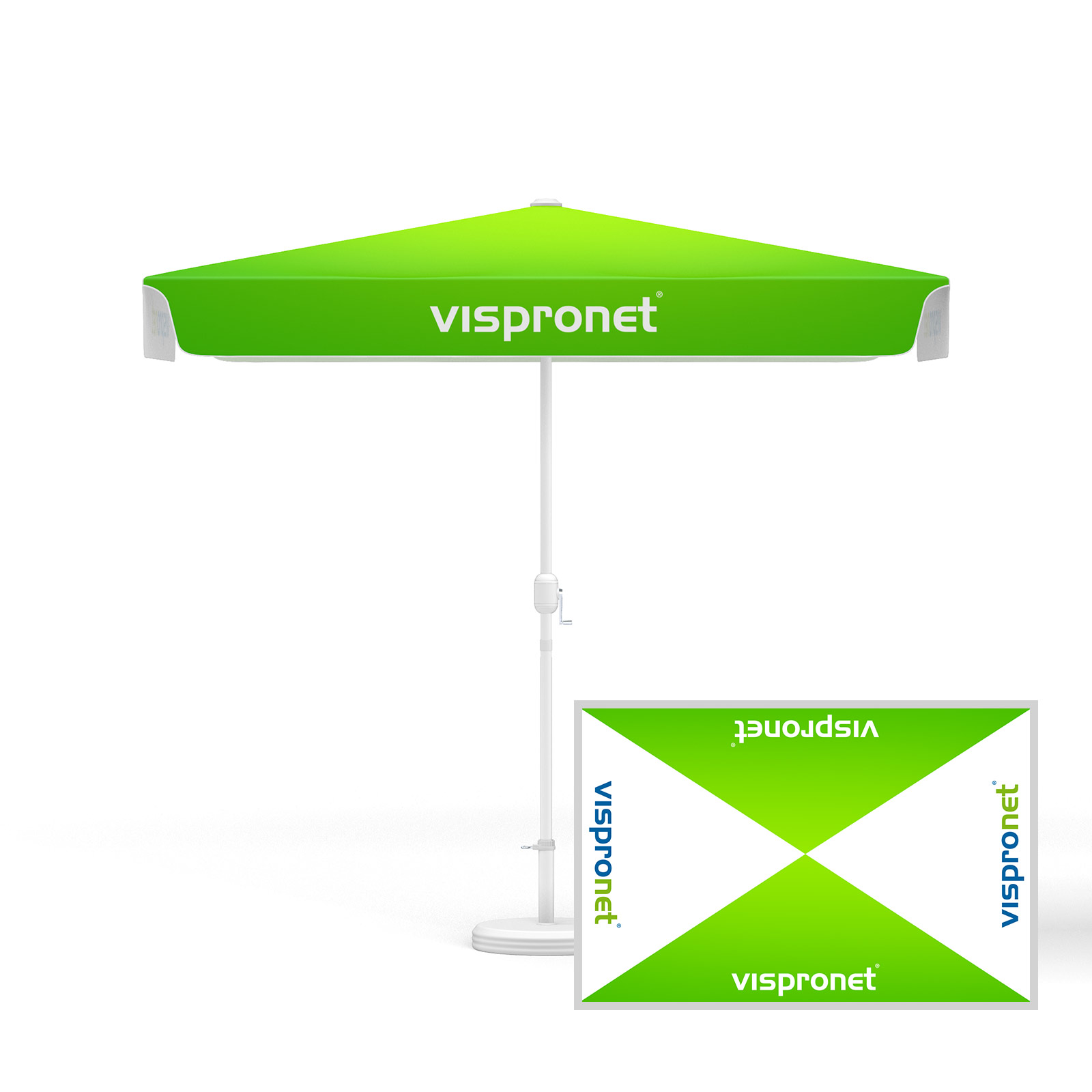

- 4-part, each 2 segments can be designed with the same or different motifs
- version: canopy made of 4 parts, valance with edging tape (10 standard colours selectable)
- different parasol stands selectable
Material
- Canopy fabric: polyester fabric Variotex® Z SE
- UV-resistant
- flame-retardant (DIN EN 13501-1)
- waterproof up to a water column of 2000 mm
- can be cleaned with a damp cloth - Lamination:
without lamination: printed parts without lamination must be handled carefully to avoid scratches, recommended for medium- to long-term use
with lamination: additional protection through special protective lamination after printing - highest scratch resistance, dirt-repellent, particularly long durability; recommended for long-term use, use at frequently changing locations.

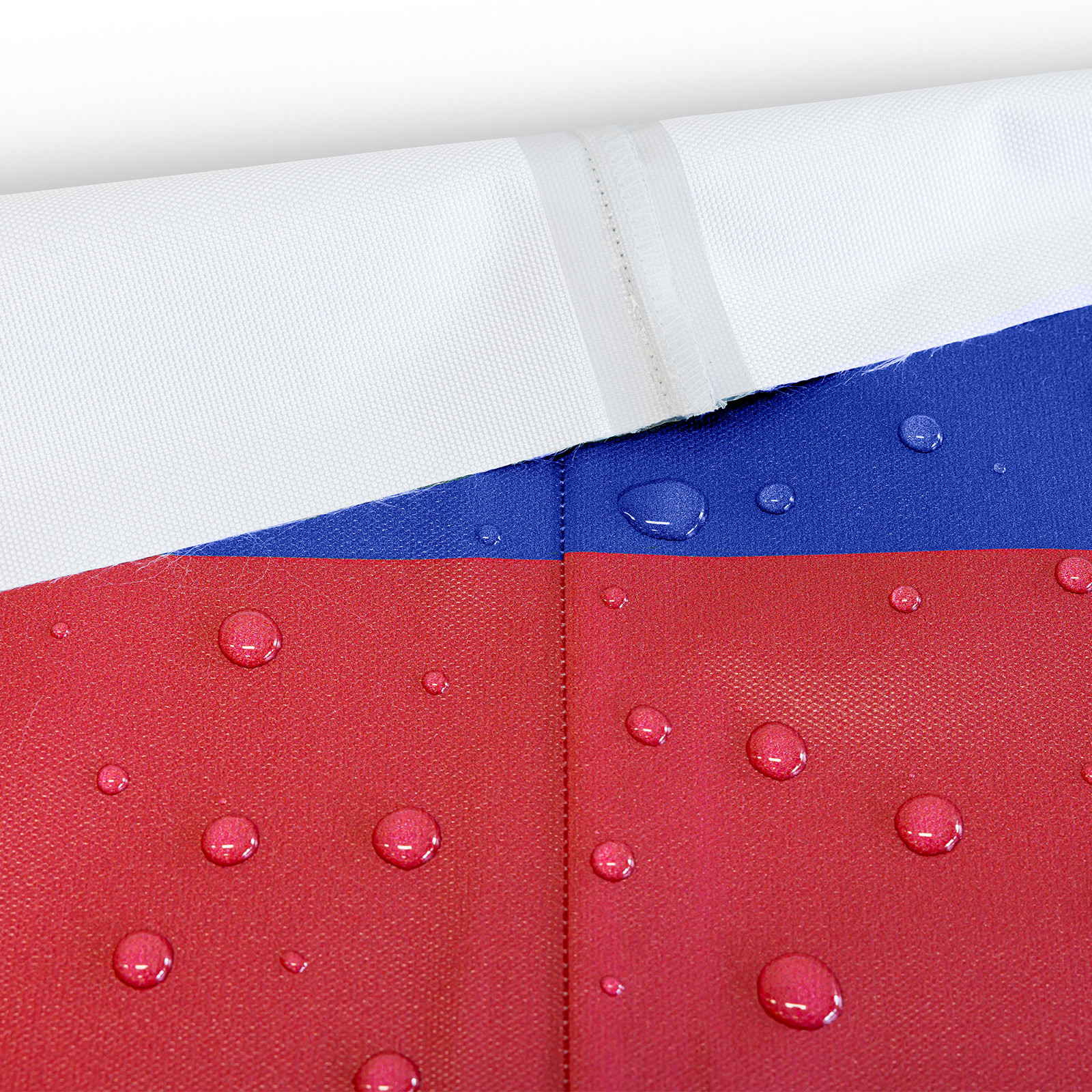

waterproof seams (optional): 100% waterproof due to tape-sealed seams, highest quality & additional weather protection
Parasol stands
Parasol stand Weight Plastic stand 30 l for pole ø 38 mm Filling capacity 30 l water Concrete base ø 50 cm/30 kg for pole ø 38 mm 30 kg Folding stand ø 117 cm/11,5 kg for pole ø 38 cm 11,5 kg *All dimensions are approximate; technical changes and tolerances reserved.
