- Description
-
Product details

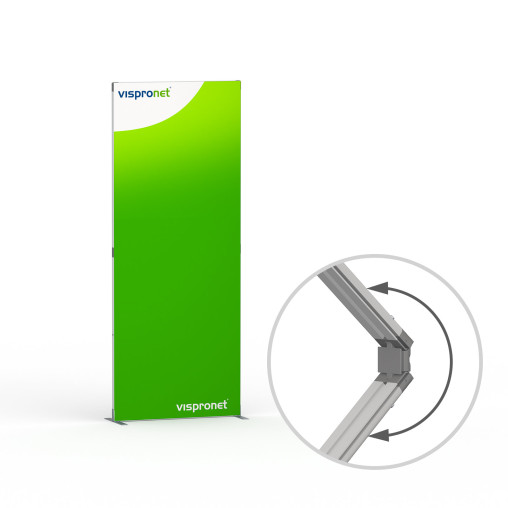

- Mobile, foldable exhibition wall made of aluminium with straight front
- Foldable advertising frame with utility model protection (GM: 20 2023 100 050)
- Modularly expandable as required
- Super-fast assembly: simply pull the frame system apart, insert the support rod - ready
- Light, narrow frame: 40 mm - for optimal effect of the motifs
- Incl. feet for a stable stand
- Additional stability through central support rod
- Fastening of the prints with keder - perfect, crease-free tension of the motifs
- Single or double-sided printing
- Same or different design on front and back possible
- For indoor use
- One system - many possibilities: individual walls can be combined with each other using connectors integrated in the frame
Sizes, dimensions and weights:
System height 200 cm 250 cm 300 cm 1 Exhibition wall
(= System width 100 cm)system weight ca. 7,00 kg 8,50 kg 14,50 kg 2 Exhibition walls
(= System width 200 cm)system weight ca. 14,00 kg 17,00 kg 29,00 kg 3 Exhibition walls
(= System width 300 cm)system weight ca. 21,00 kg 25,50 kg 43,00 kg 4 Exhibition walls
(= System width 400 cm)system weight ca. 28,00 kg 34,00 kg 57,00 kg Aluminium frame
- Foldable frame made of anodized aluminum
- Frame depth: 40 mm
- Incl. feet: 40 cm
- Connectors integrated in the frame (right and left frame side)
- Incl. practical padded carrying bag
Large carrying bag(s) Keder display flex 100 x 200 cm 20 x 105 cm Keder display flex 100 x 250 cm 22 x 146 cm Keder display flex 100 x 300 cm 22 x 146 cm und 16 x 104 cm Print
- multiple individual printed sections (each 100 cm wide; height variable depending on configuration) for front and back side
- Materials:
- Polyester fabric Multisol® X SE, approx. 200 g/m2
- Polyester fabric Multisol® X Opak SE, matt (opaque), approx. 250 g/m2
- Material for back side when front is printed on one side only:
Back unprinted (white): Multisol® X Opak SE, approx. 250 g/m2
Back unprinted (white) with black opaque barrier layer on the inside: Multisol® X SE, approx. 200 g/m2
- Please note that with light designs or large solid-colour areas in your print motif, the system may show through slightly. For this, we recommend the opaque material Multisol® X Opak SE.
- Design: fitted with a flat keder all around for fastening in the aluminum frame
- Note: For continuous print designs, a shift in the motif at the transitions between individual walls cannot be ruled out.
- Tip: Would you like a continuous print instead of several individual prints on your advertising frame? Then take a look at the Keder frame Flex .
