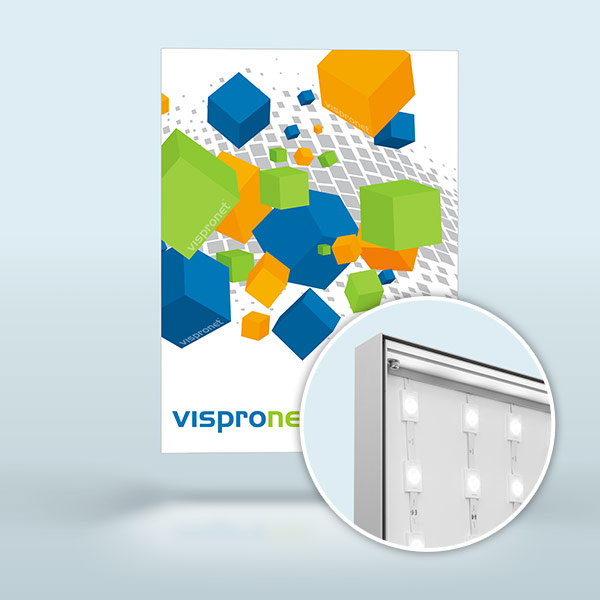

Lightbox Q-Frame® LED in portrait format
Portrait-format lightbox for striking visual impact:
The Q-Frame® LED in portrait orientation makes your message shine brightly.
The ultra-flat 50 mm profile with LED strips and white rigid foam rear panel ensures intense and uniform backlighting—ideal for indoor wall mounting in locations such as the point of sale, showrooms, or entrance areas.
Version – Print

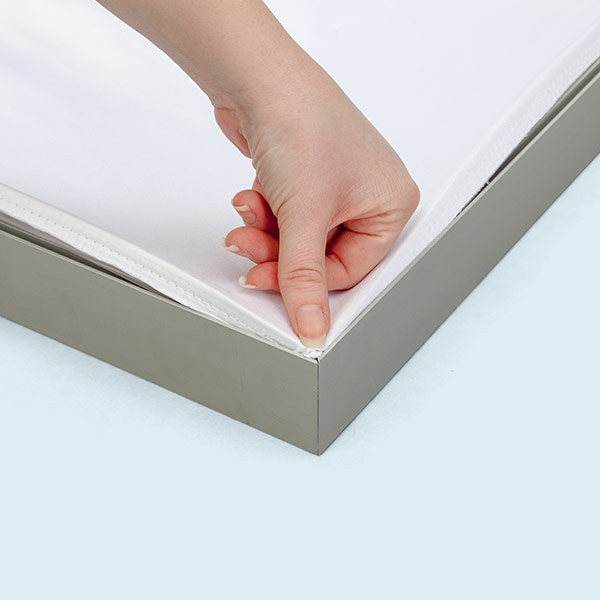

- Textile print, cut all around and equipped with flat keder for mounting in the aluminum frame
- Flat keder ensures secure fixation and a taut, wrinkle-free appearance
- Quick and tool-free graphic replacement
Material
- Lighttex SE: flame-retardant polyester fabric, specially designed for optimal backlit graphics
Version – System
- Wall-mounted frame made of aluminum, silver anodized
- Frame depth: 50 mm

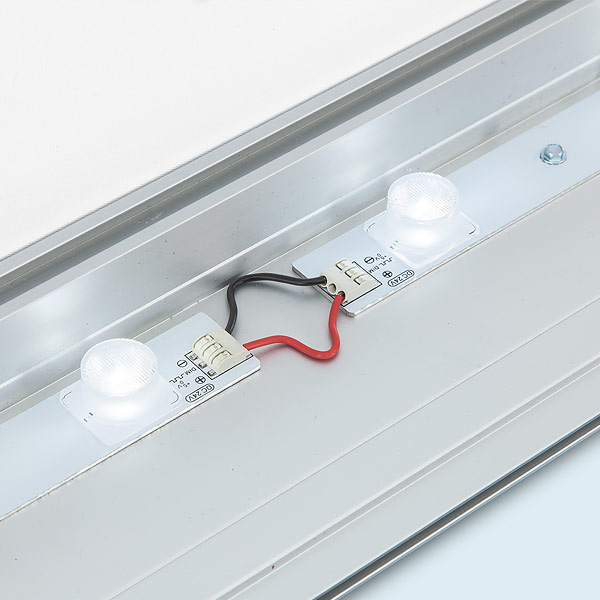

- LED strips provide evenly distributed, high-intensity backlighting
- Low-heat LEDs, pre-installed at the factory

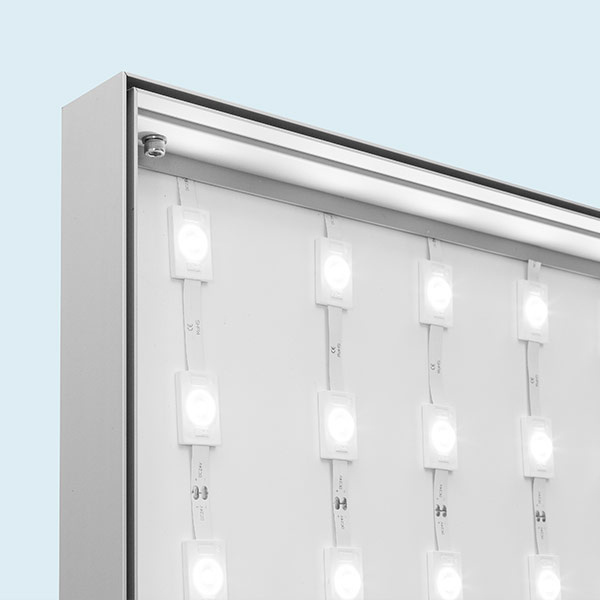

- Rear panel made of stable white rigid foam (3 mm) for optimal light diffusion
- LED lifetime: up to approx. 22,000 hours
Note: The LED color temperature (6250–6500K) may cause slight color shifts in the illuminated print in individual cases.
Sizes*
| Specification |
Custom Sizes |
| Frame Width |
40 cm – 200 cm |
| Frame Height |
40 cm – 300 cm |
A selection of proven standard formats in portrait orientation is also available.
*All measurements are approximate; technical changes and tolerances reserved.
Scope of delivery
- Complete set: Q-Frame® LED lightbox including pre-assembled frame profiles with corner connectors, split white rigid foam rear panel with LED strips, wall brackets, textile print
- Print components: textile print, split white rigid foam rear panel with LED strips (without frame system)
- System components: Q-Frame® LED lightbox with pre-assembled frame profiles, split white rigid foam rear panel with LED strips, wall brackets (without print components)
- From a print area of 1 m2, delivery is disassembled to ensure the lowest possible logistics costs
Application
- Wall mounting for indoor use
