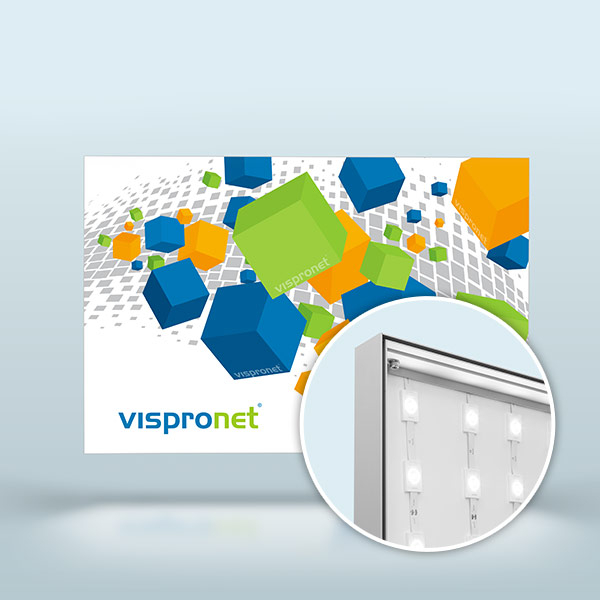

Lightbox Q-Frame® LED in landscape format
Landscape lightbox for maximum visual impact:
The Q-Frame® LED in landscape orientation lets your visuals shine brilliantly.
The ultra-flat 50 mm profile with integrated LED strips and a white rigid foam back panel ensures intensive, uniform backlighting – ideal for indoor wall mounting in areas such as the point of sale, showrooms, or entrance areas.
Version – Print

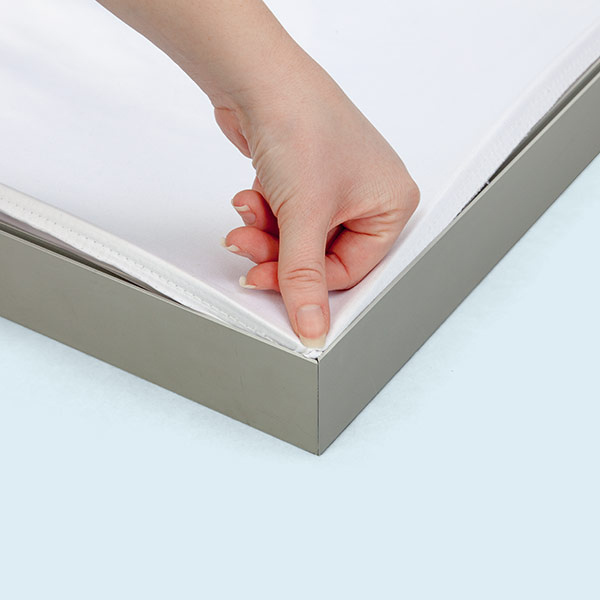

- Textile print, cut all around and equipped with flat keder for mounting into the aluminum frame
- The flat keder provides secure tensioning and a wrinkle-free display
- Quick and tool-free graphic change
Material
- Lighttex SE: flame-retardant polyester fabric, specially designed for optimal backlit messaging
Version – System
- Wall frame made of silver anodized aluminum
- Frame depth: 50 mm

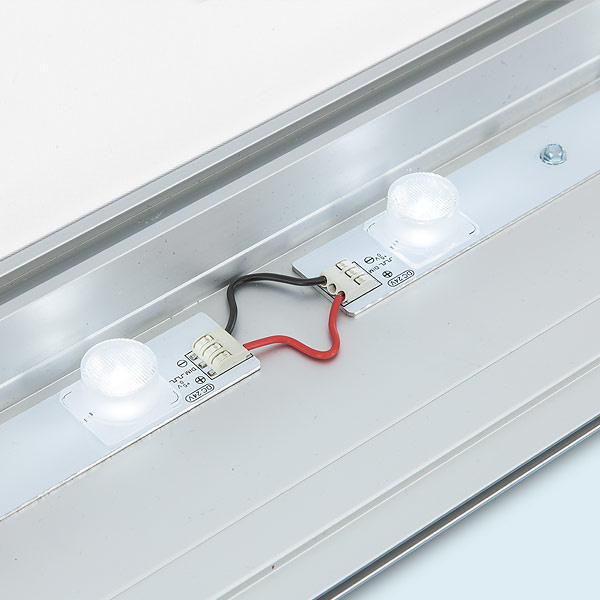

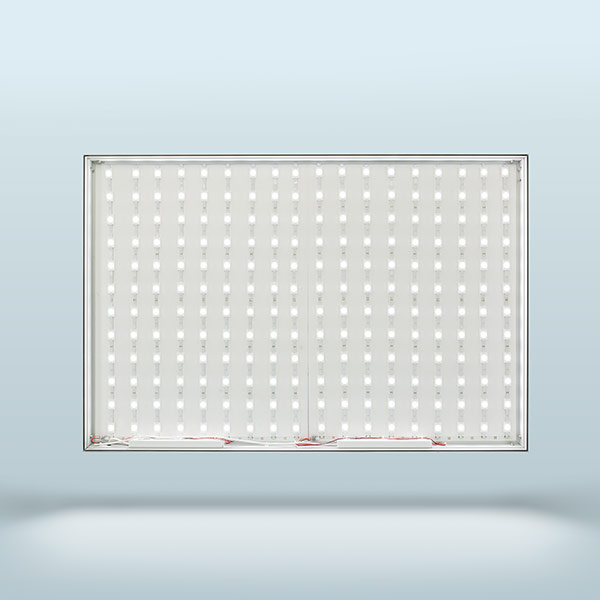

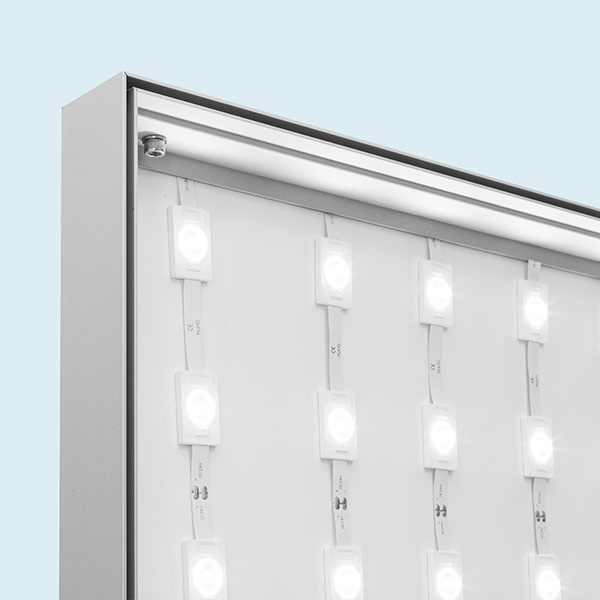

- LED strips for particularly uniform and intense backlighting across the entire surface
- Low-heat LED components, pre-installed at the factory
- Rear panel made from stable white rigid foam (3 mm) for optimal light diffusion
- LED lifespan: up to approx. 22,000 hours
Note: The LED color temperature (6250–6500K) may cause slight color deviations in the illuminated state.
Sizes*
| Specification |
Custom Sizes |
| Frame Width |
40 cm – 300 cm |
| Frame Height |
40 cm – 200 cm |
You can also choose from a selection of proven standard formats in landscape orientation.
*All dimensions are approximate; subject to technical modifications and tolerances.
Scope of delivery
- Complete set: Q-Frame® LED lightbox with pre-assembled frame profiles and corner connectors, split white rigid foam rear panel with LED strips, wall brackets, and textile print
- Print components: textile print and split white rigid foam rear panel with LED strips (without frame system)
- System components: Q-Frame® LED frame with pre-assembled profiles, split rigid foam rear panel with LED strips, wall brackets (without print components)
- From a print area of 1 m2, disassembled delivery for lowest logistics costs
Application
- Wall-mounted installation for indoor use
