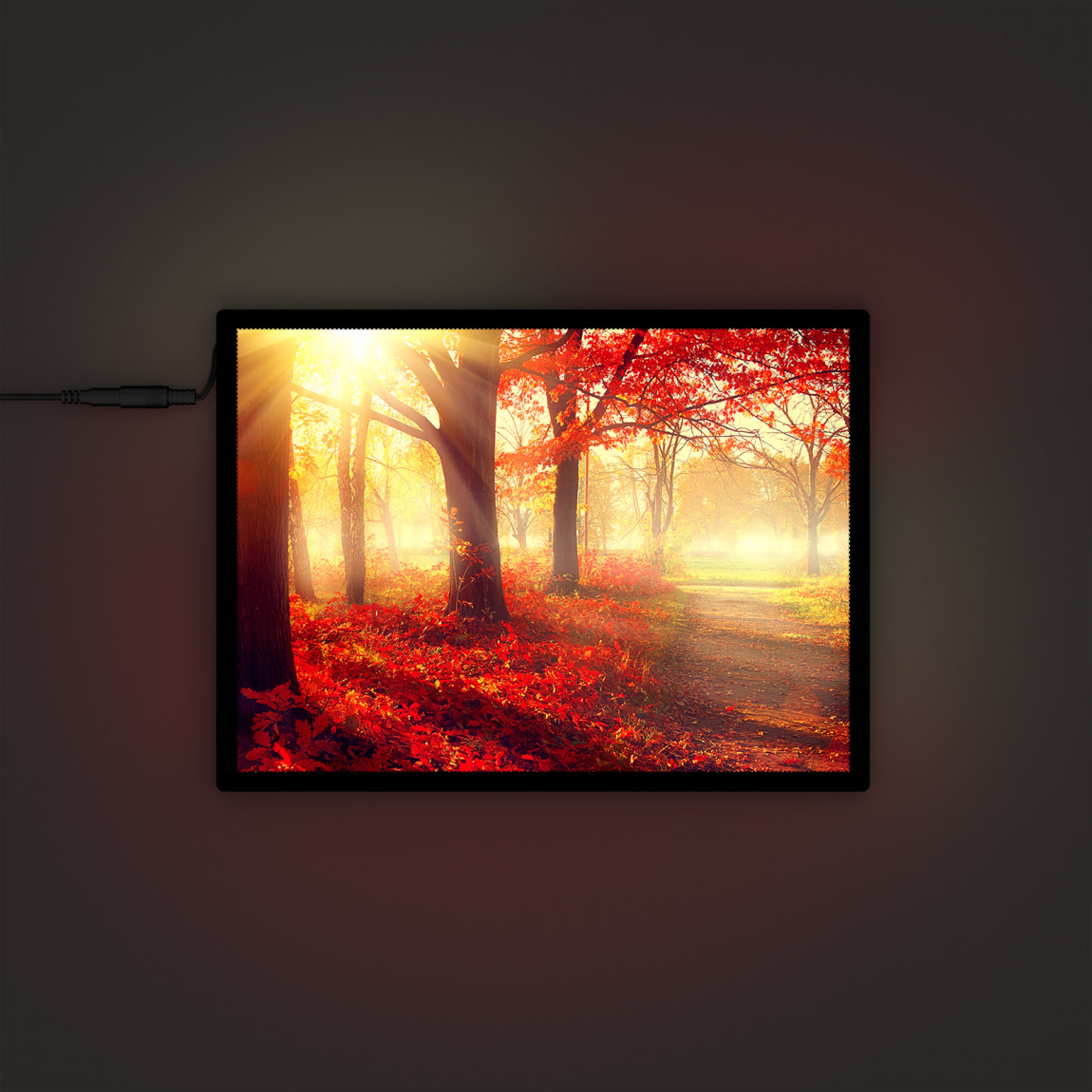

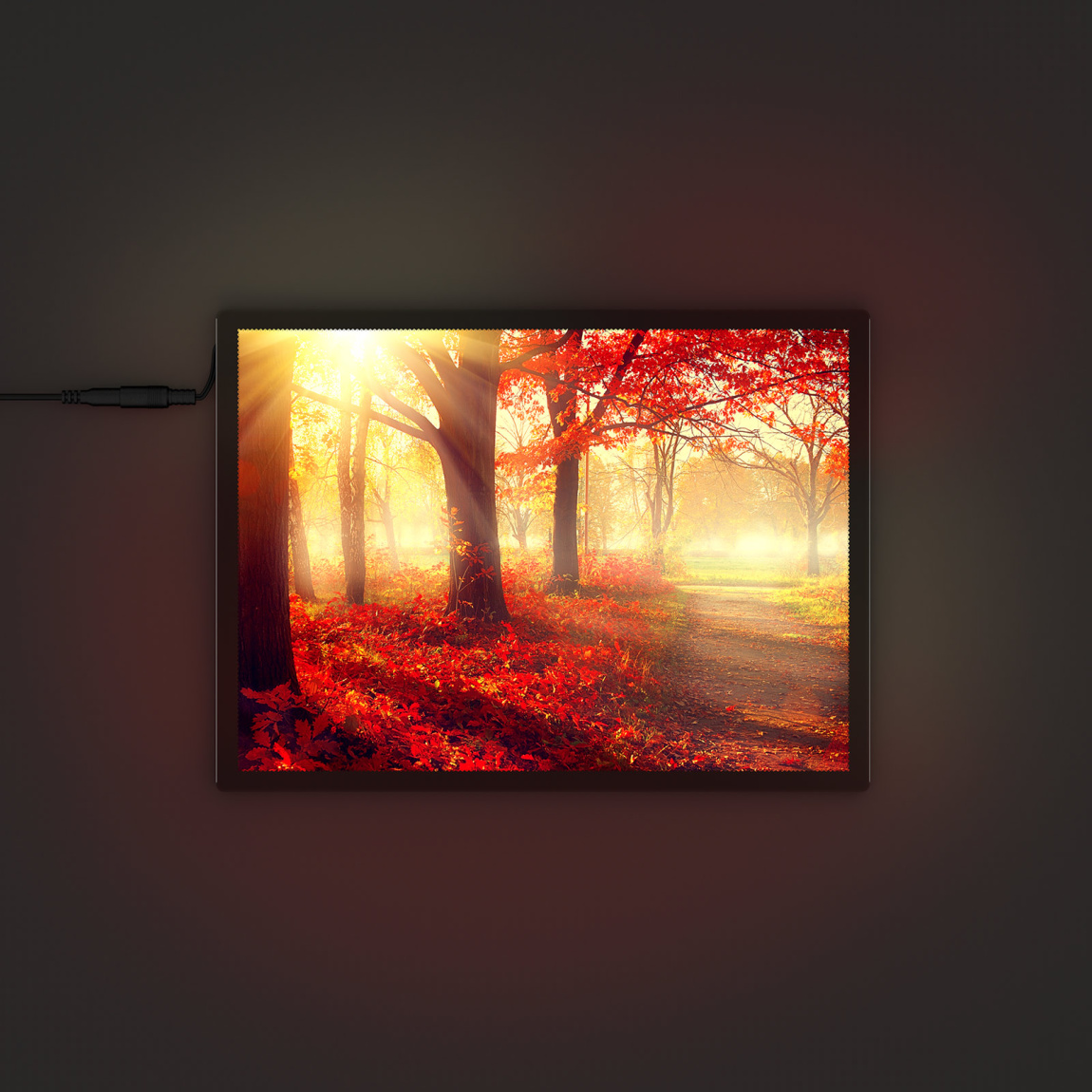

LED poster frame
The ultra-slim LED poster frame makes photos, images or advertising messages shine. State-of-the-art, high-luminance LED technology guarantees a very bright and brilliant illumination of every motif. Depending on the version, the light frame is delivered complete with wall mounting or additionally with 2 feet – allowing it to be used hanging or freestanding.
Version - Printed Part
- cut all around
- super fast motif change – poster is simply slid in
Material
- Backlit film 180: milky white polyester film with brilliant color reproduction
Printing Options
- Double Print:
- 2-layer print of the motif
- intense, saturated colors
- ideal for permanent use with illumination
- The double print makes the motif appear particularly strong and luminous when the light is on. Without illumination, it appears somewhat darker. Depending on the type of lighting and background, slight color deviations may occur, e.g., with dark tones.
- Day-&-Night Print:
- multi-layer print consisting of 3 color layers
- brilliant and especially intense colors in both illuminated and non-illuminated states
- ideal for frames used under changing lighting conditions
- particularly versatile, as your motif remains color-intense and high-contrast both with and without illumination.
Version - System
- ultra-slim, high-luminance LED light frame
- integrated diffuser panel for very bright, uniform illumination of the motif
- front made of tempered glass for high scratch resistance and crystal-clear optics
- lightweight, very stable frame made of coated aluminum
- frame color: optionally silver or black
- use of latest LED technology with long service life
- formats:
- DIN A1: for wall mounting
- DIN A2 / A3 / A4: for wall mounting or as table display
- all formats usable in portrait and landscape orientation
Technical Data
- Luminous flux: 1,300 lumens
- Light color: cool white
Sizes
| Portrait |
Frame Size |
Depth |
Printed Part |
Visible Area |
| A1 |
60.0 × 90.0 cm |
12.5 mm |
59.0 × 89.5 cm |
57.5 × 87.5 cm |
| A2 |
43.5 × 60.0 cm |
10.0 mm |
42.0 × 59.4 cm |
41.3 × 57.7 cm |
| A3 |
31.1 × 42.7 cm |
10.0 mm |
29.7 × 42.0 cm |
29.5 × 41.1 cm |
| A4 |
22.5 × 30.4 cm |
10.0 mm |
21.0 × 29.7 cm |
20.8 × 28.8 cm |
| Landscape |
Frame Size |
Depth |
Printed Part |
Visible Area |
| A1 |
90.0 × 60.0 cm |
12.5 mm |
89.5 × 59.0 cm |
87.5 × 57.5 cm |
| A2 |
60.0 × 43.5 cm |
10.0 mm |
59.4 × 42.0 cm |
57.7 × 41.3 cm |
| A3 |
42.7 × 31.1 cm |
10.0 mm |
42.0 × 29.7 cm |
41.1 × 29.5 cm |
| A4 |
30.4 × 22.5 cm |
10.0 mm |
29.7 × 21.0 cm |
28.8 × 20.8 cm |
*Dimensions given as width x height. All measurements are approximate; technical changes and tolerances reserved.
Scope of Delivery
- Complete sets:
- A1: printed part, pre-assembled light frame, 4 wall brackets with screws, power supply 24 V (1.0 A), power cable approx. 180 cm
- A2 / A3: printed part, pre-assembled light frame, 2 wall brackets, 2 feet, power supply 12 V (1.0 A), power cable approx. 180 cm
- A4: printed part, pre-assembled light frame, 2 wall brackets, 2 feet, power supply 12 V (0.5 A), power cable approx. 180 cm
- Printed part: printed motif (without LED poster frame)
- LED Poster Frame: pre-assembled light frame, wall brackets with screws, power supply, power cable - according to selected format (without printed part)
Dimensions and Weights
| Format |
Weight |
Packaging Dimensions |
| A1 |
3.6 kg |
63 × 99 × 5 cm |
| A2 |
1.8 kg |
46.5 × 69 × 5 cm |
| A3 |
1.0 kg |
35 × 52.5 × 5 cm |
| A4 |
0.6 kg |
26 × 41 × 5 cm |
