Brilliant textile printing using sublimation process
UV-resistant with high lightfastness
Customizable on one or both sides
Trade Show Counter Lightbox fold
The foldable trade show counter with backlit printed motifs is compact for transport and can be assembled quickly and without tools. Powerful LED lighting highlights your advertising message with high visibility.
Design – Printed Component
Cut all around and equipped with sewn-in flat piping for attachment to the system
Attachment via piping ensures perfect and wrinkle-free tension of the motifs.
Printing options:
double-sided: front and back can be identical or different
single-sided: front with desired motif, back optionally white or black
Sublimation printing: color penetrates the material, vibrant colors with high detail accuracy, durable
specifically for optimally backlit advertising messages
Materials for backside covering in single-sided printing:

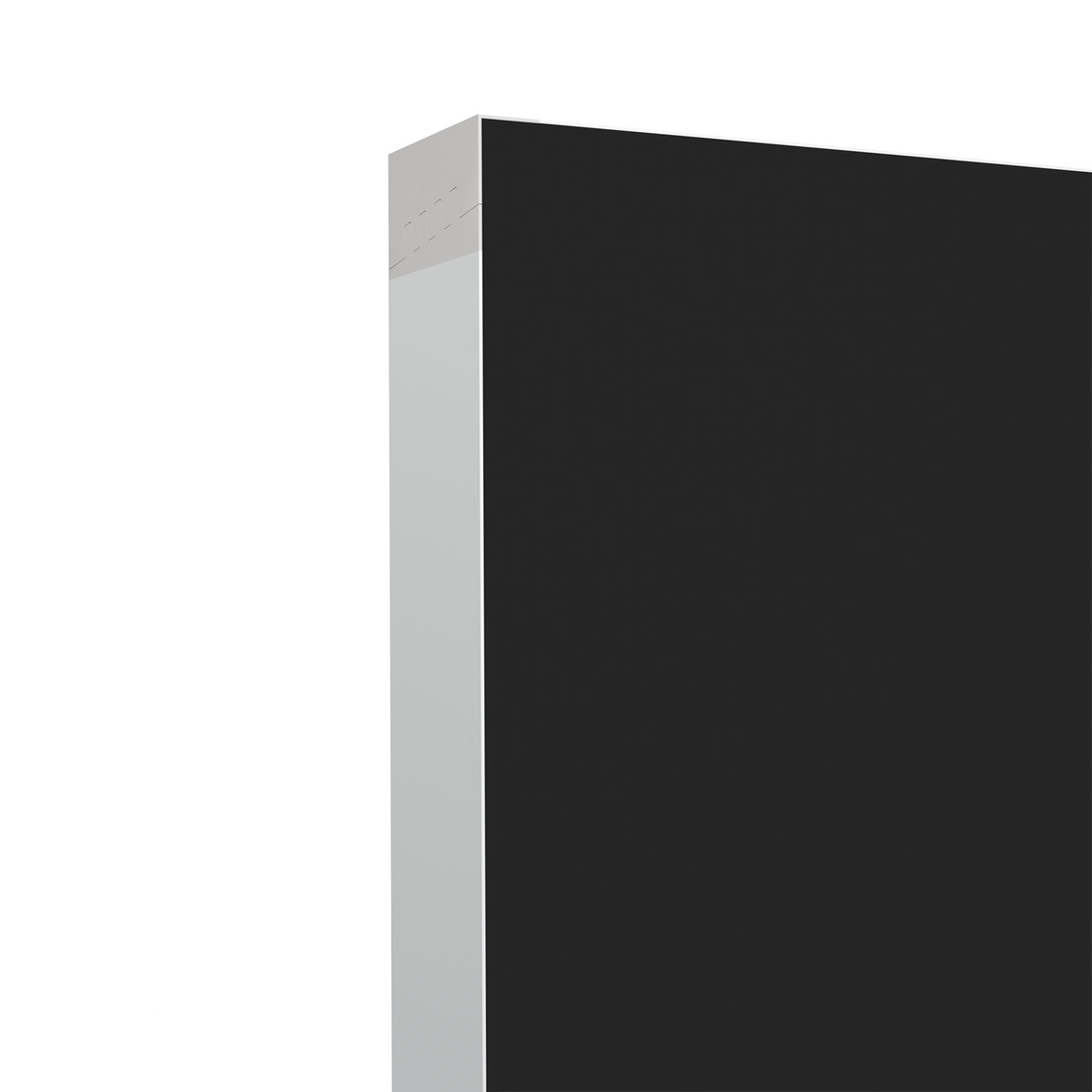

Backside black: Multisol® X Opak SE, matte glossy polyester knit with one-sided black PU coating, 100 % opaque

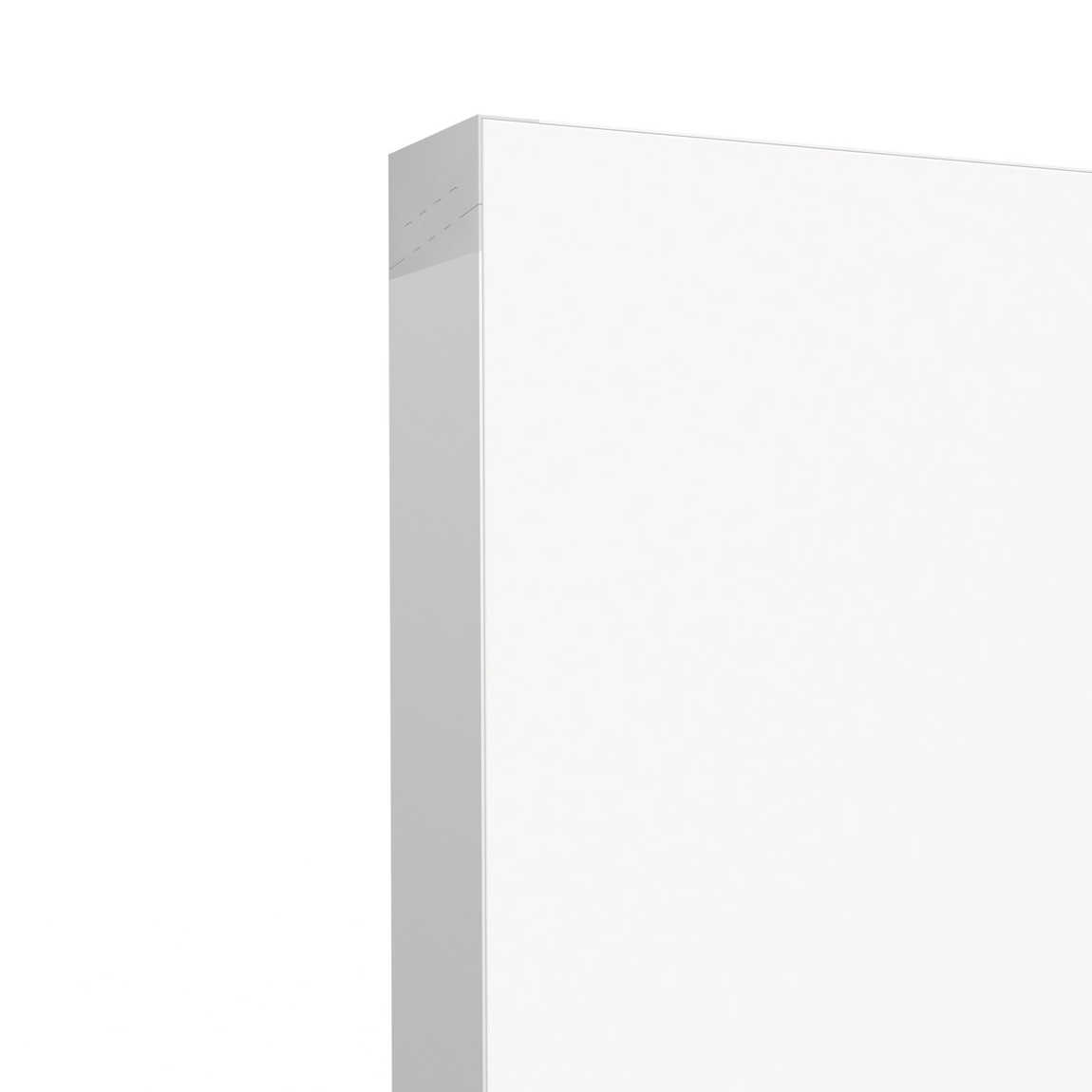

Backside white: Multisol® X Opak SE, matte glossy polyester knit with one-sided white PU coating, 100 % opaque
Design – System
Innovative frame system with utility model protection (GM: 20 2023 100 051)
Trade show counter with foldable folding frame
Material: aluminum, anodized
Frame depth: 85 mm
Feet (40 cm) for stable standing
Central support rod for additional stability
Countertop made of wood (MDF board), black
Powerful LED modules with low heat generation, pre-assembled at factory
Integrated power supply, power cable with plug (cable length approx. 180 cm)
Quick, tool-free assembly: simply pull the frame system apart – done
Technical Data
Voltage: 24 V
Power: 60 W
Current: 2.5 A
Luminous flux: 4000 lumens
Light color: cool white
Lifespan: up to approx. 20,000 hours
Tip: Use without power outlet possible with a portable power station, for example with Powerstation AC 500 Wh, sufficient for approx. 8 hours of operation. (not included)
Dimensions & Weights
System (W x H):
100 x 100 cm
Tabletop (W x L x H):
100 x 35 x 1.3 cm
System weight:
8.5 kg
Packaging dimensions (W x H):
119 x 47.5 x 23 cm
*Values are approximate
Scope of Delivery
Complete set: Trade show counter Lightbox fold with LED components, printed part(s) or backside covering including trolley bag
Printed part: printed motif(s) or backside covering according to selected option (without counter system)
System: Trade show counter Lightbox fold including trolley bag (without printed motif or backside covering)
We provide you with suitable layout templates and helpful tips for creating print data so that your desired product is created exactly according to your ideas. Please observe the respective specifications in order to prepare your data correctly for production and achieve optimum printing results.
Please upload your print data to your customer account after placing your order.
Good to know: You can cancel your order online free of charge until production begins.
Documents
Here you will find all the important documents relating to our products. All documents are conveniently available for download. Discover brochures, information and further details about our products - all compact and available at any time.
Here you will find all the important instructions relating to our products. All instructions are conveniently available for download. Discover manuals, information and further details about our products - all compact and available at any time.
