Exhibition Wall Lightbox Flex

Free shipping
  incl. VAT, Free shipping
  excl. VAT, Free shipping

We print your Lightbox flex trade show wall using high-quality sublimation printing – colorfast and with sharp contours.

  • Best photo print quality colorfast and ready to use
  • Customize yourself for unique designs
  • Durable OSRAM power LEDs for high brightness
Configure
Quantity
Price list incl. VAT excl. VAT
  • from x piecesxx € / piecexx € / piece
  • from x piecesxx € / piecexx € / piece
  • from x piecesxx € / piecexx € / piece
Show all price tiers

Configure product now

Select your desired product step by step

Variant


Selection


System width


System height


Beschaffenheit


Beschaffenheit (Optional)


Print Files
Ready print files
  • Use artwork template
Preparing print files Here you will find all the guidelines and requirements for your print files.
Show specifications
Design Now
  • Design online in Visprodesign®
Design online with Visprodesign® Design your product directly in your browser – it’s quick and easy.
Graphic check


Print sample (Optional)


Label on print part


Details

  • Quickly determine the estimated delivery date and shipping costs for your order.

  • Calculate delivery date

  • Offer
    Calculate delivery date and shipping costs for your desired product.

  • Save offer

Product not suitable?
Would you like personalised advice? Together, we will develop the right solution for you.

Our accessory recommendations

    • Printing Details

      • Brilliant textile printing using sublimation printing
      • UV-resistant with high lightfastness
      • Customizable on one or both sides

      Trade Fair Wall Lightbox flex

      Mobile, modular LED trade fair wall made of plastic with a flat front: The Lightbox flex can be quickly assembled thanks to the click system, offers uniform backlighting through Osram LEDs, and can be combined with other elements of the Lightbox-flex series to create customized trade fair booths.

      Version – Printed Part

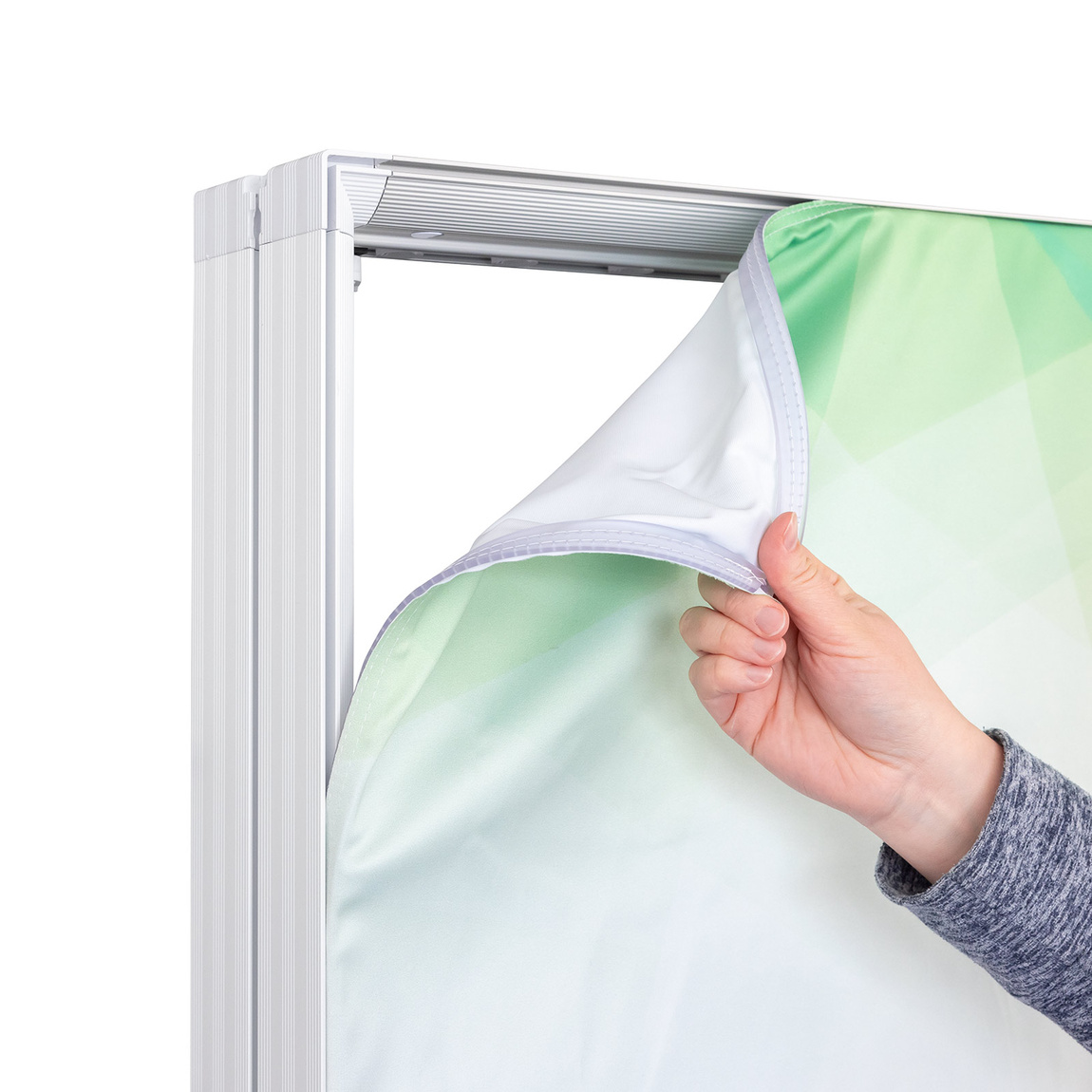

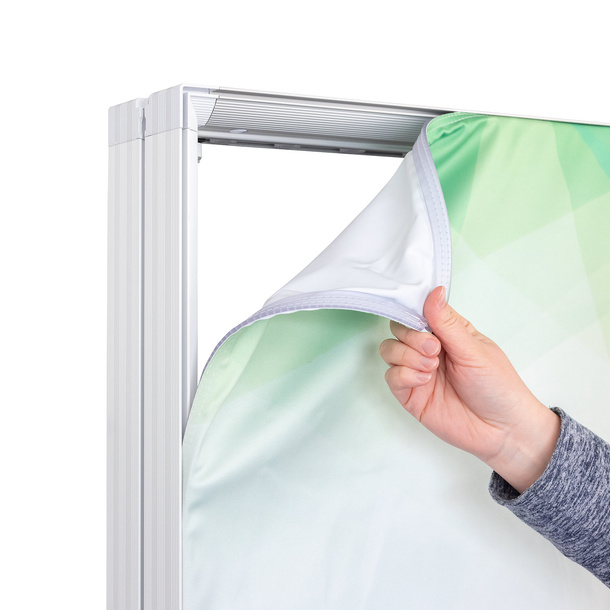

      • Cut all around and equipped with a flat welt for attachment in the plastic frame
      • The welt attachment ensures perfect, wrinkle-free tension of the graphics
      • Printing options:
        • Double-sided printing: front and back, identical or different designs possible
        • Single-sided printing: front side with desired motif, back side optionally in black or white
      • Note: For motifs extending over multiple connected trade fair walls, slight motif misalignment may occur at the transitions.

      Materials

      • Lighttex SE: flame-retardant polyester fabric, specially designed for optimally backlit advertising messages
        • Sublimation printing: the color penetrates deeply into the fabric, ensuring vibrant colors with high detail fidelity
        • Ideal for homogeneous, radiant illuminated surfaces
      • Materials for backside covering in single-sided printing:

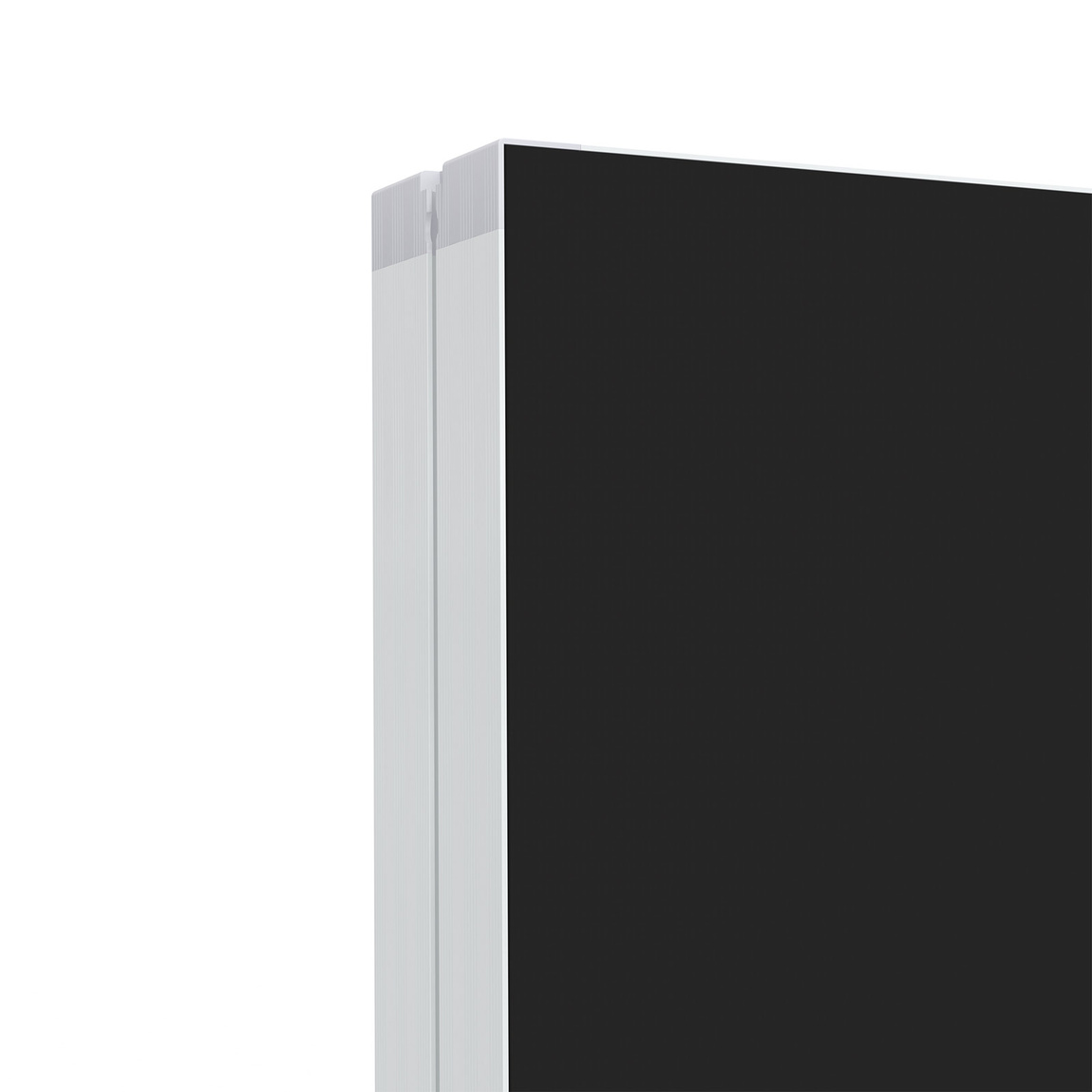

        • Backside black: Multisol® X Opak SE, matte glossy polyester knit with one-sided black PU coating, 100 % opaque

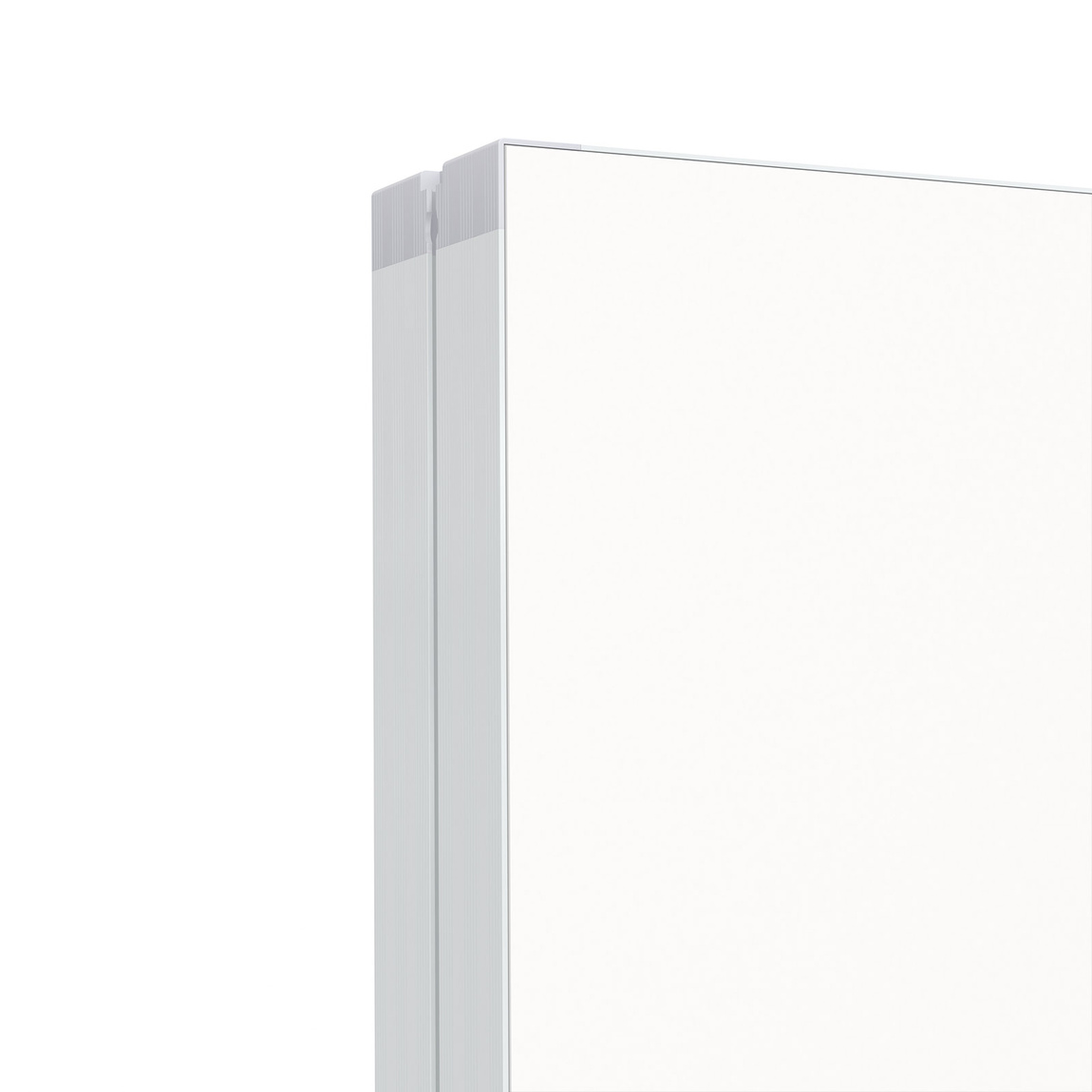

        • Backside white: Multisol® X Opak SE, matte glossy polyester knit with one-sided white PU coating, 100 % opaque

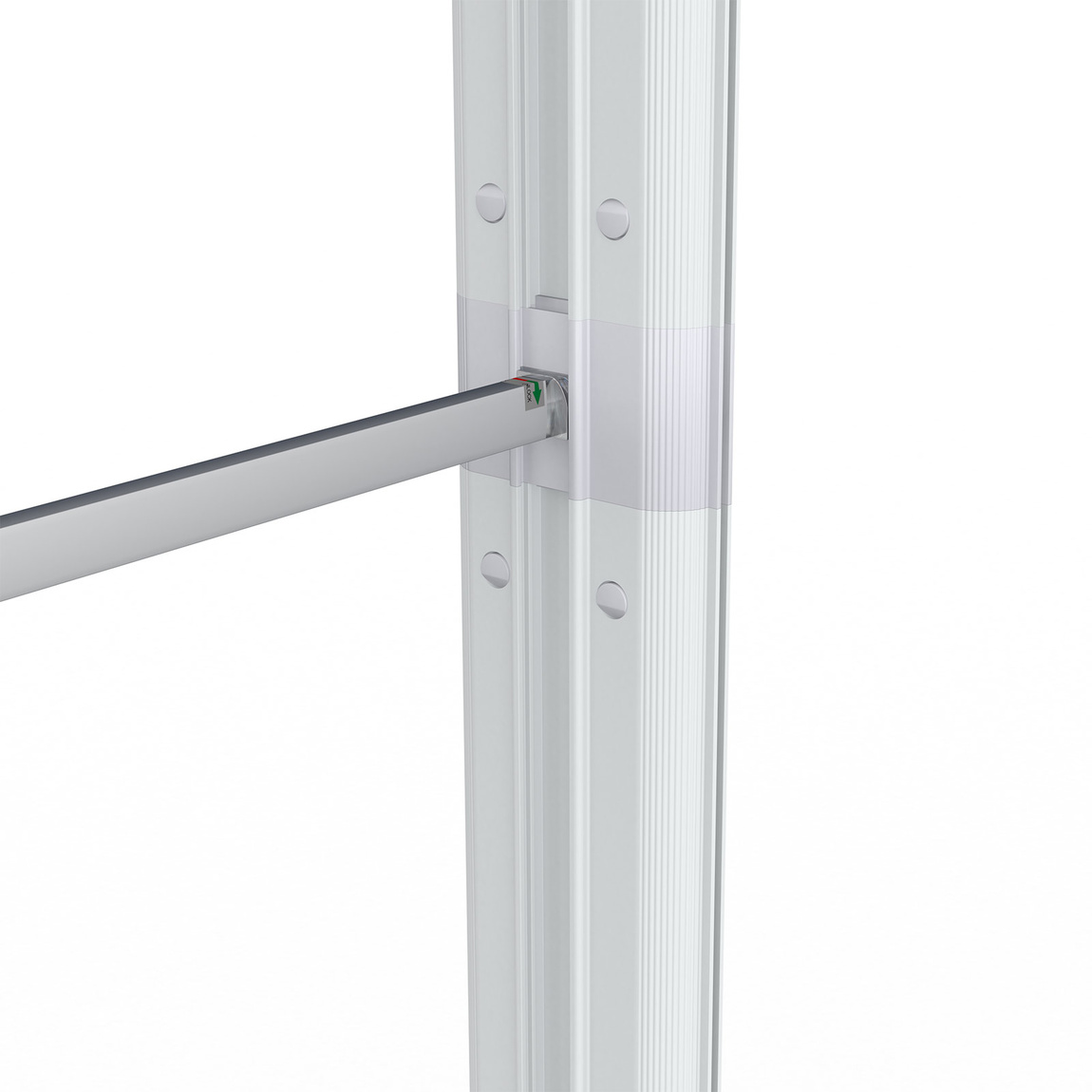

      Version – System

      • Innovative frame system with utility model protection (GM: 20 2019 103 837)

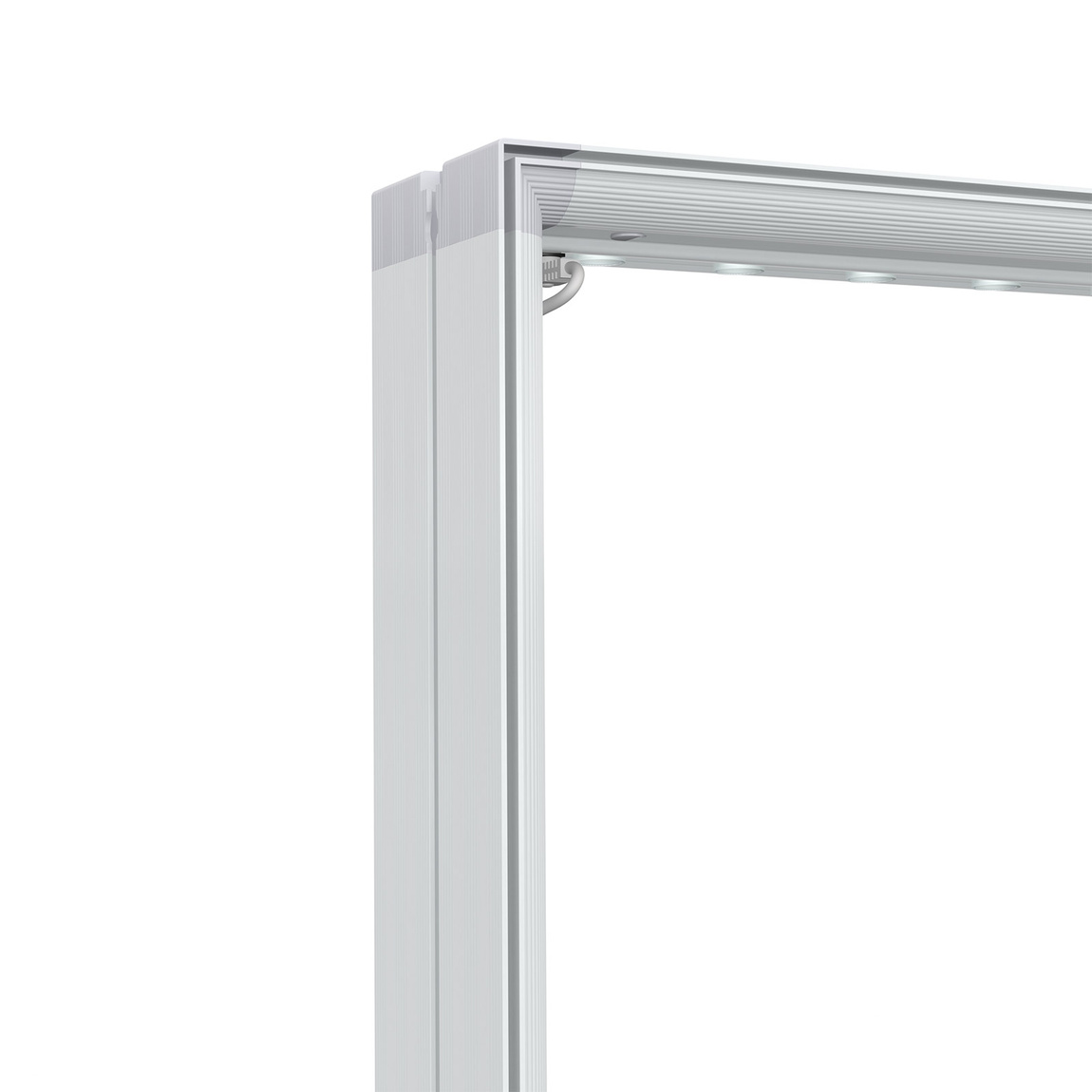

      • High-quality plastic frame with click profiles, white, V0 fire protection certification
      • Frame depth: 120 mm

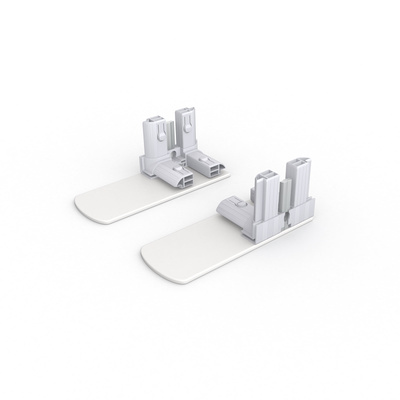

      • Including feet for secure standing

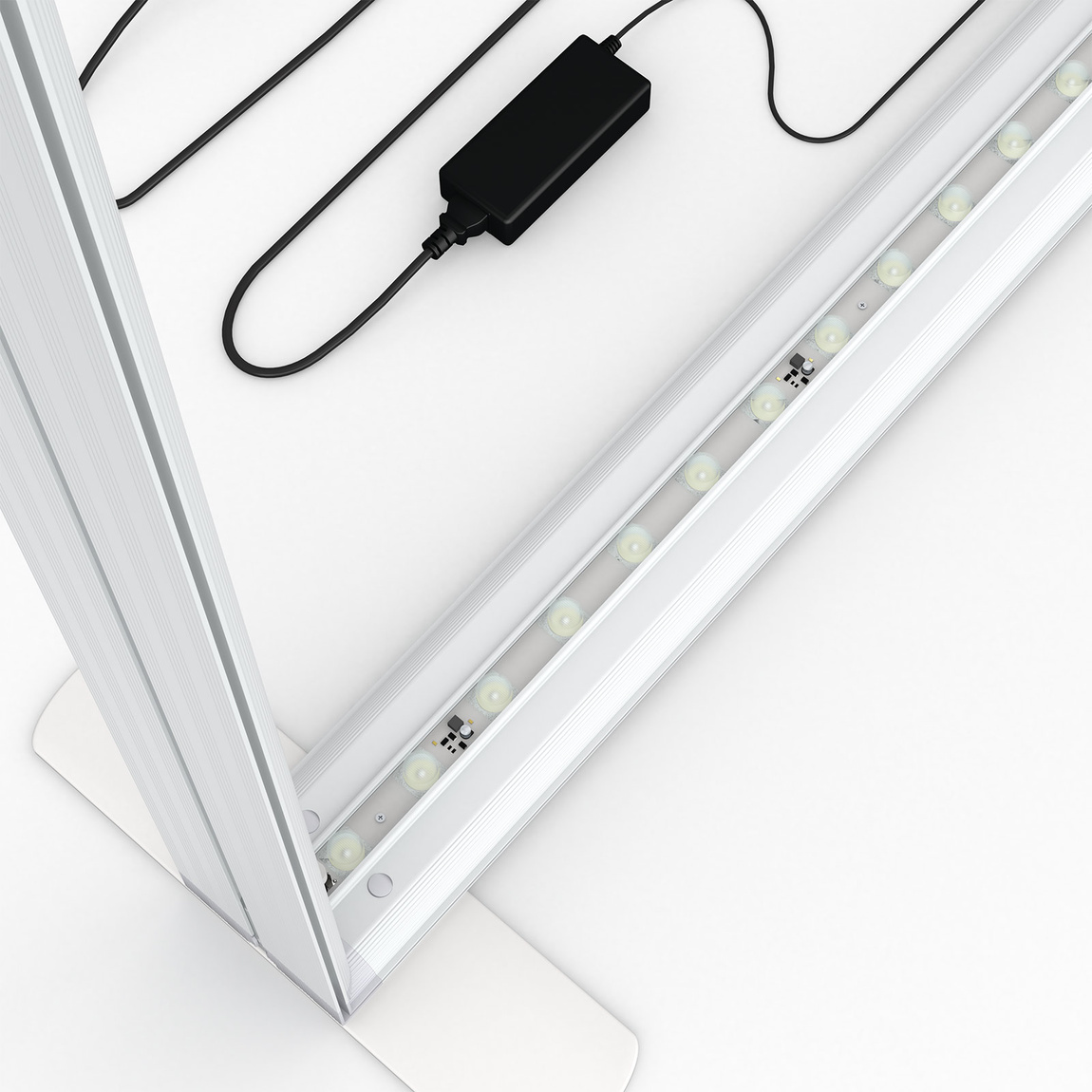

      • LED modules:
        • Factory pre-assembled OSRAM power LED modules
        • Energy-efficient with low heat generation
        • Long service life of up to 50,000 hours

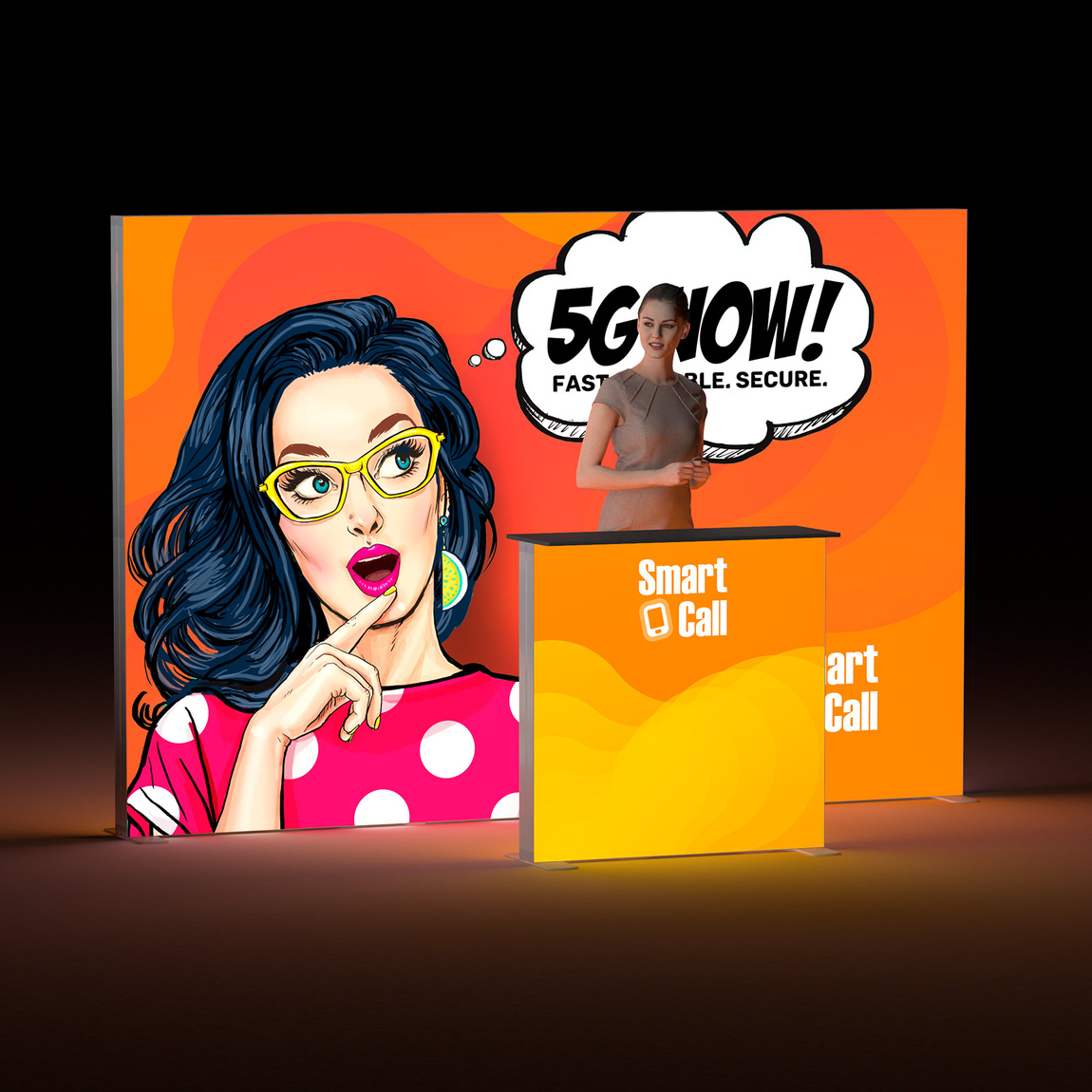

      • One system – many possibilities: all trade fair walls and modules of the Lightbox-flex series can be flexibly combined.
      • Versions:
        • Wall-mounted variant: ideal for trade fairs where the trade fair wall should be placed directly against the wall or the outermost boundary of the booth without loss of space.

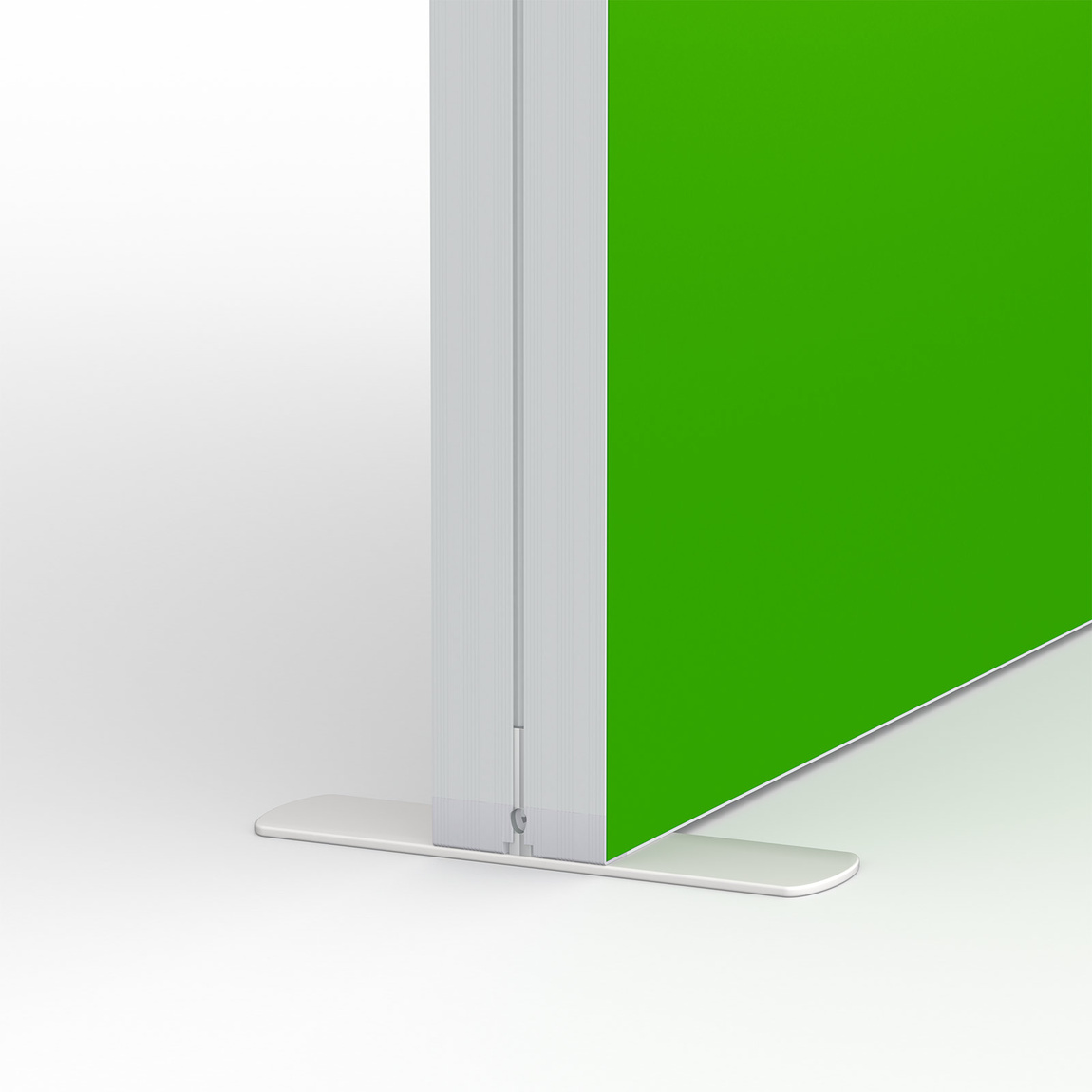

        • Freestanding variant: optimal for exhibitions without limiting walls – the trade fair wall serves as the outer boundary of the booth.
        • System width 85 cm: ideal for trade fairs with limited booth space. Recommendation: For a 300 cm wide booth, choose a Lightbox flex trade fair wall with a width of 285 cm for optimal fit in the available space.

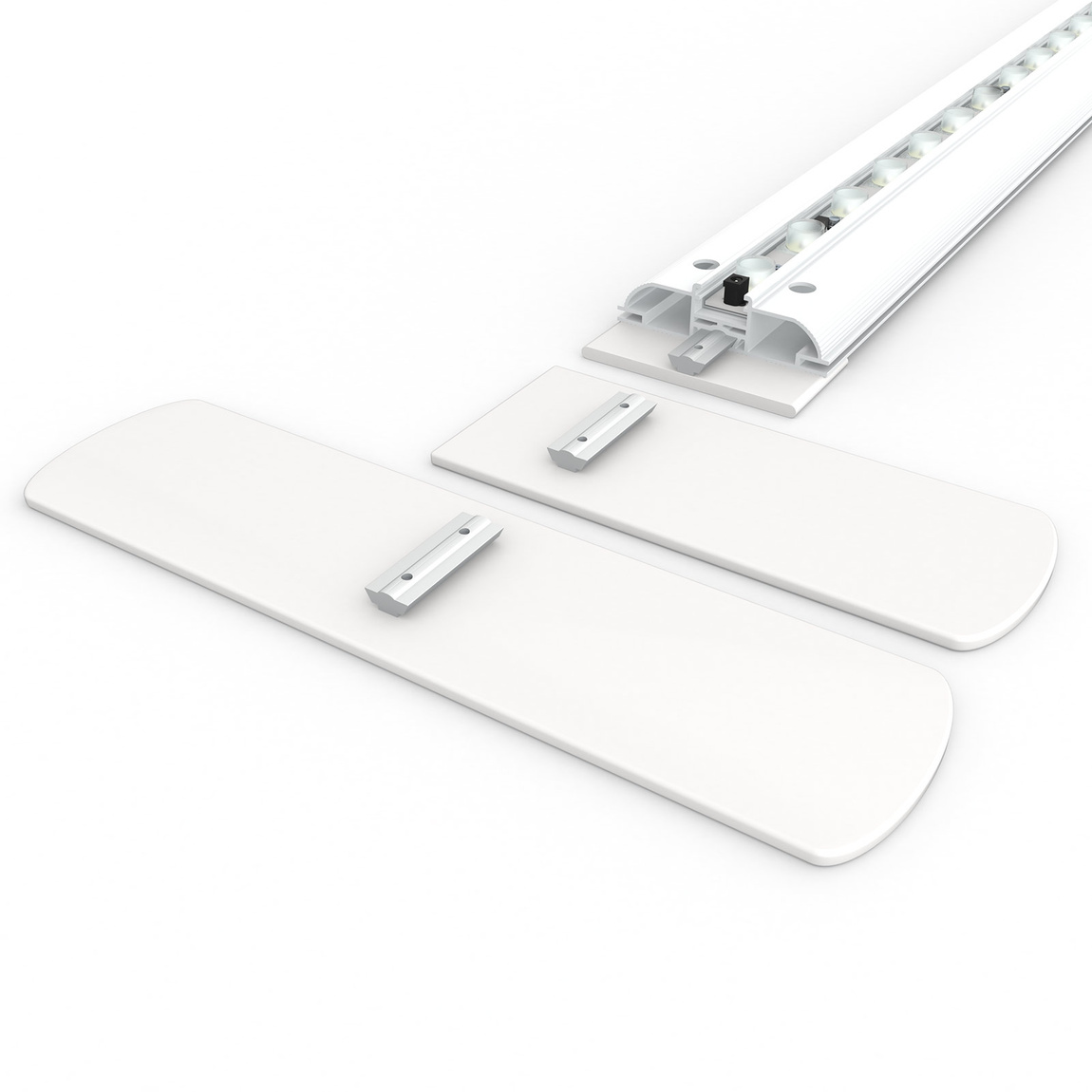

        • Depending on the chosen foot, the trade fair wall can be used as a wall-mounted or freestanding wall.

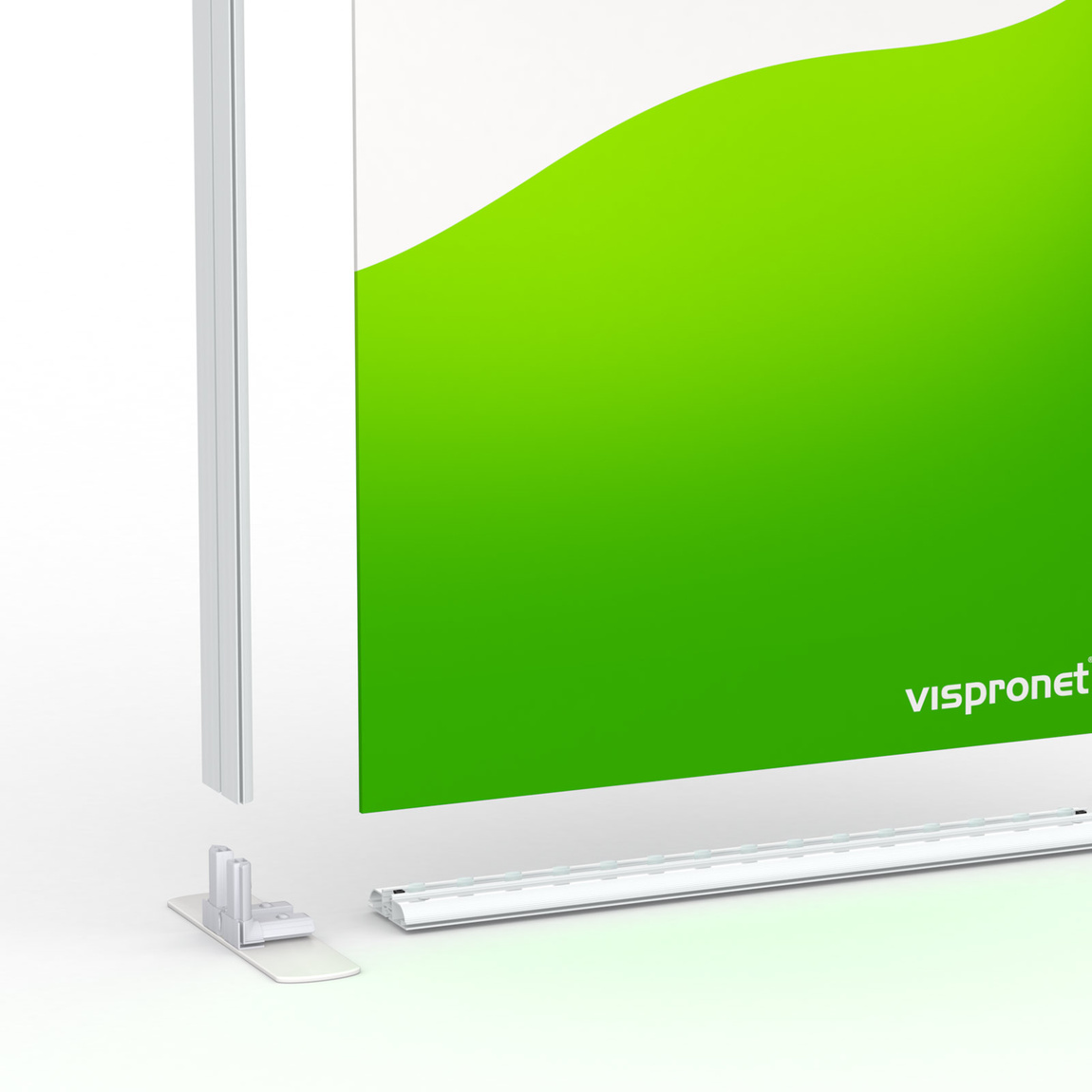

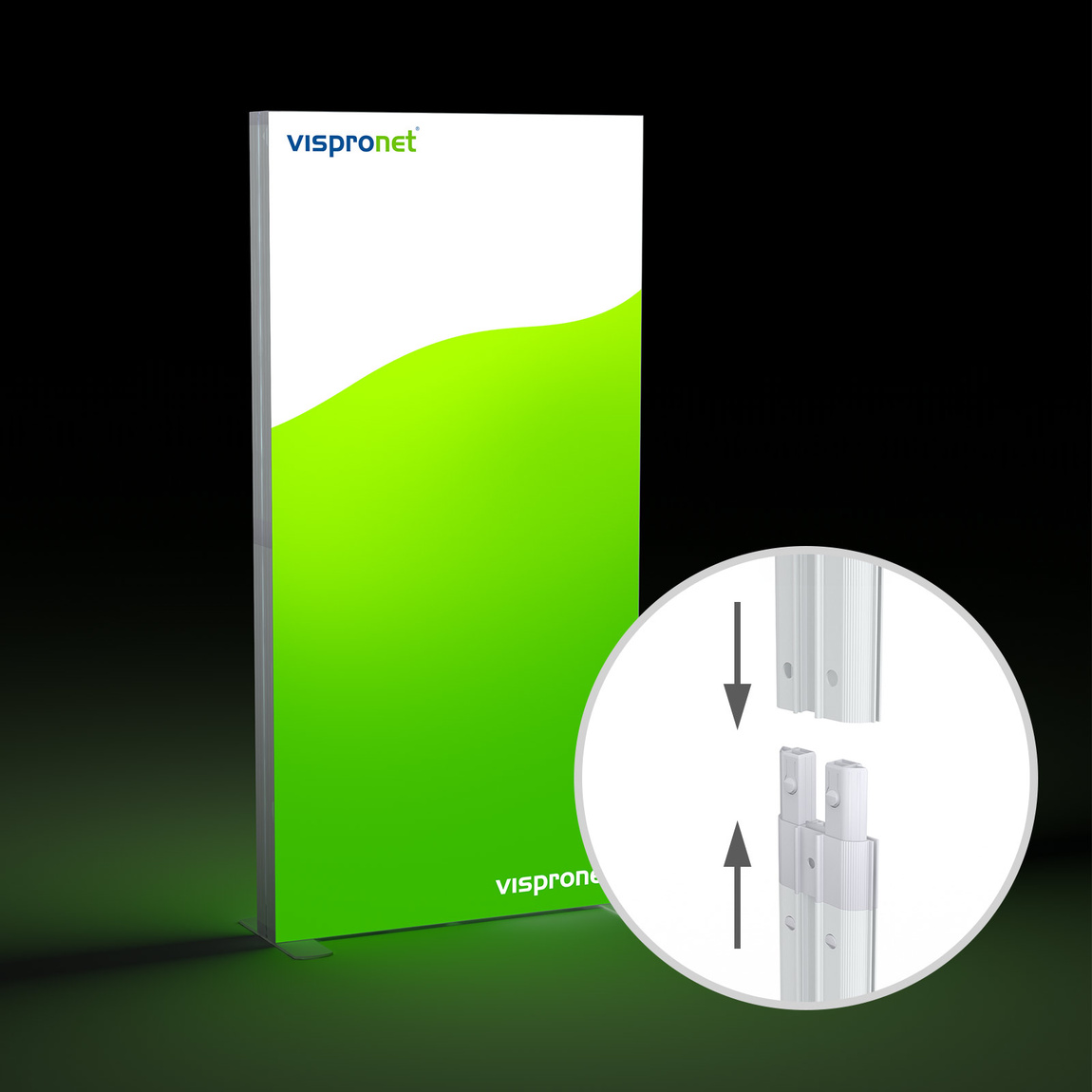

      • Tool-free assembly thanks to practical click connectors: simply plug together, connect power – done

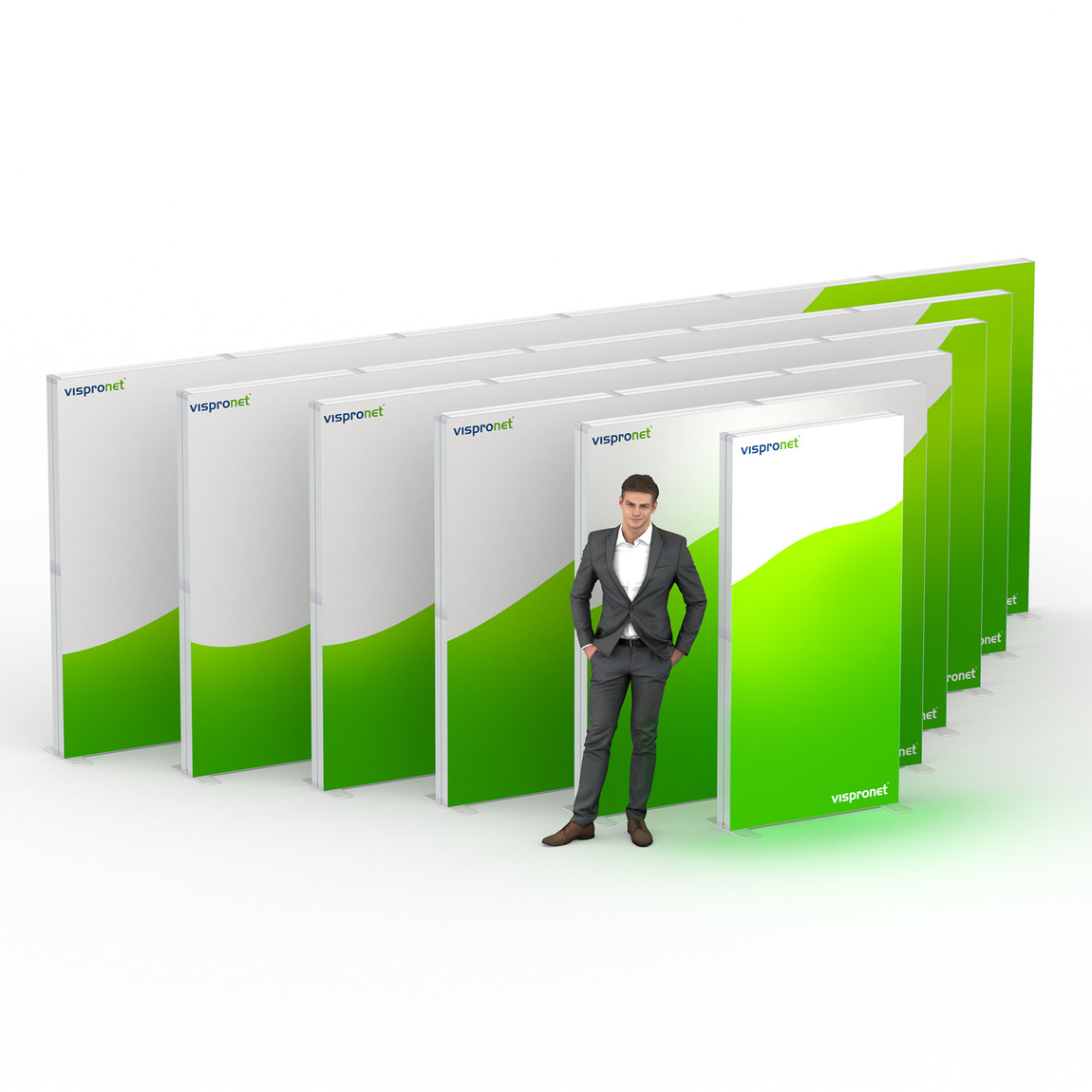

      Sizes

      • System widths: 85, 100, 185, 200, 285, 300, 385, 400, 485, 500, 585, 600 cm
      • System heights: 200, 225, 250 cm

      Technical Data

      Power Supply Mini Power Supply Midi Power Supply Maxi
      Power 96 W 126 W 152.4 W
      Current 4 A 5.25 A 6.35 A
      Voltage 24 V
      Luminous Flux 4,000 Lumens
      Light Color Cool white

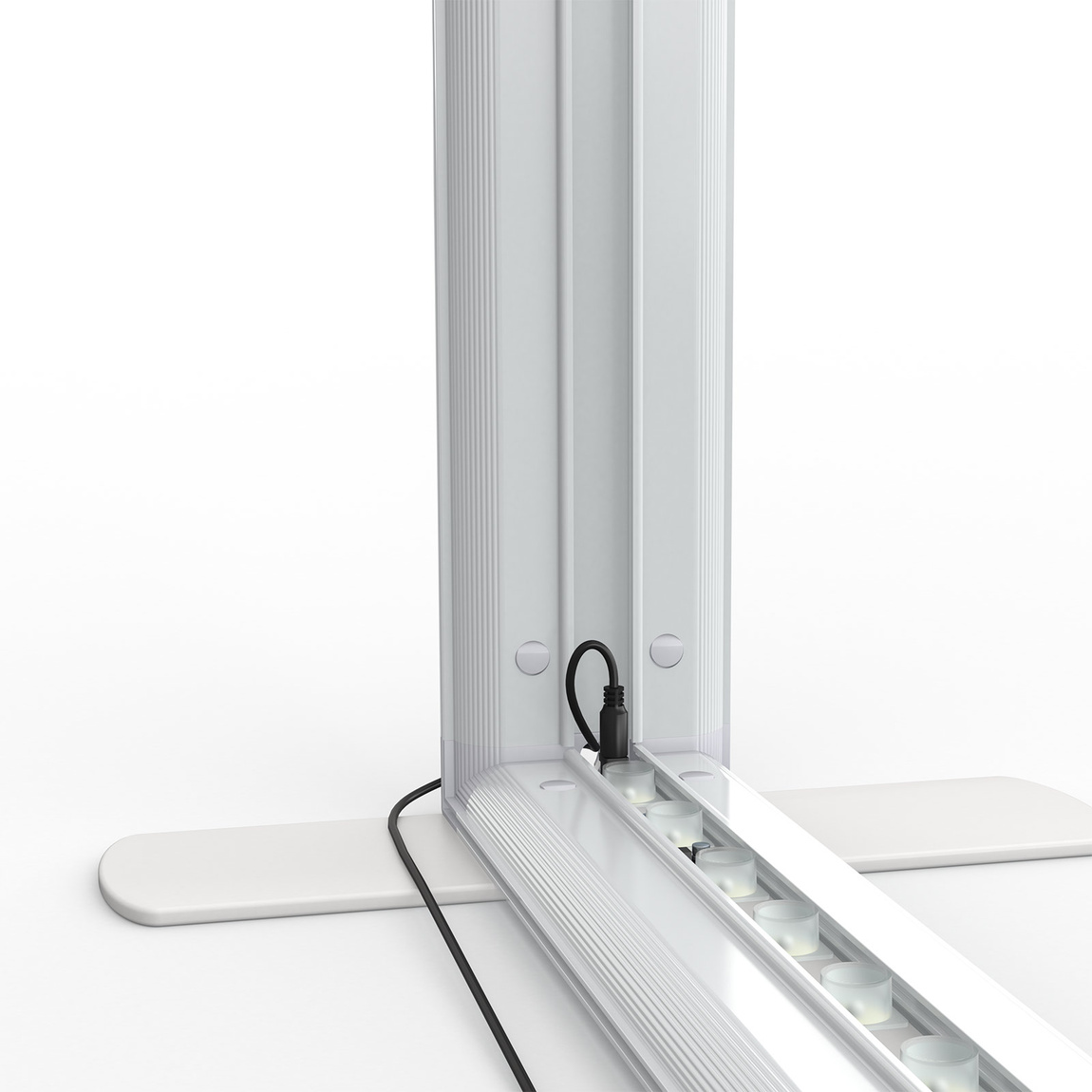

      Length of Power Cable with Plug approx. 280 cm

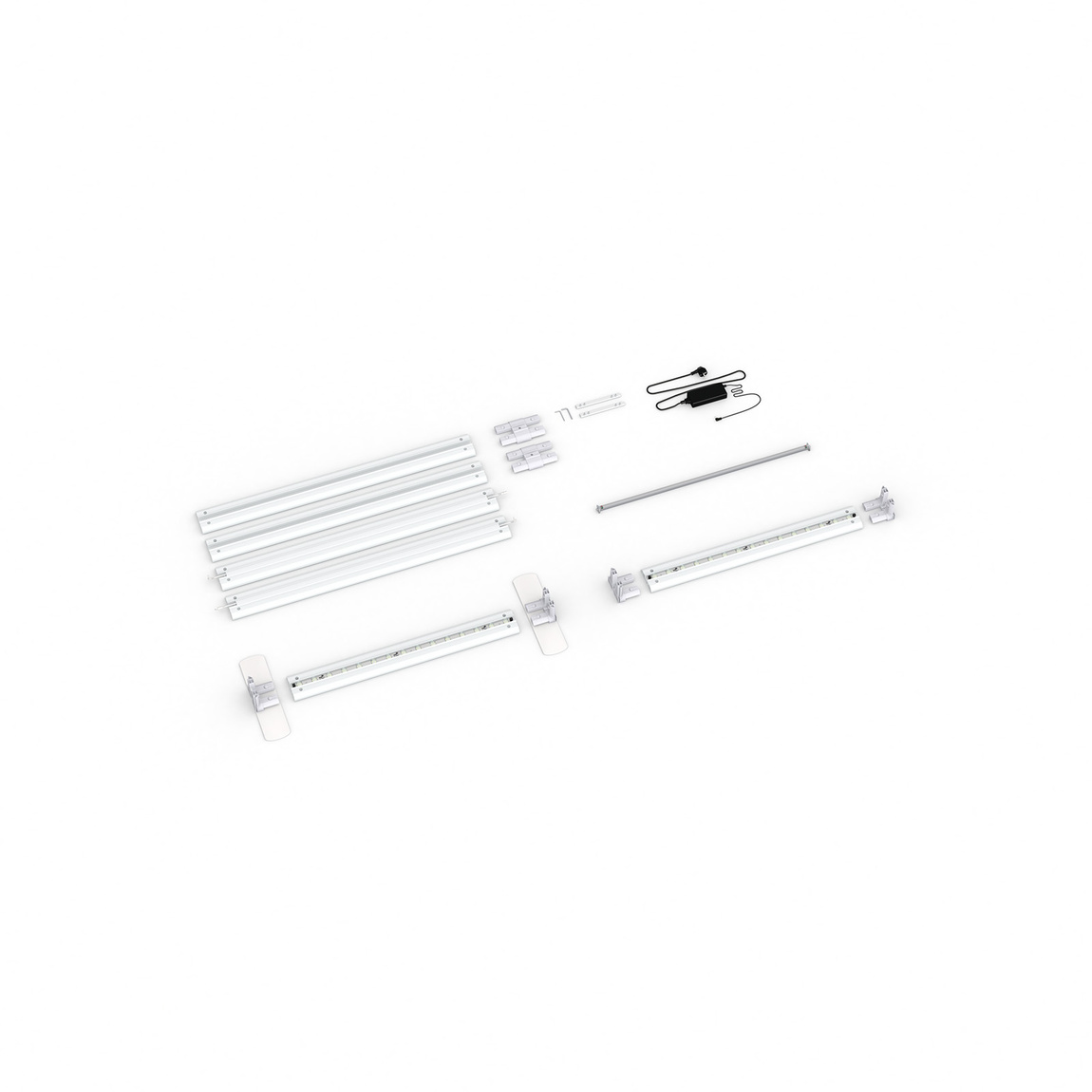

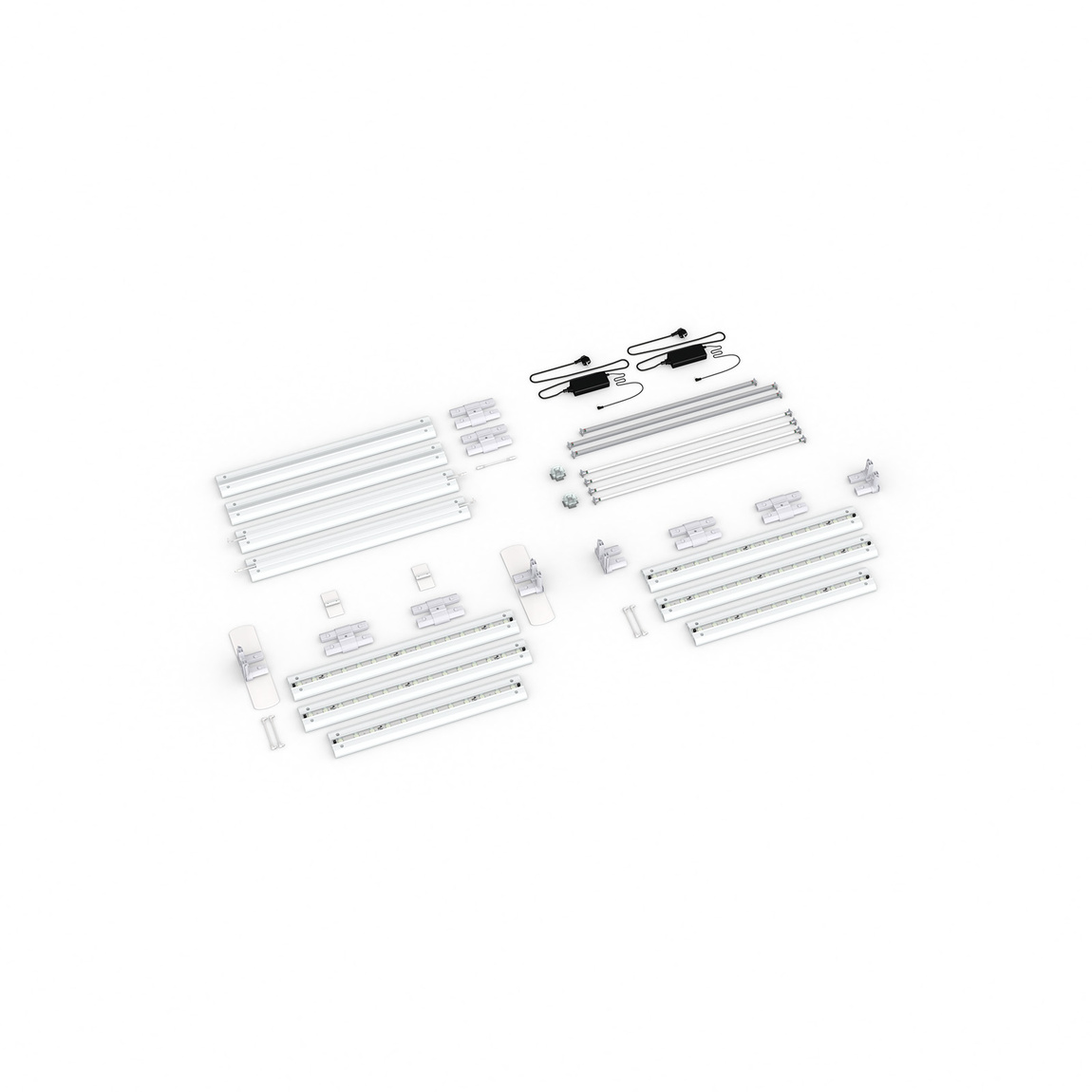

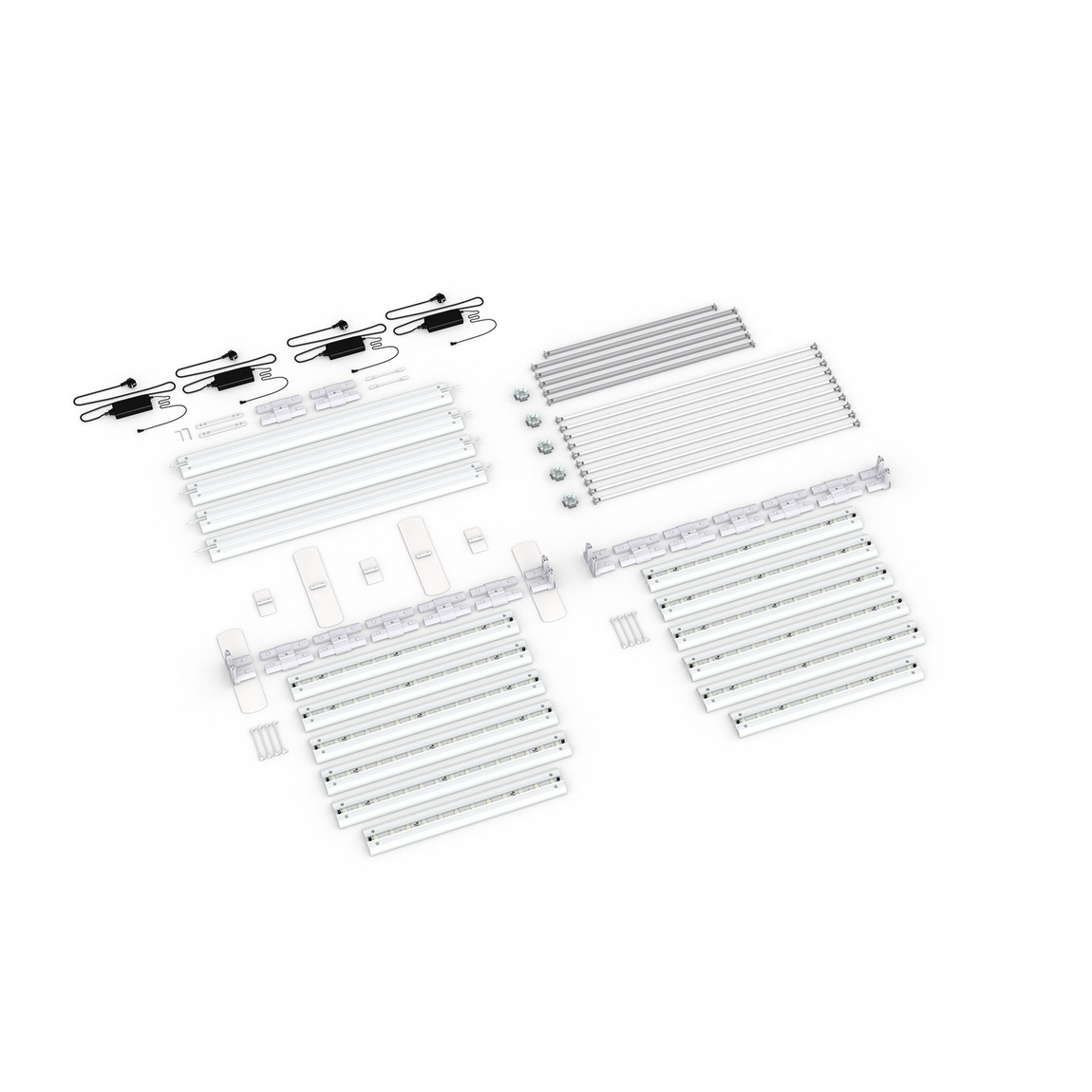

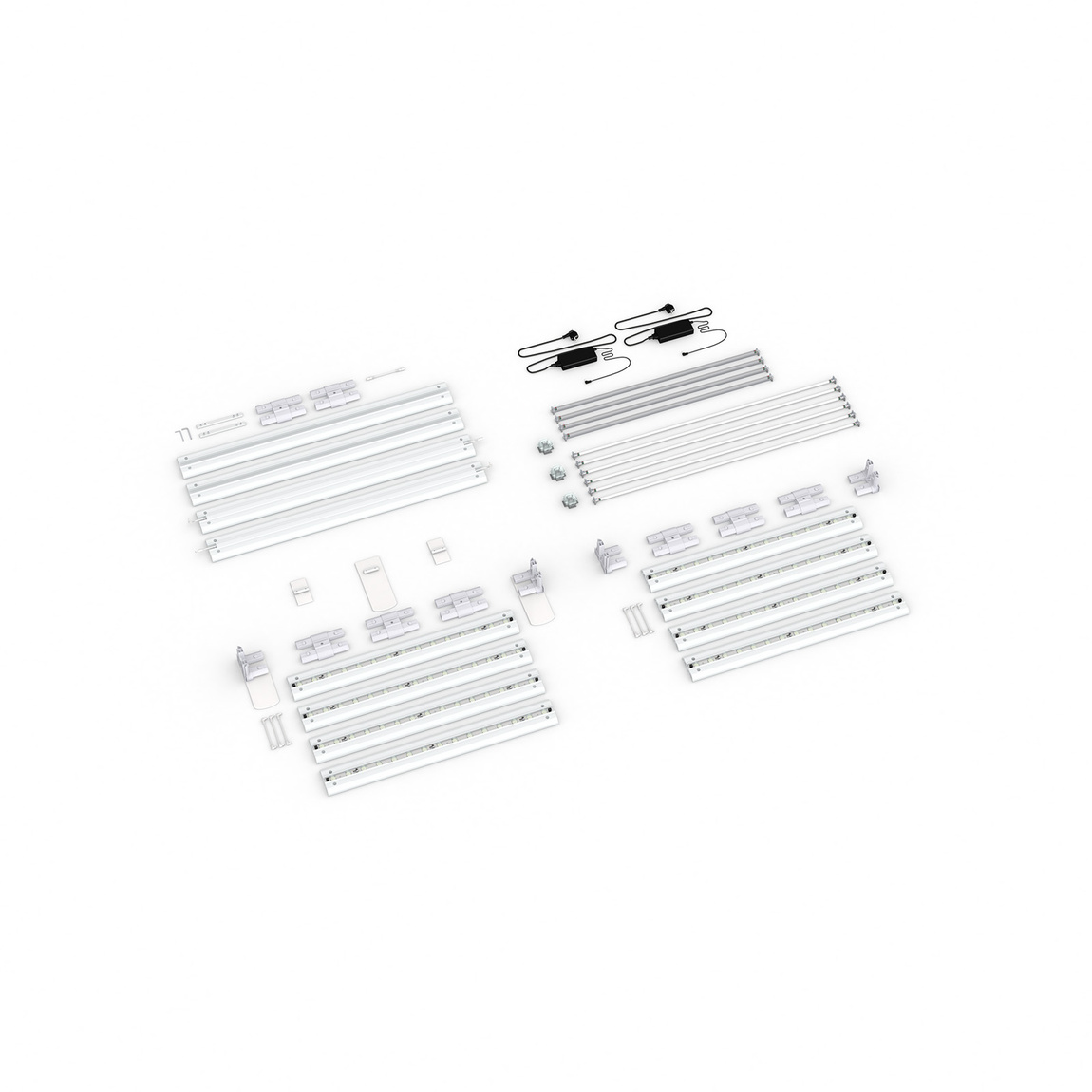

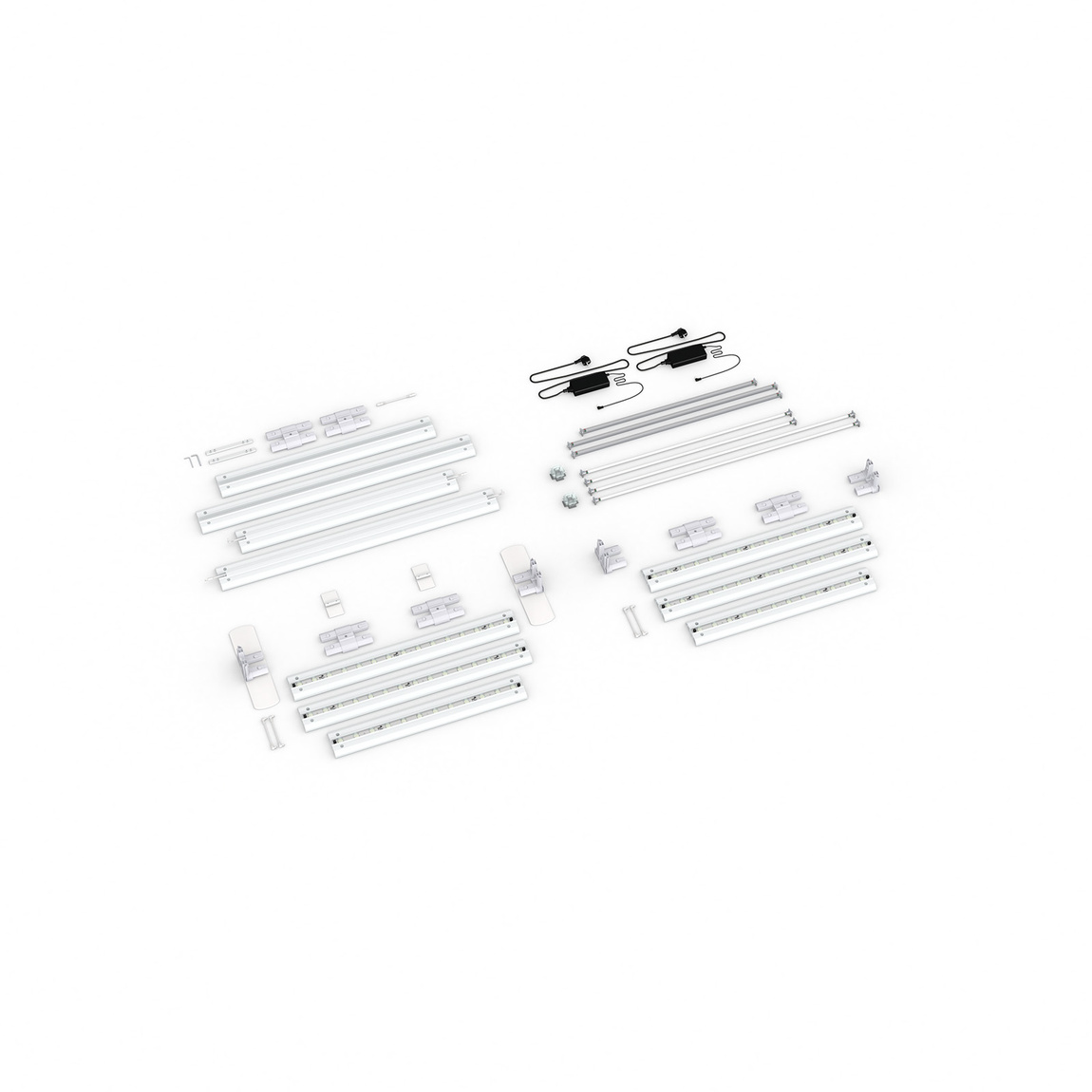

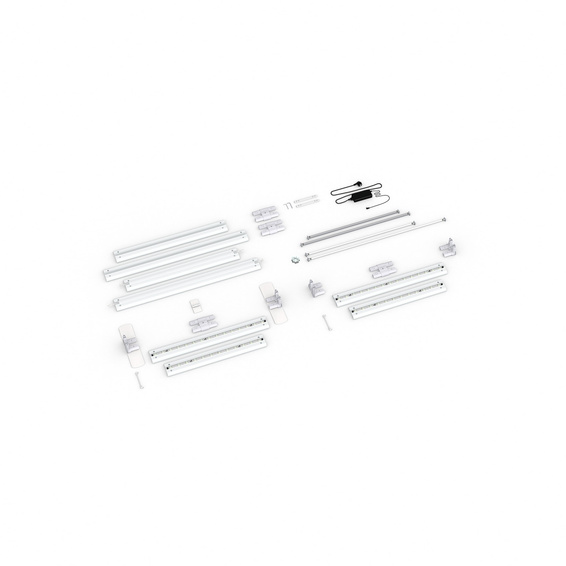

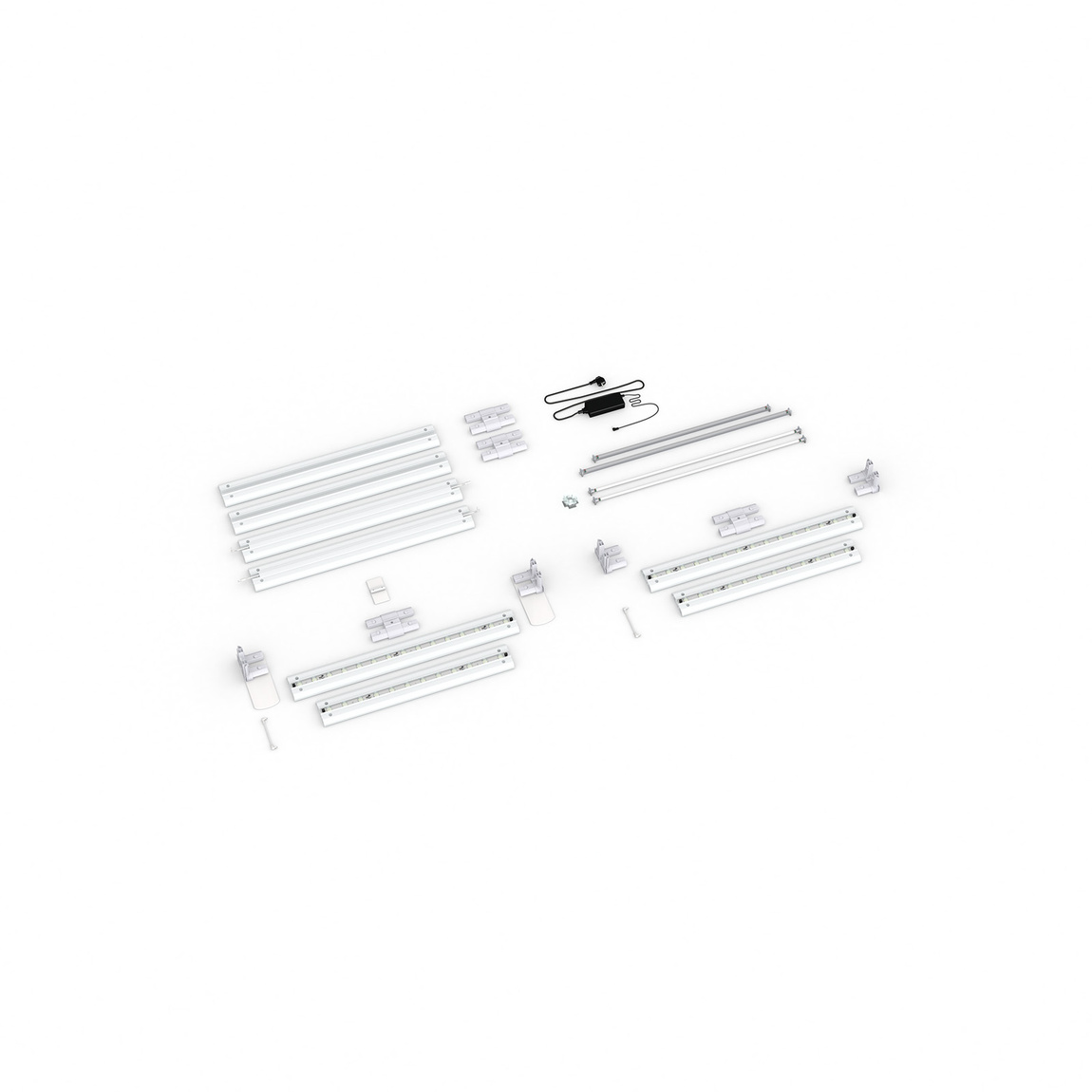

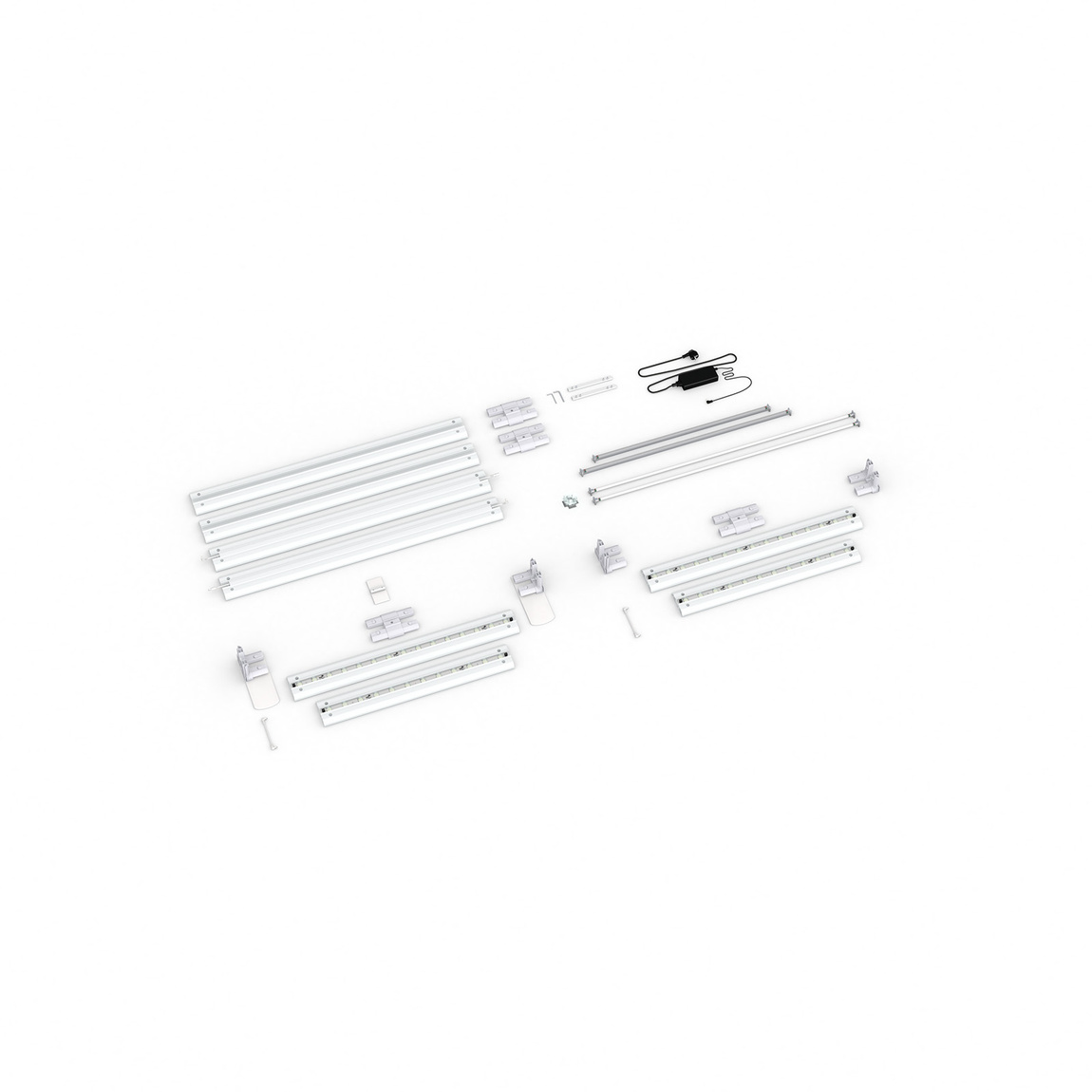

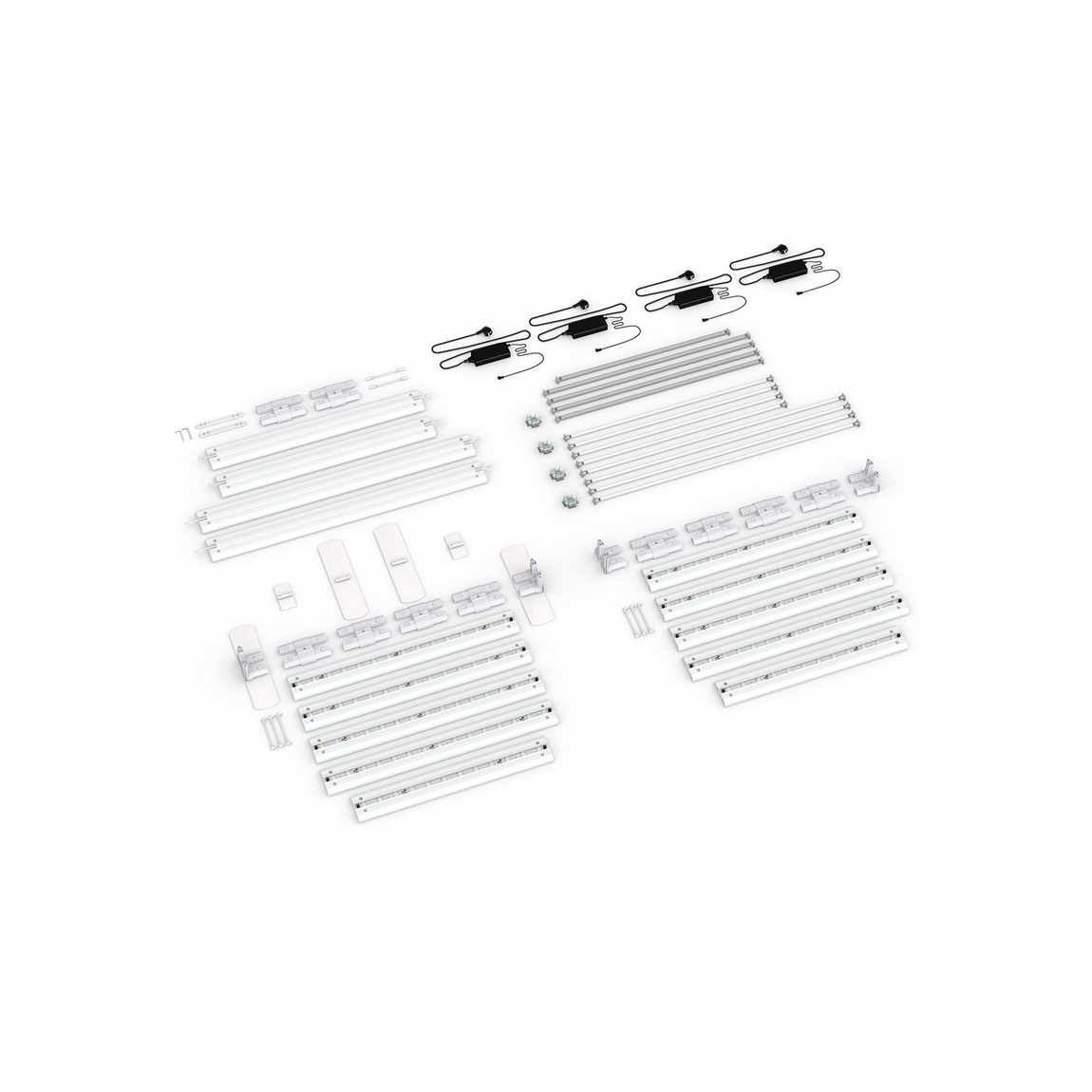

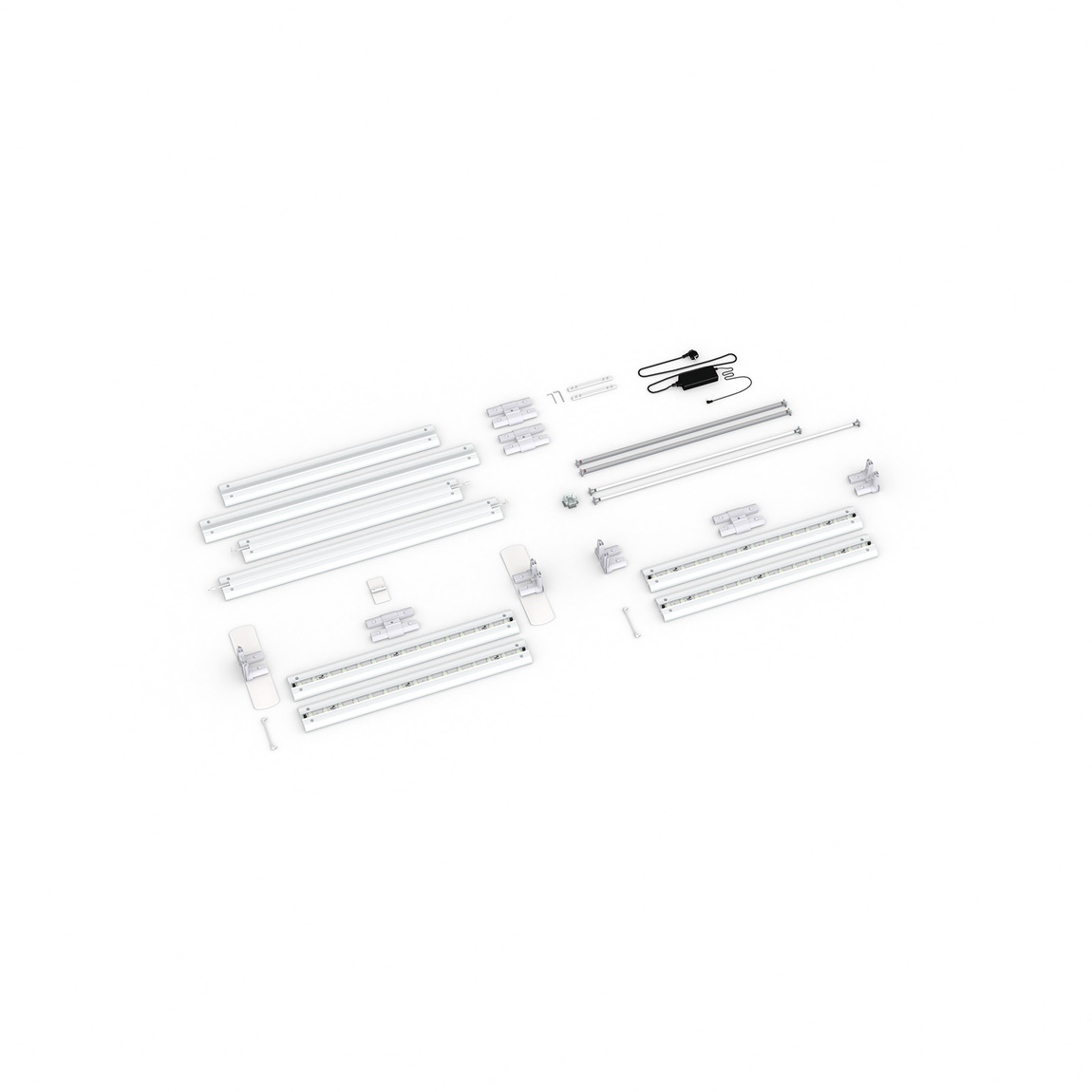

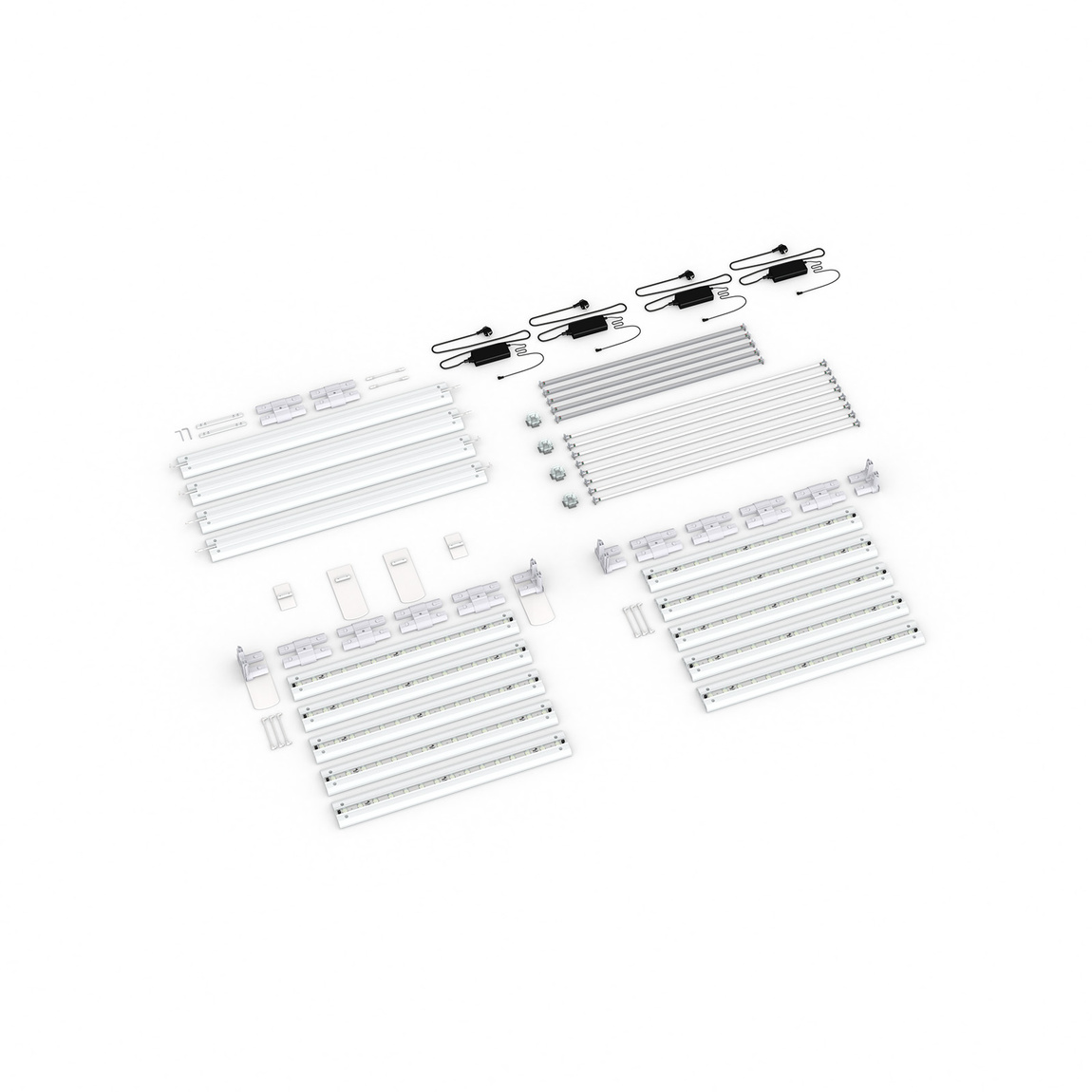

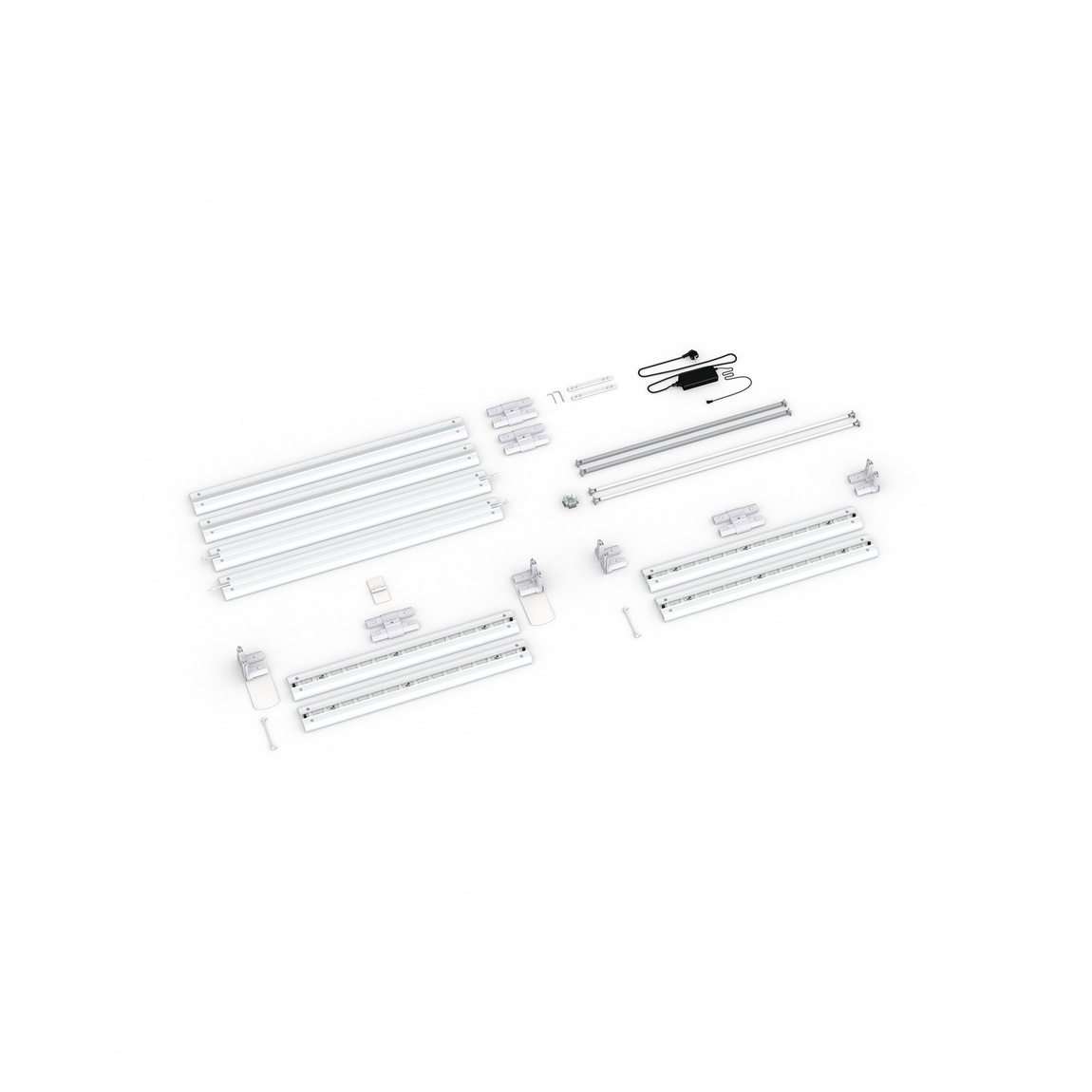

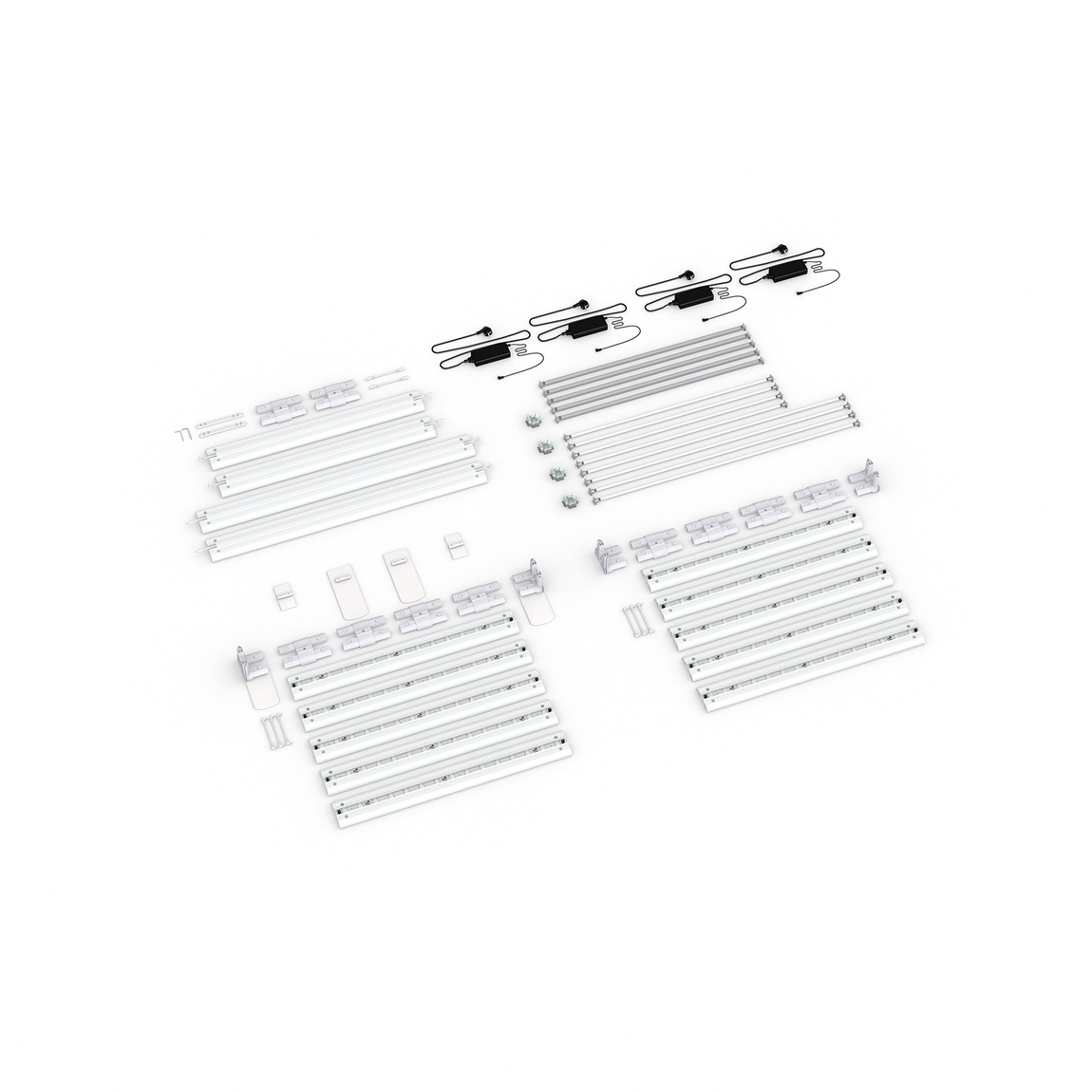

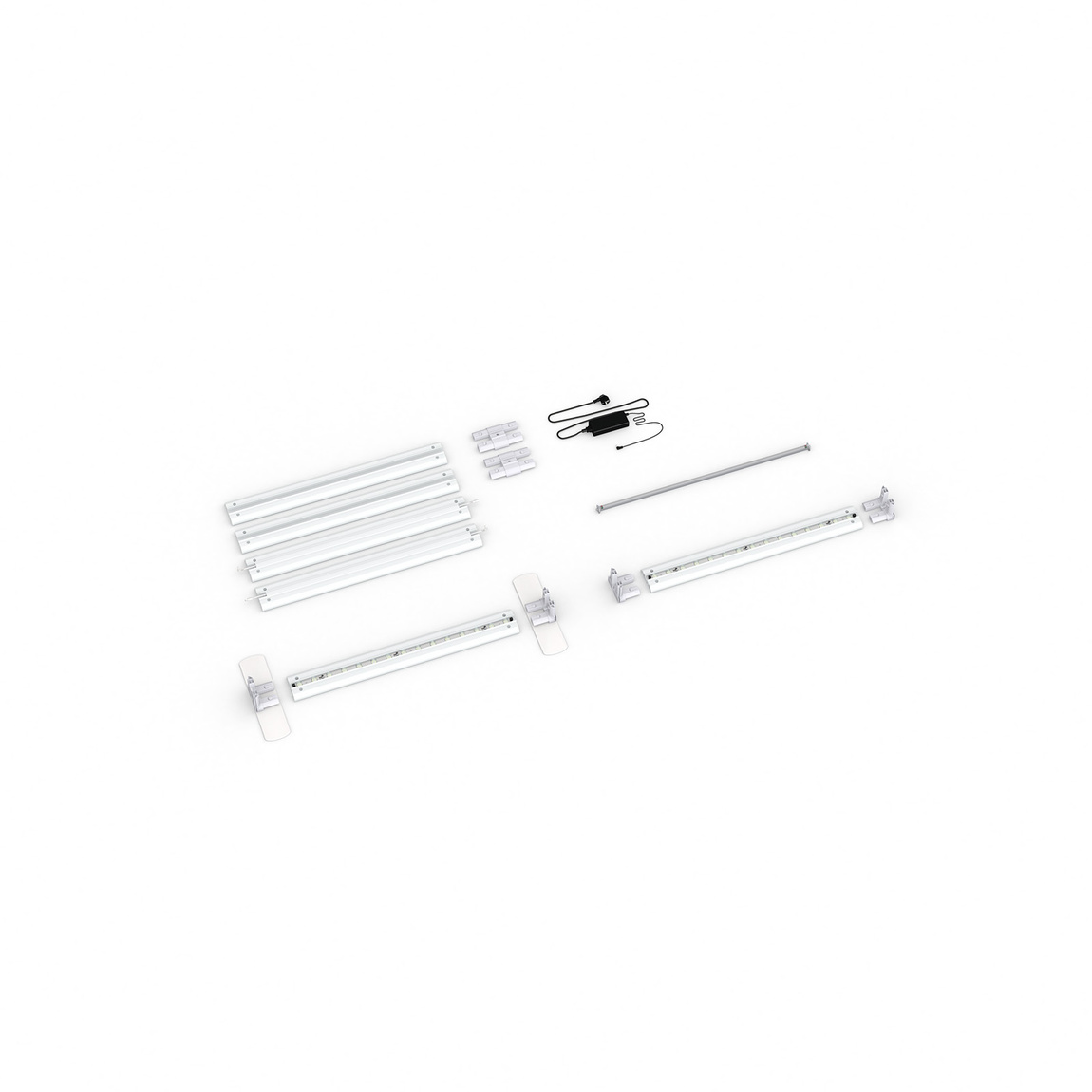

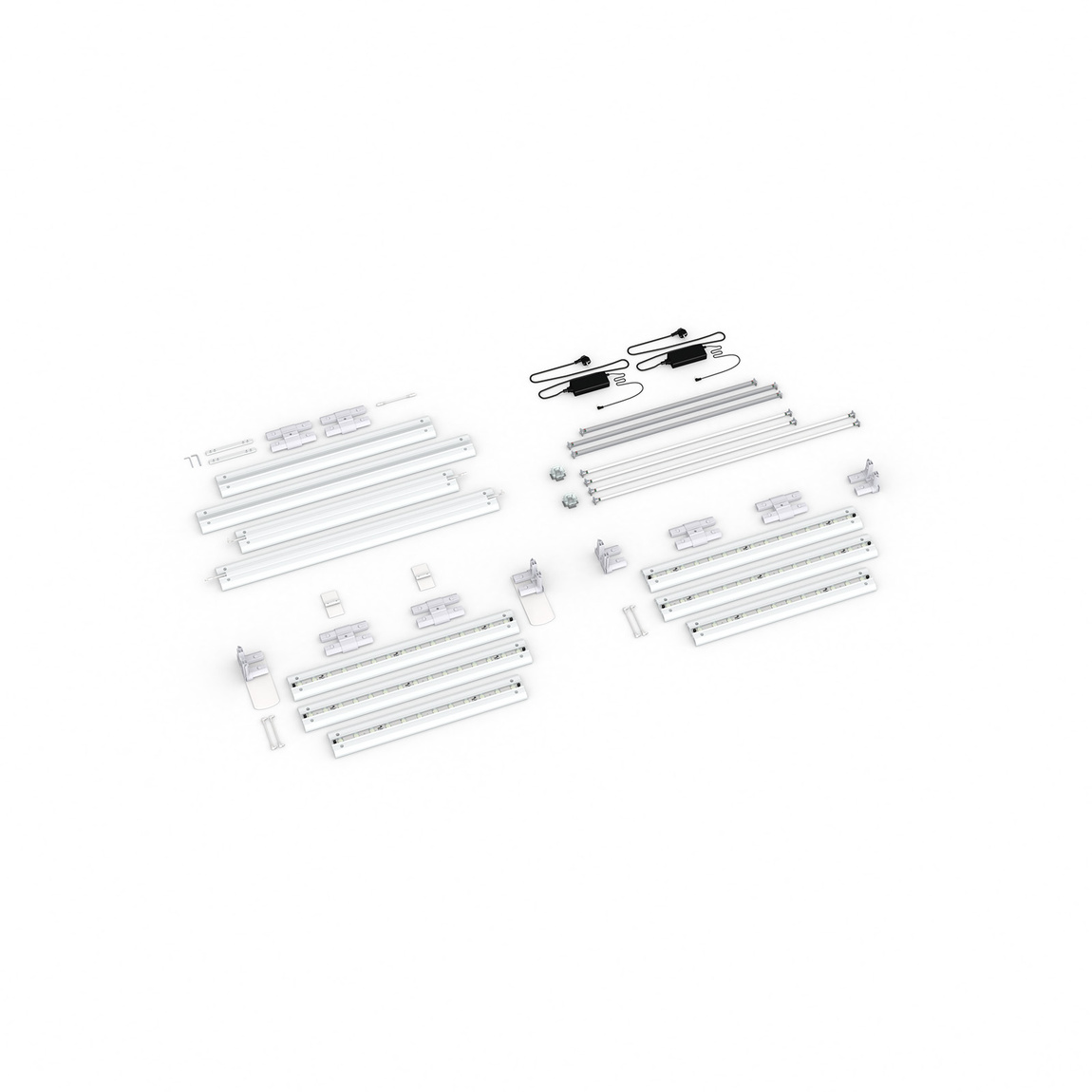

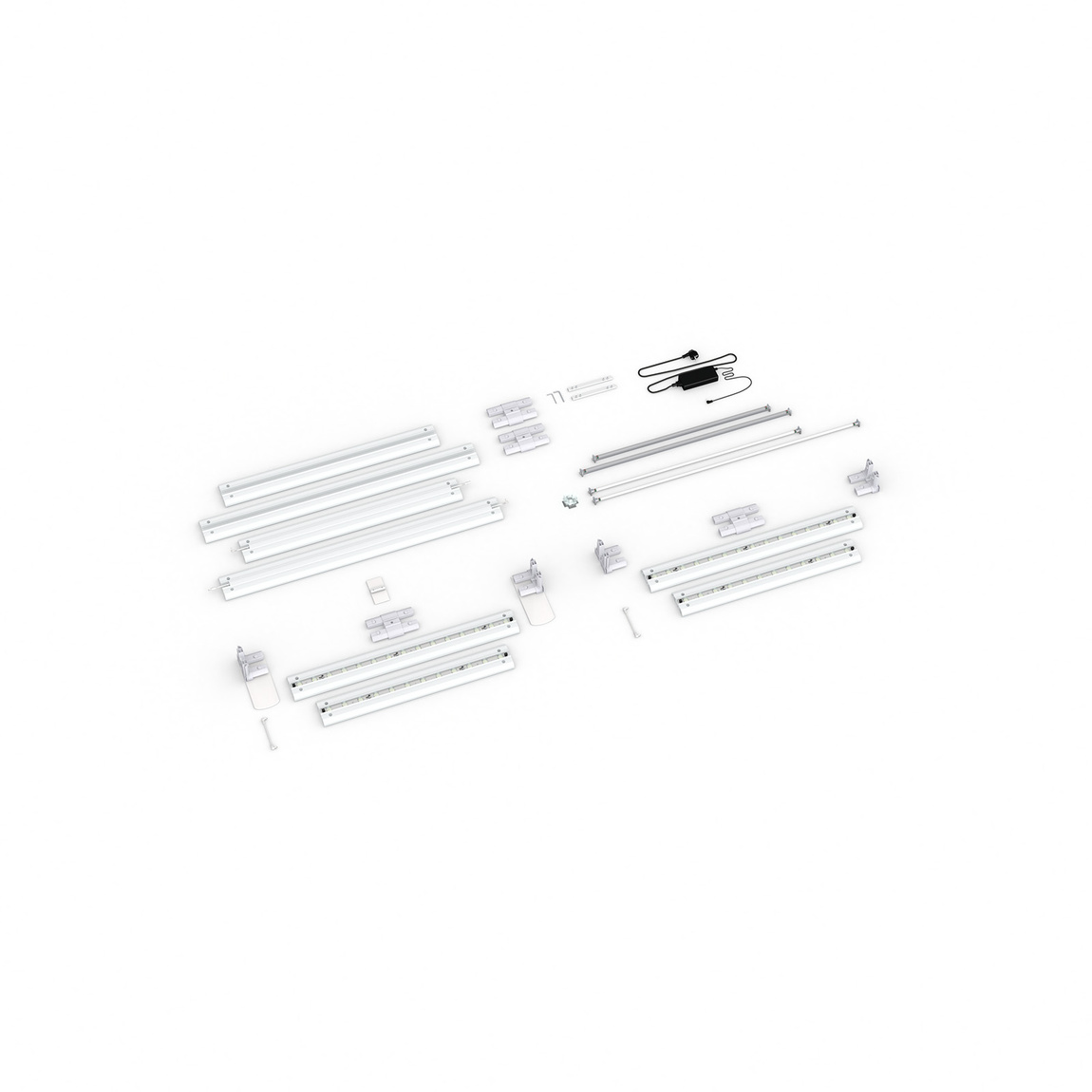

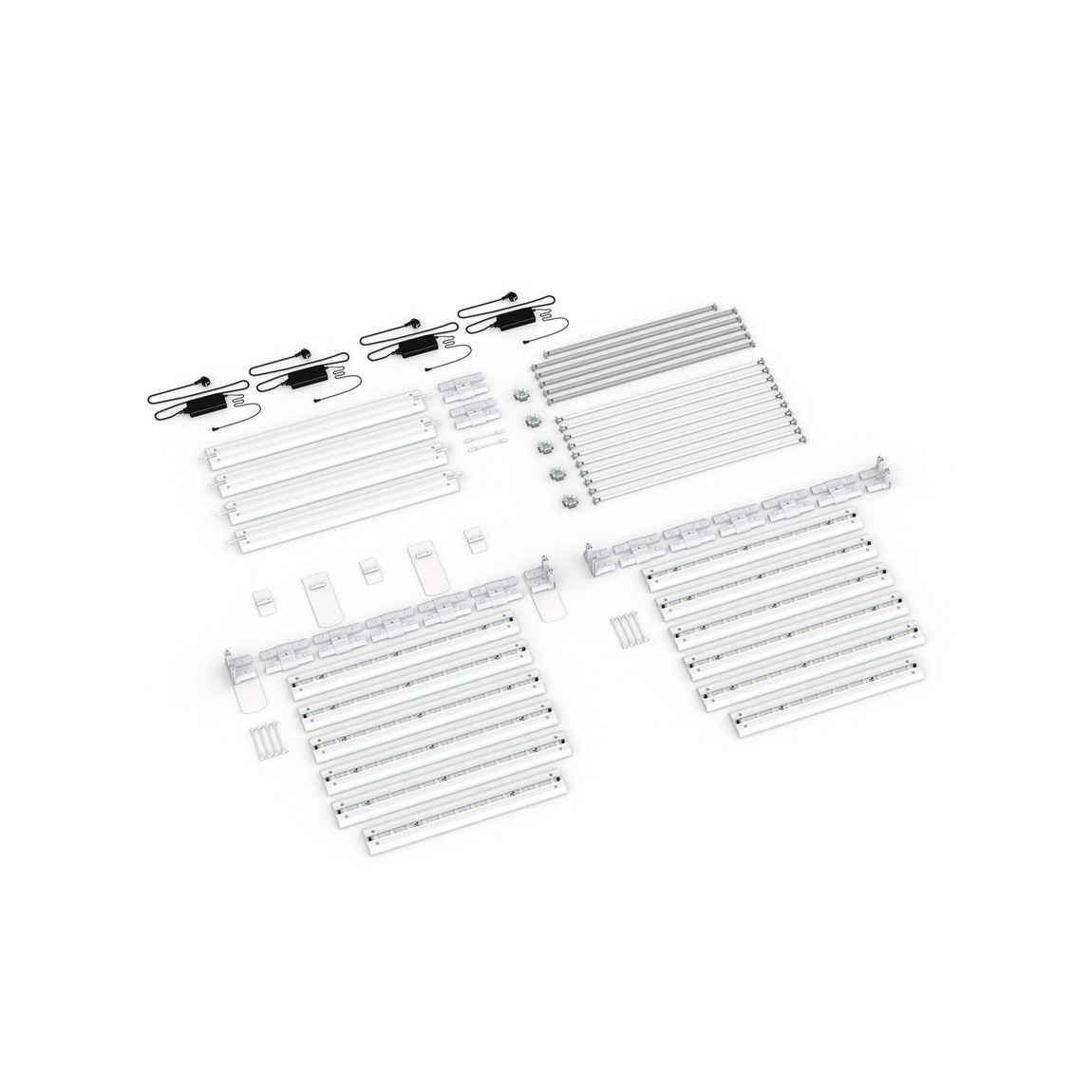

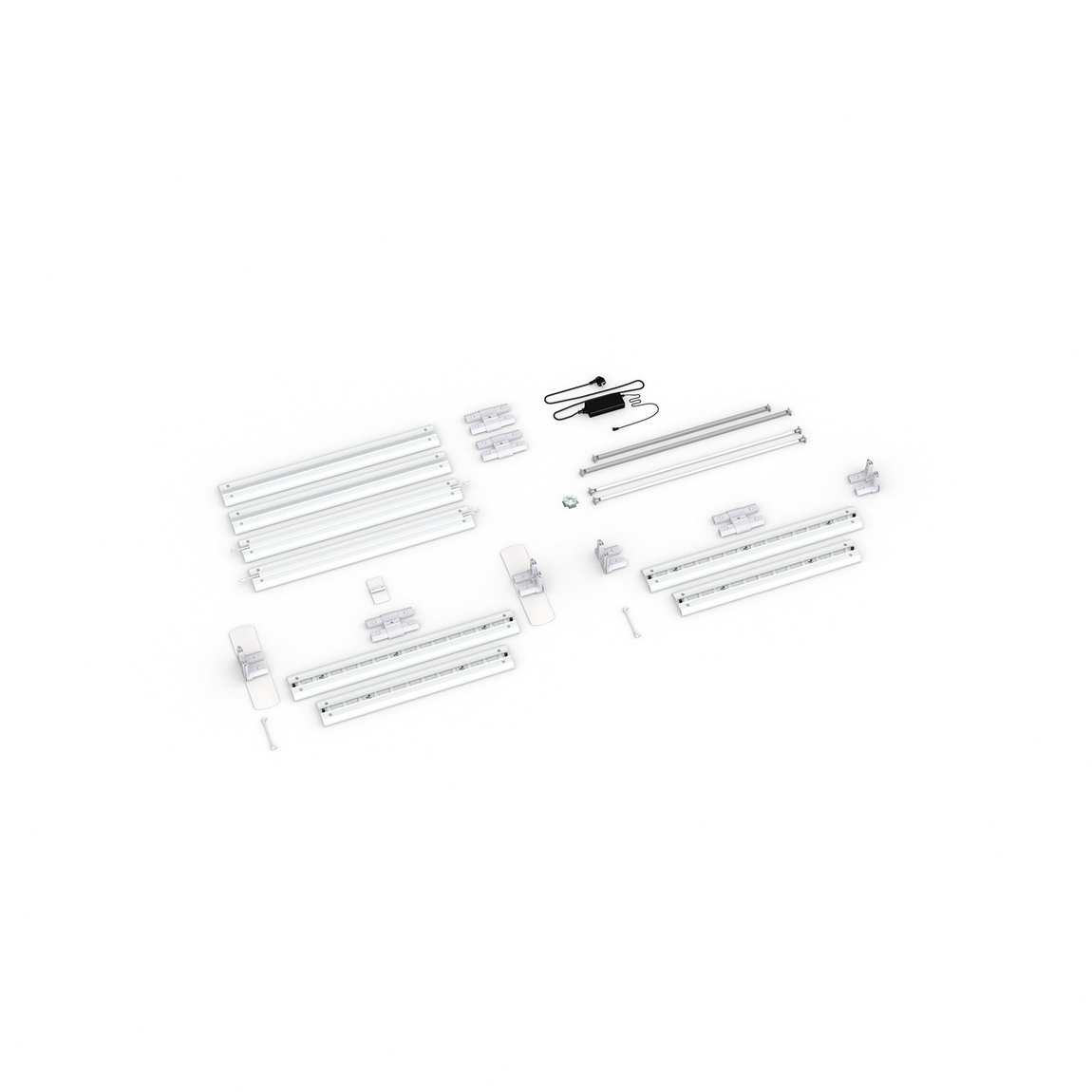

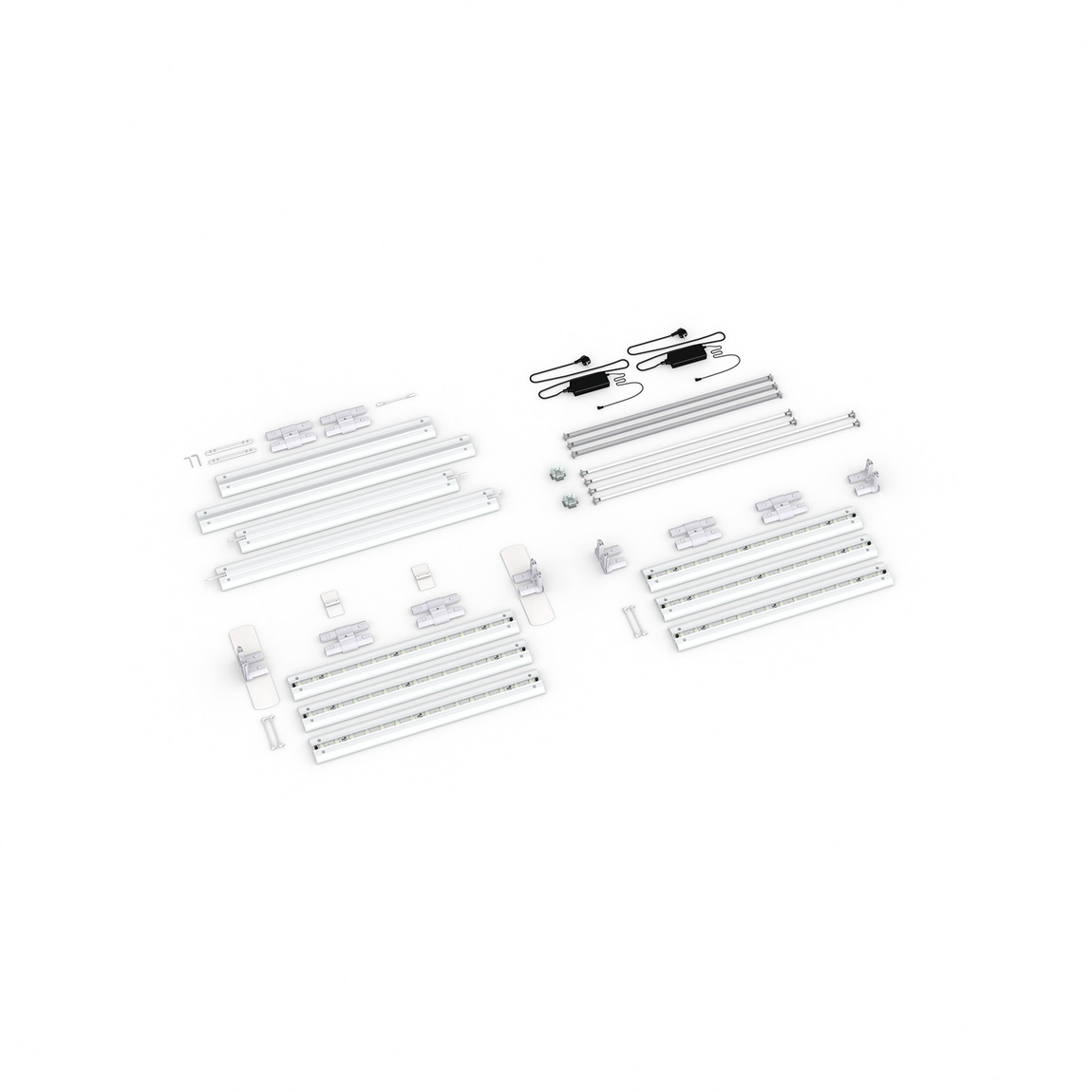

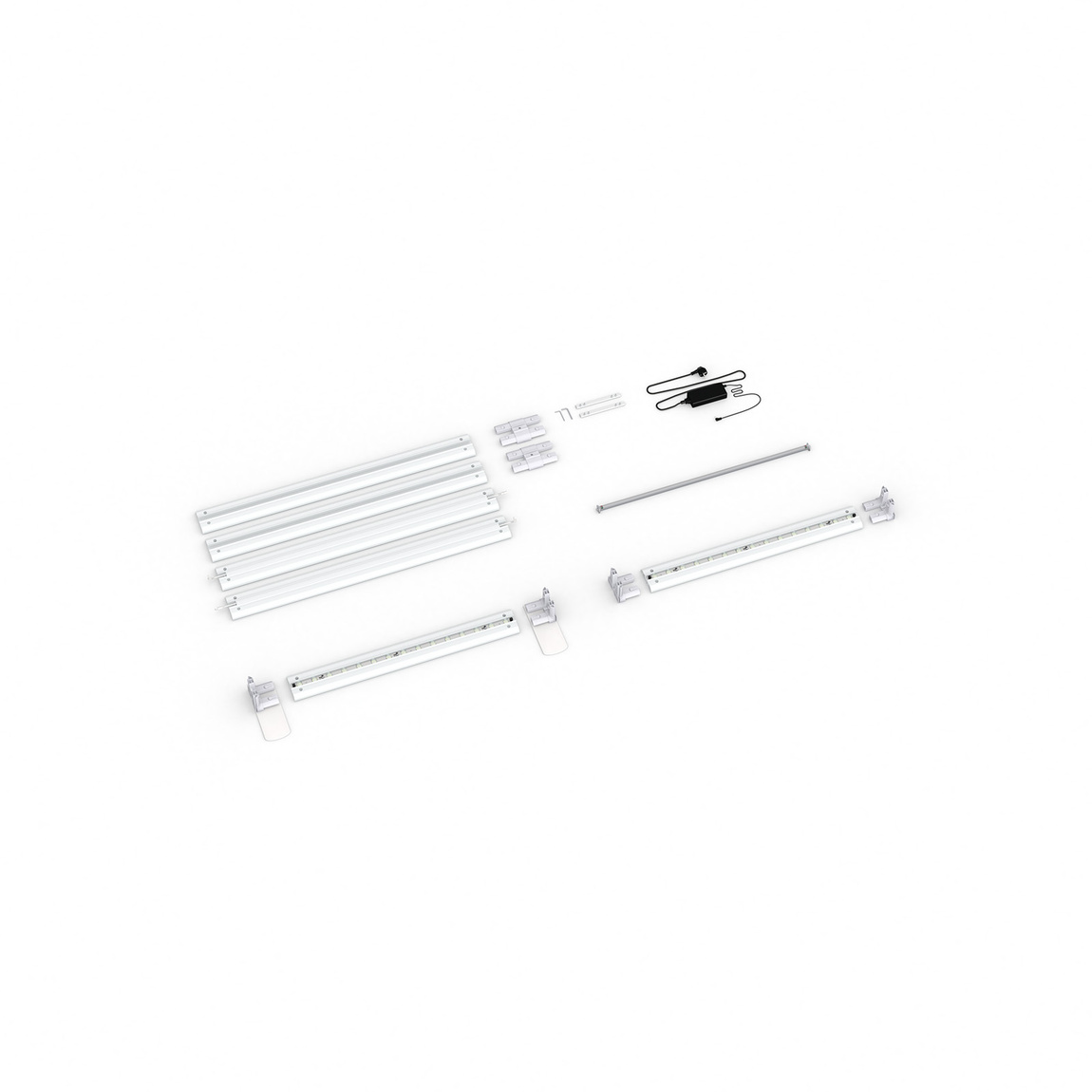

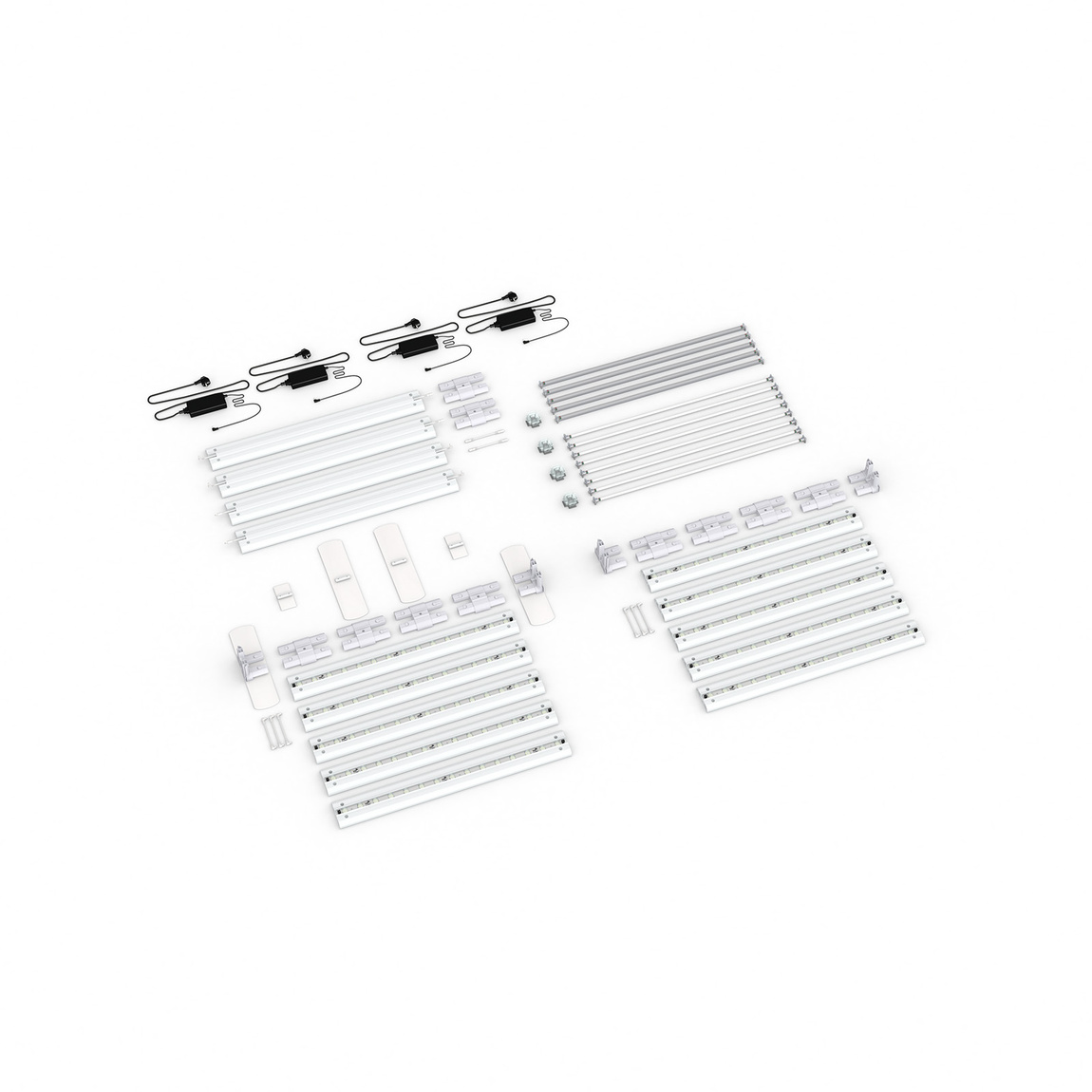

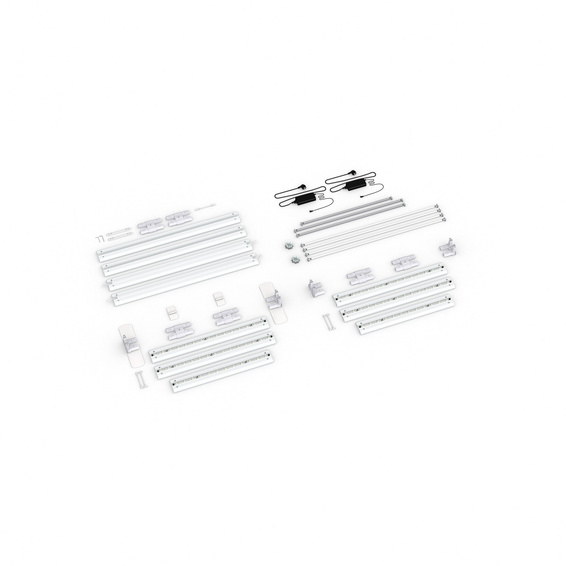

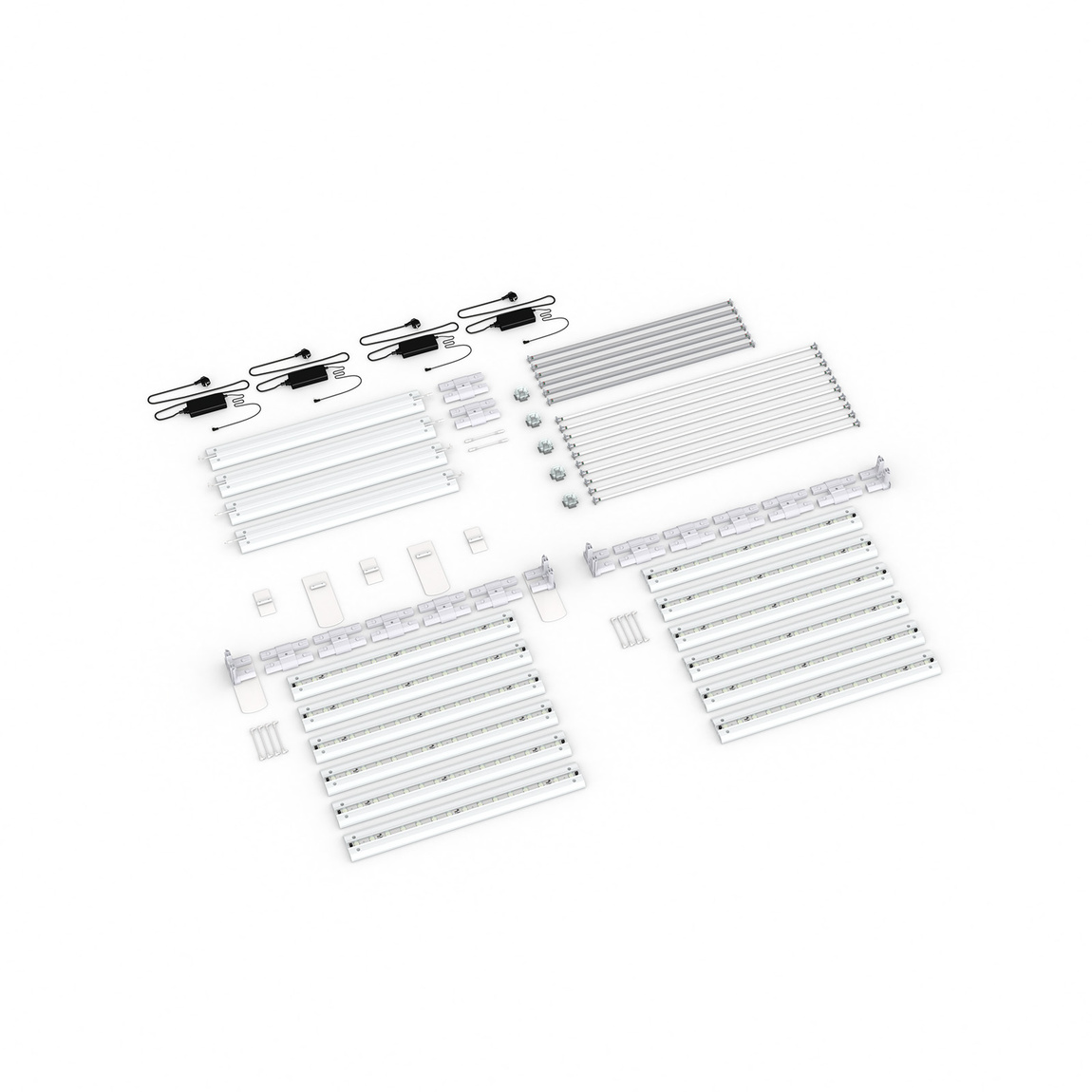

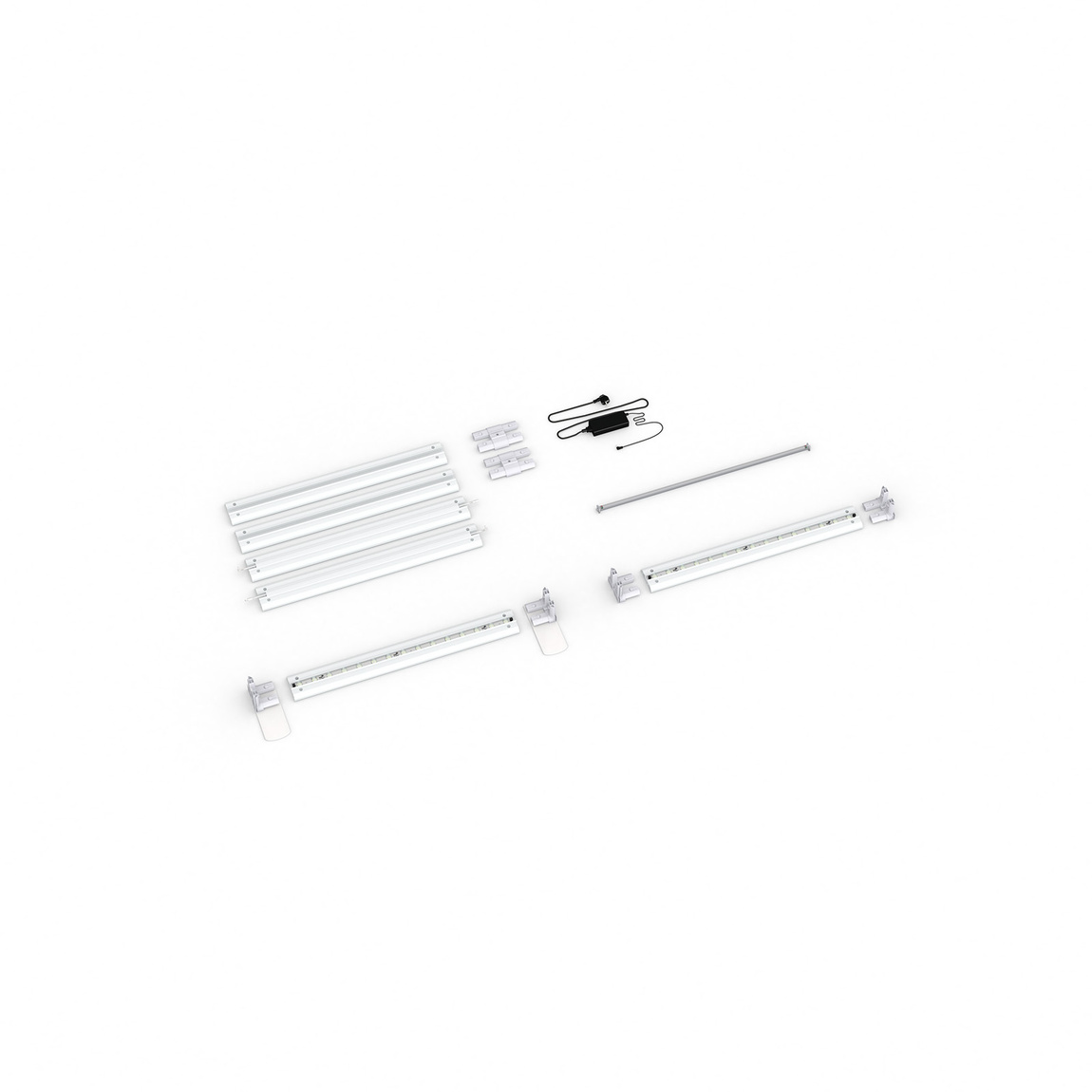

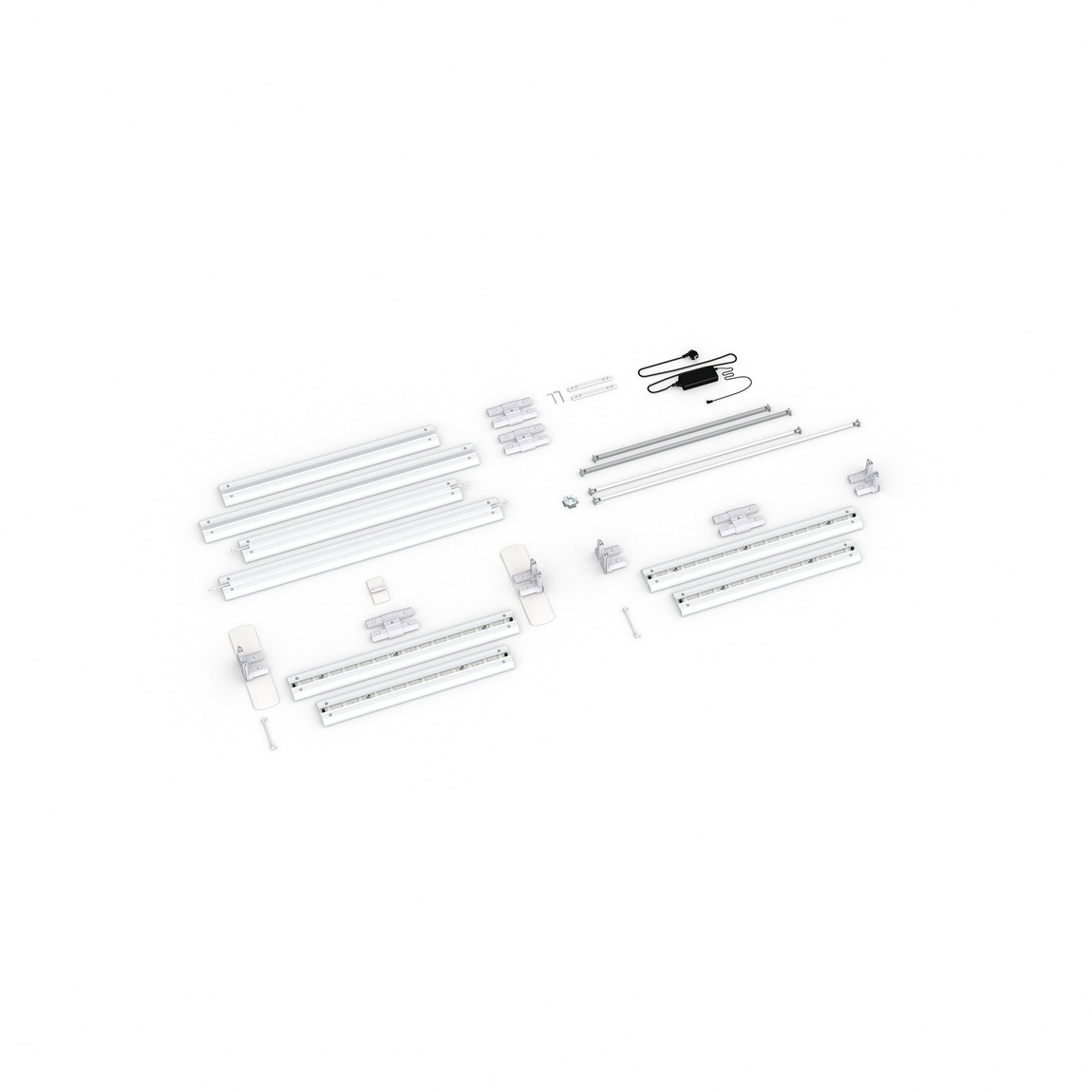

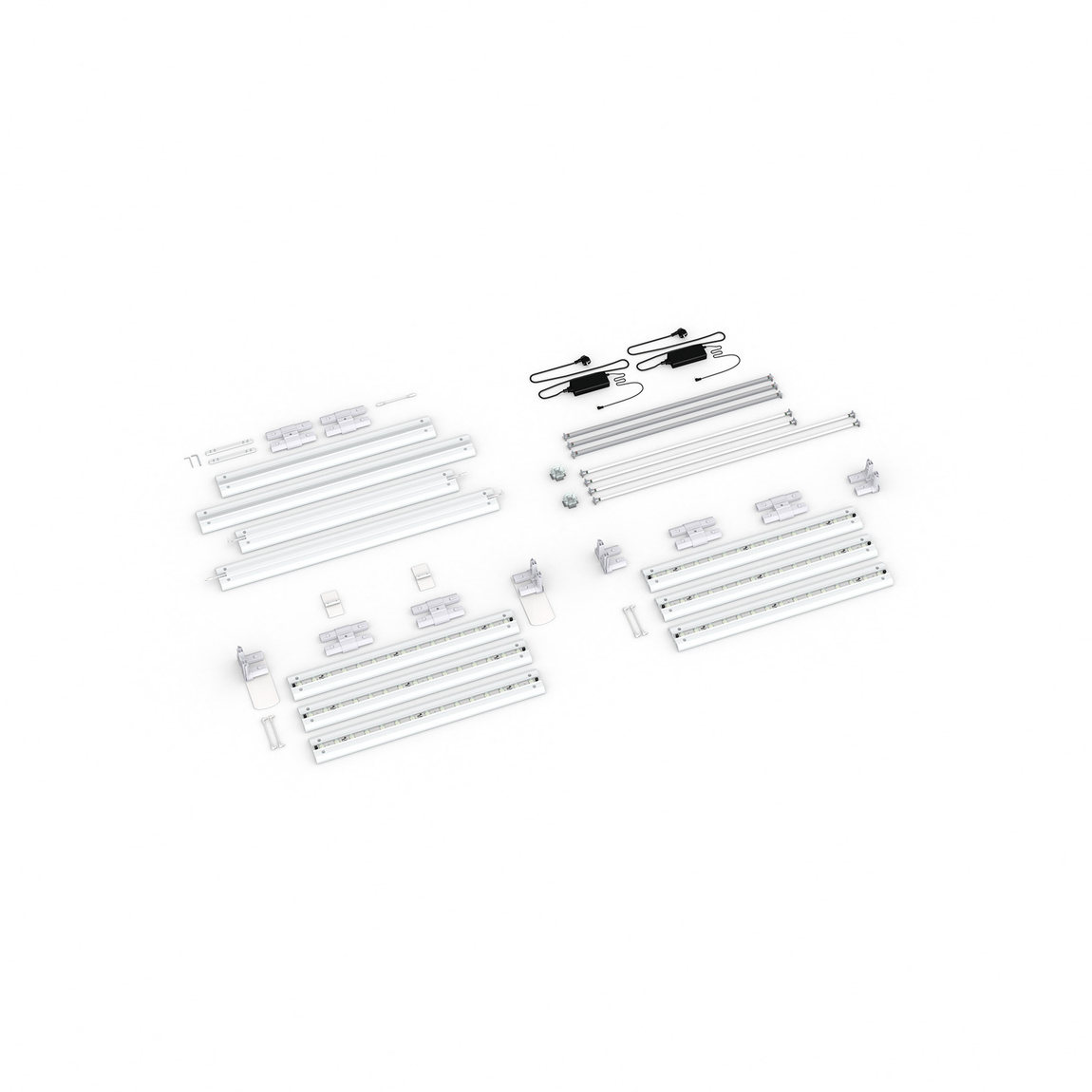

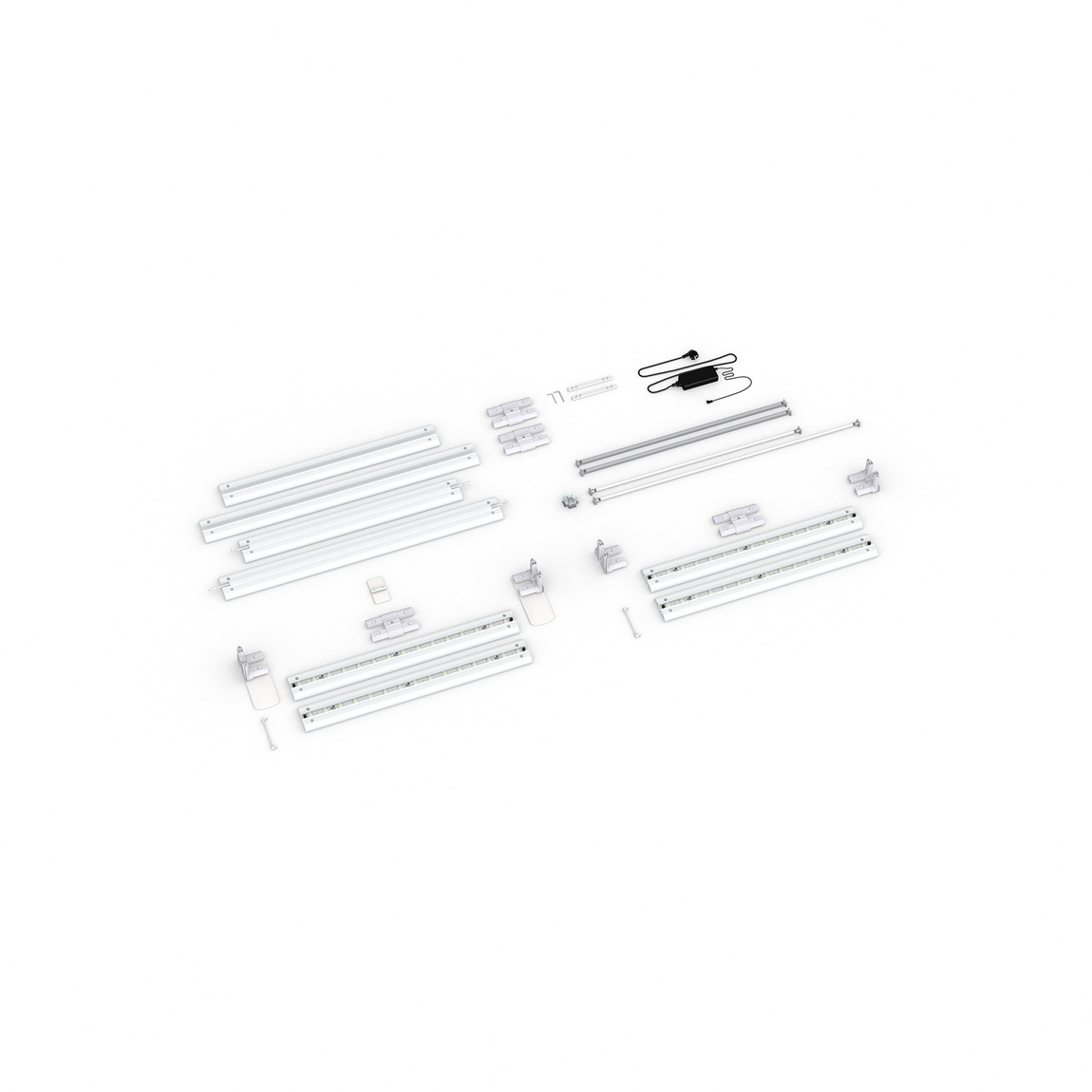

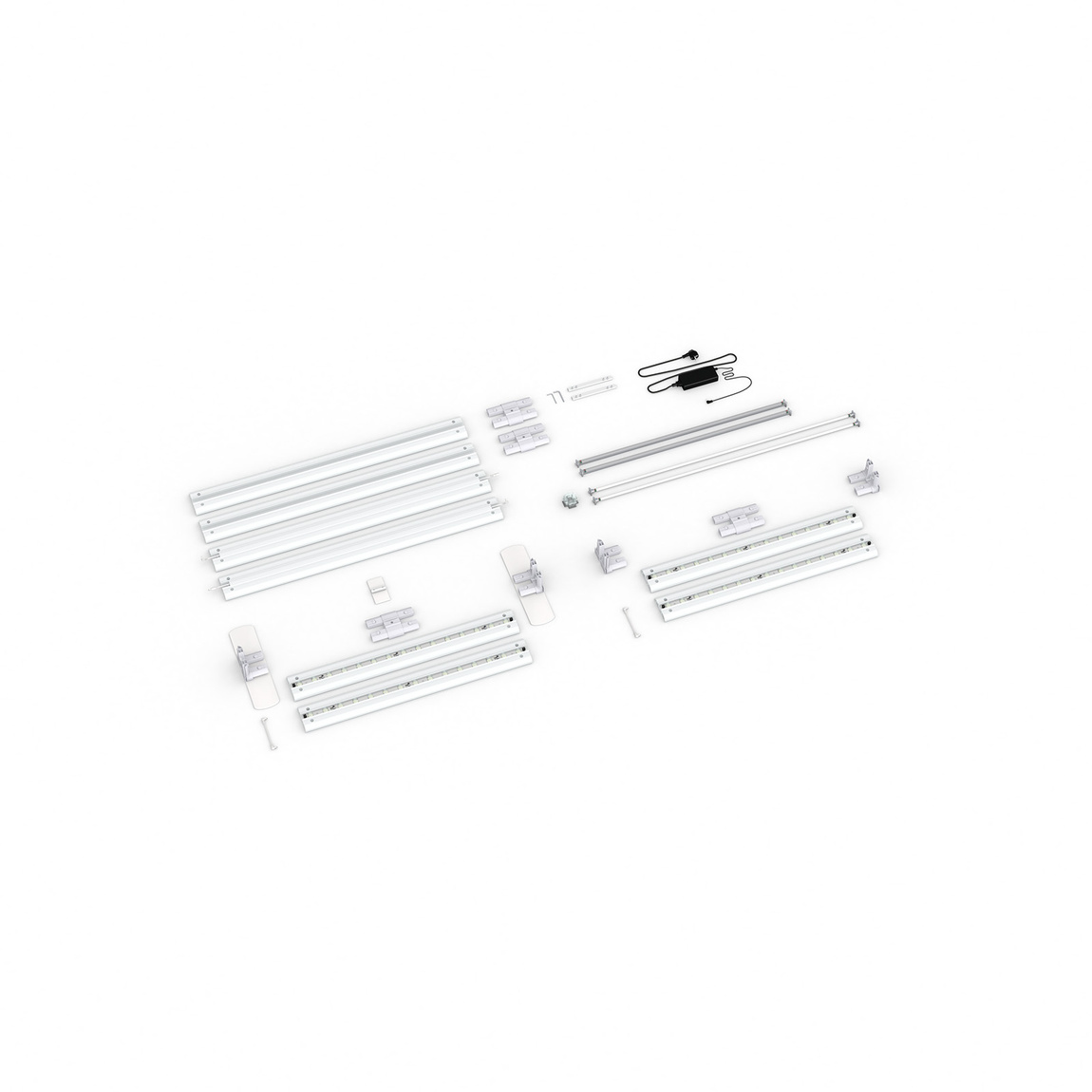

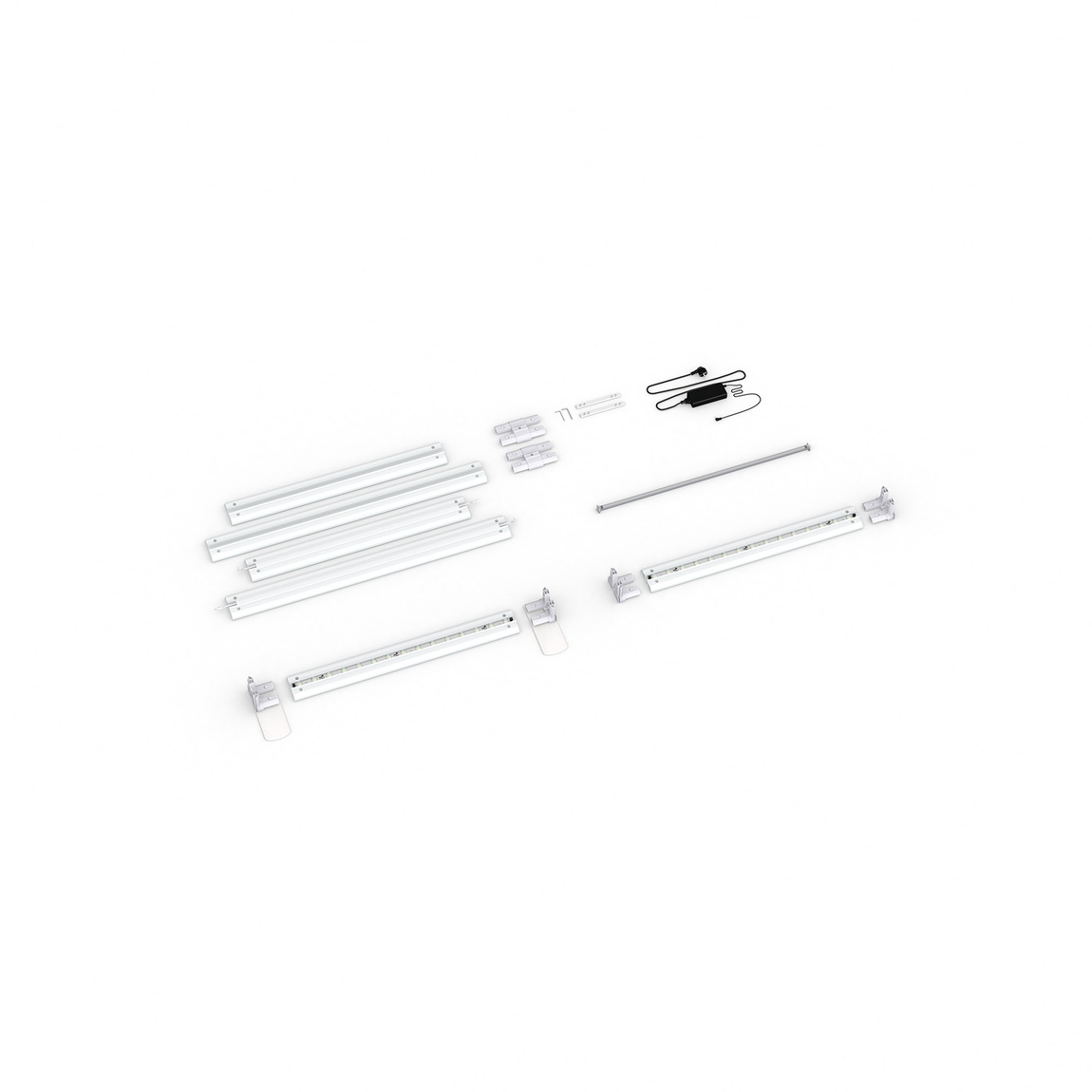

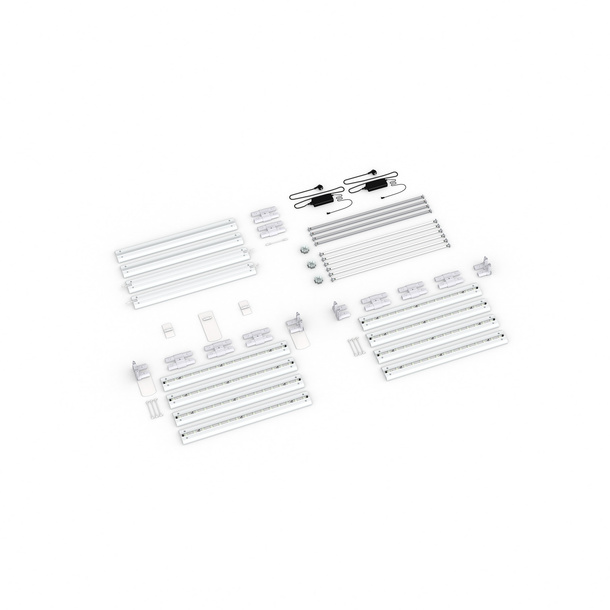

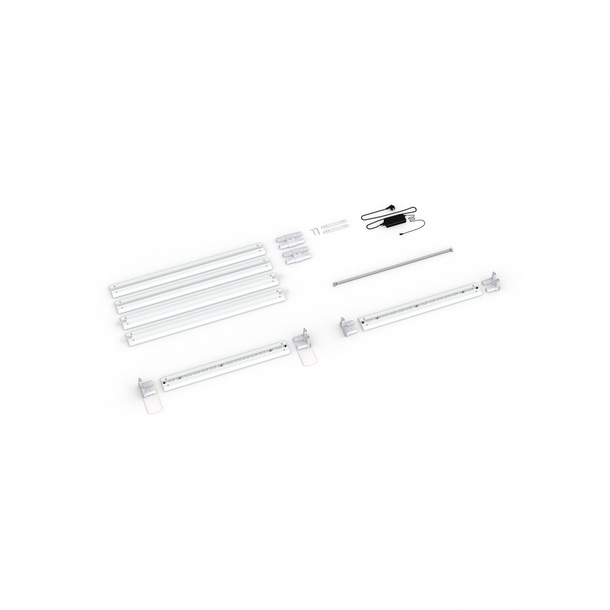

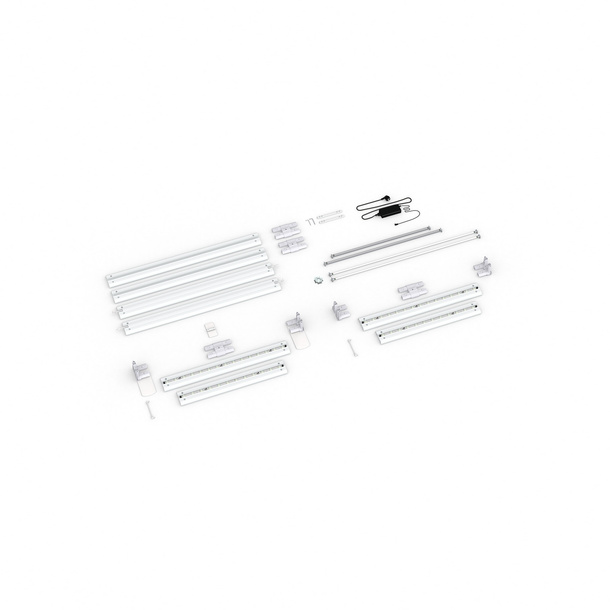

      Scope of Delivery

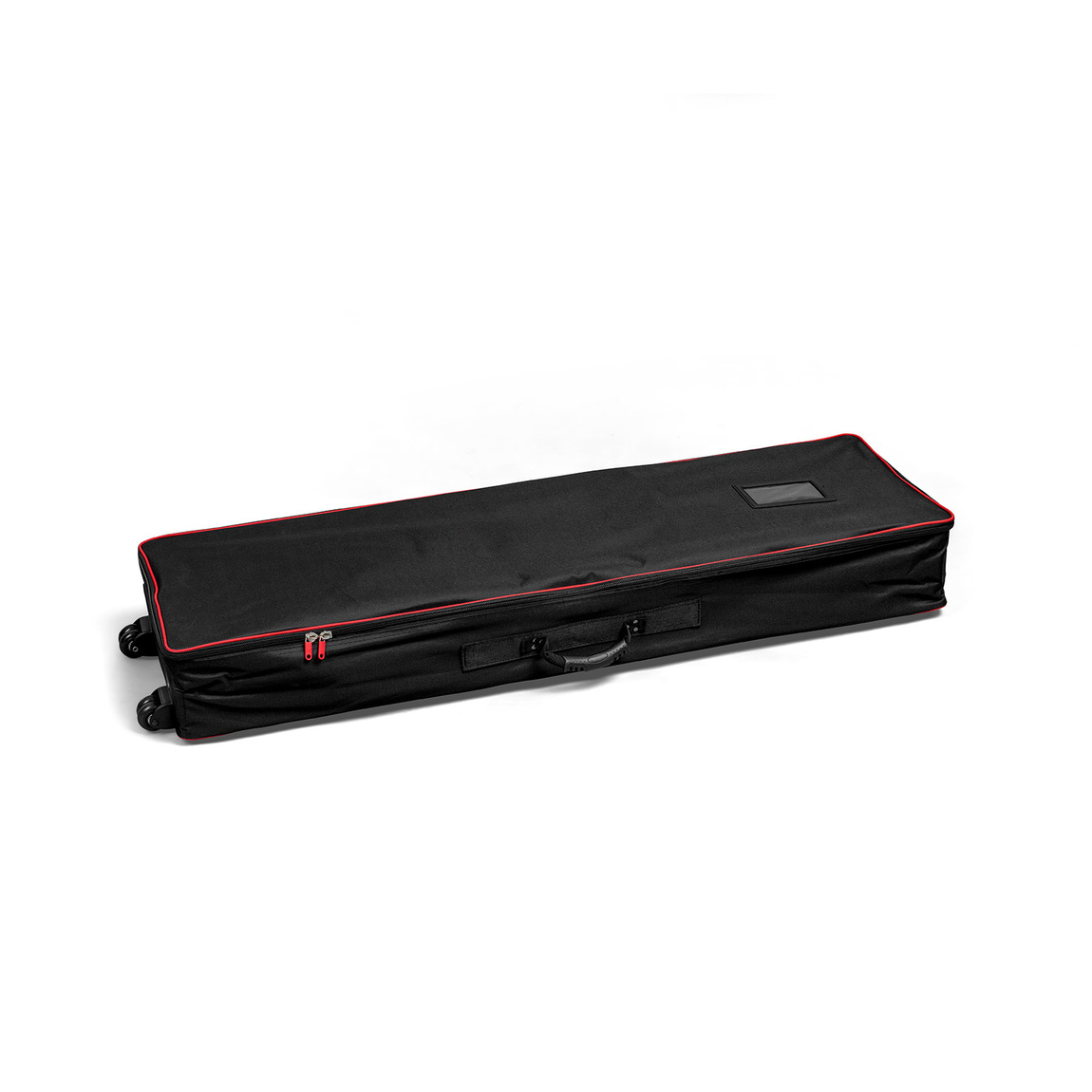

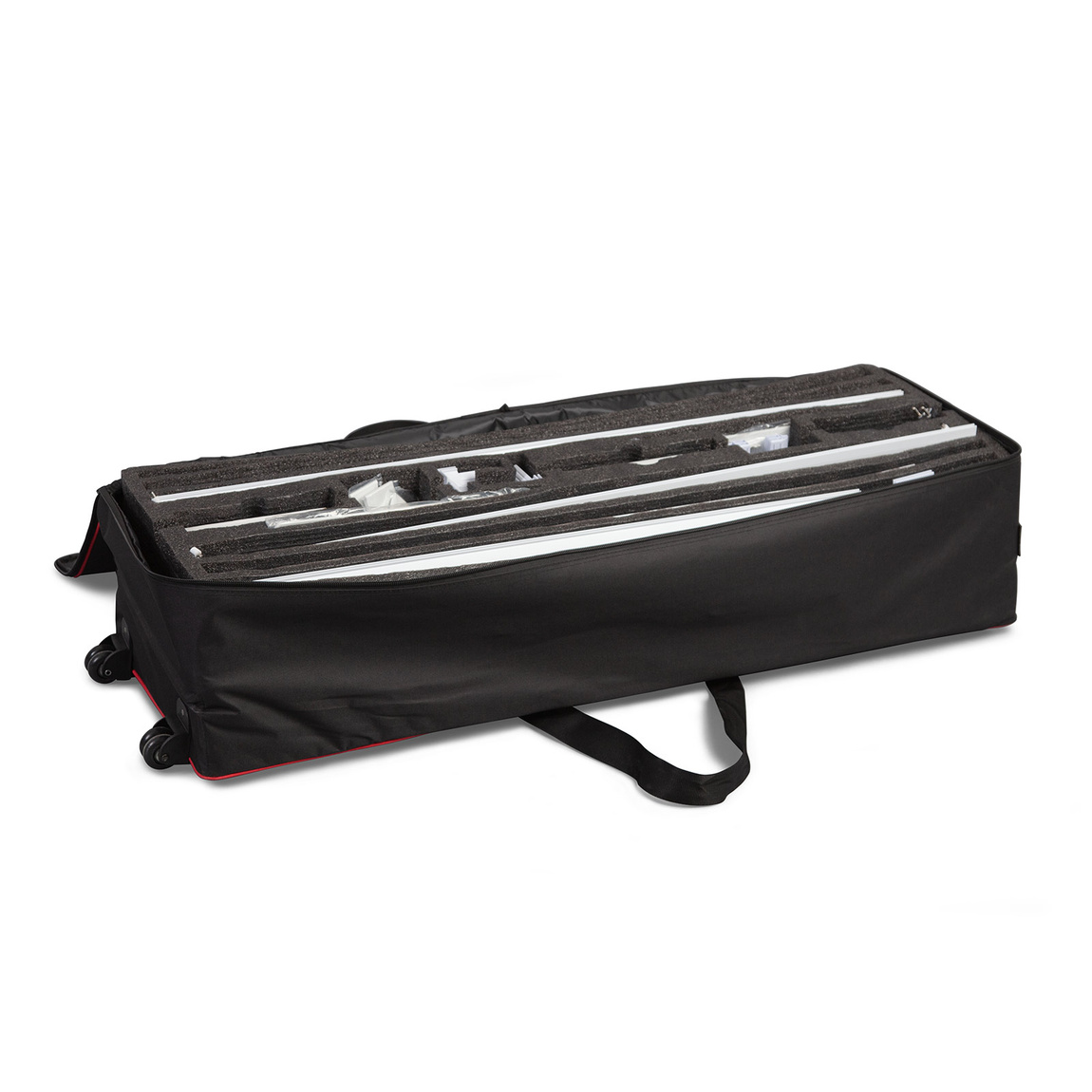

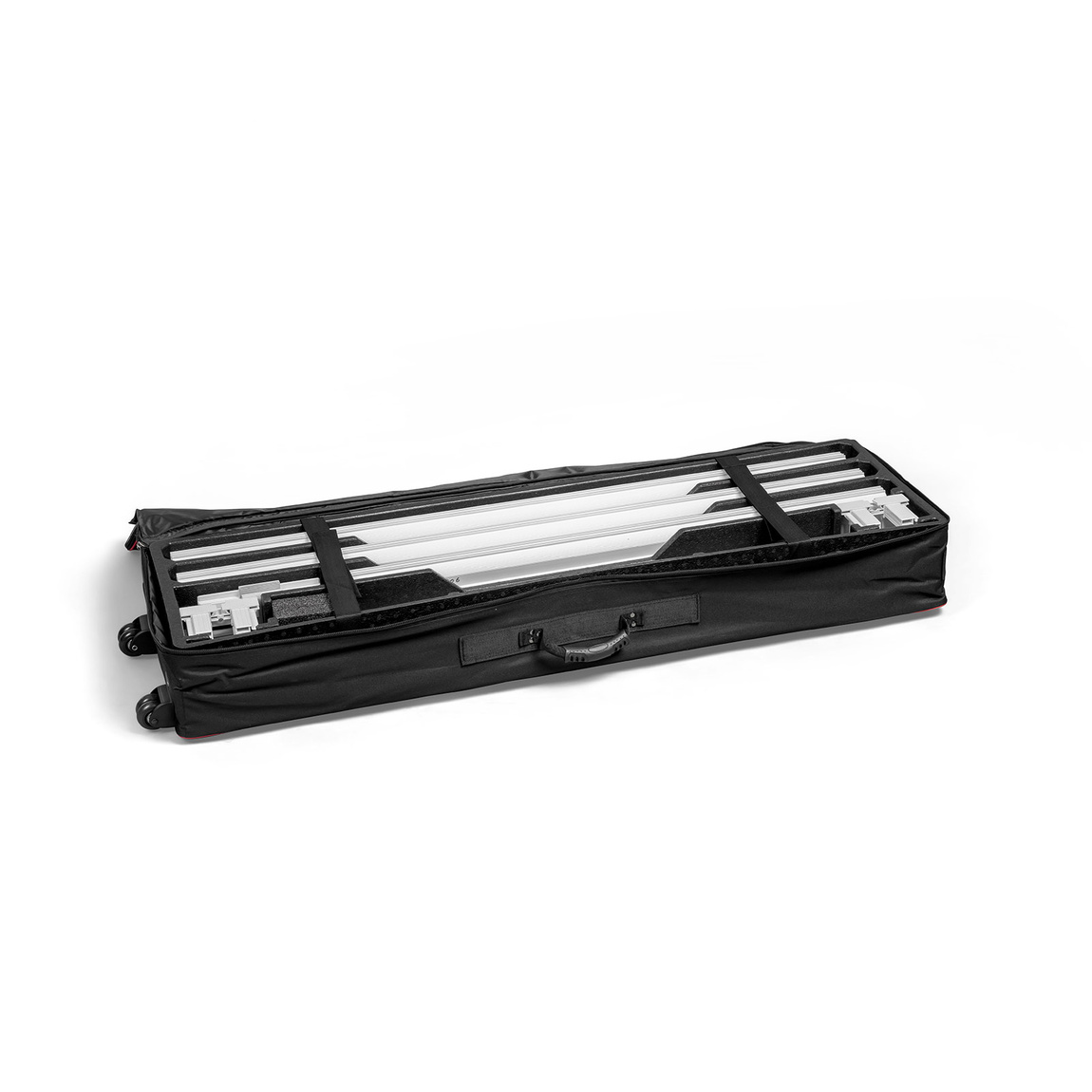

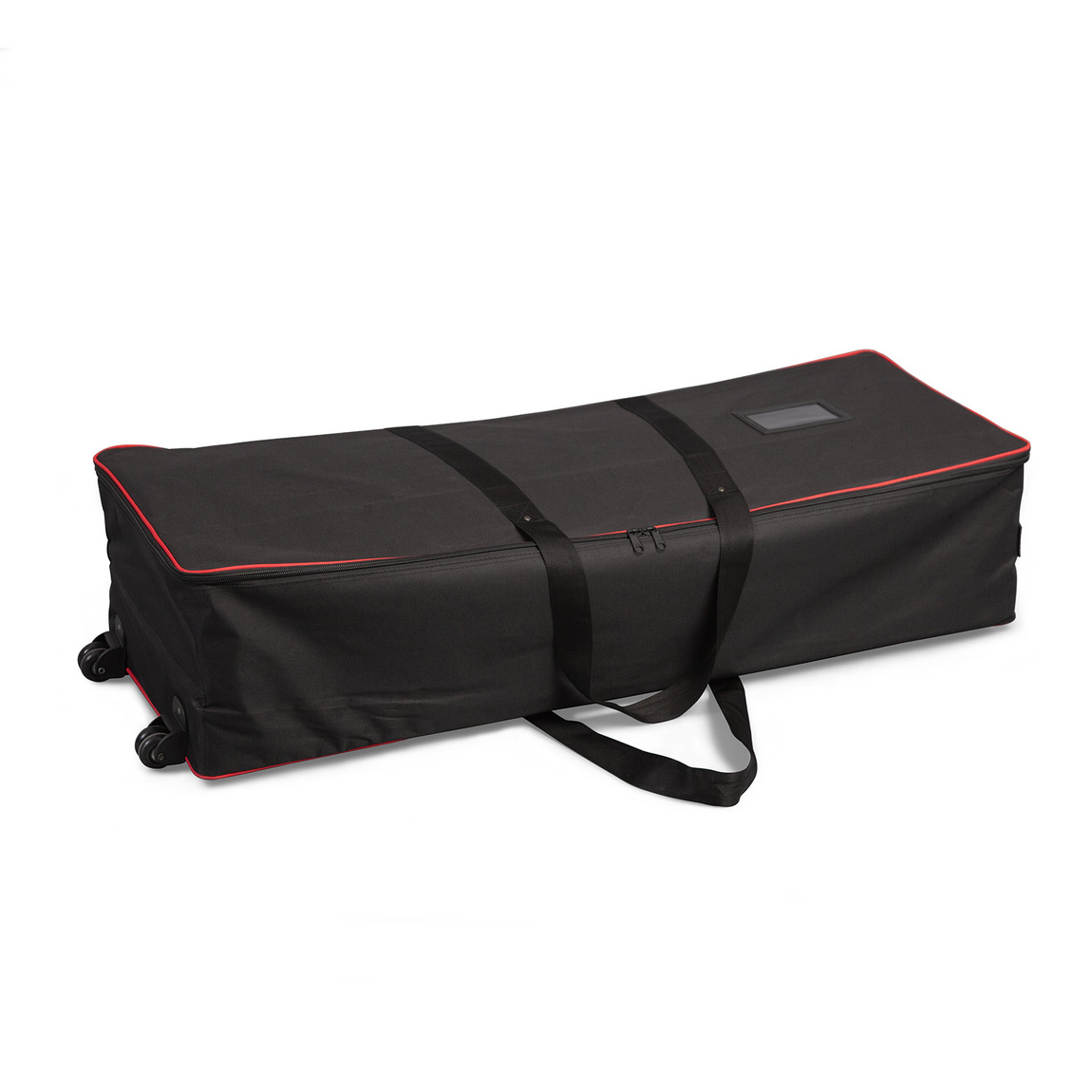

      • Complete set: Lightbox flex system, printed part(s) or backside covering, and trolley bag; from system width 382 cm with 2 trolley bags
      • Printed part: printed motif(s) or backside covering according to selected option (without system)
      • System: Lightbox flex system, trolley bag; from system width 382 cm with 2 trolley bags (complete without textile covering)

      The system is delivered disassembled, ideal for compact storage and low transport costs.

      Packaging Dimensions & Weights

      System Height 200 cm
      System Width System Weight Total Weight Packaging Dimensions
      85 cm10.71 kg16.71 kg136 × 40 × 18 cm
      100 cm11.25 kg17.25 kg136 × 40 × 18 cm
      185 cm15.00 kg20.50 kg124 × 45.5 × 28.5 cm
      200 cm15.54 kg21.04 kg124 × 45.5 × 28.5 cm
      285 cm19.65 kg25.15 kg2 packages each 124 × 45.5 × 28.5 cm
      300 cm20.19 kg25.69 kg2 packages each 124 × 45.5 × 28.5 cm
      385 cm24.36 kg35.36 kg2 packages each 124 × 45.5 × 28.5 cm
      400 cm24.90 kg35.90 kg2 packages each 124 × 45.5 × 28.5 cm
      485 cm30.46 kg41.46 kg2 packages each 124 × 45.5 × 28.5 cm
      500 cm31.00 kg42.00 kg2 packages each 124 × 45.5 × 28.5 cm
      585 cm34.53 kg45.53 kg2 packages each 124 × 45.5 × 28.5 cm
      600 cm35.07 kg46.07 kg2 packages each 124 × 45.5 × 28.5 cm

      *All dimensions and weights are approximate values.

      System Height 225 cm
      System Width System Weight Total Weight Packaging Dimensions
      85 cm11.55 kg17.55 kg136 × 40 × 18 cm
      100 cm12.09 kg18.09 kg136 × 40 × 18 cm
      185 cm15.88 kg21.38 kg124 × 45.5 × 28.5 cm
      200 cm16.42 kg21.92 kg124 × 45.5 × 28.5 cm
      285 cm20.57 kg26.07 kg2 packages each 124 × 45.5 × 28.5 cm
      300 cm21.11 kg26.61 kg2 packages each 124 × 45.5 × 28.5 cm
      385 cm25.32 kg36.32 kg2 packages each 124 × 45.5 × 28.5 cm
      400 cm25.86 kg36.86 kg2 packages each 124 × 45.5 × 28.5 cm
      485 cm31.67 kg42.67 kg2 packages each 124 × 45.5 × 28.5 cm
      500 cm32.21 kg43.21 kg2 packages each 124 × 45.5 × 28.5 cm
      585 cm35.78 kg46.78 kg2 packages each 124 × 45.5 × 28.5 cm
      600 cm36.32 kg47.32 kg2 packages each 124 × 45.5 × 28.5 cm

      *All dimensions and weights are approximate values.

      System Height 250 cm
      System Width System Weight Total Weight Packaging Dimensions
      85 cm12.29 kg18.29 kg136 × 40 × 18 cm
      100 cm12.83 kg18.83 kg136 × 40 × 18 cm
      185 cm16.66 kg22.16 kg124 × 45.5 × 28.5 cm
      200 cm17.20 kg22.70 kg124 × 45.5 × 28.5 cm
      285 cm21.39 kg26.89 kg2 packages each 124 × 45.5 × 28.5 cm
      300 cm21.93 kg27.43 kg2 packages each 124 × 45.5 × 28.5 cm
      385 cm26.18 kg37.18 kg2 packages each 124 × 45.5 × 28.5 cm
      400 cm26.72 kg37.72 kg2 packages each 124 × 45.5 × 28.5 cm
      485 cm32.81 kg43.81 kg2 packages each 124 × 45.5 × 28.5 cm
      500 cm33.35 kg44.35 kg2 packages each 124 × 45.5 × 28.5 cm
      585 cm36.96 kg47.96 kg2 packages each 124 × 45.5 × 28.5 cm
      600 cm37.50 kg48.50 kg2 packages each 124 × 45.5 × 28.5 cm

      *All dimensions and weights are approximate values.
