Exhibition Wall Lightbox Flex Curved

  incl. VAT, excl. Shipping
  excl. VAT, excl. Shipping

We print your Lightbox flex curved using high-quality sublimation printing – colorfast and with sharp contours.

  • Best photo print quality colorfast and ready to use
  • Customize yourself for unique designs
  • Durable OSRAM power LEDs for high brightness
Pro­duct De­tails Print Da­ta To wishlist Delivery date
Quantity
Price list incl. VAT excl. VAT
  • from x piecesxx € / piecexx € / piece
  • from x piecesxx € / piecexx € / piece
  • from x piecesxx € / piecexx € / piece
Show all price tiers

Configure product now

Select your desired product step by step

Selection


System width


System height


NewFinishing


Beschaffenheit (Optional)


Print Files
Ready print files
  • Use artwork template
Preparing print files Here you will find all the guidelines and requirements for your print files.
Show specifications
Design Now
  • Design online in Visprodesign®
Design online with Visprodesign® Design your product directly in your browser – it’s quick and easy.
Graphic check


Print sample (Optional)


Label on print part


Details

Product not suitable?
Would you like personalised advice? Together, we will develop the right solution for you.

Our accessory recommendations

    • Print Details

      • Brilliant textile motifs in sublimation printing
      • UV-resistant with high lightfastness
      • customizable on one or both sides

      Trade Fair Wall Lightbox flex curved

      The mobile LED trade fair wall with curved front combines a lightweight click system with powerful OSRAM LED lighting. It showcases your motifs on elegantly curved, evenly backlit presentation surfaces and can be modularly expanded with all elements of the Lightbox-flex series.

      Version – Print Component

      • cut all around and equipped with a flat welt for attachment in the plastic frame
      • The welt attachment ensures perfect, wrinkle-free tension of the motifs
      • Printing options:
        • double-sided printing: front and back, with the same or different designs

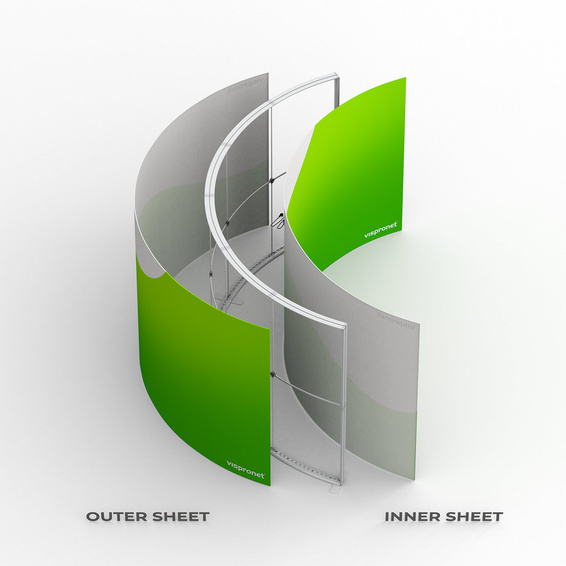

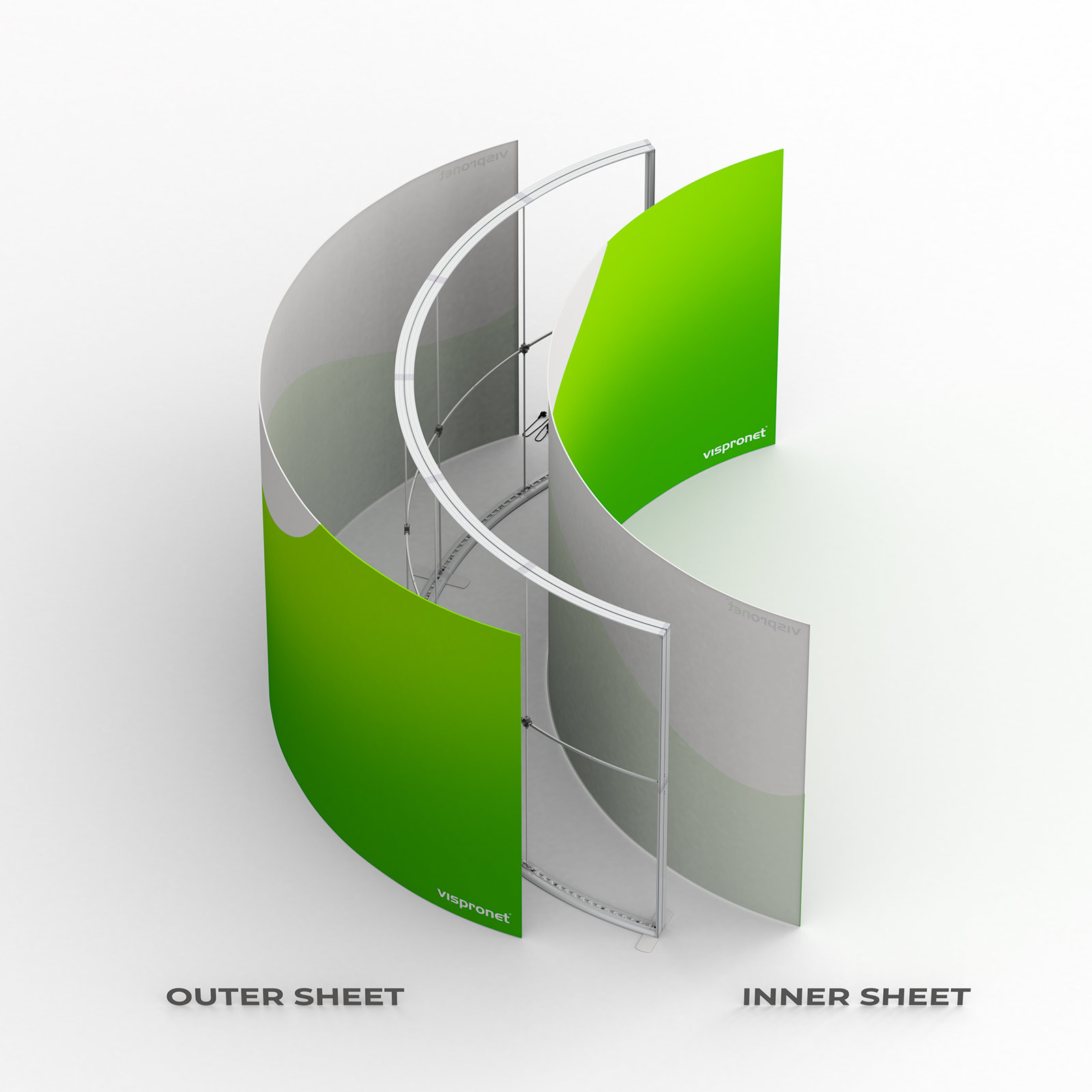

        • single-sided printing: inner sheet with your chosen design, outer sheet optionally in black or white
        • single-sided printing: inner sheet optionally in black or white, outer sheet with your chosen design
      • Note: For motifs extending over multiple connected trade fair walls, slight motif misalignment may occur at the transitions.

      Materials

      • Lighttex SE (approx. 260 g/m2): matte polyester knit, specially designed for backlit applications
        • Sublimation printing: the color penetrates deeply into the fabric, ensuring vibrant colors with high detail fidelity
        • ideal for homogeneous, radiant illuminated surfaces
      • Materials for backside covering in single-sided printing:
        • Backside black: Multisol® X Opak SE, matte glossy polyester knit with one-sided black PU coating, 100 % opaque
        • Backside white: Multisol® X Opak SE, matte glossy polyester knit with one-sided white PU coating, 100 % opaque

      Version – System

      • innovative frame system with utility model protection (GM: 20 2019 103 837)
      • high-quality, curved plastic frame with click profiles, white, V0 fire protection certification
      • frame depth: 120 mm
      • including feet for stable standing
      • LED technology:
        • factory pre-assembled OSRAM power LED modules
        • energy-efficient with low heat generation
        • long service life of up to 50,000 hours
      • 1 system – many possibilities: all trade fair walls and modules of the Lightbox-flex series can be flexibly combined.

      Sizes

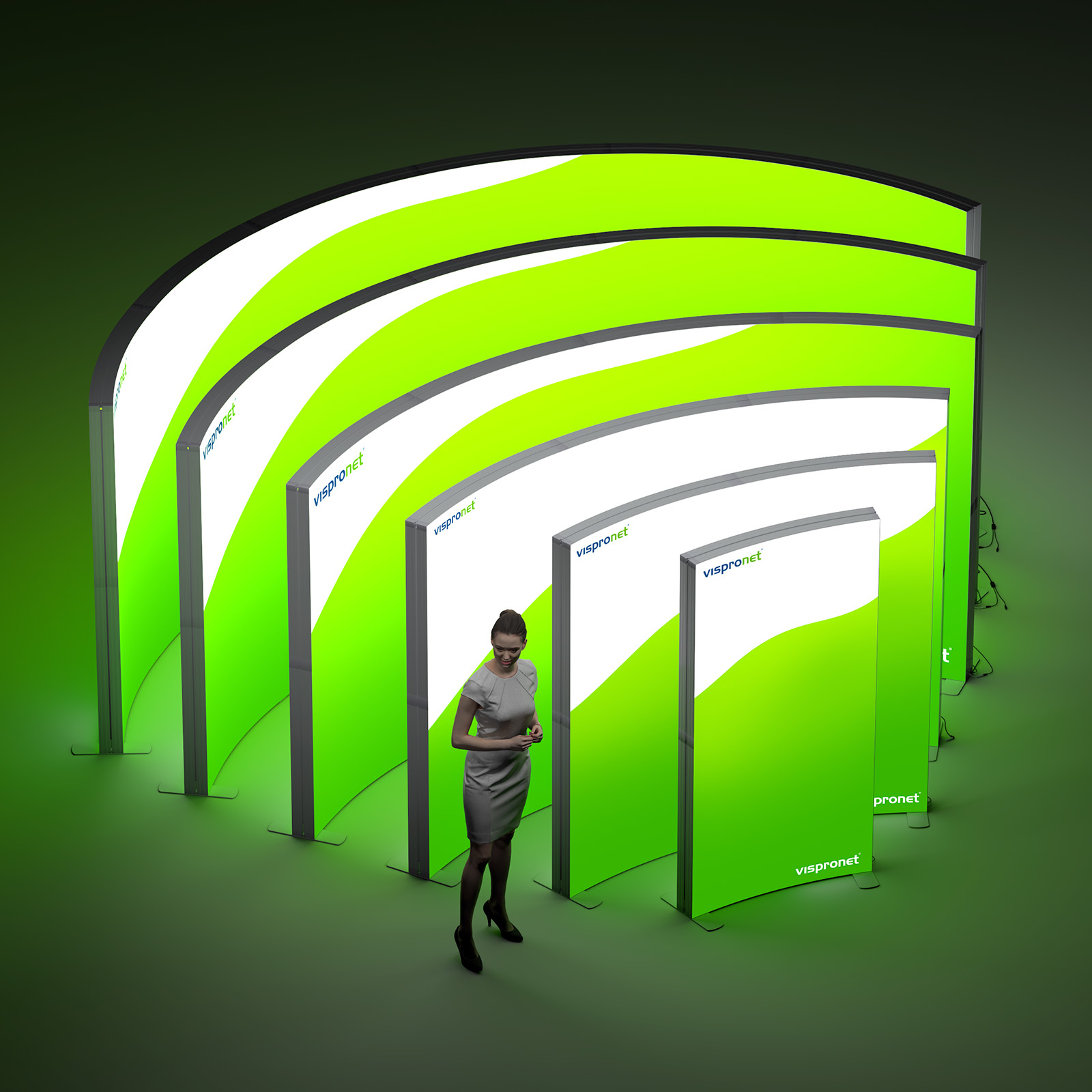

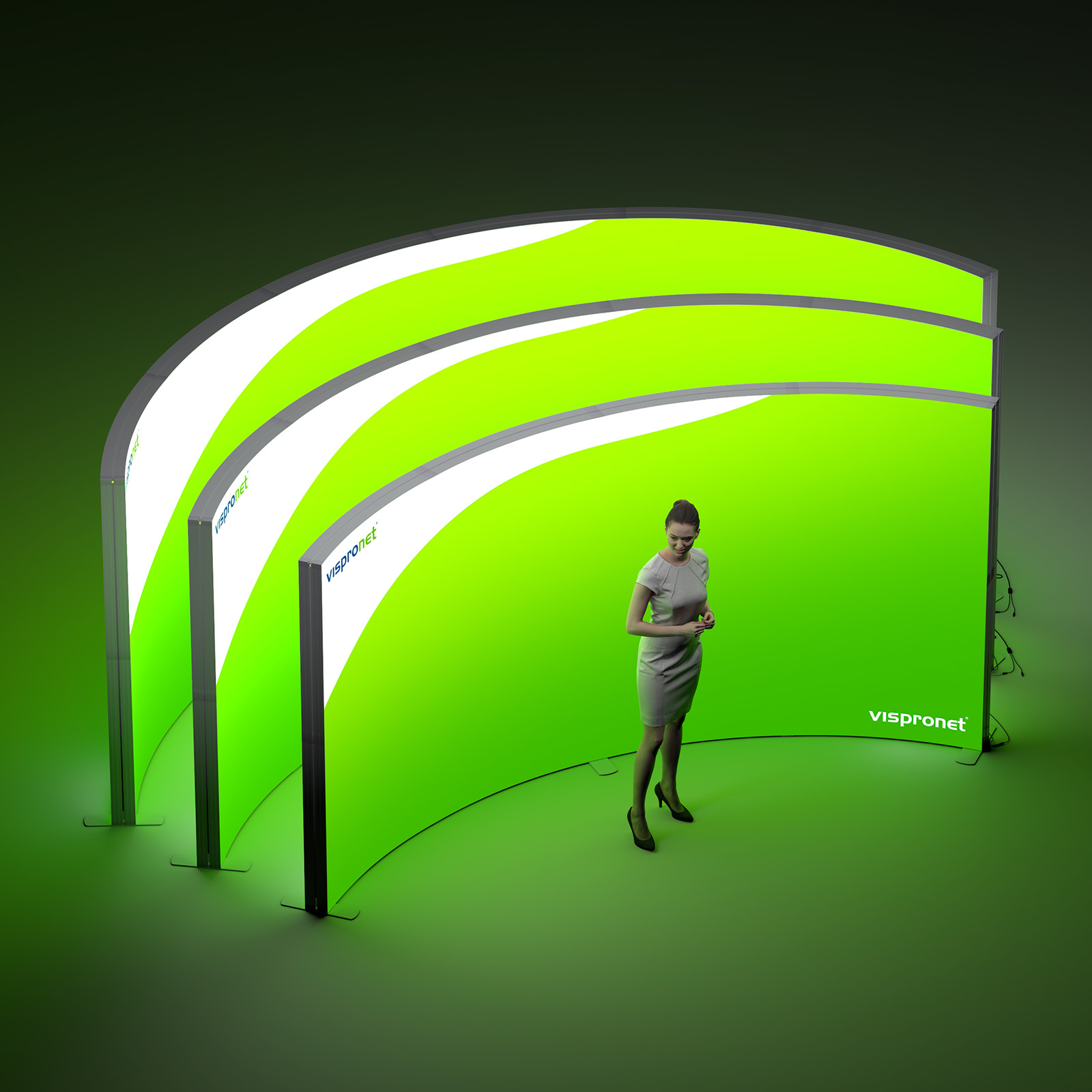

      • System widths: 100, 200, 300, 400, 500, 600 cm

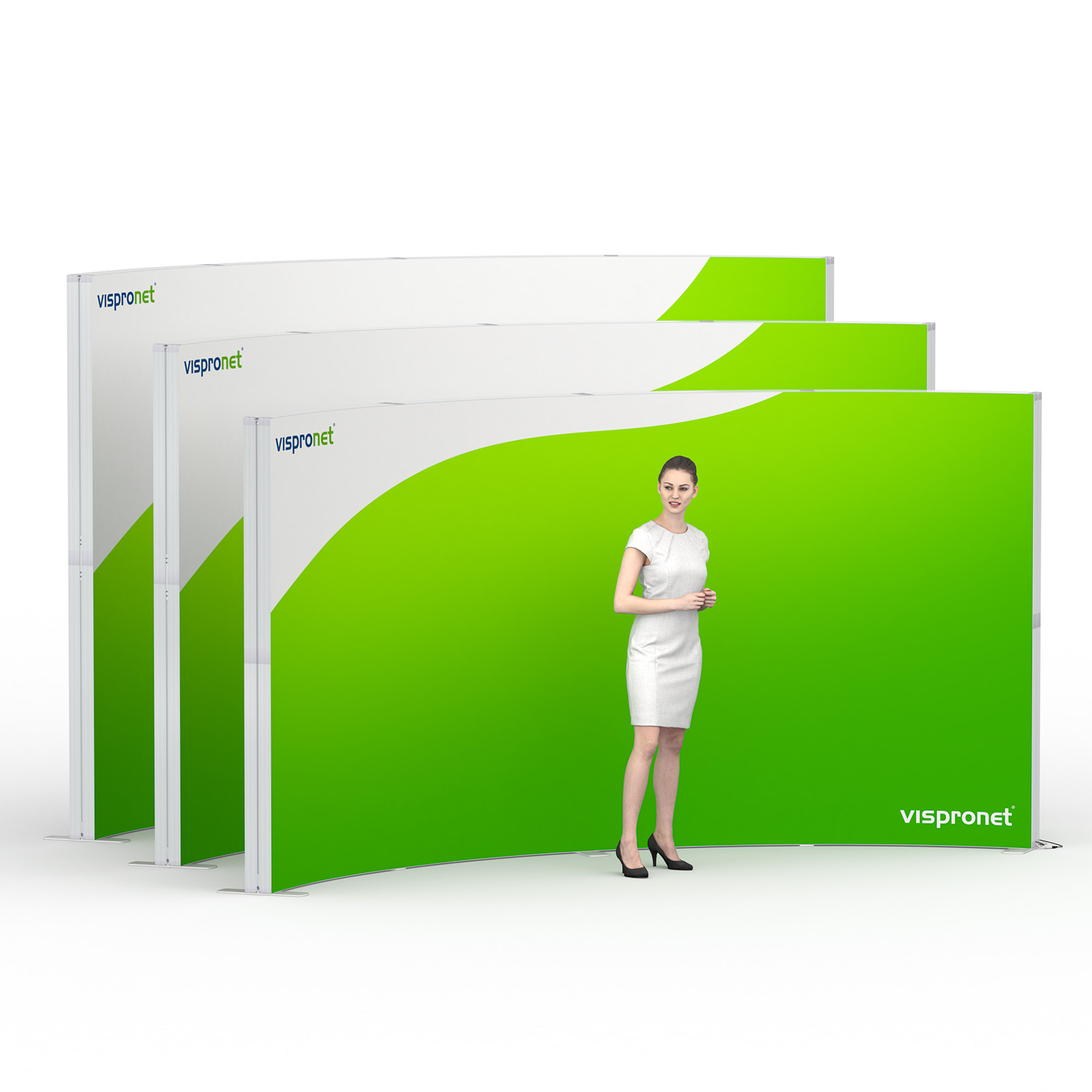

      • System heights: 200, 225, 250 cm

      Technical data

      Power supply Mini Power supply Midi Power supply Maxi Power supply Mega
      Power 96 W 126 W 152.4 W 264 W
      Current 4 A 5.25 A 6.35 A 11 A
      Voltage 24 V
      Luminous flux 4,000 lumens
      Light colour cool white
      Length of power connection cable with mains plug approx. 280 cm

      Scope of Delivery

      • Complete set: Lightbox flex curved system, print component(s) or backside covering, and trolley bag
      • Print component: print motif(s) or backside covering according to selected option (without system)
      • System: Lightbox flex curved system, trolley bag (complete without textile covering)

      The systems are delivered disassembled – this reduces transport volume and facilitates space-saving storage.

      Packaging Dimensions & Weights

      System Height 200 cm
      System Width System Weight Total Weight Packaging Dimensions
      100 cm 11,27 kg 16,62 kg 136 × 40 × 18 cm
      200 cm 15,58 kg 20,93 kg 124 × 45,5 × 28,5 cm
      300 cm 20,25 kg 25,60 kg 124 × 45,5 × 28,5 cm
      400 cm 24,32 kg 34,72 kg 2x 124 × 45,5 × 28,5 cm
      500 cm 28,53 kg 38,93 kg 2x 124 × 45,5 × 28,5 cm
      600 cm 32,48 kg 42,88 kg 2x 124 × 45,5 × 28,5 cm

      *All dimensions and weights are approximate values.

      System Height 225 cm
      System Width System Weight Total Weight Packaging Dimensions
      100 cm 12,11 kg 17,46 kg 136 × 40 × 18 cm
      200 cm 16,46 kg 21,81 kg 124 × 45,5 × 28,5 cm
      300 cm 21,17 kg 26,52 kg 124 × 45,5 × 28,5 cm
      400 cm 25,28 kg 35,68 kg 2x 124 × 45,5 × 28,5 cm
      500 cm 29,53 kg 39,93 kg 2x 124 × 45,5 × 28,5 cm
      600 cm 33,52 kg 43,92 kg 2x 124 × 45,5 × 28,5 cm

      *All dimensions and weights are approximate values.

      System Height 250 cm
      System Width System Weight Total Weight Packaging Dimensions
      100 cm 12,85 kg 18,20 kg 124 × 45,5 × 28,5 cm
      200 cm 17,24 kg 22,59 kg 124 × 45,5 × 28,5 cm
      300 cm 22,99 kg 27,34 kg 124 × 45,5 × 28,5 cm
      400 cm 26,214 kg 36,54 kg 2x 124 × 45,5 × 28,5 cm
      500 cm 30,43 kg 40,83 kg 2x 124 × 45,5 × 28,5 cm
      600 cm 34,46 kg 44,86 kg 2x 124 × 45,5 × 28,5 cm

      *All dimensions and weights are approximate values.

      Application
