Exhibition Wall Lightbox Click Black

  incl. VAT, excl. Shipping
  excl. VAT, excl. Shipping

We print the Lightbox click Black trade fair wall using high-quality digital printing – colorfast & high contrast.

  • Best photo print quality color-accurate and ready to use
  • Customize yourself for unique designs
  • High-brightness LEDs for energy-efficient backlighting
Quantity
Price list incl. VAT excl. VAT
  • from x piecesxx € / piecexx € / piece
  • from x piecesxx € / piecexx € / piece
  • from x piecesxx € / piecexx € / piece

Configure product now

Select your desired product step by step

System height



System width




Selection



Printing



Material



NewFinishing

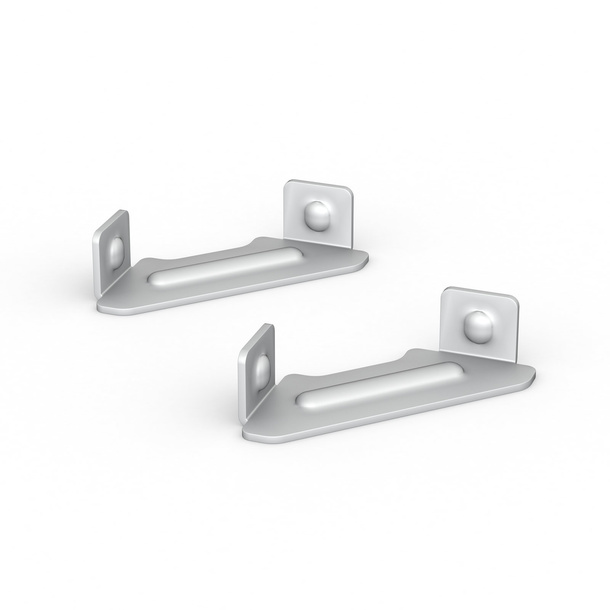

Accessories (Optional)


Print Files
Ready print files
  • Use artwork template
Preparing print files Here you will find all the guidelines and requirements for your print files.
Show specifications
Design Now
  • Design online in Visprodesign®
Design online with Visprodesign® Design your product directly in your browser – it’s quick and easy.
Graphic check



Print sample (Optional)



Label on print part


    • Printing Details

      • Brilliant sublimation or UV printing
      • UV-resistant, high lightfastness
      • Customizable on one or both sides

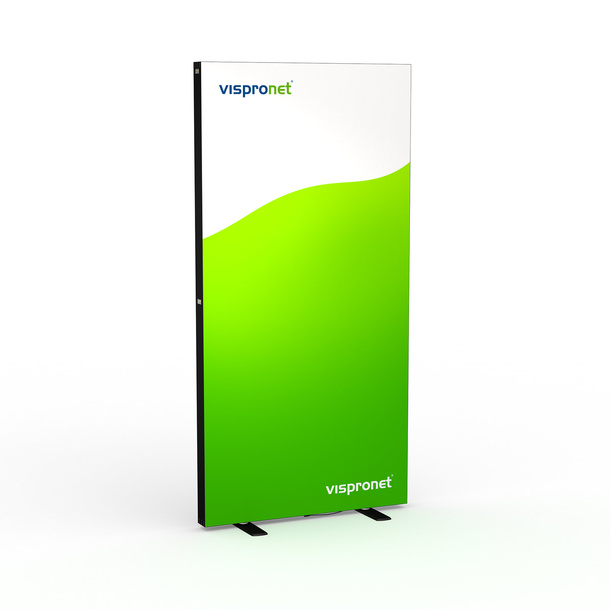

      Lightbox Click Trade Fair Wall with Black Frame

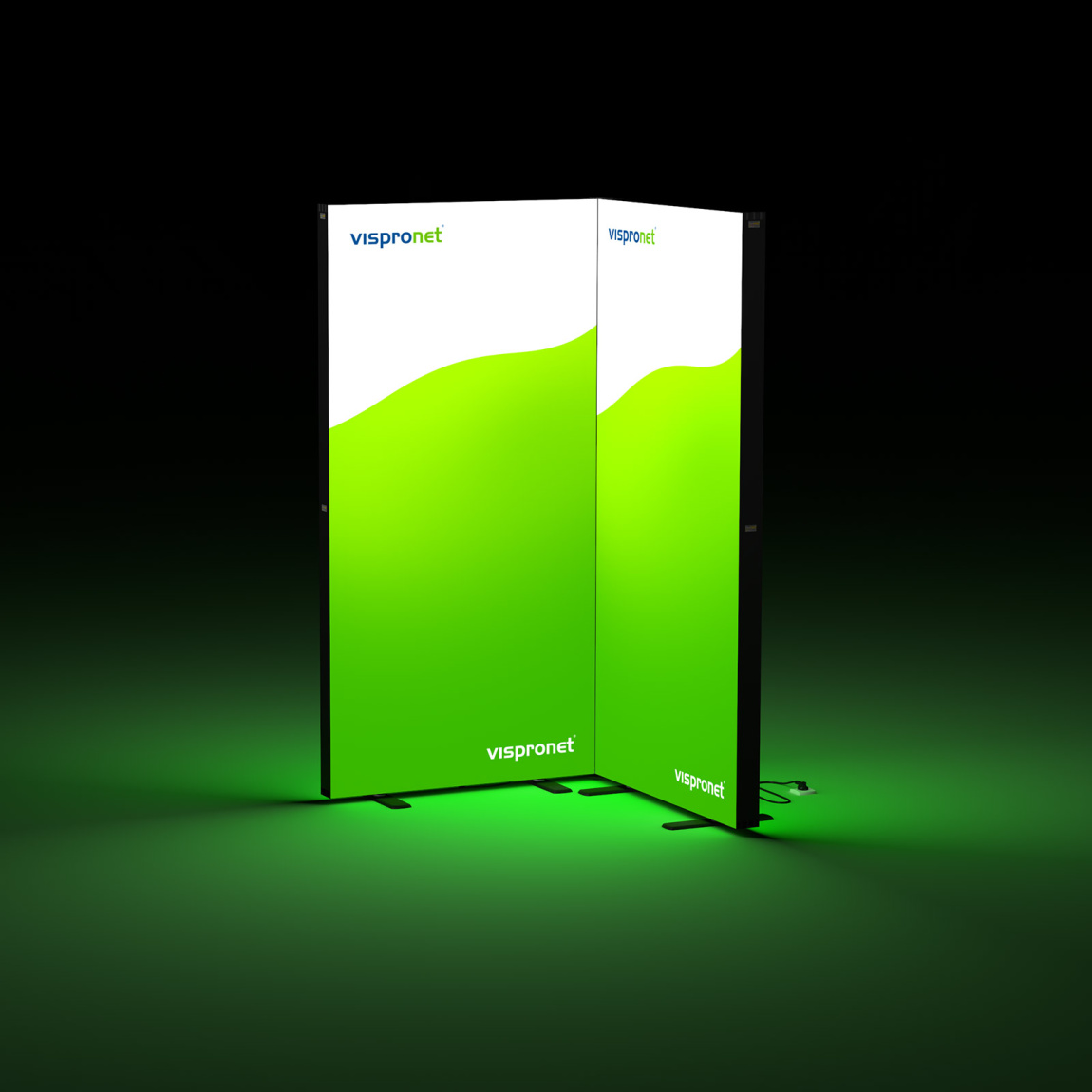

      High-luminance LED trade fair wall with click system and elegant black frame: The innovative system combines lightweight aluminum frames with energy-efficient LED lighting and tightly stretched textile printing. Thanks to integrated magnets, multiple walls can be flexibly connected to form straight or angled trade fair stands.

      Execution – Printed Part

      • Cut all around and equipped with sewn-in flat beading for attachment in the aluminum frame
      • Attachment via beading ensures perfect and wrinkle-free tension of the motifs.
      • Printing options:
        • double-sided: front and back can be identical or different
        • single-sided: front with desired motif, back optionally white or black
      • Note: For print motifs extending over multiple frames, motif misalignment between individual walls cannot be excluded.

      Materials

      • Lighttex SE: matte polyester fabric, flame retardant
        • Sublimation printing: color penetrates the material, vibrant colors with high detail fidelity, durable
        • specifically for optimally backlit advertising messages
      • Variotex® Z SE: matte polyester fabric, UV-resistant with high lightfastness (6-7), flame retardant
        • UV printing: color remains on the material surface, color-intensive, razor-sharp details, durable
        • Special feature: Recommended only for permanent use (without frequent assembly and disassembly)*
      • Materials for backside covering in single-sided printing:

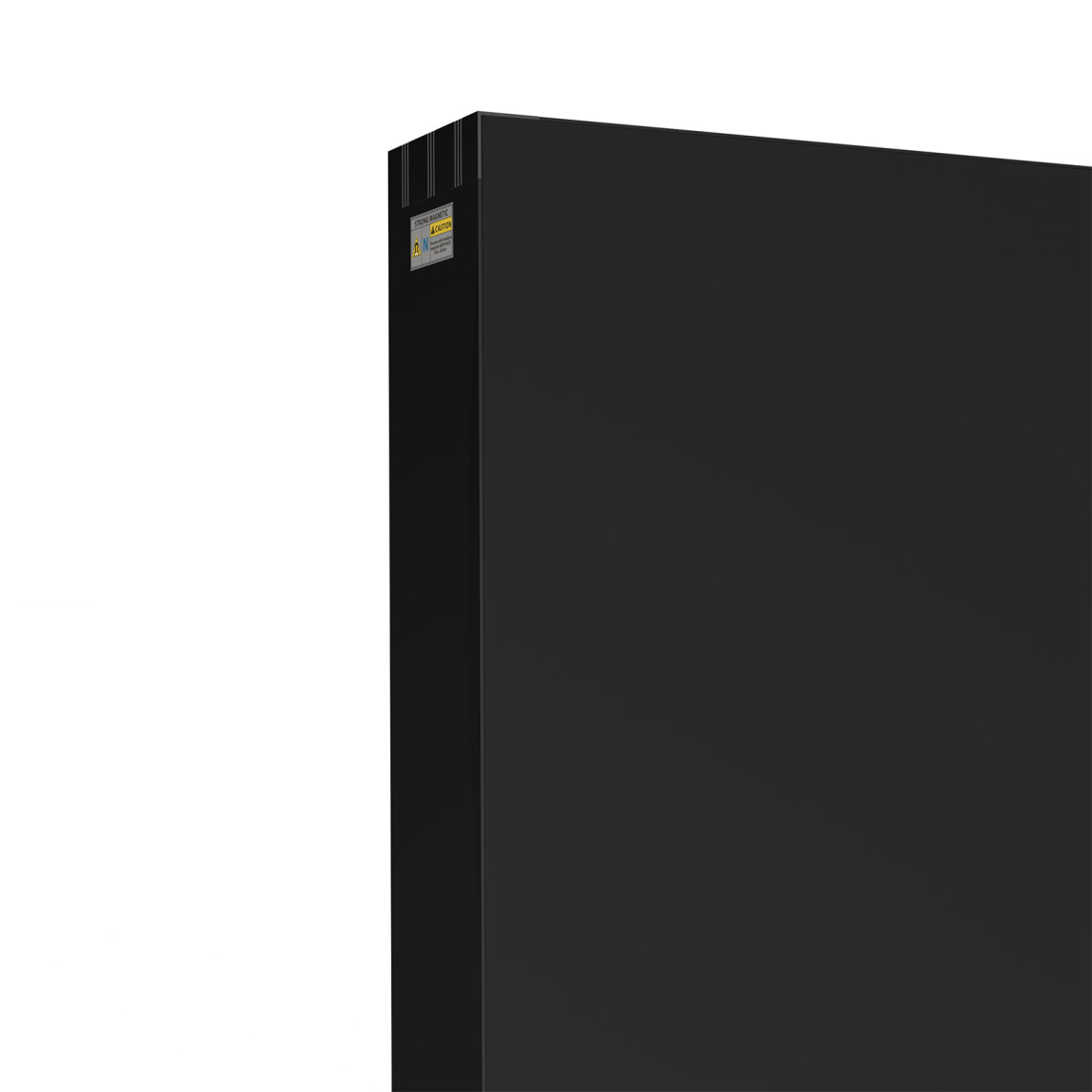

        • Backside black: Multisol® X Opak SE, matte glossy polyester knit with one-sided black PU coating, 100 % opaque

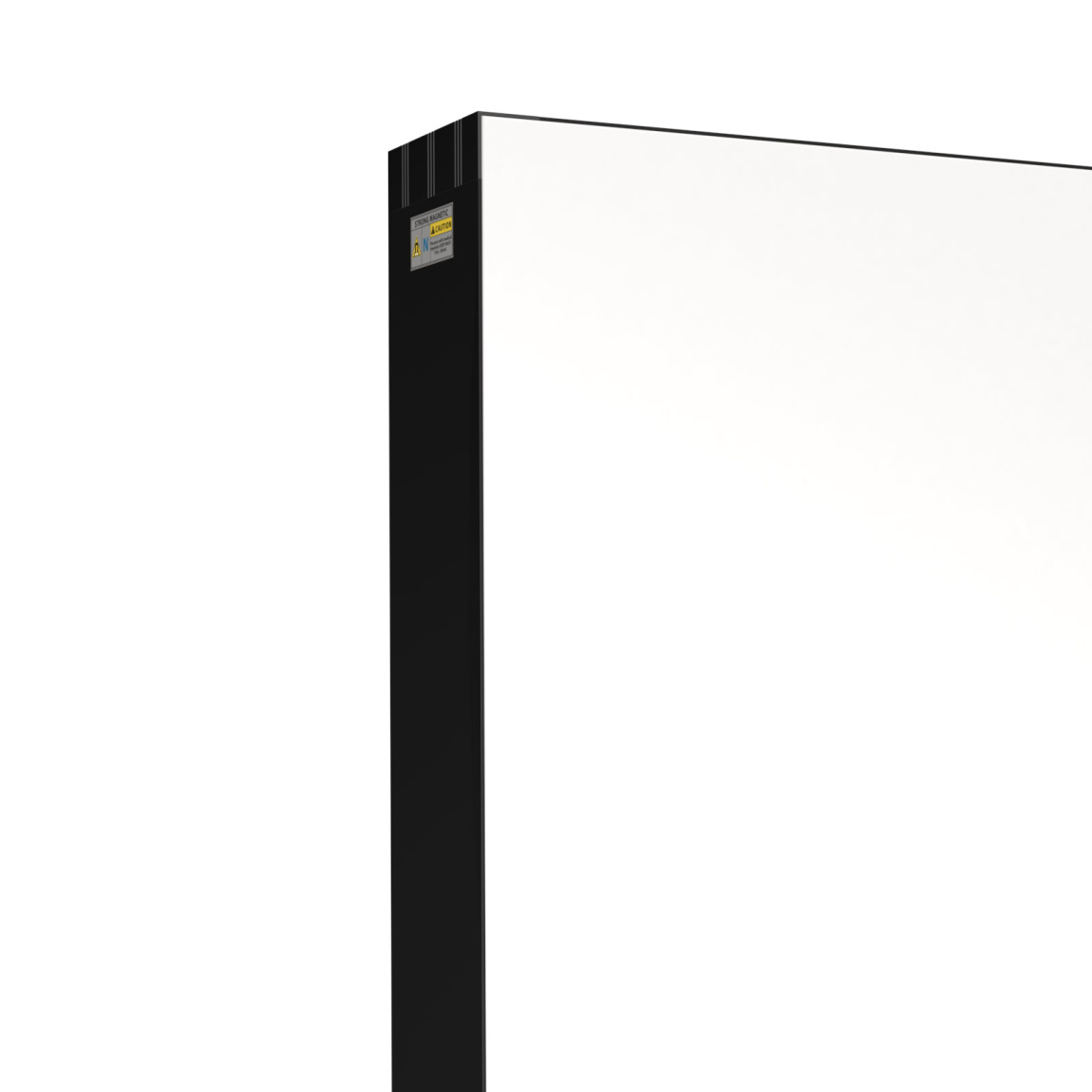

        • Backside white: Multisol® X Opak SE, matte glossy polyester knit with one-sided white PU coating, 100 % opaque

      Execution – System

      • Innovative frame system with utility model protection (GM: 20 2019 103 837)

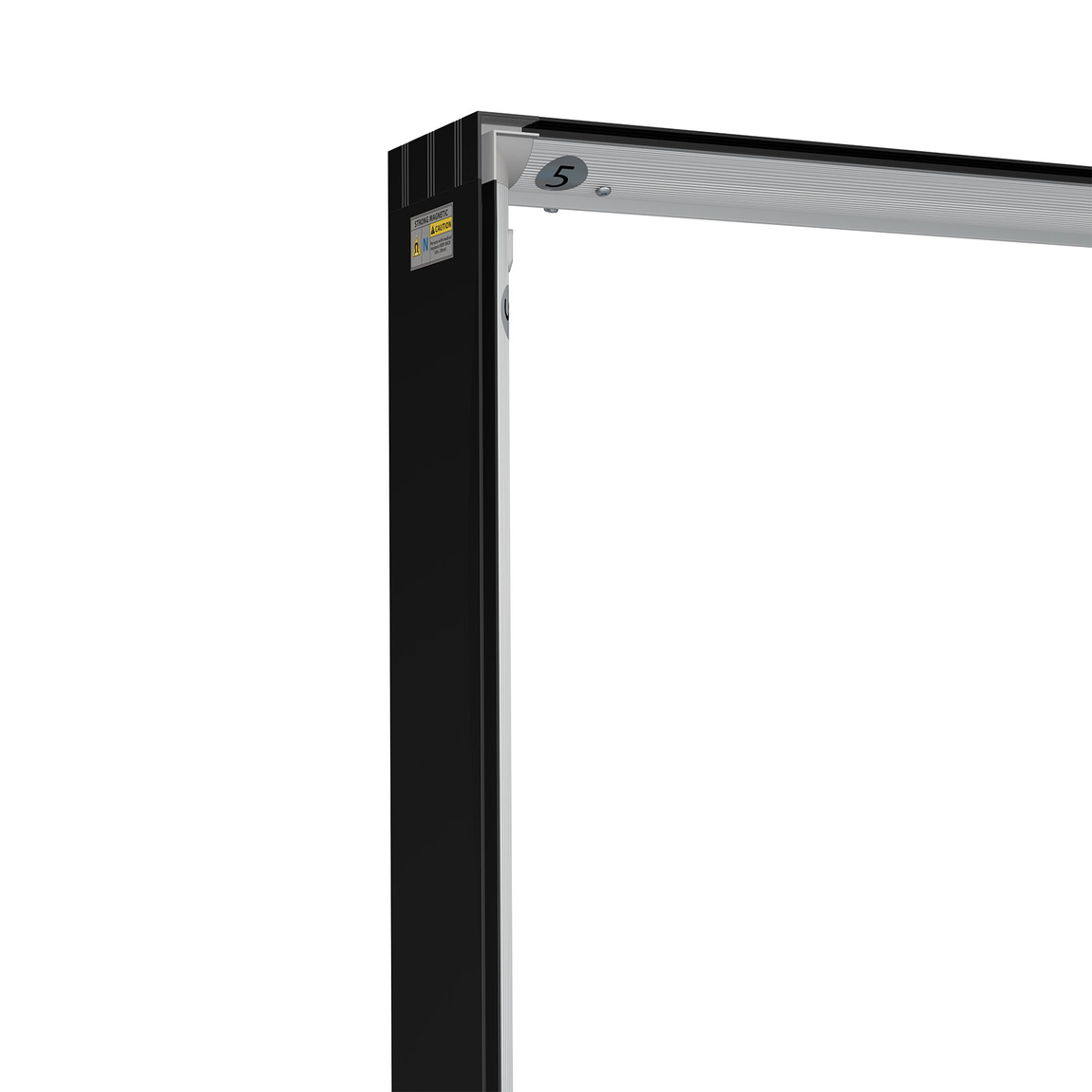

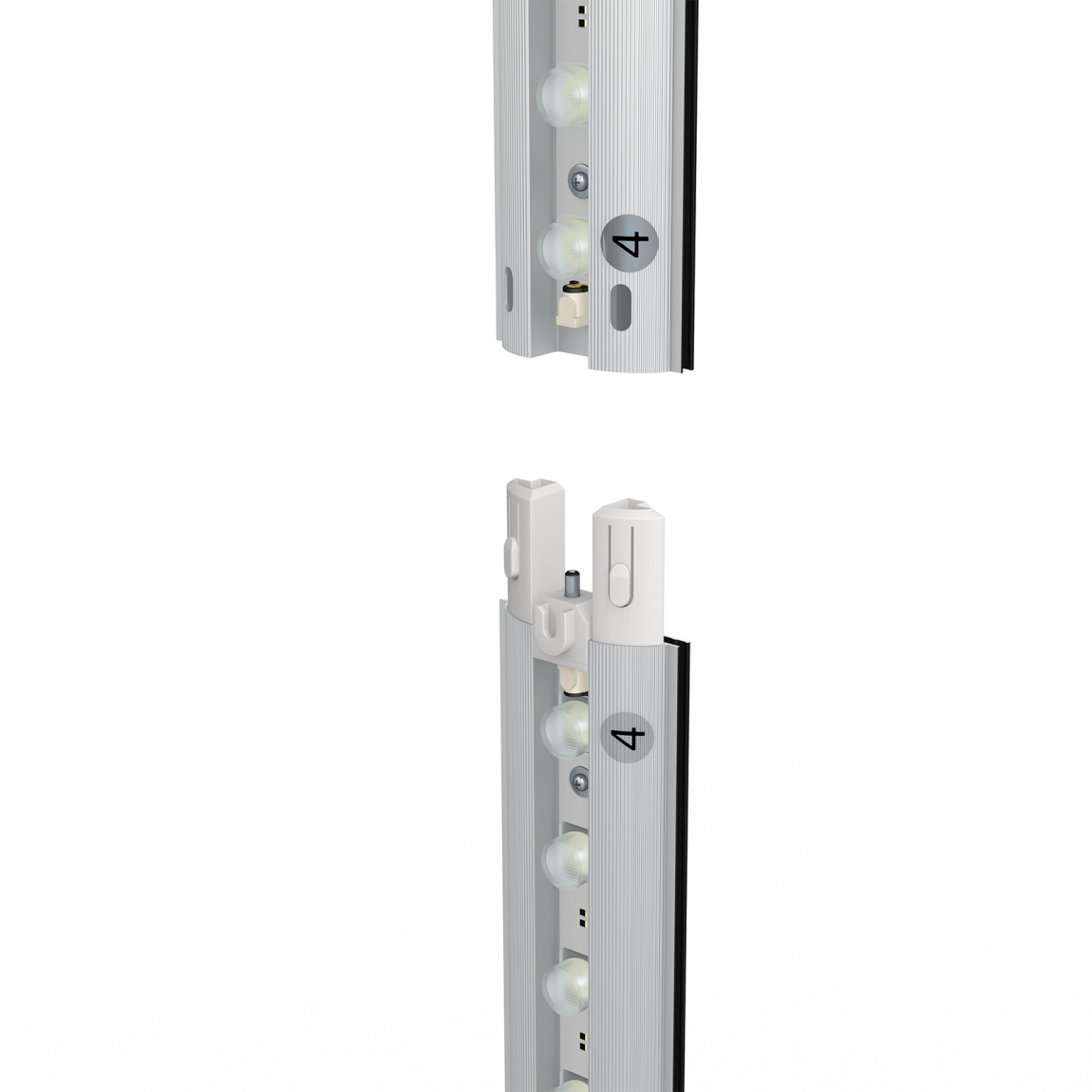

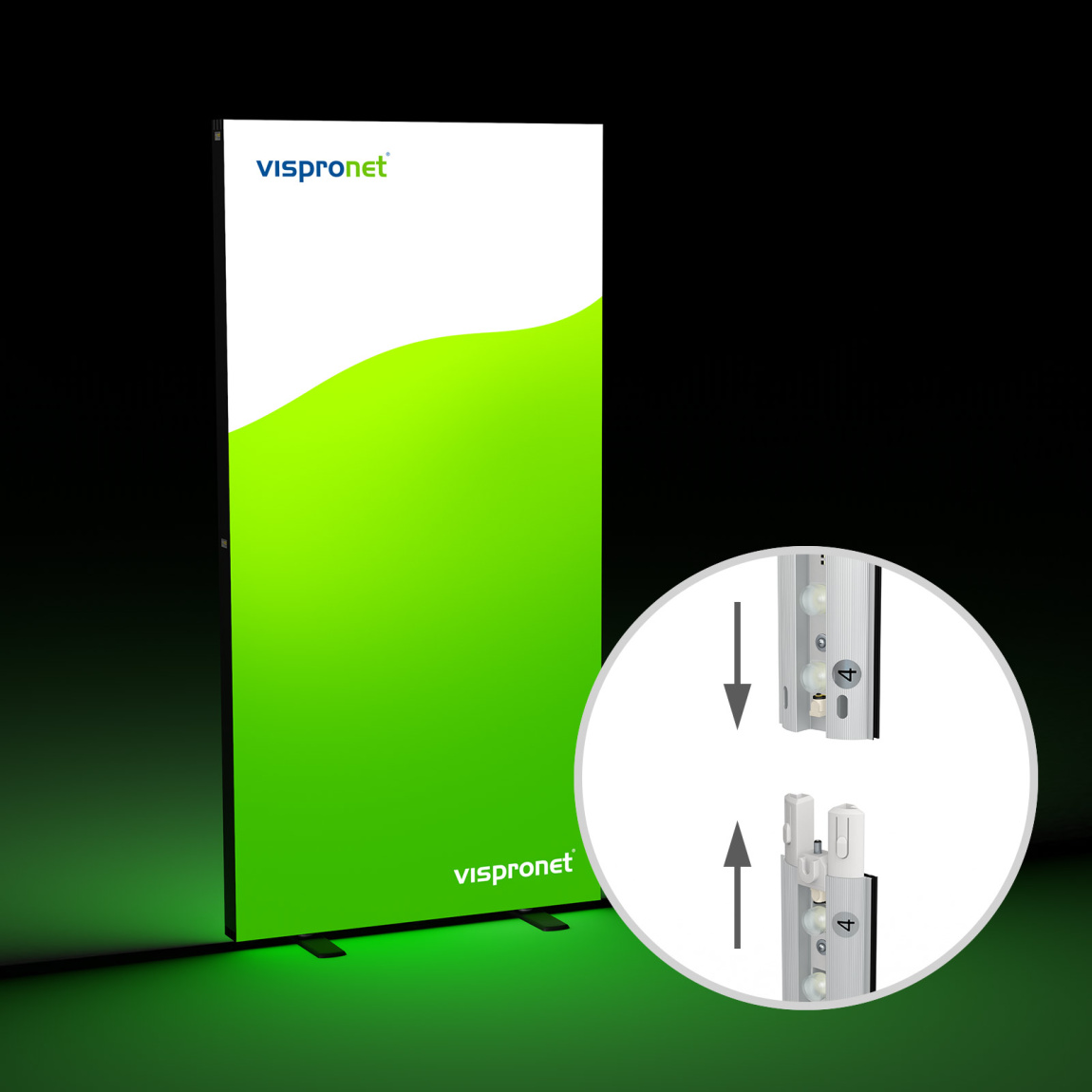

      • Trade fair wall made of plug-in frames with click locking
      • Material: aluminum
      • Frame color: black (powder-coated)

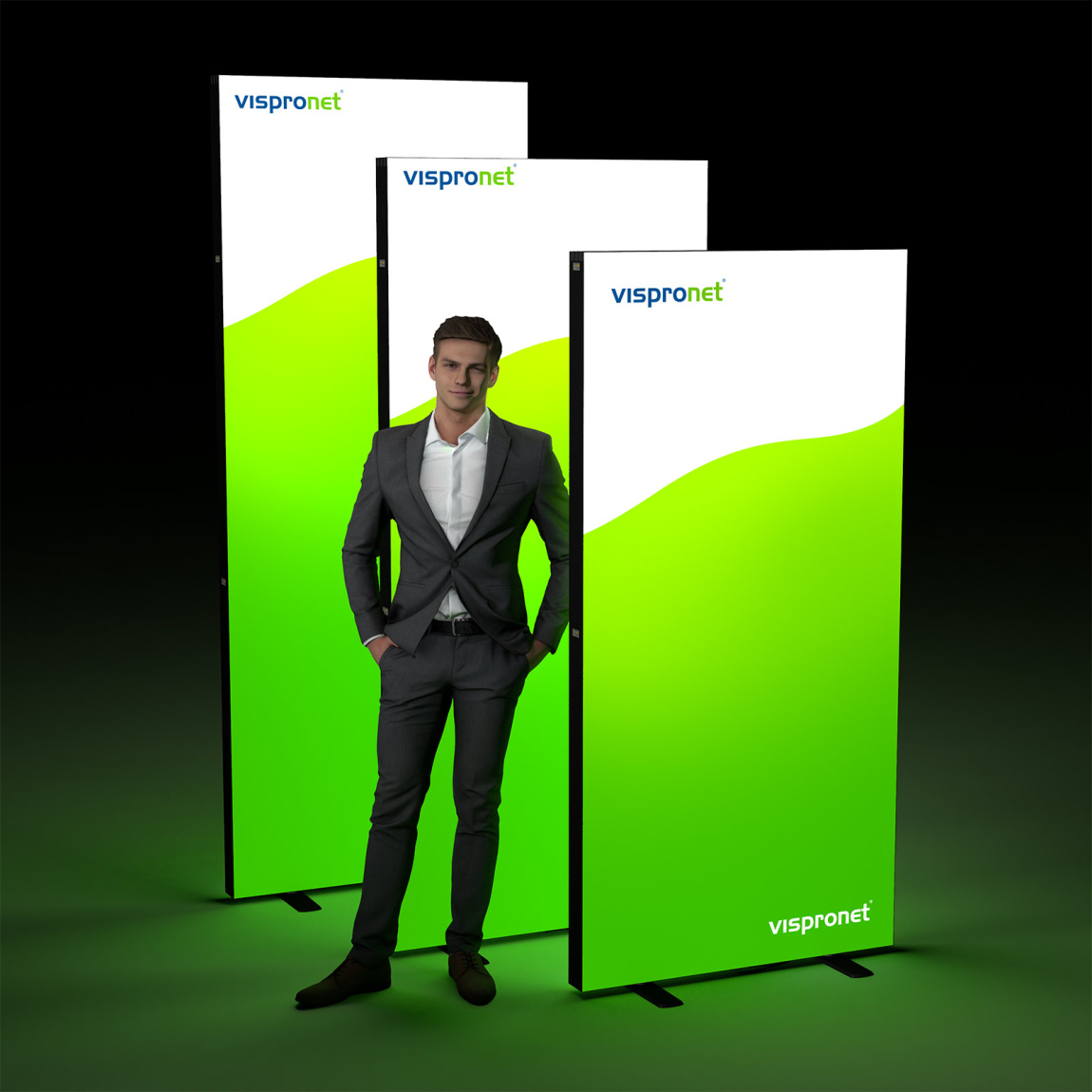

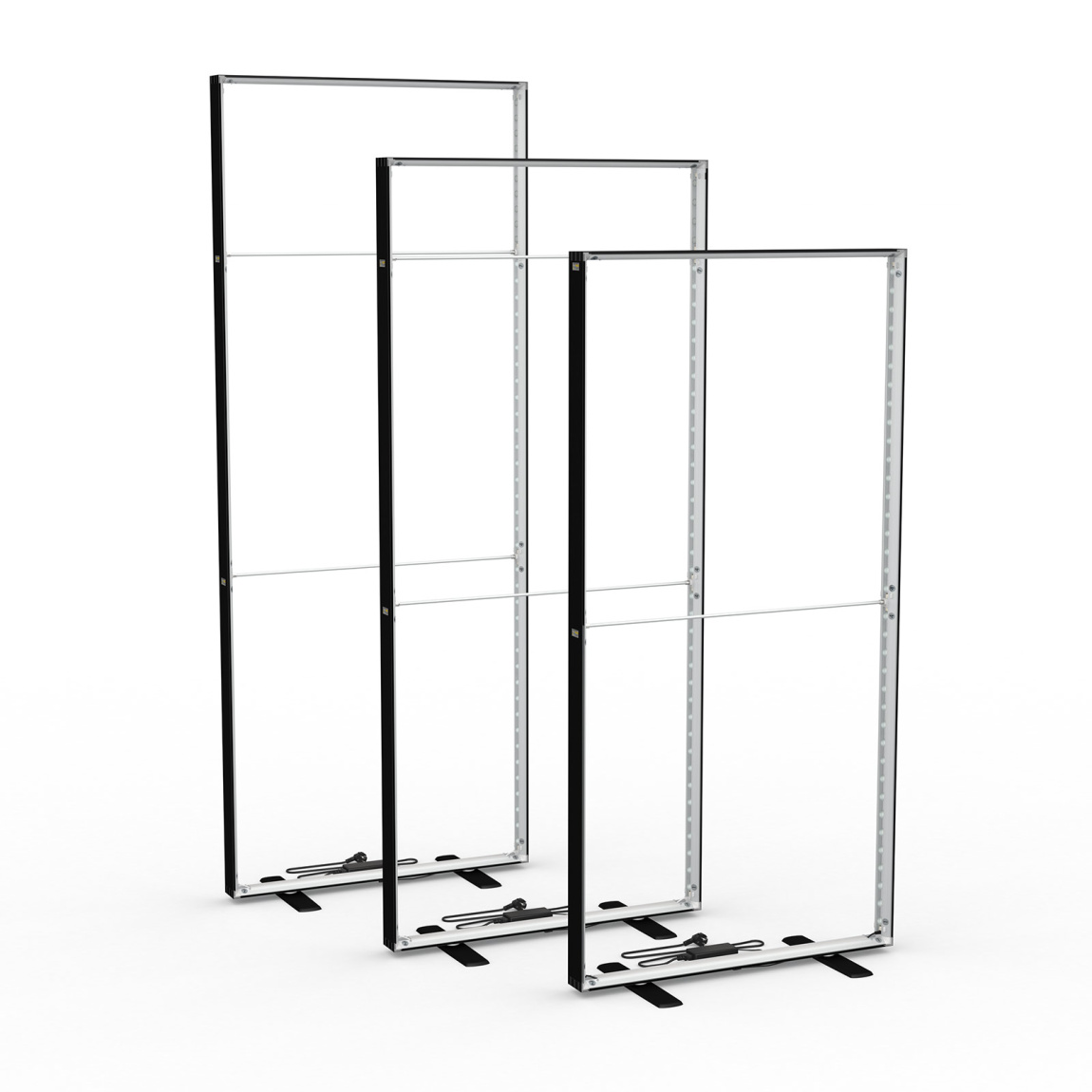

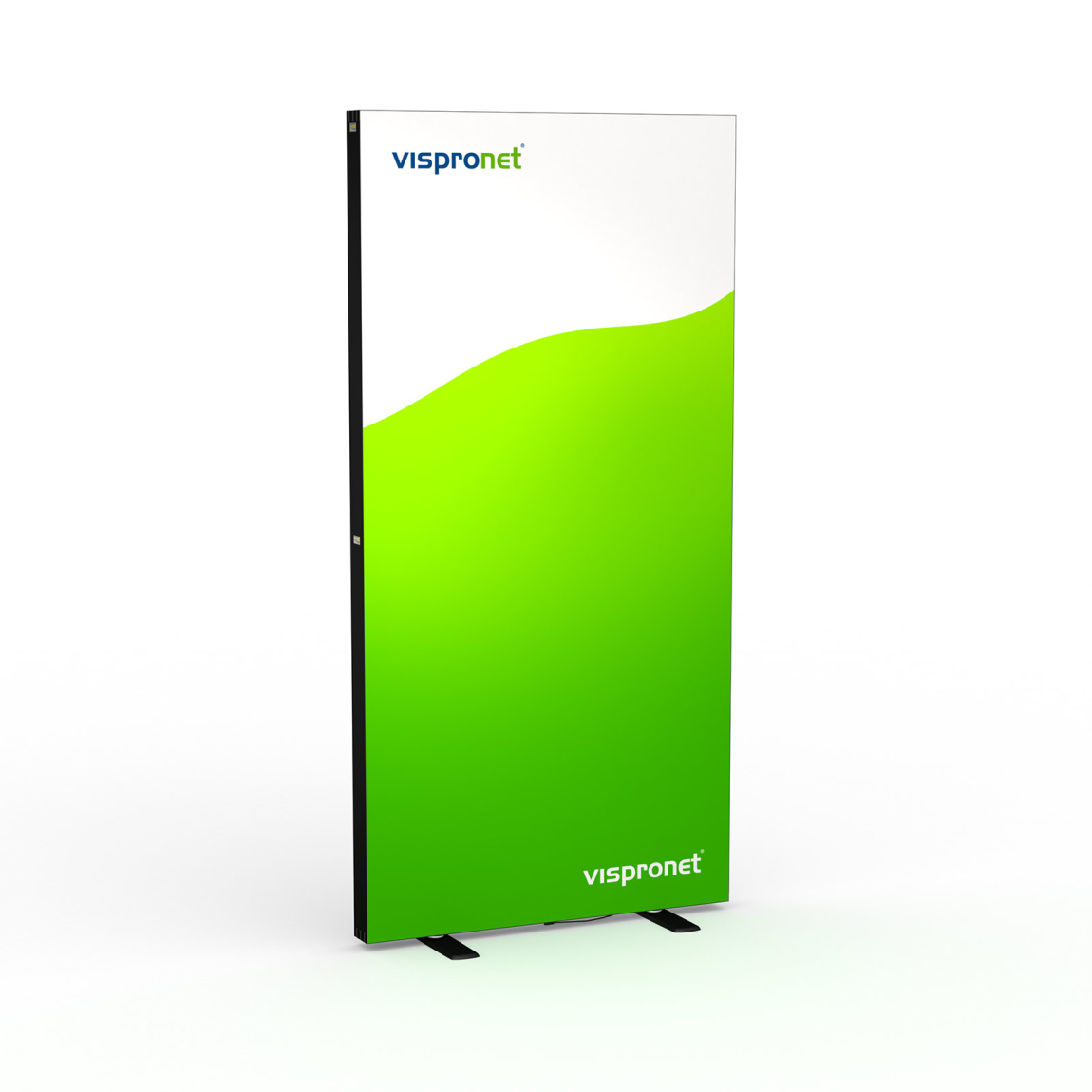

      • System size per trade fair wall (W x H): approx. 100 x 200 cm / 100 x 225 cm / 100 x 250 cm
      • Frame depth: 85 mm

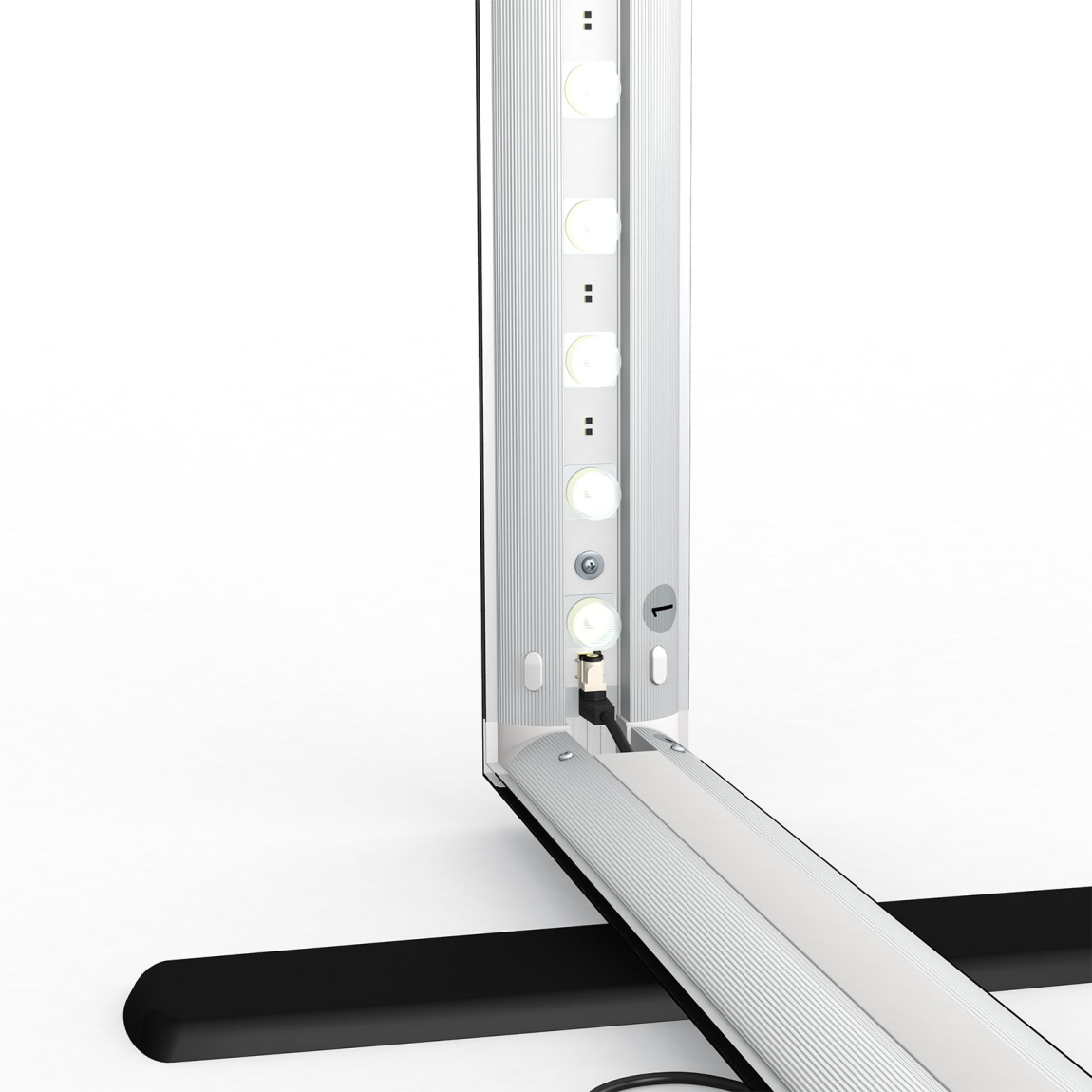

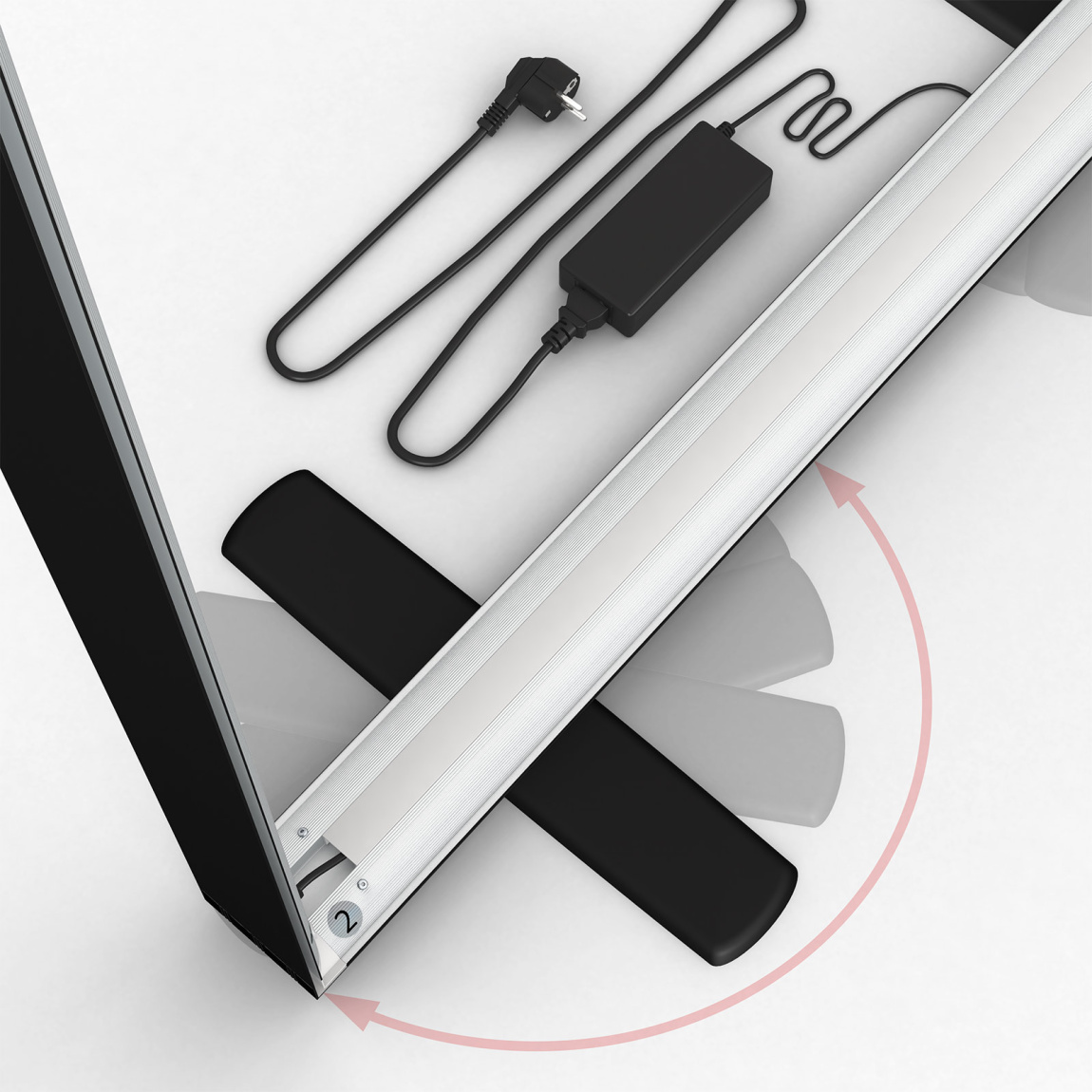

      • Rotatable feet (length 40 cm) for stable standing

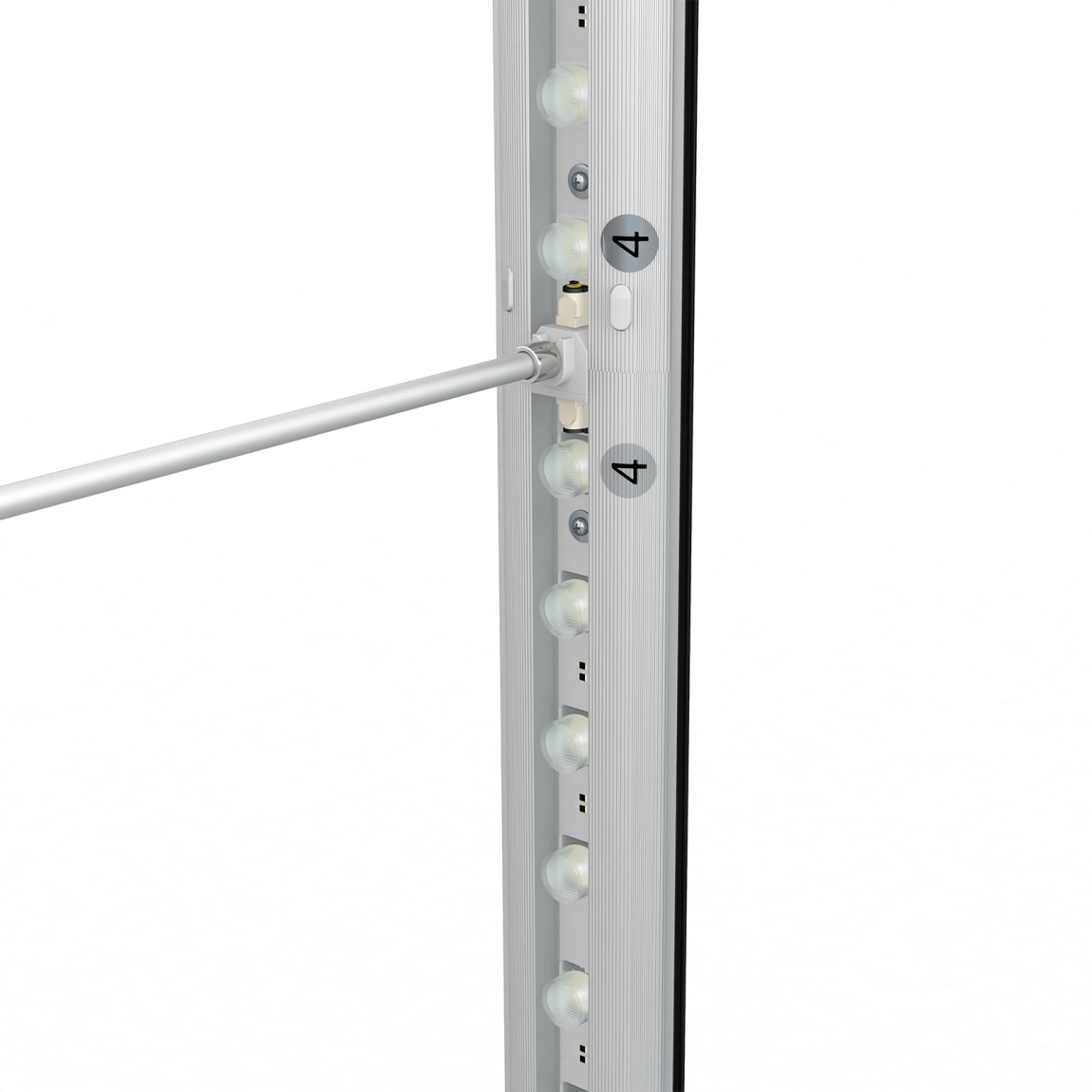

      • Central support rod for additional stability

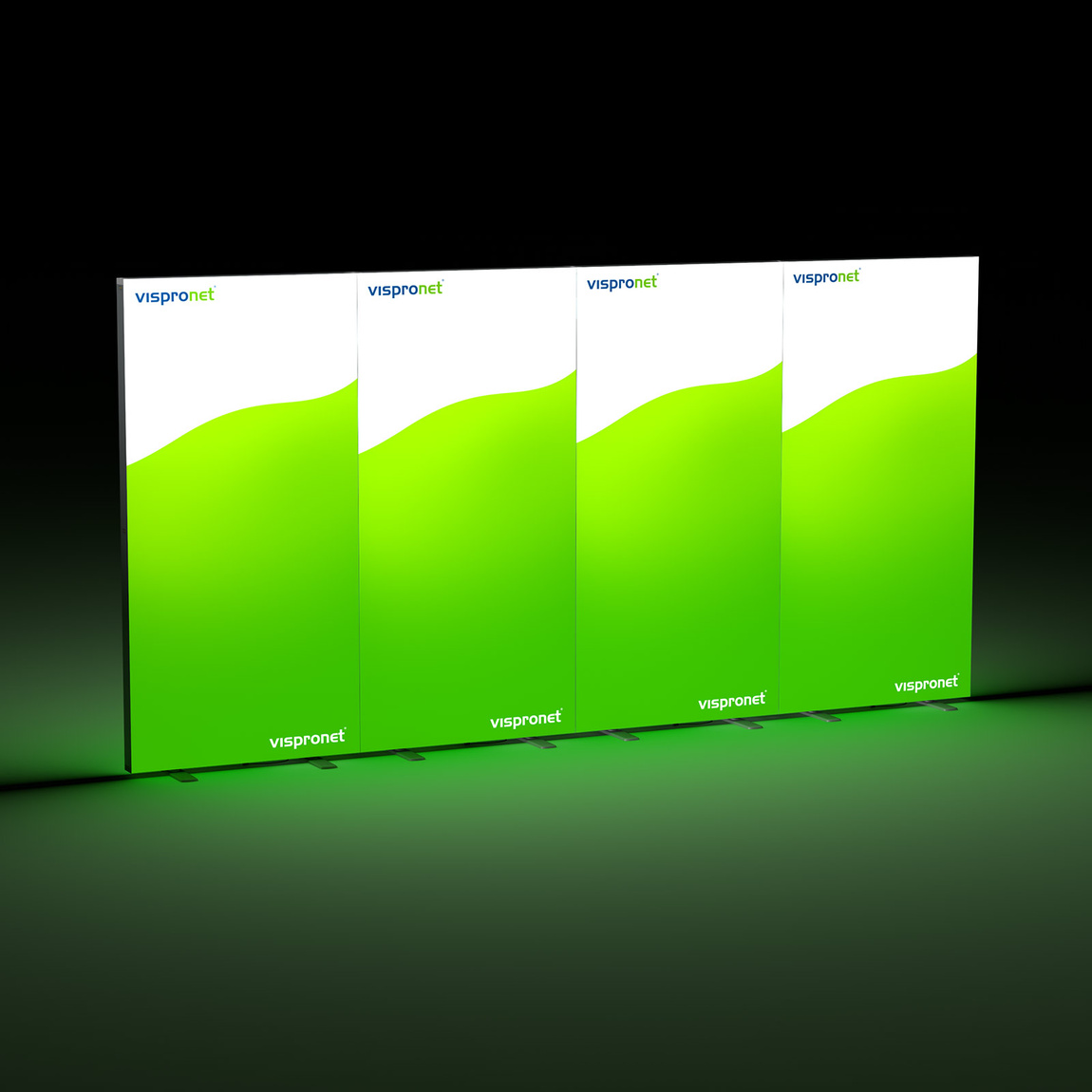

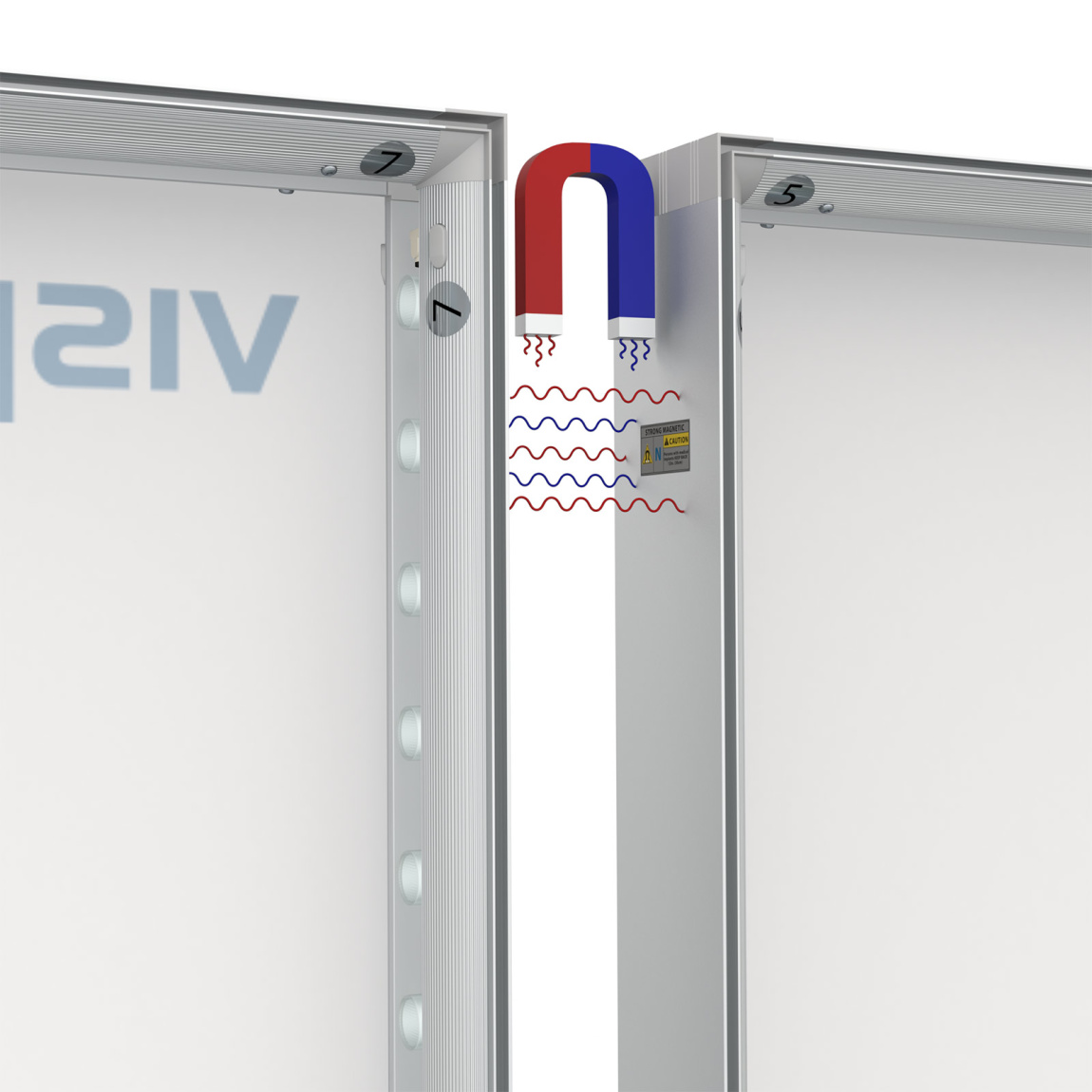

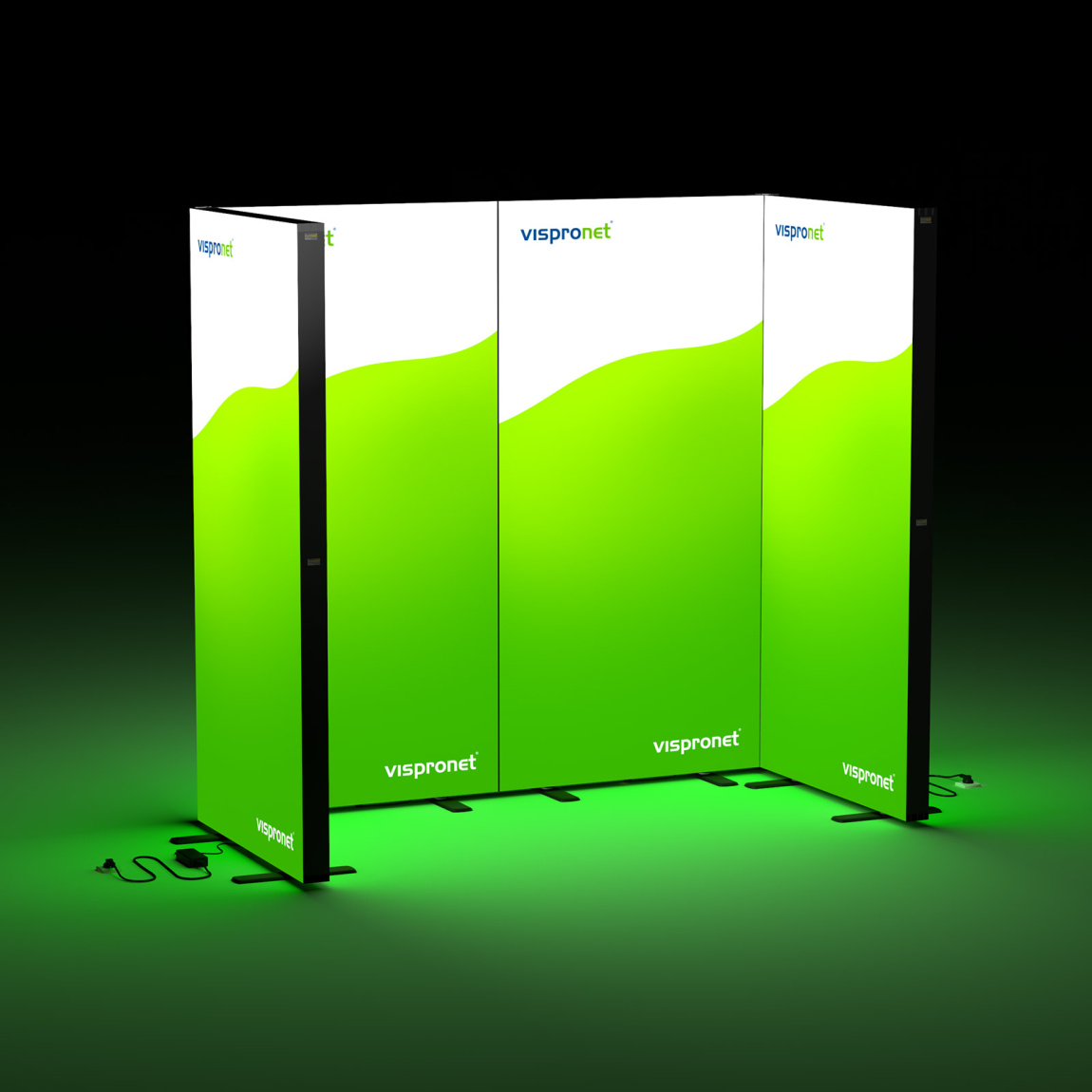

      • 1 system - many possibilities: magnets integrated on left and right inside the frame for connecting multiple trade fair walls

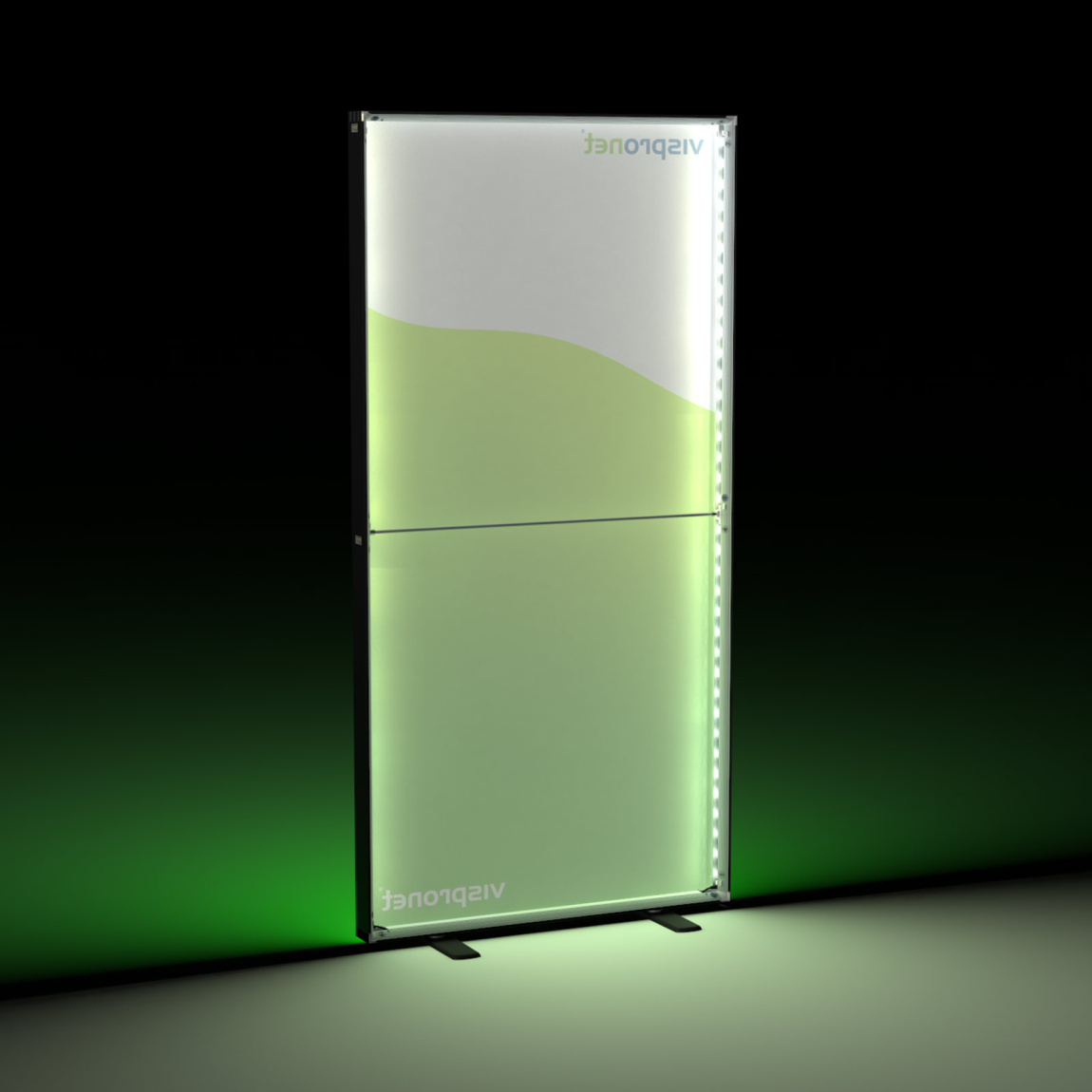

      • LED modules with low heat generation, pre-assembled at the factory
      • Power supply and power cable with mains plug (cable length approx. 260 cm)
      • Tool-free assembly: align feet, connect frame elements via click system, insert support rod, connect power supply - done

      Technical Data

      • Voltage: 24V
      • Power: 90W
      • Current: 4A
      • Luminous flux: 4000 lumens
      • Light color: cool white
      • Service life: up to 20,000 hours

      Tip: Use without power outlet possible with a portable power station, for example with Powerstation AC 500 Wh, sufficient for approx. 5 hours of operation. (not included)

      Sizes & Weights

      Systemhöhe 200 cm
      Number of Trade Show Walls System
      (B × H)
      System Weight Packaging Dimensions
      (W × H × D)
      Total Weight
      1 100 × 200 cm 8,15 kg 105 × 33 × 17 cm 9,65 kg
      2 200 × 200 cm 2 × 8,15 kg 2 packages each 105 × 33 × 17 cm 2 × 9,65 kg
      3 300 × 200 cm 3 × 8,15 kg 3 packages each 105 × 33 × 17 cm 3 × 9,65 kg
      4 400 × 200 cm 4 × 8,15 kg 4 packages each 105 × 33 × 17 cm 4 × 9,65 kg
      Systemhöhe 225 cm
      Number of Trade Show Walls System
      (B × H)
      System Weight Packaging Dimensions
      (W × H × D)
      Total Weight
      1 100 × 225 cm 8,68 kg 105 × 33 × 17 cm 10,18 kg
      2 200 × 225 cm 2 × 8,68 kg 2 packages each 105 × 33 × 17 cm 2 × 10,18 kg
      3 300 × 225 cm 3 × 8,68 kg 3 packages each 105 × 33 × 17 cm 3 × 10,18 kg
      4 400 × 225 cm 4 × 8,68 kg 4 packages each 105 × 33 × 17 cm 4 × 10,18 kg
      Systemhöhe 250 cm
      Number of Trade Show Walls System
      (B × H)
      System Weight Packaging Dimensions
      (W × H × D)
      Total Weight
      1 100 × 250 cm 9,13 kg 105 × 33 × 17 cm 10,63 kg
      2 200 × 250 cm 2 × 9,13 kg 2 packages each 105 × 33 × 17 cm 2 × 10,63 kg
      3 300 × 250 cm 3 × 9,13 kg 3 packages each 105 × 33 × 17 cm 3 × 10,63 kg
      4 400 × 250 cm 4 × 9,13 kg 4 packages each 105 × 33 × 17 cm 4 × 10,63 kg

      *Values are approximate

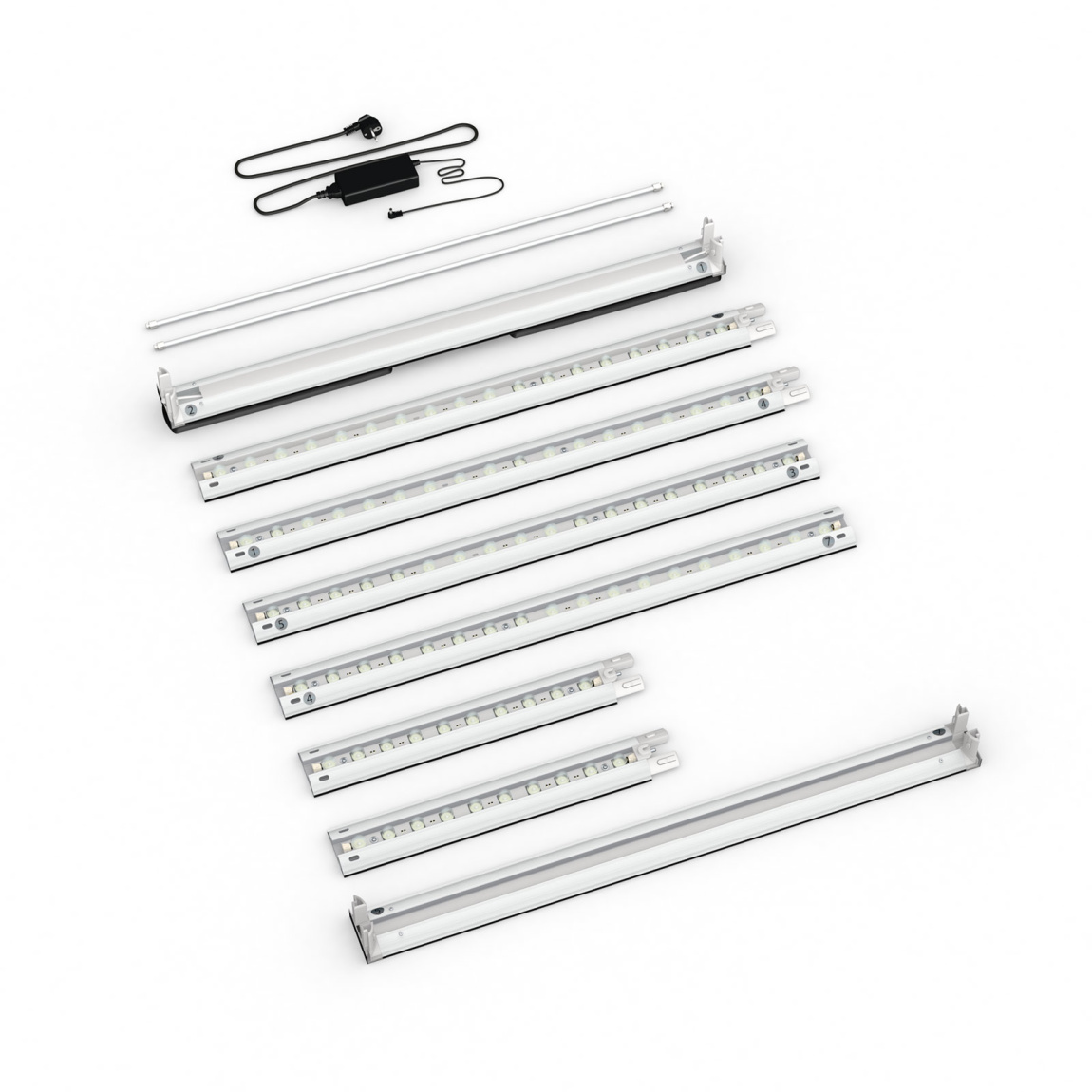

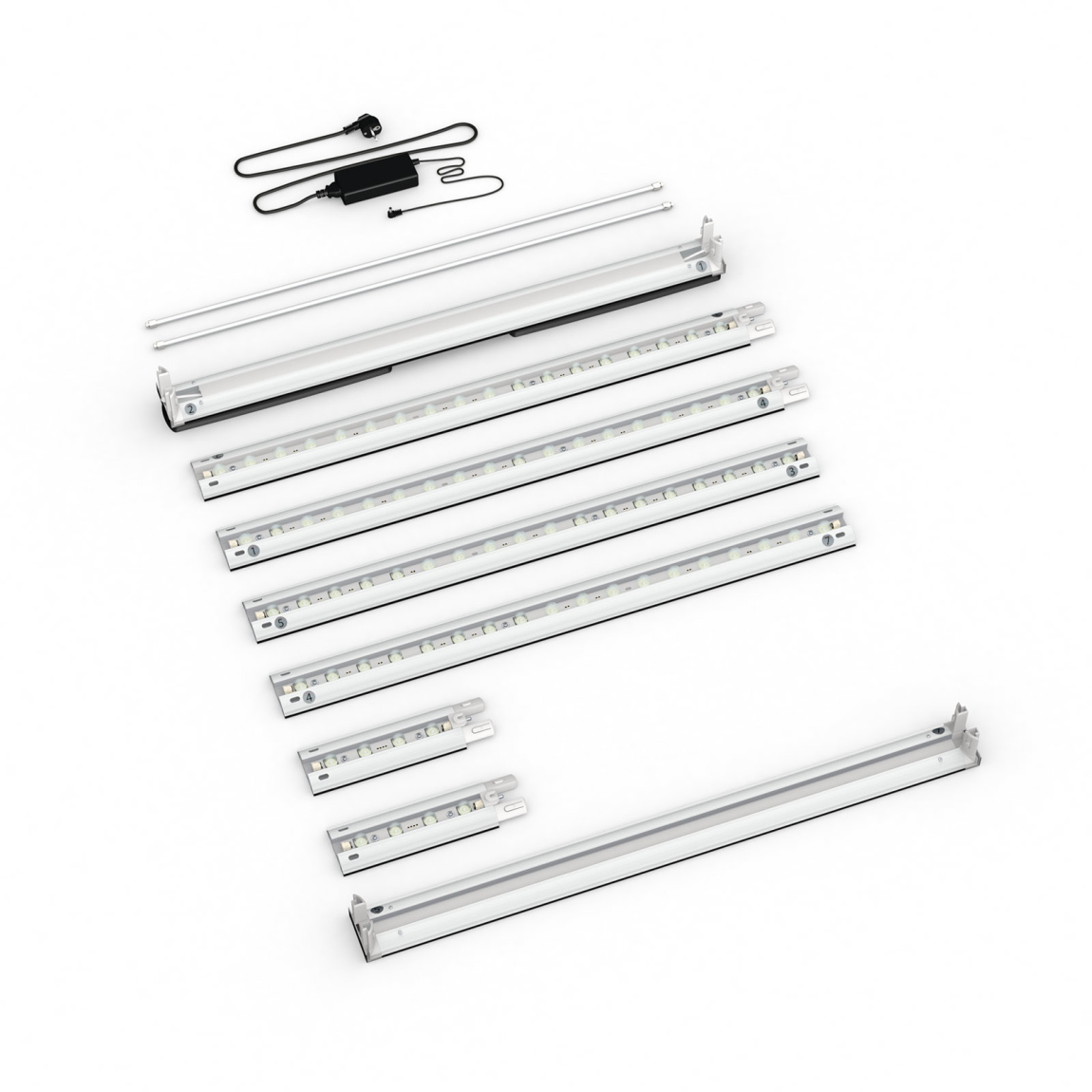

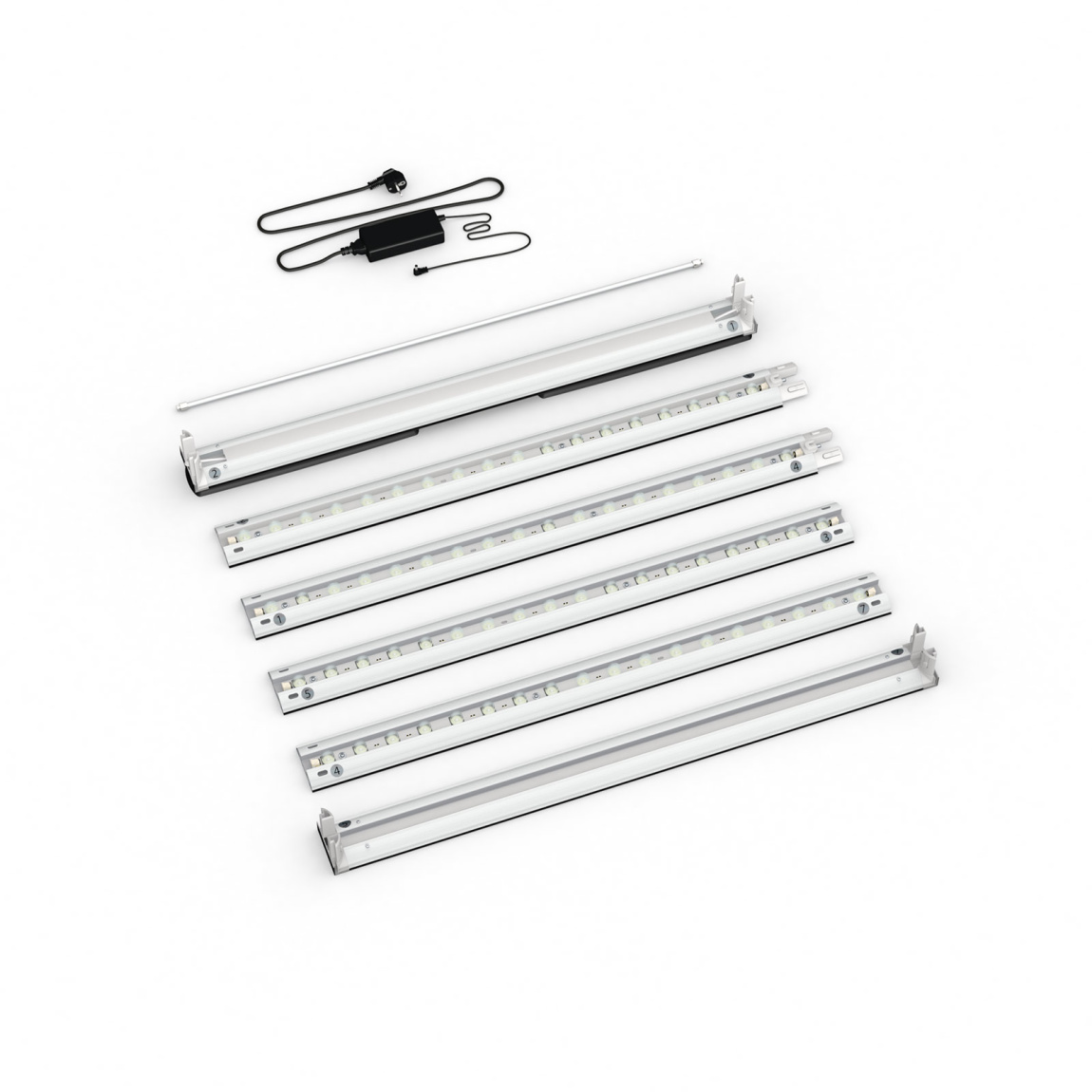

      Scope of Delivery

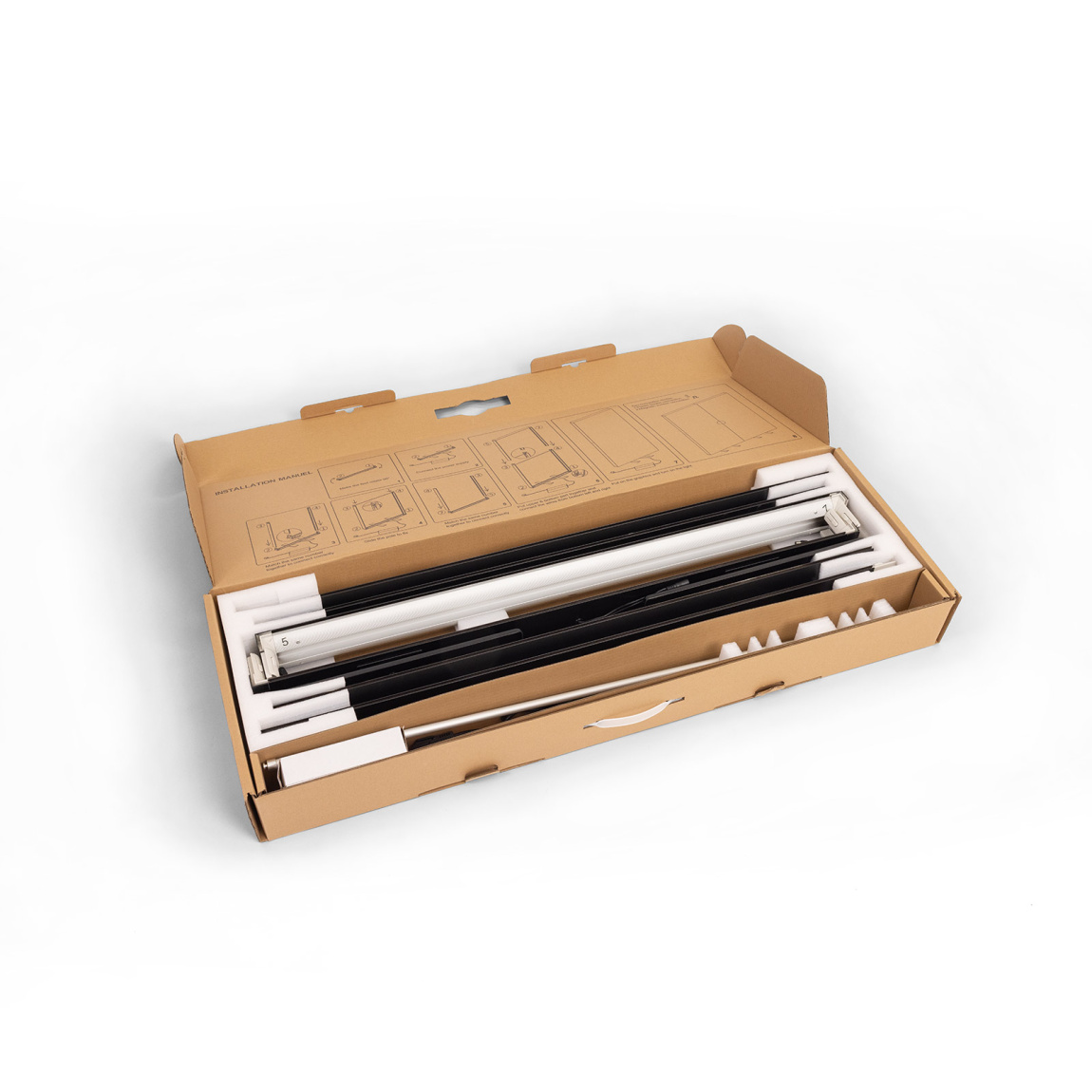

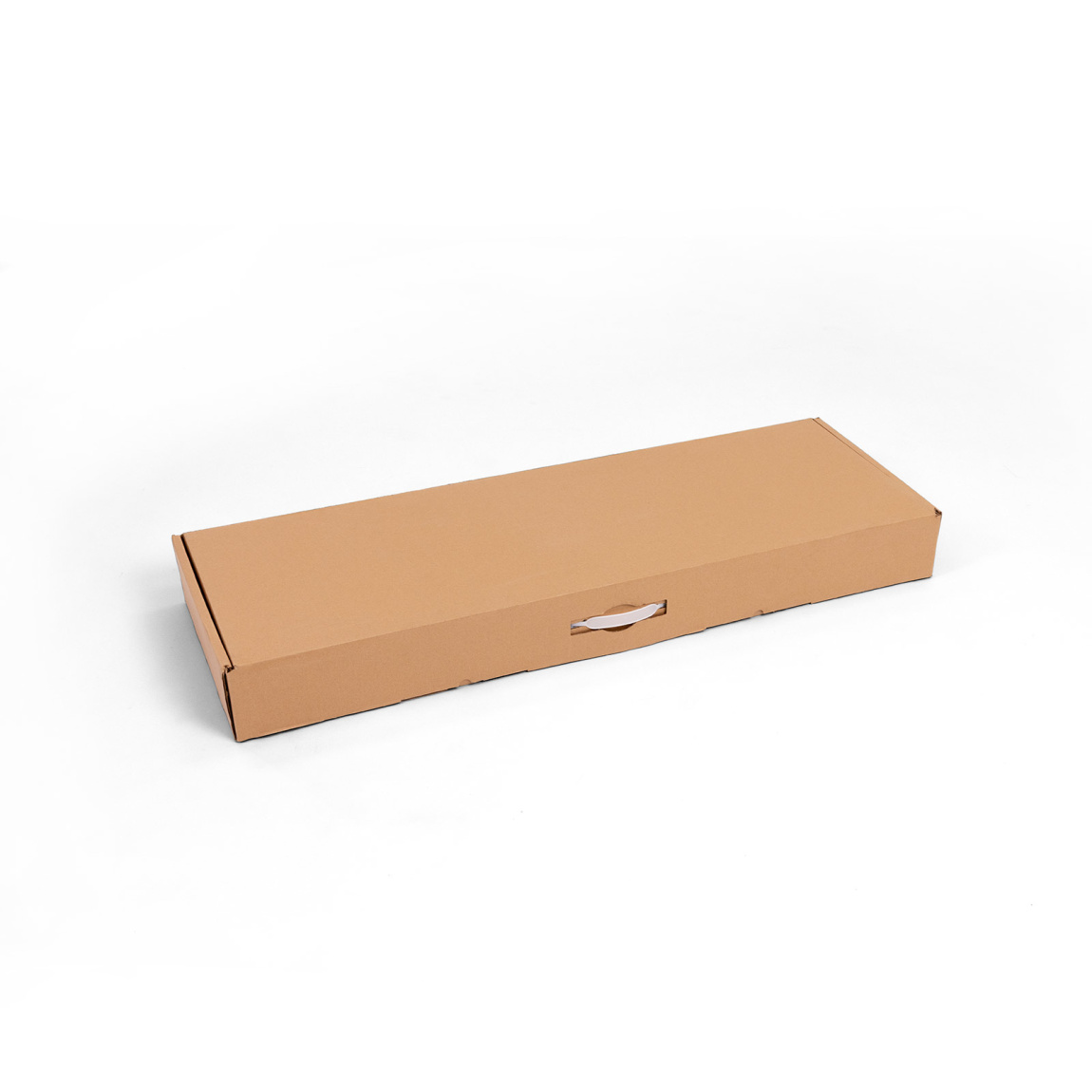

      • Complete set: Lightbox click frame system, printed motifs or single-color backside covering, folding box
      • Printed part: printed motif(s) or backside covering according to selected option (without system)

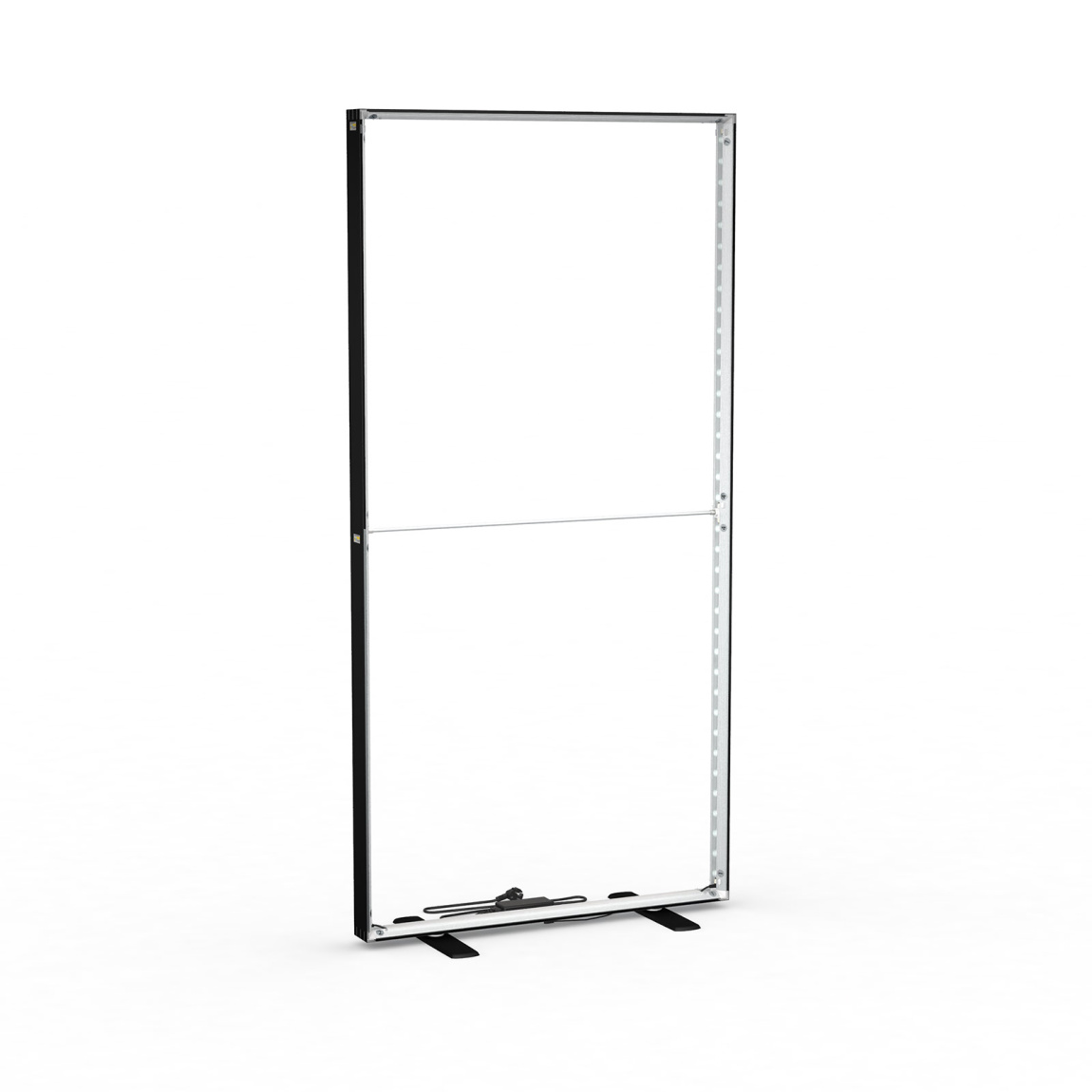

      • System: Lightbox click frame system, folding box (complete without textile covering)

      Application

      • For indoor use
      • Please observe the safety instructions for this product.
      • * Notes on the use of Variotex® Z
        • Cost-effective alternative to Lighttex SE material, but requires careful handling.
        • Recommended only for permanent use: not suitable for frequent assembly and disassembly.
        • Always roll up smoothly and wrinkle-free on a cardboard core with foam foil interlayer during transport and storage.
        • Wrinkles in the material can cause cracks, which are especially visible in backlit applications.
