- Description
-
Print Details
- Brilliant textile printing using dye-sublimation process
- UV-resistant with high lightfastness
- Customizable with single- or double-sided print
Lightbox flex Exhibition Wall
Mobile, modular LED exhibition wall with straight front panel made of plastic: The Lightbox flex is quick to assemble thanks to its click system, offers even backlighting through OSRAM LEDs, and can be flexibly combined with other elements of the Lightbox flex series to create custom exhibition stands.
Version - Print
- Printed panel is cut all around and fitted with flat piping (keder) for insertion into the frame
- Keder fastening ensures perfectly tensioned, wrinkle-free presentation
- Printing options:
- Double-sided: front and back can feature identical or different designs
- Single-sided: front with custom motif, back optionally black or white
- Note: Slight misalignment may occur at the edges when printing motifs across multiple connected display walls
Materials
- Lighttex SE: Flame-retardant, matte polyester fabric, specially developed for backlit applications
- Dye-sublimation print for vibrant colors and high detail fidelity
- Ideal for bright, uniform illuminated displays
- Back materials for single-sided versions:
- Black reverse: Multisol® X Opak SE – matte-gloss polyester fabric with black PU coating, 100% opaque
- White reverse: Multisol® X Opak SE – matte-gloss polyester fabric with white PU coating, 100% opaque

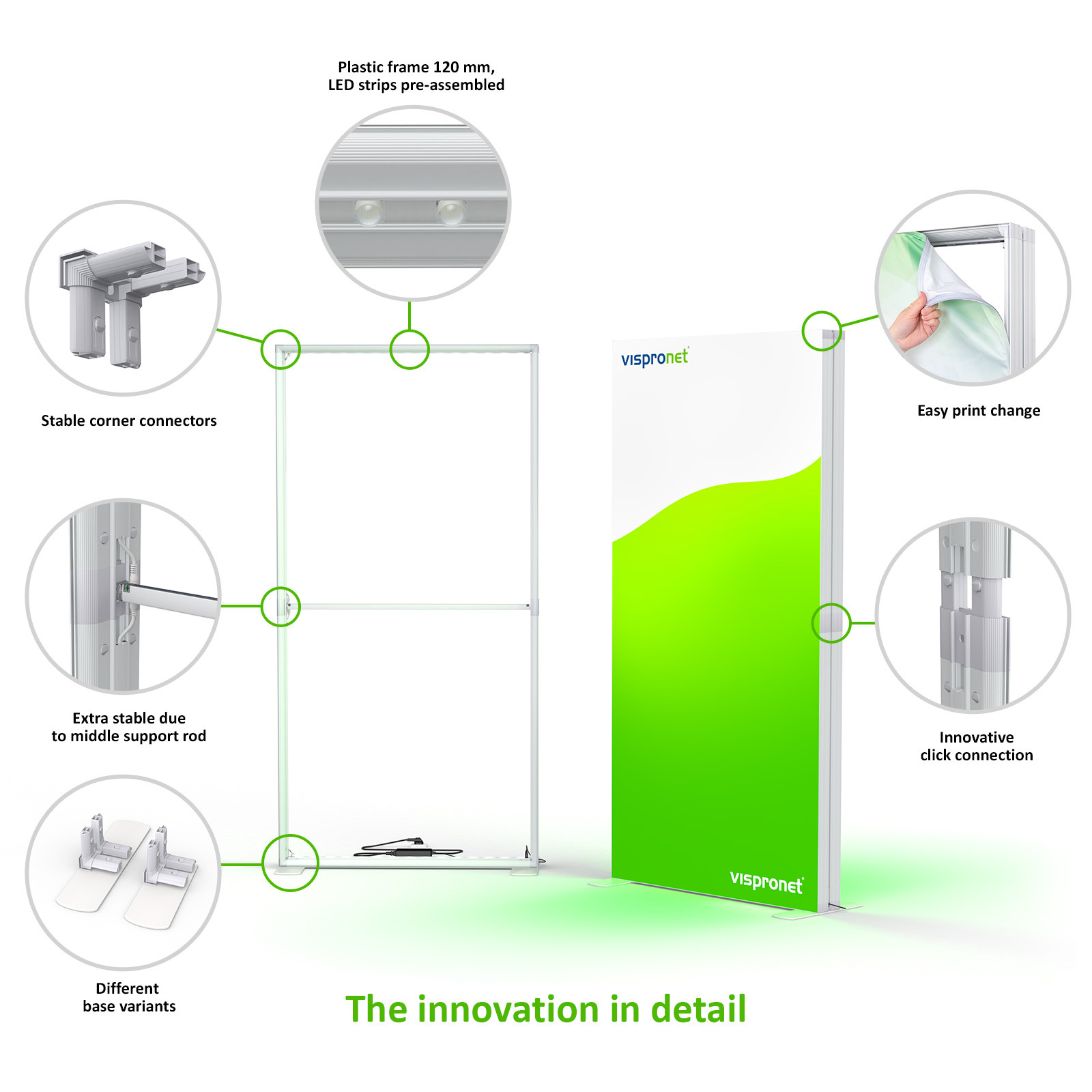

Version - System
- Innovative frame system with registered design (GM: 20 2019 103 837)

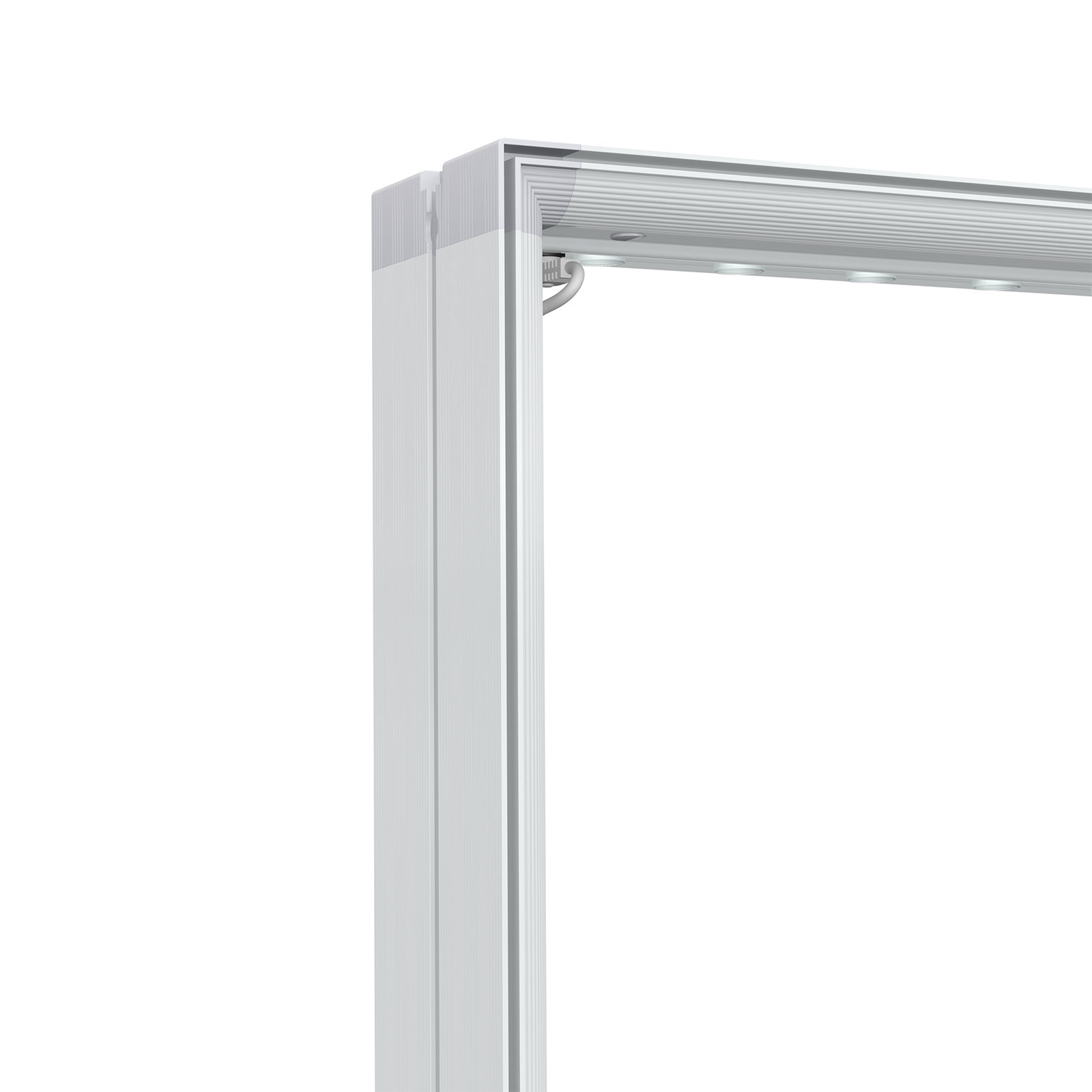

- High-quality white plastic frame with click profiles and V0 fire safety classification
- Frame depth: 120 mm
- Includes support feet for stability

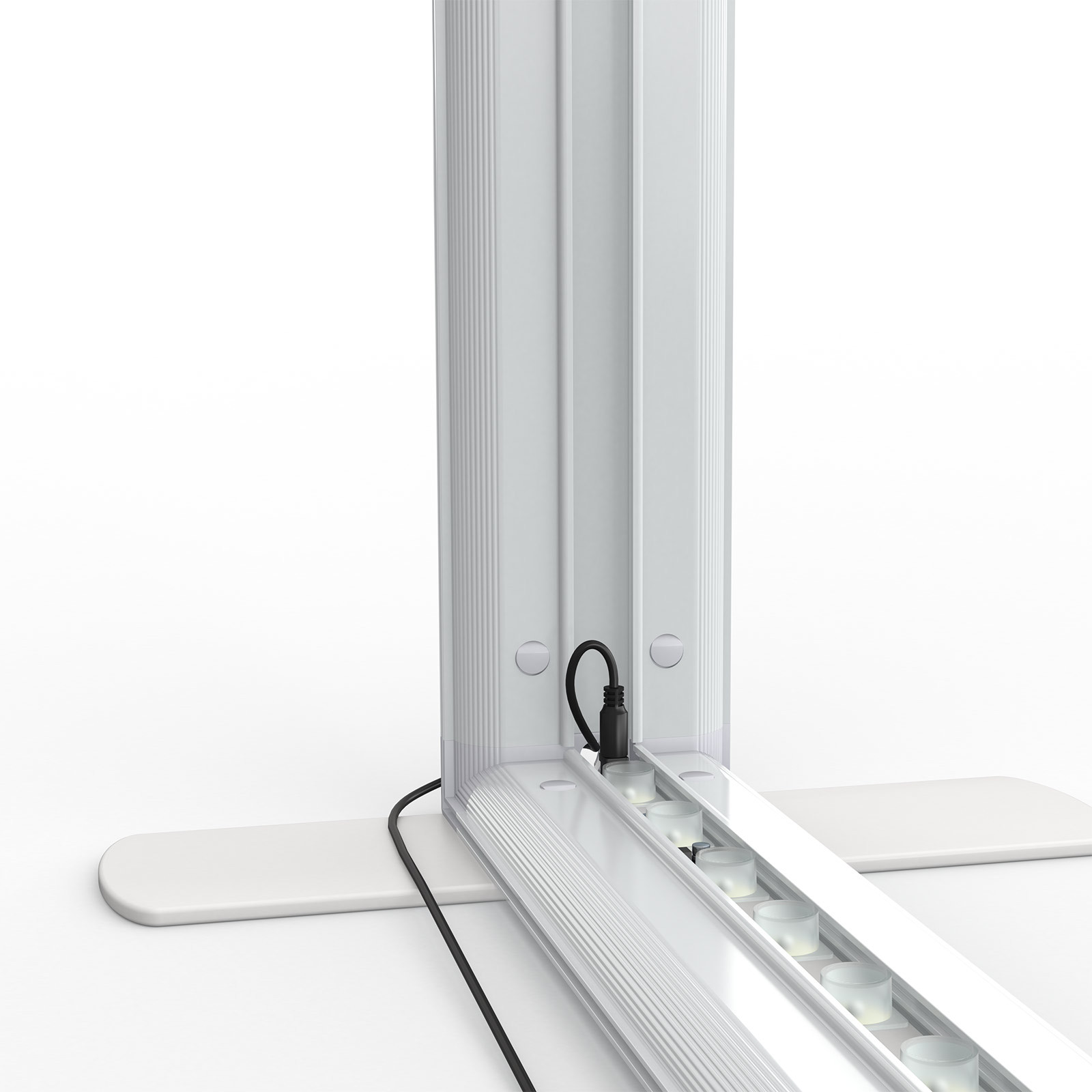

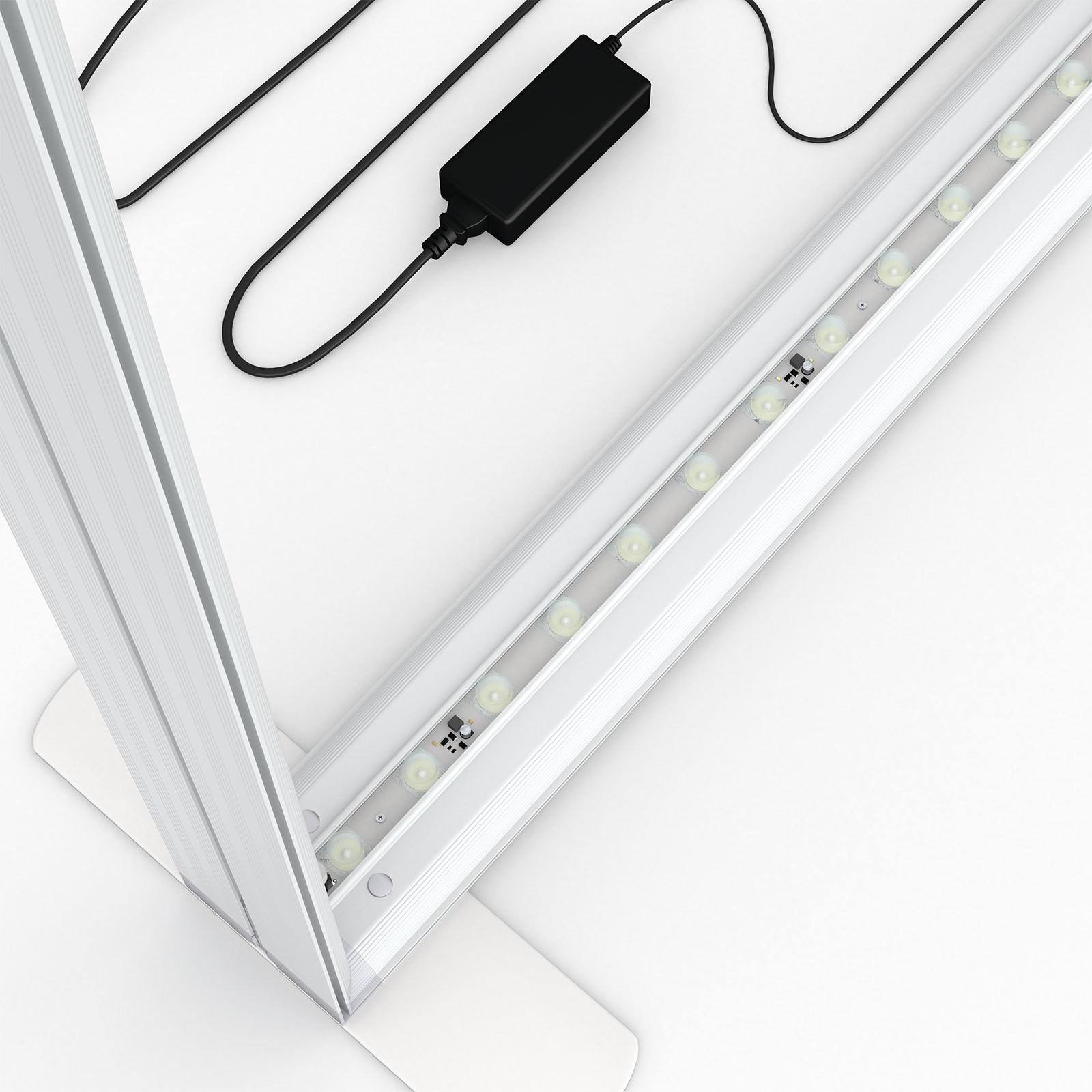

- LED modules:
- Factory-installed OSRAM power LEDs
- Energy-efficient with low heat output
- Long lifespan up to 50,000 hours
- One system – many possibilities: All Lightbox flex walls and modules are fully compatible and connectable
- Available configurations:
- Wall-mounted version: For placement directly against stand walls or boundaries
- Freestanding version: For use as outer wall or backdrop when no stand wall exists
- System width 85 cm: Ideal for compact spaces (e.g. a 285 cm wide unit fits well into a 300 cm booth)
- Stand variant depends on selected foot style (wall-mounted or freestanding)

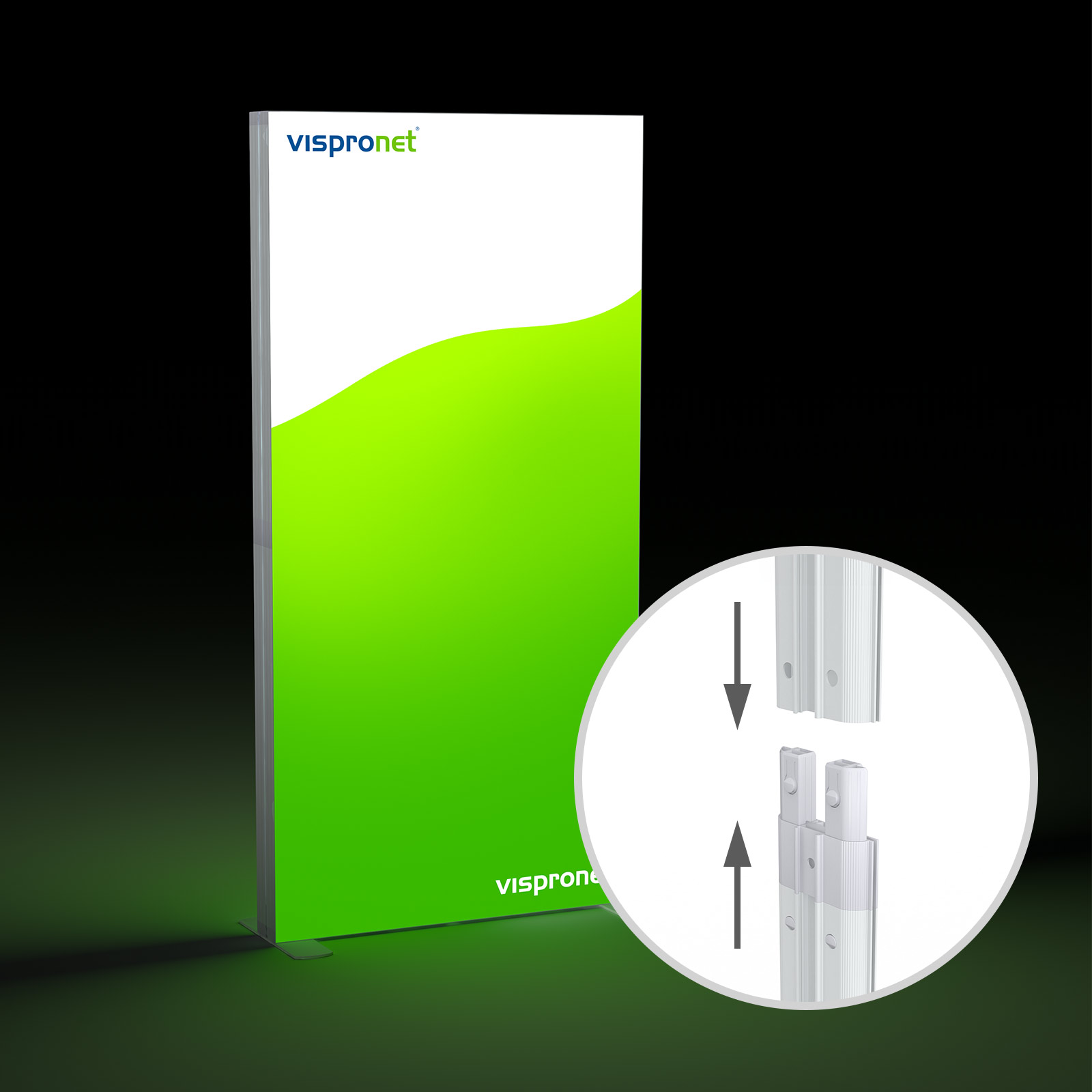

- Tool-free assembly using click connectors – just snap together and plug in
Available Sizes
- Widths: 85, 100, 185, 200, 285, 300, 385, 400, 485, 500, 585, 600 cm
- Heights: 200, 225, 250 cm
Technical Specifications
Power Supply Mini Power Supply Midi Power Supply Maxi Power 96 W 126 W 152.4 W Current 4 A 5.25 A 6.35 A Voltage 24 V Luminous flux 4,000 lumens Light color cool white Power cable length with plug approx. 280 cm Scope of supply

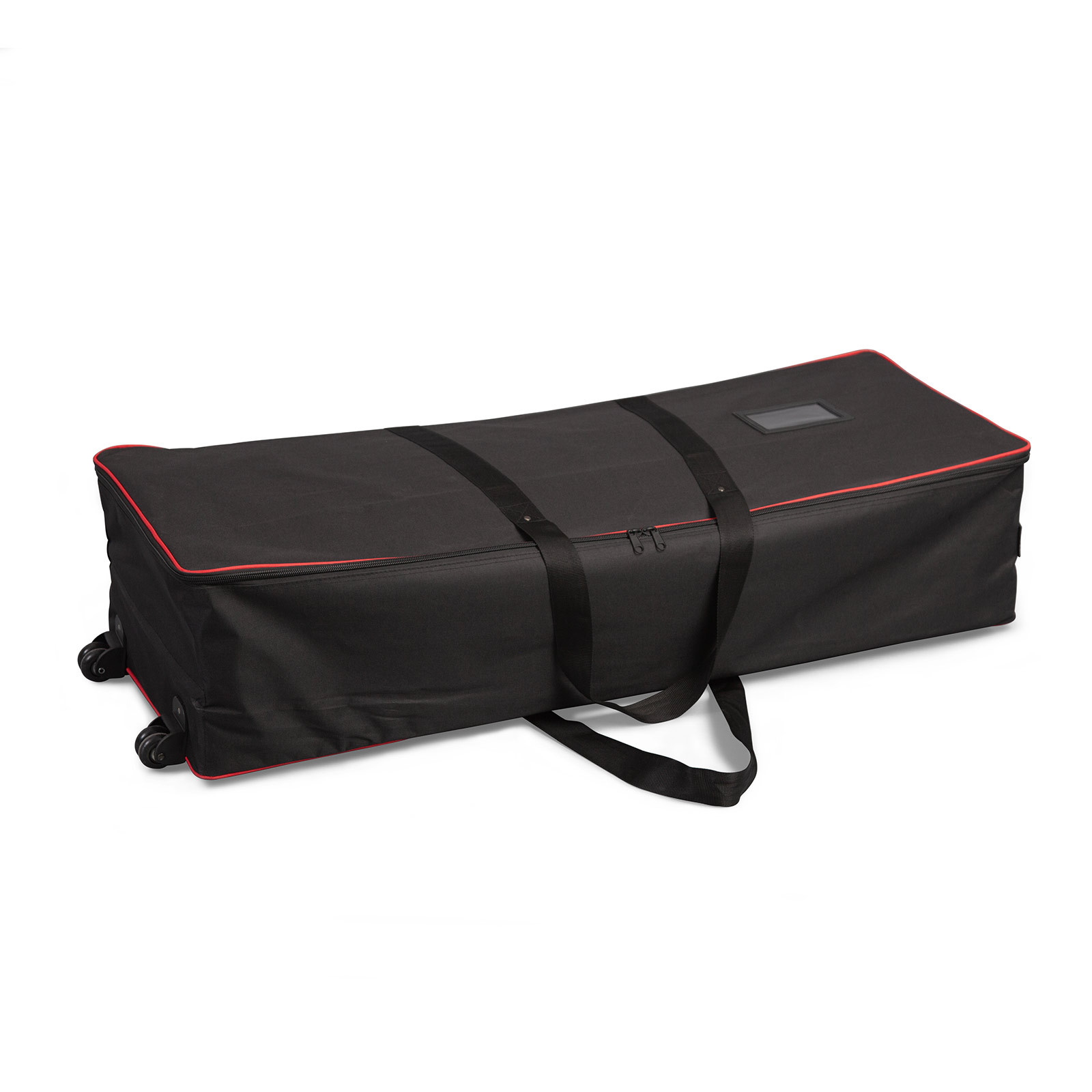

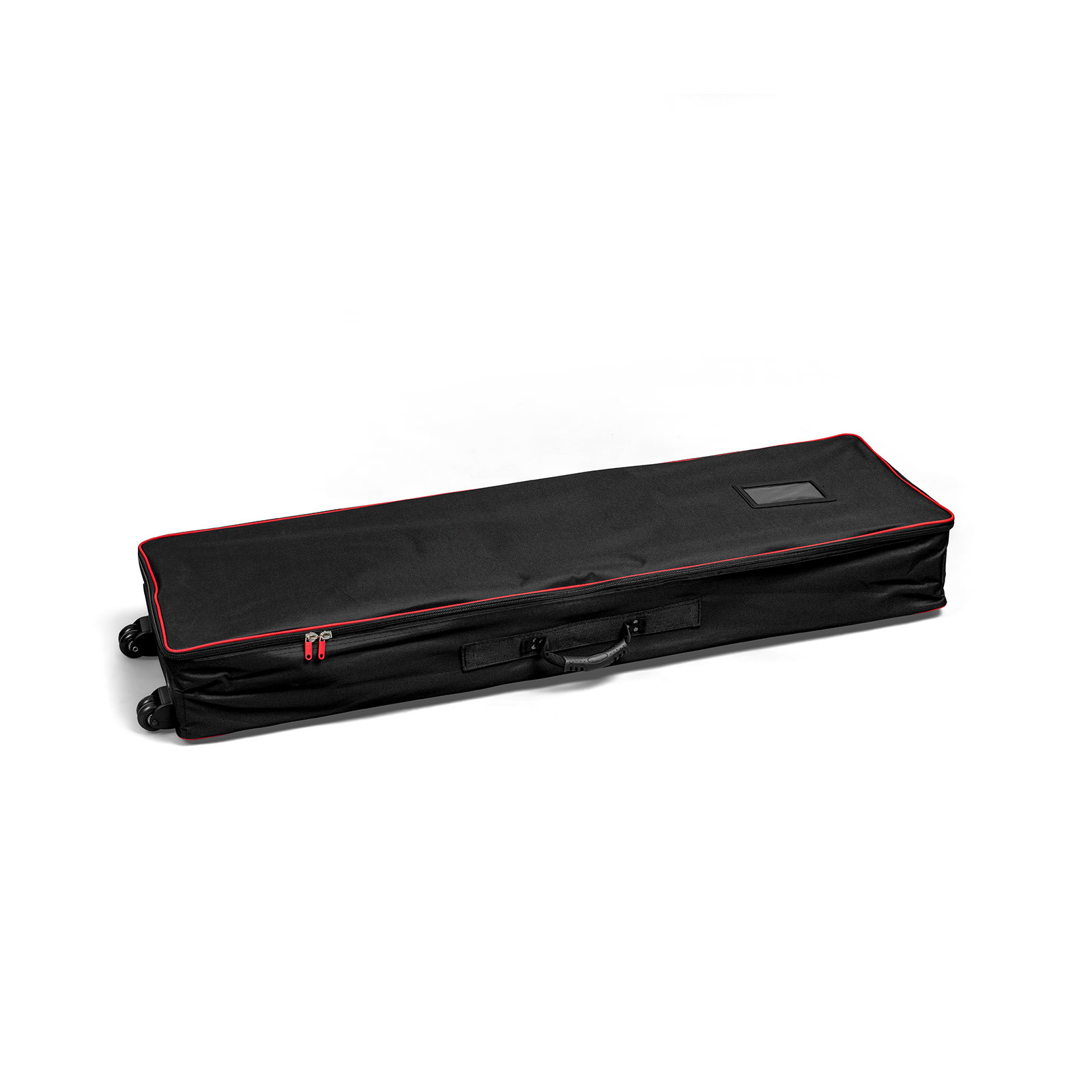

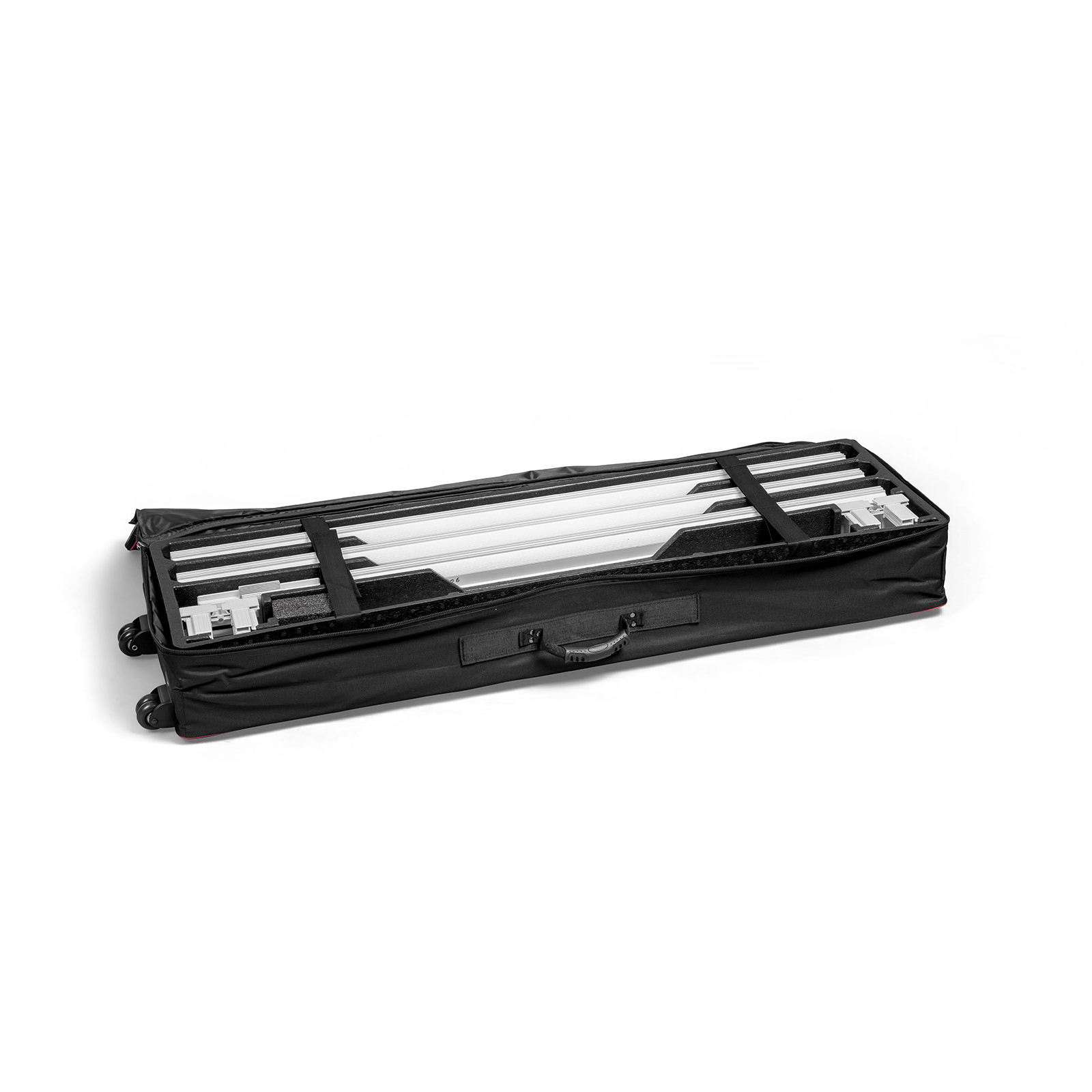

- Complete Set: Lightbox flex system, printed panel(s) or back panel, trolley bag (from 382 cm width: 2 bags)
- Print Only: Front/reverse prints as per selected configuration (no system)
- System Only: Lightbox flex frame and trolley bag (no prints)

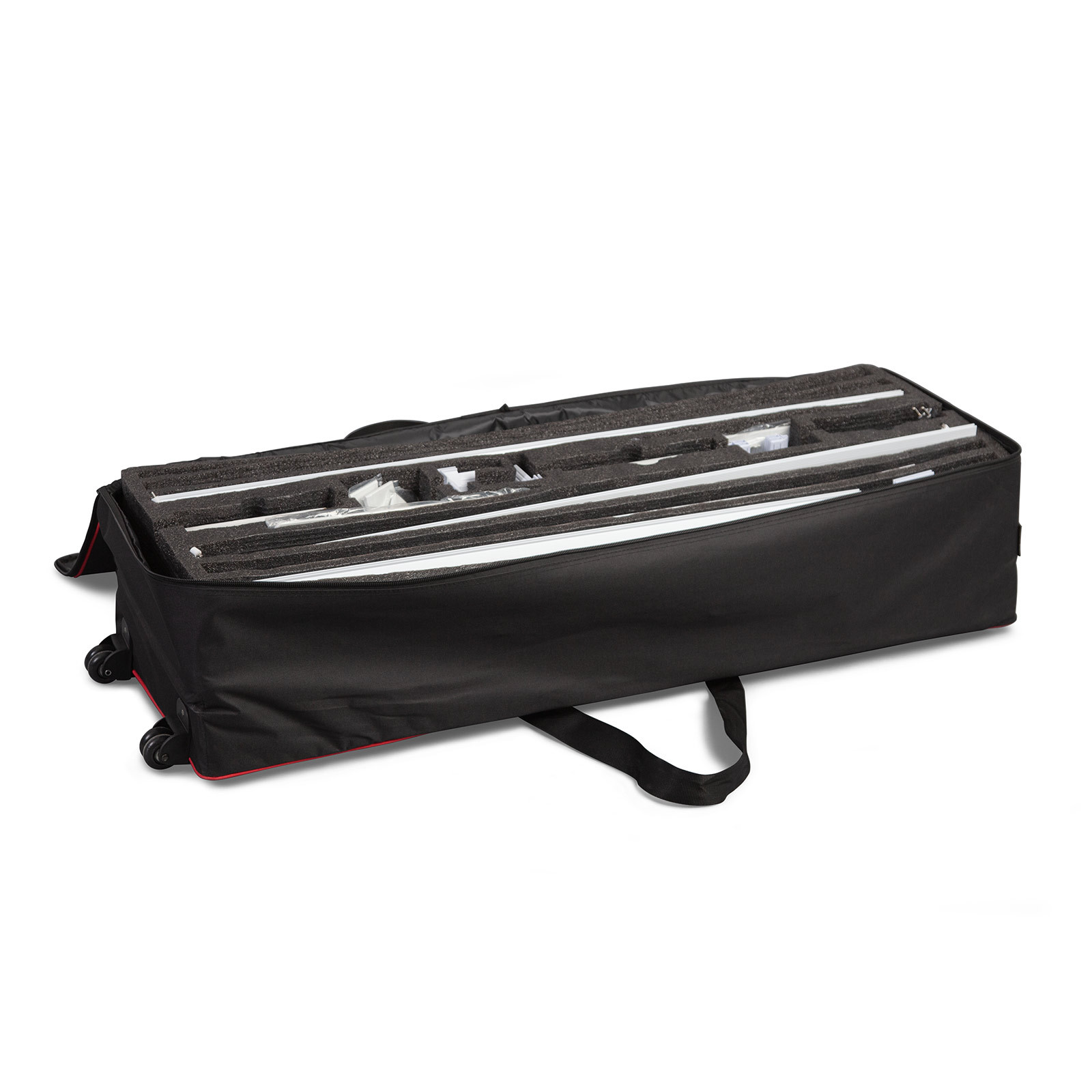

- Note: Delivered dismantled for space-saving storage and low shipping costs
The system is delivered disassembled – perfect for compact storage and low shipping costs.
Packaging dimensions & weights
System height 200 cmSystem width System weight Total weight Packaging dimensions 85 cm 10.71 kg 16.71 kg 136 × 40 × 18 cm 100 cm 11.25 kg 17.25 kg 136 × 40 × 18 cm 185 cm 15.00 kg 20.50 kg 124 × 45.5 × 28.5 cm 200 cm 15.54 kg 21.04 kg 124 × 45.5 × 28.5 cm 285 cm 19.65 kg 25.15 kg 2 packages each 124 × 45.5 × 28.5 cm 300 cm 20.19 kg 25.69 kg 2 packages each 124 × 45.5 × 28.5 cm 385 cm 24.36 kg 35.36 kg 2 packages each 124 × 45.5 × 28.5 cm 400 cm 24.90 kg 35.90 kg 2 packages each 124 × 45.5 × 28.5 cm 485 cm 30.46 kg 41.46 kg 2 packages each 124 × 45.5 × 28.5 cm 500 cm 31.00 kg 42.00 kg 2 packages each 124 × 45.5 × 28.5 cm 585 cm 34.53 kg 45.53 kg 2 packages each 124 × 45.5 × 28.5 cm 600 cm 35.07 kg 46.07 kg 2 packages each 124 × 45.5 × 28.5 cm The system is delivered disassembled – ideal for compact storage and low shipping costs.
System height 225 cmSystem Width System Weight Total Weight Packaging Dimensions 85 cm 11.55 kg 17.55 kg 136 × 40 × 18 cm 100 cm 12.09 kg 18.09 kg 136 × 40 × 18 cm 185 cm 15.88 kg 21.38 kg 124 × 45.5 × 28.5 cm 200 cm 16.42 kg 21.92 kg 124 × 45.5 × 28.5 cm 285 cm 20.57 kg 26.07 kg 2 packages each 124 × 45.5 × 28.5 cm 300 cm 21.11 kg 26.61 kg 2 packages each 124 × 45.5 × 28.5 cm 385 cm 25.32 kg 36.32 kg 2 packages each 124 × 45.5 × 28.5 cm 400 cm 25.86 kg 36.86 kg 2 packages each 124 × 45.5 × 28.5 cm 485 cm 31.67 kg 42.67 kg 2 packages each 124 × 45.5 × 28.5 cm 500 cm 32.21 kg 43.21 kg 2 packages each 124 × 45.5 × 28.5 cm 585 cm 35.78 kg 46.78 kg 2 packages each 124 × 45.5 × 28.5 cm 600 cm 36.32 kg 47.32 kg 2 packages each 124 × 45.5 × 28.5 cm *All dimensions and weights are approximate.
System height 250 cmSystem Width System Weight Total Weight Packaging Dimensions 85 cm 12.29 kg 18.29 kg 136 × 40 × 18 cm 100 cm 12.83 kg 18.83 kg 136 × 40 × 18 cm 185 cm 16.66 kg 22.16 kg 124 × 45.5 × 28.5 cm 200 cm 17.20 kg 22.70 kg 124 × 45.5 × 28.5 cm 285 cm 21.39 kg 26.89 kg 2 packages each 124 × 45.5 × 28.5 cm 300 cm 21.93 kg 27.43 kg 2 packages each 124 × 45.5 × 28.5 cm 385 cm 26.18 kg 37.18 kg 2 packages each 124 × 45.5 × 28.5 cm 400 cm 26.72 kg 37.72 kg 2 packages each 124 × 45.5 × 28.5 cm 485 cm 32.81 kg 43.81 kg 2 packages each 124 × 45.5 × 28.5 cm 500 cm 33.35 kg 44.35 kg 2 packages each 124 × 45.5 × 28.5 cm 585 cm 36.96 kg 47.96 kg 2 packages each 124 × 45.5 × 28.5 cm 600 cm 37.50 kg 48.50 kg 2 packages each 124 × 45.5 × 28.5 cm *All dimensions and weights are approximate.
Usage
- For indoor use only
- Please observe the safety instructions for illuminated exhibition walls
