Brilliant textile printing using the sublimation process
UV-resistant with high lightfastness
Customizable on one or both sides
Exhibition Wall Lightbox fold
Foldable LED exhibition wall for mobile use: The Lightbox fold is ready for use within minutes and ensures evenly backlit textile prints thanks to energy-efficient LED technology. Multiple walls can be flexibly combined into individual exhibition stands via integrated magnets.
Version – Printed Part
Cut all around and equipped with sewn-in flat piping for attachment in the aluminum frame
Attachment using piping ensures perfect and wrinkle-free tension of the motifs.
Printing options:
Double-sided printing: front and back can be designed identically or differently
Single-sided printing: front side with desired motif, back side optionally in black or white
Note: For continuous motifs across multiple connected exhibition walls, slight motif misalignment may occur at the transitions.
Materials
Lighttex SE (approx. 260 g/m2): matte polyester knit, specially designed for backlit applications, high lightfastness (5–7), flame-retardant
Sublimation printing: the color penetrates deeply into the fabric, ensuring vibrant colors with high detail fidelity
Ideal for homogeneous, radiant illuminated surfaces
Special feature: suitable for mobile use with repeated assembly and disassembly
Variotex® Z SE: matte polyester fabric, UV-resistant with high lightfastness (5–8), flame-retardant, more cost-effective to purchase
UV printing: the ink remains on the material surface, with intense colors, razor-sharp details and long-lasting results
Special feature: recommended for permanent use without frequent assembly and disassembly*
Materials for backside covering in single-sided printing:

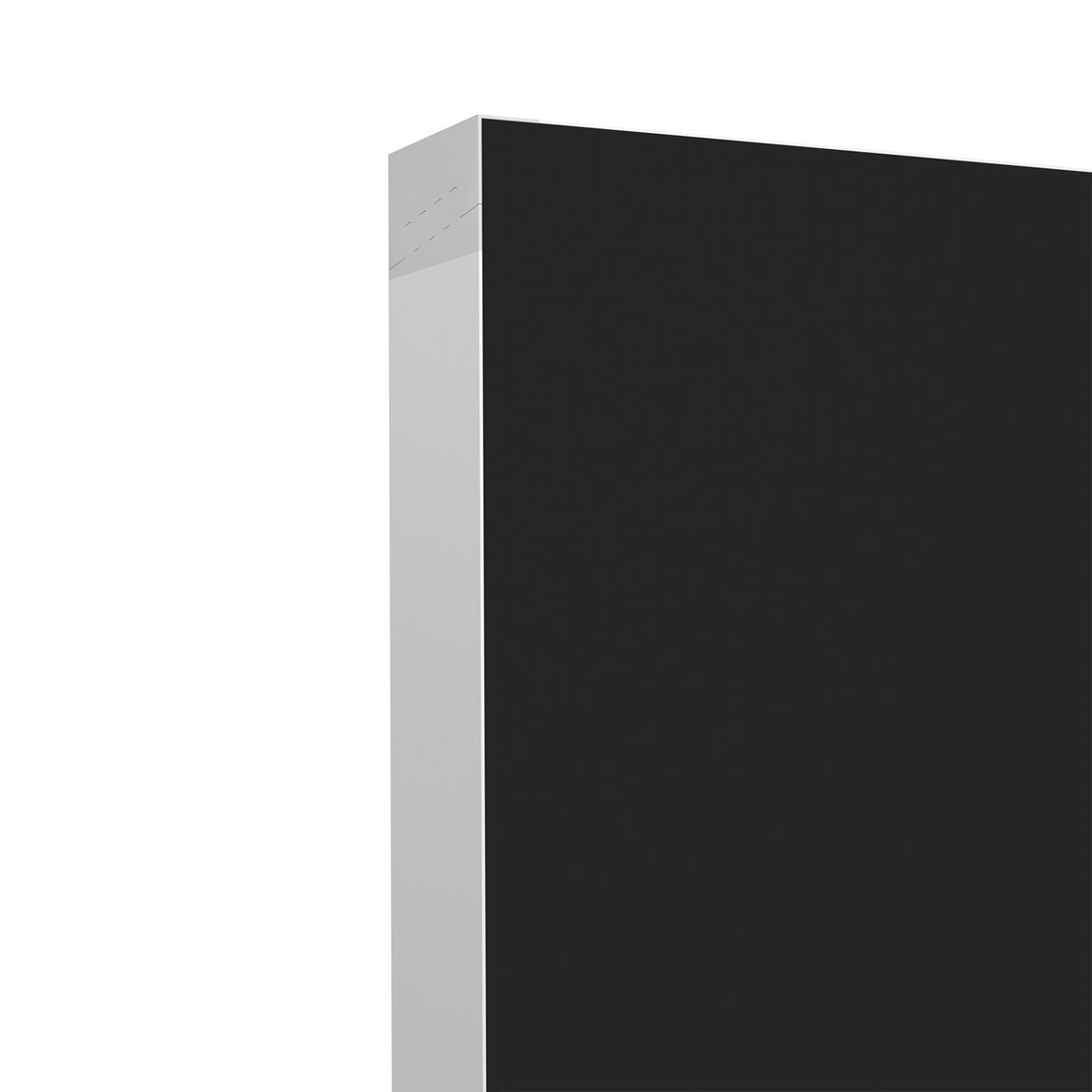

Backside black: Multisol® X Opak SE, matte glossy polyester knit with one-sided black PU coating, 100 % opaque

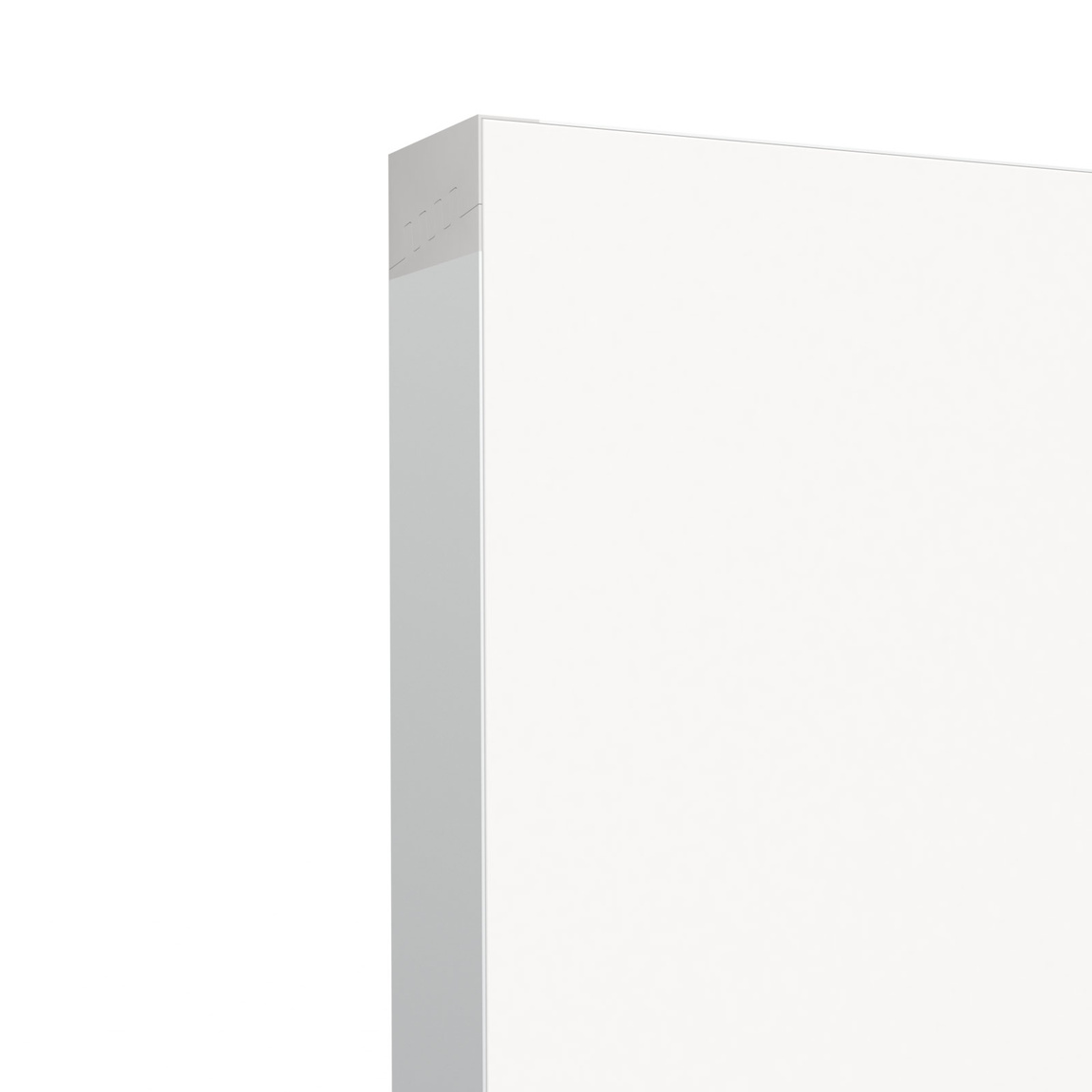

Backside white: Multisol® X Opak SE, matte glossy polyester knit with one-sided white PU coating, 100 % opaque

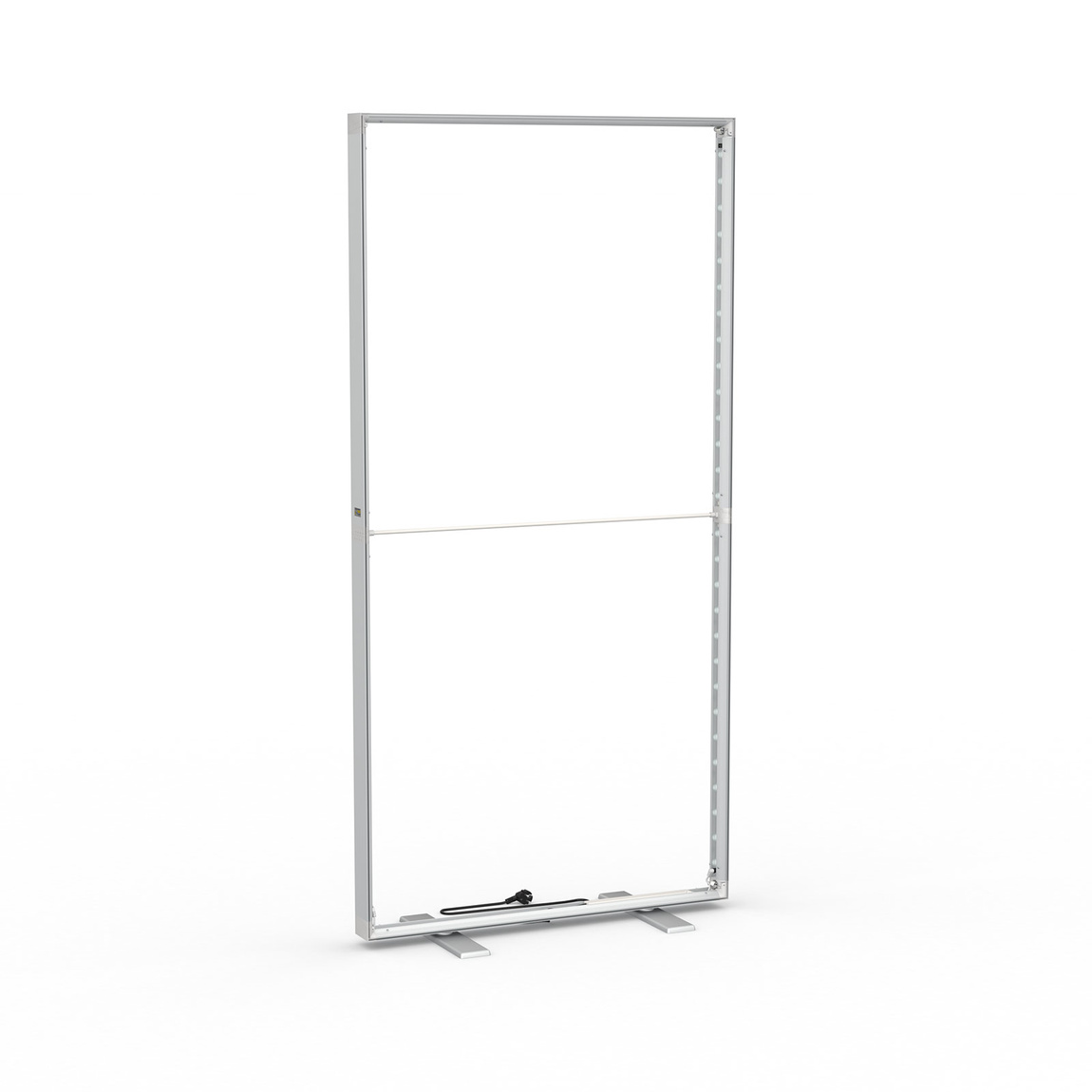

Version – System
Innovative frame system with utility model protection (GM: 20 2023 100 051)

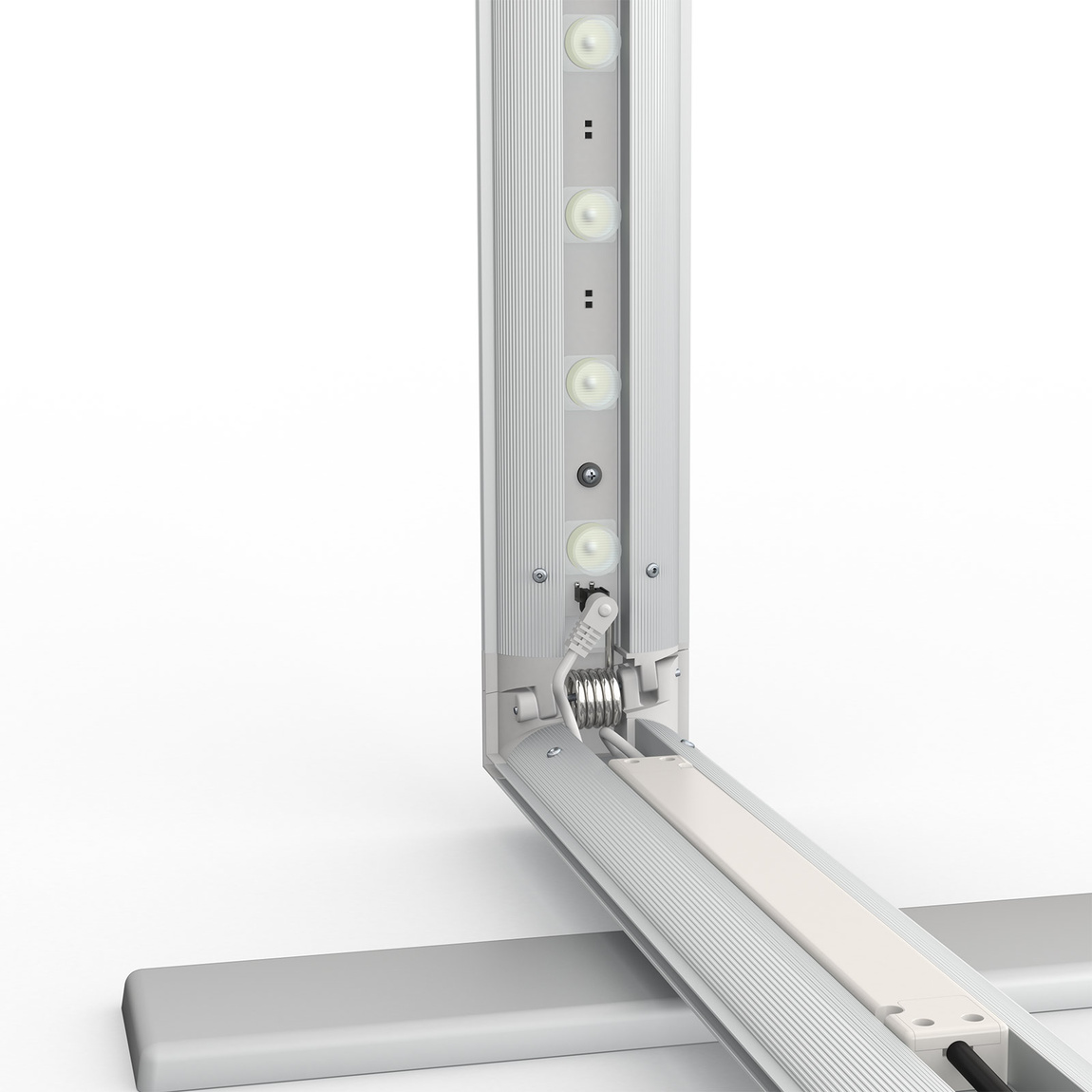

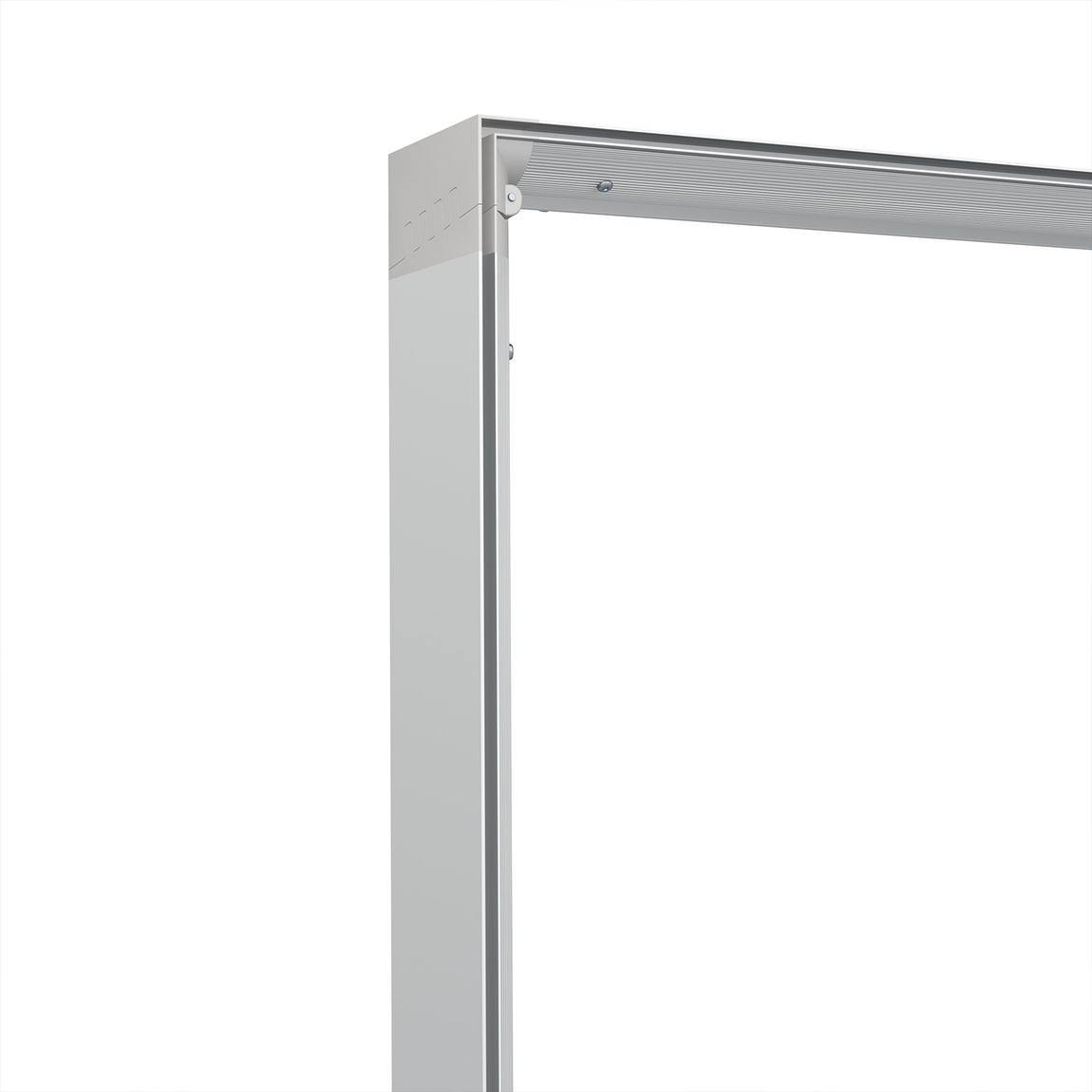

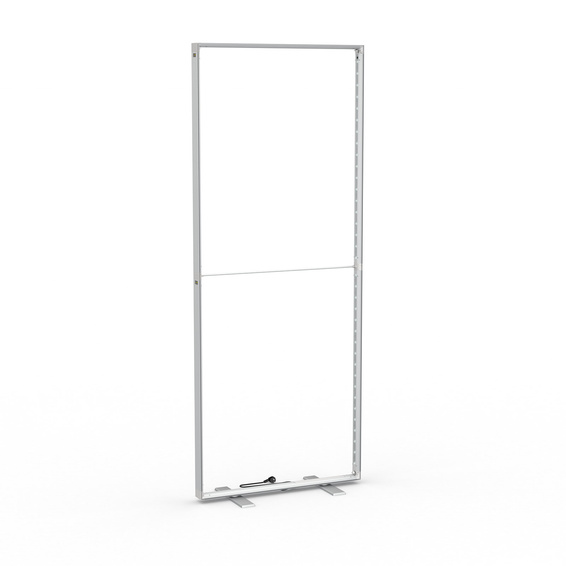

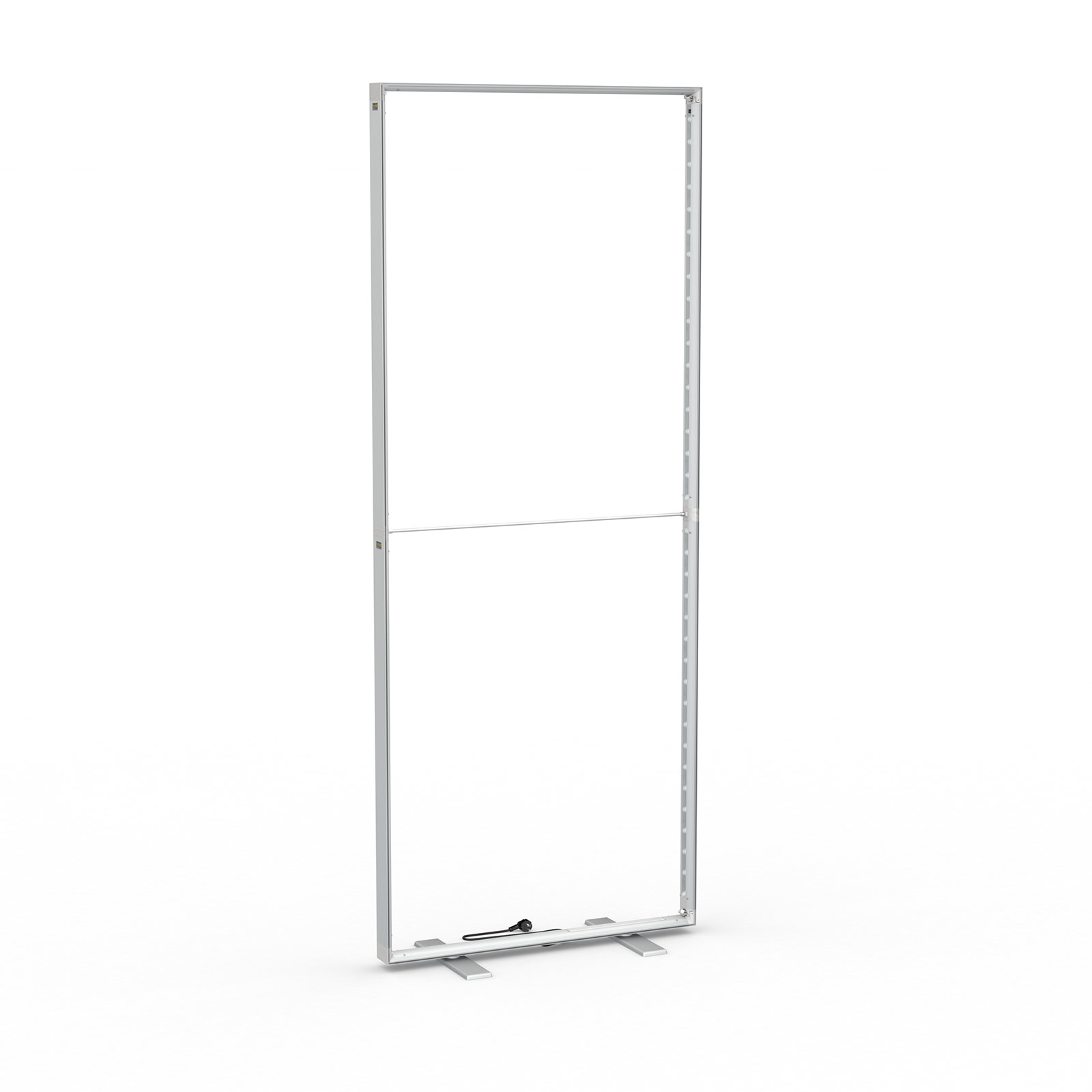

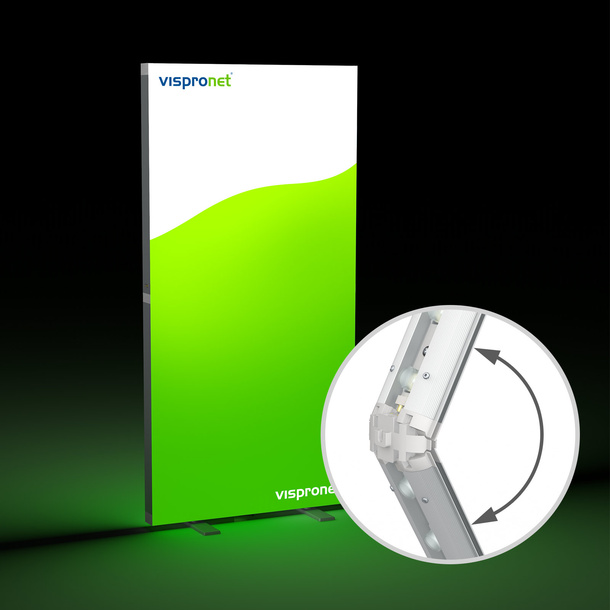

System of foldable folding frames
Material: anodized aluminum

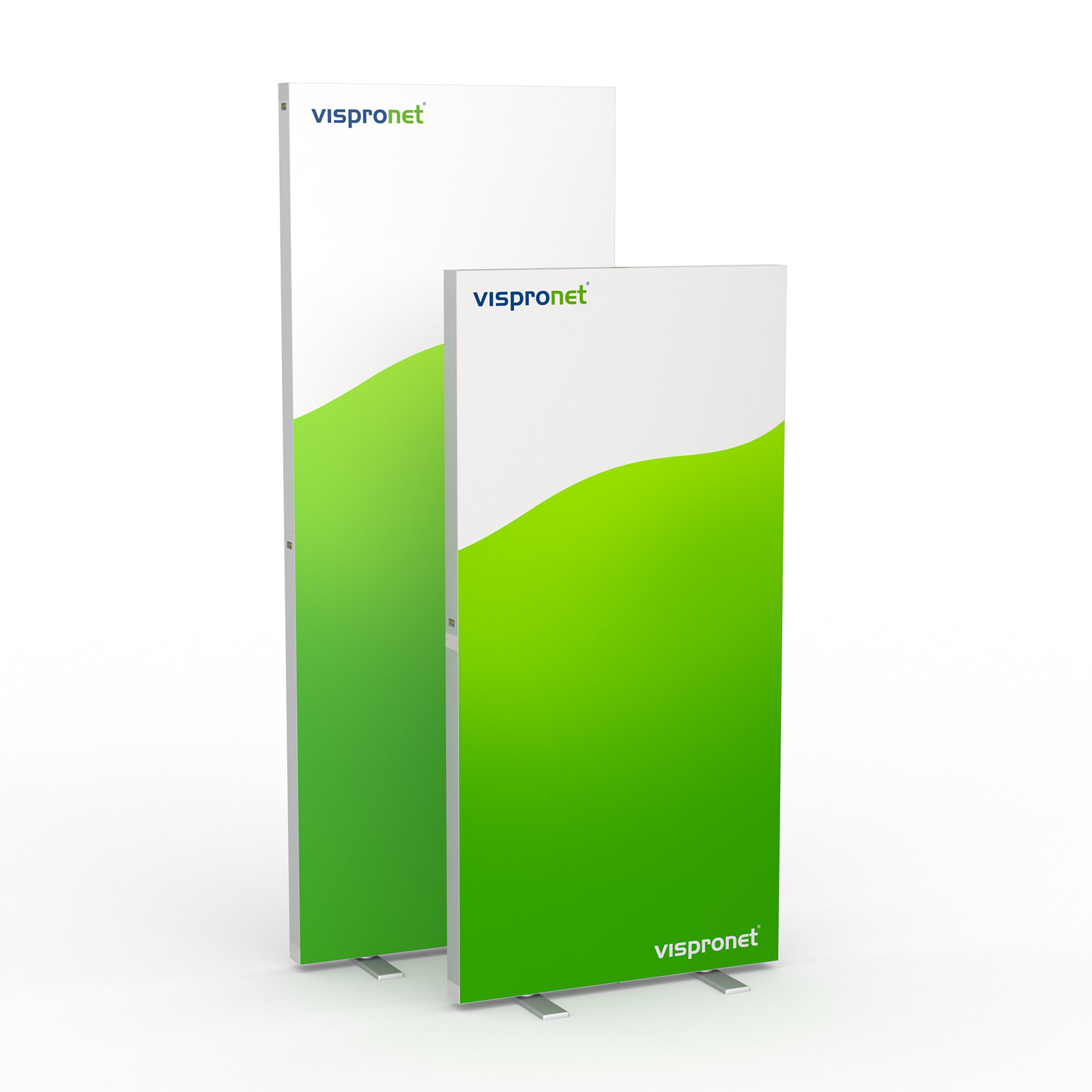

System sizes per exhibition wall (W x H):

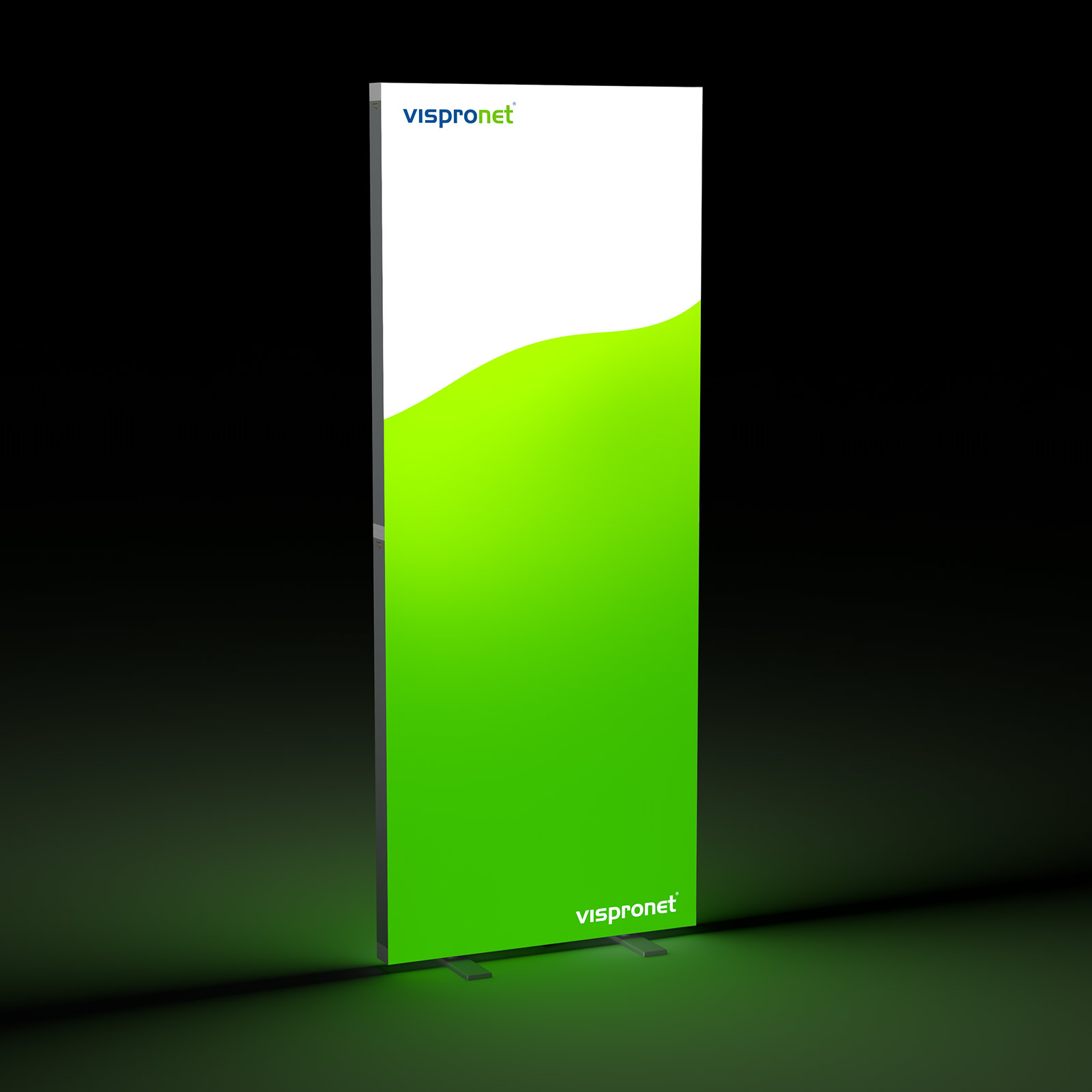

100 x 200 cm
100 x 250 cm
Frame depth: 85 mm

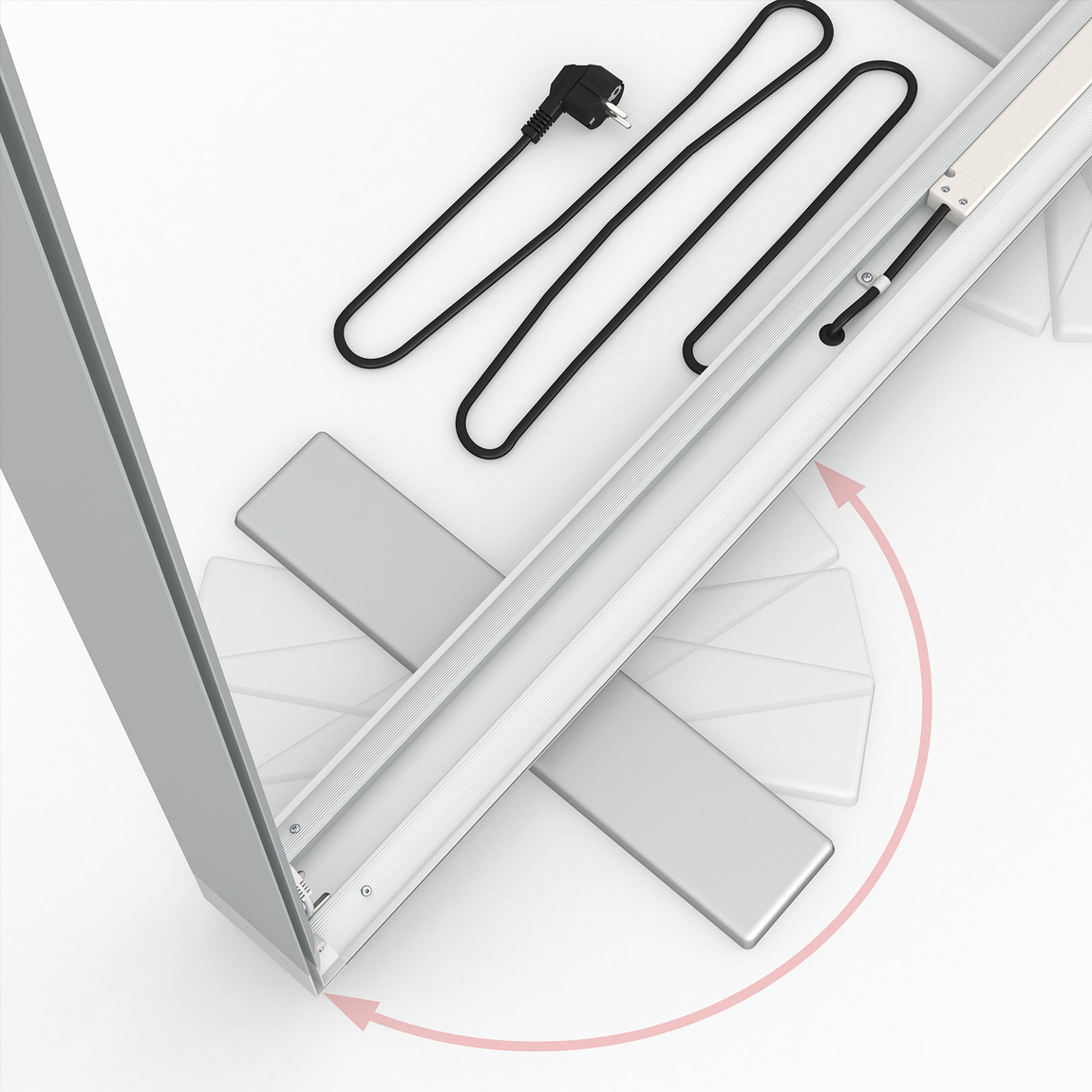

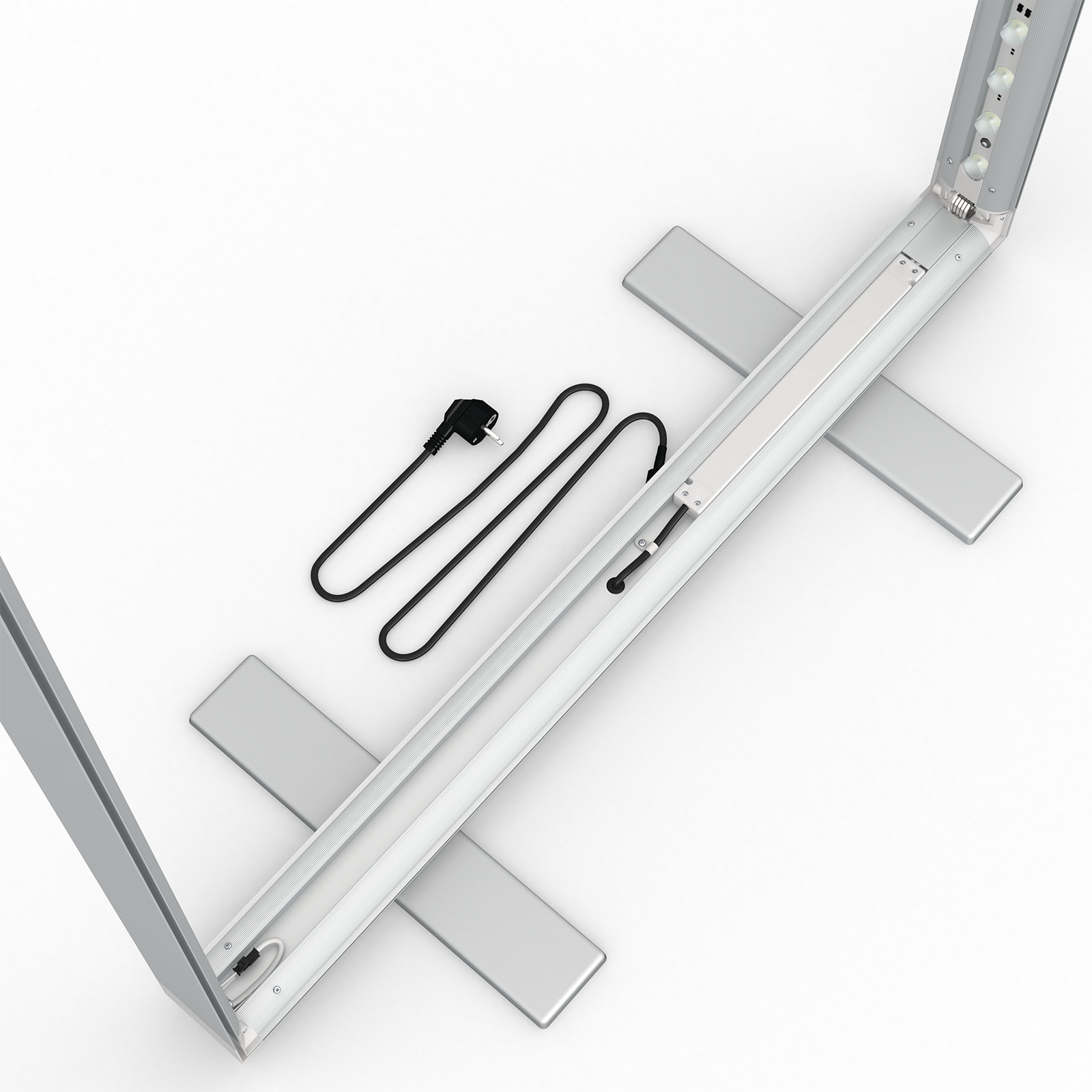

Rotatable feet (length 40 cm) for stable standing

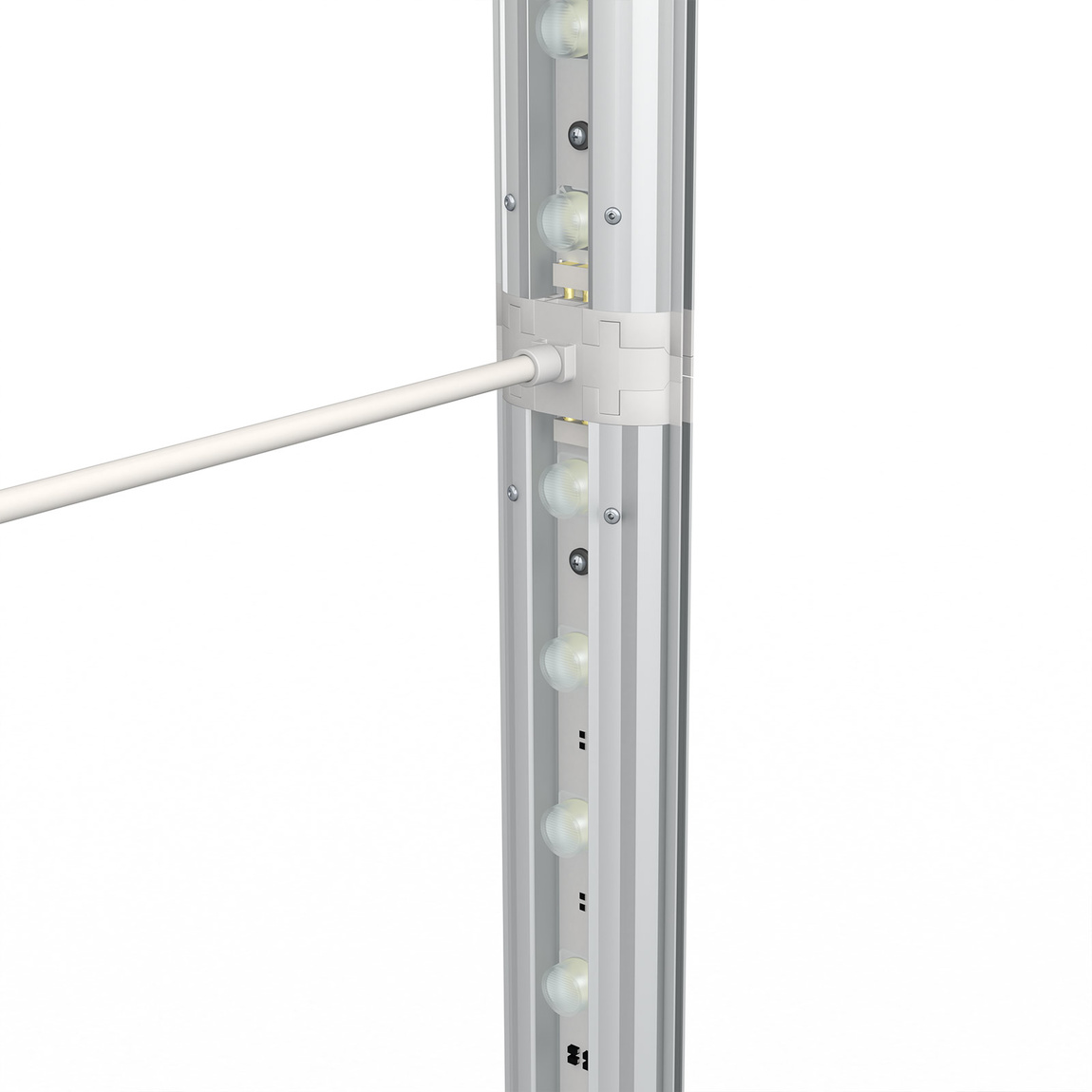

Central support rod for additional stability

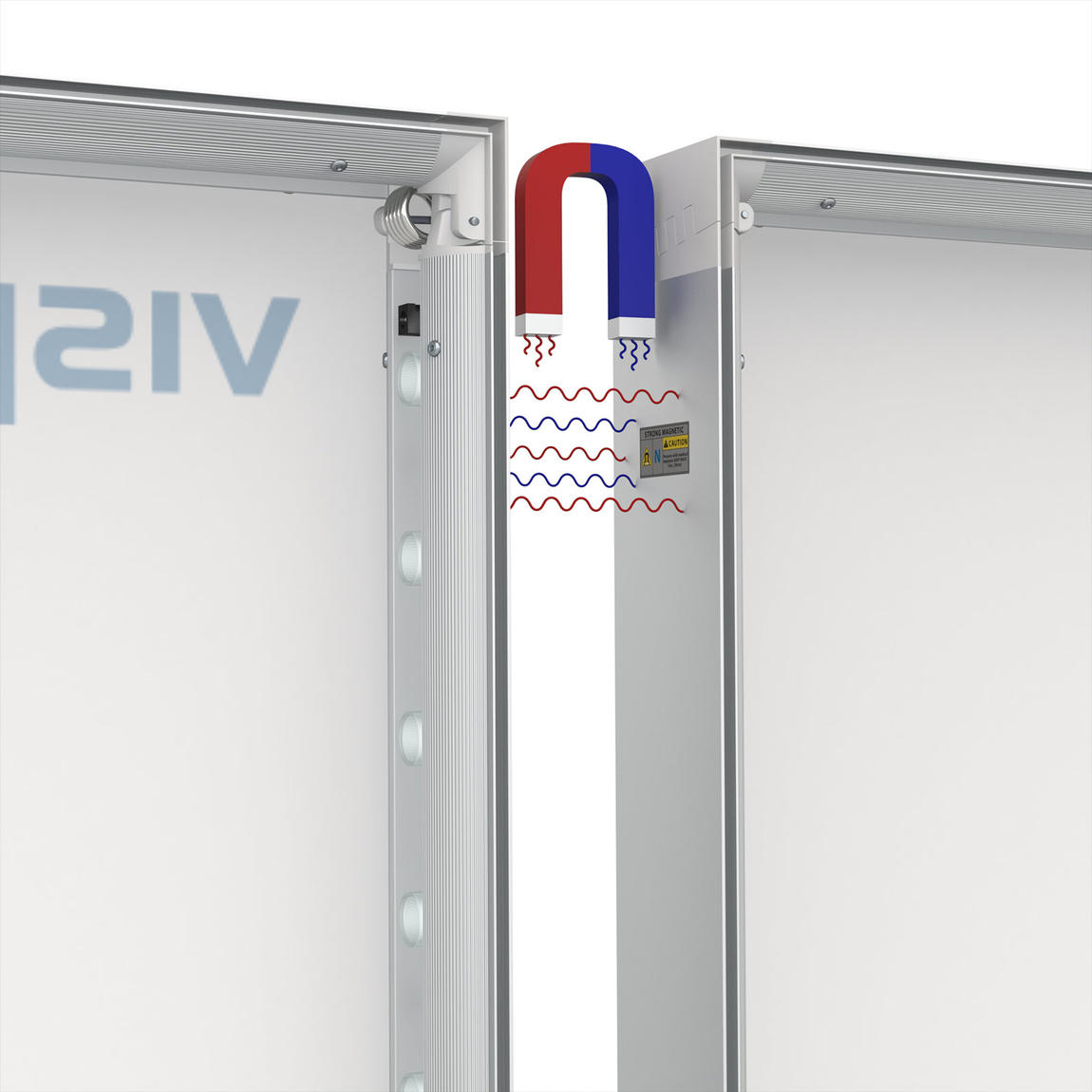

1 system - many possibilities: magnets integrated on the left and right inside the frame for connecting multiple exhibition walls

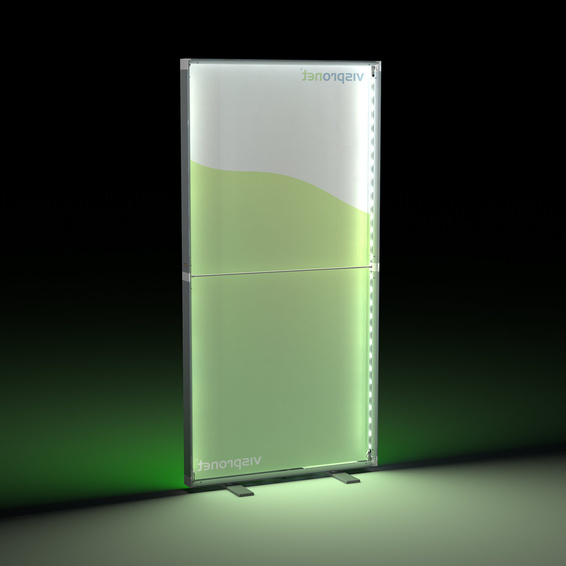

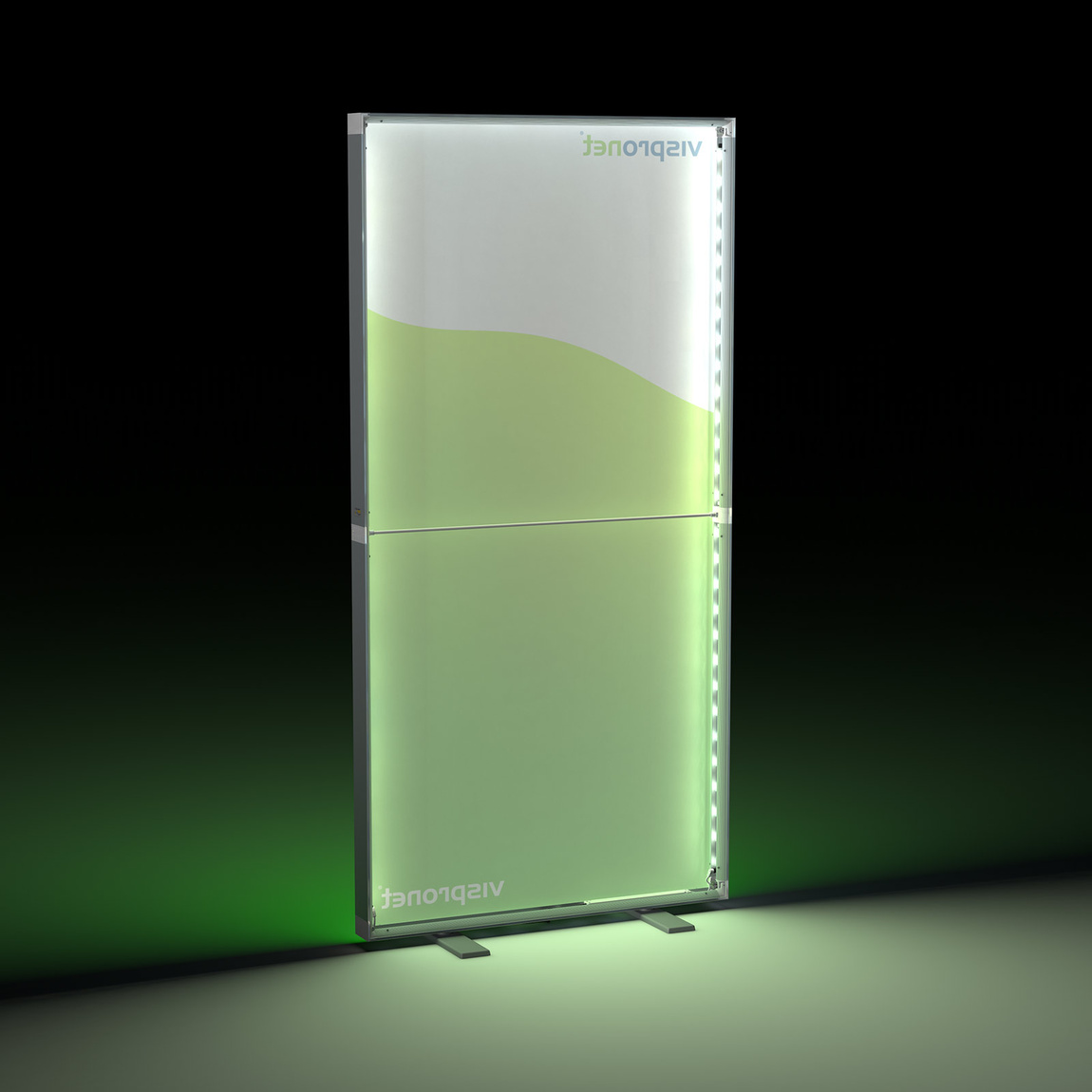

LED modules with low heat generation, factory pre-assembled

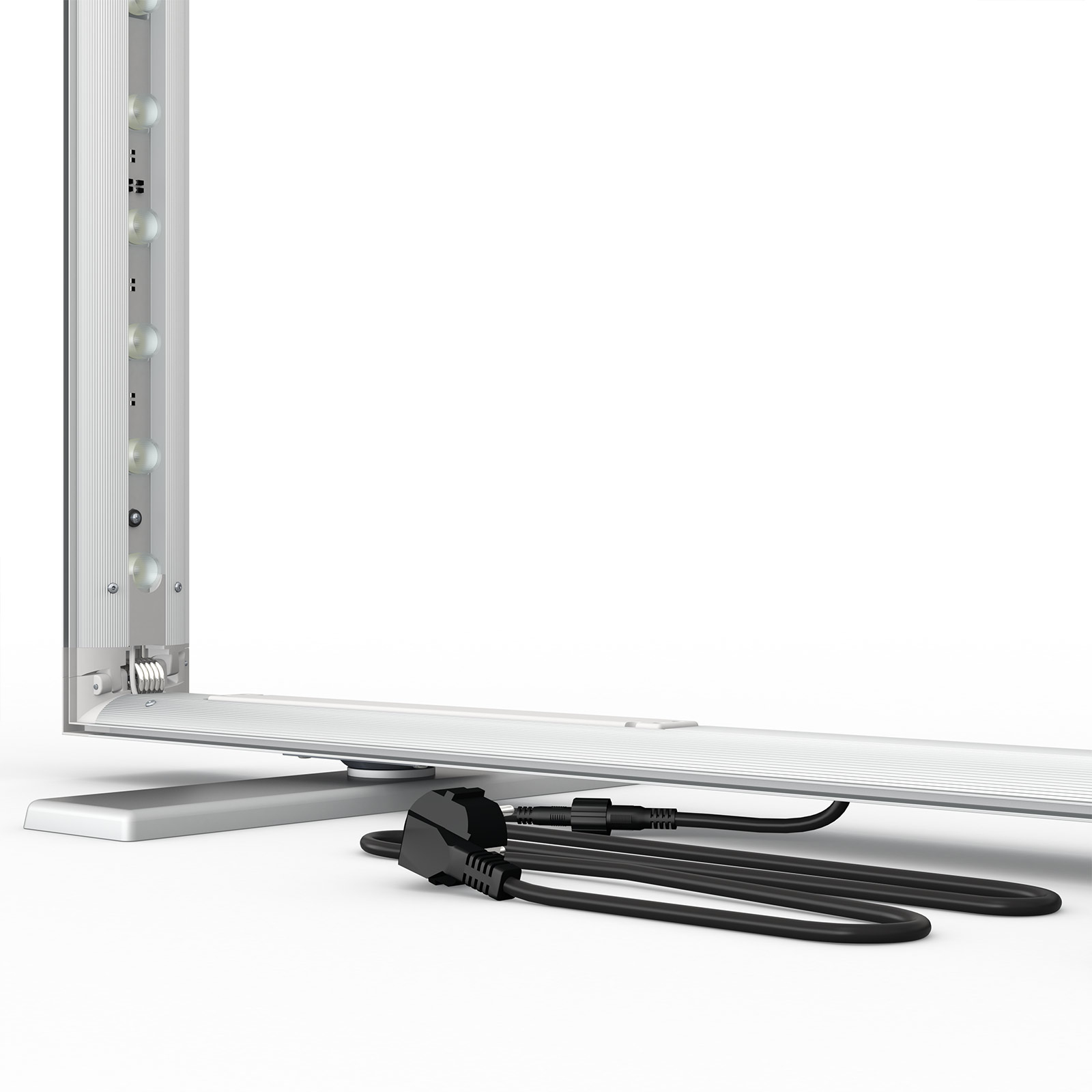

Integrated power supply, power cable with mains plug (cable length approx. 180 cm)

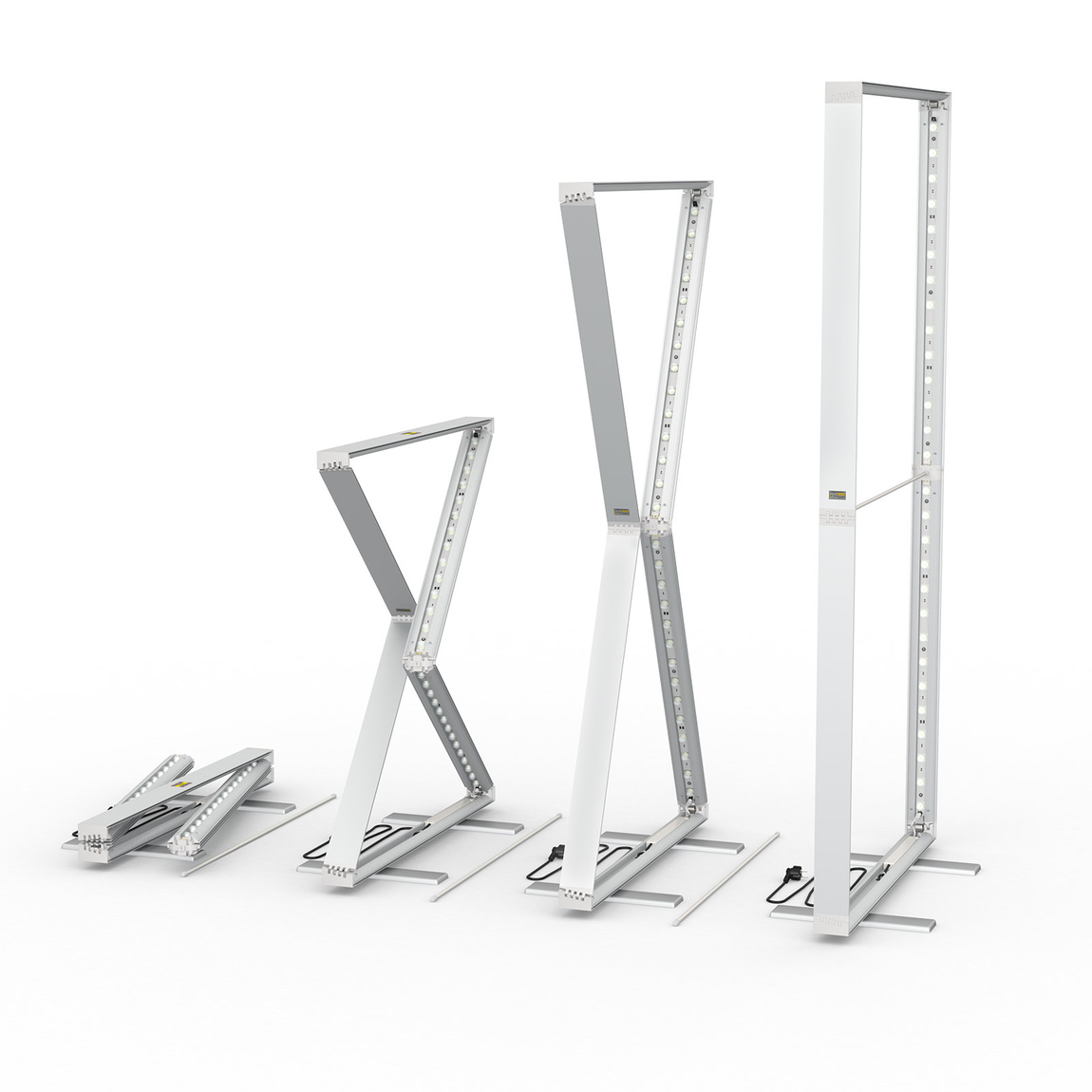

Quick, tool-free assembly: simply pull the frame apart, align the feet, insert the support rod, connect power supply – done
Technical Data
Voltage: 24 V
Power: 96 W
Current: 4 A
Luminous flux: 4000 lumens
Light color: cool white
Service life: up to approx. 20,000 hours
Tip: Use without power outlet possible with a portable power station, for example with Powerstation AC 500 Wh, sufficient for approx. 5 operating hours. (not included)
Sizes & Weights
System height 200 cm
Number of Exhibition Walls
System (W × H)
System Weight
Packaging Dimensions (W × H × D)
Total Weight
1
100 × 200 cm
8.15 kg
105 × 33 × 17 cm
9.65 kg

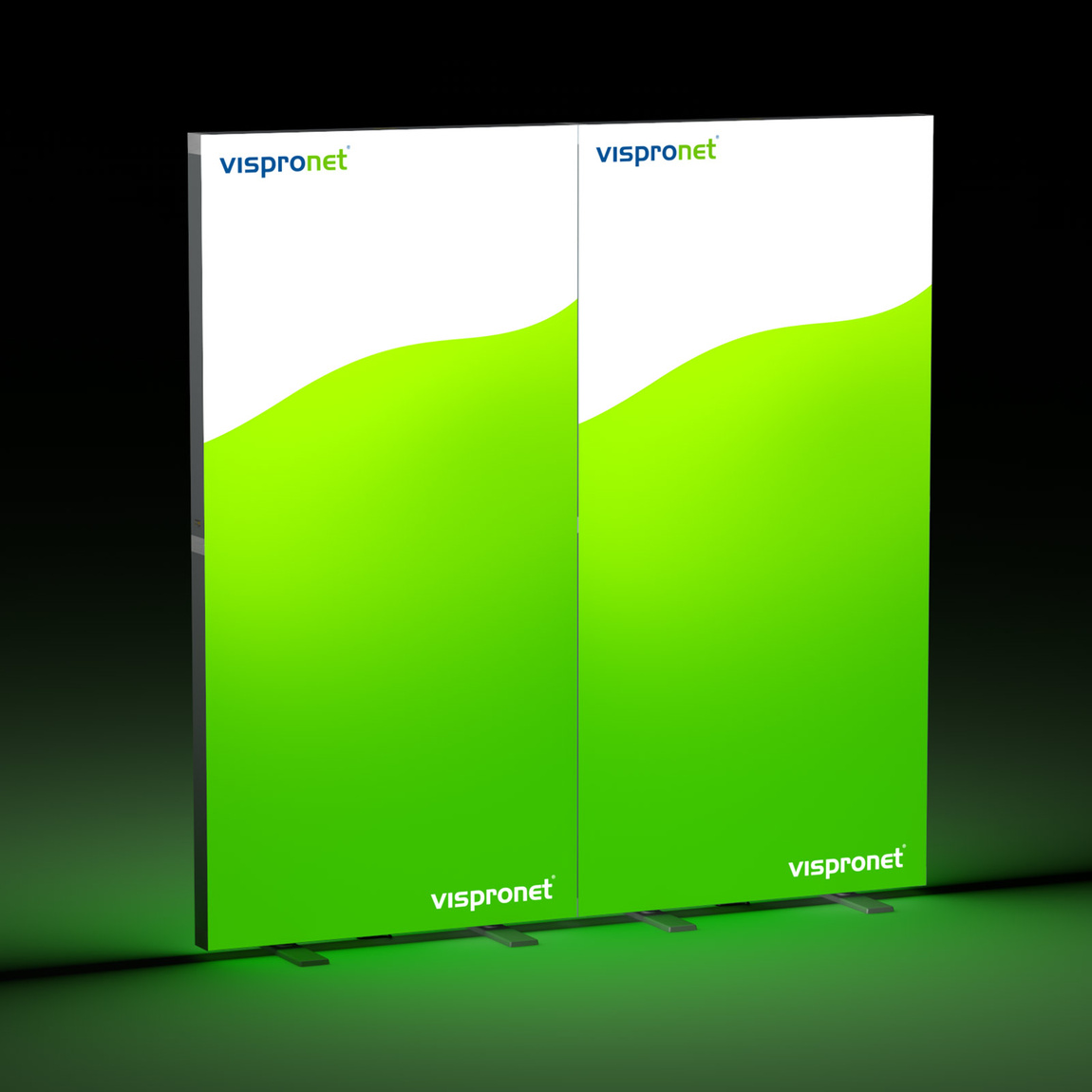

2
200 × 200 cm
2 × 8.15 kg
2 packages each 105 × 33 × 17 cm
2 × 9.65 kg

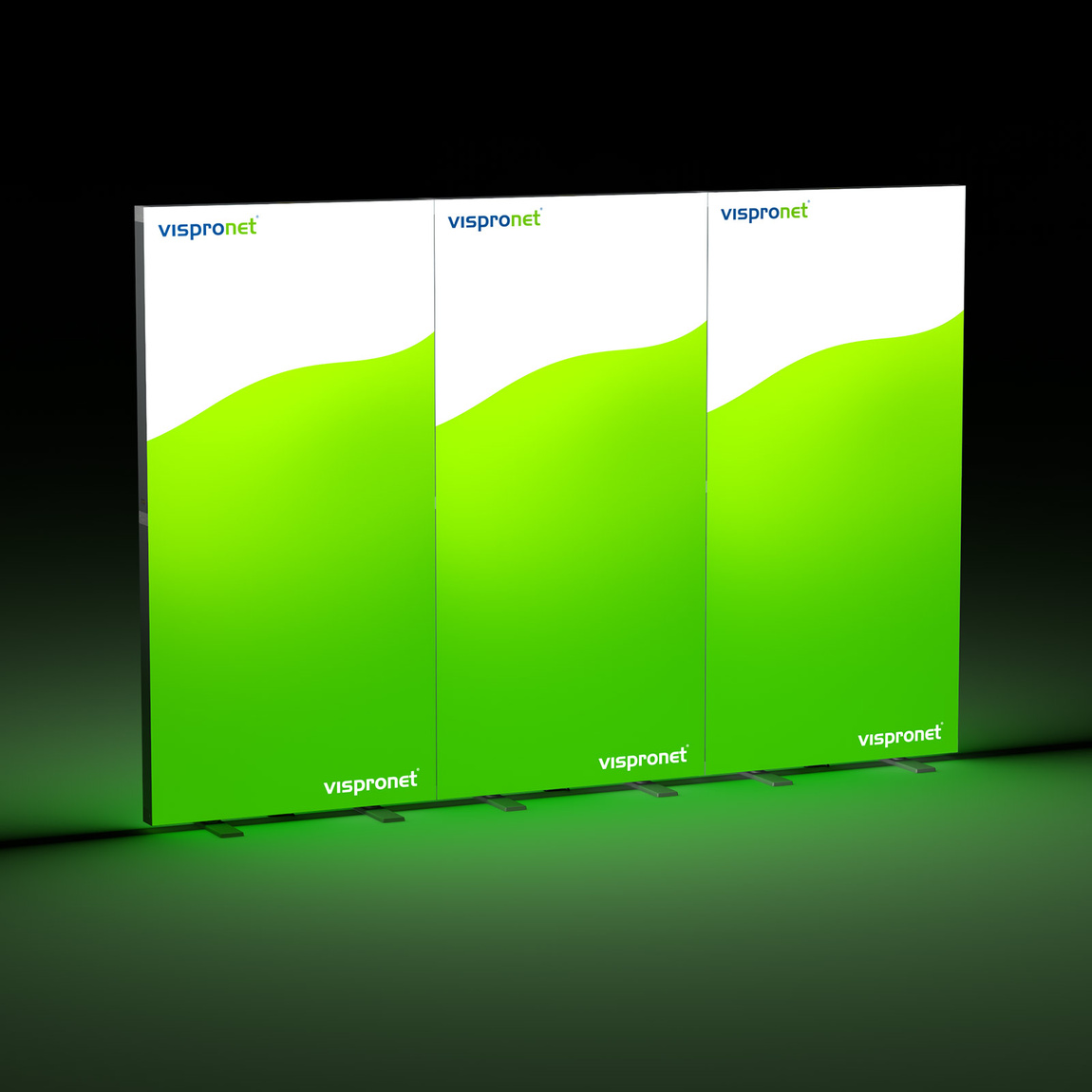

3
300 × 200 cm
3 × 8.15 kg
3 packages each 105 × 33 × 17 cm
3 × 9.65 kg

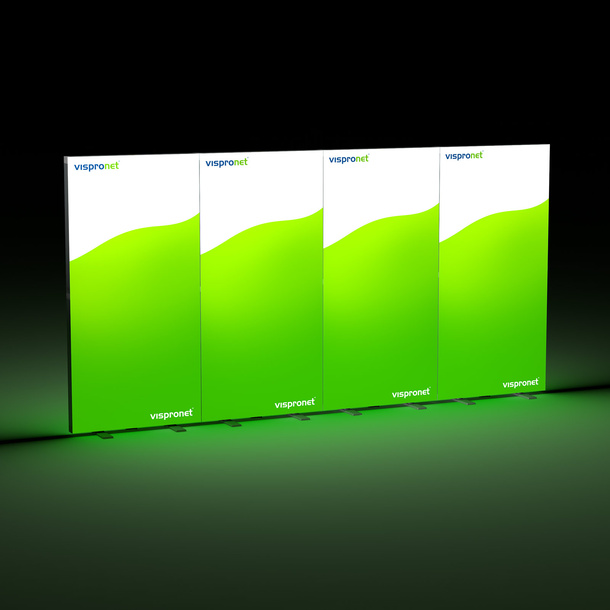

4

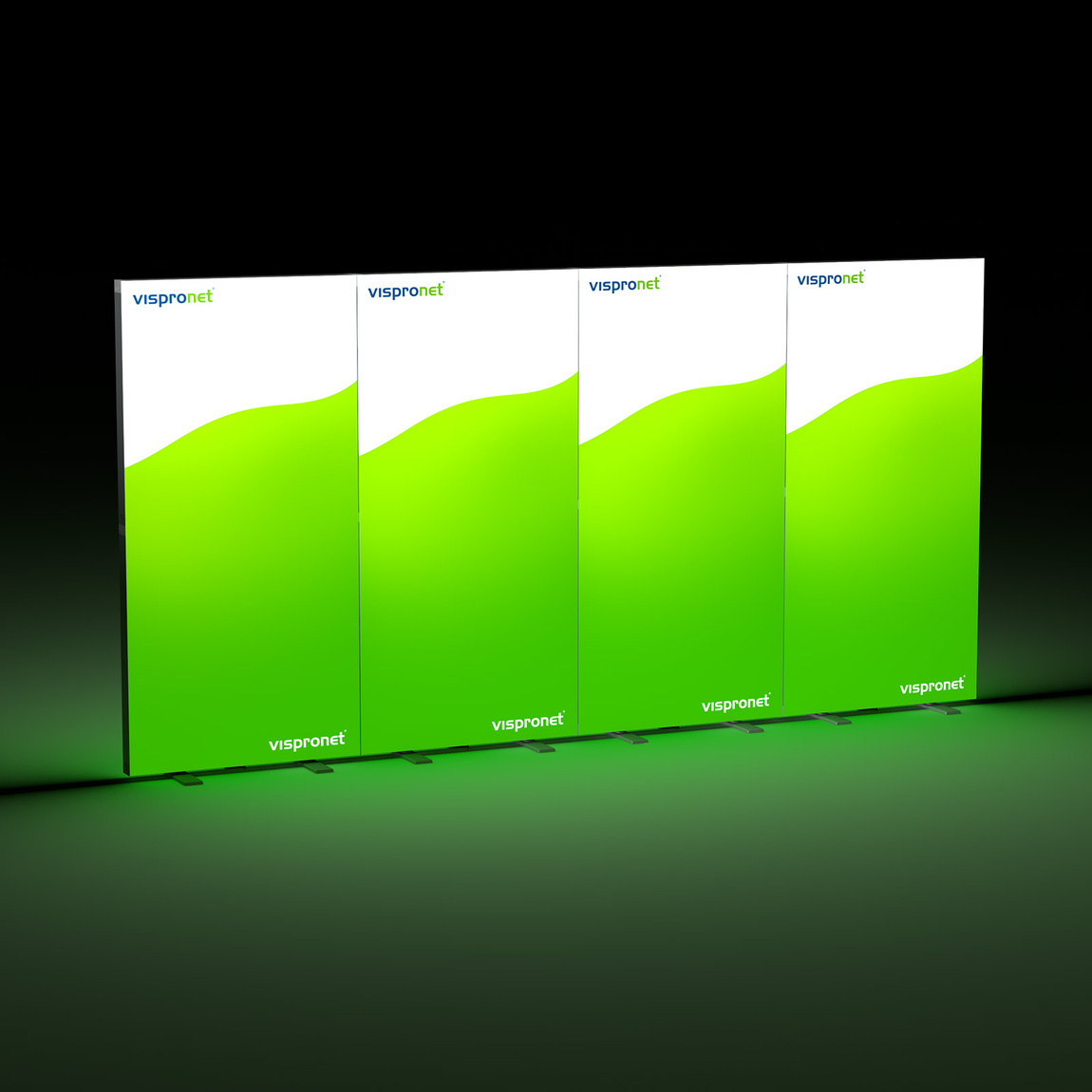

400 × 200 cm
4 × 8.15 kg
4 packages each 105 × 33 × 17 cm
4 × 9.65 kg
*Values are approximate
System height 250 cm
Number of Exhibition Walls
System (W × H)
System Weight
Packaging Dimensions (W × H × D)
Total Weight
1
100 × 250 cm
9 kg
113 × 37 × 20 cm
10.50 kg

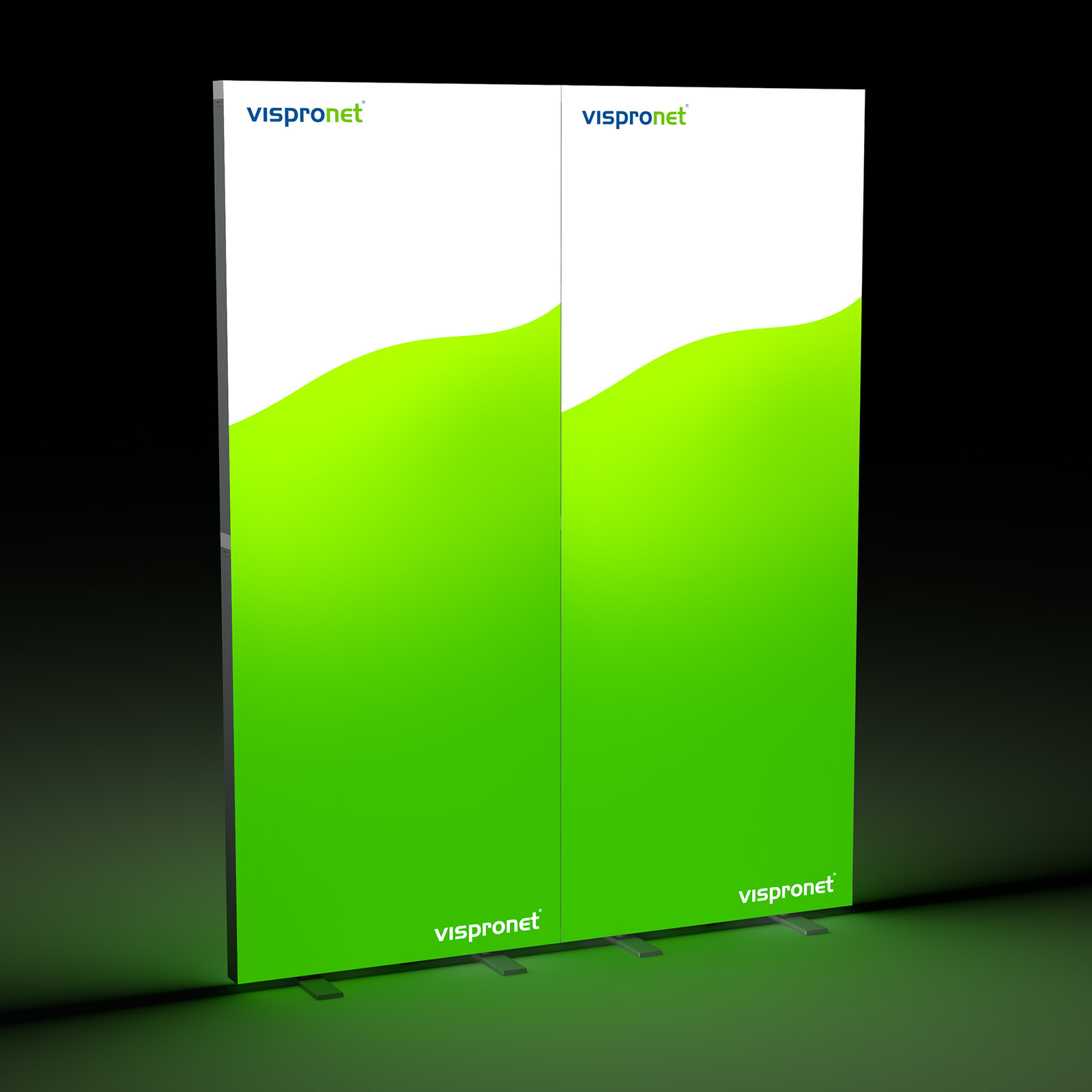

2
200 × 250 cm
2 × 9 kg
2 packages each 113 × 37 × 20 cm
2 × 10.50 kg

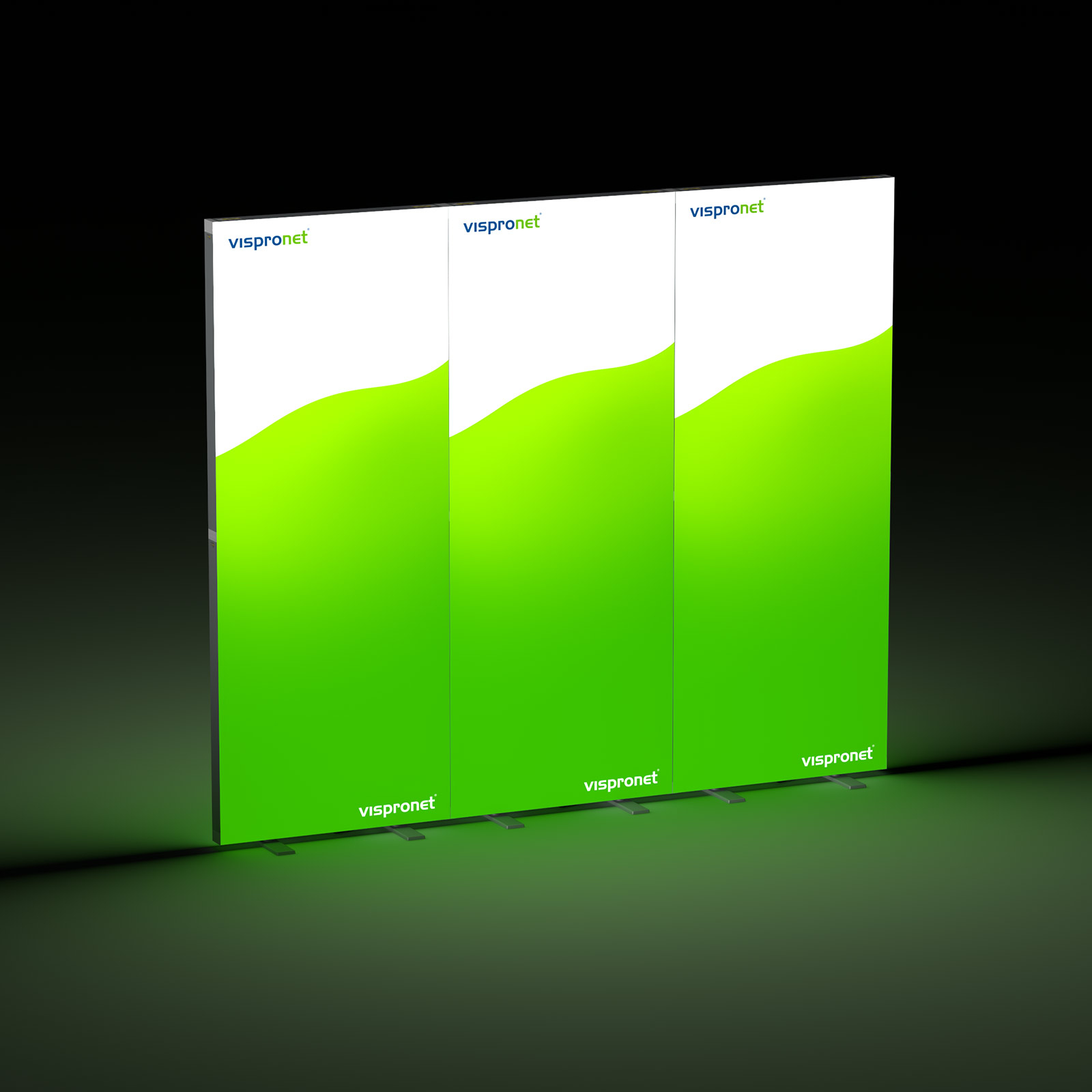

3
300 × 250 cm
3 × 9 kg
3 packages each 113 × 37 × 20 cm
3 × 10.50 kg

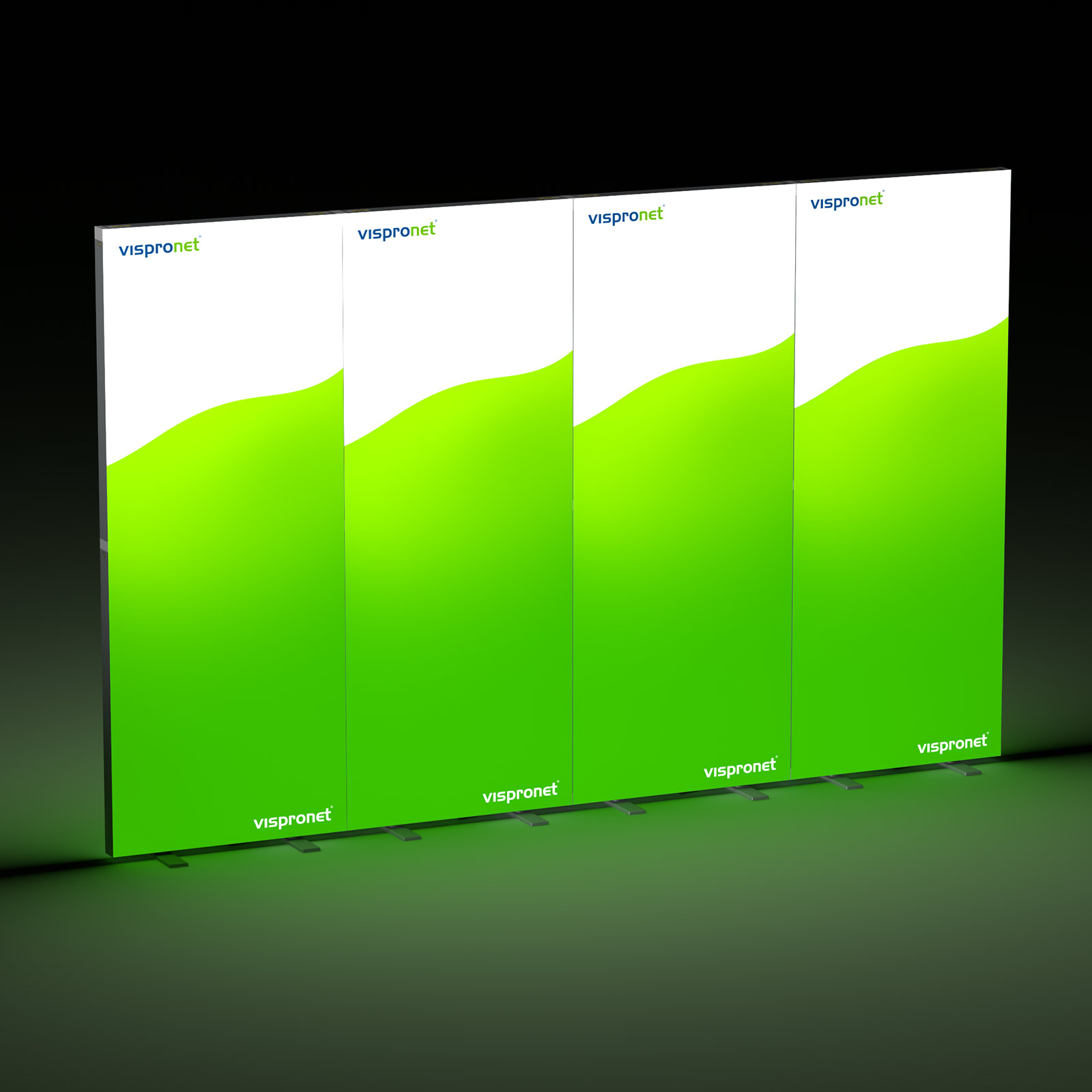

4
400 × 250 cm
4 × 9 kg
4 packages each 113 × 37 × 20 cm
4 × 10.50 kg
*Values are approximate
Scope of Delivery

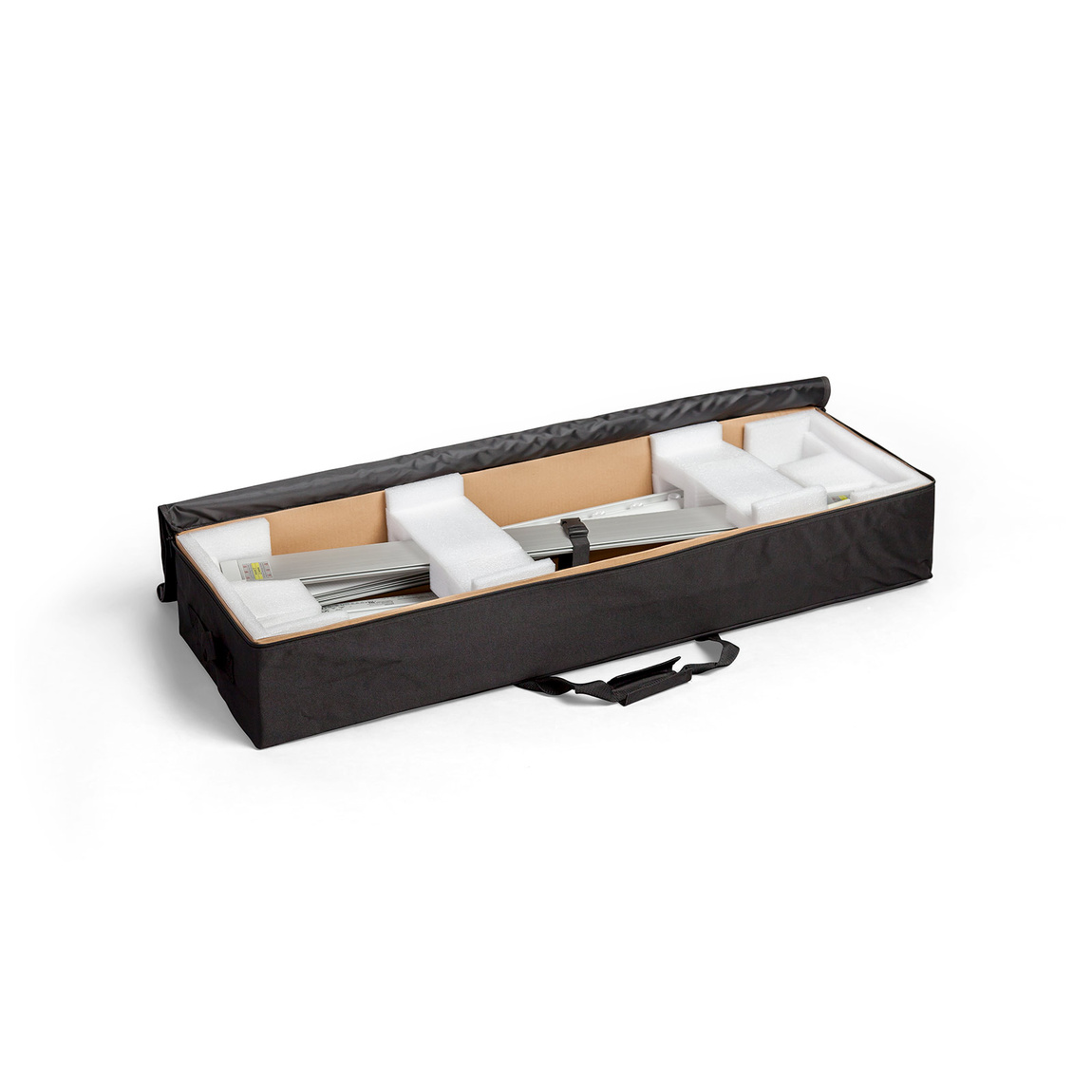

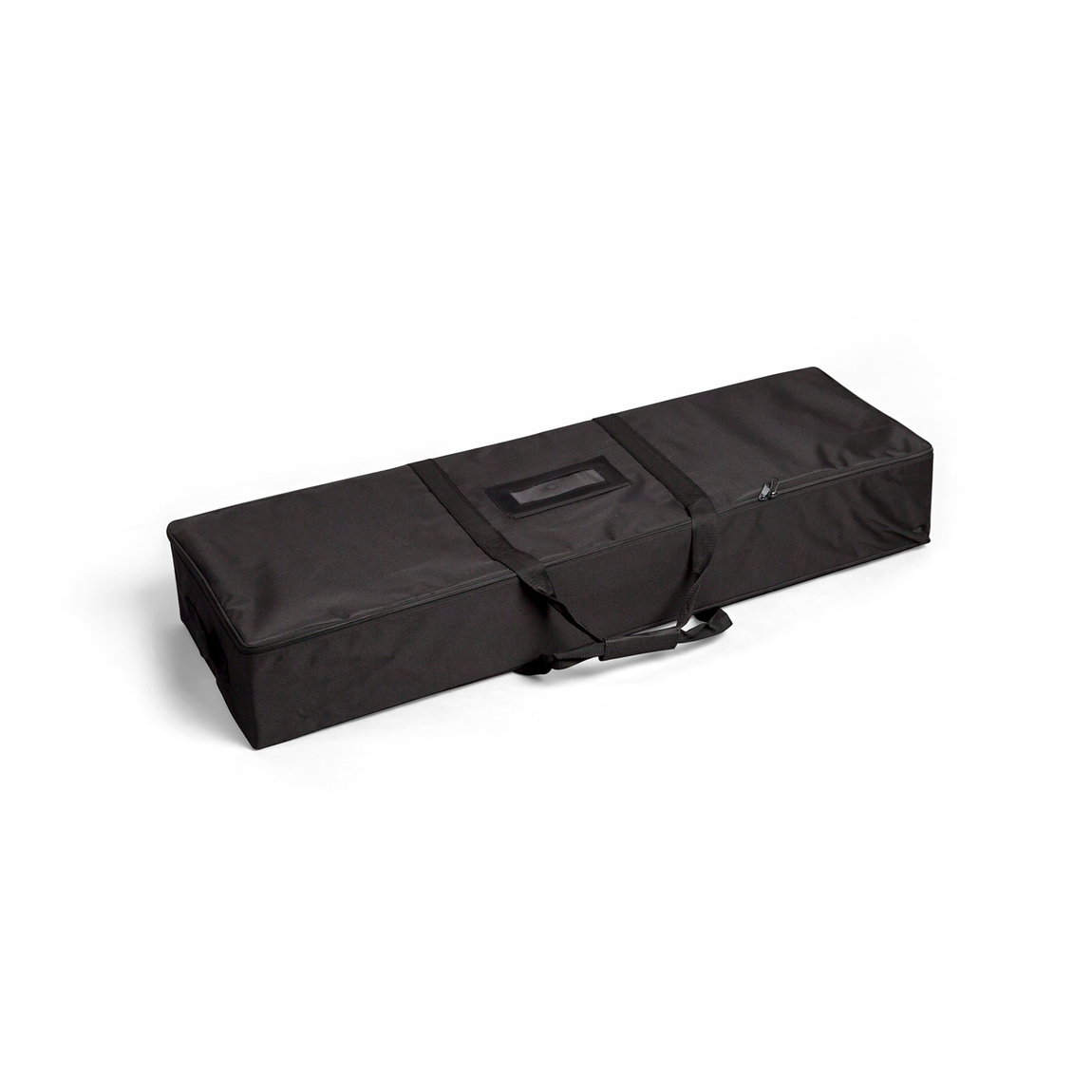

Complete set: Exhibition Wall Lightbox fold including frame system, printed part(s), and carrying bag
Printed part: printed motif(s) or backside covering according to selected option (without system)

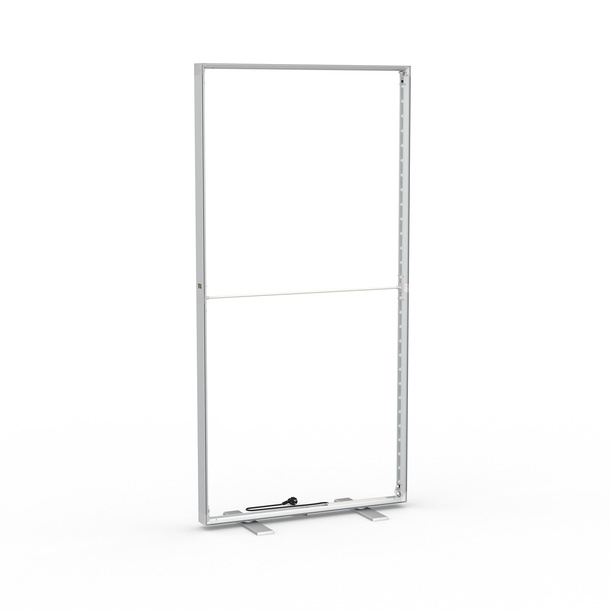

System: Exhibition Wall Lightbox fold including carrying bag (without textile covering)
Cost-effective alternative to Lighttex SE, but requires careful handling.
Recommended for permanent use only: not suitable for frequent assembly and disassembly.
During transport and storage, always roll up smoothly and wrinkle-free on a cardboard core with an intermediate layer of foam film.
Creases in the material may cause cracks that are particularly visible in backlit applications.
Your print data – prepared simply and correctly
We provide you with suitable layout templates and helpful tips for creating print data so that your desired product is created exactly according to your ideas. Please observe the respective specifications in order to prepare your data correctly for production and achieve optimum printing results.
Please upload your print data to your customer account after placing your order.
Good to know: You can cancel your order online free of charge until production begins.
