Exhibition Wall Lightbox Flex Curved

Free shipping
  incl. VAT, Free shipping
  excl. VAT, Free shipping

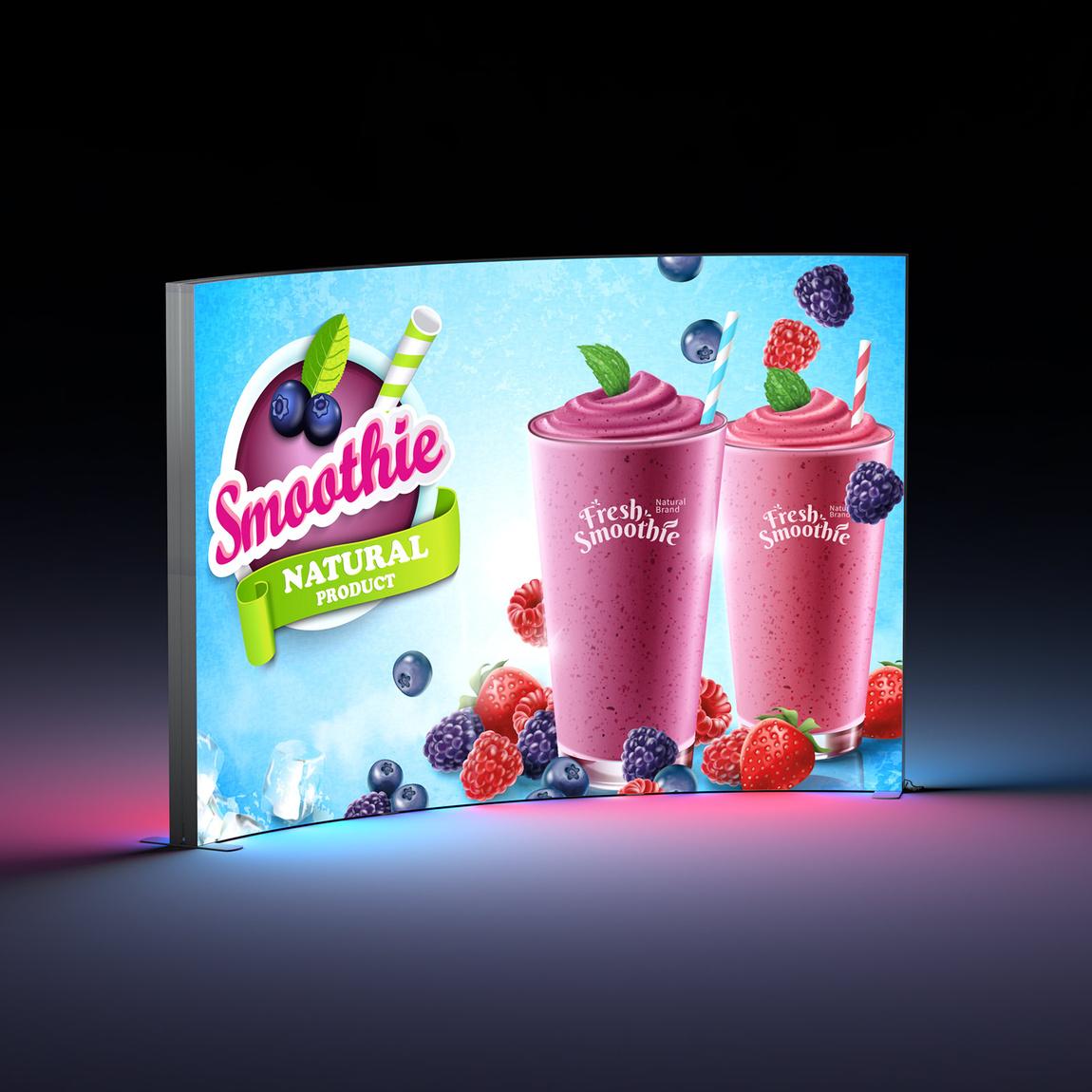

We print your Lightbox flex curved using high-quality sublimation printing – colorfast and with sharp contours.

  • Best photo print quality colorfast and ready to use
  • Customize yourself for unique designs
  • Durable OSRAM power LEDs for high brightness
Configure
Quantity
Price list incl. VAT excl. VAT
  • from x piecesxx € / piecexx € / piece
  • from x piecesxx € / piecexx € / piece
  • from x piecesxx € / piecexx € / piece
Show all price tiers

Configure product now

Select your desired product step by step

Selection


System width


System height


Beschaffenheit


Beschaffenheit (Optional)


Print Files
Ready print files
  • Use artwork template
Preparing print files Here you will find all the guidelines and requirements for your print files.
Show specifications
Design Now
  • Design online in Visprodesign®
Design online with Visprodesign® Design your product directly in your browser – it’s quick and easy.
Graphic check


Print sample (Optional)


Label on print part


Details

  • Quickly determine the estimated delivery date and shipping costs for your order.

  • Calculate delivery date

  • Offer
    Calculate delivery date and shipping costs for your desired product.

  • Save offer

Product not suitable?
Would you like personalised advice? Together, we will develop the right solution for you.

Our accessory recommendations

    • Print Details

      • Brilliant textile motifs in sublimation printing
      • UV-resistant with high lightfastness
      • customizable on one or both sides

      Trade Fair Wall Lightbox flex curved

      The mobile LED trade fair wall with curved front combines a lightweight click system with powerful OSRAM LED lighting. It showcases your motifs on elegantly curved, evenly backlit presentation surfaces and can be modularly expanded with all elements of the Lightbox-flex series.

      Version – Print Component

      • cut all around and equipped with a flat welt for attachment in the plastic frame
      • The welt attachment ensures perfect, wrinkle-free tension of the motifs
      • Printing options:

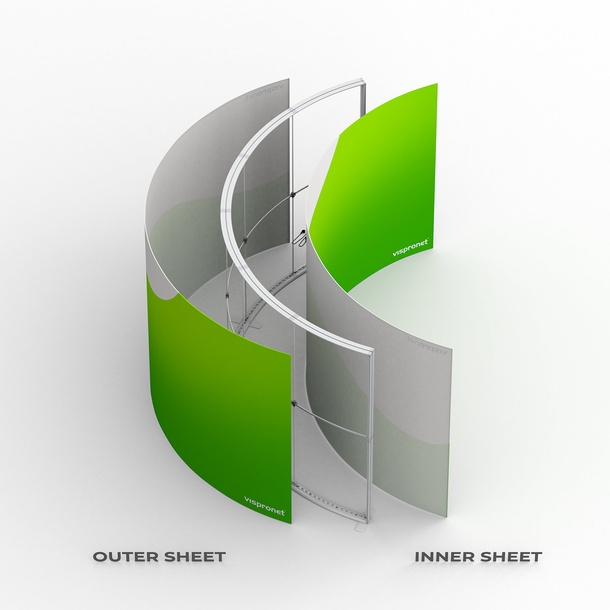

        • double-sided printing: front and back, identical or different designs possible
        • single-sided printing: front side with desired motif, back side optionally in black or white
      • Note: For motifs extending over multiple connected trade fair walls, slight motif misalignment may occur at the transitions.

      Materials

      • Lighttex SE (approx. 260 g/m2): matte polyester knit, specially designed for backlit applications
        • Sublimation printing: the color penetrates deeply into the fabric, ensuring vibrant colors with high detail fidelity
        • ideal for homogeneous, radiant illuminated surfaces
      • Materials for backside covering in single-sided printing:

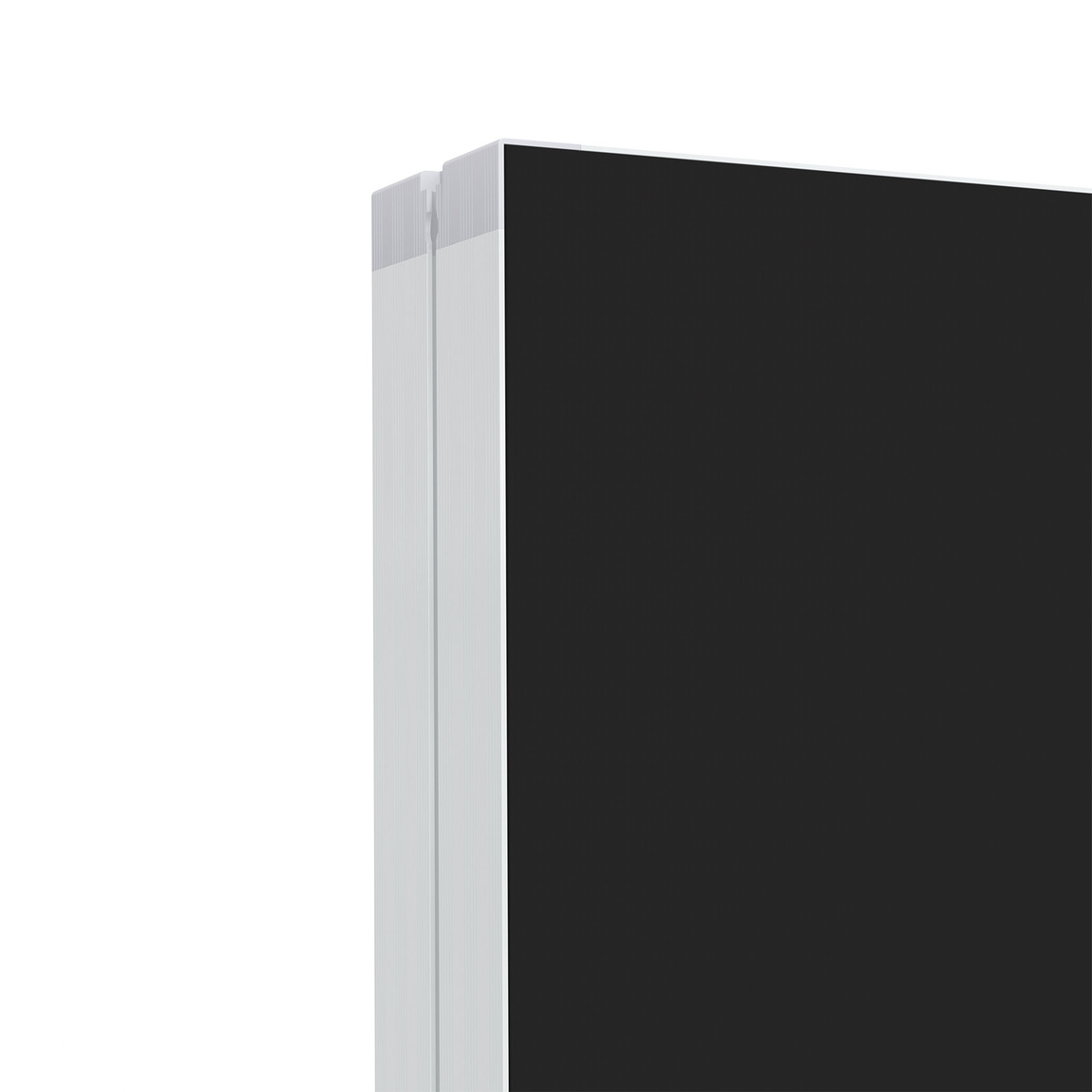

        • Backside black: Multisol® X Opak SE, matte glossy polyester knit with one-sided black PU coating, 100 % opaque

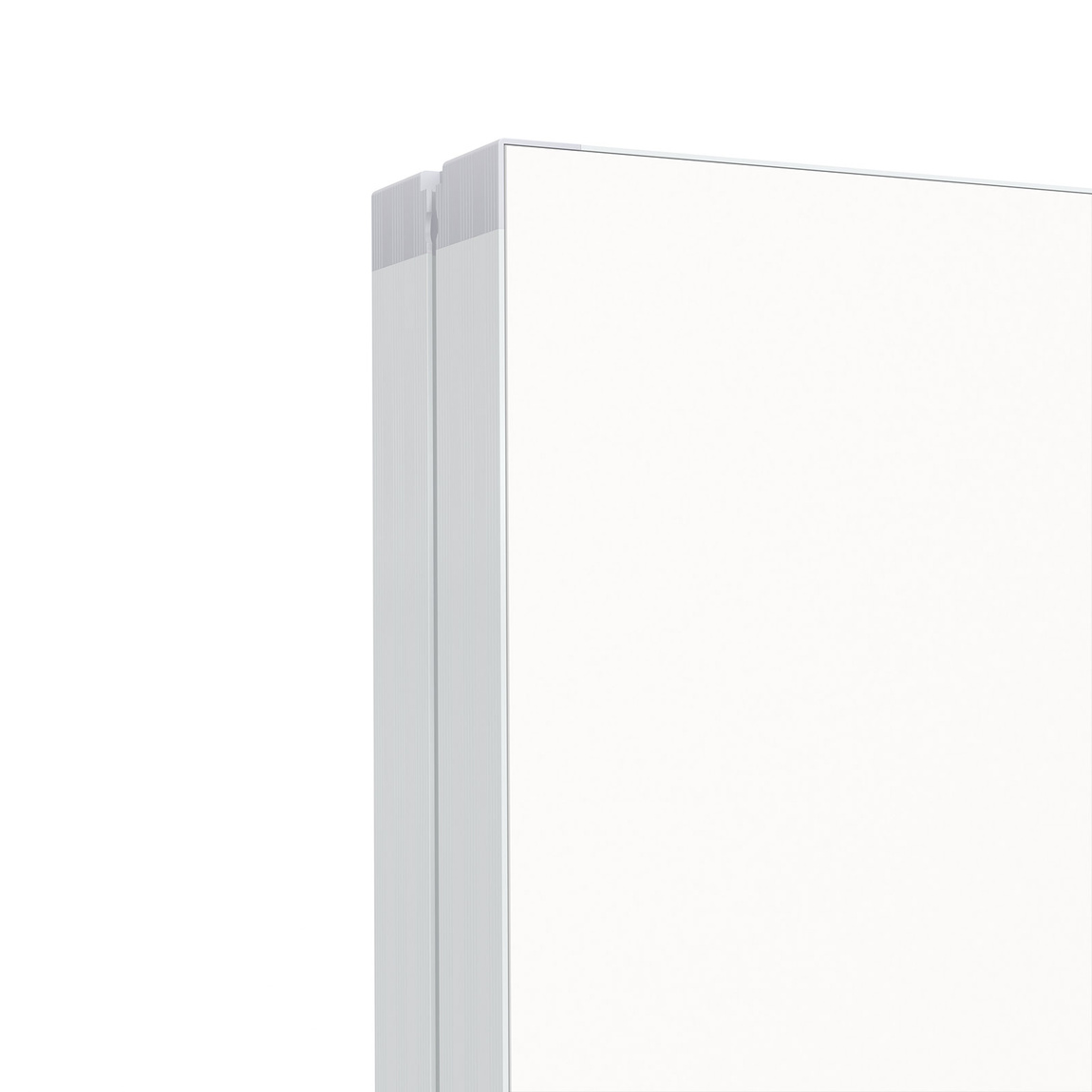

        • Backside white: Multisol® X Opak SE, matte glossy polyester knit with one-sided white PU coating, 100 % opaque

      Version – System

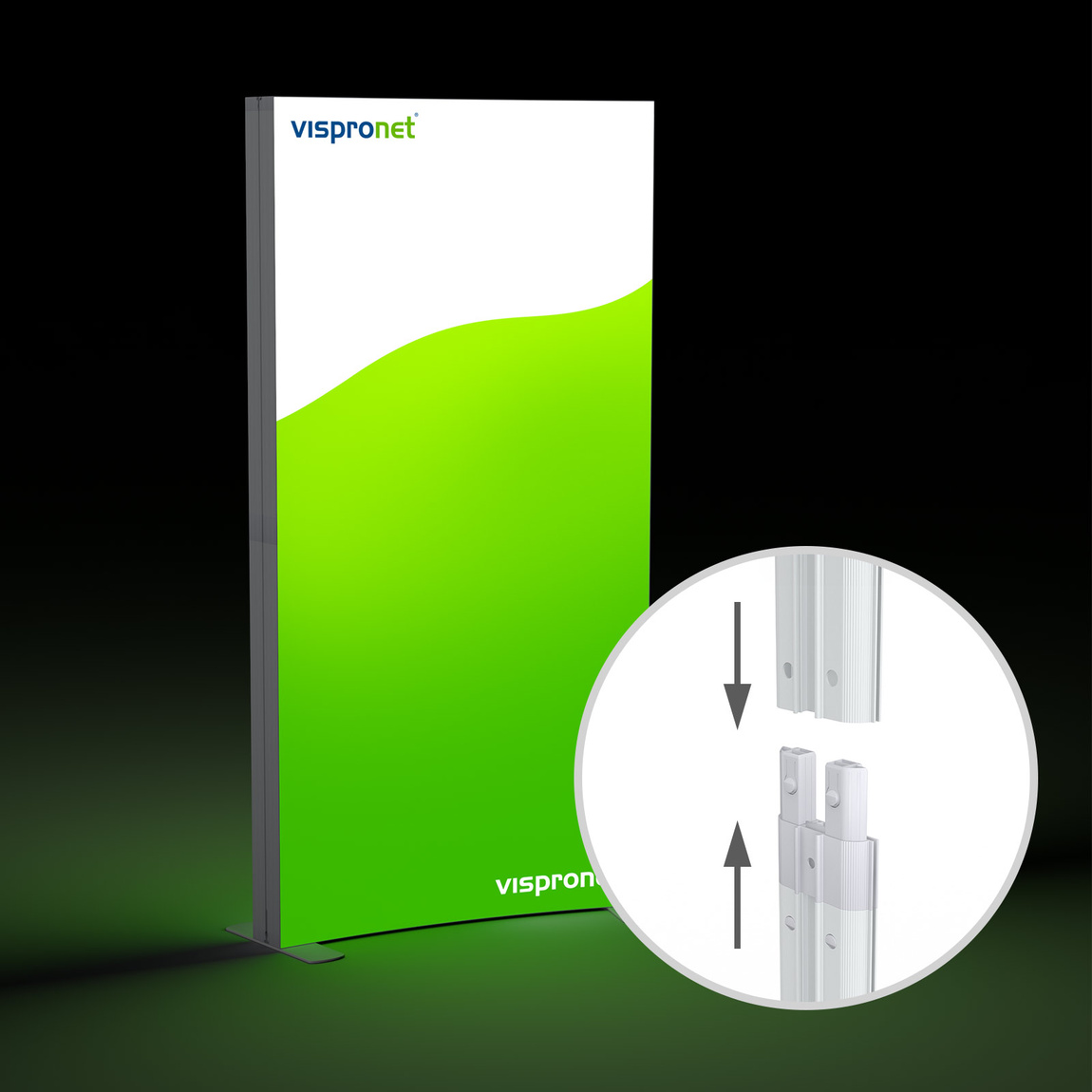

      • innovative frame system with utility model protection (GM: 20 2019 103 837)

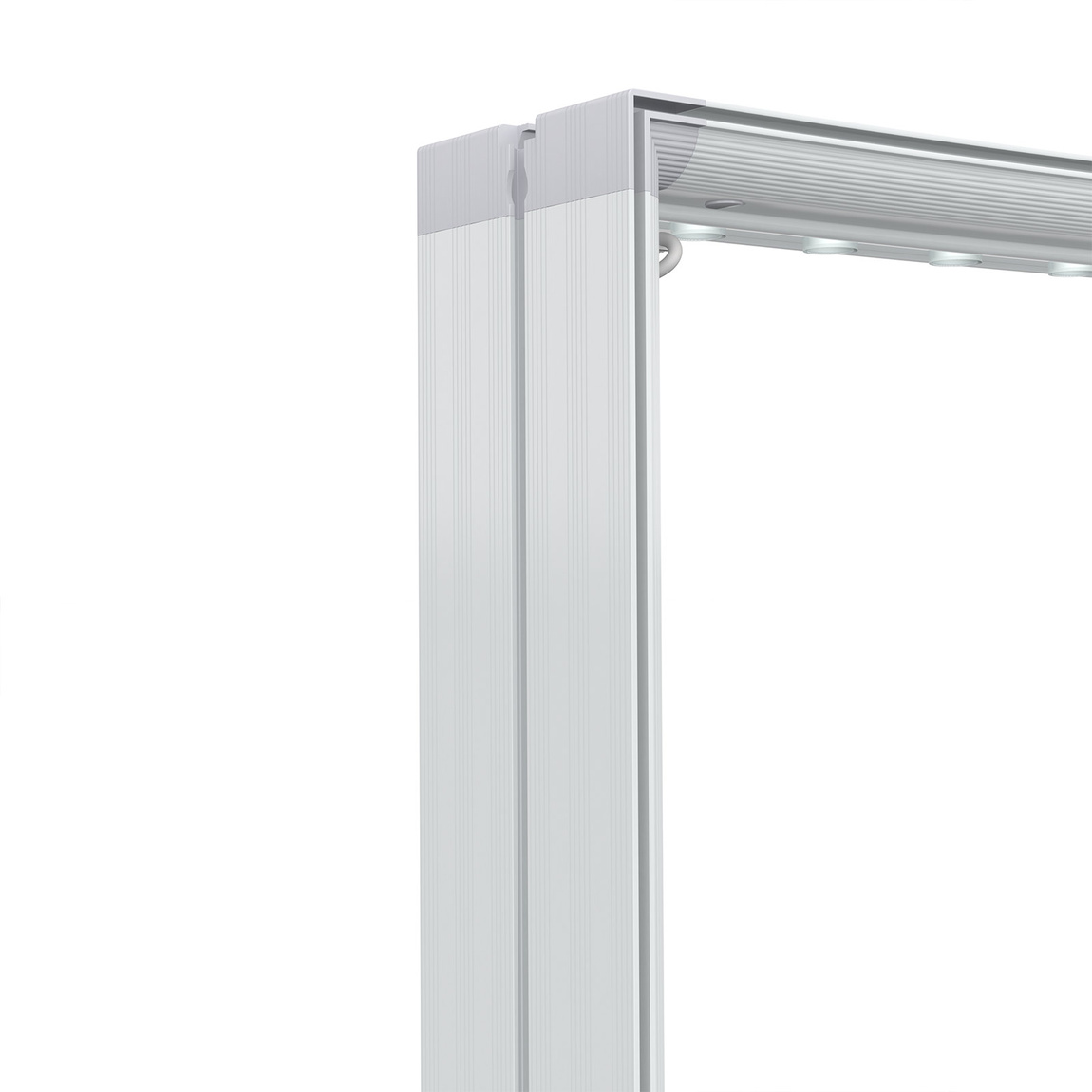

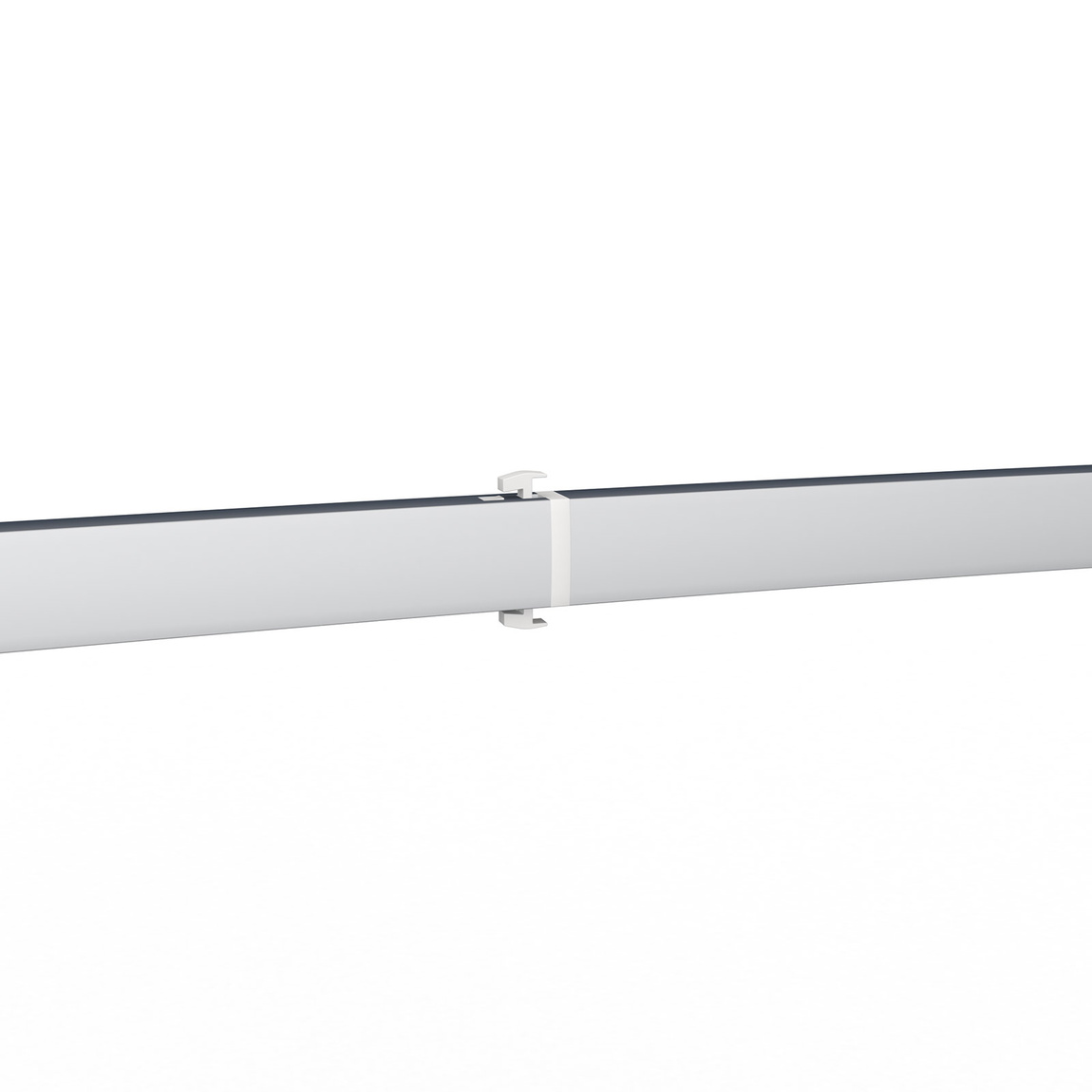

      • high-quality, curved plastic frame with click profiles, white, V0 fire protection certification
      • frame depth: 120 mm

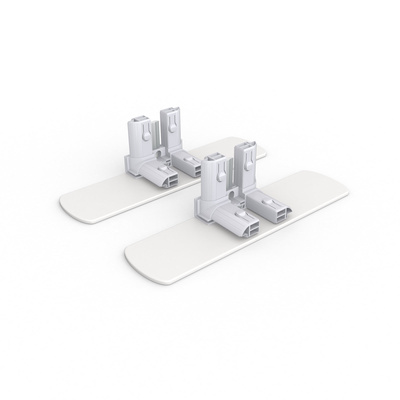

      • including feet for stable standing
      • LED technology:
        • factory pre-assembled OSRAM power LED modules
        • energy-efficient with low heat generation
        • long service life of up to 50,000 hours
      • 1 system – many possibilities: all trade fair walls and modules of the Lightbox-flex series can be flexibly combined.

      Sizes

      • System widths: 100, 200, 300 cm
      • System heights: 200, 225, 250 cm

      Technical Data

      Power Supply Mini Power Supply Midi Power Supply Maxi
      Power 96 W 126 W 152.4 W
      Current 4 A 5.25 A 6.35 A
      Voltage 24 V
      Luminous Flux 4,000 lumens
      Light Color cool white

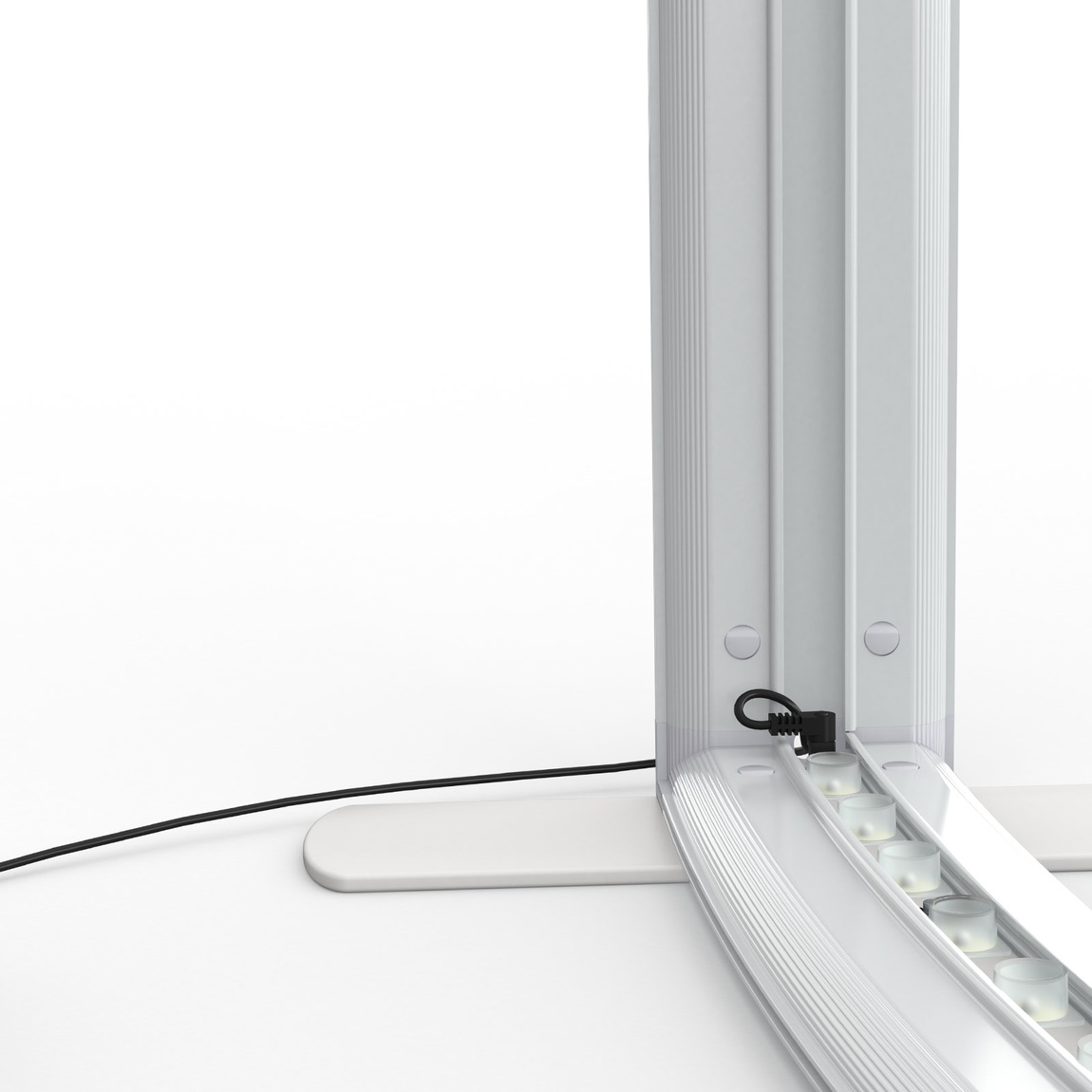

      Length of Power Cable with Plug approx. 280 cm

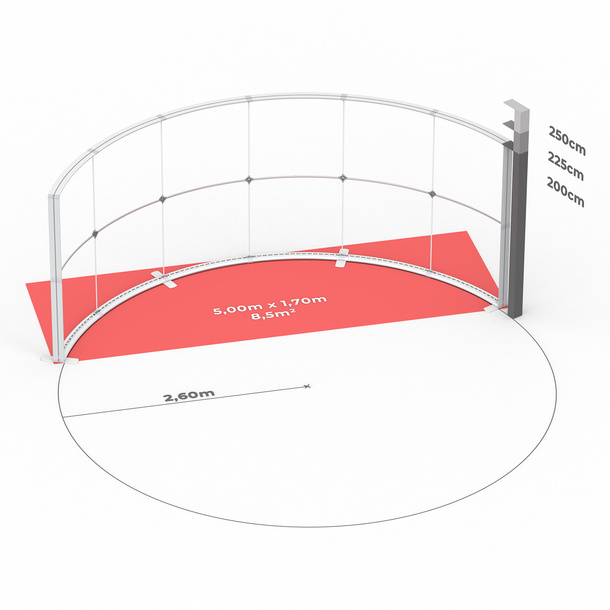

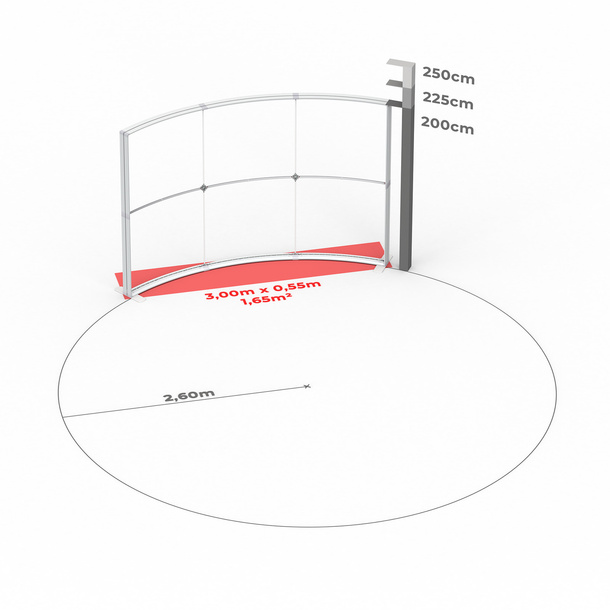

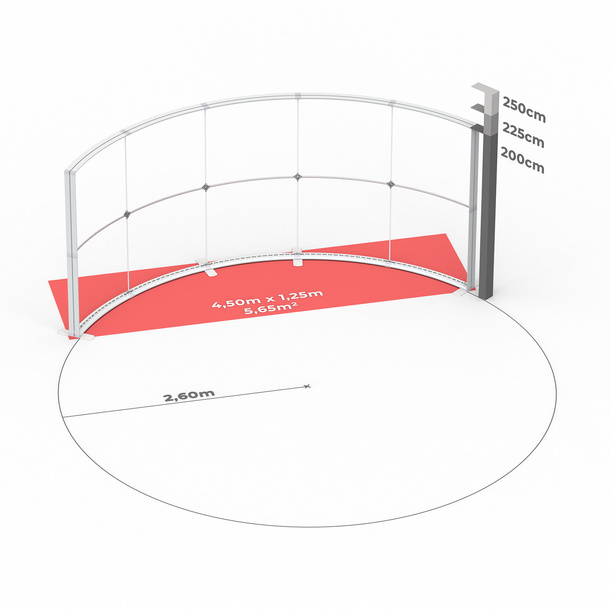

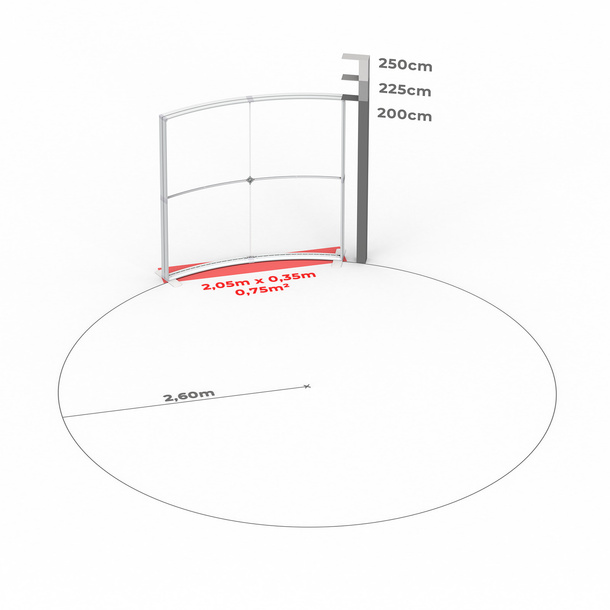

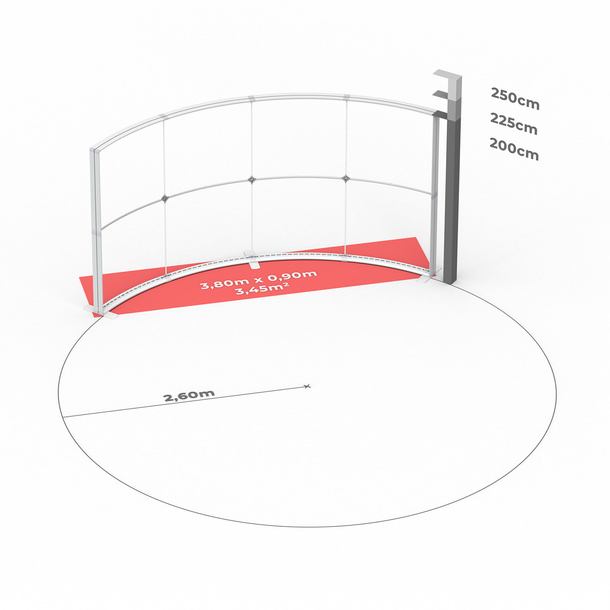

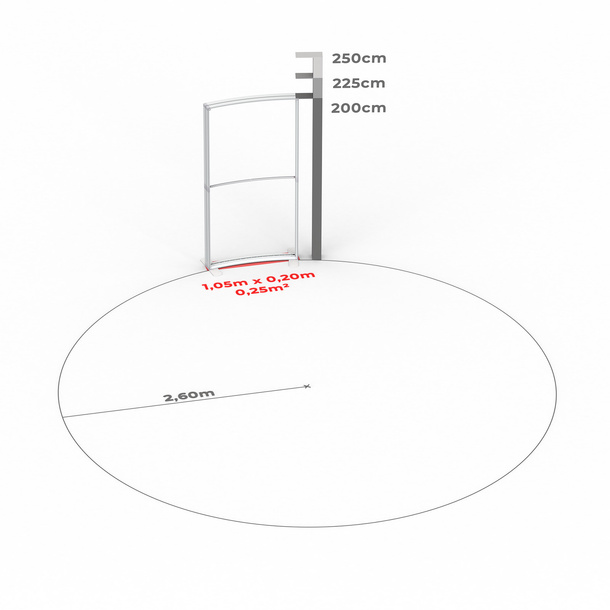

      Footprint

      System Width Footprint (Width × Depth)
      100 cm 110 × 45 cm
      200 cm 215 × 55 cm
      300 cm 315 × 65 cm

      Scope of Delivery

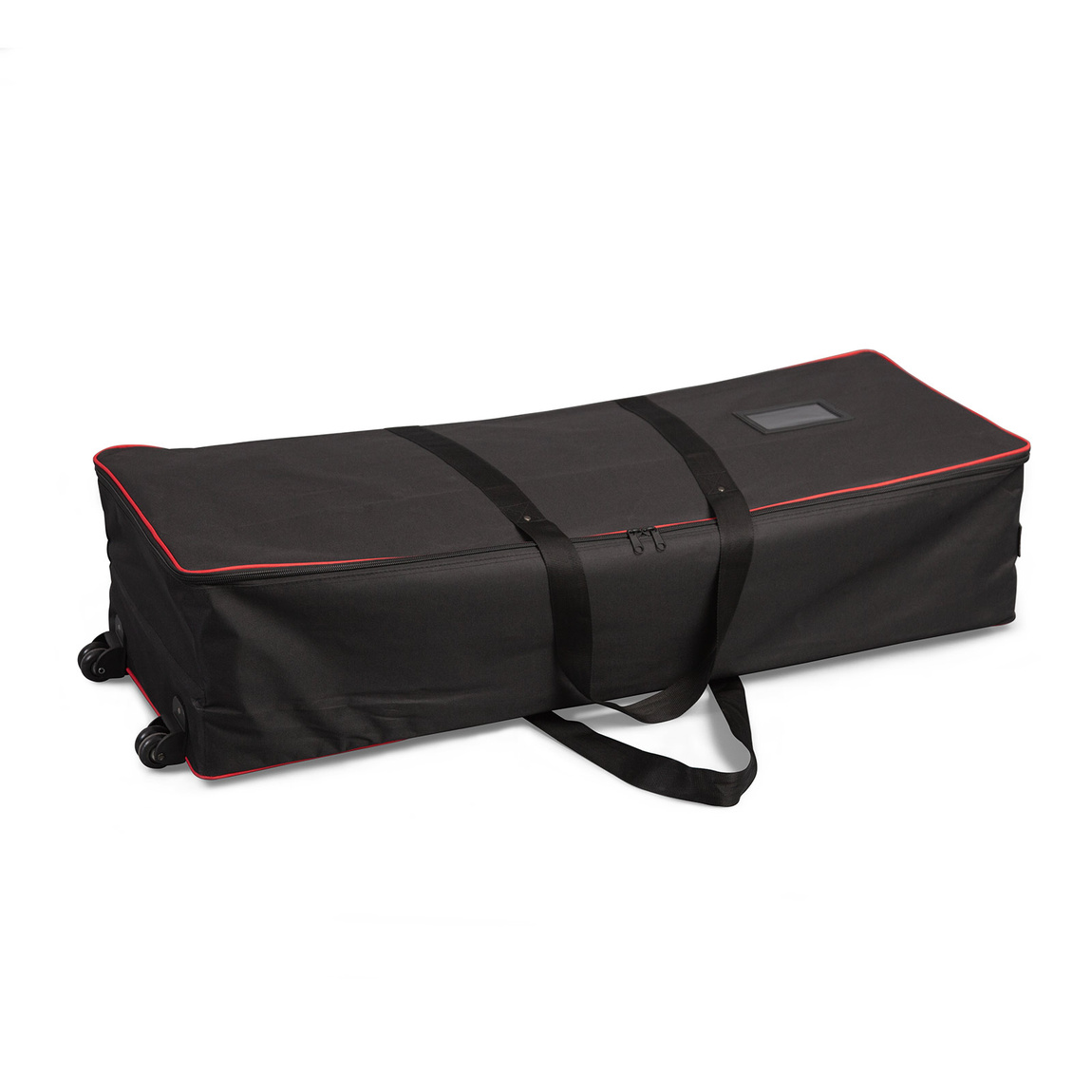

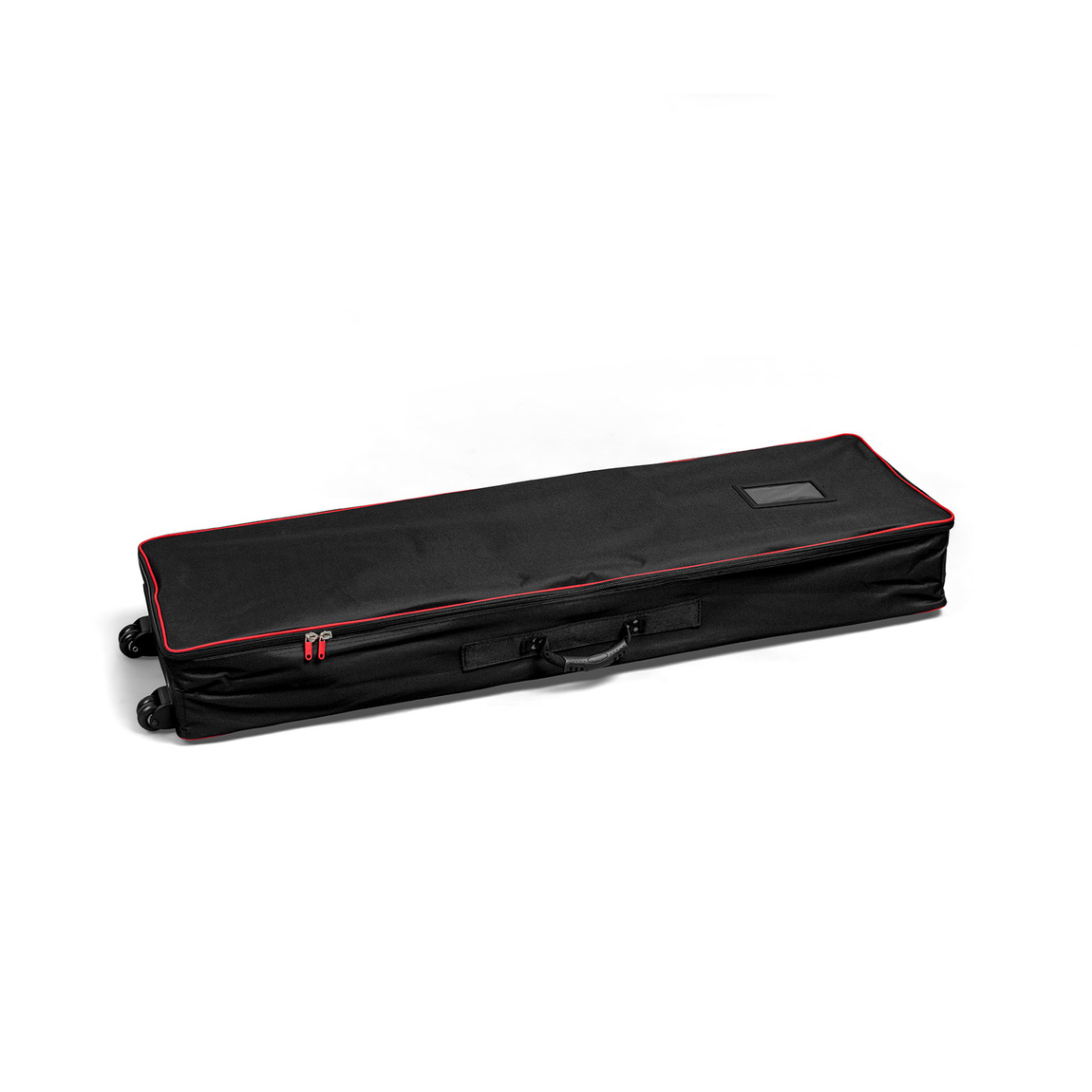

      • Complete set: Lightbox flex curved system, print component(s) or backside covering, and trolley bag
      • Print component: print motif(s) or backside covering according to selected option (without system)
      • System: Lightbox flex curved system, trolley bag (complete without textile covering)

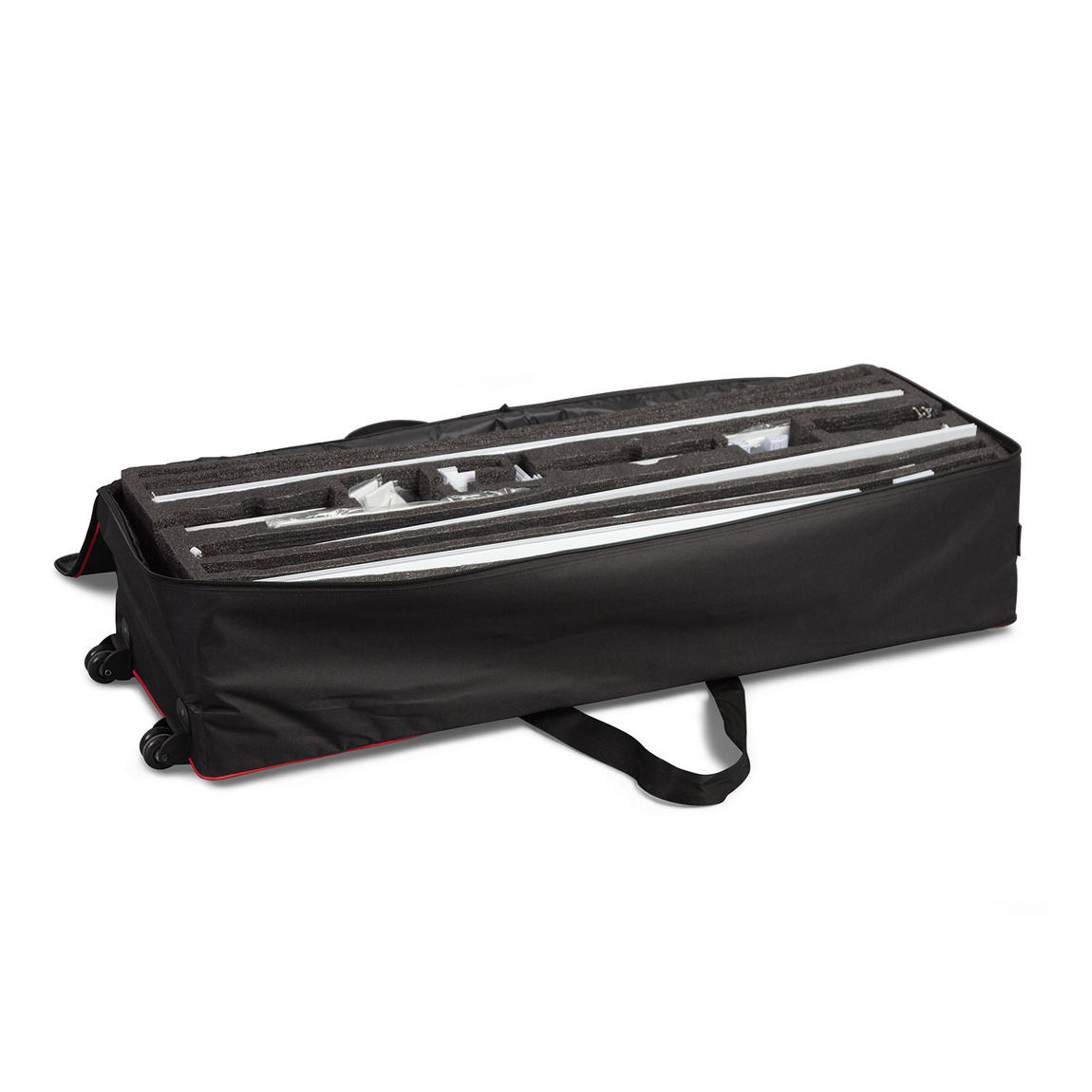

      The systems are delivered disassembled – this reduces transport volume and facilitates space-saving storage.

      Packaging Dimensions & Weights

      System Height 200 cm
      System Width System Weight Total Weight Packaging Dimensions
      100 cm 11.27 kg 17.27 kg 136 × 40 × 18 cm
      200 cm 15.58 kg 21.08 kg 124 × 45.5 × 28.5 cm
      300 cm 20.95 kg 26.45 kg 124 × 45.5 × 28.5 cm

      *All dimensions and weights are approximate values.

      System Height 225 cm
      System Width System Weight Total Weight Packaging Dimensions
      100 cm 12.11 kg 18.11 kg 136 × 40 × 18 cm
      200 cm 16.97 kg 22.47 kg 124 × 45.5 × 28.5 cm
      300 cm 22.13 kg 27.63 kg 124 × 45.5 × 28.5 cm

      *All dimensions and weights are approximate values.

      System Height 250 cm
      System Width System Weight Total Weight Packaging Dimensions
      100 cm 12.85 kg 18.85 kg 124 × 45.5 × 28.5 cm
      200 cm 17.24 kg 22.74 kg 124 × 45.5 × 28.5 cm
      300 cm 22.91 kg 28.41 kg 124 × 45.5 × 28.5 cm

      *All dimensions and weights are approximate values.

      Application
