Q-Frame® LED lightbox in portrait format
Portrait-format lightbox for strong visual impact:
The Q-Frame® LED in portrait format makes your motifs shine exceptionally.
The color-intensive textile print with homogeneous LED backlighting and a
120 mm deep aluminum wall frame guarantee an effective presence at the point of sale,
in showrooms, or in entrance areas.
Design – print component

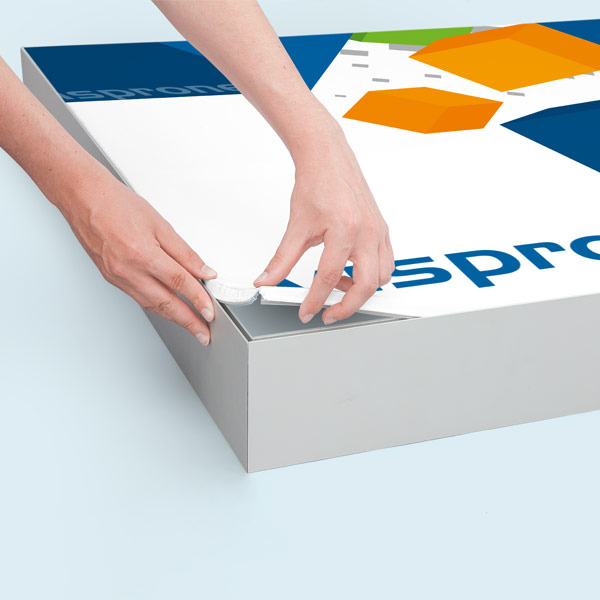

- textile print component, cut all around and equipped with a flat beading for fastening in the aluminum frame
- mounting with flat beading ensures secure fixation and tightly tensioned, wrinkle-free print motifs
- Fast, tool-free replacement of the print component
Material
- Lighttex SE: flame-retardant polyester fabric, specially for optimally backlit advertising messages
Design – system

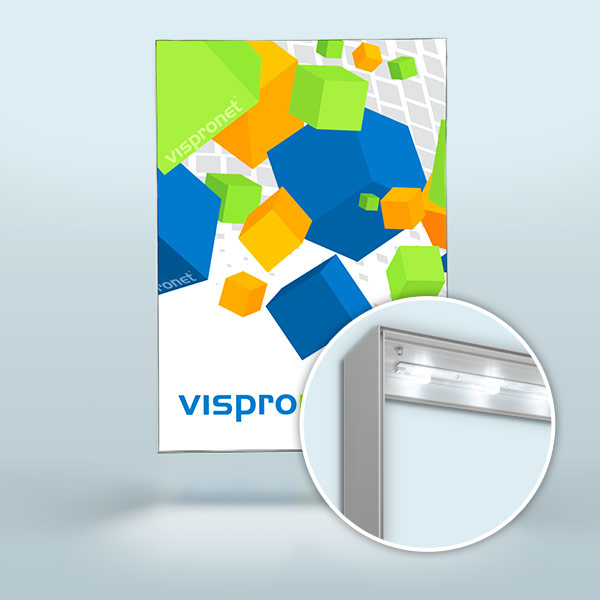

- Aluminum wall frame, silver anodized
- Frame depth: 120 mm

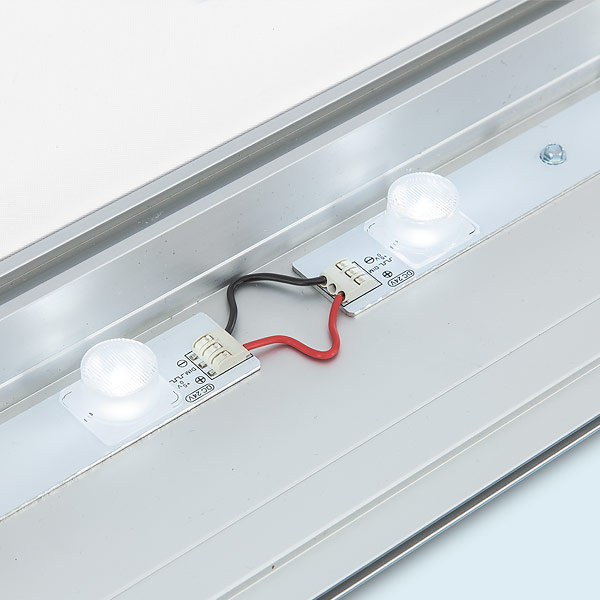

- LED components with low heat generation, pre-assembled at the factory
- LED service life: up to approx. 22,000 hours
- Textile, white back panel for an optimal illumination result
Note: The color temperature of the LEDs (6000–7000K) may, in individual cases, lead to a color shift of the print when illuminated.
Sizes*
| Property |
custom sizes |
| System width |
40 cm – 300 cm |
| System height |
40 cm – 480 cm |
In addition, a selection of proven standard portrait formats is available.
*All dimensions are approximate; technical changes and tolerances reserved.
Scope of delivery
- Complete set: Q-Frame® LED lightbox: pre-assembled frame profiles including LED components and corner connectors, wall hooks, white back panel, textile print
- Print components: textile print, white back panel (without frame system)
- System: Q-Frame® LED lightbox: pre-assembled frame profiles including LED components and corner connectors, wall hooks, (without print components)
Application
