Trio Module for Kederrahmen flex

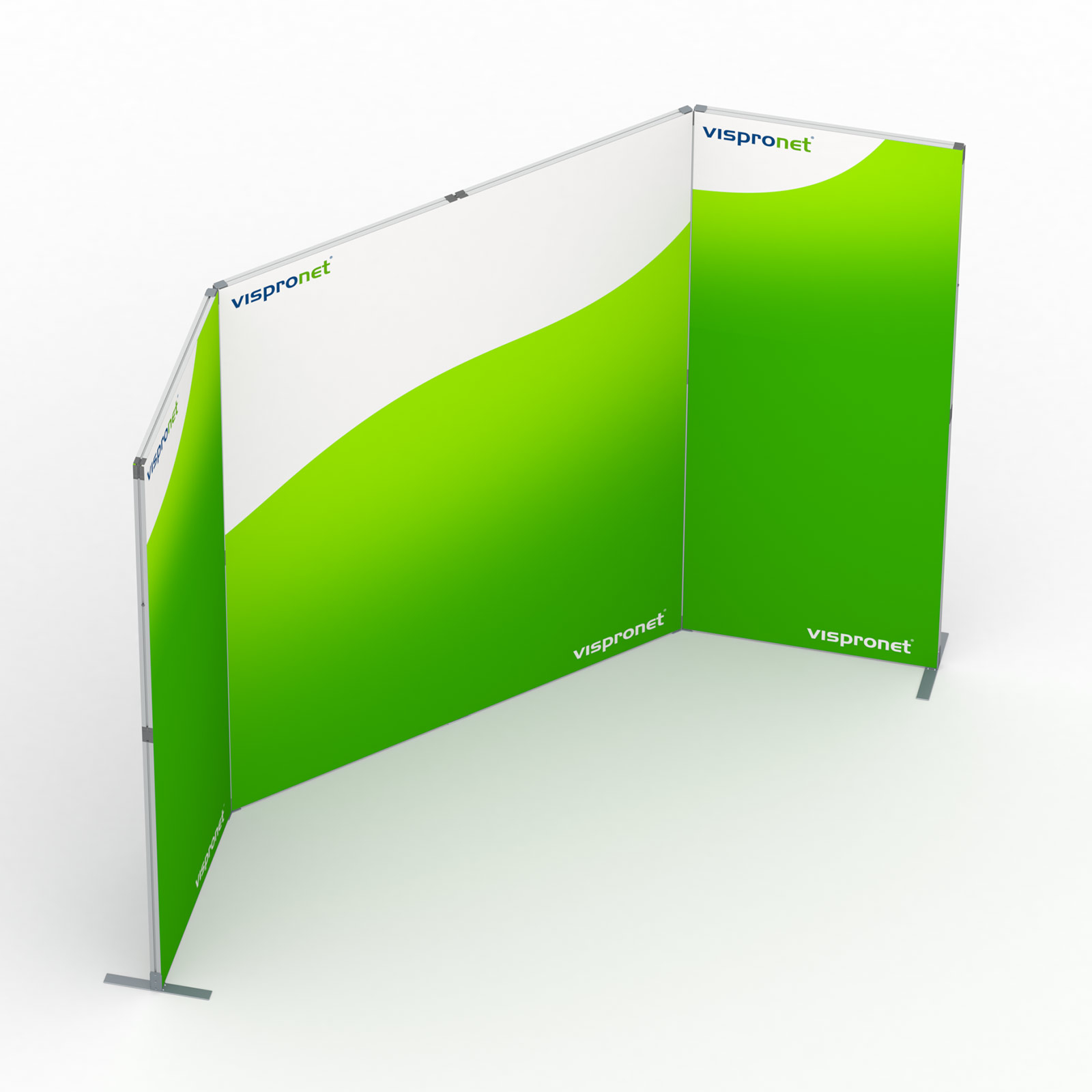

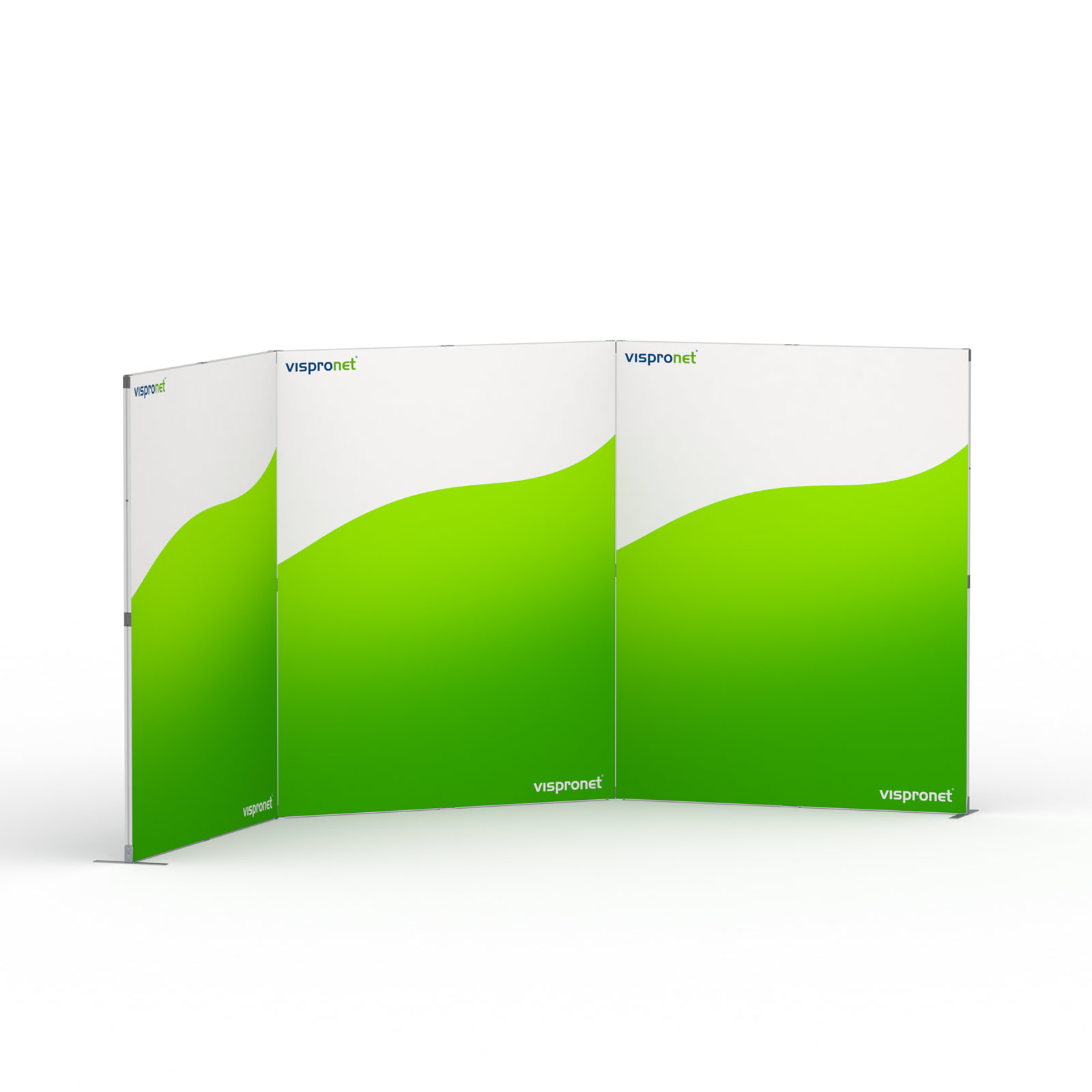

3-part trade fair wall with 45° angles: The trio of three foldable Kederrahmen flex frames creates a modern corner solution with clear lines. This results in a large-format textile advertising surface that conveys your message elegantly and clearly.
Execution – Printed Parts

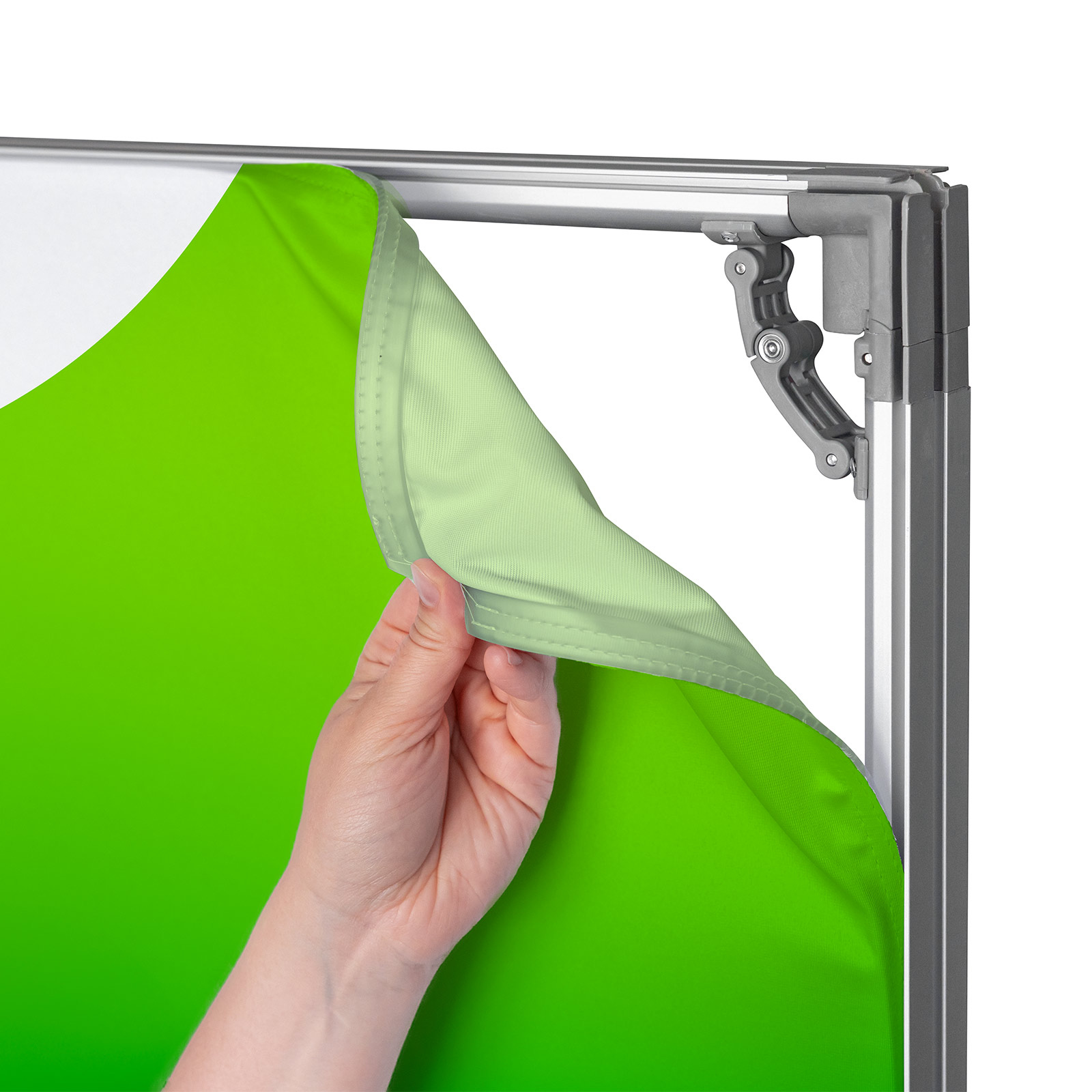

- all around with flat keder for attachment in the keder groove of the frame
- optimally tensioned print motif for a wrinkle-free presentation
- Printing options:
- single-sided, back side unprinted
- double-sided, front and back can be designed identically or differently
- each with one continuous printed part per wall on front and back for optimal image reproduction
Materials
- Multisol® X SE: crease-resistant material with high opacity and brilliant color reproduction
- Multisol® X Opak SE: 100 % opaque material with high color brilliance, light-impermeable, back side coated black
- For the printing option "back side unprinted," the selected material remains white.

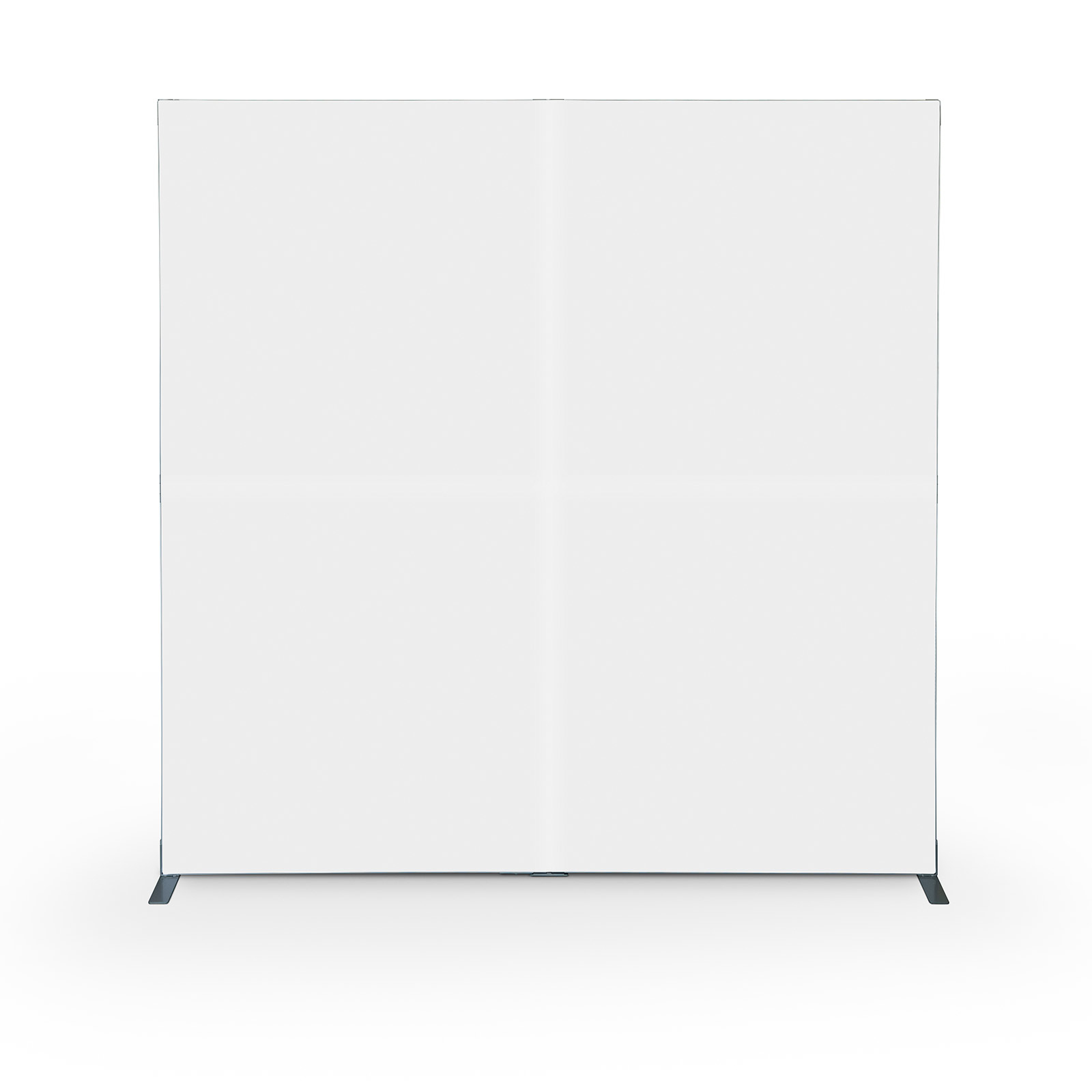

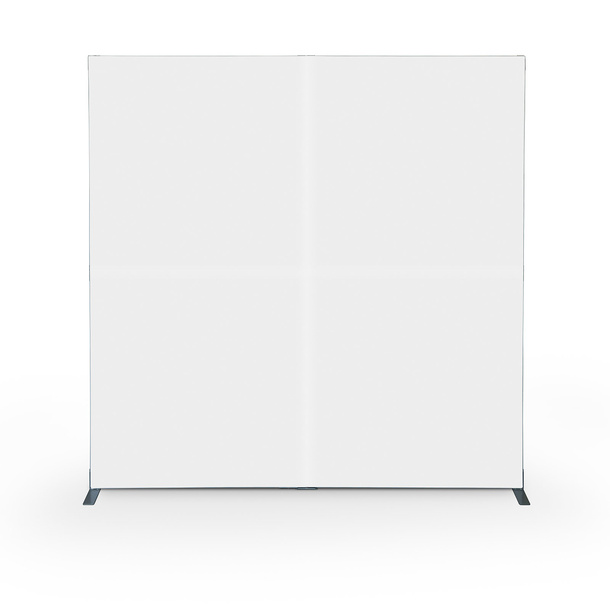

- Please note that with light designs or large single-color areas, the system may slightly show through. For such motifs, we recommend the opaque material Multisol® X Opak SE.
Tip: For sustainable use of your system with always up-to-date motifs, we recommend the
replacement prints for Kederrahmen
Execution – System
- Frame system with utility model protection GM: 20 2023 100 050

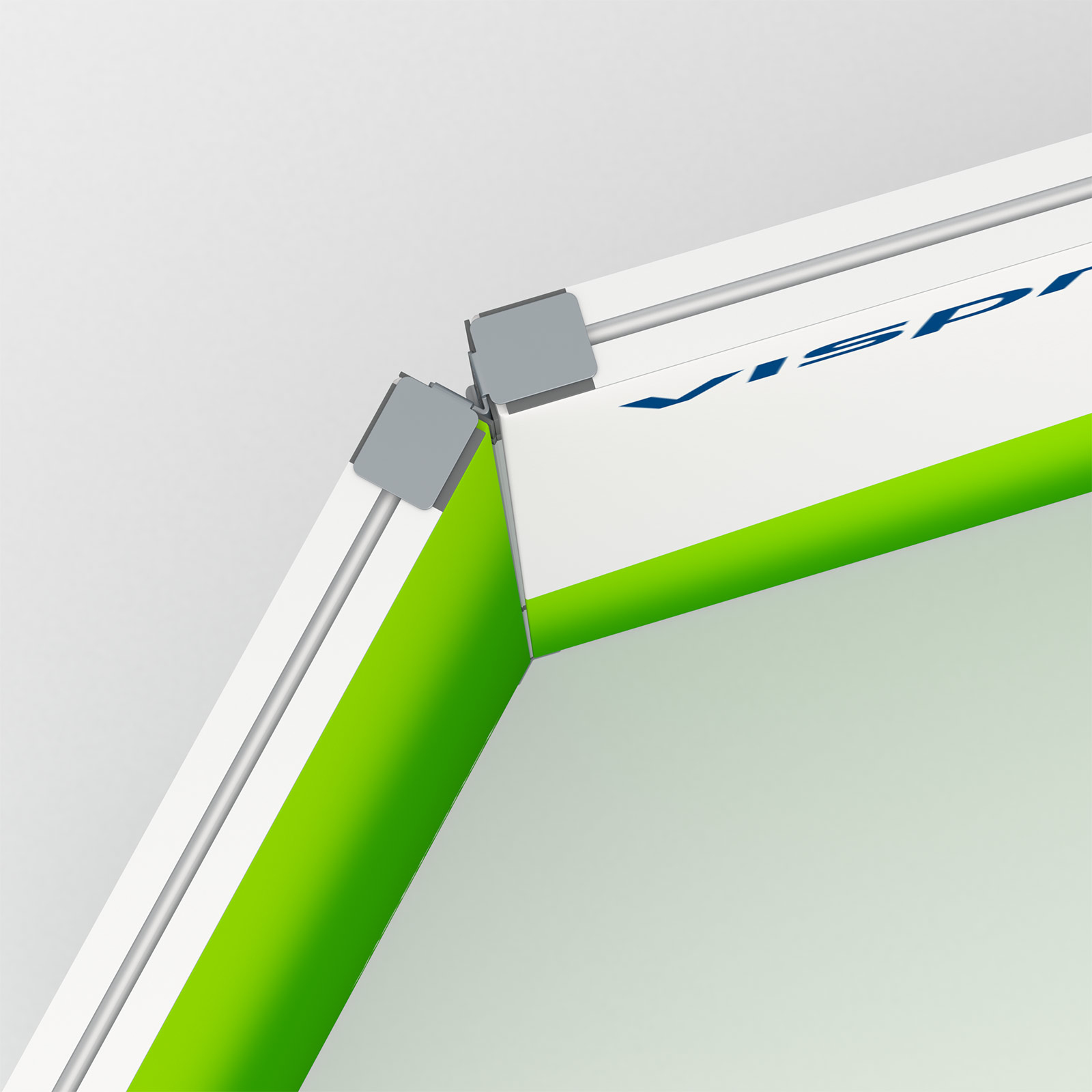

- 3 foldable folding frames, connected via 45° elements (accessory set Trio)
- Material: anodized aluminum
- Frame depth: 4 cm, slim frame profile for optimal motif effect

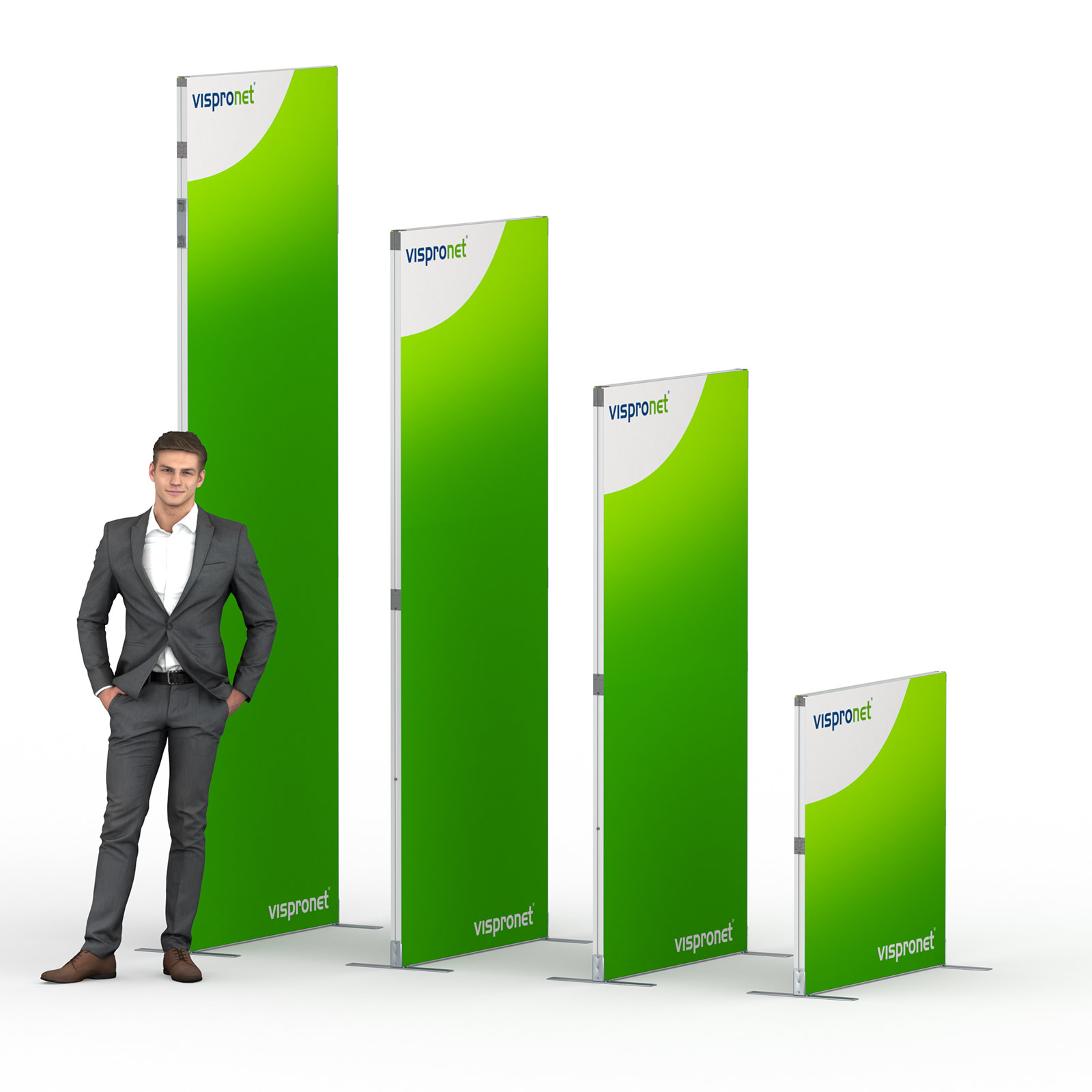

- Frame heights: 200, 250 cm
- Frame widths: 100, 200, 300, 400 cm

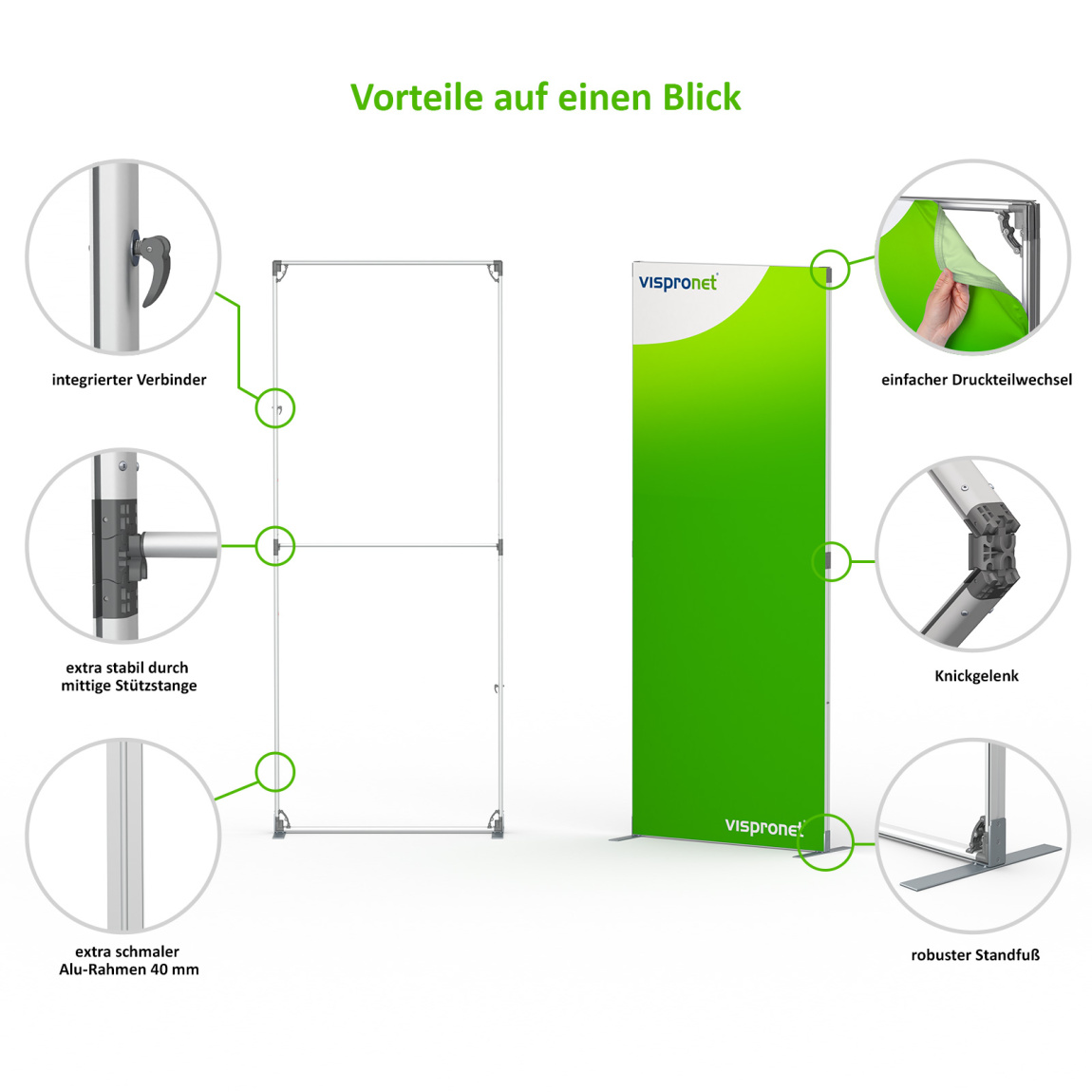

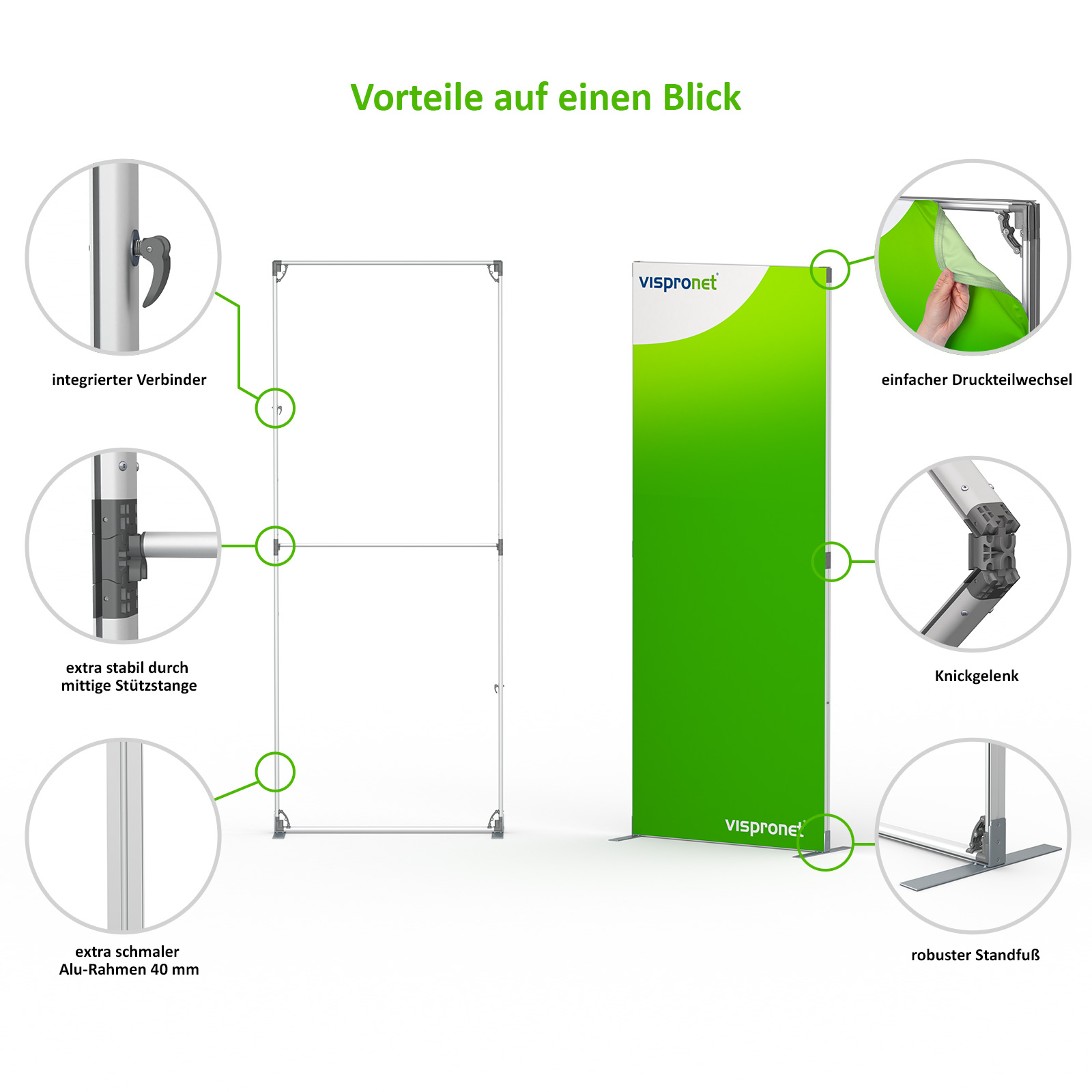

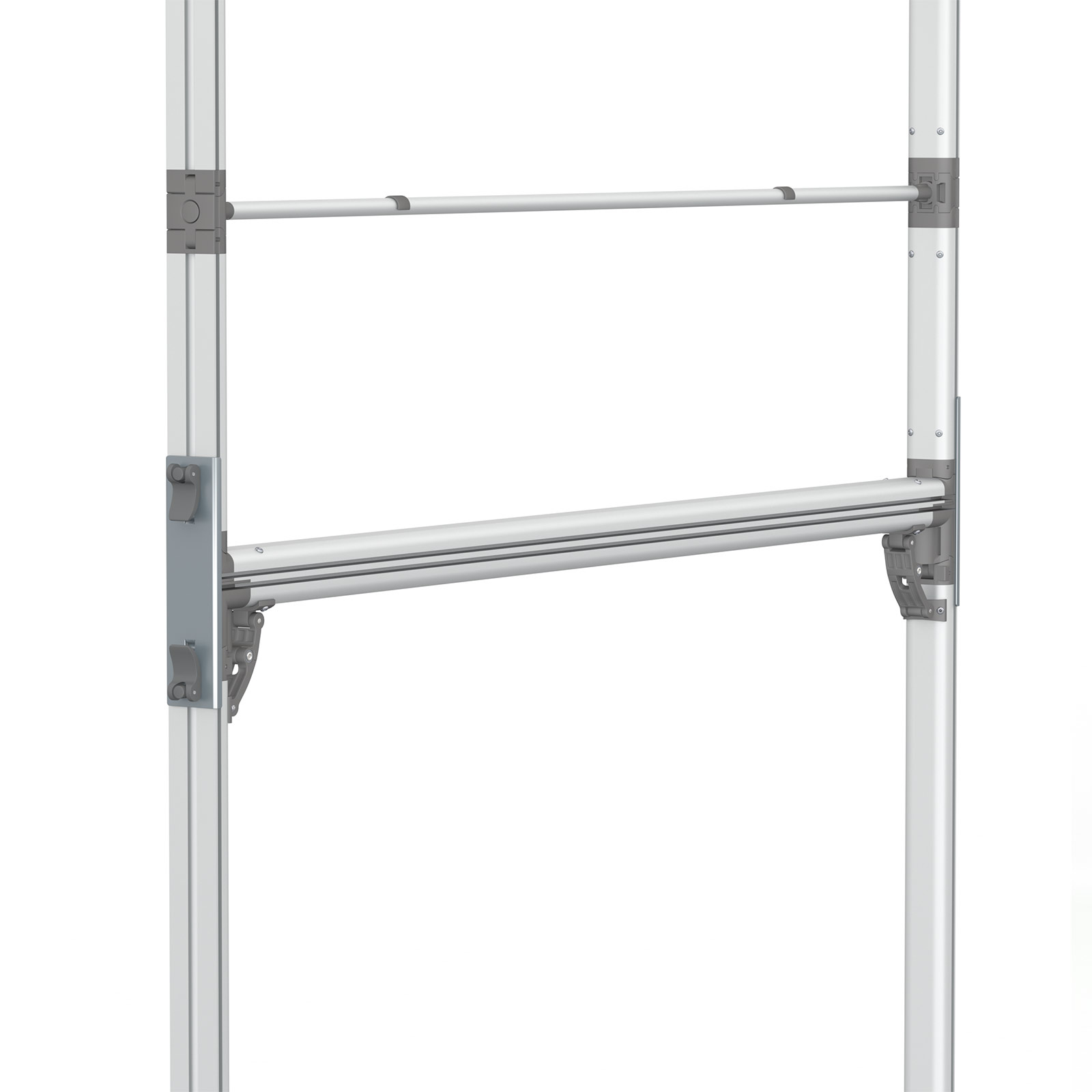

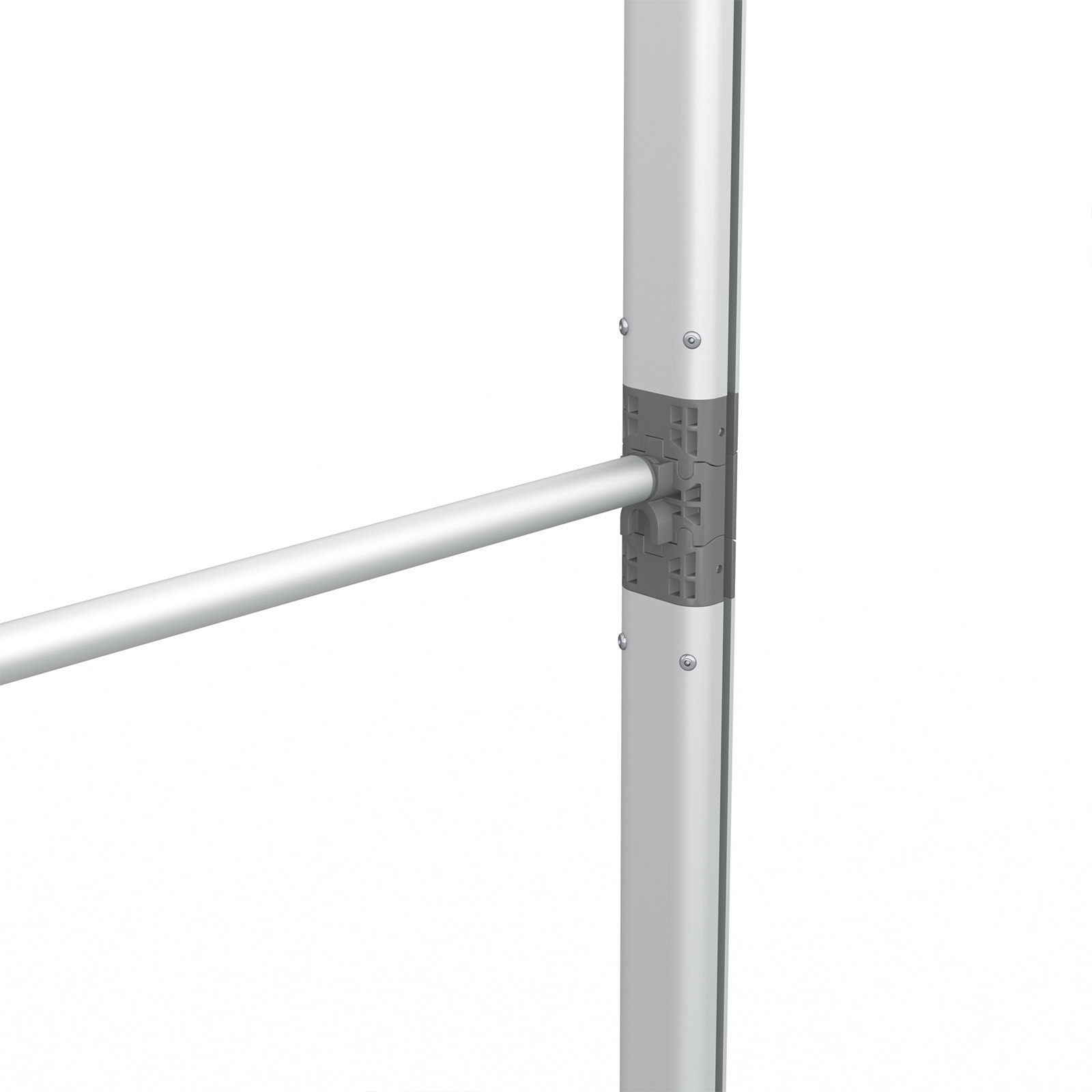

- central support rods for additional stability

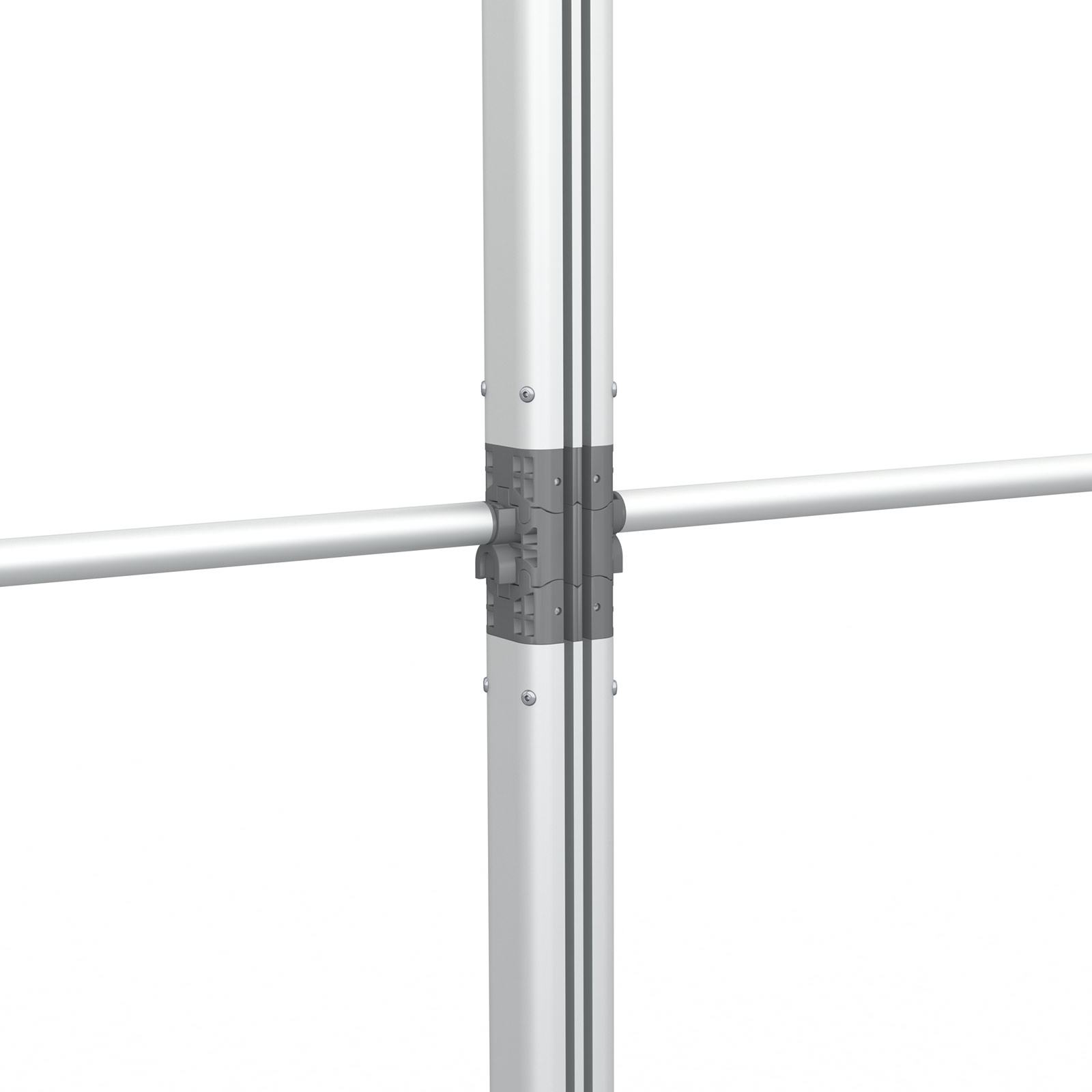

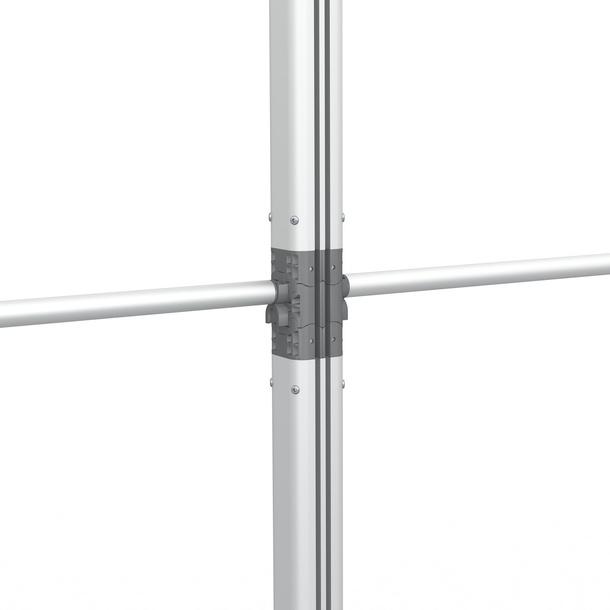

- integrated connectors on right and left frame sides

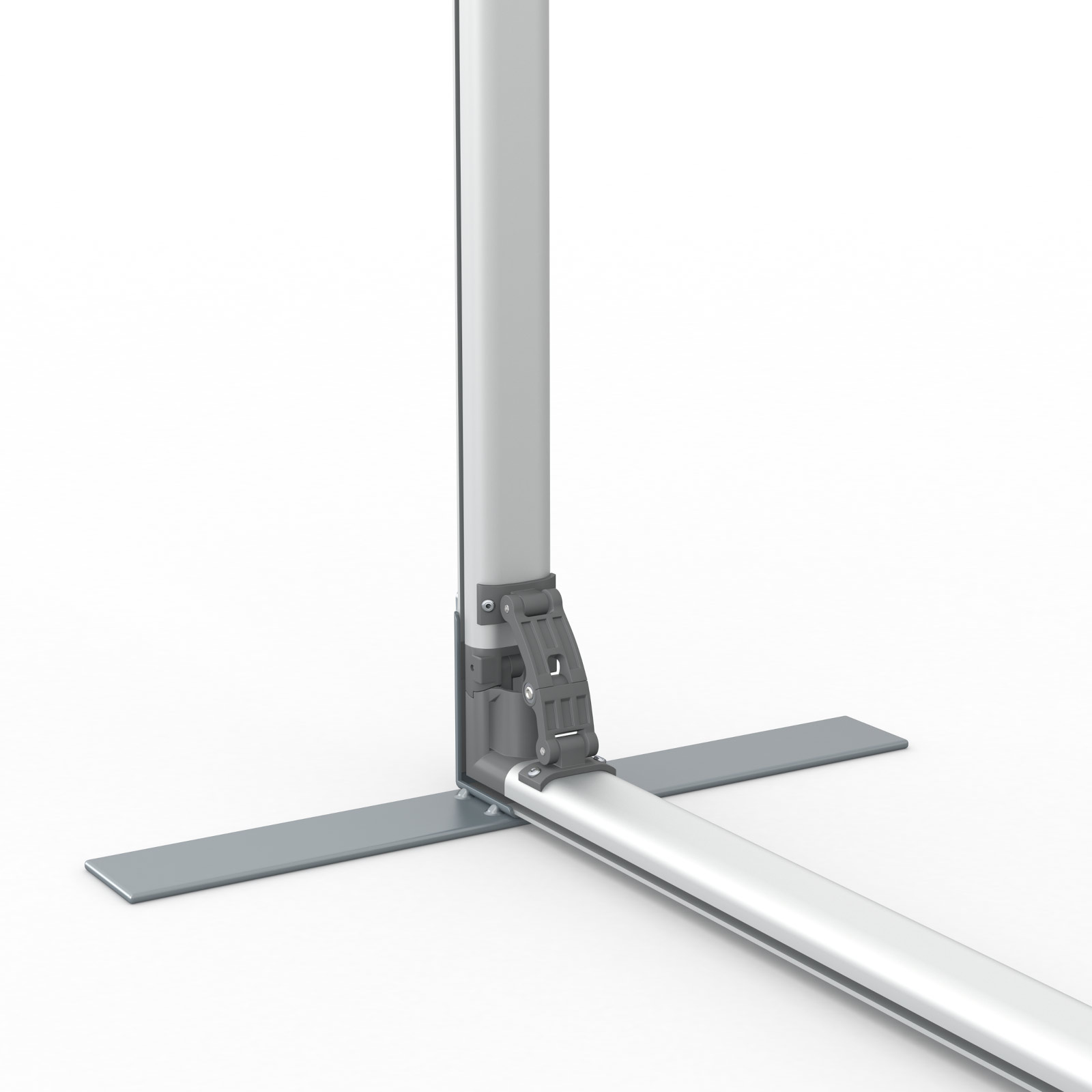

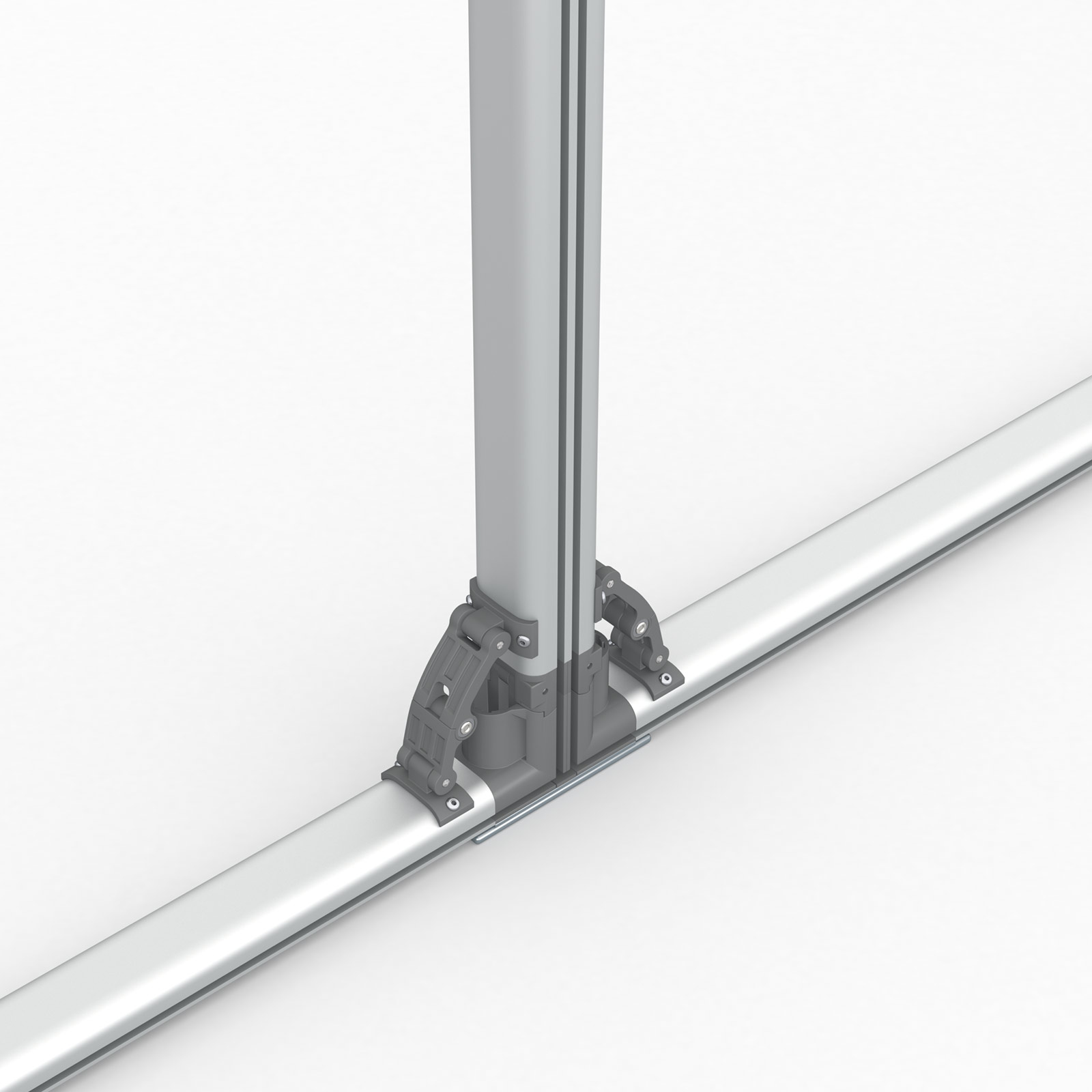

- feet (40 cm) for stable standing

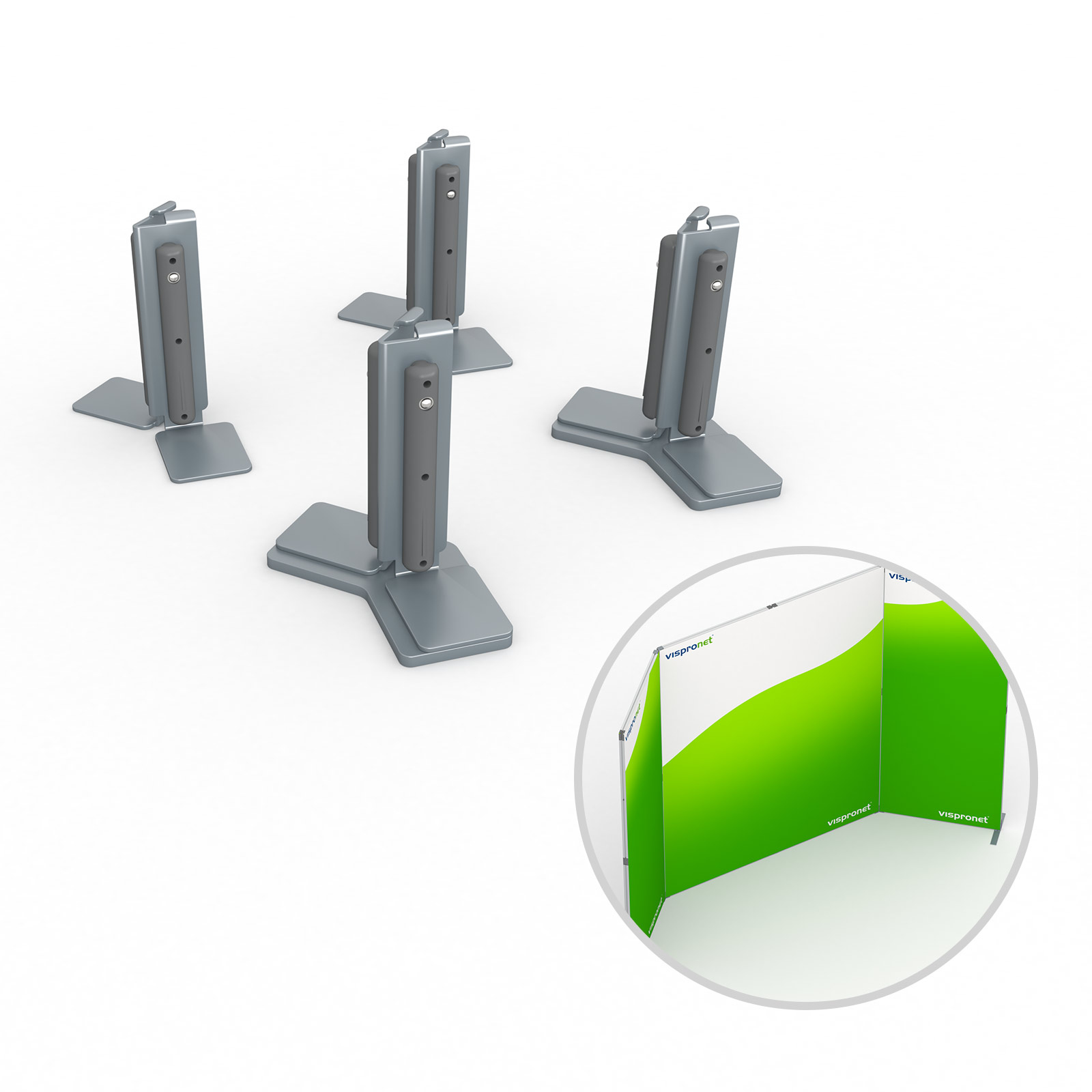

- including accessory set Trio consisting of:
- 2x 45° connectors top
- 2x 45° connectors bottom

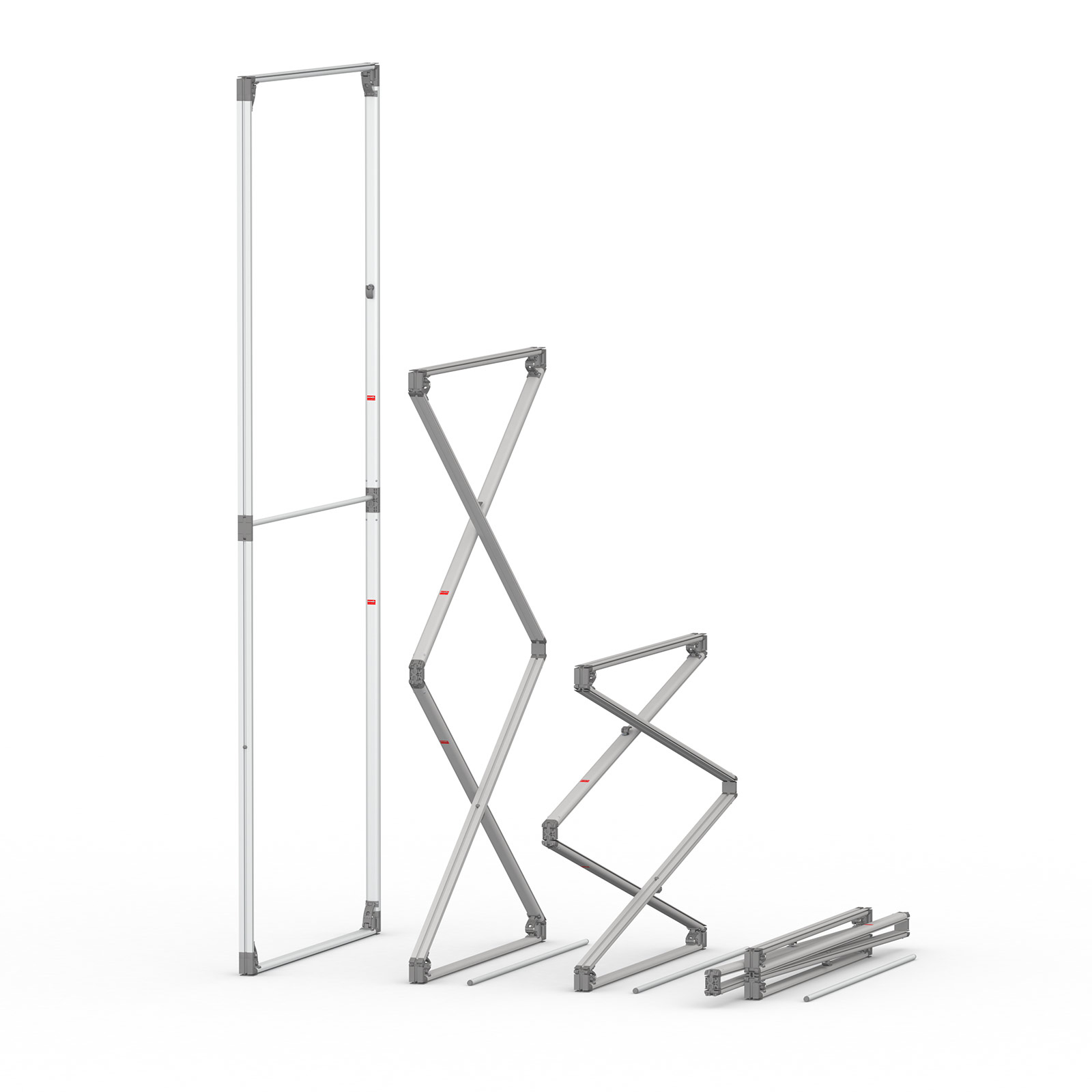

- Super fast assembly: simply pull frame systems apart, insert support rods – done

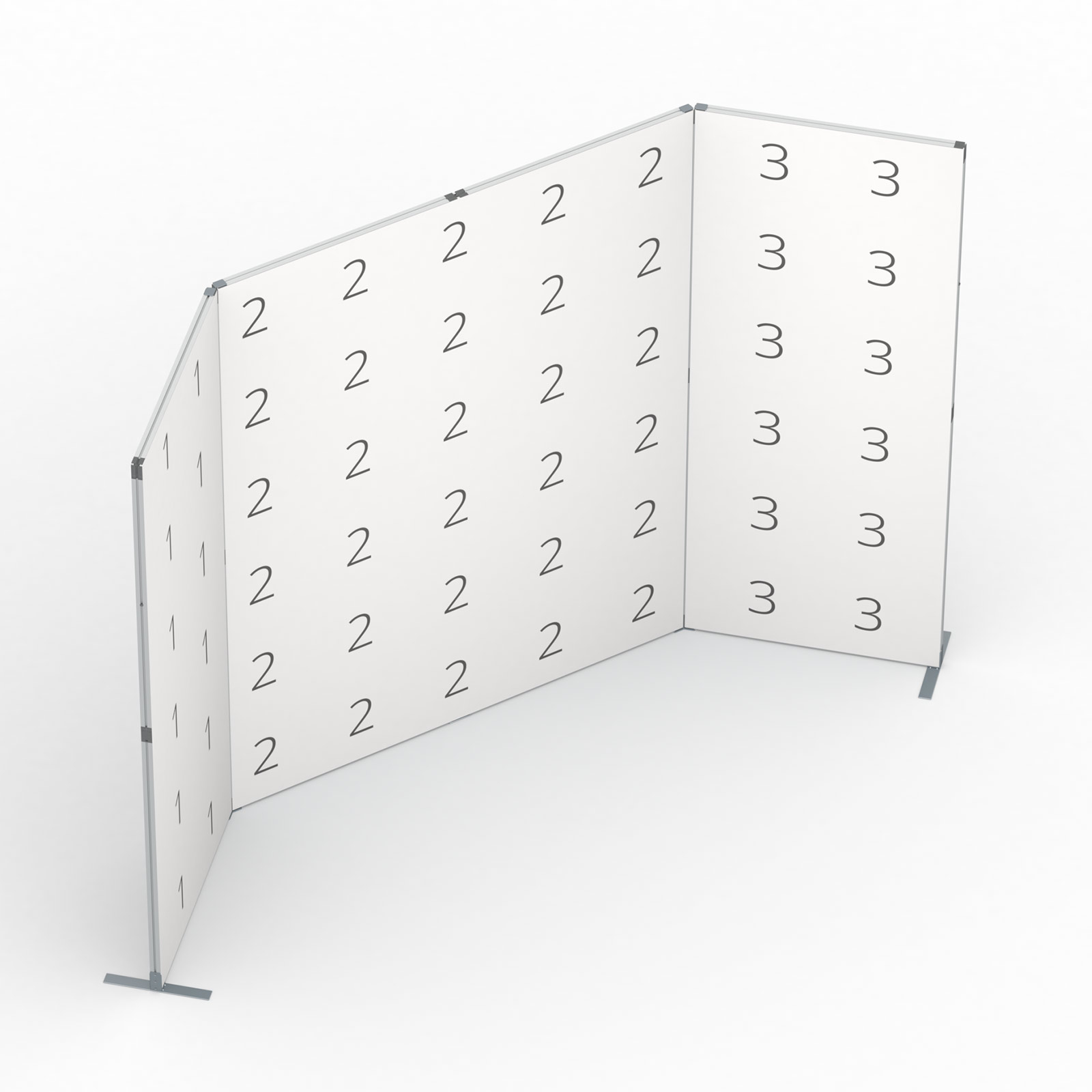

Notes on Arrangement of Printed Parts
Sizes and Weights
| System Width |
Weight* |
|
Height 200 cm |
Height 250 cm |
| 100 cm |
7.00 kg |
8.50 kg |
| 200 cm |
14.50 kg |
17.50 kg |
| 300 cm |
21.50 kg |
26.00 kg |
| 400 cm |
29.50 kg |
35.50 kg |
| Trio (Connector Set) |
1.78 kg |
*All dimensions are approximate; technical changes and tolerances reserved.
Scope of Delivery
- Complete set: Kederrahmen flex system (3 foldable aluminum frames including feet and support rods), connector set "Trio," 6 printed parts (3x front and back each), transport bag
- Printed parts: 6 printed parts, 3x front and back each (without system)
- System: Kederrahmen flex system consisting of 3 foldable aluminum frames including feet and support rods, connector set "Trio," transport bag (without printed parts)
- Each Kederrahmen is delivered separately packed in a padded transport bag.

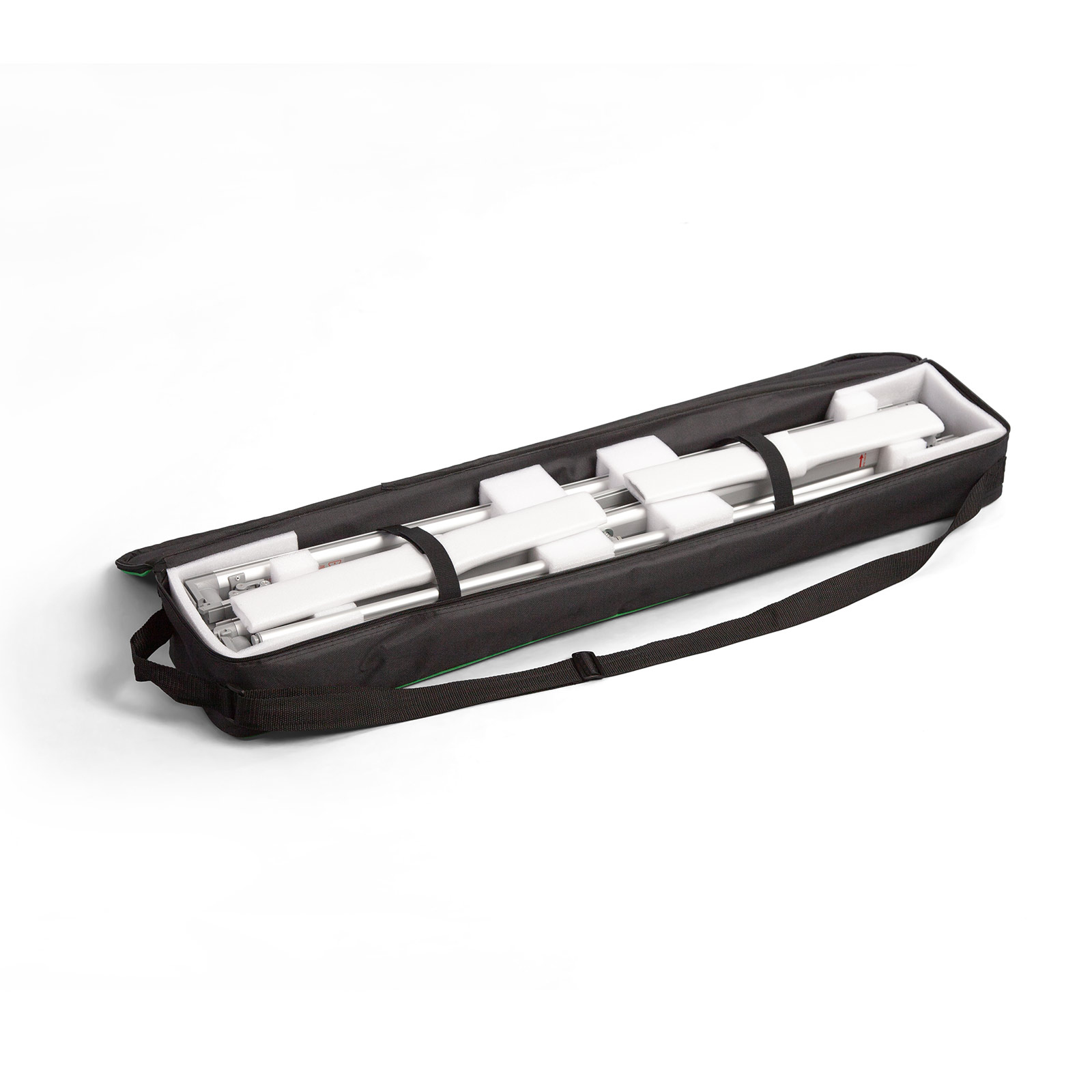

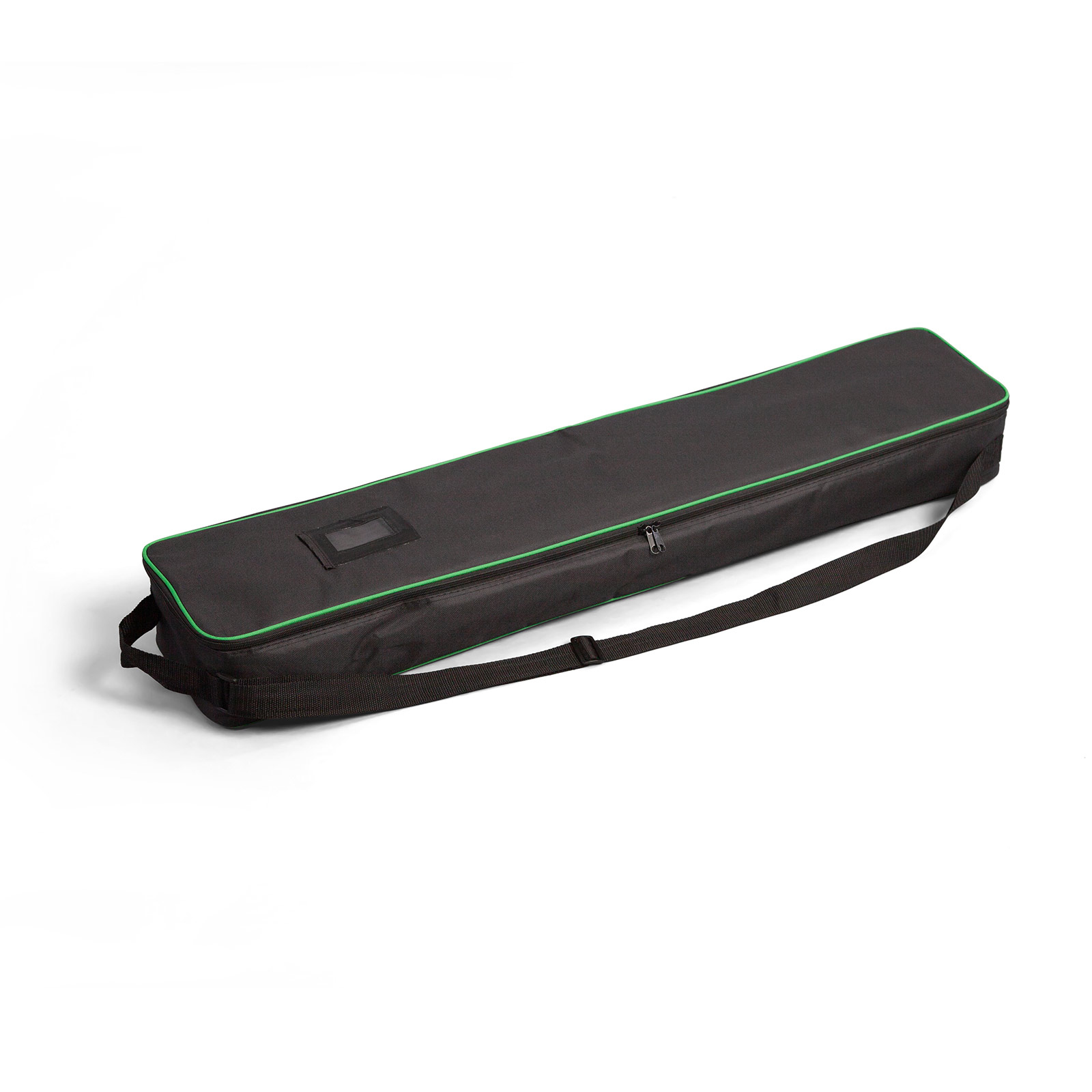

Transport Bags
| Kederrahmen System |
Transport Bag Size(s) |
| 100 × 200 cm |
20 × 105 cm |
| 100 × 250 cm |
22 × 146 cm |
Application
