Keder Frame Flex as Gateway and Bridge
Attention-grabbing entrance for your trade fair booth: With the gateway and bridge modules, you create a striking passage that structures your booth and guides visitors. All sides can be individually printed and offer large advertising surfaces.
Variants

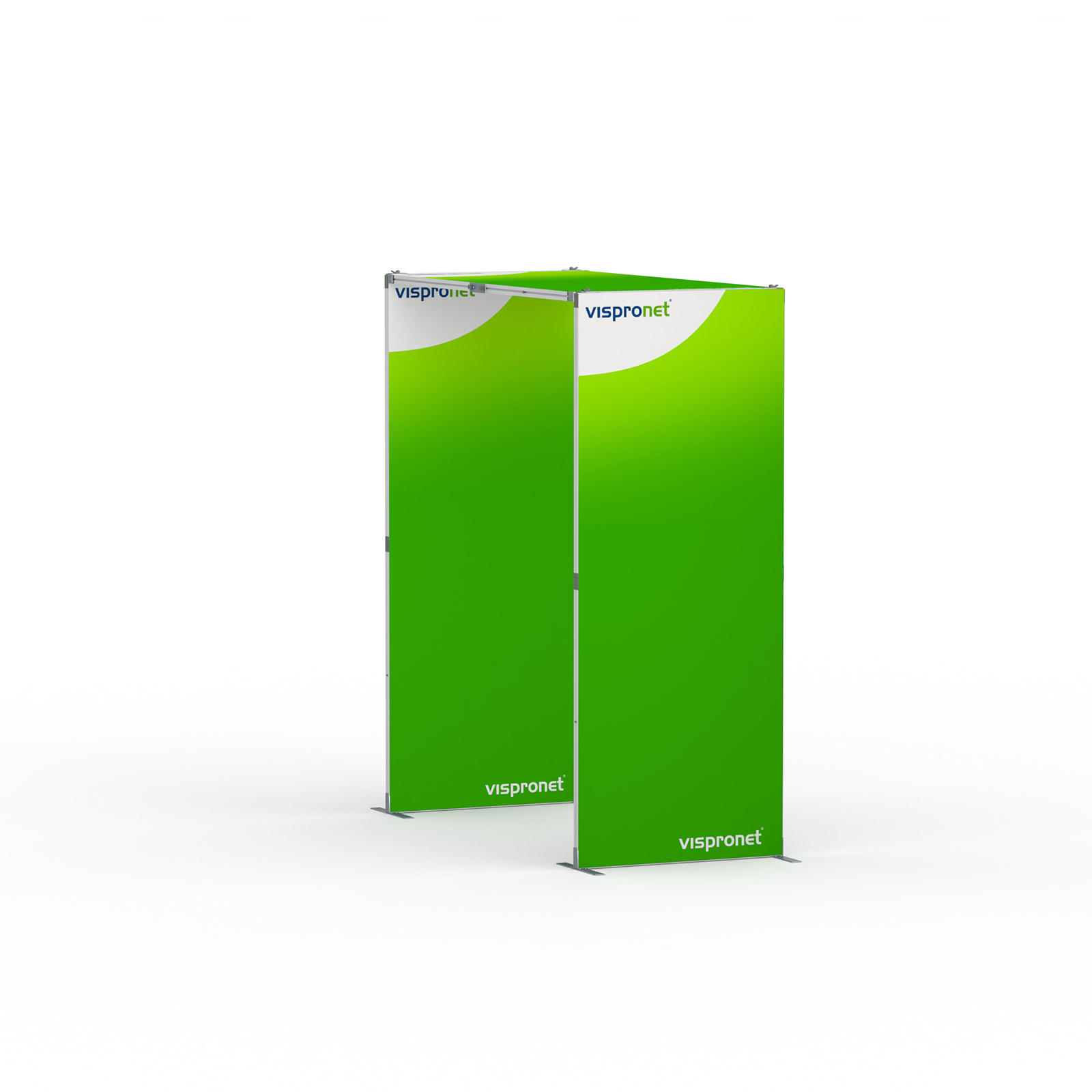

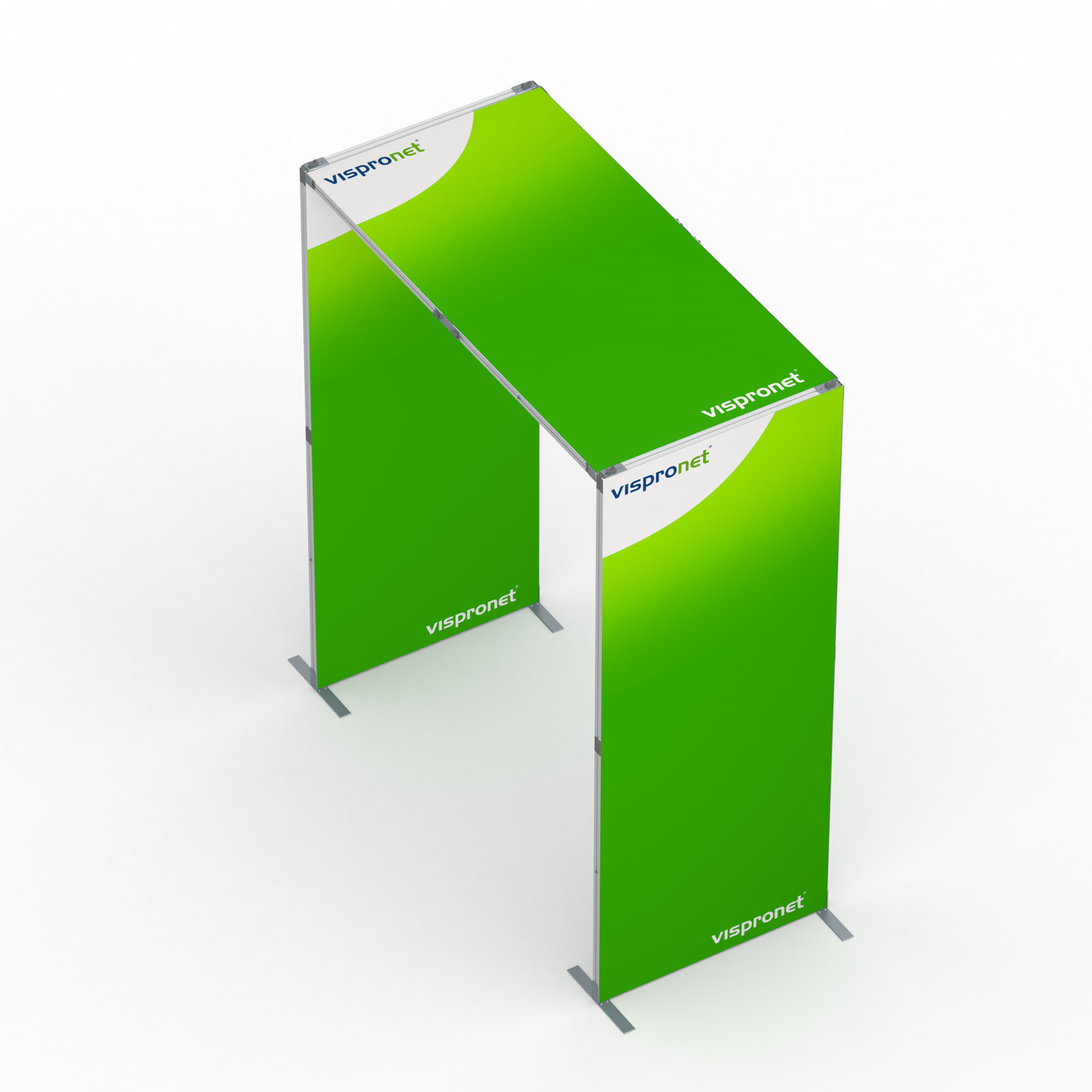

Gateway: freestanding passage consisting of 3 Keder Frame Flex units connected with 90° connectors. The set can also be used as a bridge in combination with already purchased Keder Frame Flex units.

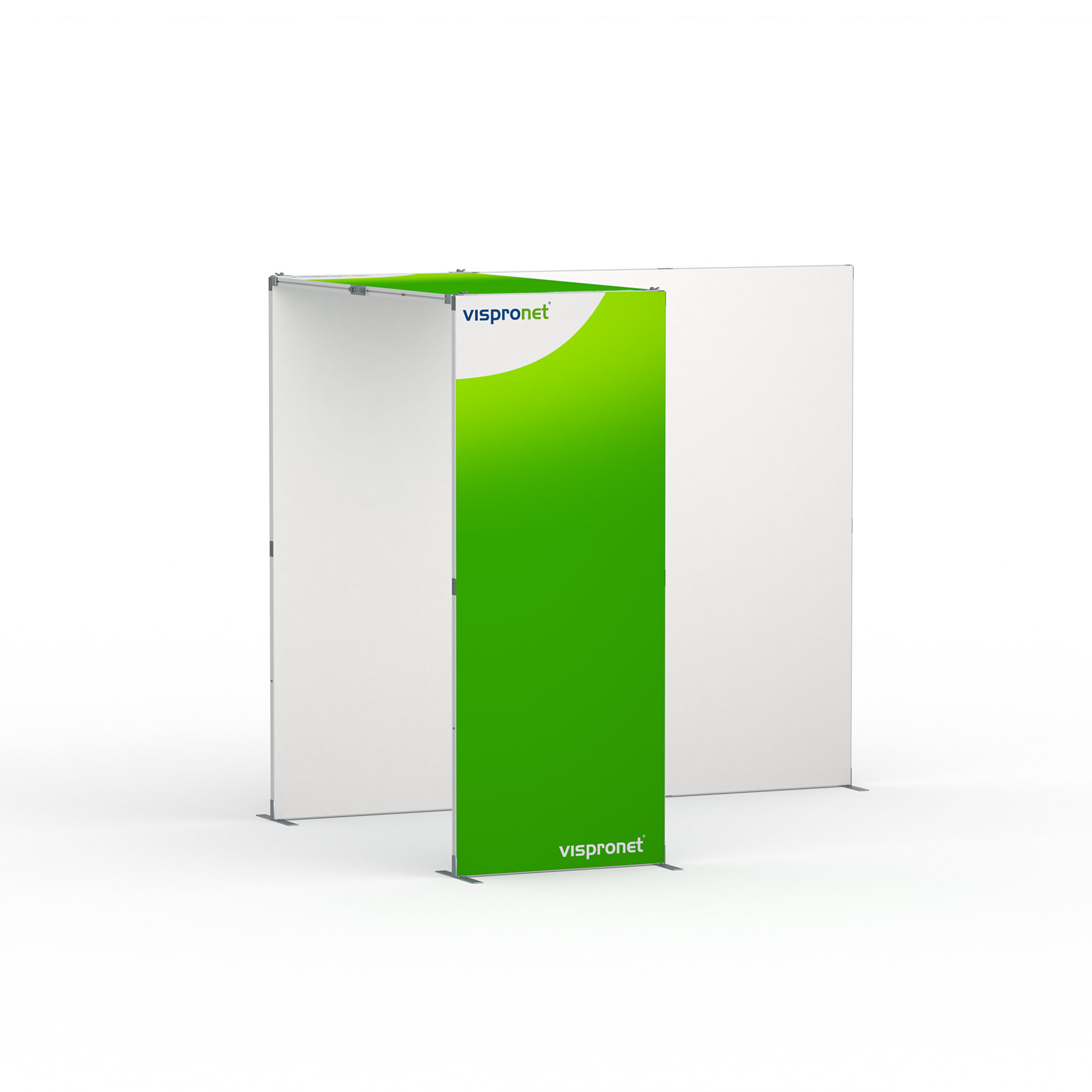

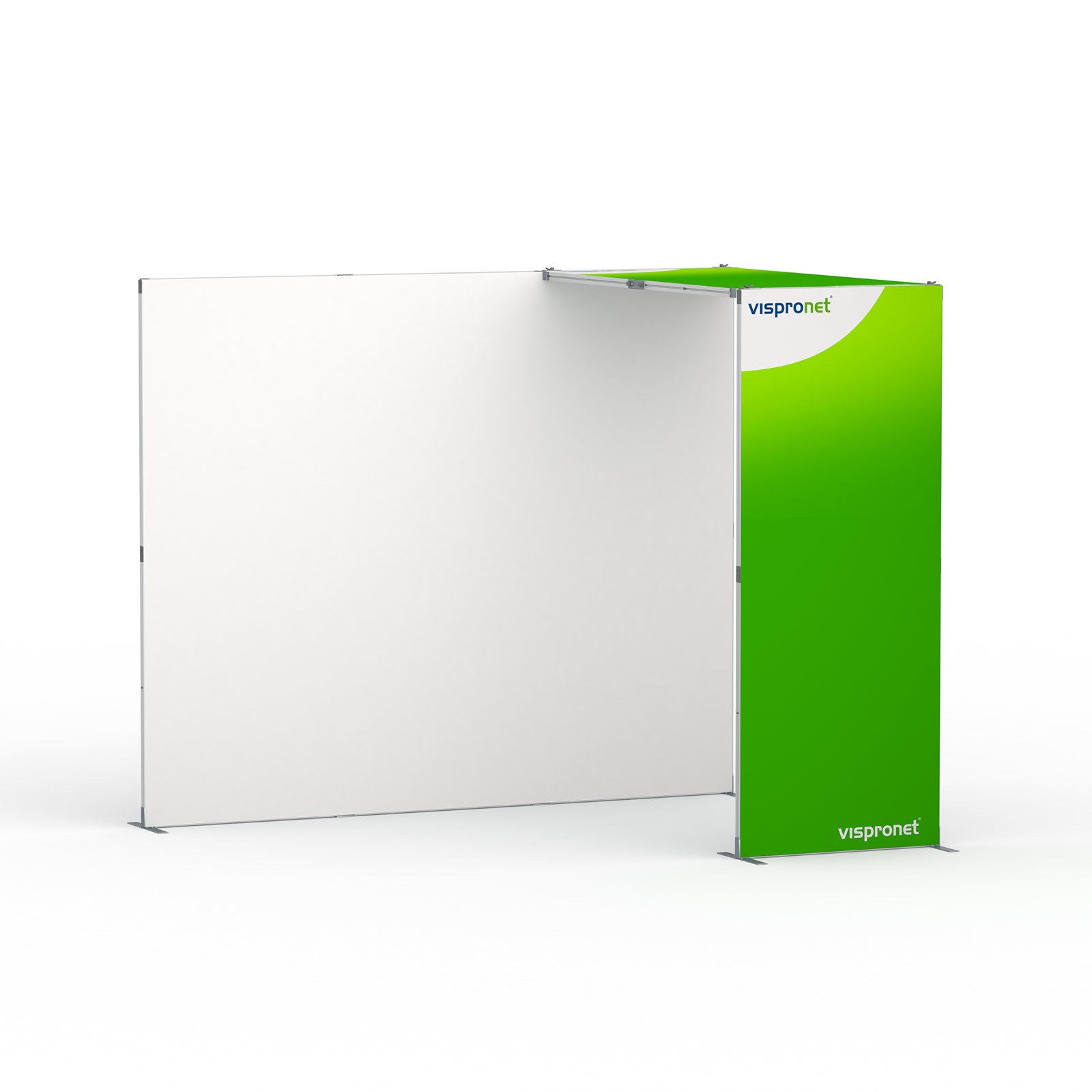

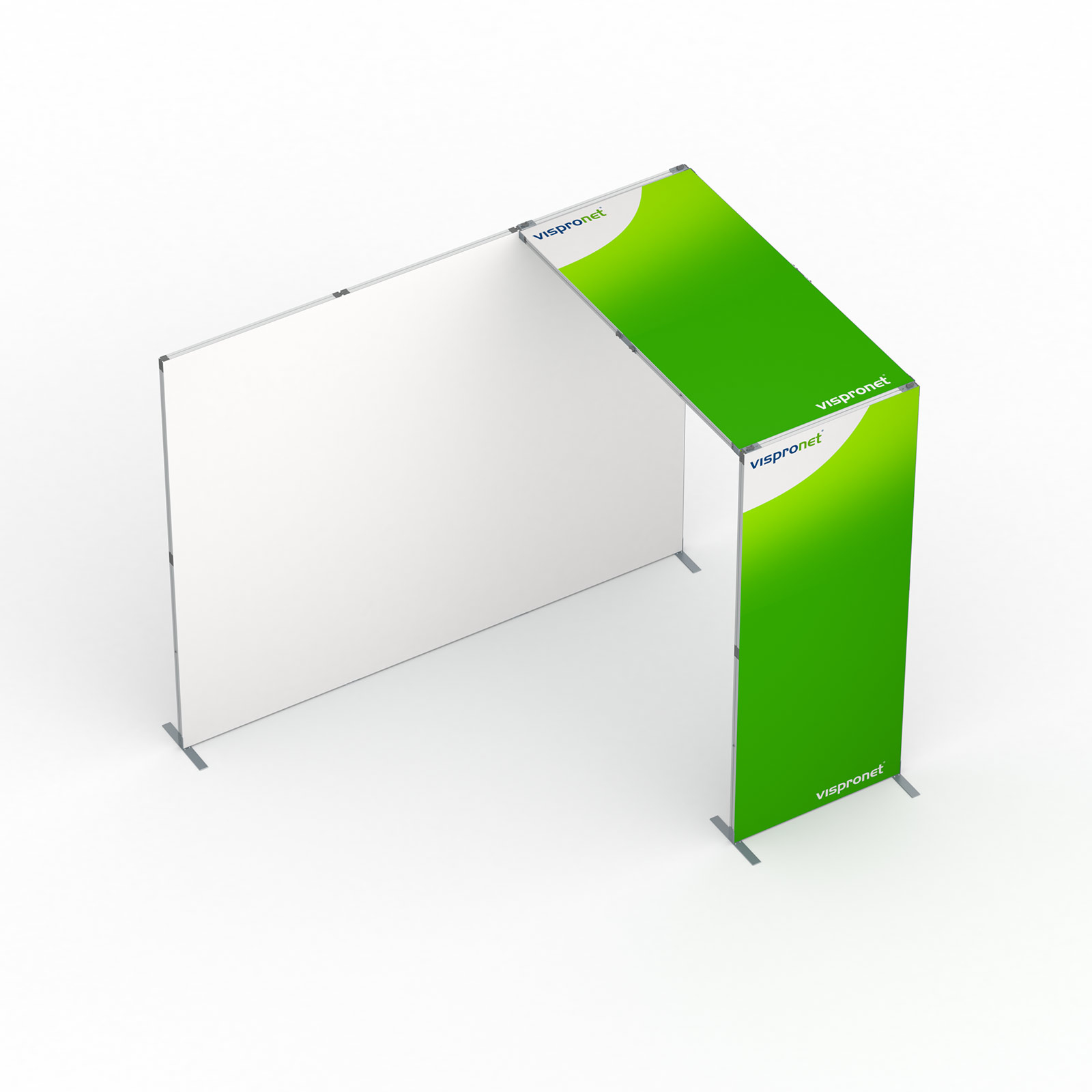

Bridge: L-shape for flexible use with additional Keder Frame Flex units. Consists of 2 Keder Frame Flex units connected with 90° connectors. The resulting L-shape is placed on an existing frame to create a passage.
Execution – Printed Parts

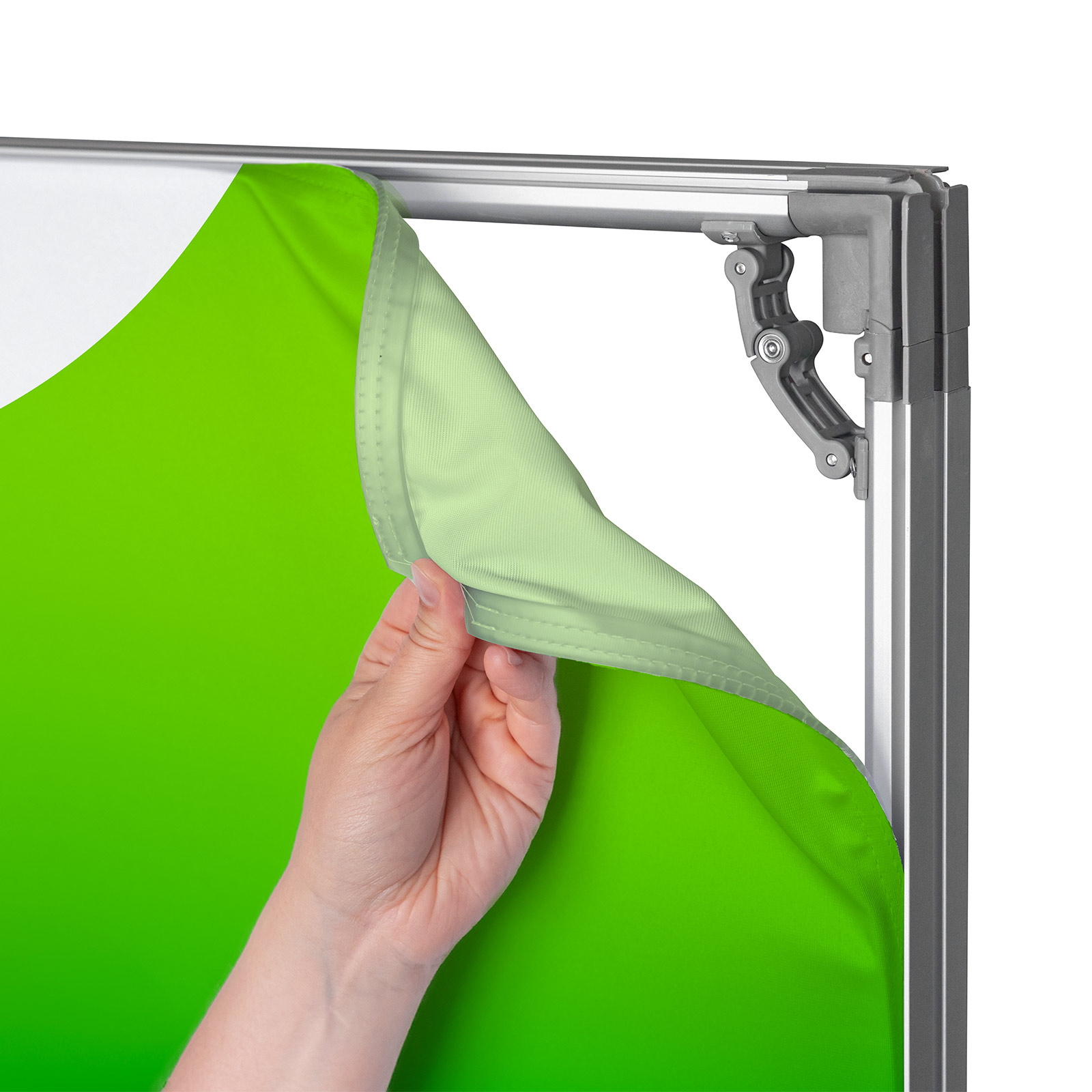

All around with flat keder for attachment in the keder groove of the frame
Optimally tensioned print motif for a wrinkle-free presentation
Double-sided individual printing possible with identical or different motifs
Each with one continuous printed part per wall on front and back for optimal image reproduction
Materials
Multisol® X SE: crease-resistant material with high opacity and brilliant color reproduction
Multisol® X Opak SE: 100 % opaque material with high color brilliance, light-impermeable, back coated black
Please note that with light designs the system may slightly show through. For such motifs, we recommend the opaque material Multisol® X Opak SE.
Utility model protected frame system GM: 20 2023 100 050

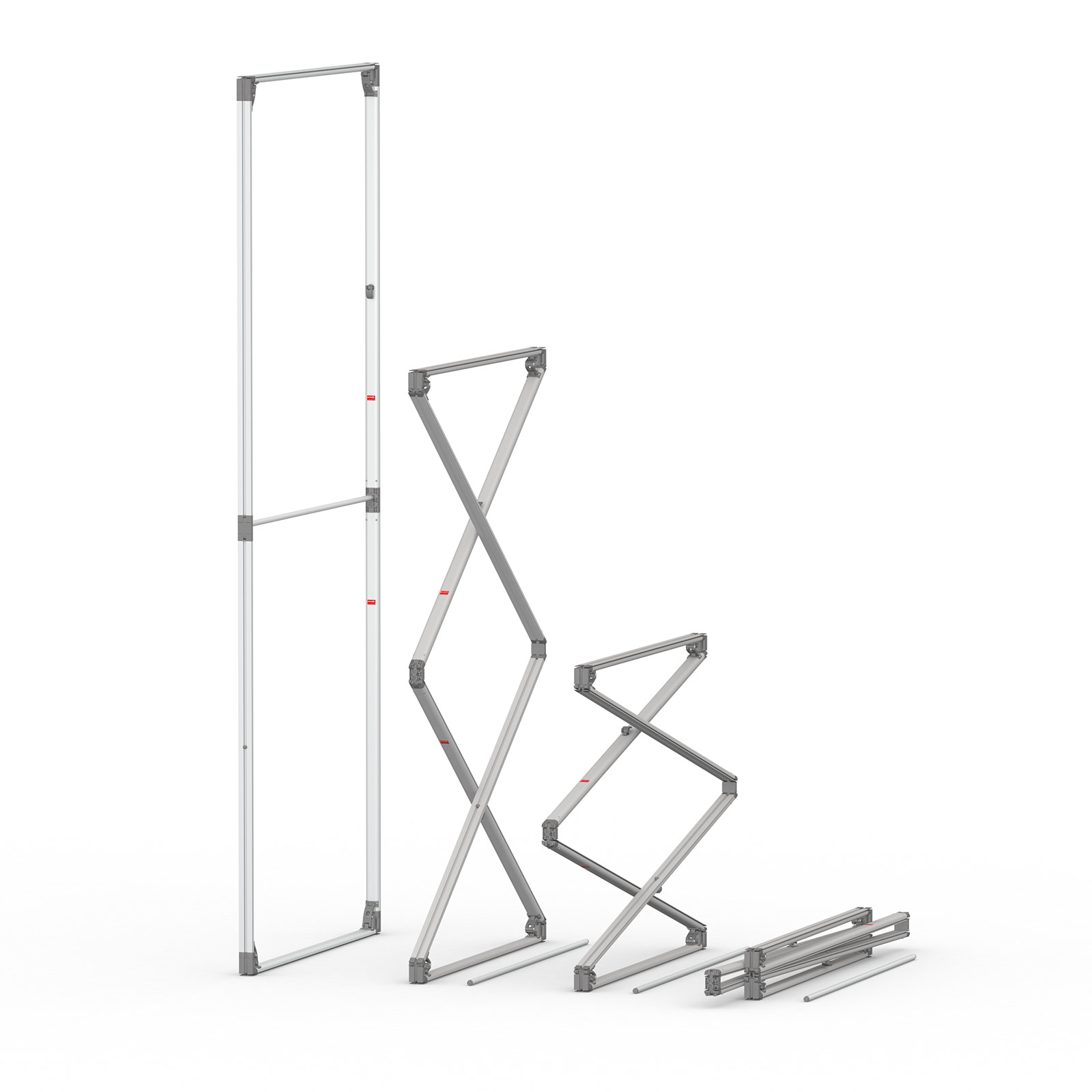

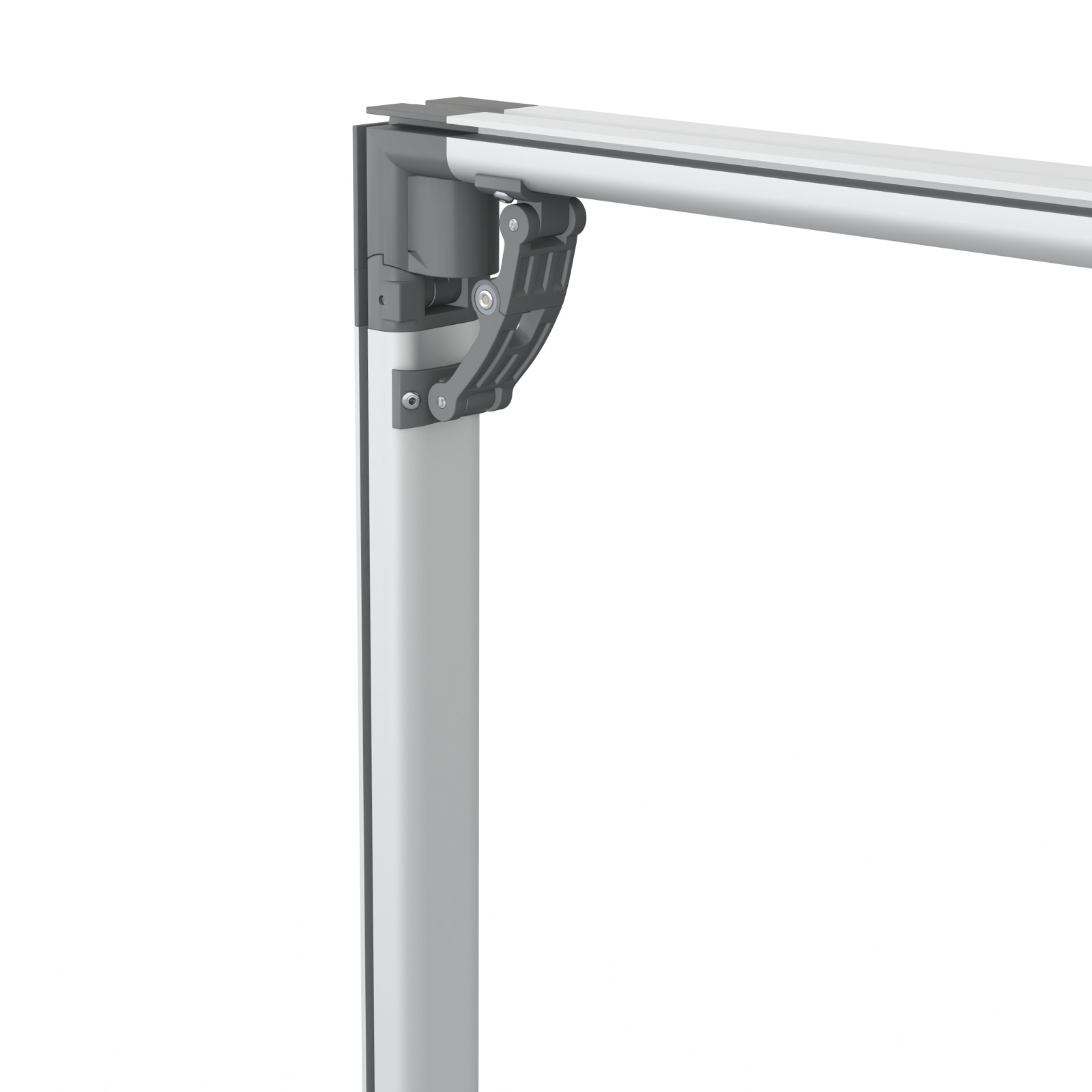

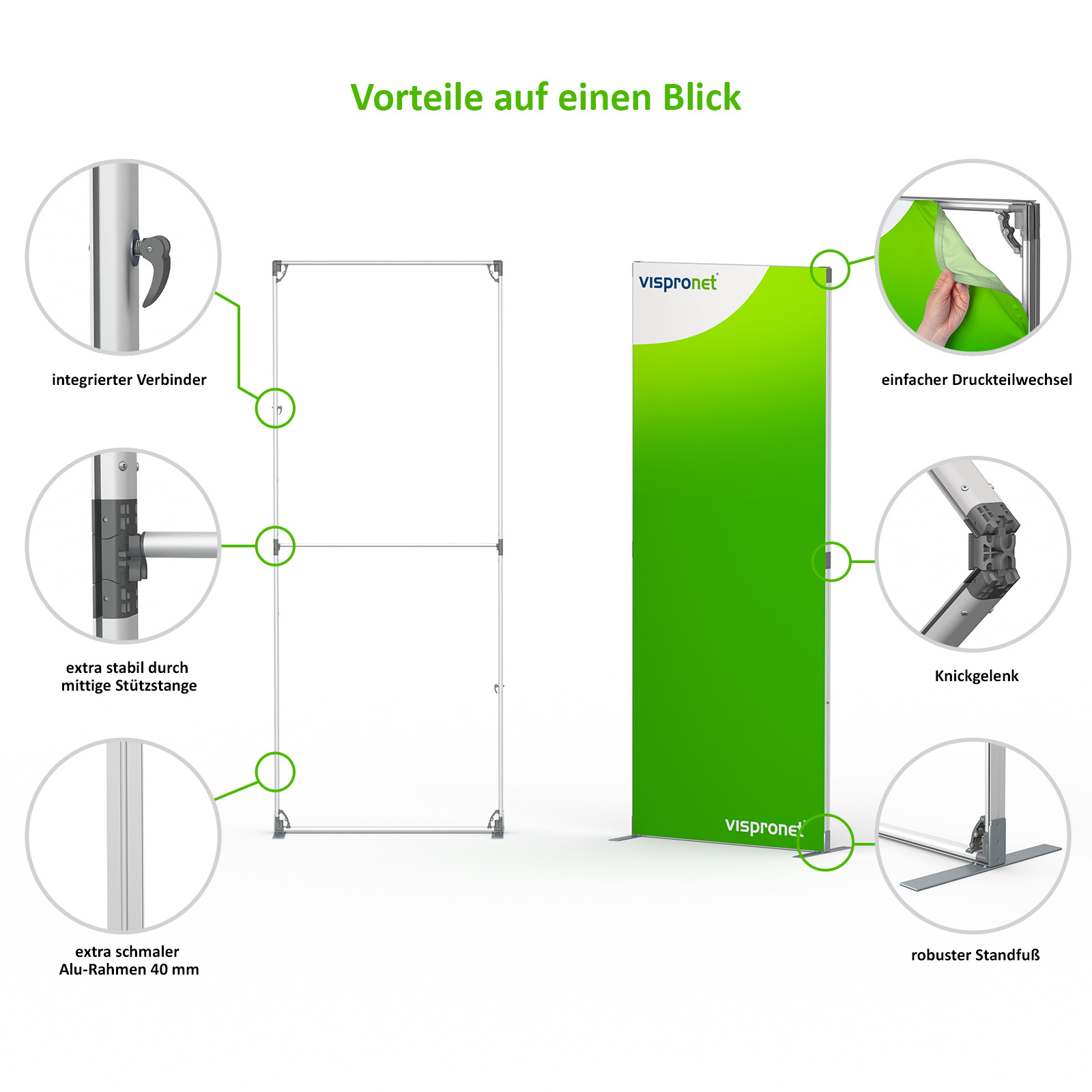

Foldable hinged frames made of anodized aluminum
Frame depth: 4 cm, slim frame profile for optimal motif effect
System height: 250 cm
System width per element: 100 cm
Passage height: 246 cm
Passage width: 200 cm

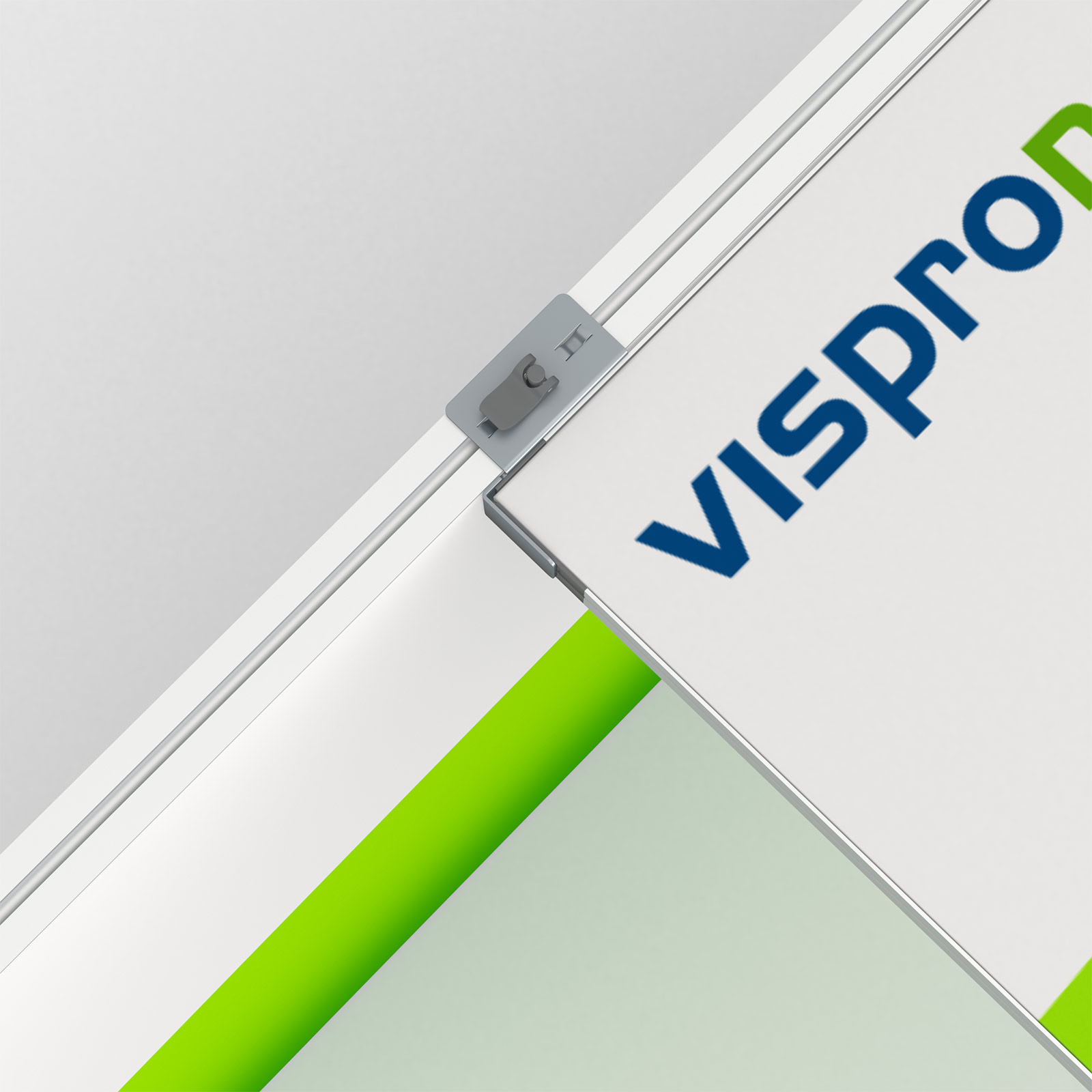

Integrated connectors on right and left frame side

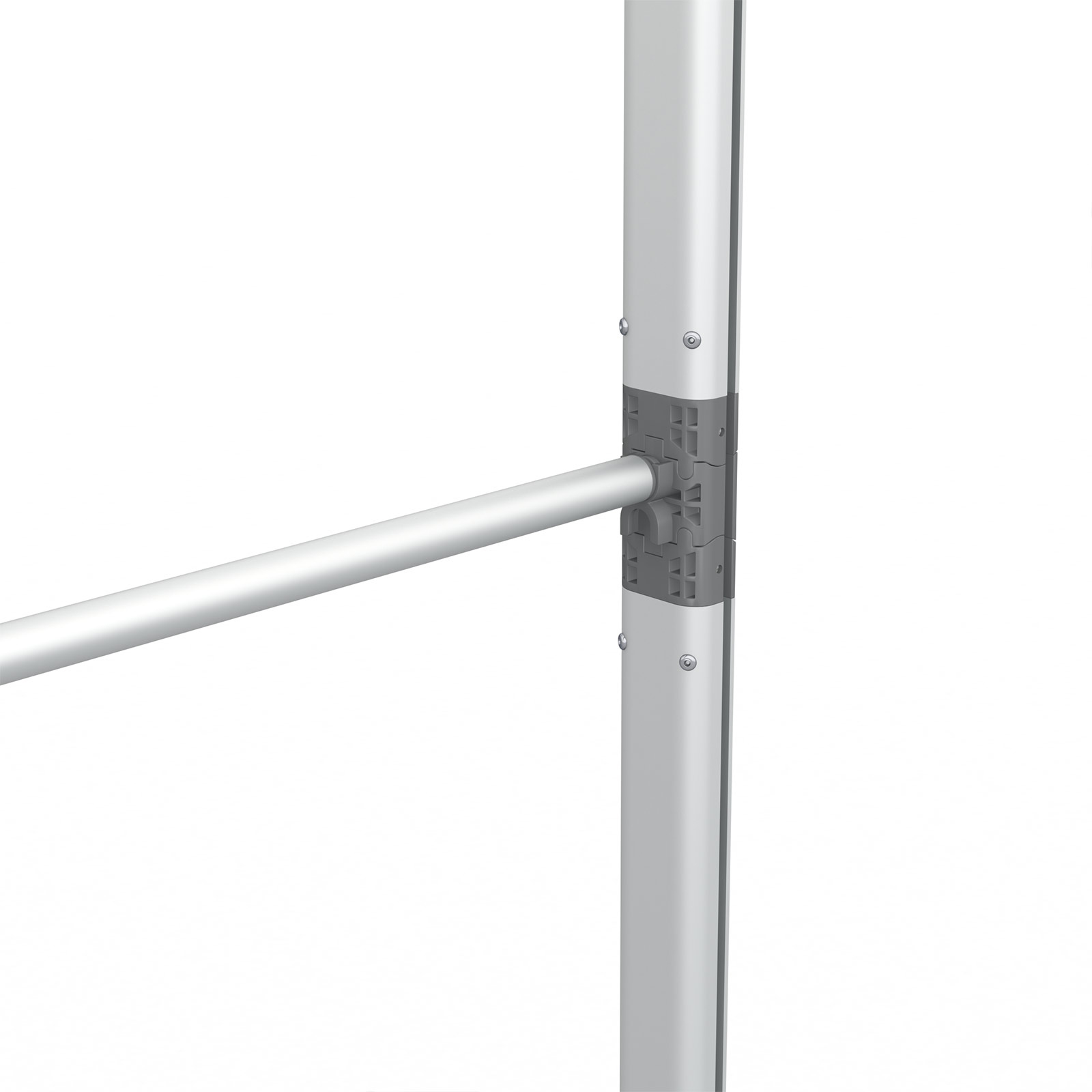

Central support rods for additional stability

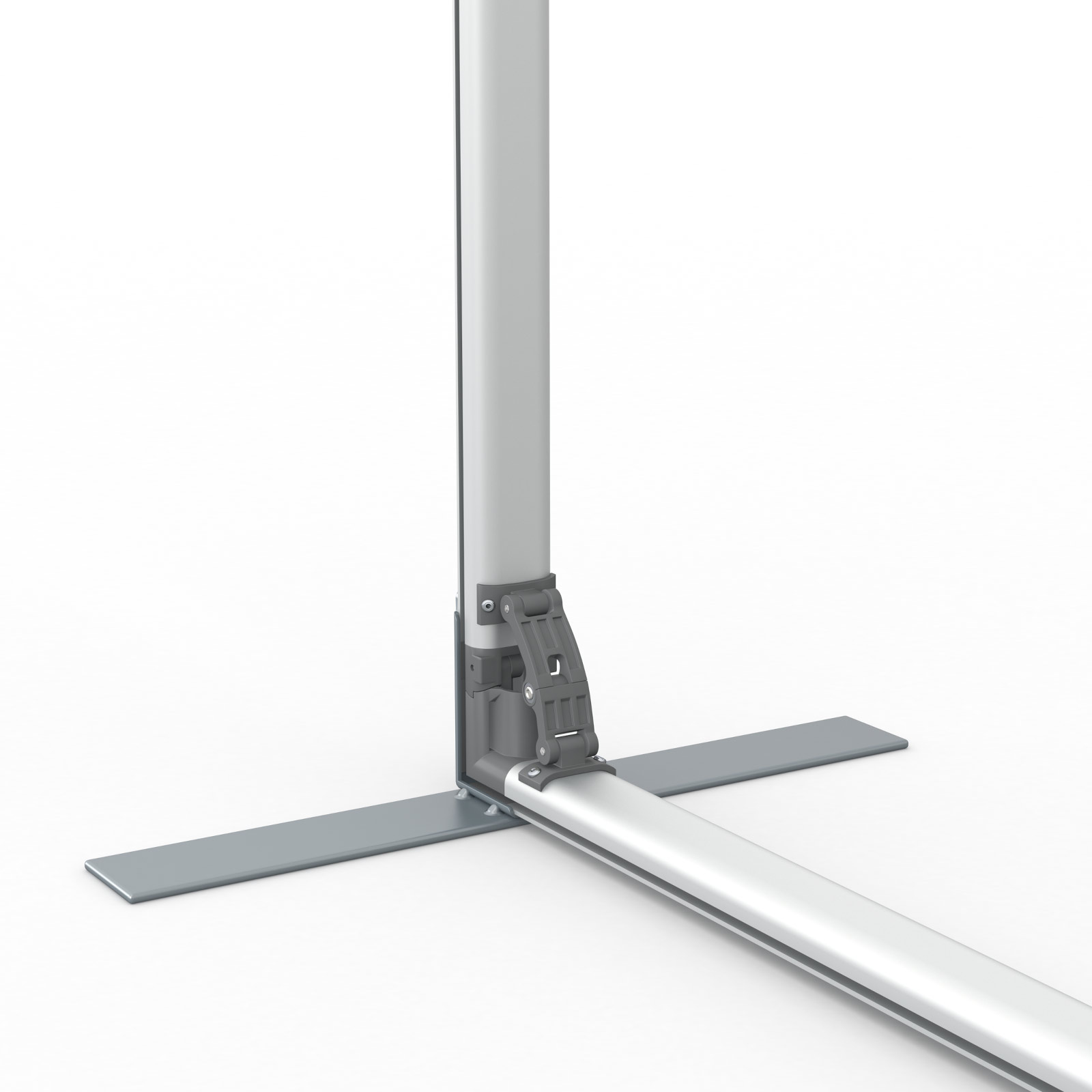

Base feet (40 cm) for stable standing
Super fast assembly: simply pull frame systems apart, insert support rods – done

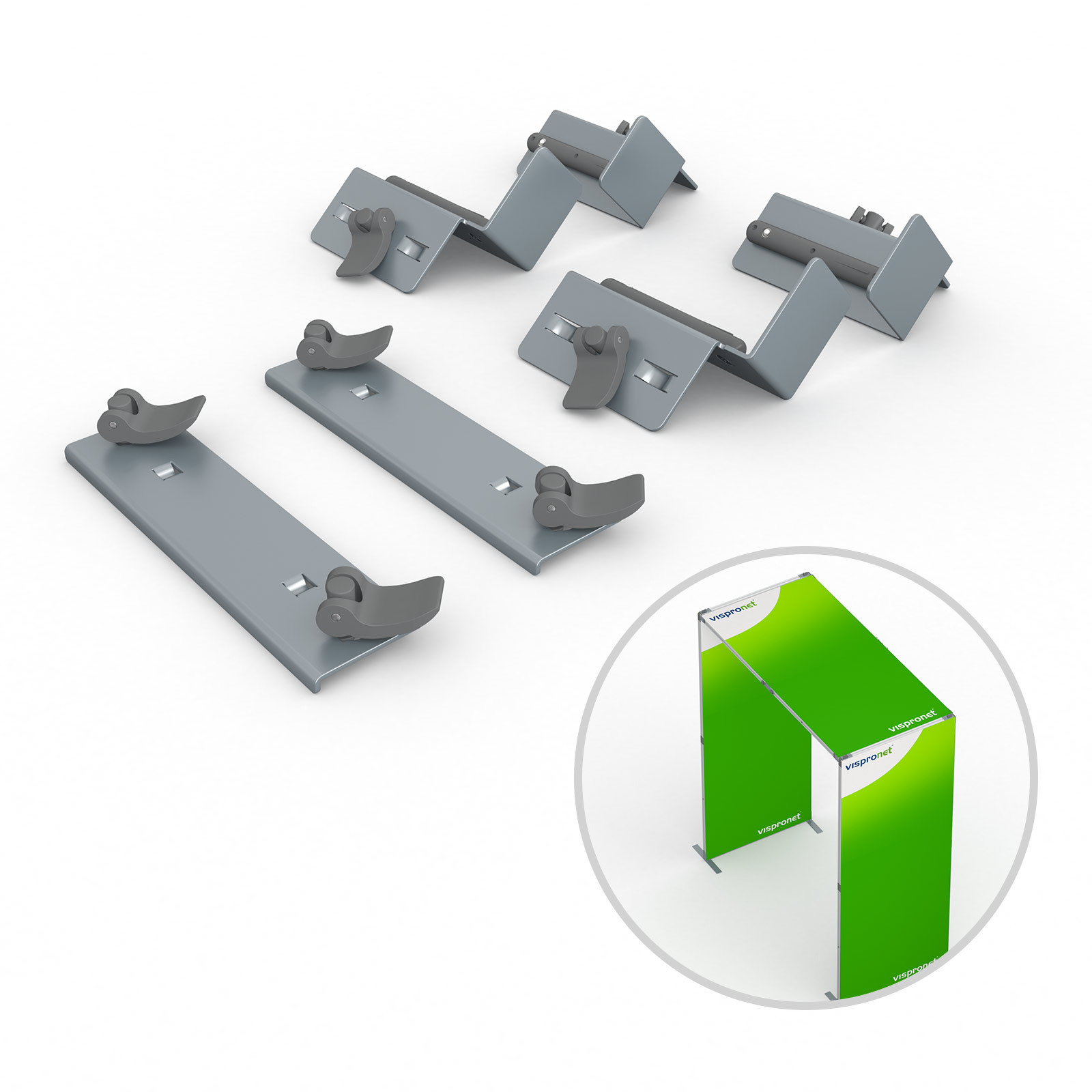

Including accessory set Gateway/Bridge consisting of:
2x Gateway connector left
2x Gateway connector right
2x 180° connectors with quick clamps
Notes on Arrangement of Printed Parts

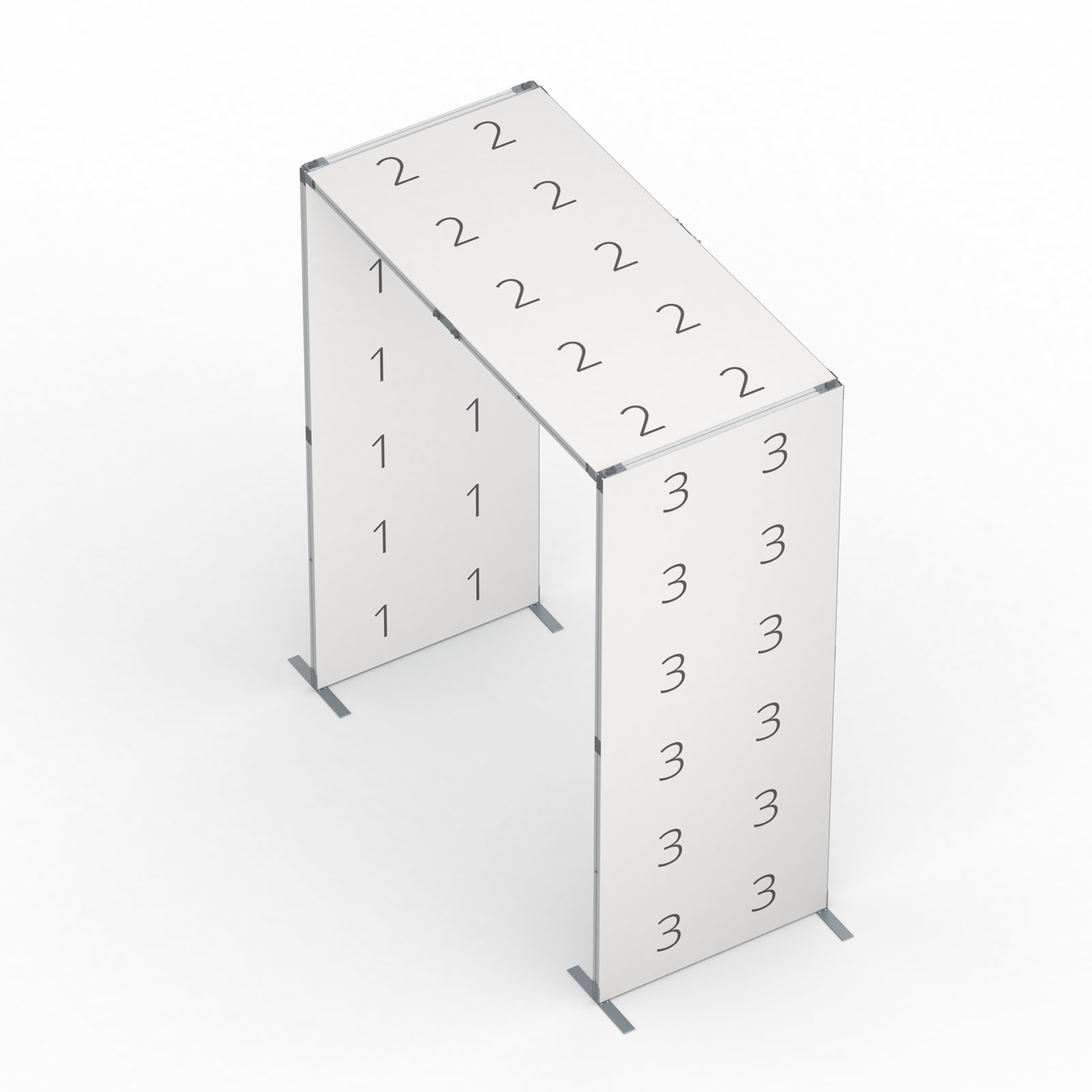

Gateway

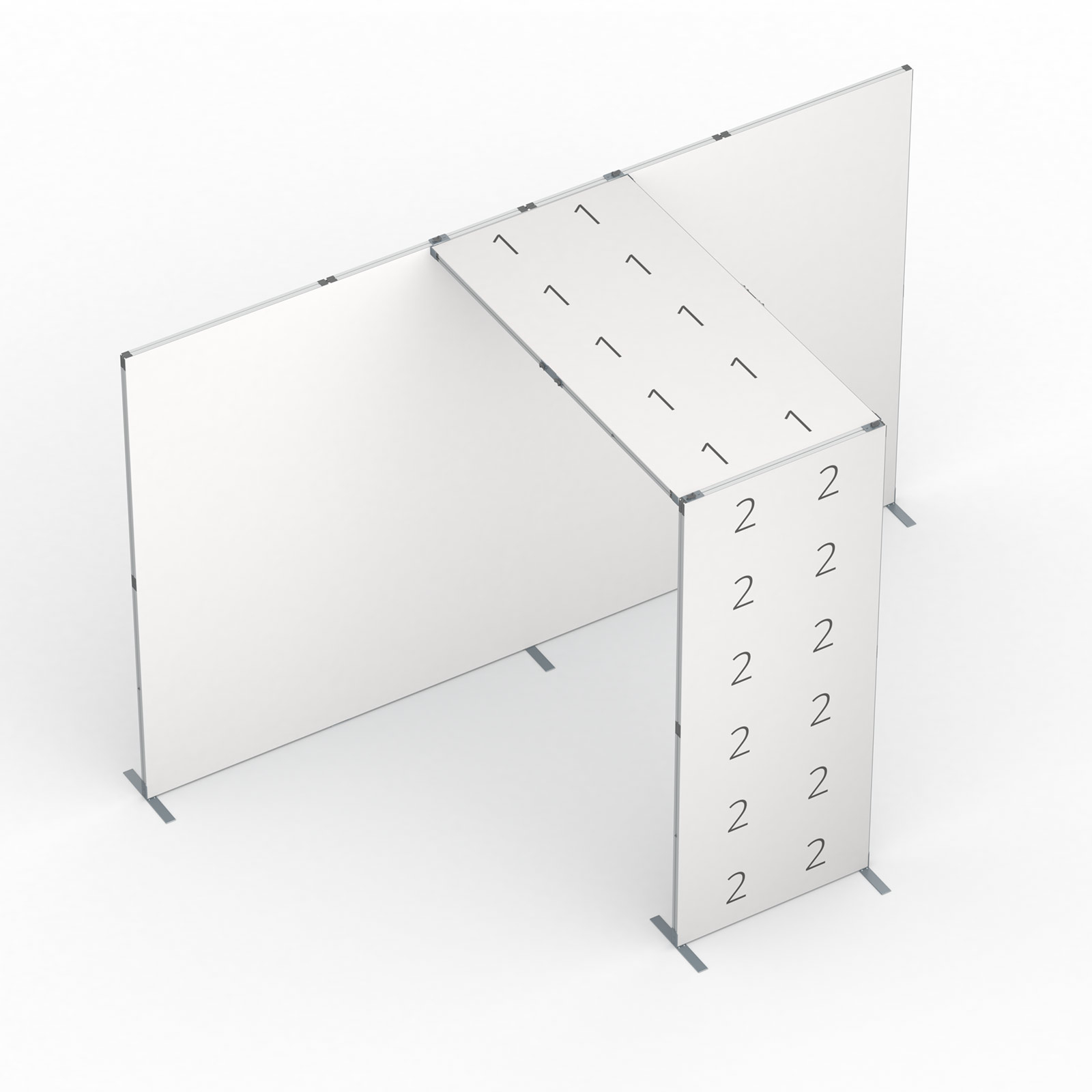

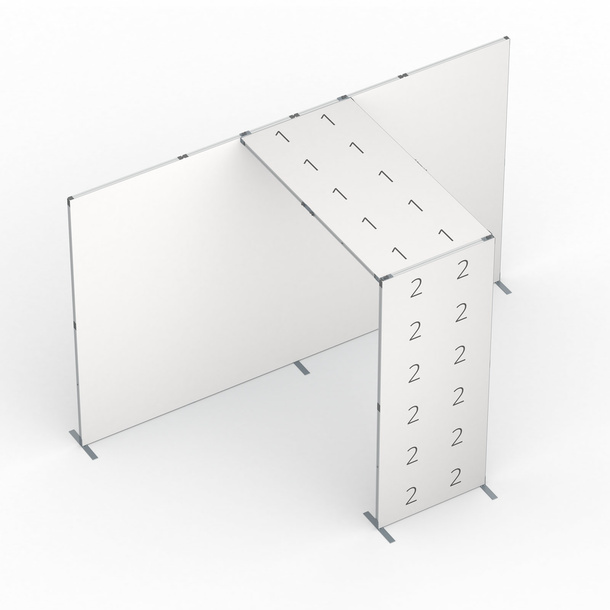

Bridge
Sizes and Weights
Variant
Weight* (Height 250 cm)
Gateway (3 system parts)
3 × 8.50 kg
Bridge (2 system parts)
2 × 8.50 kg
Connector set Gateway/Bridge
1.18 kg
*All dimensions are approximate; technical changes and tolerances reserved.
Scope of Delivery
Complete set:
Gateway: Keder Frame Flex system (3 foldable aluminum frames including base feet and support rods), connector set "Gateway/Bridge", 6 printed parts (3x front and back each), transport bag
Bridge: Keder Frame Flex system (2 aluminum frames including base feet and support rods), connector set "Gateway/Bridge", 4 printed parts (2x front and back each), transport bag
Printed part:
Gateway: 6 printed parts, 3x front and back each (without system)
Bridge: 4 printed parts, 2x front and back each (without system)
System:
Gateway: Keder Frame Flex system (3 foldable aluminum frames including base feet and support rods), connector set "Gateway/Bridge", transport bag (without printed parts)
Bridge: Keder Frame Flex system (2 aluminum frames including base feet and support rods), connector set "Gateway/Bridge", transport bag (without printed parts)

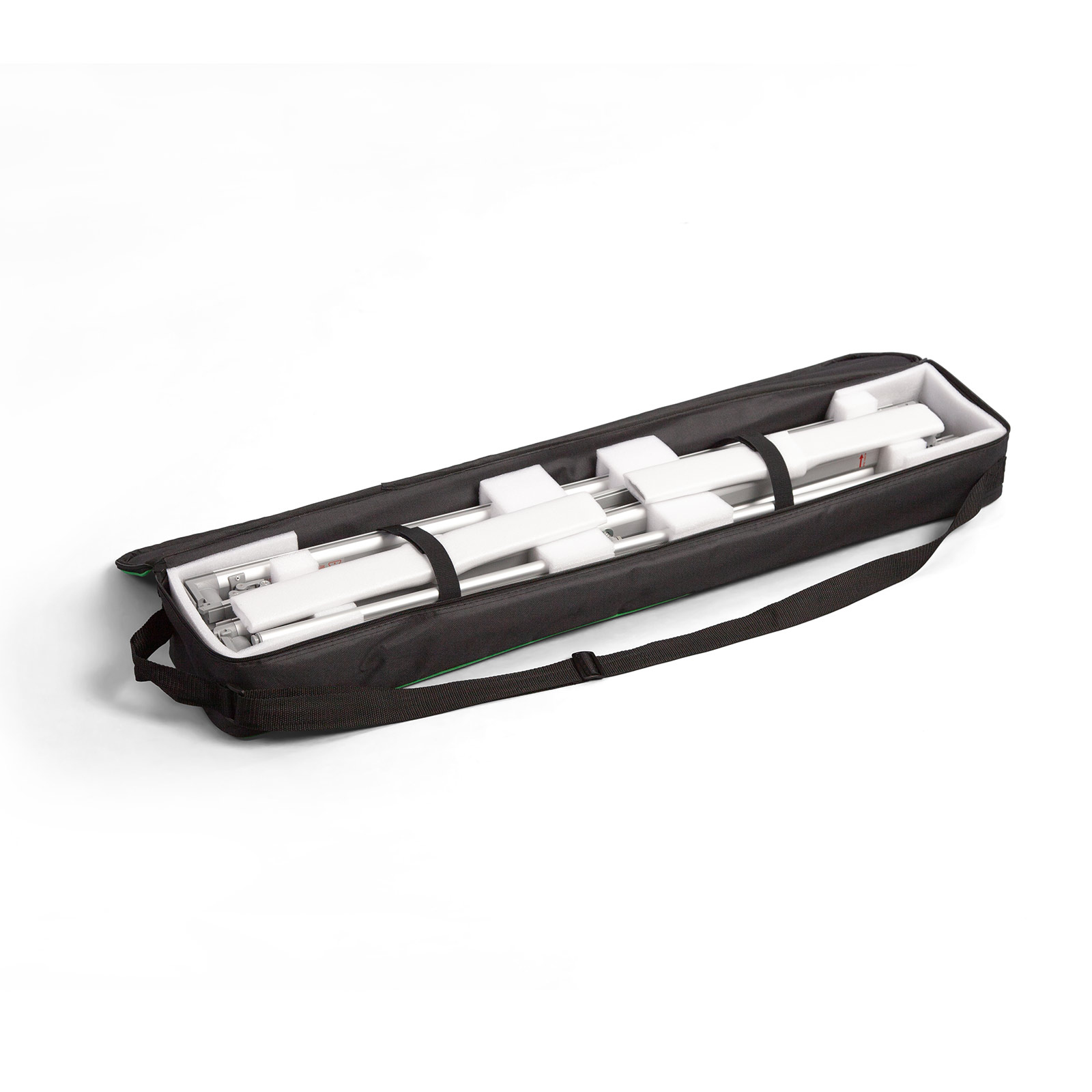

Each Keder frame is delivered separately packed in a padded transport bag.

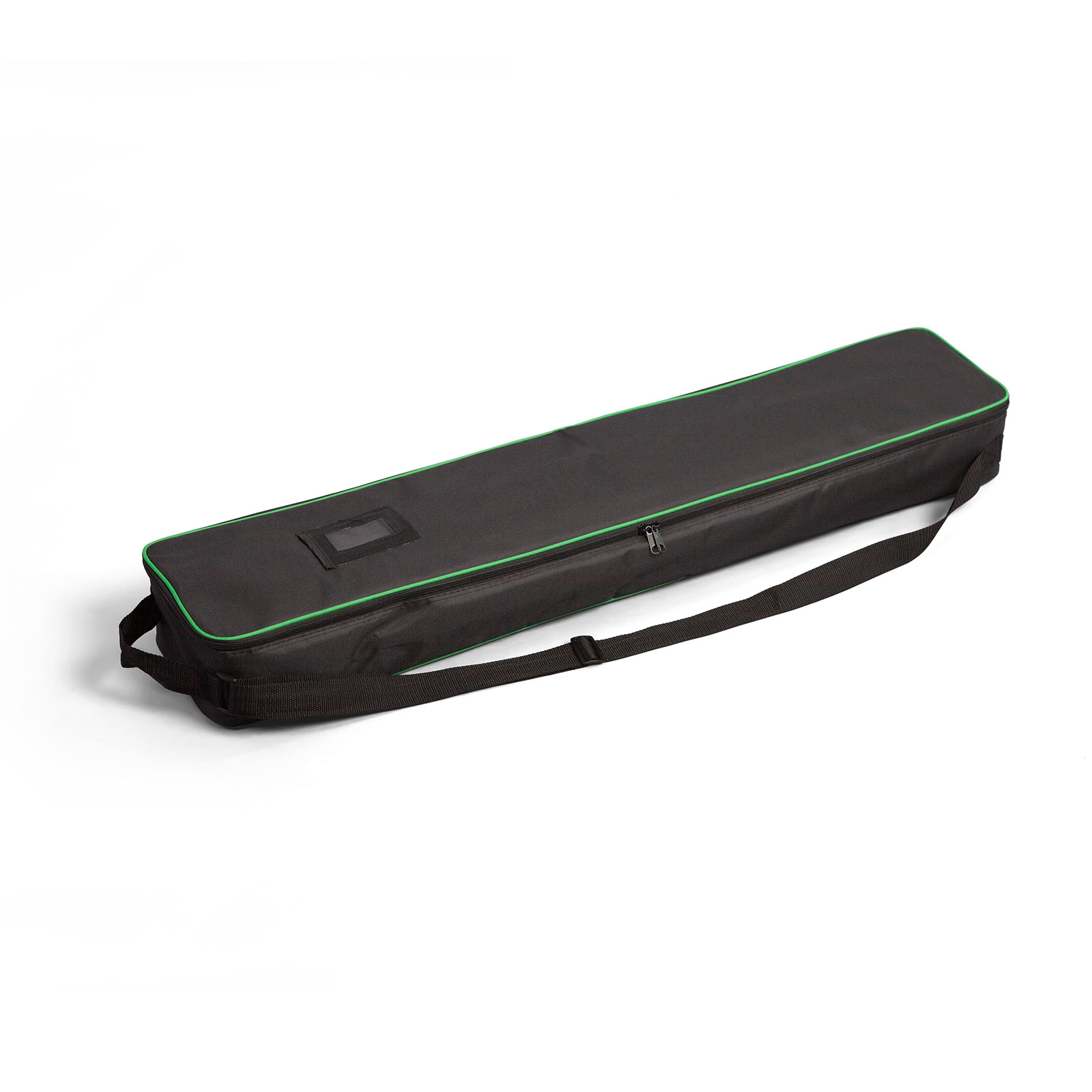

Transport Bag
Keder Frame System
Transport Bag Size
Gateway & Bridge
22 × 146 cm
Application
Indoor use
Your print data – prepared simply and correctly
We provide you with suitable layout templates and helpful tips for creating print data so that your desired product is created exactly according to your ideas. Please observe the respective specifications in order to prepare your data correctly for production and achieve optimum printing results.
Please upload your print data to your customer account after placing your order.
Good to know: You can cancel your order online free of charge until production begins.
Documents
Here you will find all the important documents relating to our products. All documents are conveniently available for download. Discover brochures, information and further details about our products - all compact and available at any time.
