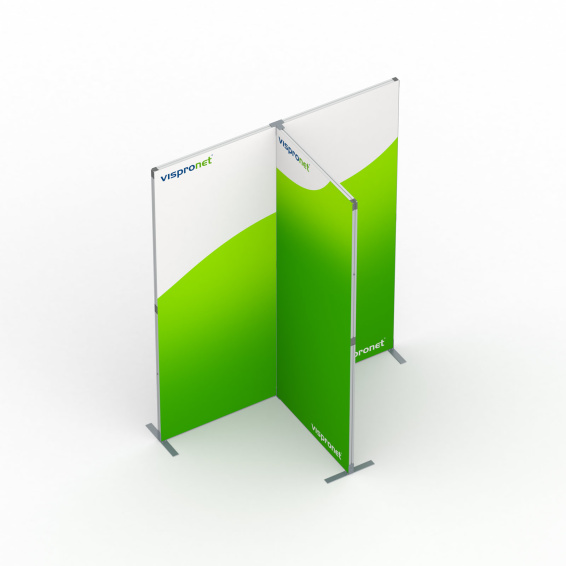

Keder Frame Flex T-Module

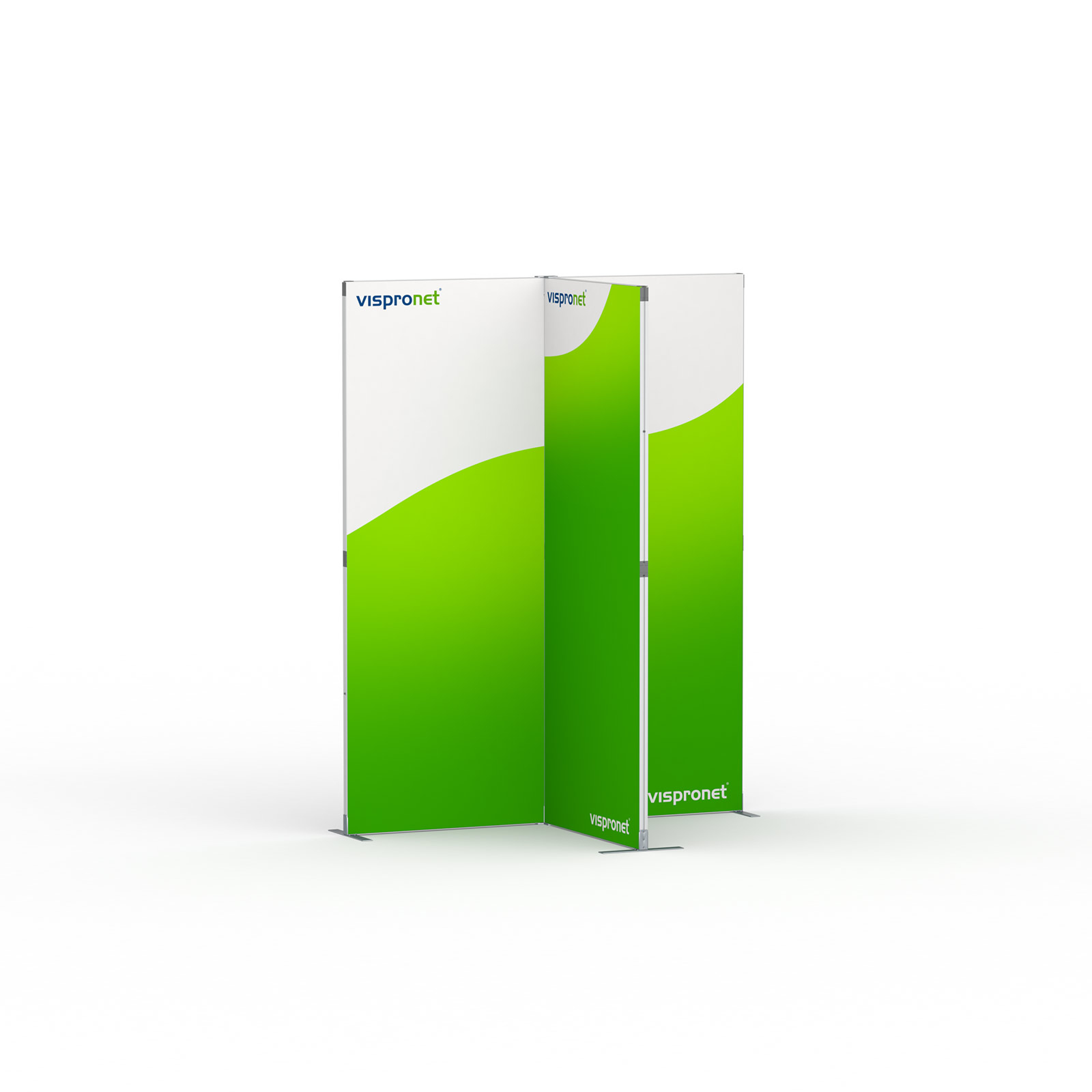

Mobile trade fair wall in T-shape with high-quality textile prints: Two foldable Keder frame flex units, connected at a 90° T-angle, create attention-grabbing advertising surfaces at trade fairs and events.
Execution – Printed Parts

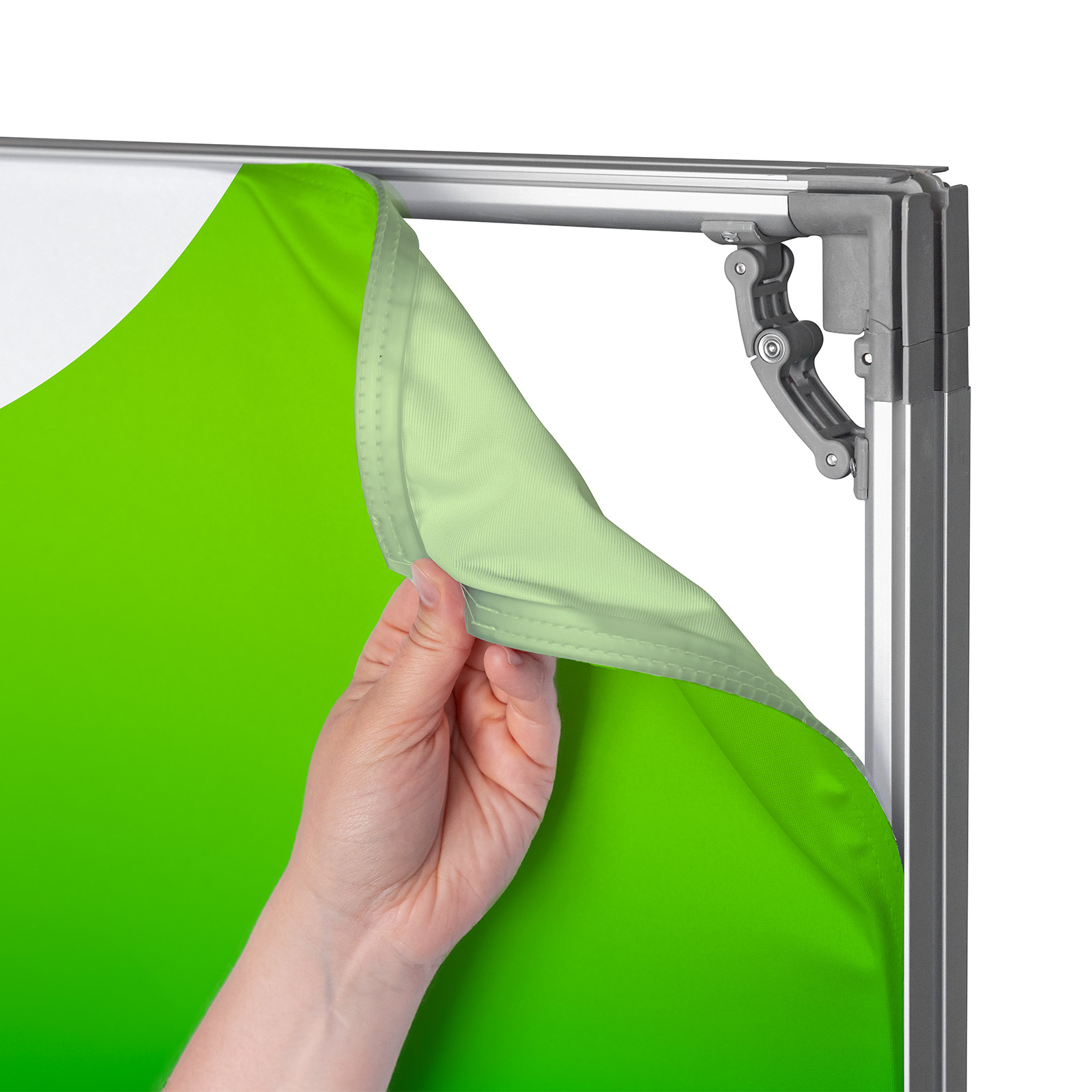

- all around with flat keder for attachment in the keder groove of the frame
- optimally tensioned print motif for a wrinkle-free presentation
- all sides printable with different motifs
- each with one continuous printed part per wall on front and back for optimal image reproduction
Materials
- Multisol® X SE: crease-resistant material with high opacity and brilliant color reproduction
- Multisol® X Opak SE: 100 % opaque material with high color brilliance, light-impermeable, back coated black

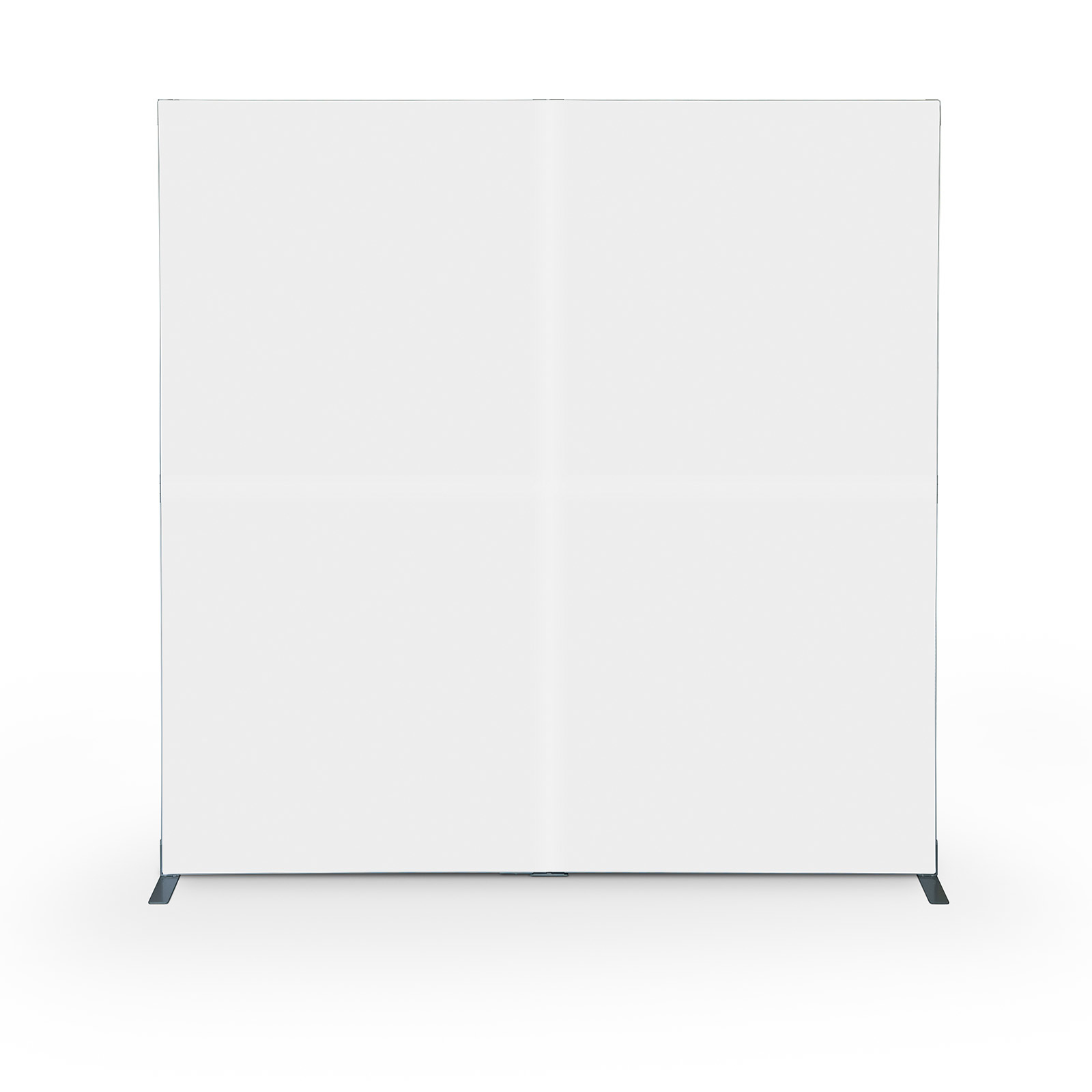

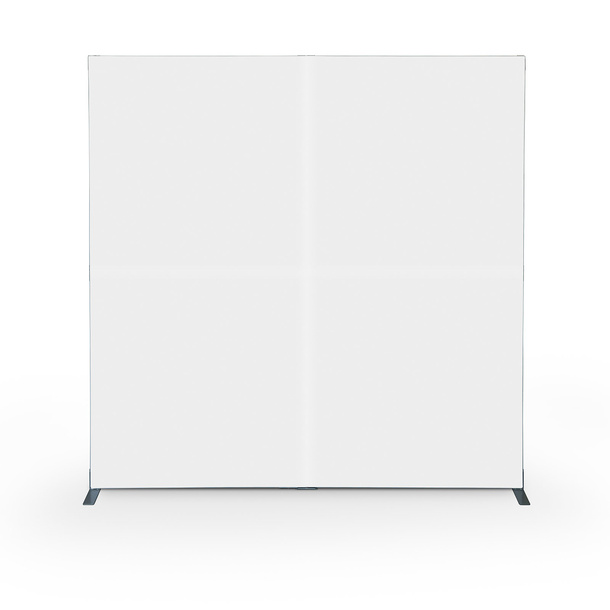

- Please note that with light designs or large single-color areas, the system may slightly show through. For such motifs, we recommend the opaque material Multisol® X Opak SE.
Tip: For sustainable use of your system with always up-to-date motifs, we recommend the
replacement prints for Keder frames

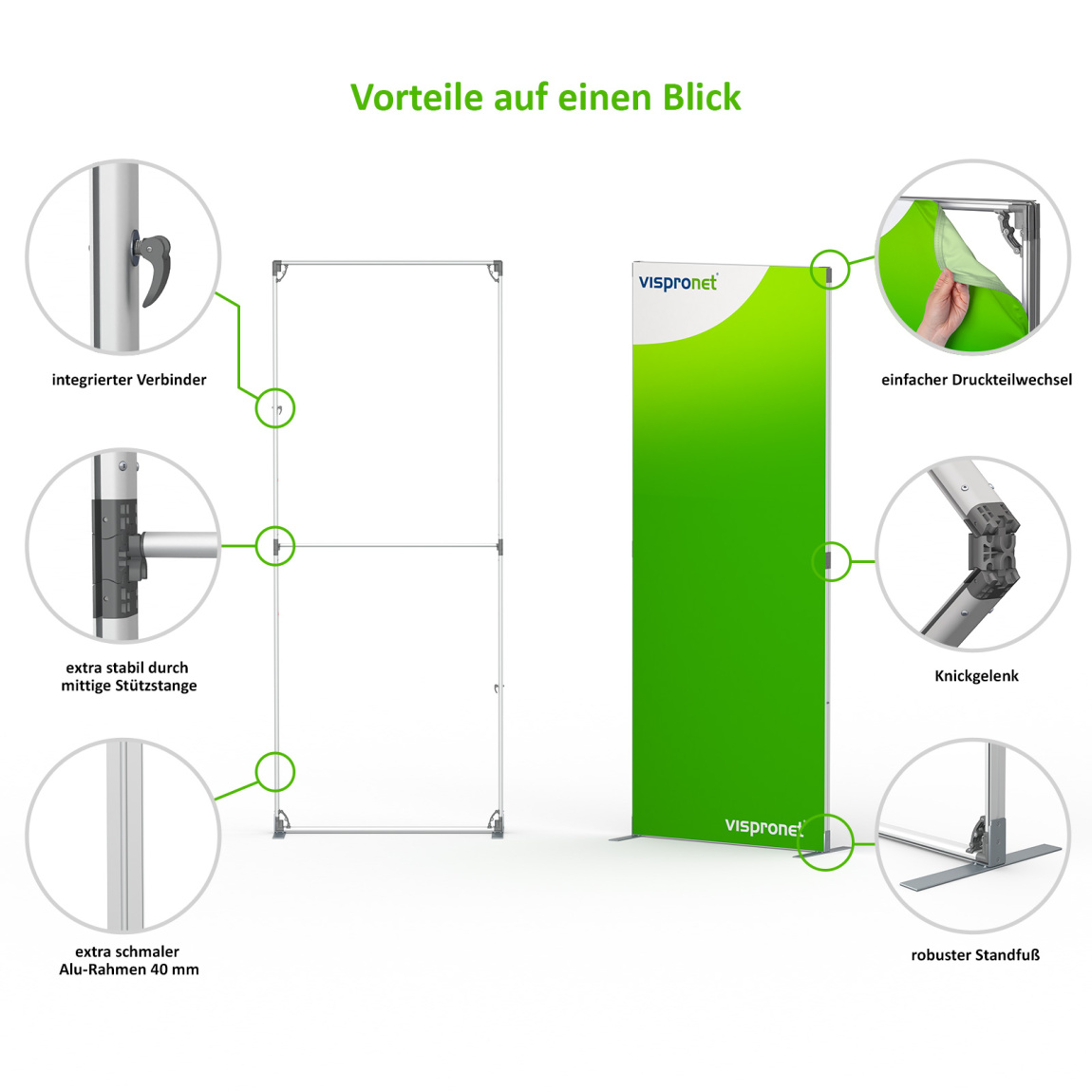

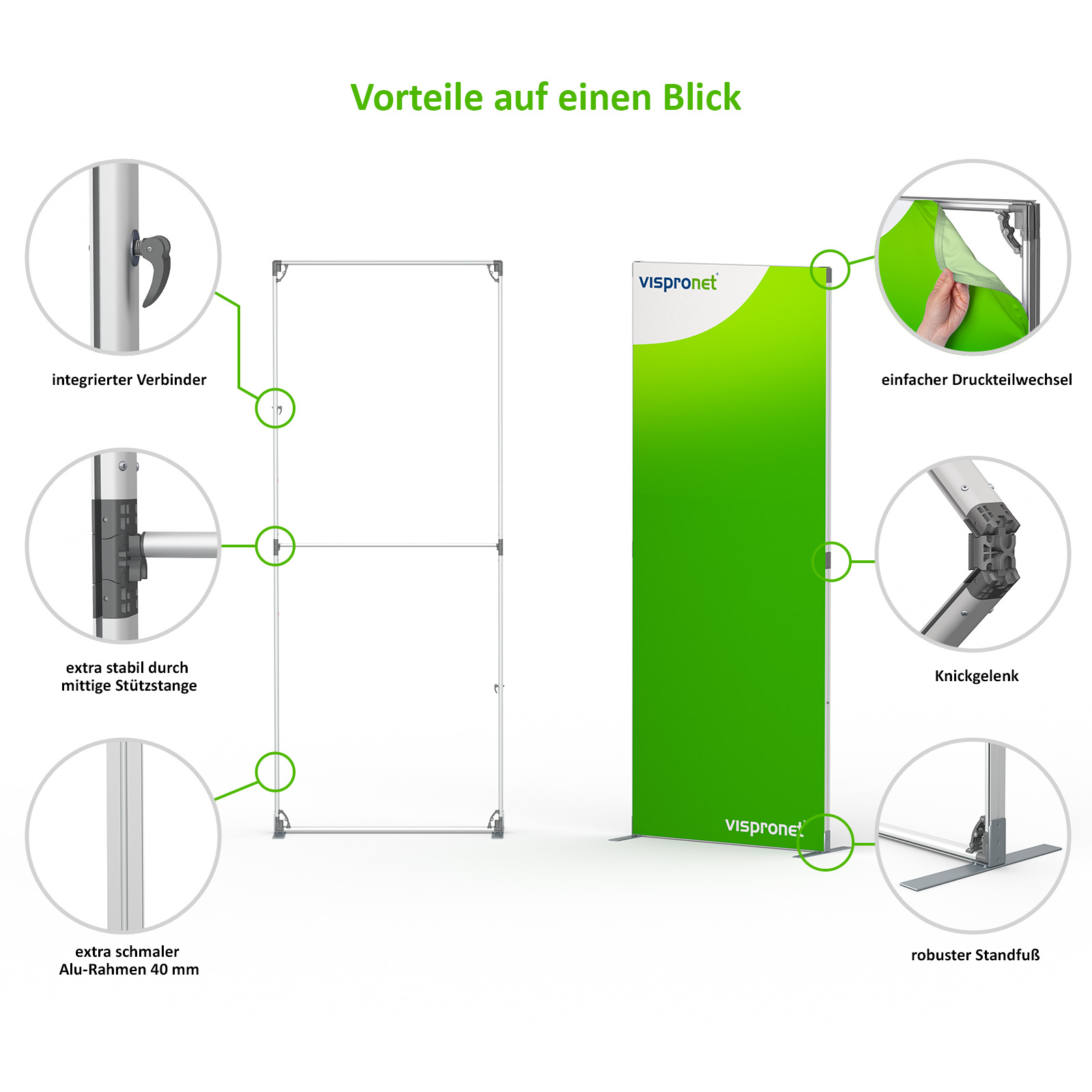

Execution – System
- Utility model protected frame system GM: 20 2023 100 050

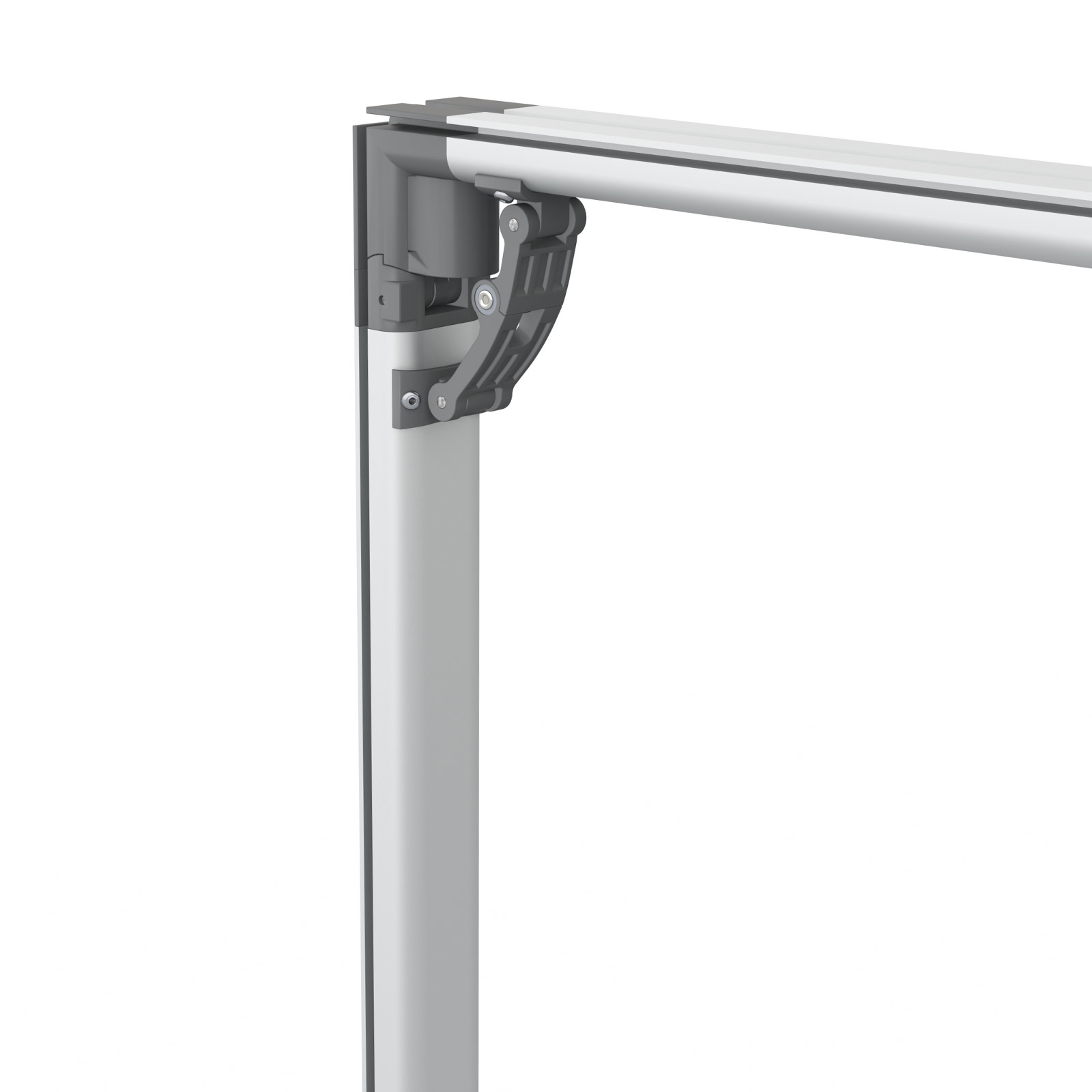

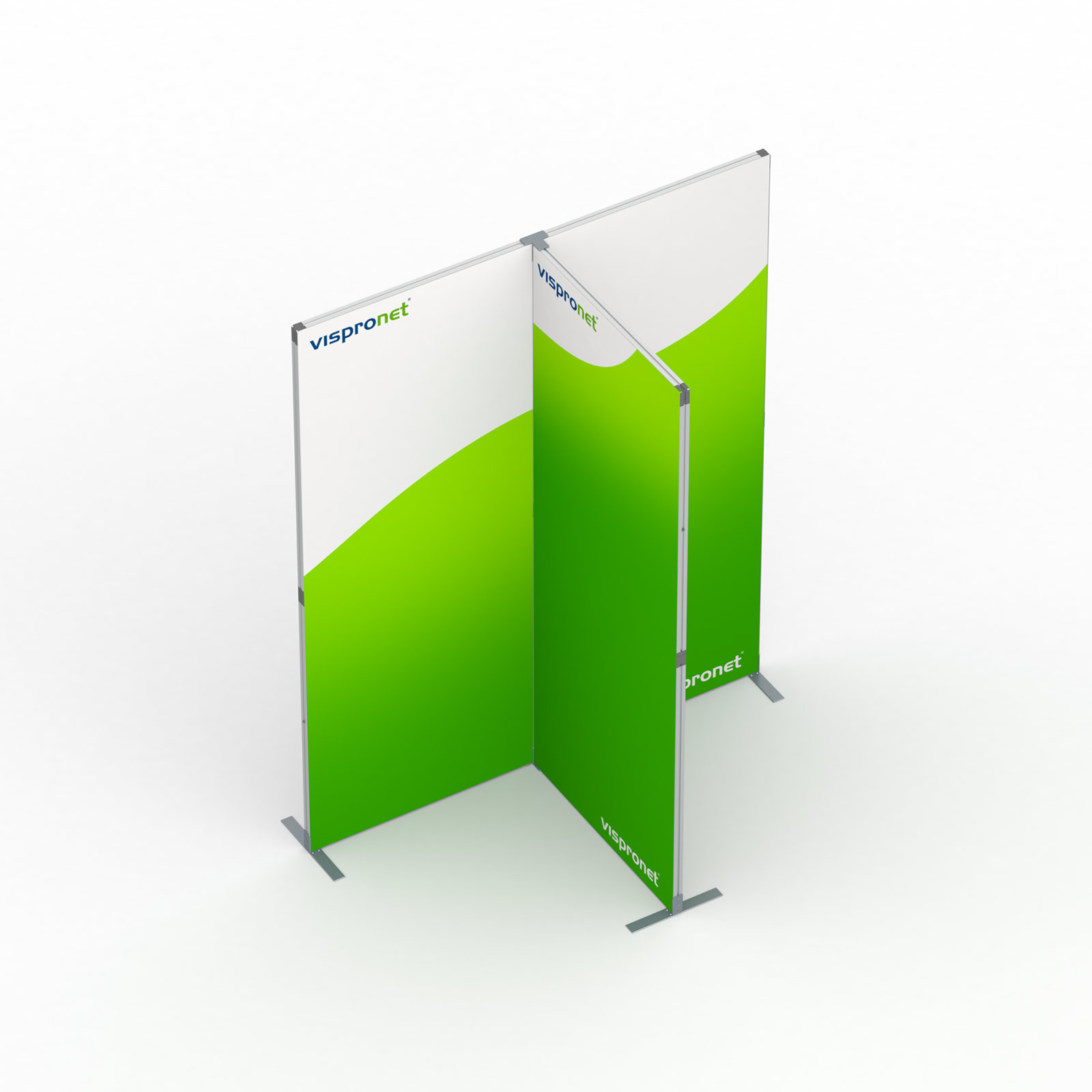

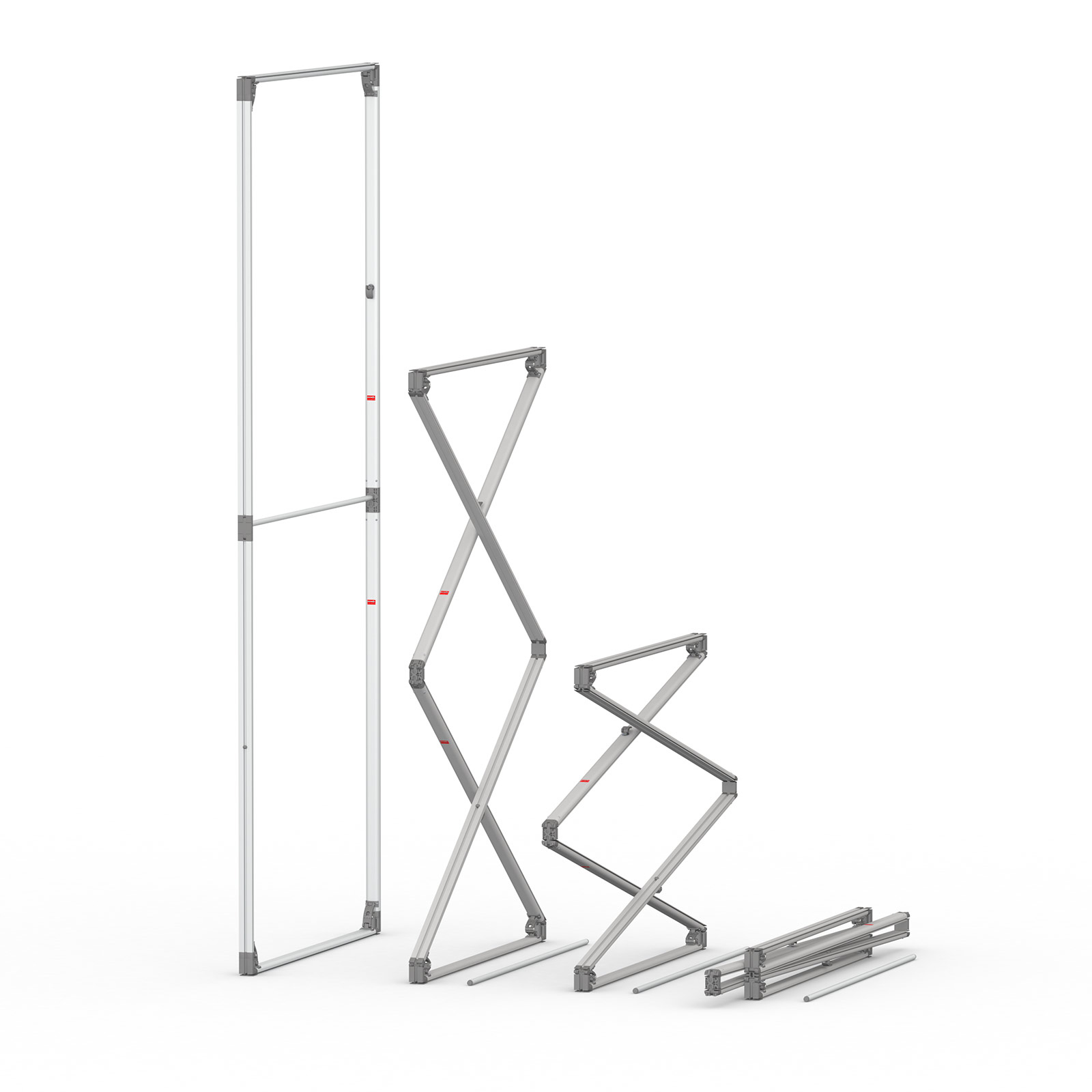

- 2 foldable folding frames, connected at a 90° angle (including T-connector)
- Material: anodized aluminum
- Frame depth: 4 cm, slim frame profile for optimal motif effect

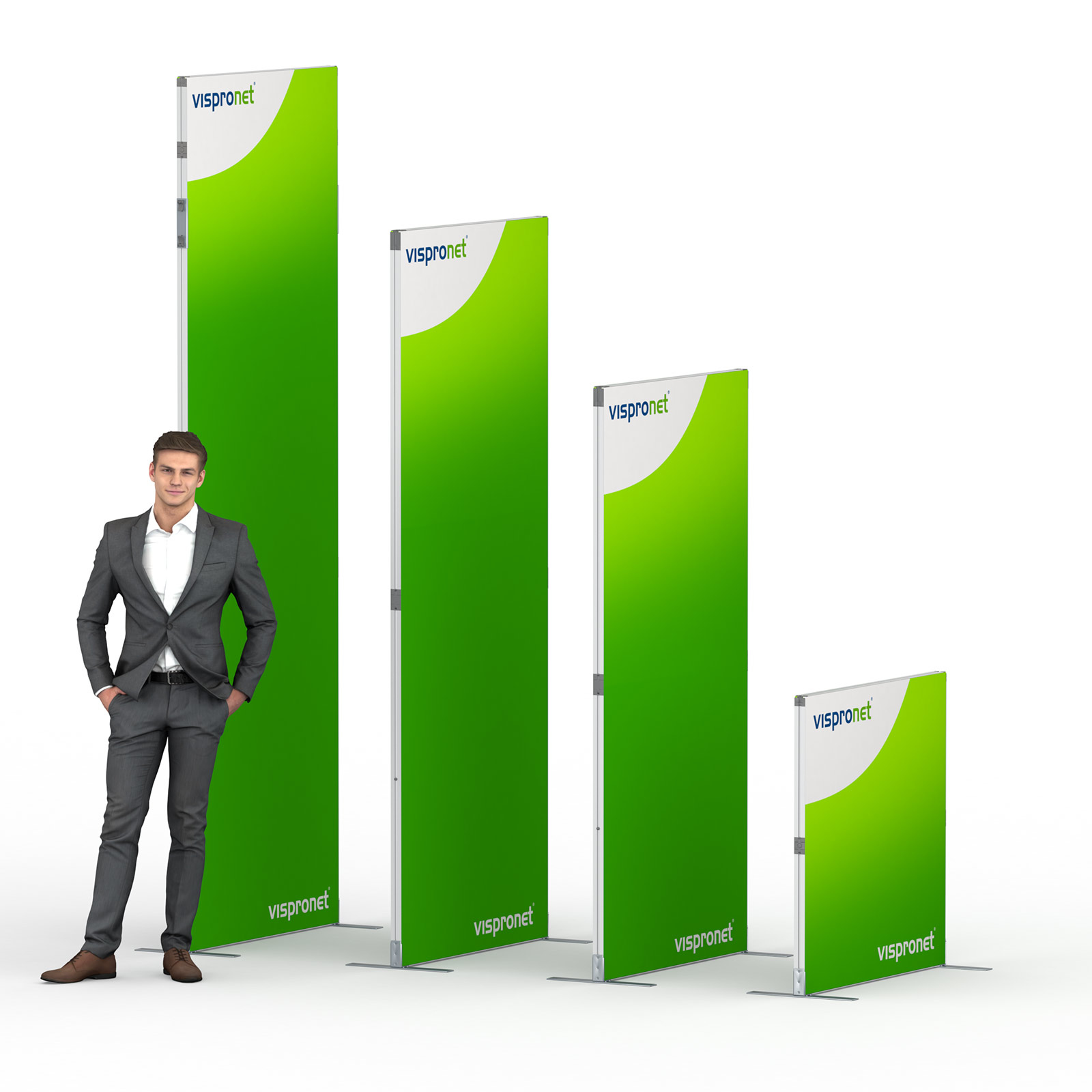

- Frame heights: 200, 250, 300 cm
- Frame widths: 100, 200, 300, 400 cm

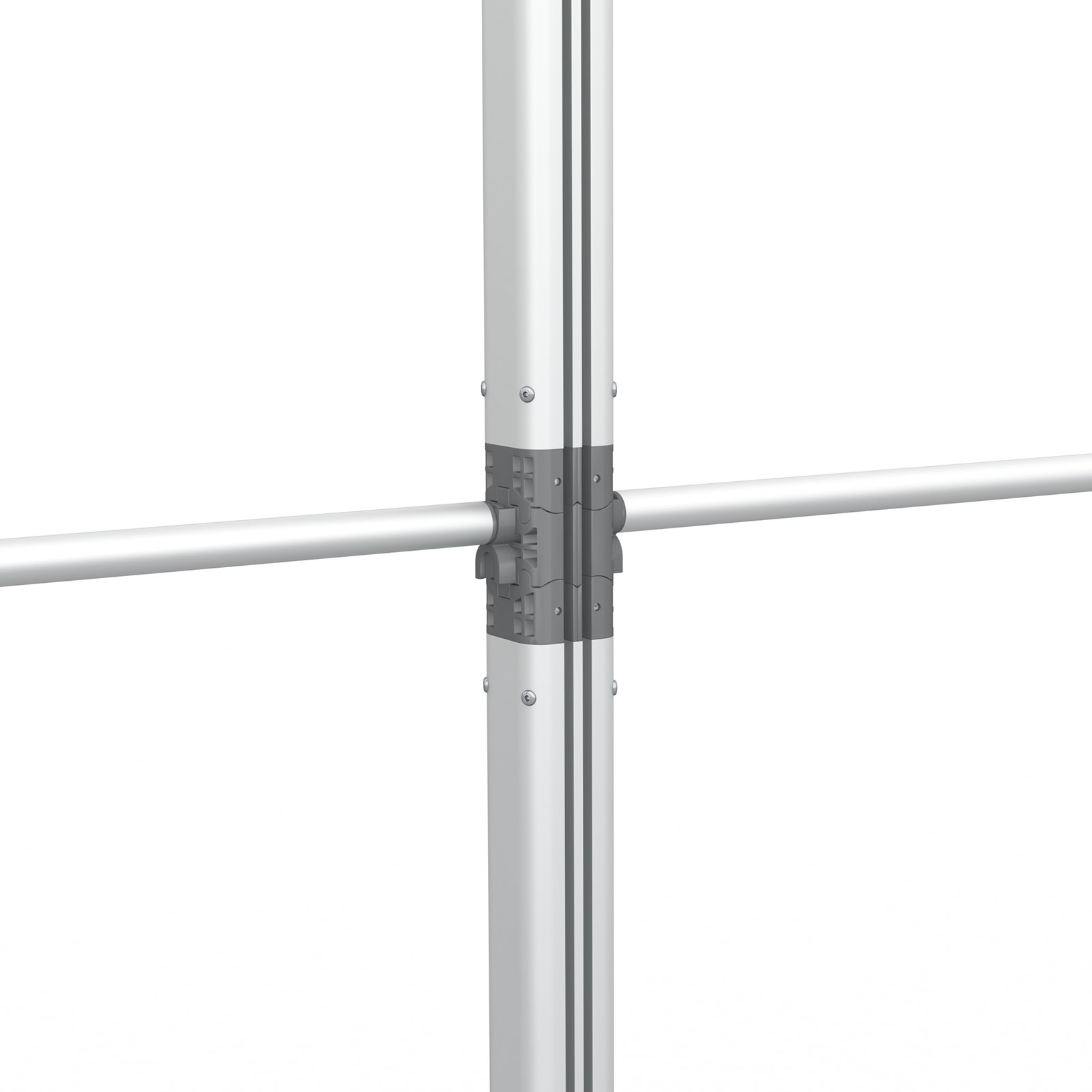

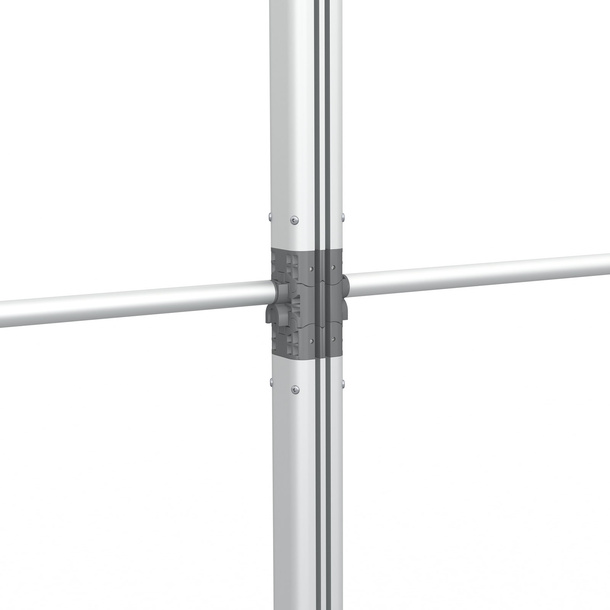

- Integrated connectors on right and left frame side

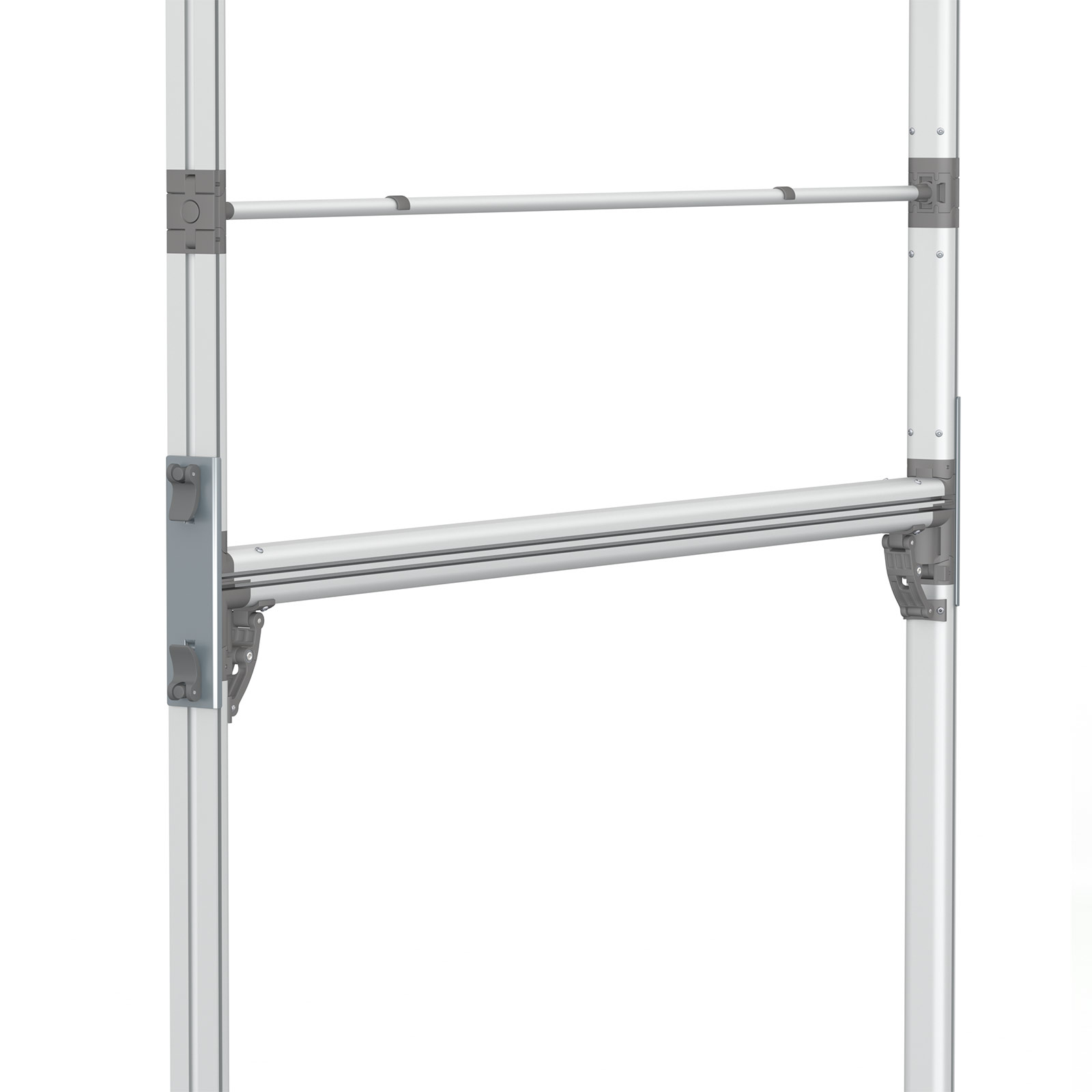

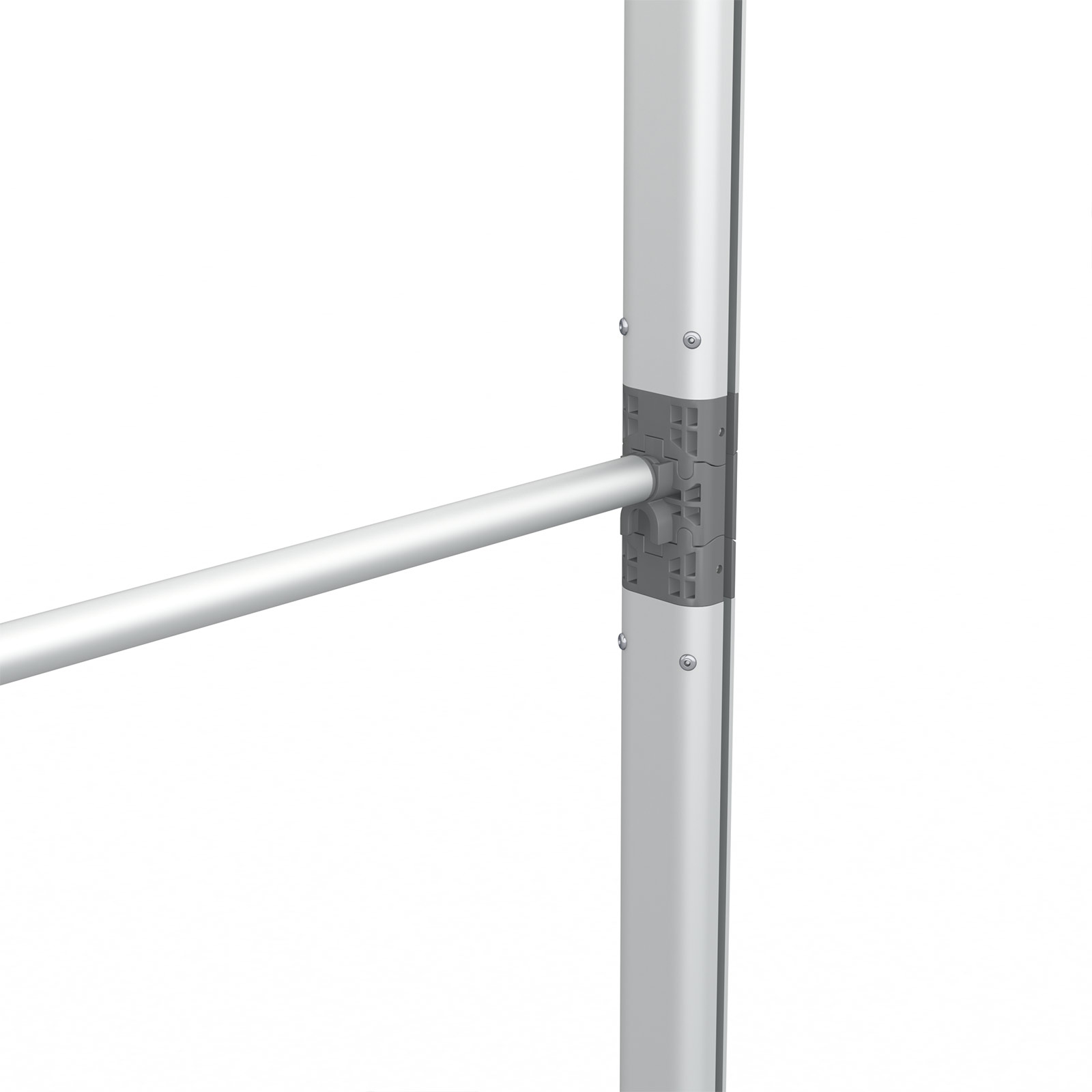

- Central support rods for additional stability

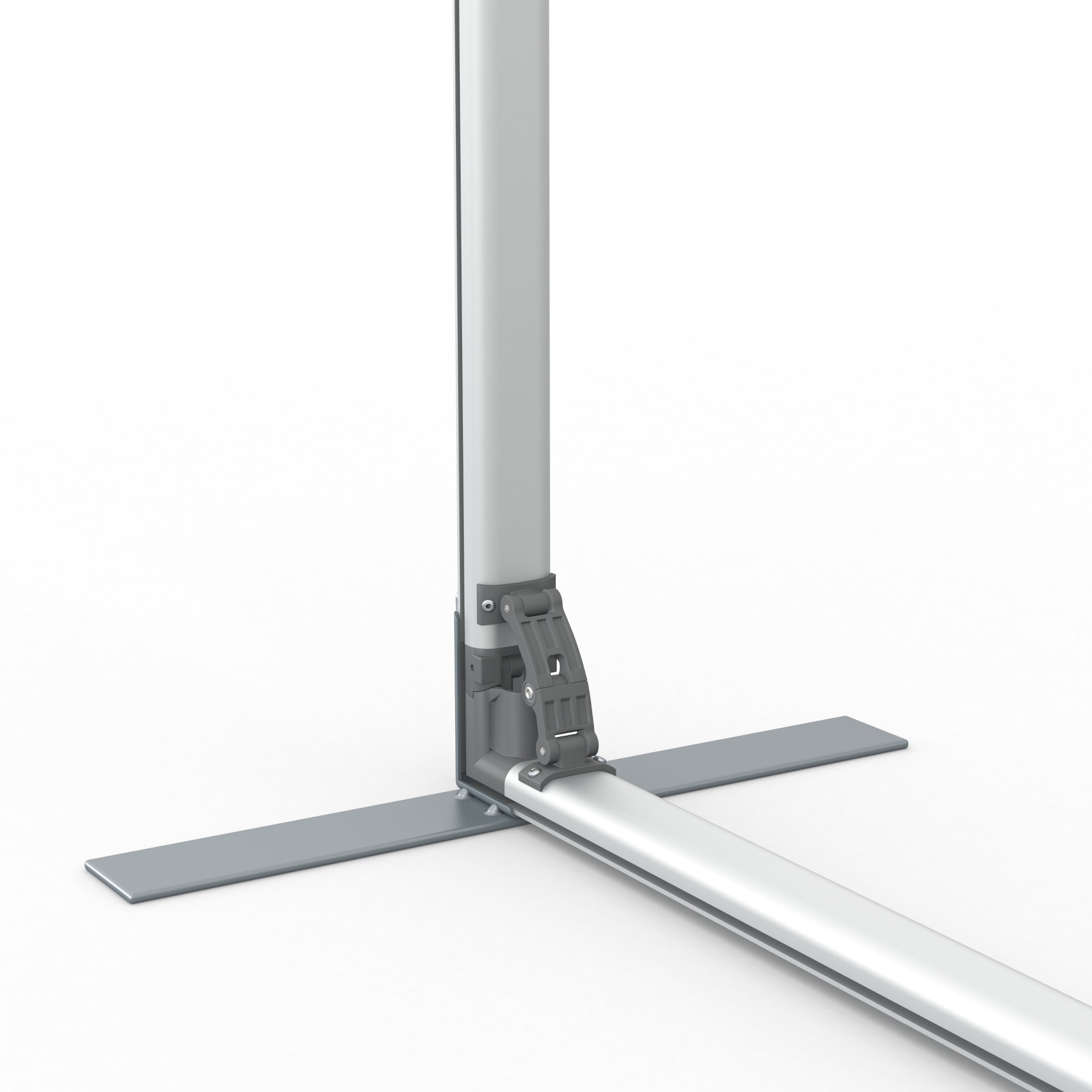

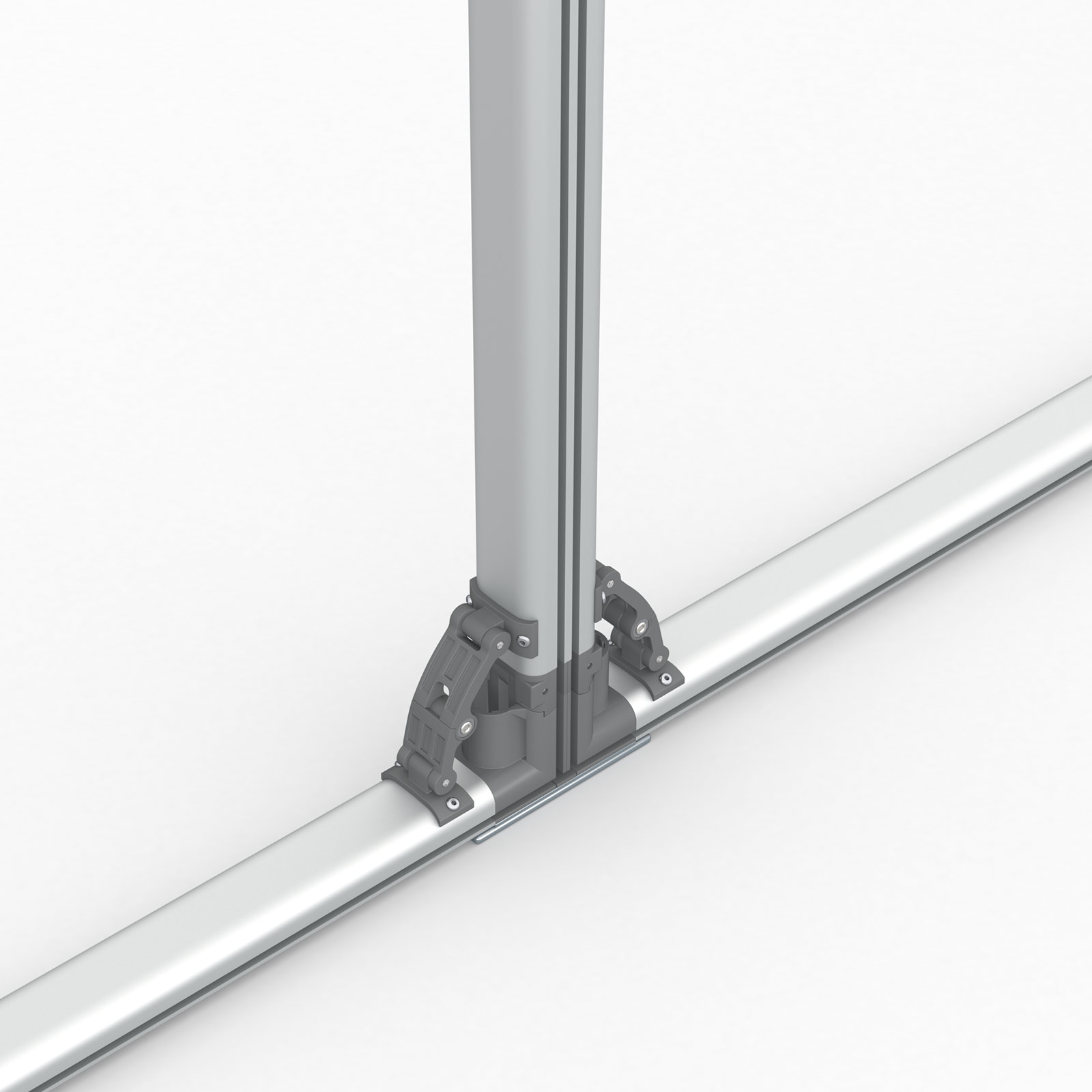

- Feet (40 cm) for stable standing

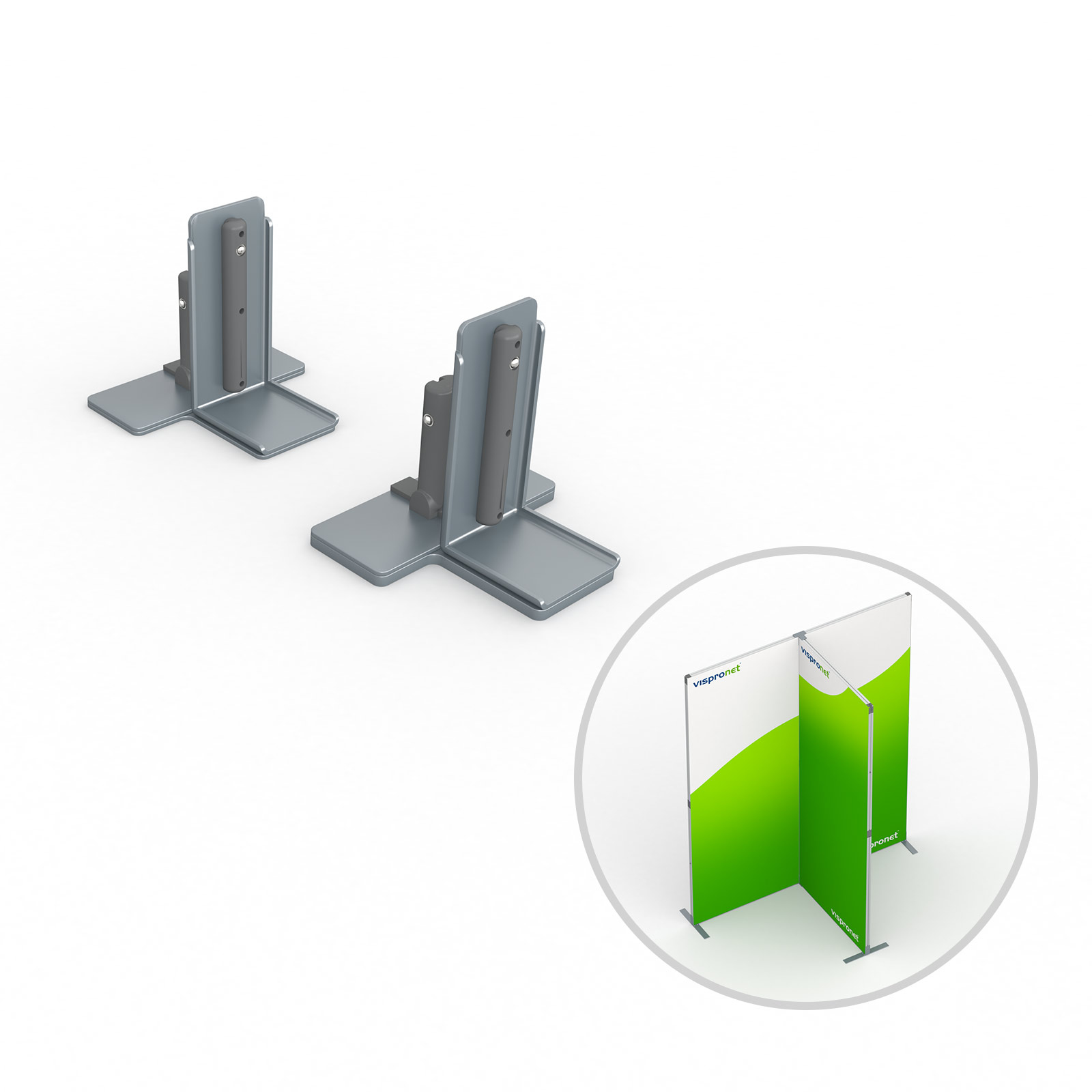

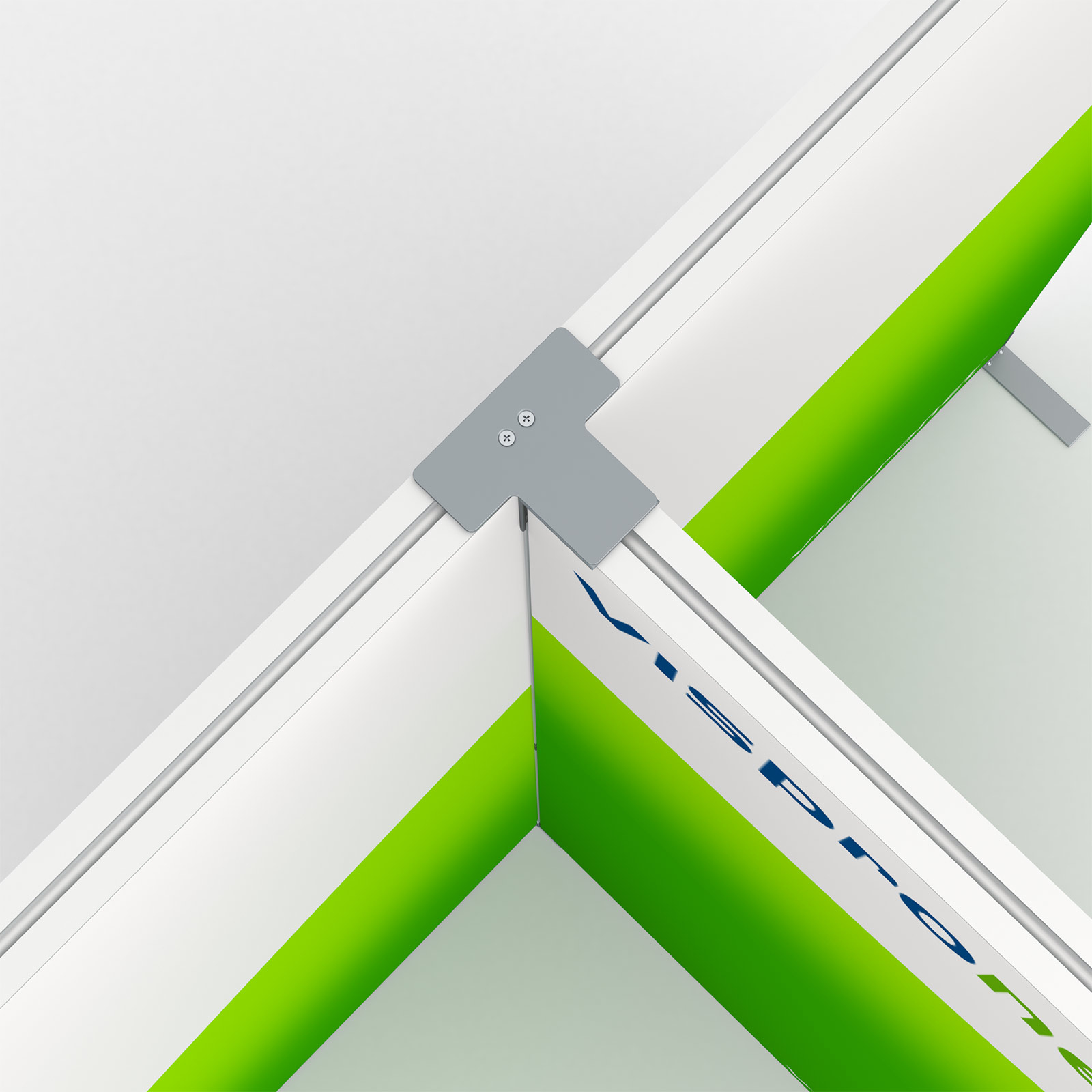

- Including accessory set T-module consisting of:
- 1x T-module connector top
- 1x T-module connector bottom
- Super fast assembly: simply pull frame systems apart, insert support rods – done

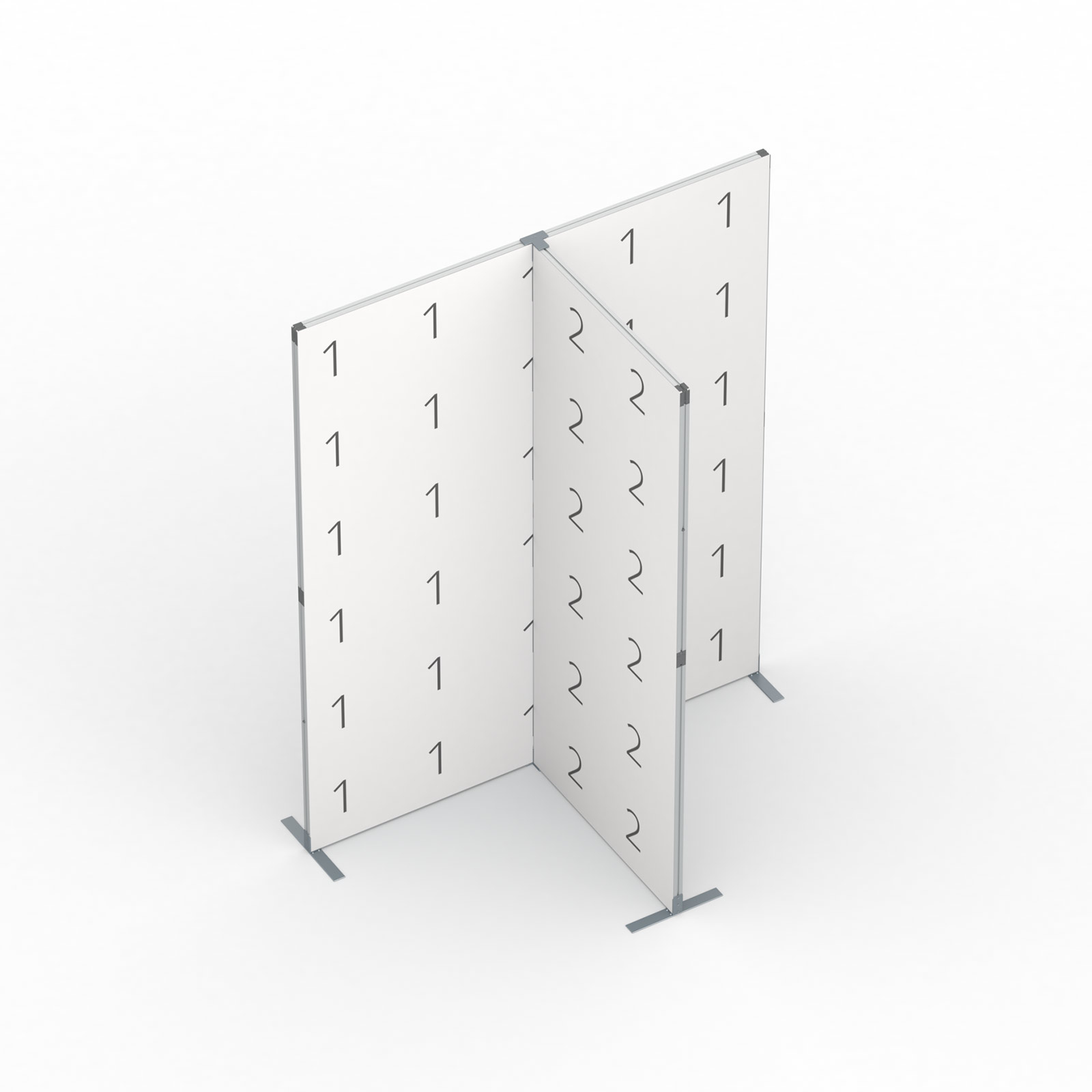

Notes on the Arrangement of Printed Parts
Sizes and Weights
| System Width |
Weight* |
|
Height 200 cm |
Height 250 cm |
Height 300 cm |
| 100 cm |
7.00 kg |
8.50 kg |
15.00 kg |
| 200 cm |
14.50 kg |
17.50 kg |
29.00 kg |
| 300 cm |
21.50 kg |
26.00 kg |
43.50 kg |
| 400 cm |
29.50 kg |
35.50 kg |
58.00 kg |
| T-Module (Connector Set) |
0.83 kg |
*All dimensions are approximate; technical changes and tolerances reserved.
Scope of Delivery
- Complete set: Keder frame flex system (2 foldable aluminum frames including feet and support rods), connector set "T-Module", 4 printed parts (2x front and back each), transport bag
- Printed parts: 4 printed parts, 2x front and back each (without system)
- System: Keder frame flex system consisting of 2 foldable aluminum frames including feet and support rods, connector set "T-Module", transport bag (without printed parts)
- Each Keder frame is delivered separately packed in a padded transport bag.

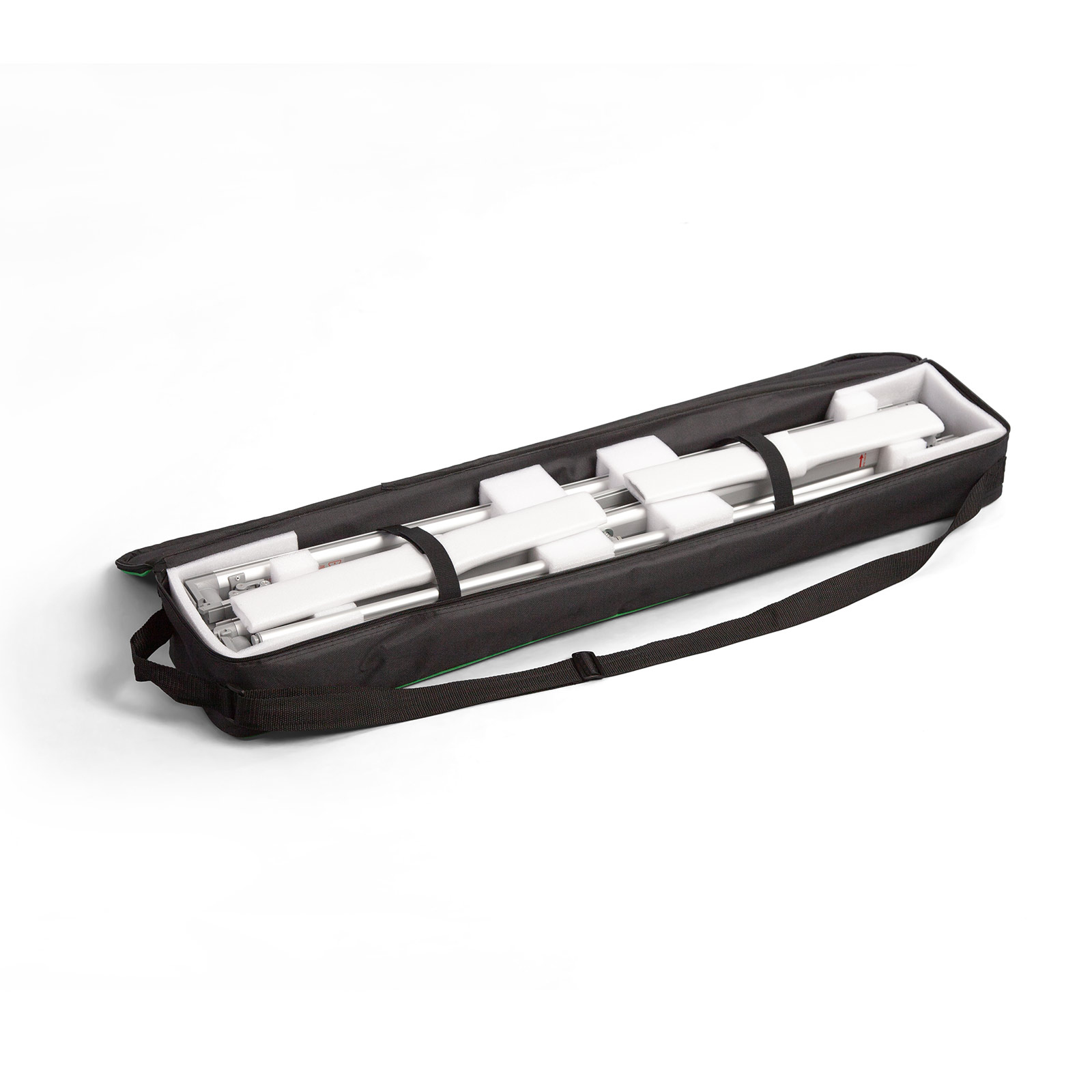

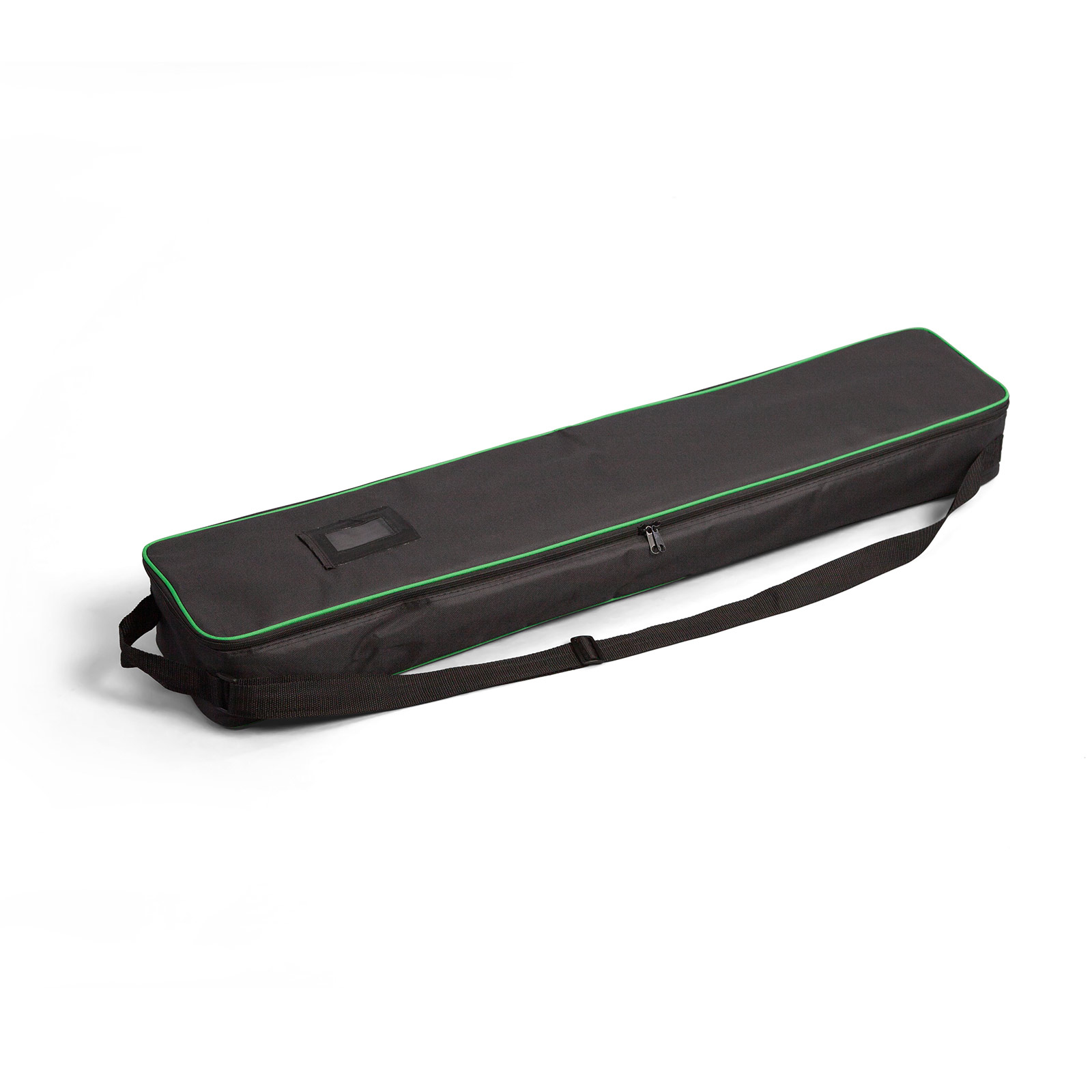

Transport Bags
| Keder Frame System |
Transport Bag Size(s) |
| 100 × 200 cm |
20 × 105 cm |
| 100 × 250 cm |
22 × 146 cm |
| 100 × 300 cm |
22 × 146 cm and 16 × 104 cm |
