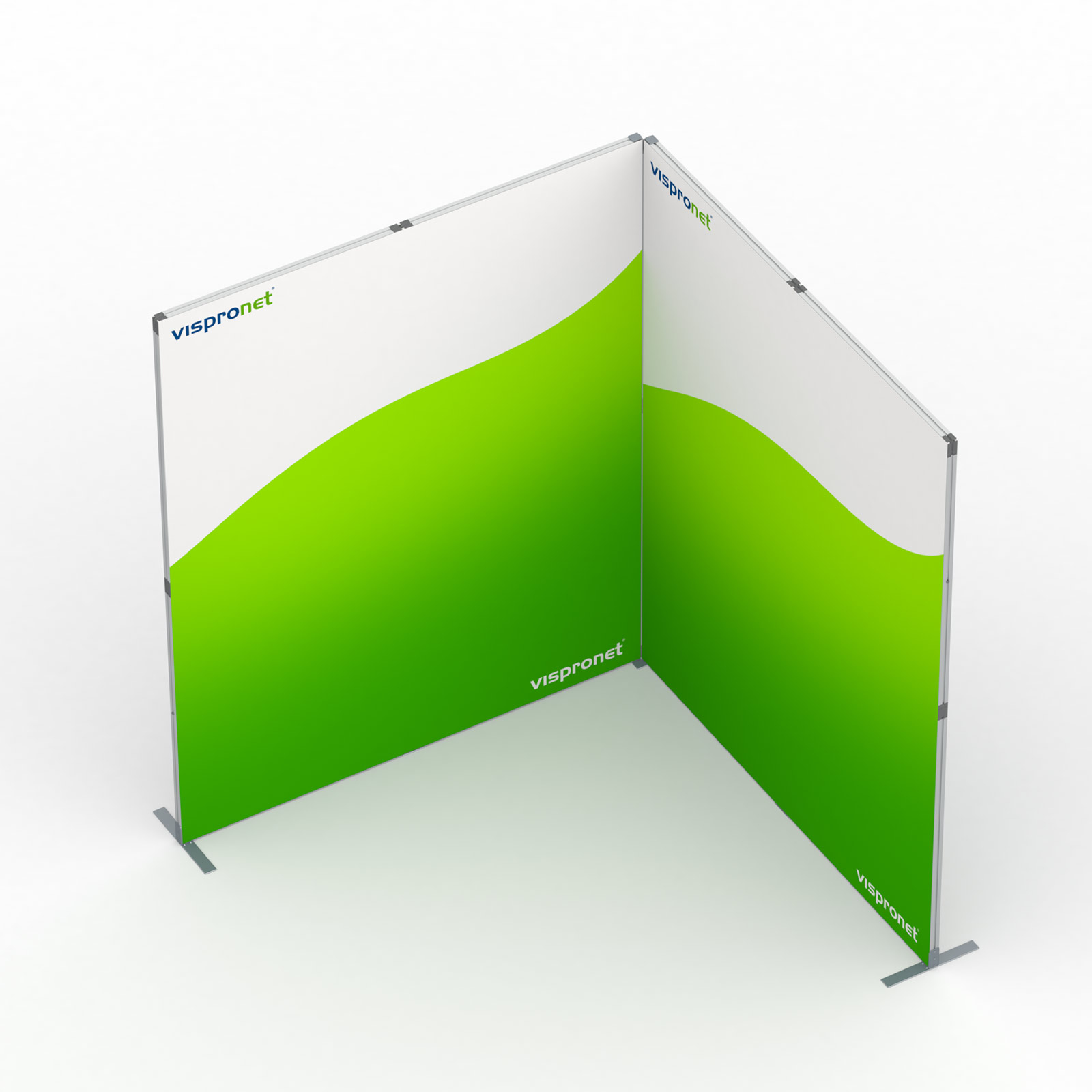

Keder Frame Flex Corner Module

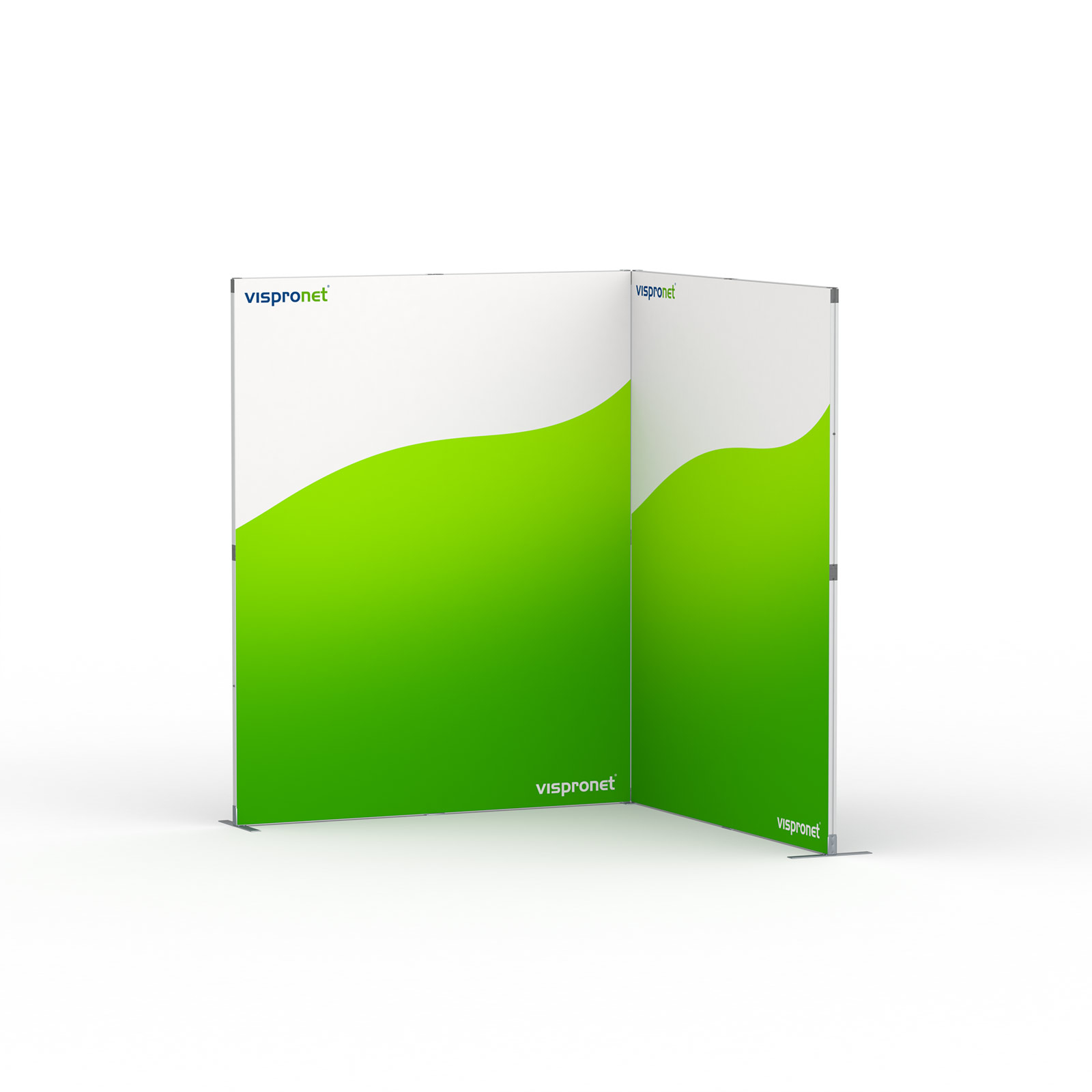

Mobile corner trade fair wall with high-quality textile prints: Two foldable Keder Frame Flex units connected at a 90° angle form a stable, modern corner solution – ideal for attention-grabbing presentations at trade fairs and events.
Execution – Print Parts

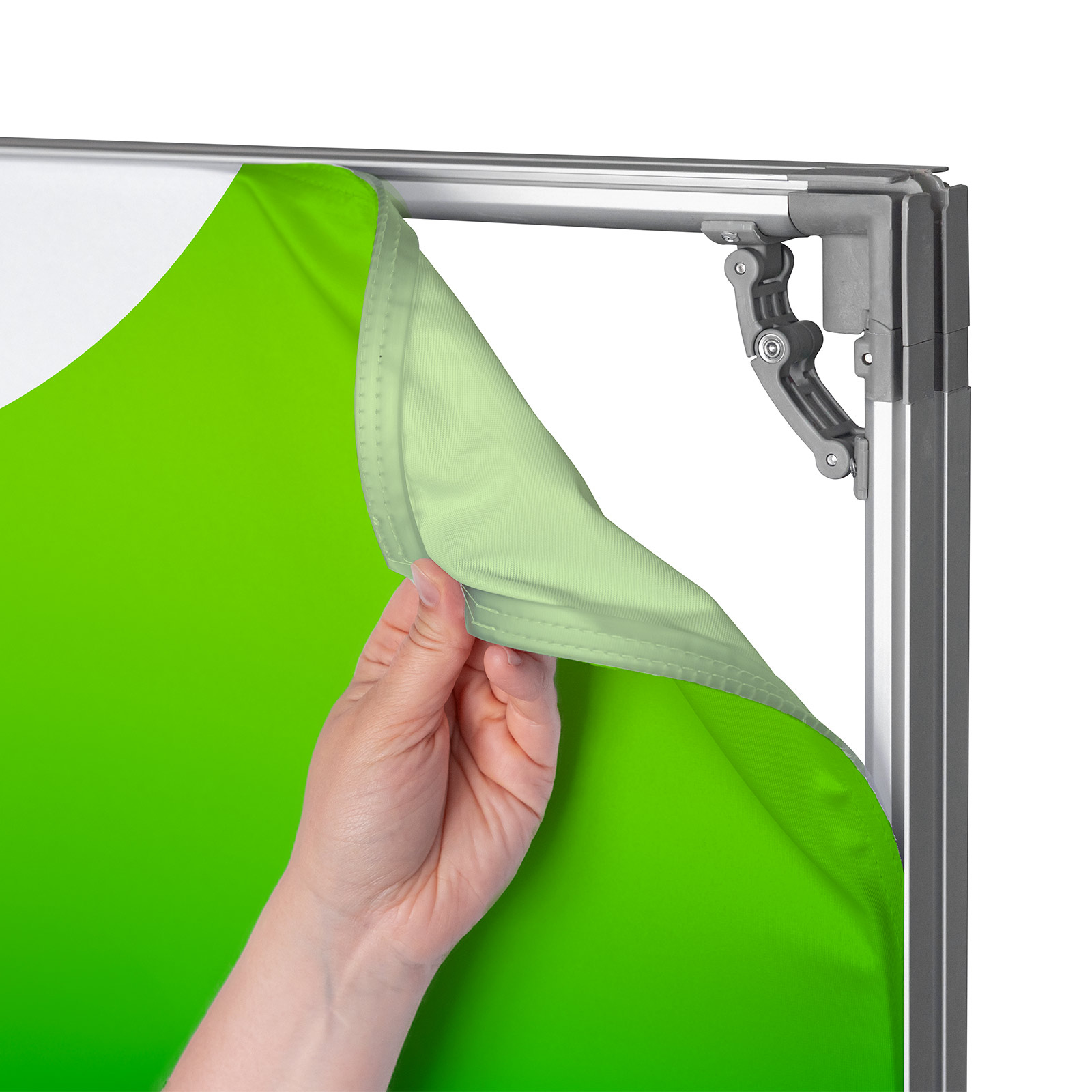

- All around with flat keder for attachment in the keder groove of the frame
- Optimally tensioned print motif for a wrinkle-free presentation
- Printable on both sides individually with identical or different motifs
- Each with one continuous print part per wall on front and back for optimal image reproduction
Materials
- Multisol® X SE: crease-resistant material with high opacity and brilliant color reproduction
- Multisol® X Opak SE: 100 % opaque material with high color brilliance, light-impermeable, back coated black

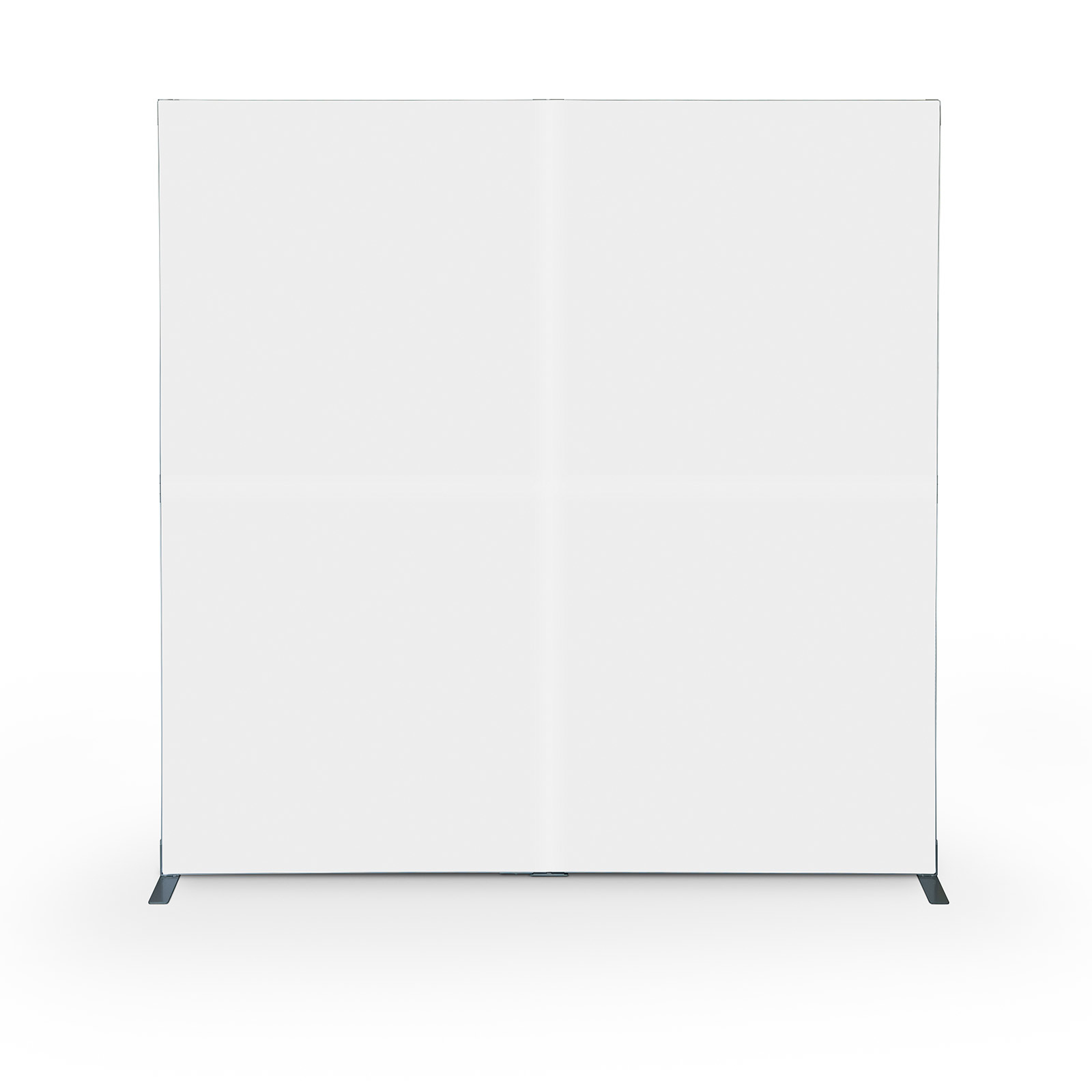

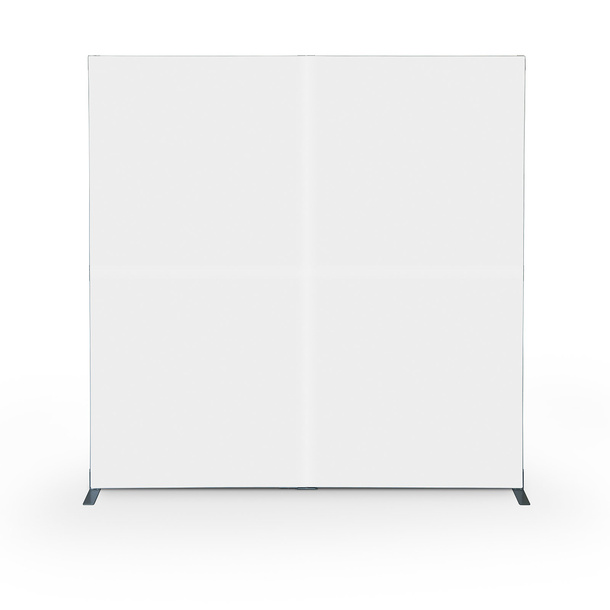

- Please note that with light designs or large solid color areas the system may slightly show through. For such motifs, we recommend the opaque material Multisol® X Opak SE.
Tip: For sustainable use of your system with always up-to-date motifs, we recommend the
replacement prints for Keder frames

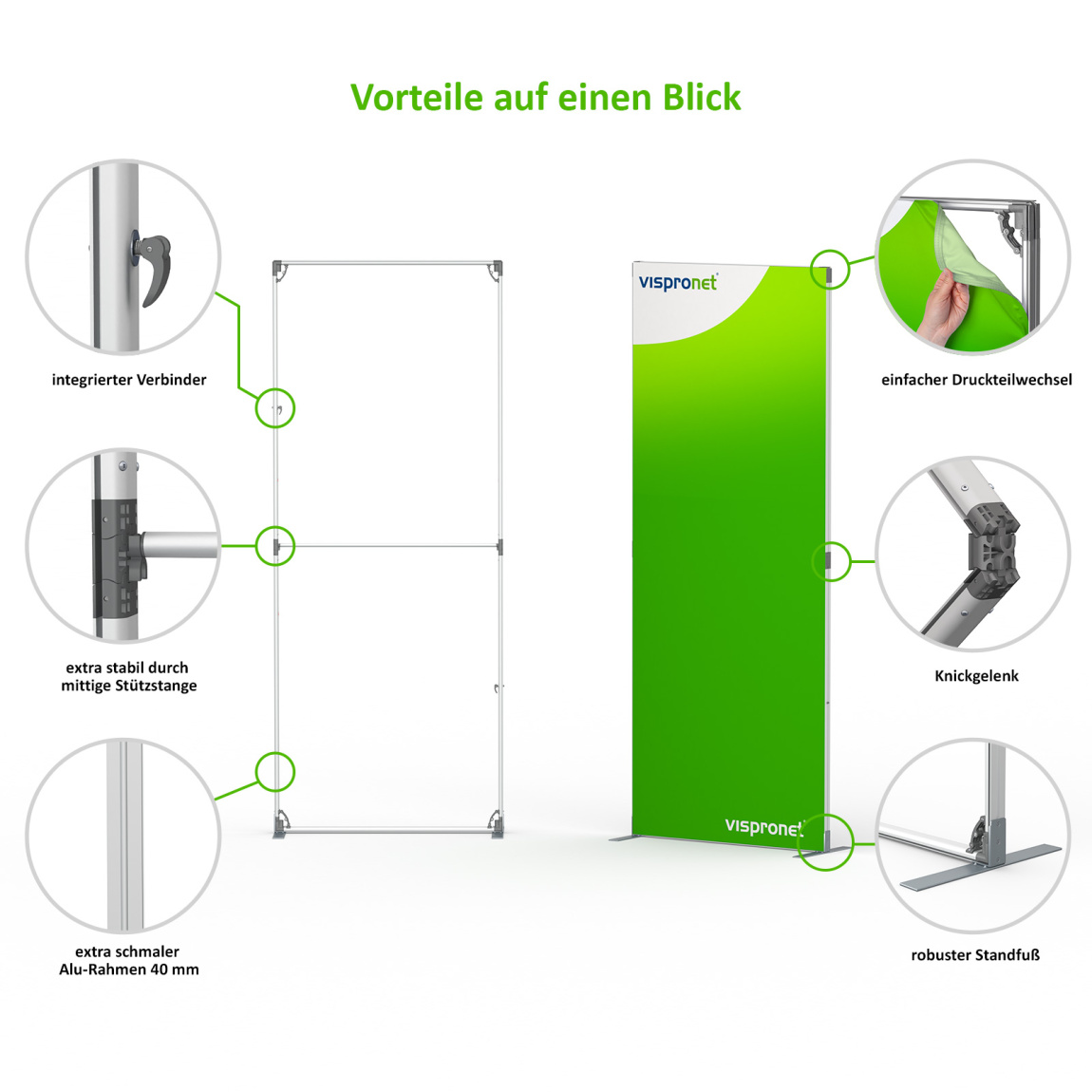

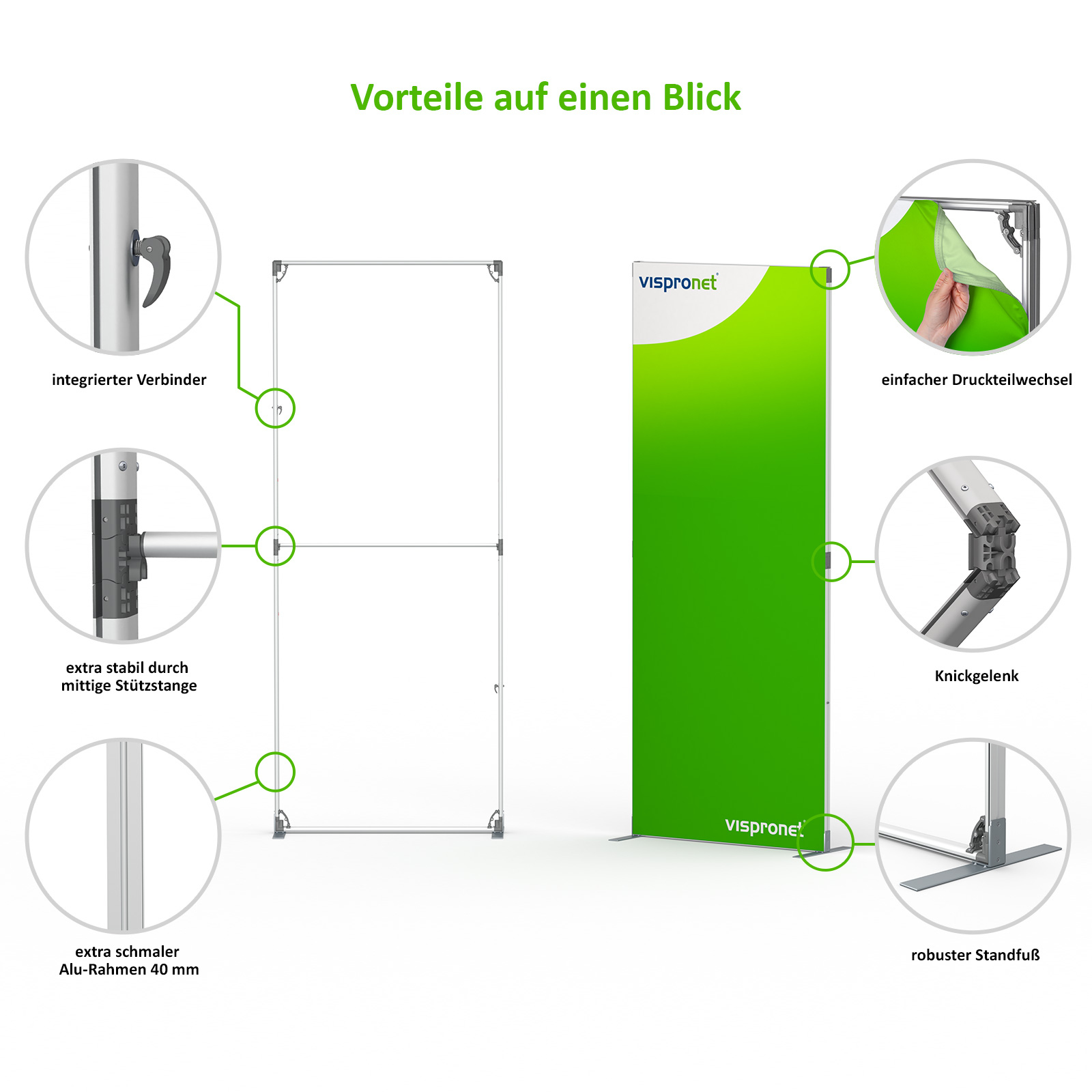

Execution – System
- Utility model protected frame system GM: 20 2023 100 050

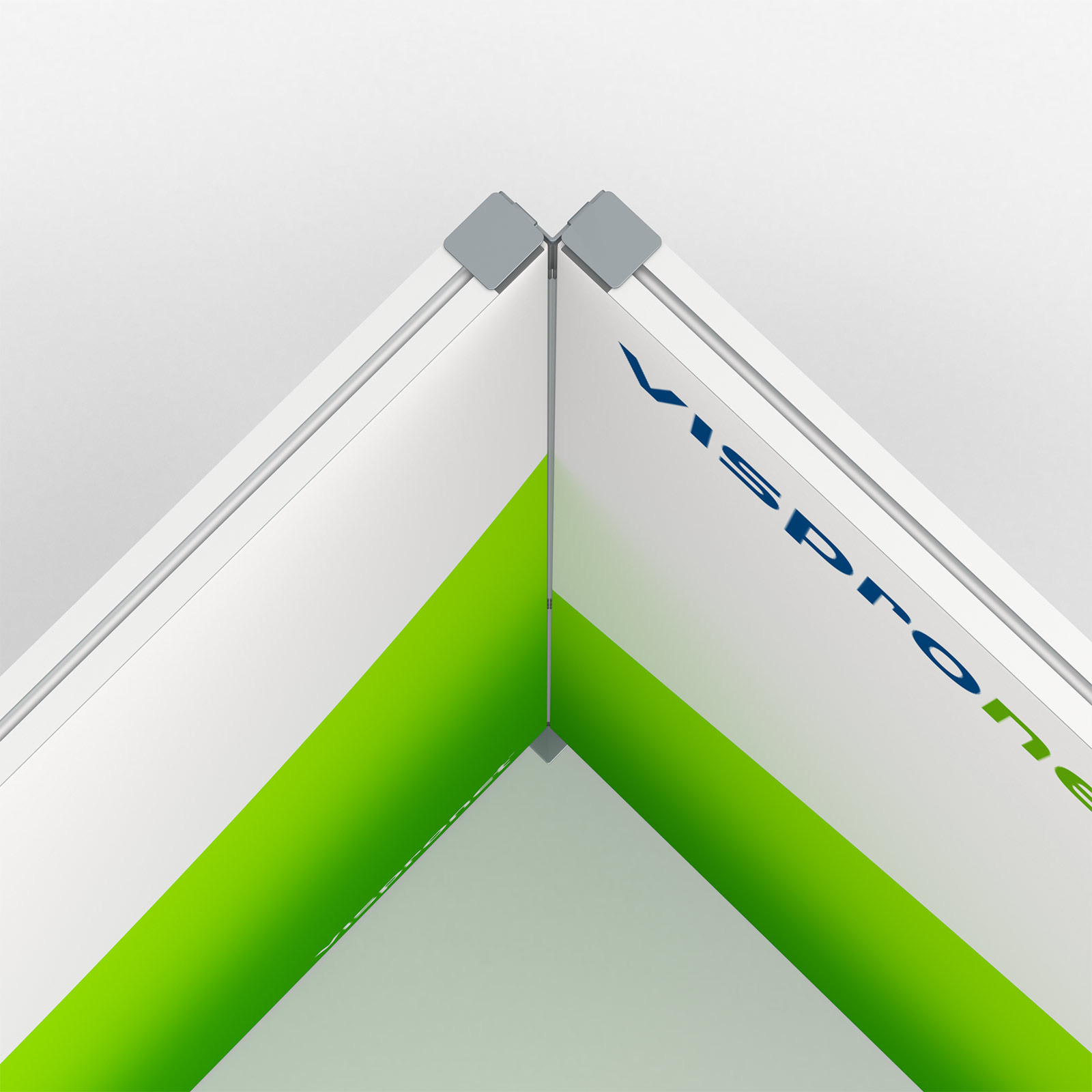

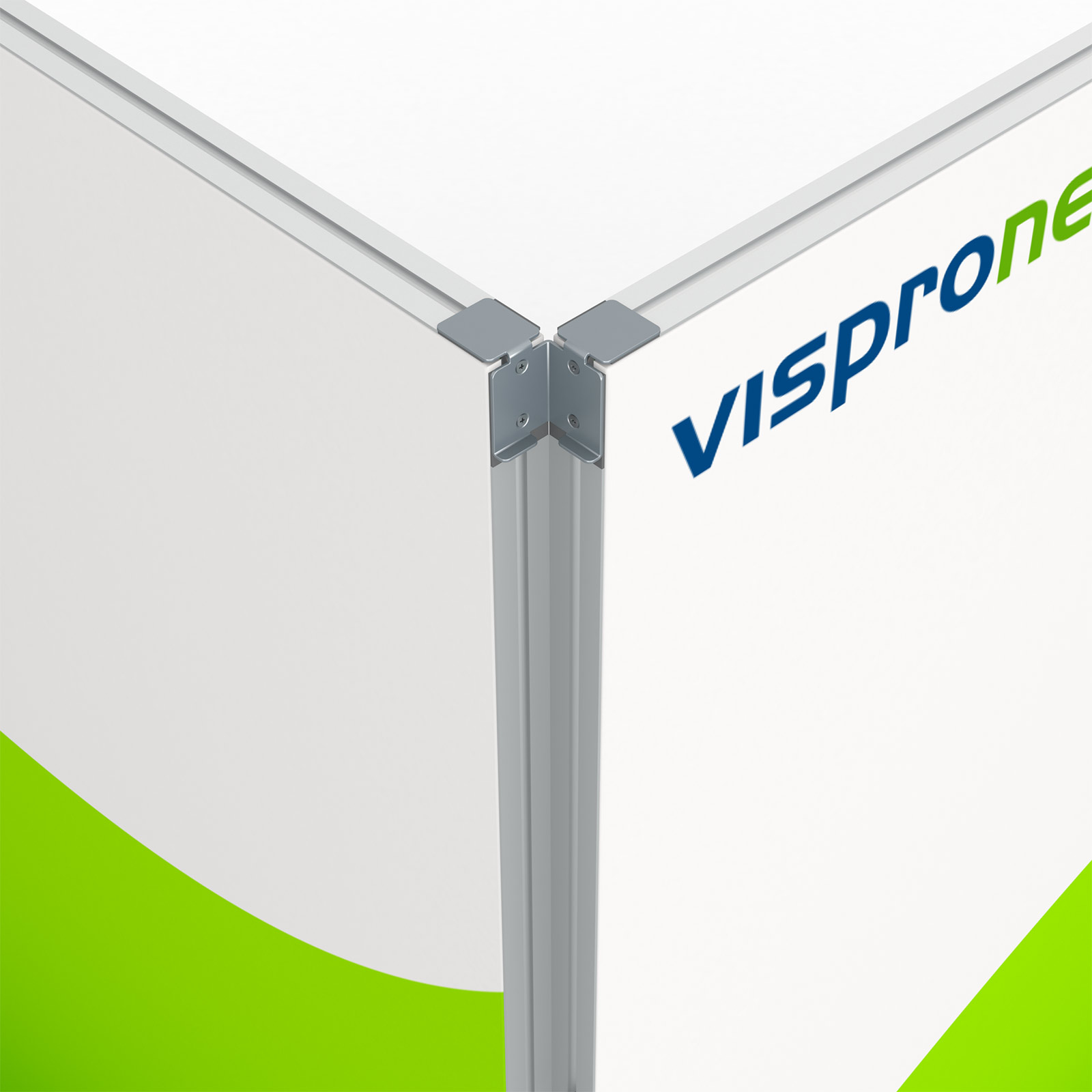

- 2 foldable folding frames connected at a 90° angle (including corner connector)
- Material: anodized aluminum
- Frame depth: 4 cm, slim frame profile for optimal motif effect

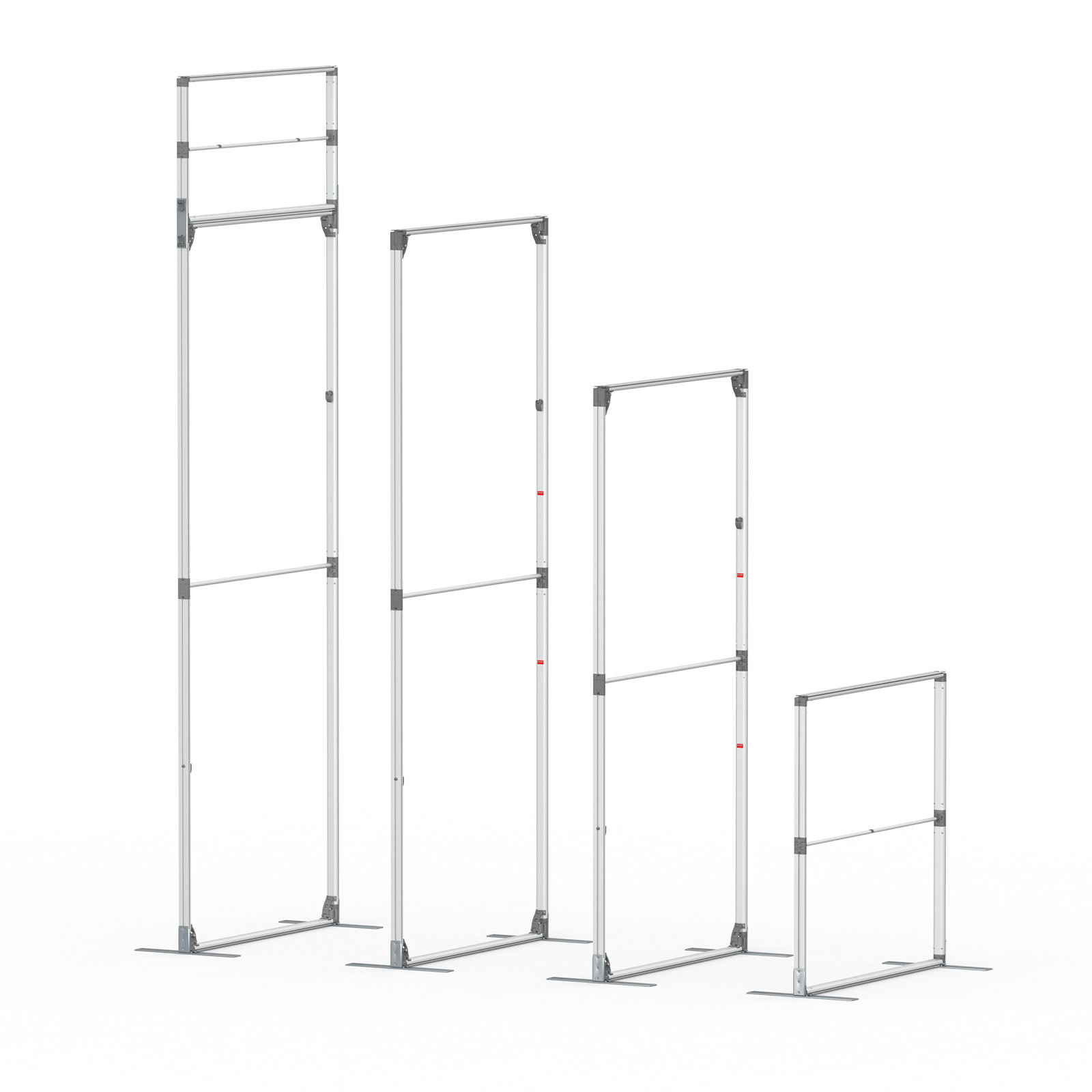

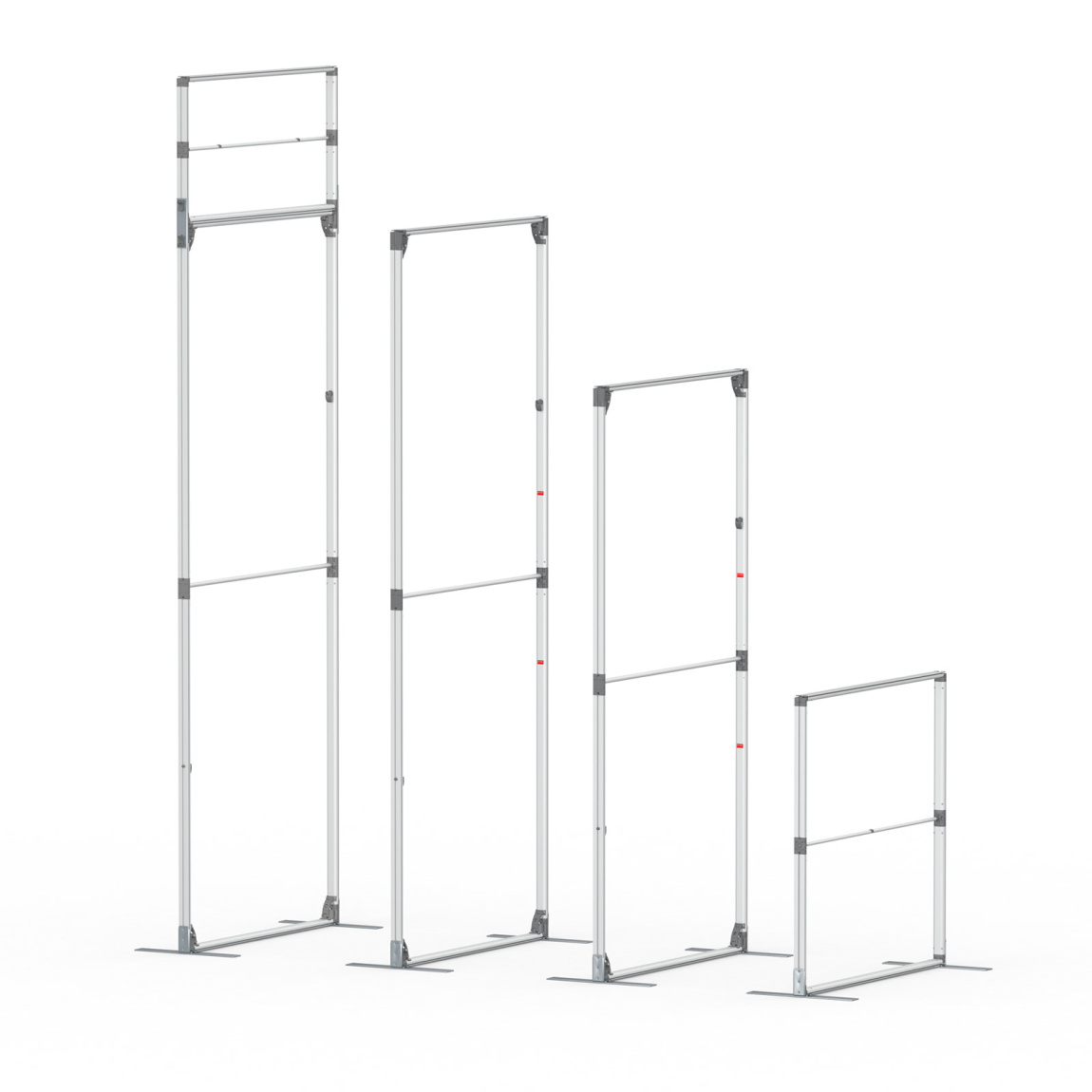

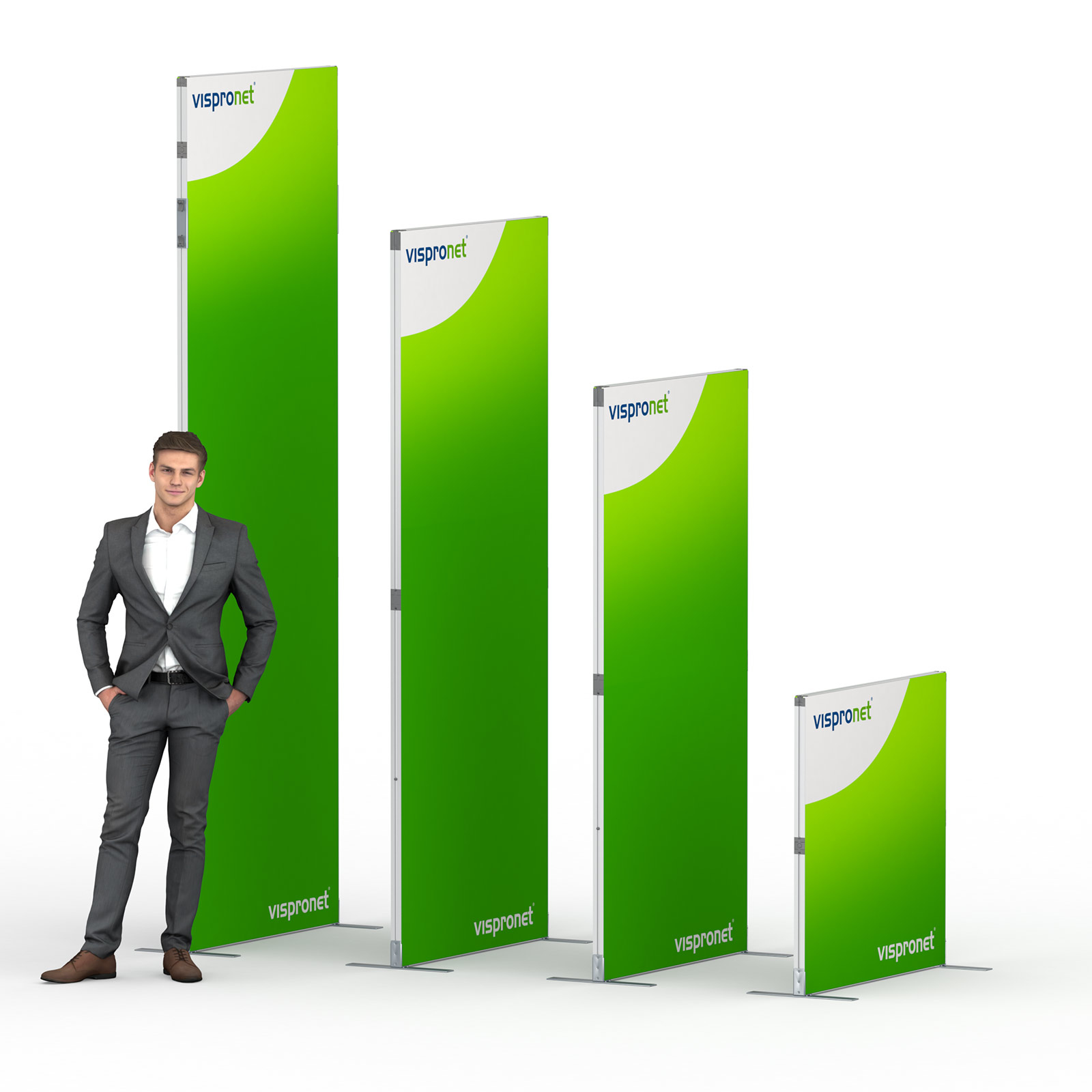

- Frame heights: 100, 200, 250, 300 cm
- Frame width: 100 cm

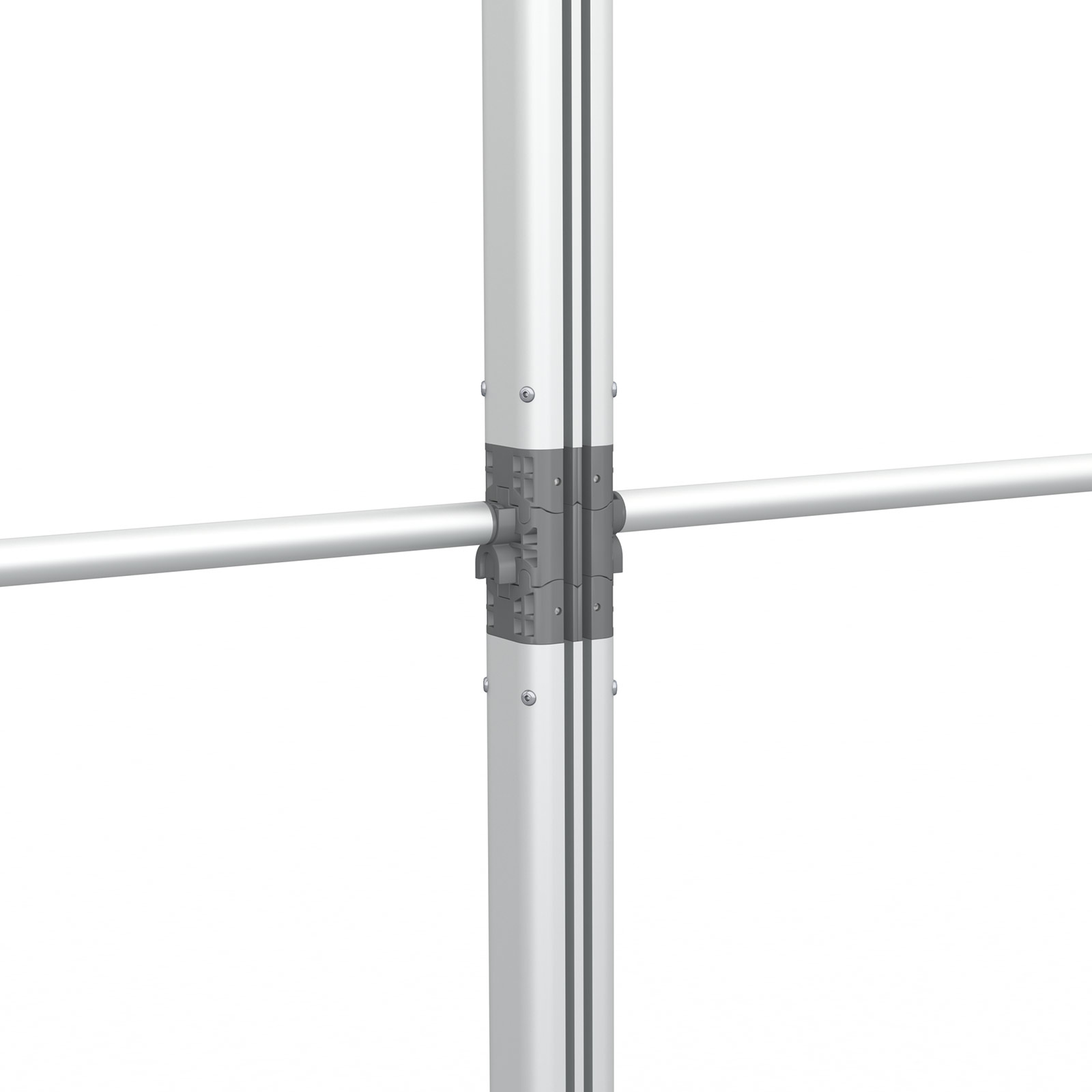

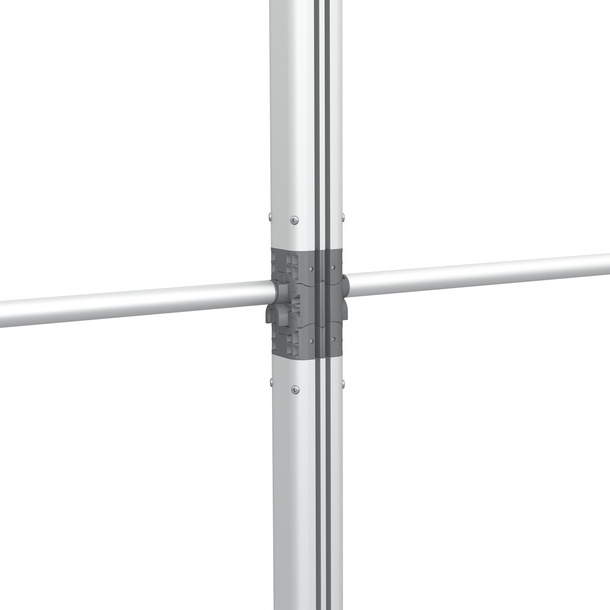

- Integrated connectors on right and left frame side for system widths up to 400 cm

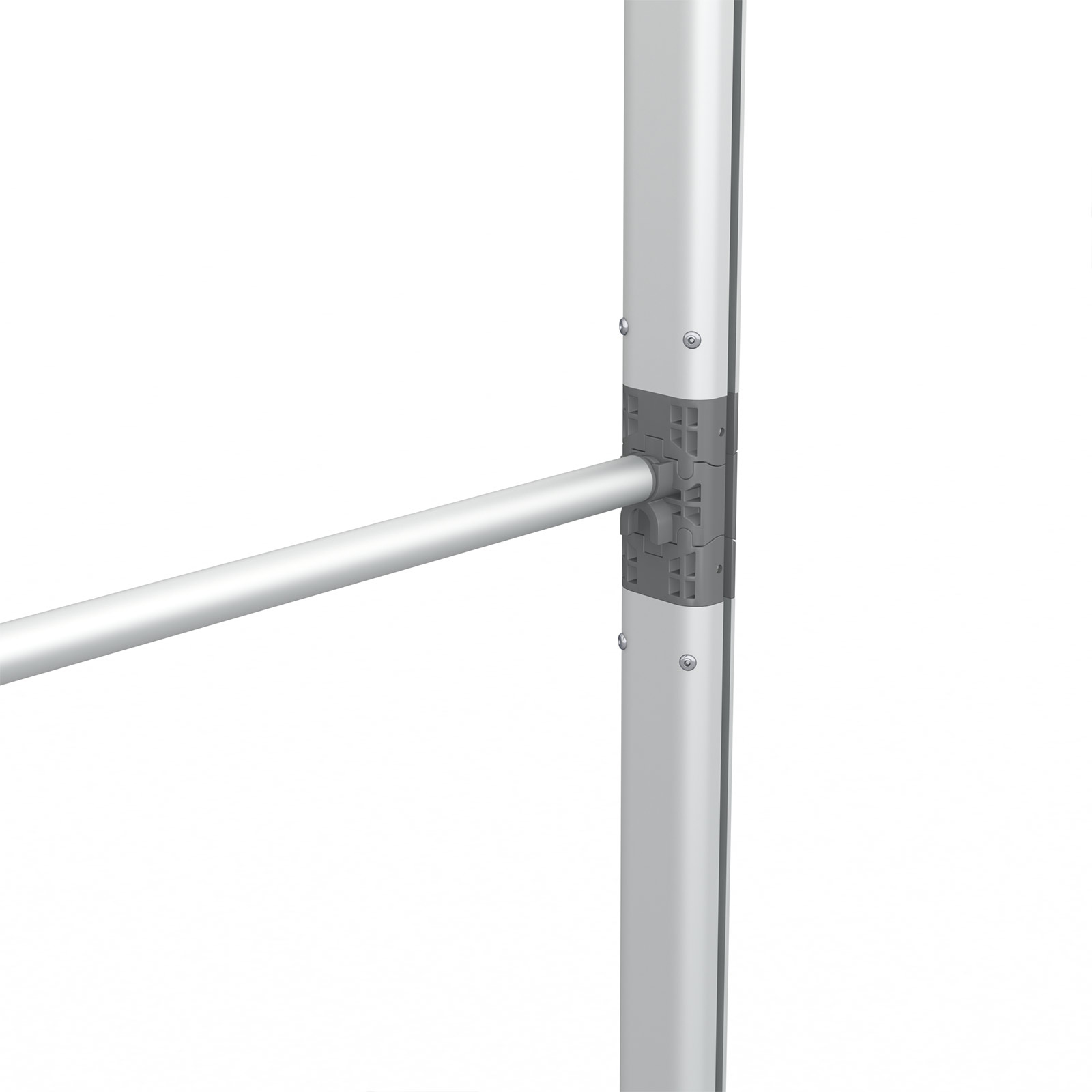

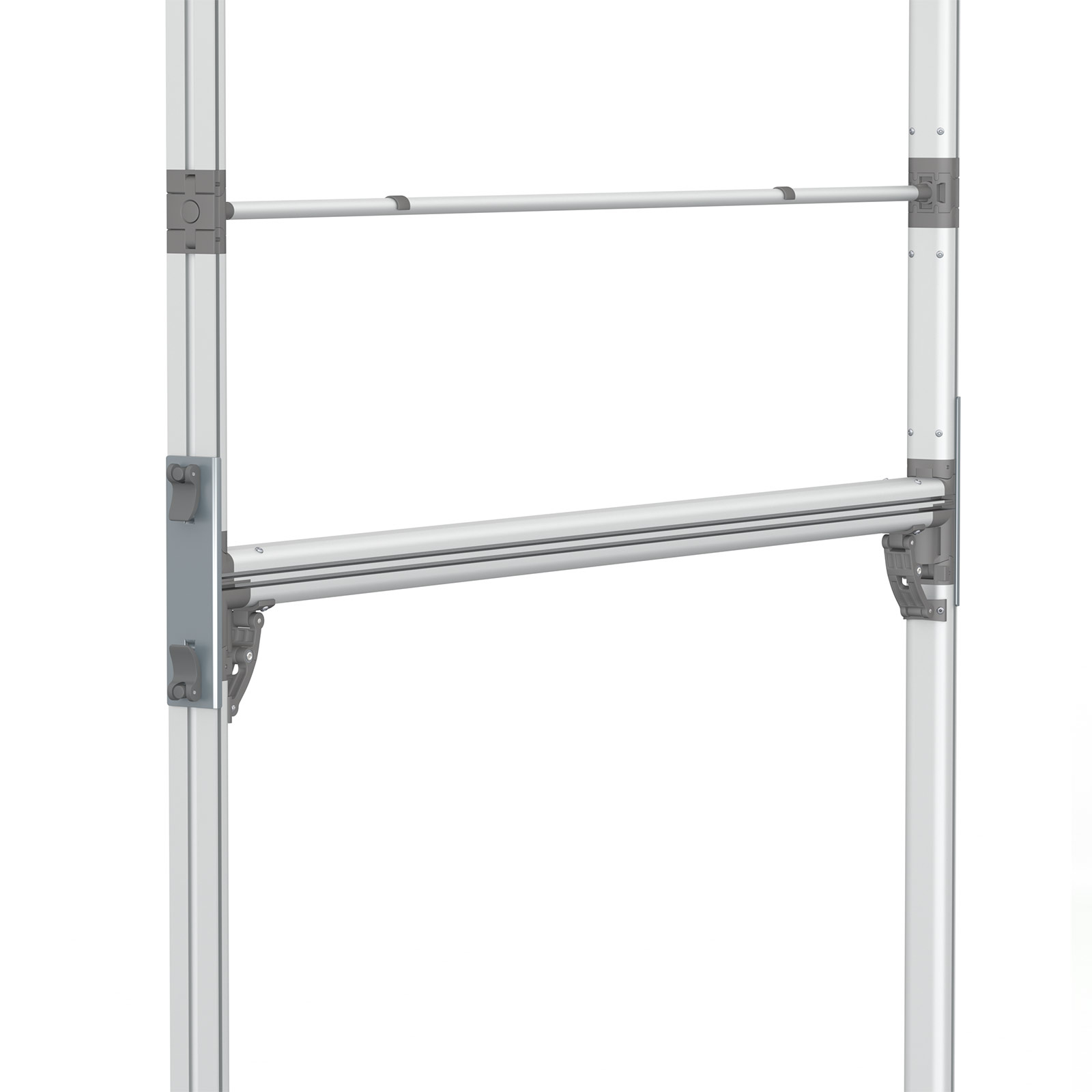

- Central support rods for additional stability

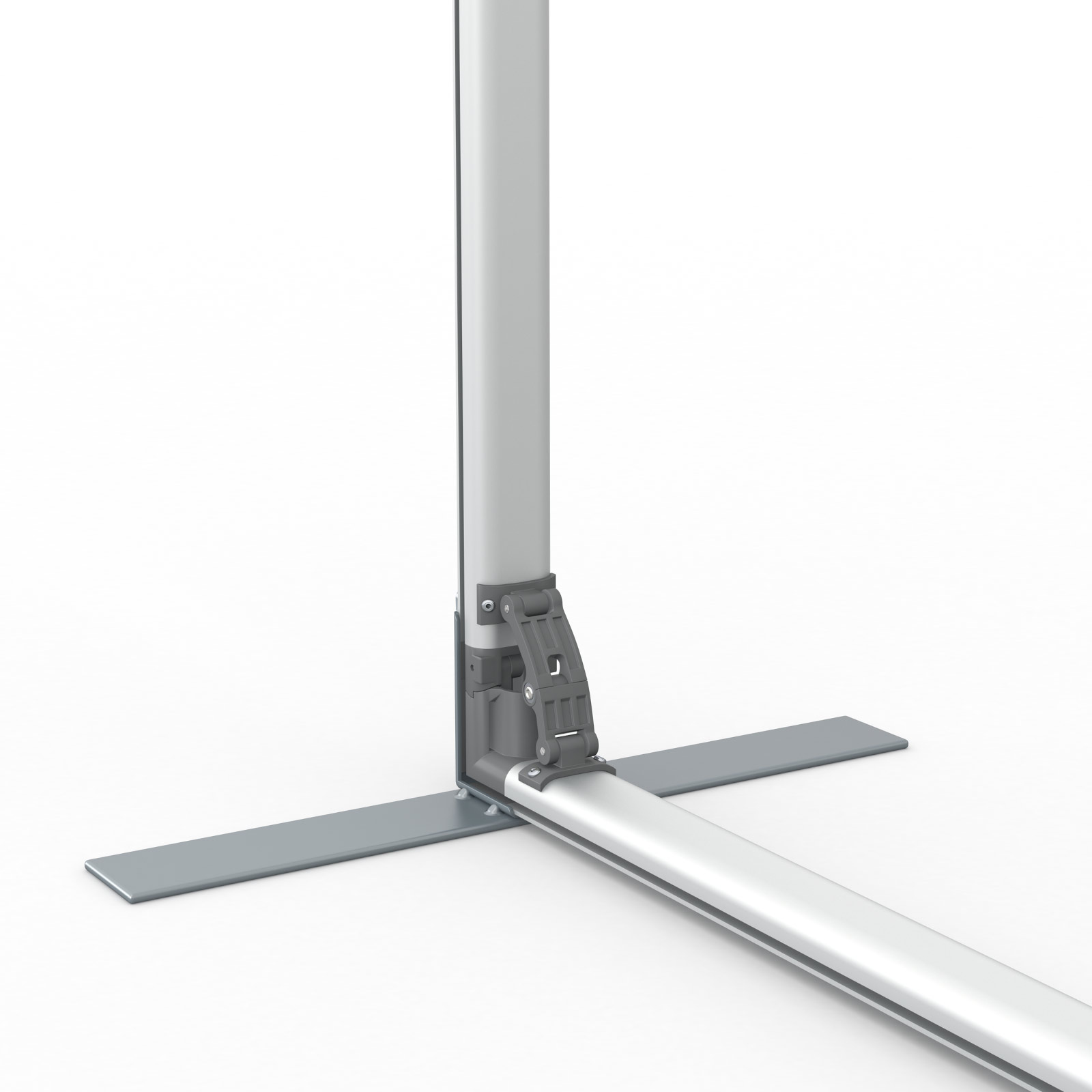

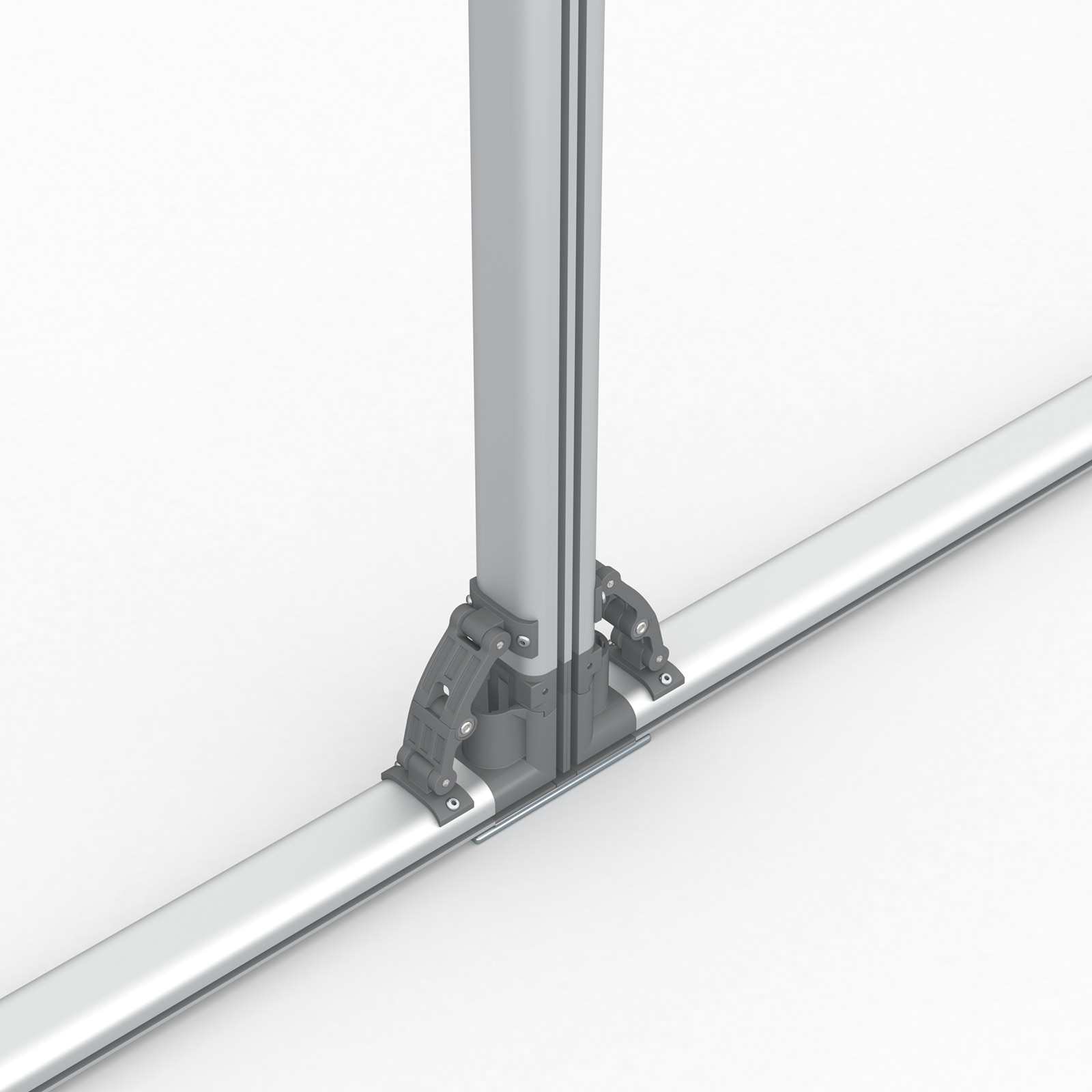

- Feet (40 cm) for stable standing

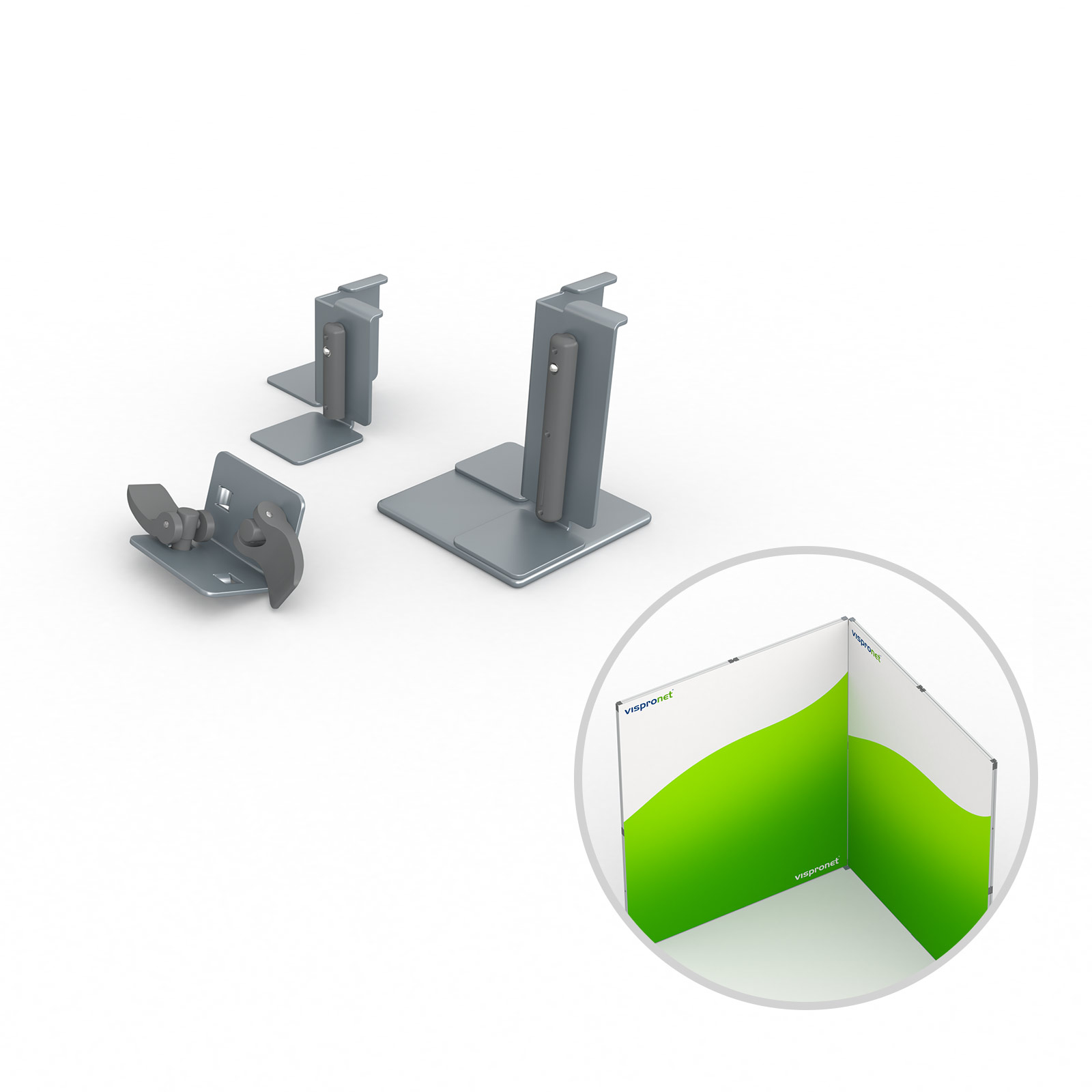

- Including corner module accessory set consisting of:
- 1x corner module connector bottom
- 1x corner module connector top
- 1x corner module connector with quick clamp

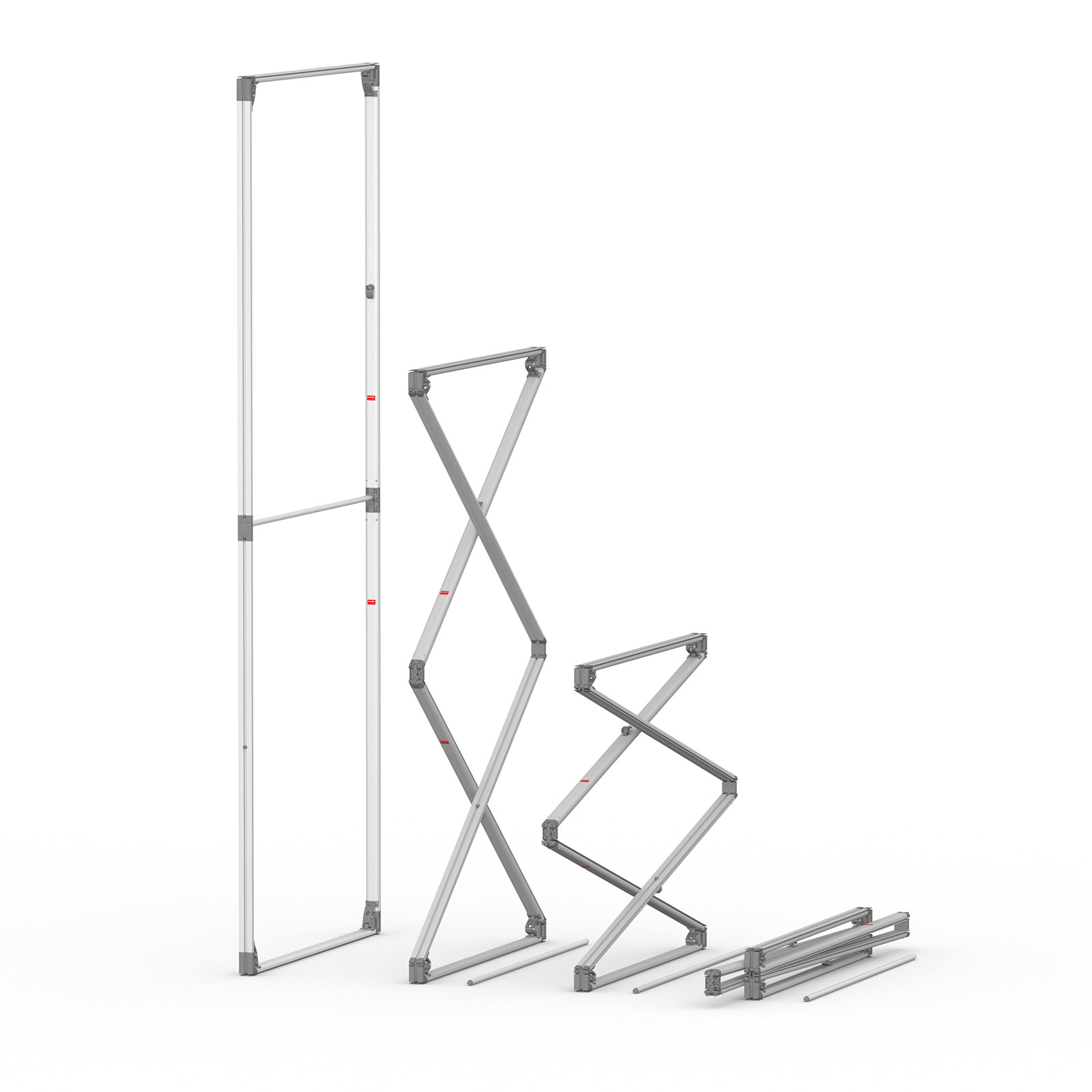

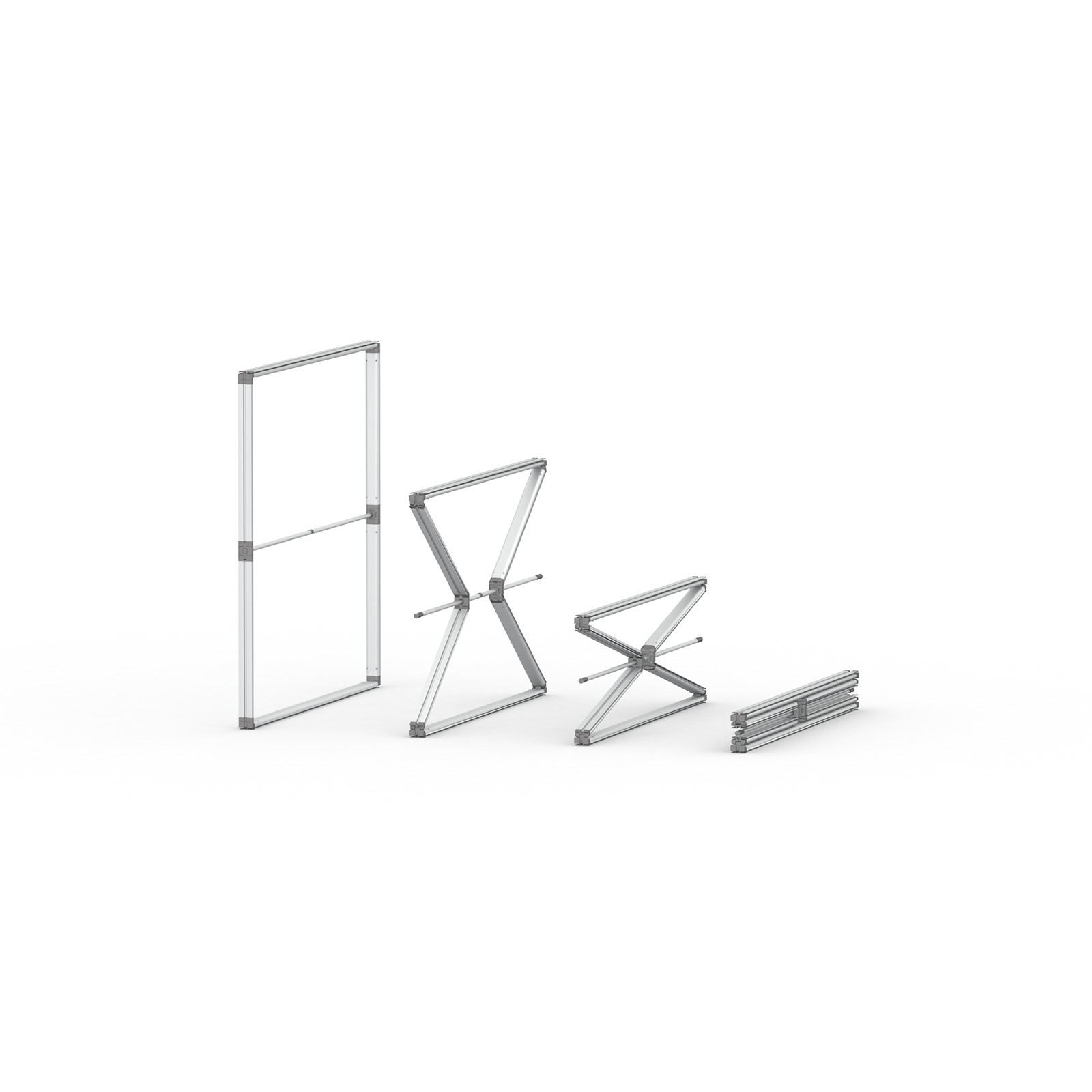

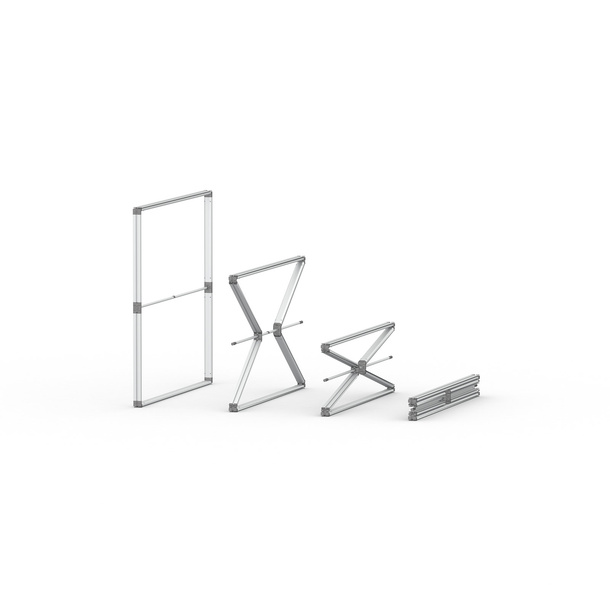

- Super fast assembly: simply pull frame systems apart, insert support rods – done

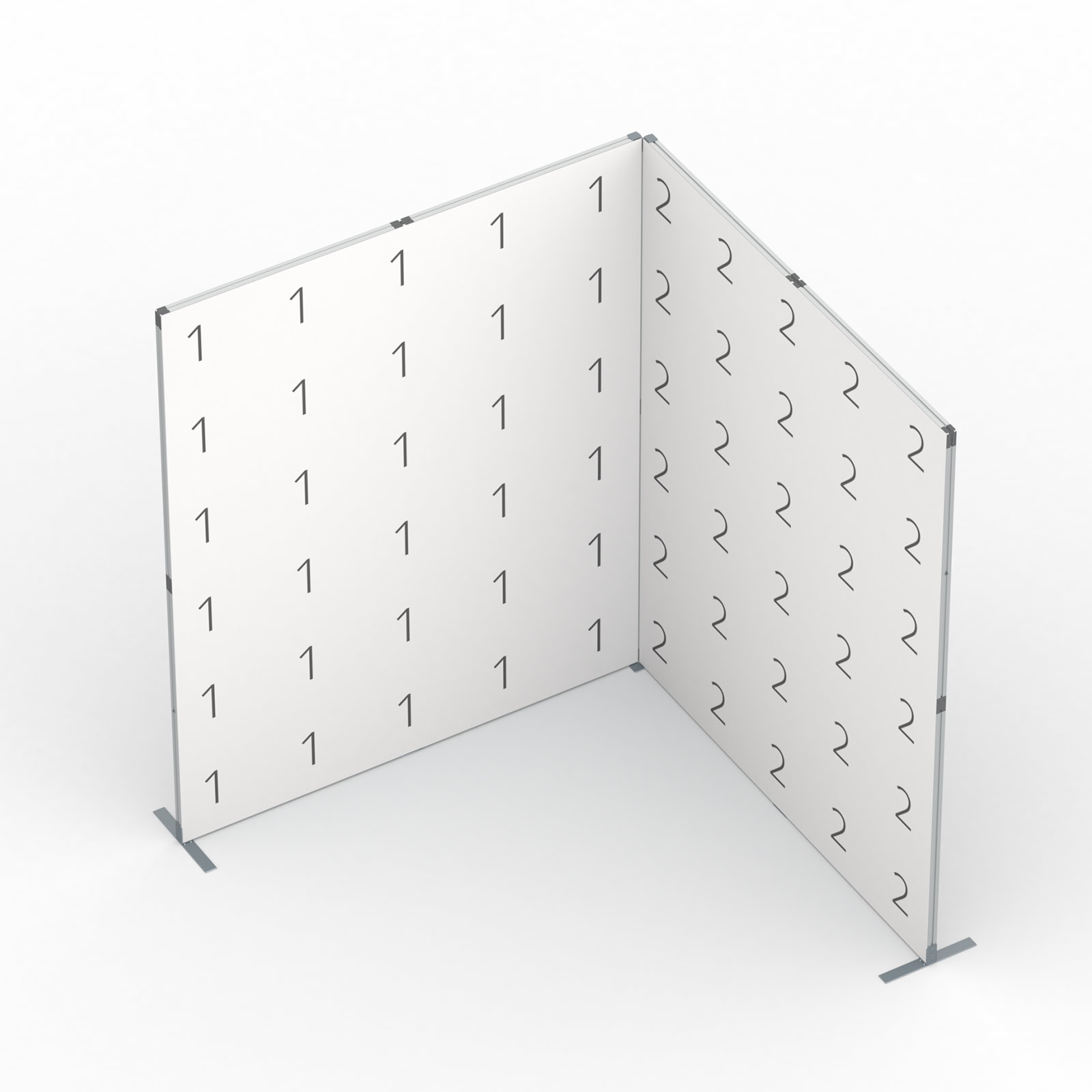

Notes on the arrangement of print parts
Sizes and Weights
| System Width |
Weight* |
|
Height 100 cm |
Height 200 cm |
Height 250 cm |
Height 300 cm |
| 100 cm |
6.00 kg |
7.00 kg |
8.50 kg |
15.00 kg |
| 200 cm |
12.00 kg |
14.50 kg |
17.50 kg |
29.00 kg |
| 300 cm |
18.00 kg |
21.50 kg |
26.00 kg |
43.50 kg |
| 400 cm |
25.00 kg |
29.50 kg |
35.50 kg |
58.00 kg |
| Corner Module (Connector Set) |
0.77 kg |
*All dimensions are approximate; technical changes and tolerances reserved.
Scope of Delivery
- Complete set: Keder Frame Flex system (2 foldable aluminum frames including feet and support rods), connector set "Corner Module", 4 print parts (2x front and back each), transport bag
- Print parts: 4 print parts, 2x front and back each (without system)
- System: Keder Frame Flex system consisting of 2 foldable aluminum frames including feet and support rods, connector set "Corner Module", transport bag (without print parts)

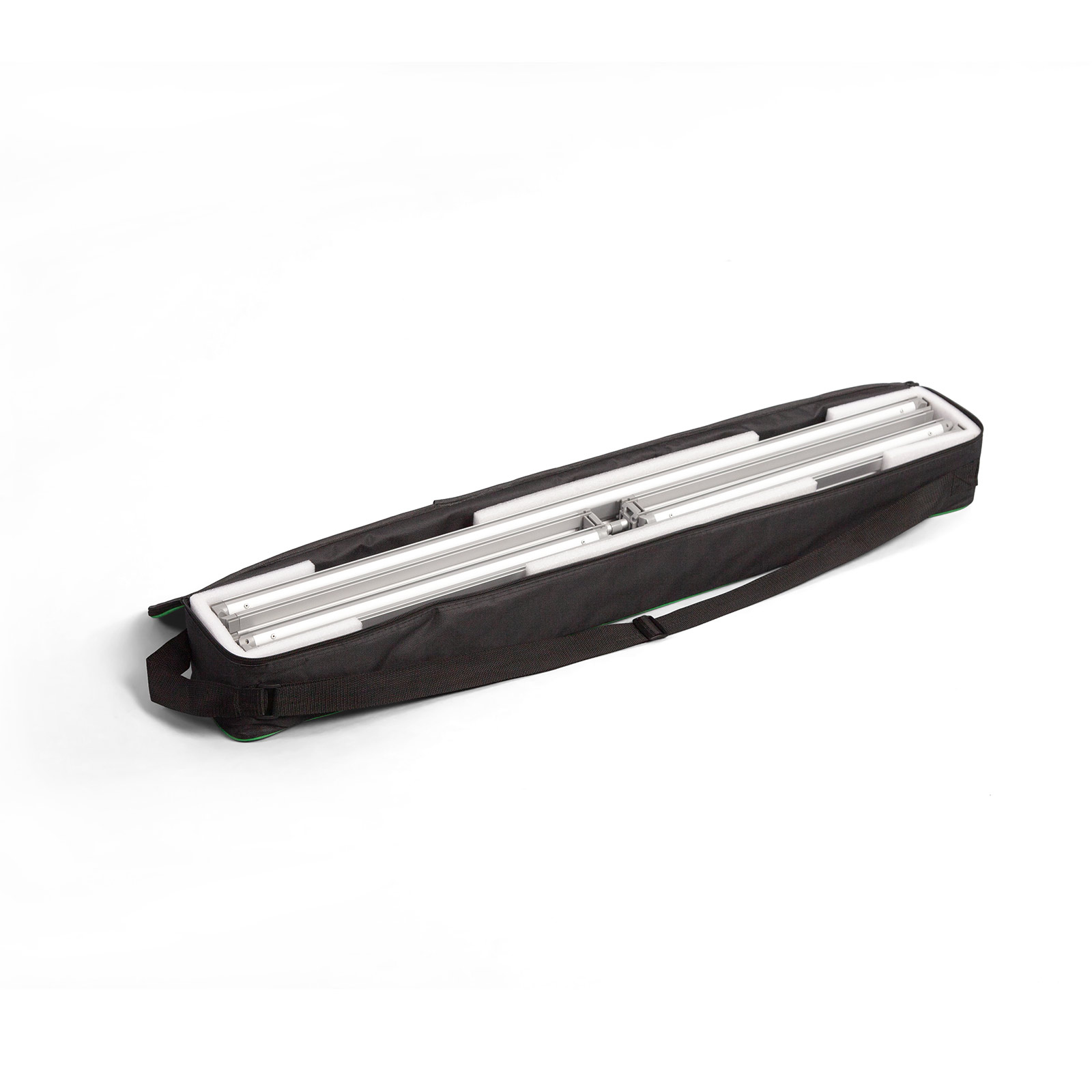

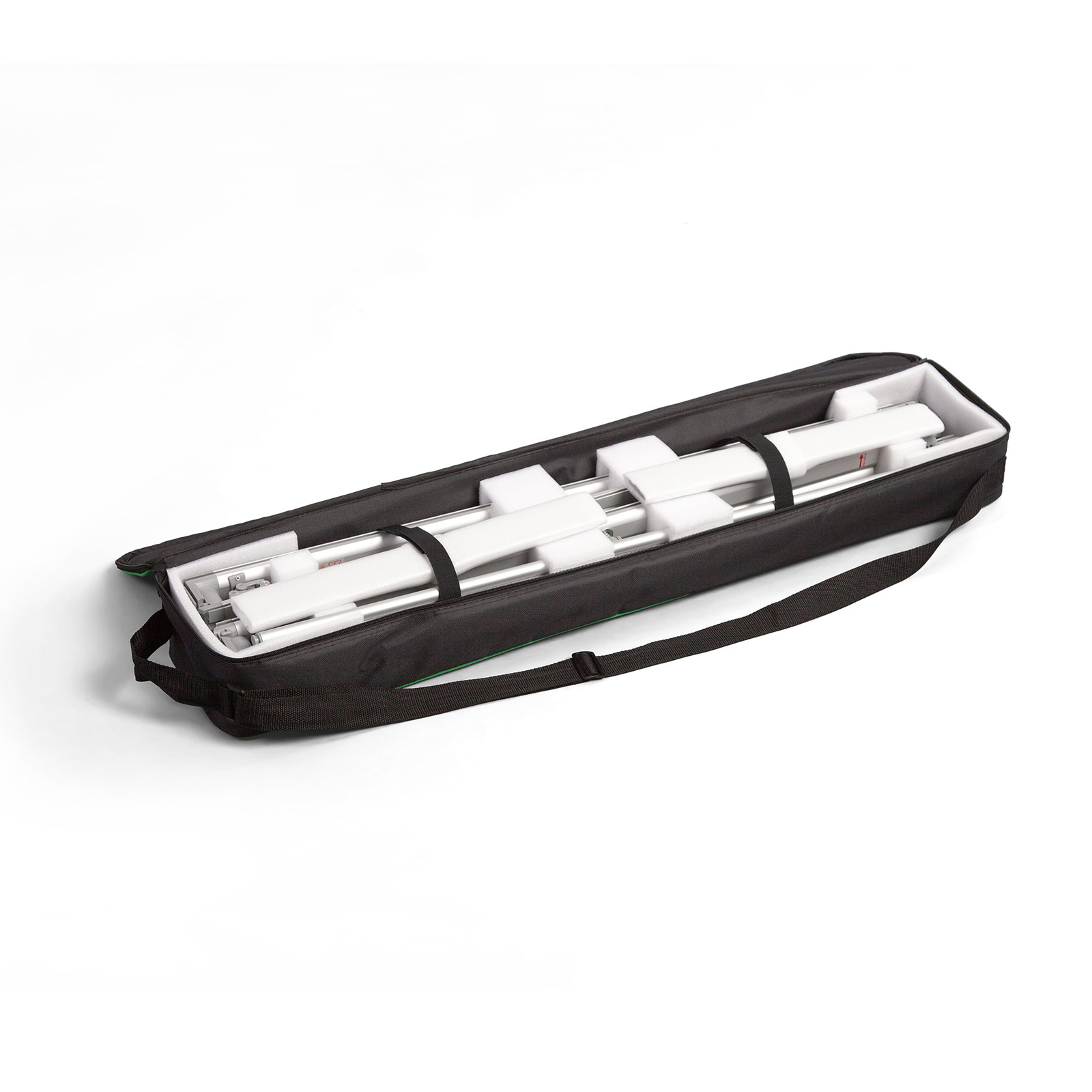

- Each Keder frame is packaged separately in a padded transport bag.

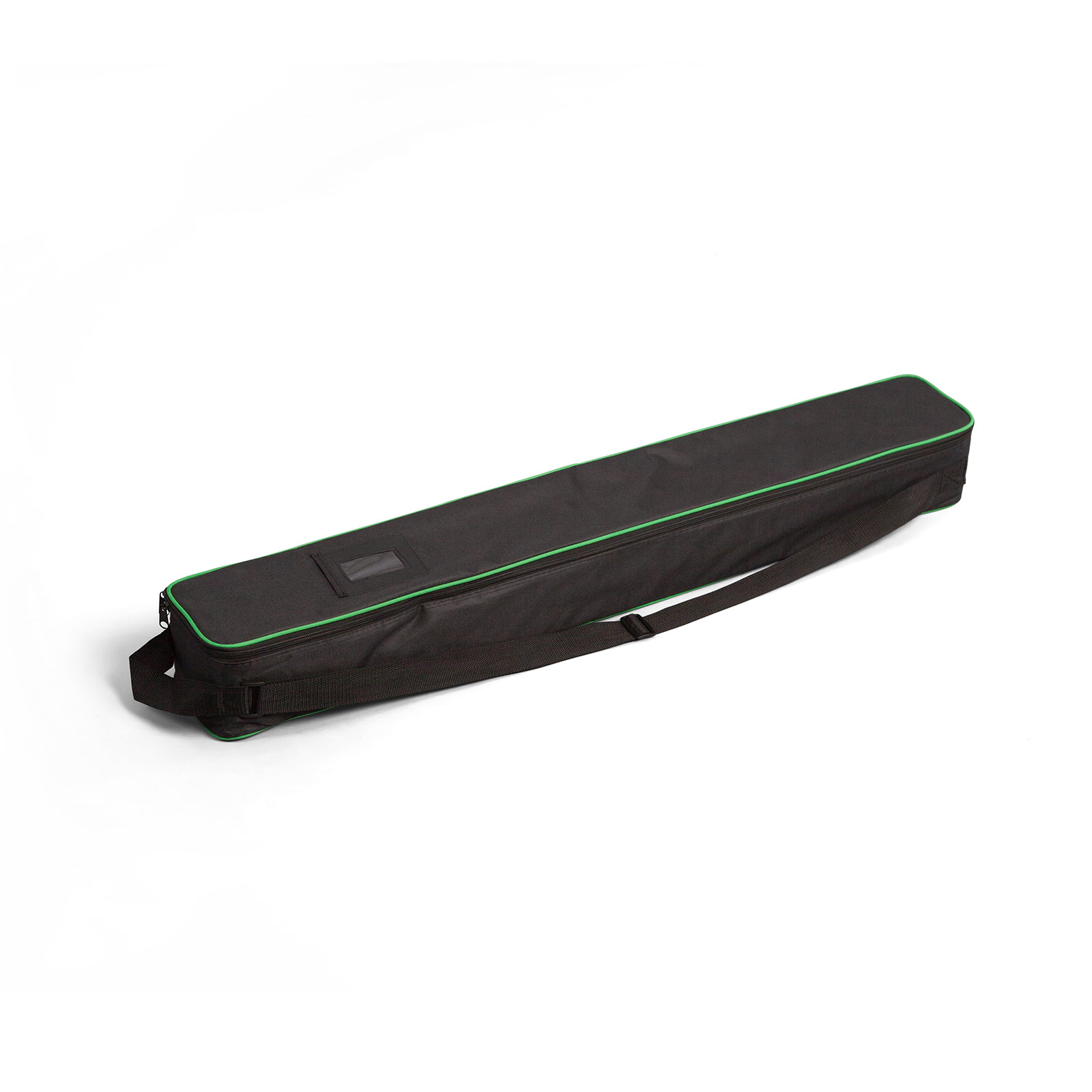

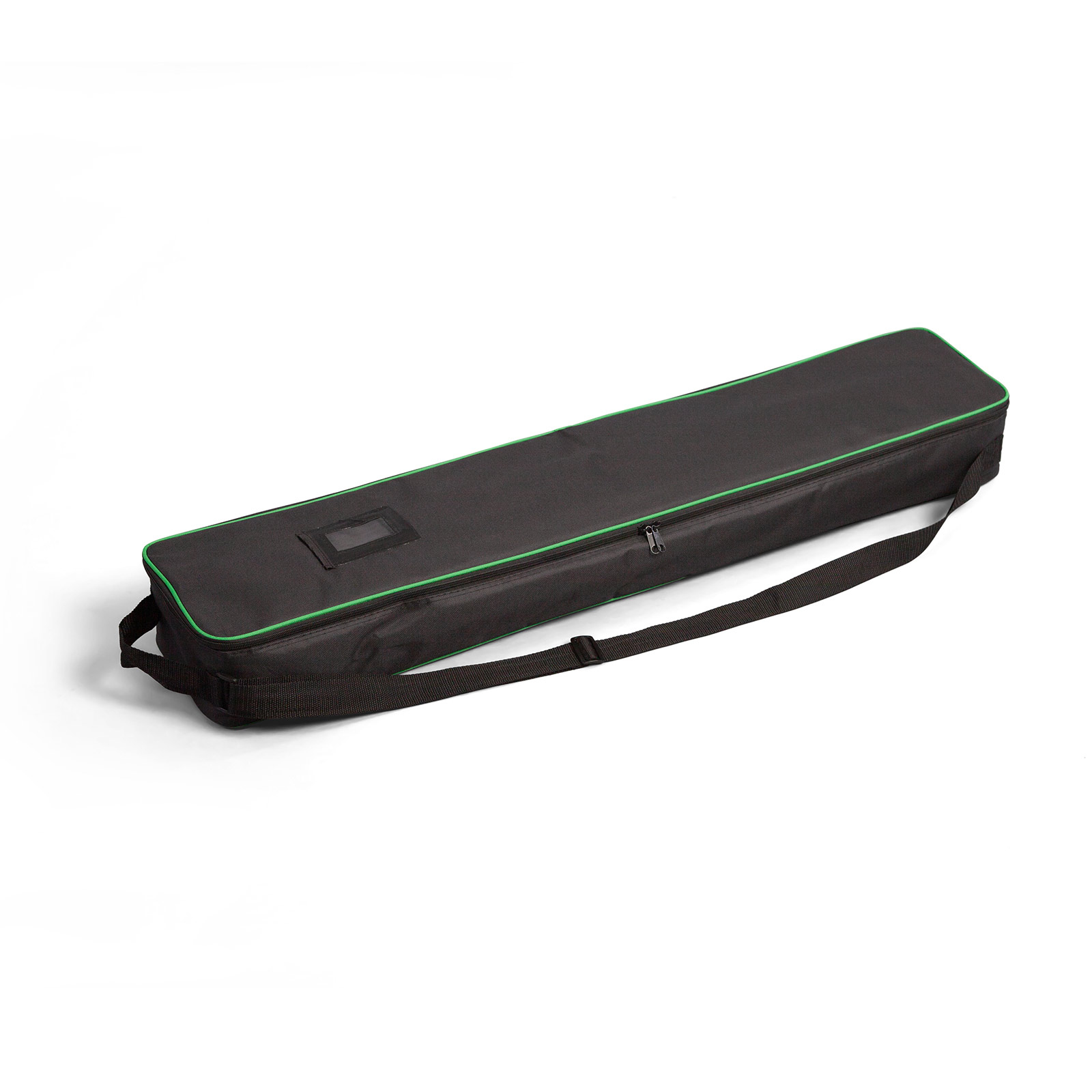

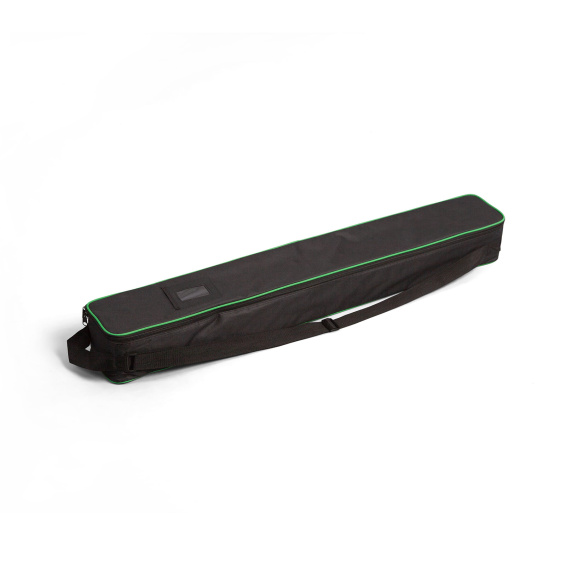

Transport Bags
| Keder Frame System |
Transport Bag Size(s) |
| 100 × 100 cm |
16 × 104 cm |
| 100 × 200 cm |
20 × 105 cm |
| 100 × 250 cm |
22 × 146 cm |
| 100 × 300 cm |
22 × 146 cm and 16 × 104 cm |
