Description

Print Details

  • High-quality and high-contrast digital print
  • UV-resistant with high lightfastness
  • Custom design possible

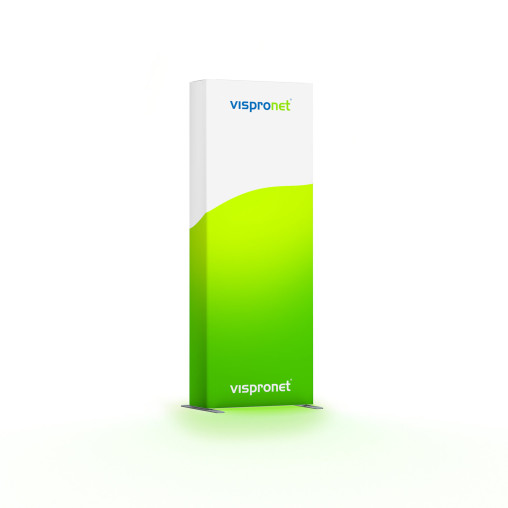

Pop Up Display LED

The portable Pop Up display with LED backlighting combines a compact scissor frame system with energy-efficient LED lighting. Evenly backlit graphics, tool-free setup, and compact transport dimensions make this system ideal for trade shows, promotional events, and indoor presentations.

Version - Print

  • Trimmed all around and equipped with flat piping (keder) for self-assembly on the system
  • Keder fastening ensures perfect, wrinkle-free tension of the printed panels
  • Print options:
    • “Front & 2 sides printed”: continuous motif across front and sides, back in white
    • “Printed all around”: continuous motif across front and sides, additional print for back and top cover

Material

  • Lighttex SE: flame-retardant polyester fabric, specially designed for optimally backlit advertising messages

Version - System

  • Pop Up display with straight front and LED backlighting
  • Scissor frame made of aluminum profiles with magnetic rails for quick setup
  • Includes support feet for added stability
  • LED rails incl. plastic connectors and LED plug connectors
  • High-intensity, energy-saving LED lighting
  • Power cable with plug (length approx. 2 m) and adapter with cable (240 V)
  • Tool-free assembly and disassembly

Technical Specifications

  • Lighting: LED, cool white
  • Service life: up to 100,000 hours
  • Power supply: 240 V

Sizes & Weights

Pop Up Variant System (W × H × D) Weight Packaging Dimensions (W × H × D) Configuration Print Panel
1 × 3 82 × 224 × 29 cm
(Depth: 60 cm with support feet)		 11 kg 102 × 33 × 26 cm Front & sides printed 138 × 221 cm
All sides printed Front & sides: 138 × 221 cm
Back: 81 × 221 cm
Cover: 79 × 26 cm
2 × 3 155 × 224 × 29 cm
(Depth: 60 cm with support feet)		 15 kg 102 × 33 × 29 cm Front & sides printed 210 × 221 cm
Fully printed (all sides) Front & sides: 210 × 221 cm
Back: 153 × 221 cm
Top cover: 150 × 26 cm
3 × 3 227 × 224 × 29 cm
(Depth: 60 cm with support feet)		 21 kg 95 × 45 × 30 cm Front & sides printed 282 × 221 cm
All sides printed Front & sides: 282 × 221 cm
Back: 226 × 221 cm
Cover: 223 × 26 cm
4 × 3 300 × 224 × 29 cm
(Depth: 60 cm with support feet)		 25 kg 95 × 45 × 29 cm Front & sides printed 355 × 221 cm
All sides printed Front & sides: 355 × 221 cm
Back: 299 × 221 cm
Cover: 296 × 26 cm

*All dimensions and weights are approximate.

Scope of delivery

  • Complete set: Pop Up LED folding display system with LED backlighting, printed panel, including trolley bag and additional transport bag for electronics (depending on selected variant)
  • Print only: custom print (without system)
  • System only: Pop Up LED folding display with LED lighting, including trolley bag and, if applicable, transport bag for electronics (without printed panel)

Transport solution depending on selected variant:

  • Pop Up LED 1 × 3 and 2 × 3: system with basic transport bag
  • Pop Up LED 3 × 3 and 4 × 3: system with trolley bag and padded transport bag for electrical components

Transport bag dimensions (W × H × D)

Pop Up Variant Package Dimensions Weight
1 × 3 102 × 35 × 24 cm 1 kg
2 × 3 100 × 32 × 27 cm 1.5 kg
3 × 3 93 × 40 × 21 cm 4 kg
4 × 3 90 × 39 × 26 cm 5 kg
