LED sidewalk sign with battery
Battery-operated outdoor sidewalk sign for flexible use indoors and outdoors: The system combines attention-grabbing LED lighting with a robust, weatherproof construction.
The integrated battery enables cordless operation – ideal for mobile advertising applications without external power source.
Version – print part
- Cut all around and with sewn-on flat piping for attachment in the aluminum frame

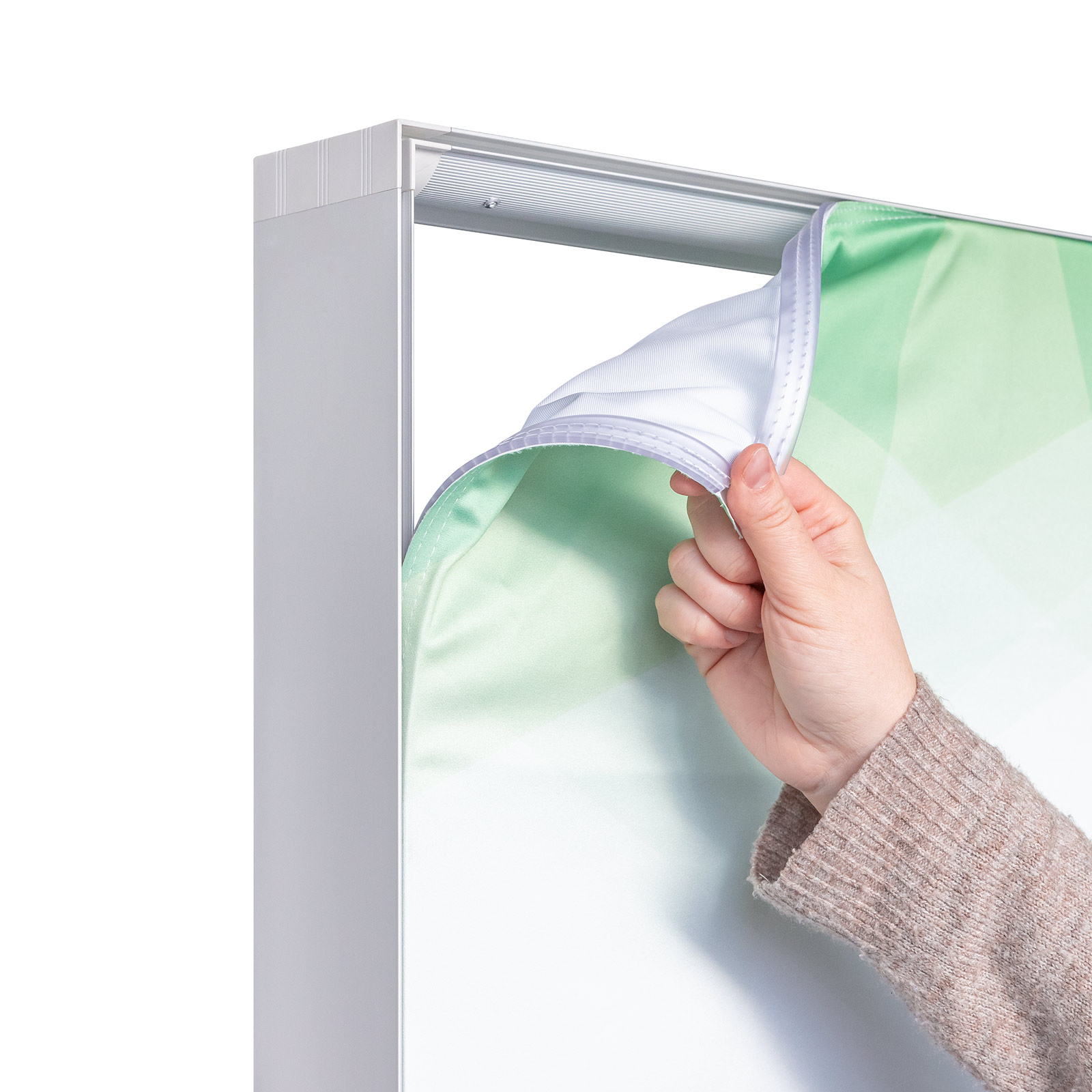

- The attachment by means of piping ensures perfect and wrinkle-free tensioning of the motifs.
- Printable advertising surface: 60 x 100 cm each (on front and back side)
- Print option: double-sided printed, front and back side designable the same or differently
Material
-
Variotex® Z SE: matte polyester fabric, UV-resistant with high lightfastness (6-7), flame-retardant
- UV printing: color remains on the material surface, color-intensive, razor-sharp details, durable
- Special feature: recommended for permanent use (without frequent assembly and disassembly)*

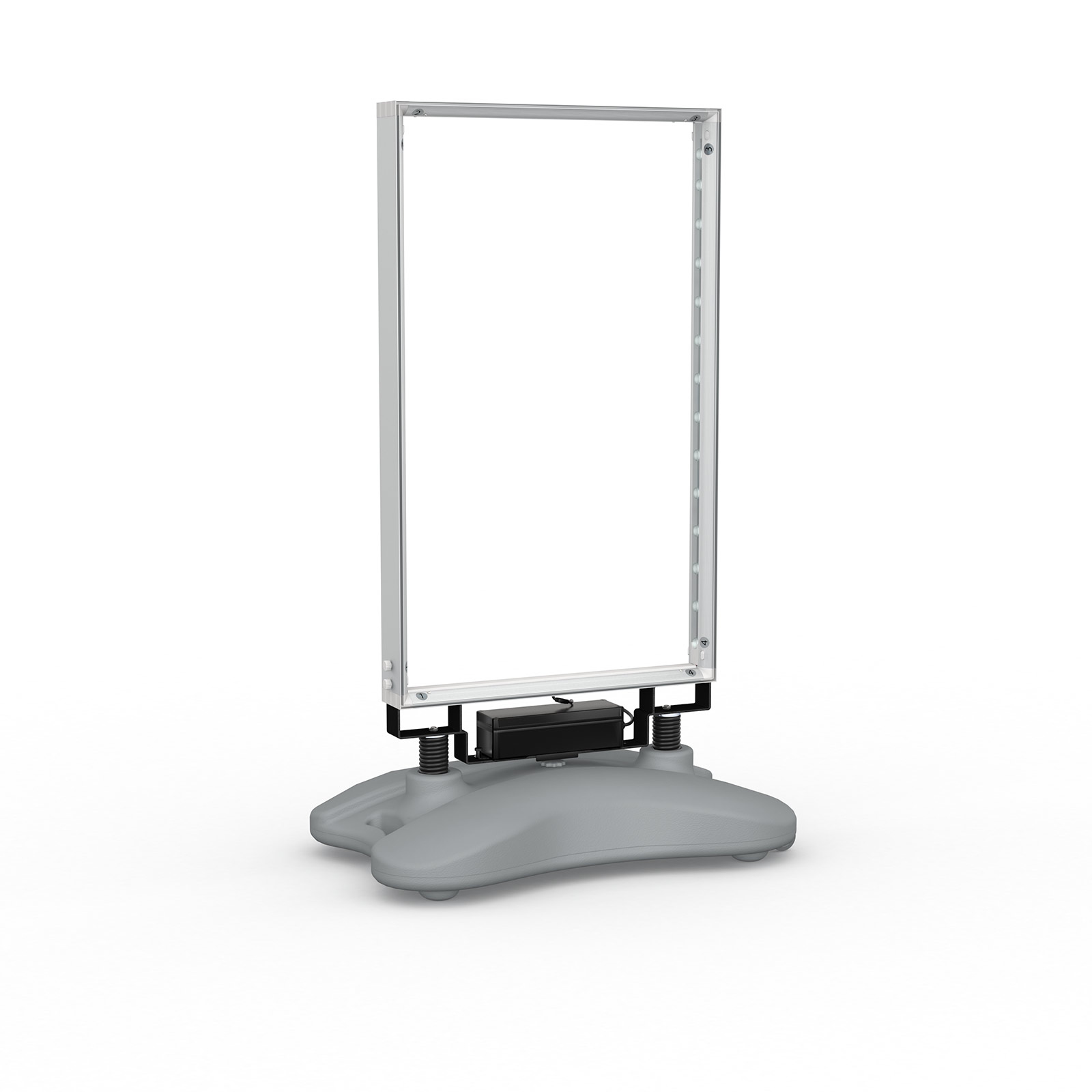

Version – system

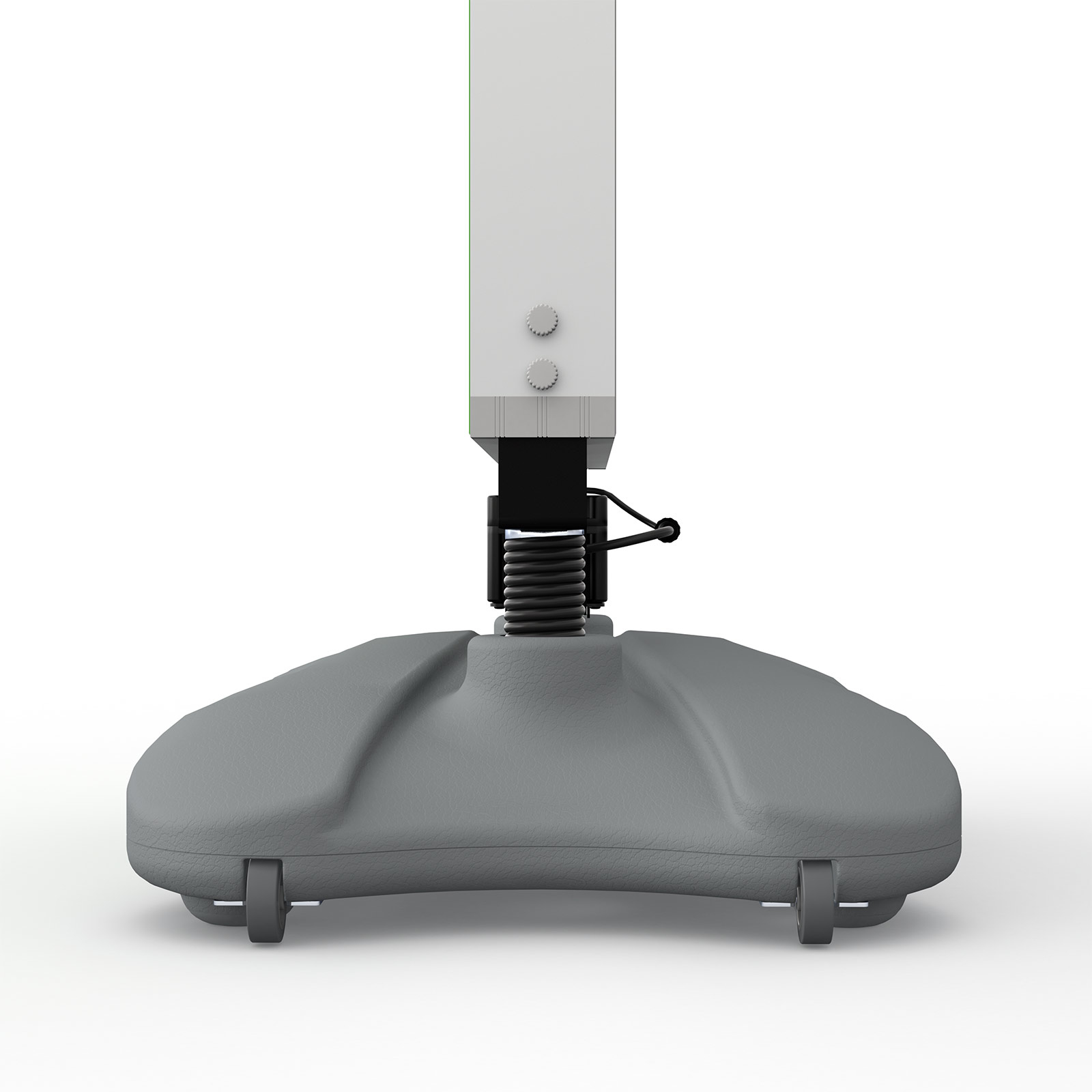

Water base
- high-quality, spring-mounted poster stand
- water-fillable base (20 l) with integrated wheels for easy transport

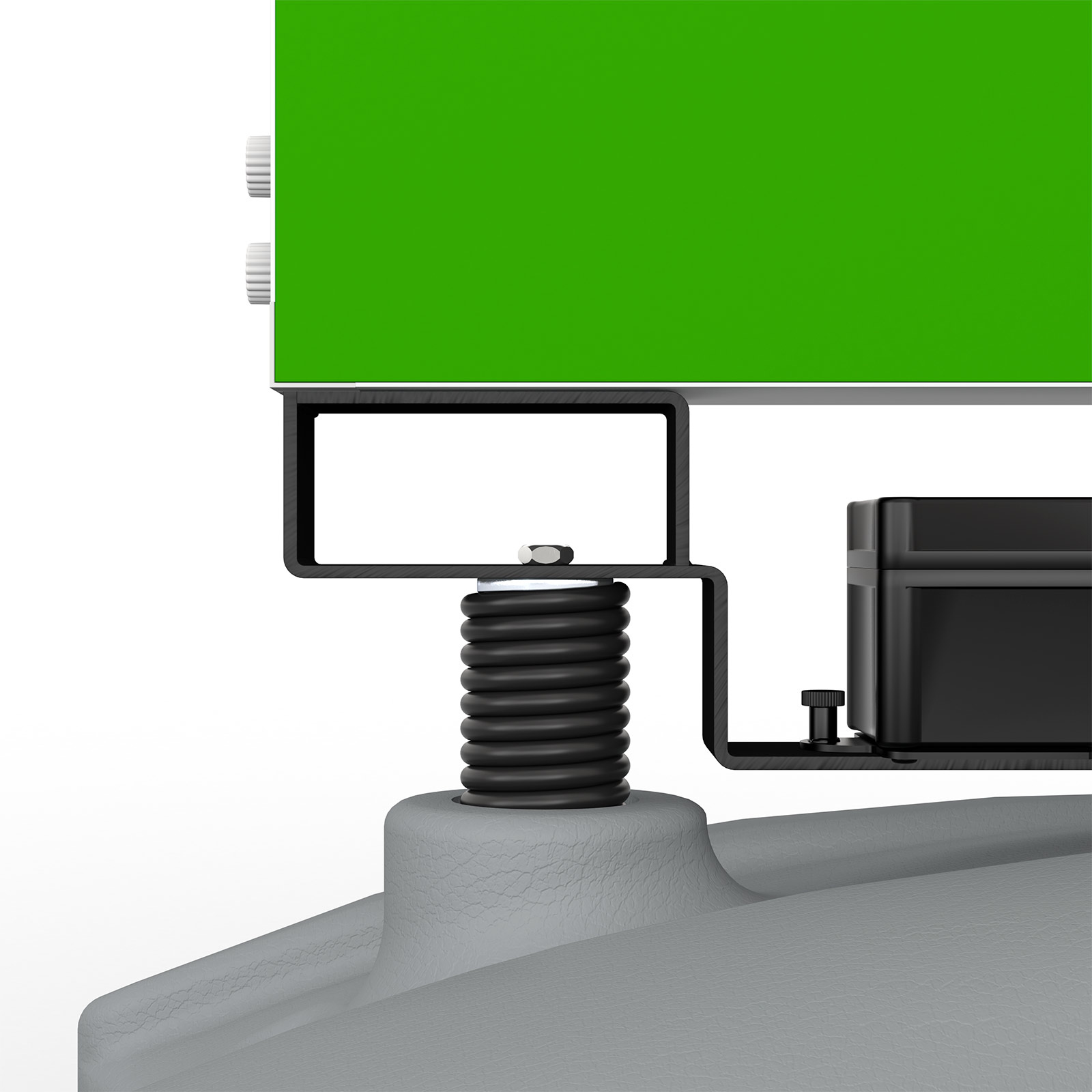

- steel springs for elastic mounting of the illuminated frame

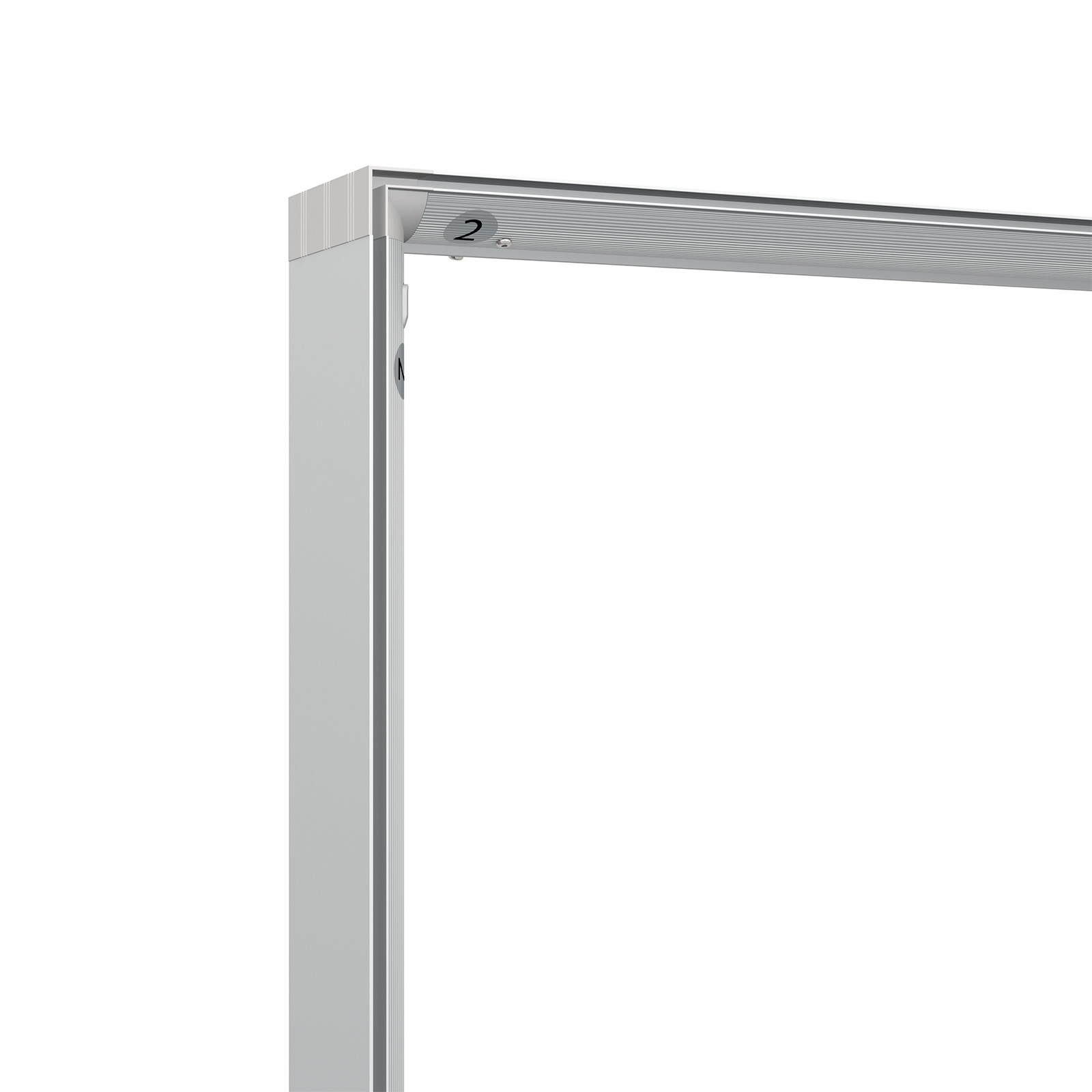

Illuminated frame incl. battery
- Innovative frame system with utility model protection (GM: 20 2019 103 837)
- Integrated battery for cordless operation – no external power connection necessary
- Material: anodized aluminum, silver-colored
- Frame depth: 85 mm

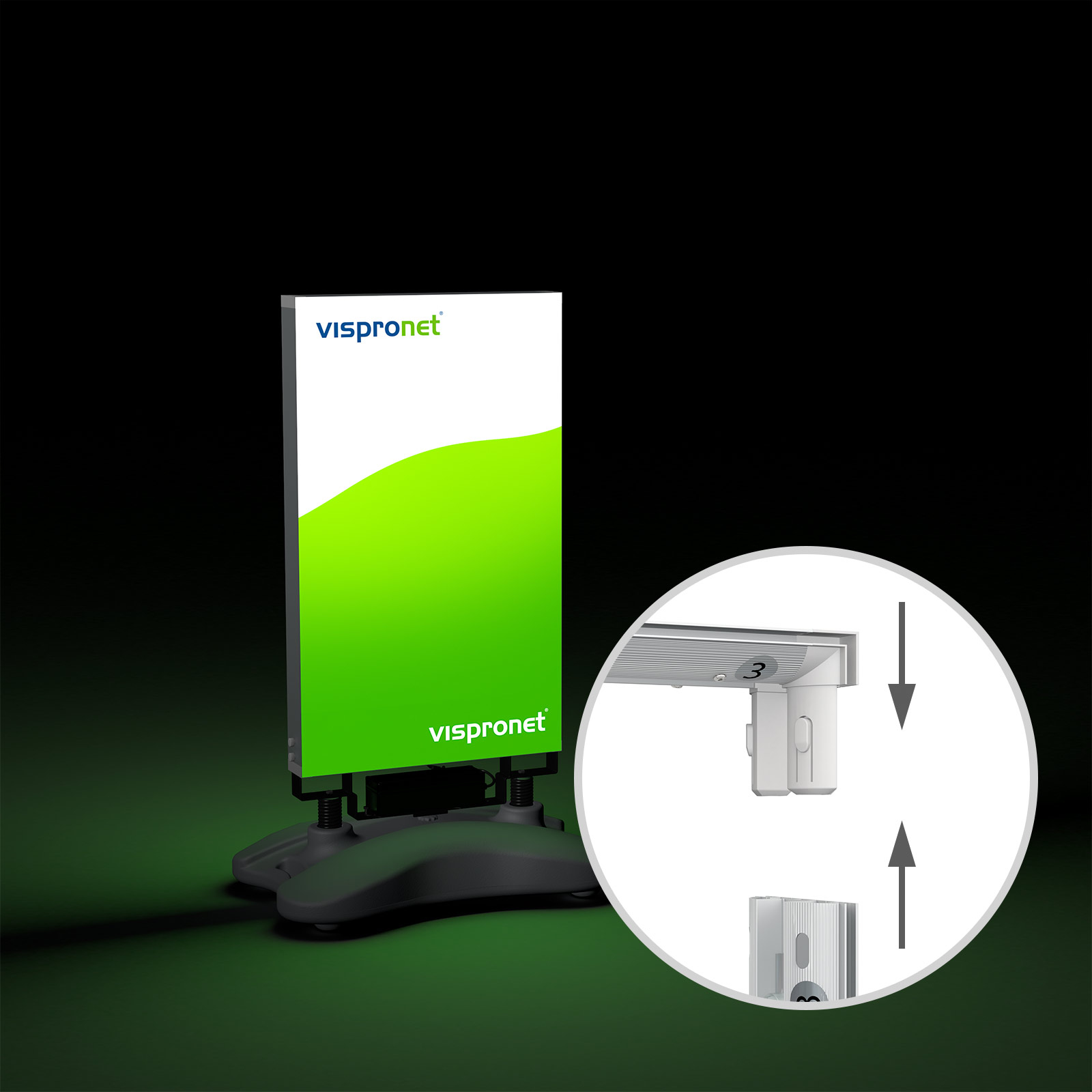

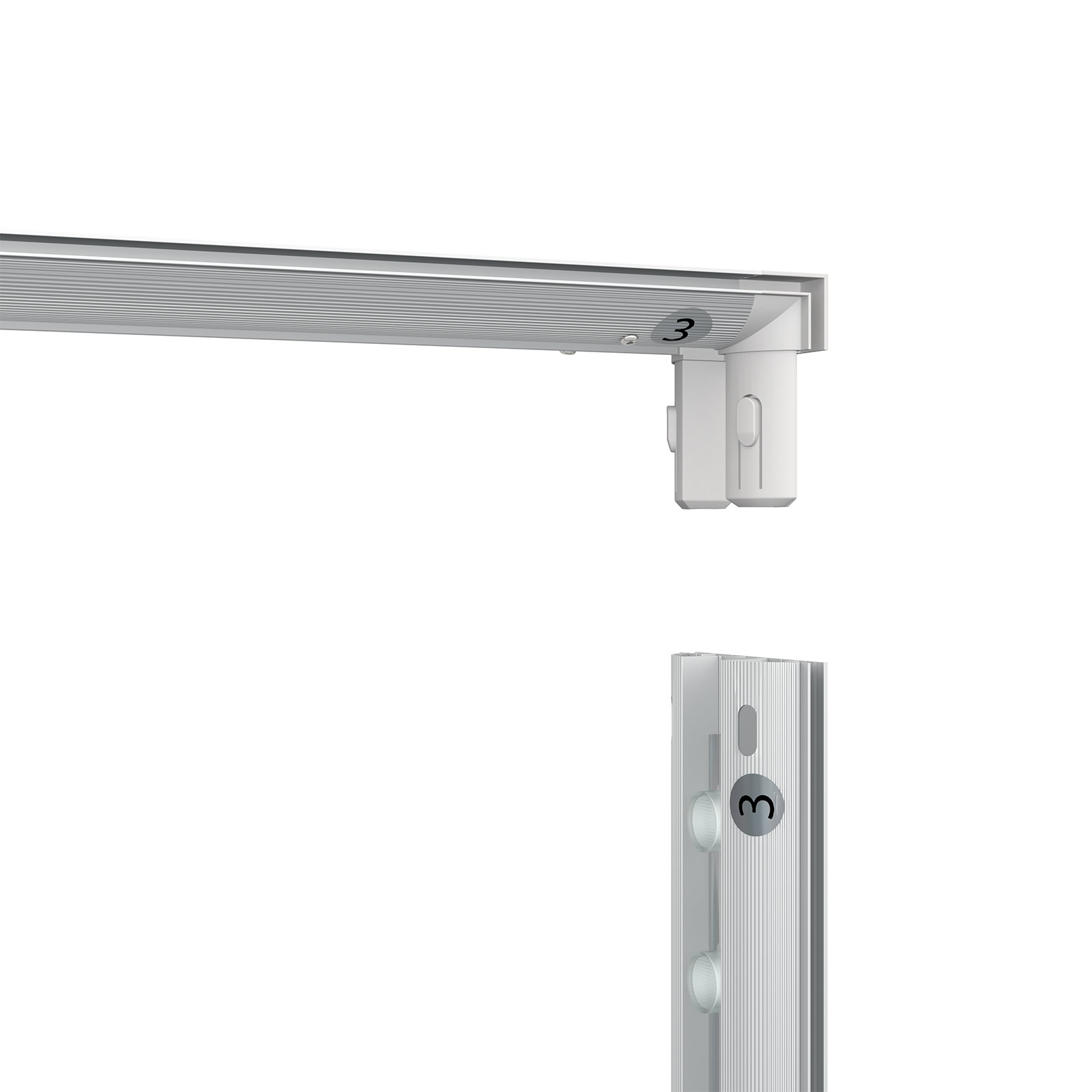

- Pluggable frame with click locking
- Protection class of the illuminated frame: IP54
- LED modules with low heat development, factory pre-assembled
- Assembly-free, removable and rechargeable battery
- Charger included in the scope of delivery
- System reliably directs rainwater away from the battery – this is securely and invisibly housed in a waterproof box
Technical data
Illuminated frame
- Luminous flux: approx. 4000 lumens
- Light color: cool white
- LED service life: approx. 5000 hours

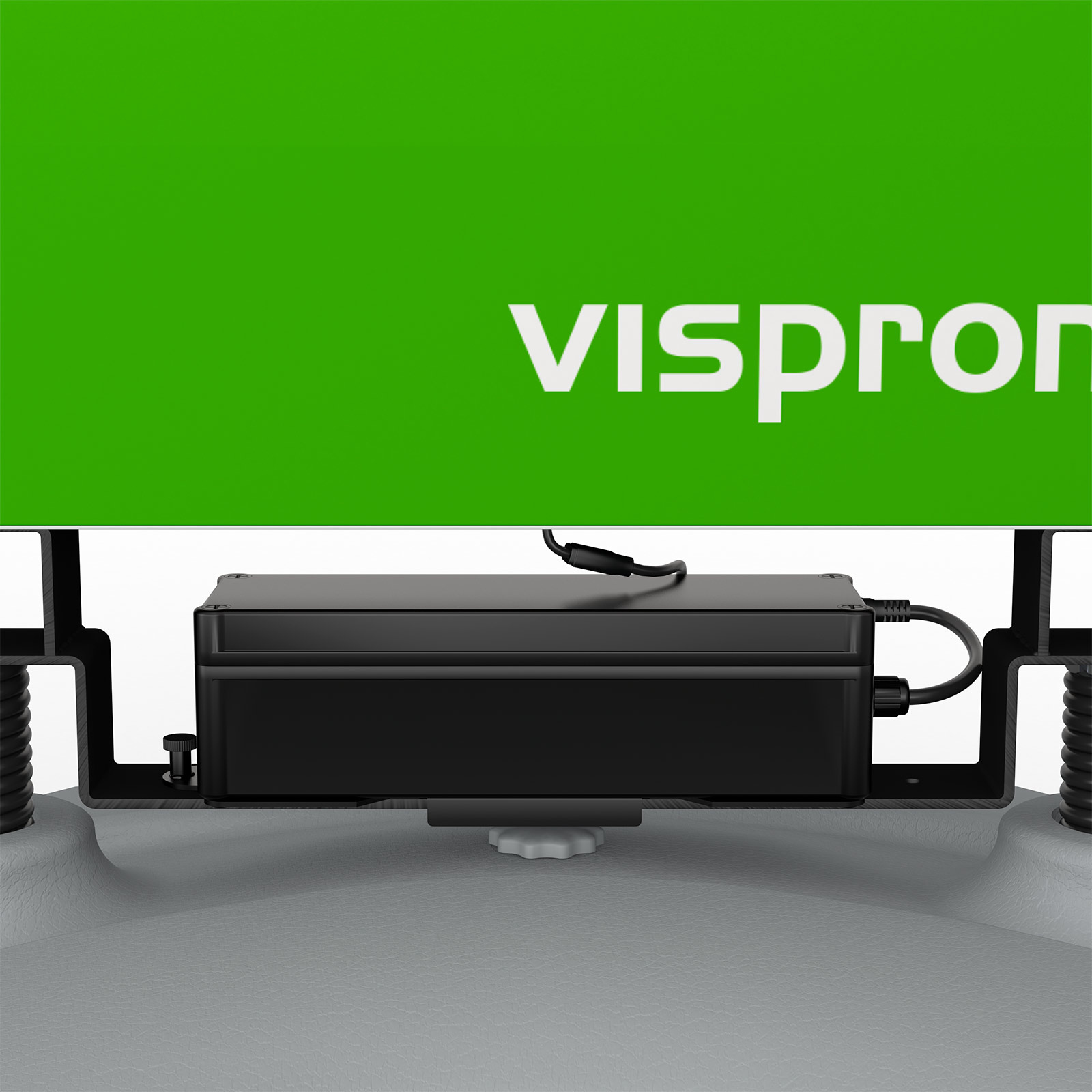

Battery
- Product type: lithium-ion battery
- Voltage: 21.6 V
- Battery capacity: 27Ah / 583 Wh
- Charging time: approx. 3-4 hours
- Lighting duration: up to 20 h - light output decreases after approx. 15 h
- Battery service life: approx. 500 charge cycles (≥ 80 % remaining capacity)
- Recommended charge during storage: 40–60 %
- Protection class of the battery: IP67
Sizes & weights
| Frame size (W x H): |
60 x 100 cm |
| Frame depth: |
8.5 cm |
| Size water base: |
90 x 100 cm |
| Weight without packaging: |
11.2 kg |
| Weight with packaging: |
13.7 kg |
| Packaging dimensions: |
2 packages: 1070 x 365 x 110 mm / 980 x 220 x 630 mm |
*Specifications are approximate values
For safety reasons, the battery is delivered separately in an additional package.

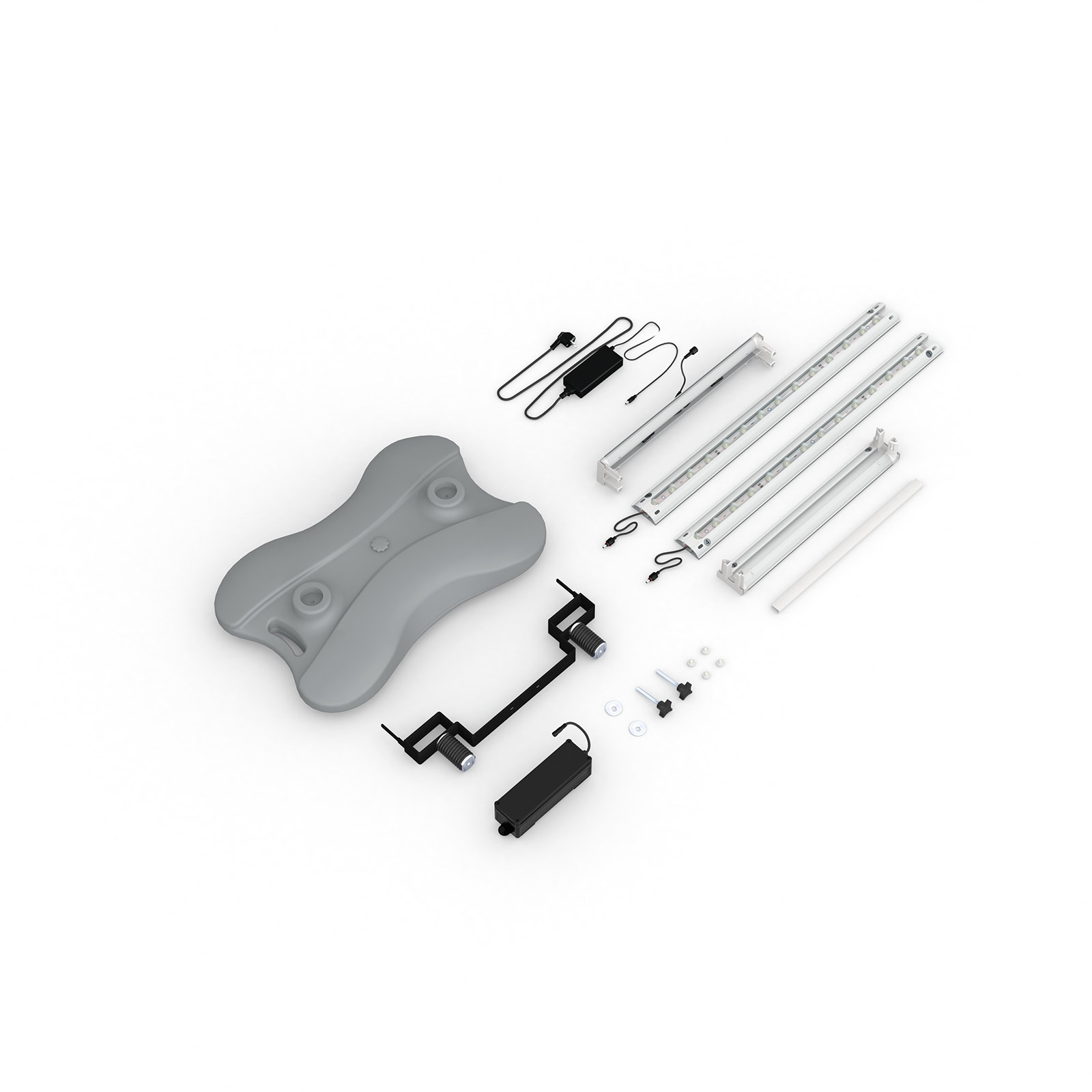

Scope of delivery
- Complete set: rechargeable LED customer stopper including frame system, battery, charger, print parts and transport bag
- Print part: print motifs (without system)
- System: rechargeable LED customer stopper including frame system, battery, charger and transport bag (without textile covering)
Use
- Suitable for indoor and outdoor use
- Weatherproof – withstands rain and wind
- Please observe the safety instructions for this product.
- * Notes on the use of Variotex® Z
- Only recommended for permanent use: not suitable for frequent assembly and disassembly.
- During transport and storage always roll up smoothly and wrinkle-free on cardboard core with intermediate layer made of foam film.
- Creases in the material can lead to breaks, which are particularly visible in backlit applications.
