- Description
-
Print Details
- High-quality textile printing using sublimation process
- UV-resistant with excellent lightfastness
- Customizable on one or both sides
Exhibition Wall Lightbox Fold

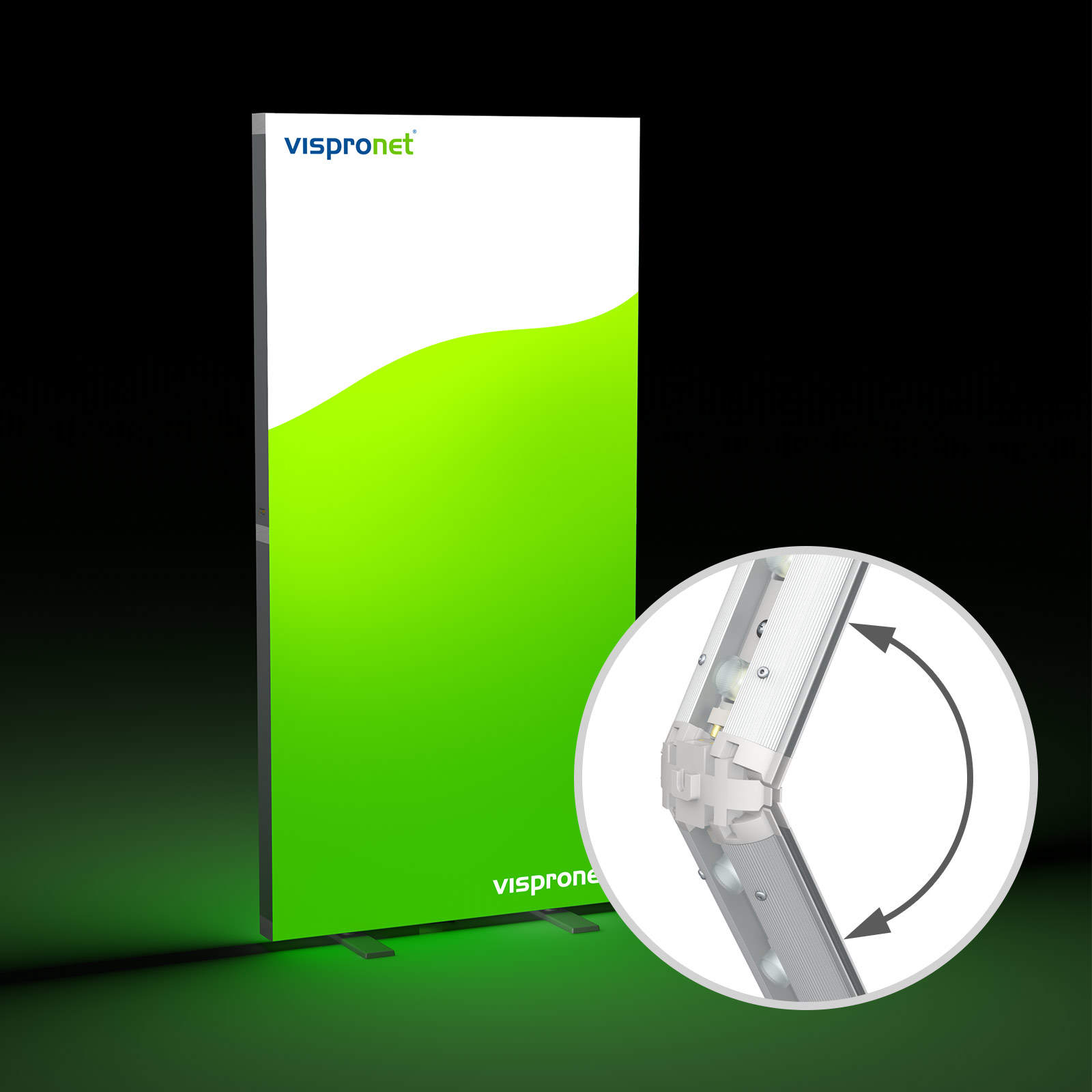

Foldable LED trade show wall for mobile use: The Lightbox fold is ready to use in just a few steps and ensures evenly backlit textile prints thanks to energy-efficient LED technology. Integrated magnets allow multiple walls to be flexibly combined into custom booth configurations.
Version – Print
- Trimmed all around and equipped with a sewn-on flat welt for insertion into the aluminum frame
- The welt ensures perfect, wrinkle-free tension of the printed panels
- Printing options:
- Double-sided printing: front and back can be designed identically or differently
- Single-sided printing: front with custom design, back optionally in black or white
- Note: For continuous designs across multiple connected walls, slight misalignments may occur at the transitions
Materials
- Lighttex SE (approx. 260 g/m²): matte polyester knit, specially designed for backlit applications
- Sublimation print: ink penetrates deep into the fabric, ensuring vivid colors and high detail accuracy
- Ideal for uniform, luminous light surfaces

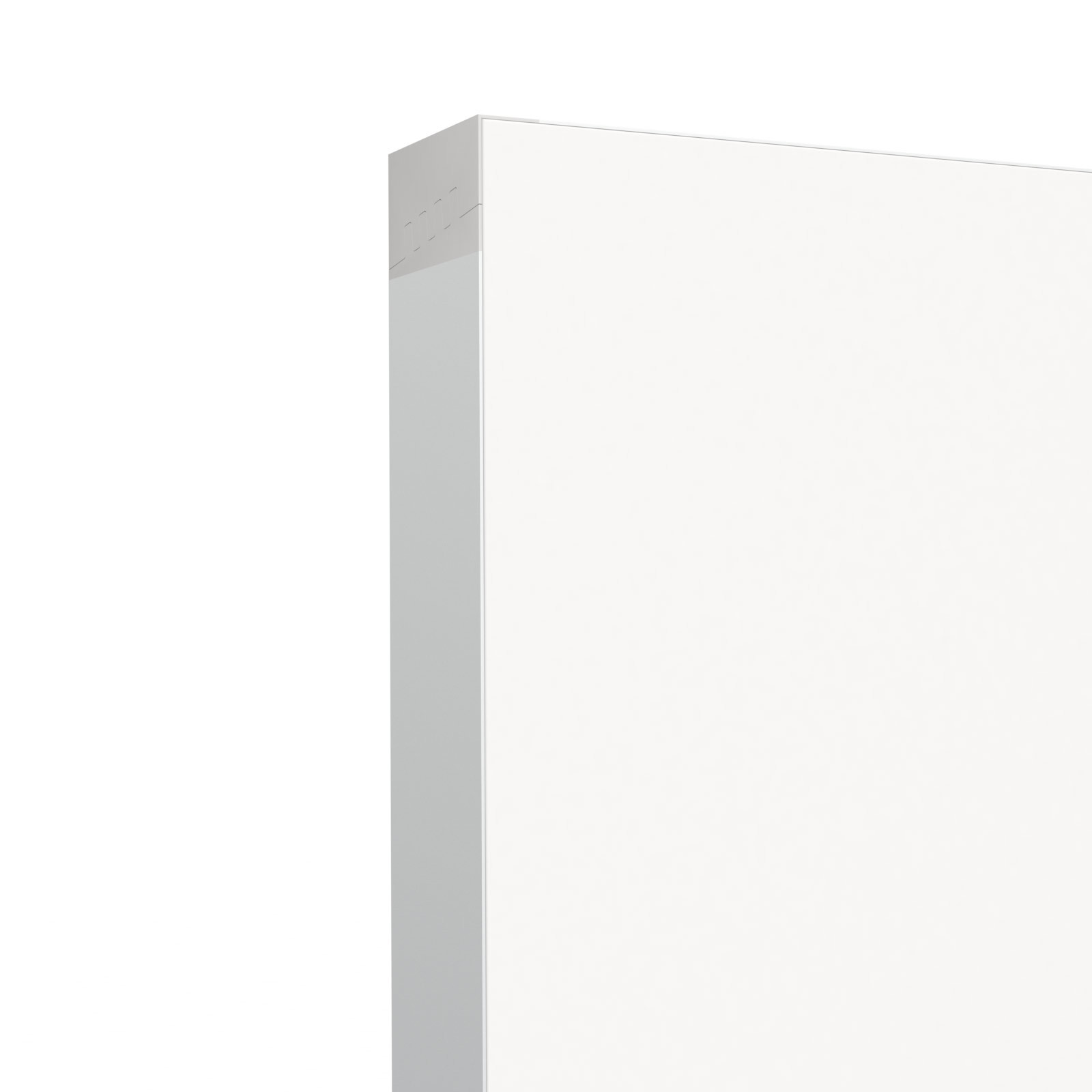

- Materials for rear panel in single-sided printing:
- Black back: Multisol® X Opak SE, matte-glossy polyester knit with black PU coating, 100% opaque
- White back: Multisol® X Opak SE, matte-glossy polyester knit with white PU coating, 100% opaque
Version - System
- Innovative frame system with registered design (GM: 20 2023 100 051)

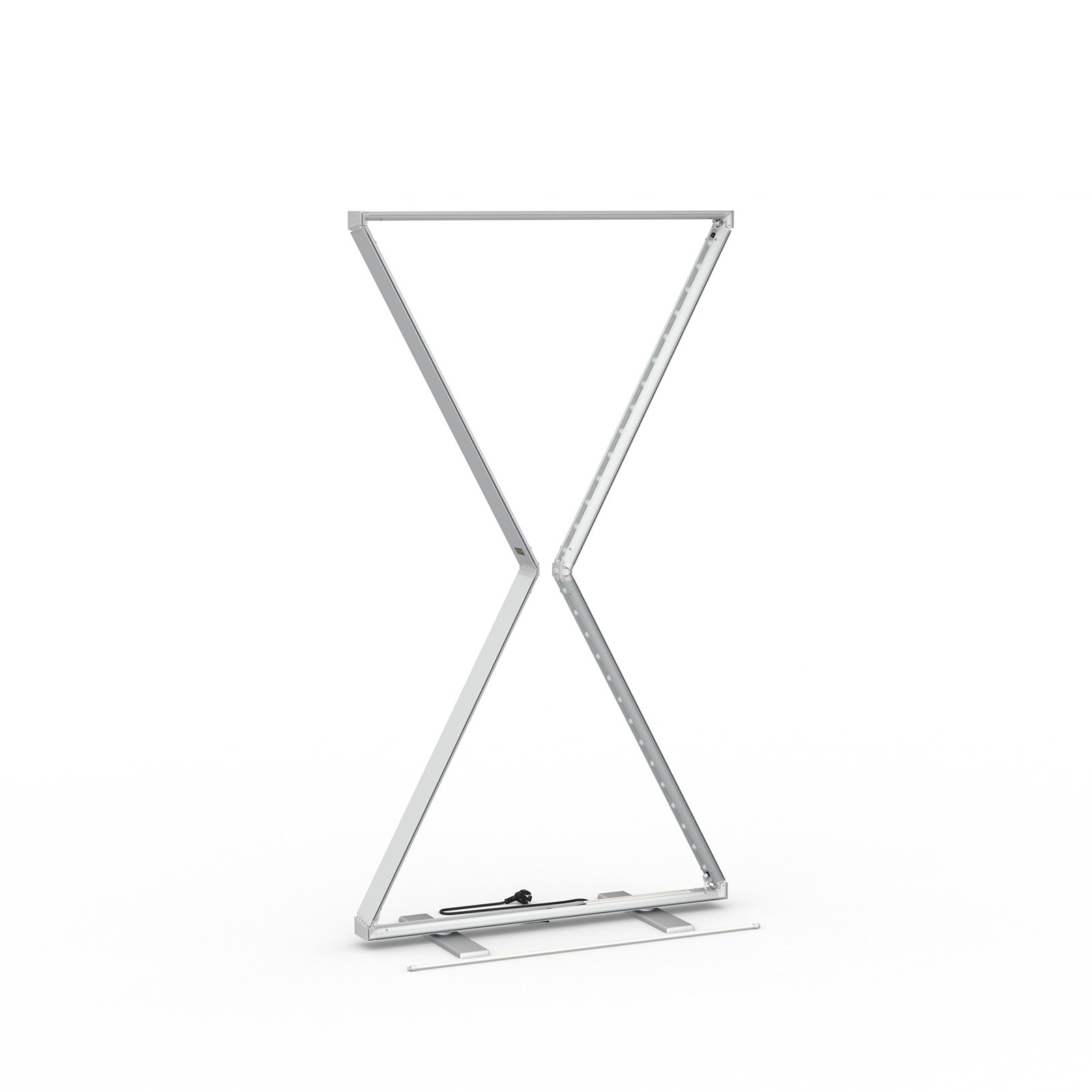

- System made of foldable aluminum frames
- Material: anodized aluminum
- System size per wall (W × H): approx. 100 × 200 cm
- Frame depth: 85 mm
- Rotatable feet (length 40 cm) for secure positioning
- Center support bar for additional stability

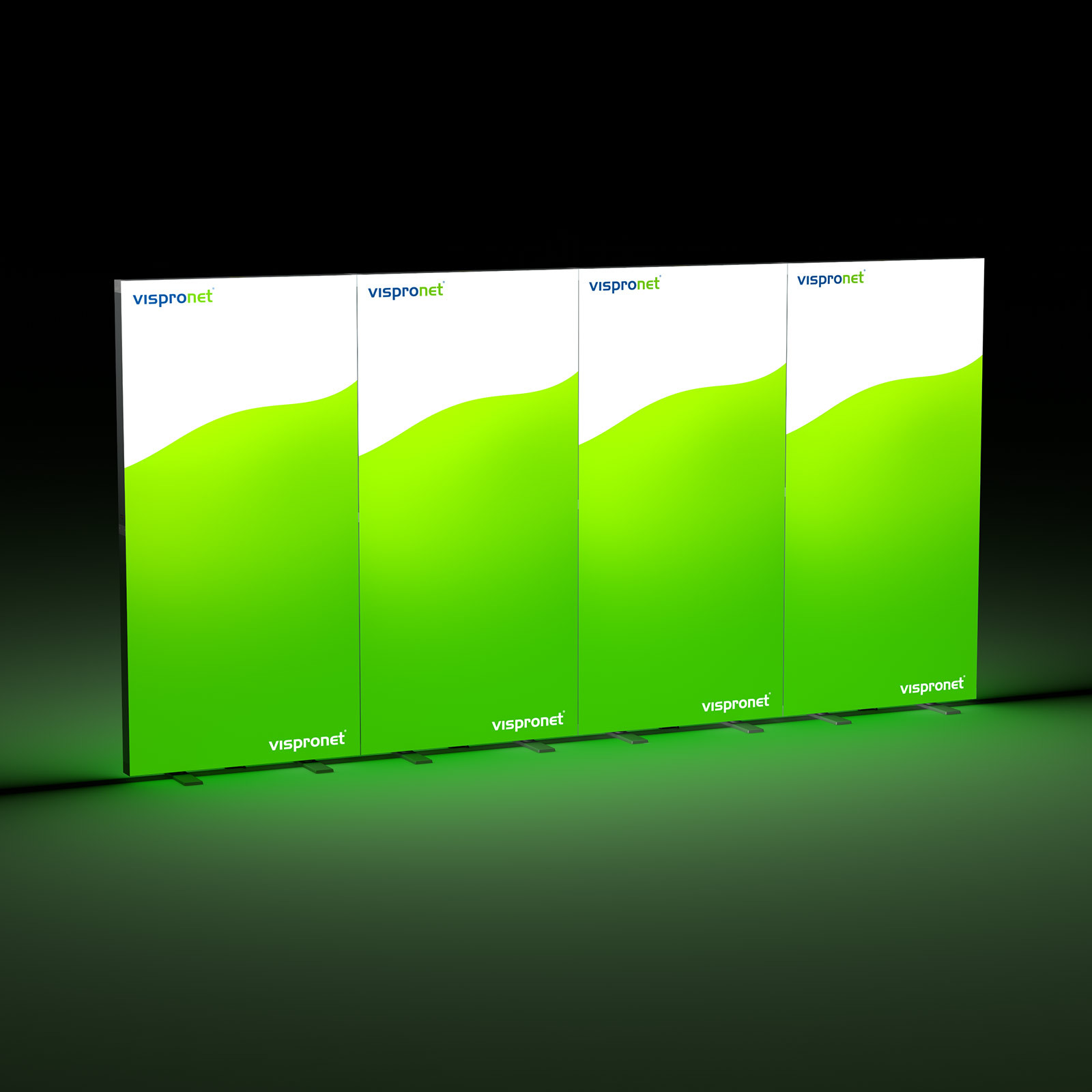

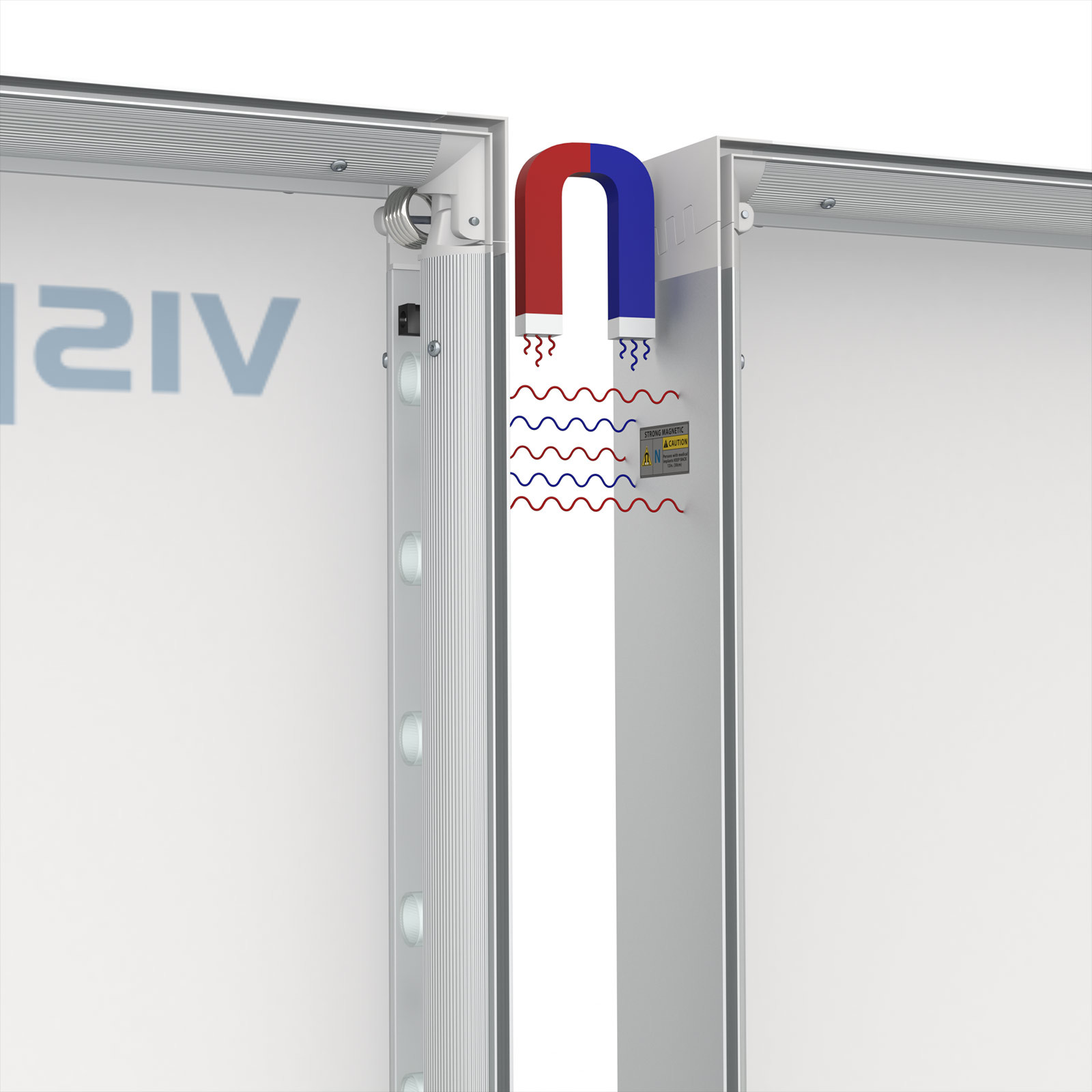

- 1 system – many possibilities: integrated magnets on both sides of the frame allow for modular connection of multiple walls
- Low-heat LED modules, pre-installed at the factory
- Integrated power supply, power cord with plug (cable length approx. 180 cm)

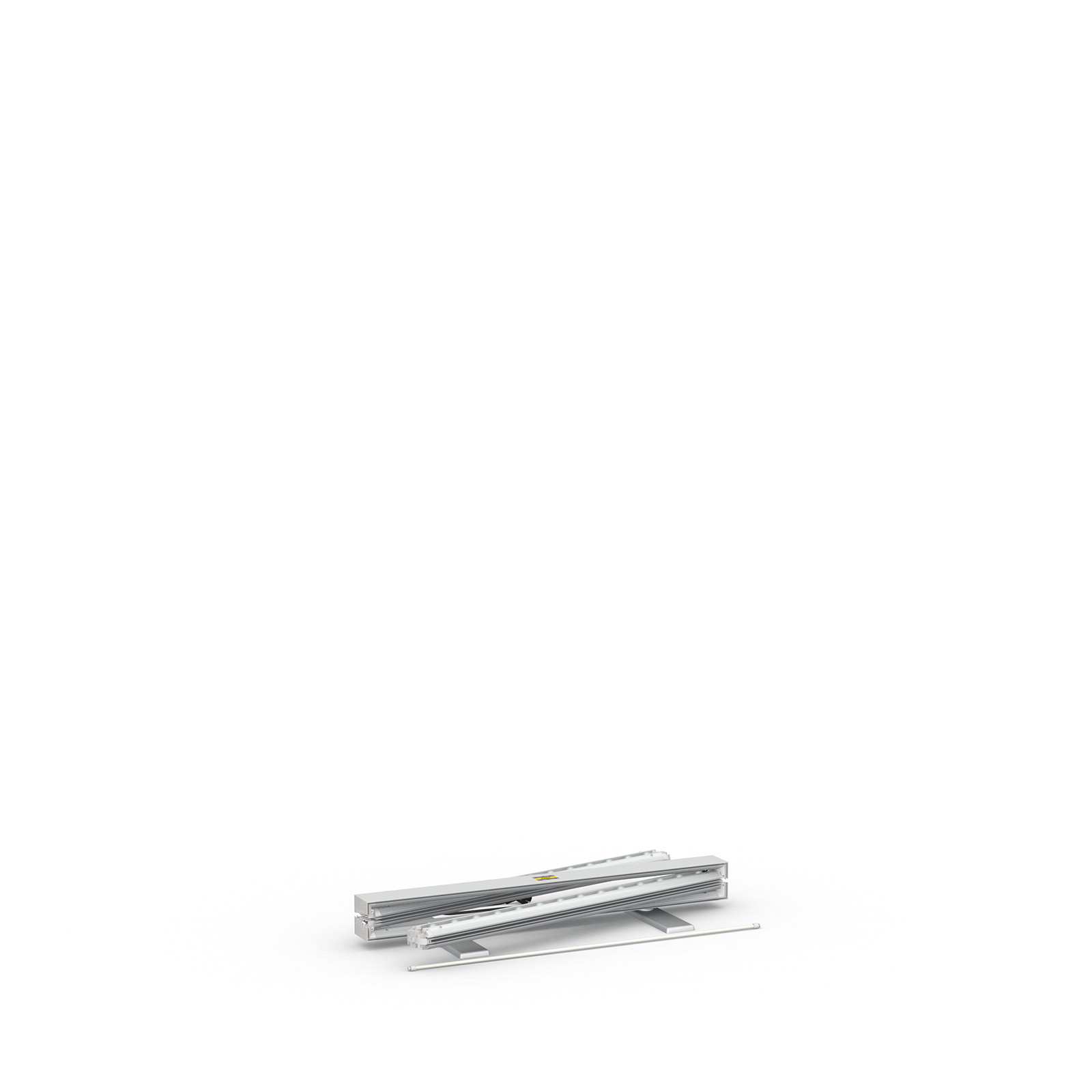

- Quick, tool-free setup: unfold the frame, align feet, insert support bar, connect power – done!
Technical data
- Voltage: 24 V
- Power: 96 W
- Current: 4 A
- Luminous flux: 4000 lumens
- Light color: cool white
- Lifespan: up to approx. 20,000 hours
Tip: Can be used without a power socket via a portable power station, e.g. Powerstation AC 500 Wh – provides approx. 5 hours of runtime. (not included)
Sizes & weights
Number of Walls System
(W × H)System Weight Packaging Dimensions
(W × H × D)Total Weight 1 100 × 200 cm 8,15 kg 105 × 33 × 17 cm 9,65 kg 2 200 × 200 cm 2 × 8,15 kg 2 packages, each 105 × 33 × 17 cm 2 × 9,65 kg 3 300 × 200 cm 3 × 8,15 kg 3 packages, each 105 × 33 × 17 cm 3 × 9,65 kg 4 400 × 200 cm 4 × 8,15 kg 4 packages, each 105 × 33 × 17 cm 4 × 9,65 kg *All values are approximate
Scope of delivery
- Complete set: Lightbox fold trade show wall including frame system, printed panel(s), and transport bag
- Print only: printed panel(s) or rear panel depending on selected option (without system)
- System only: Lightbox fold frame system with transport bag (without printed panel)
Application
- For indoor use only
- Please refer to the safety instructions for this product.
