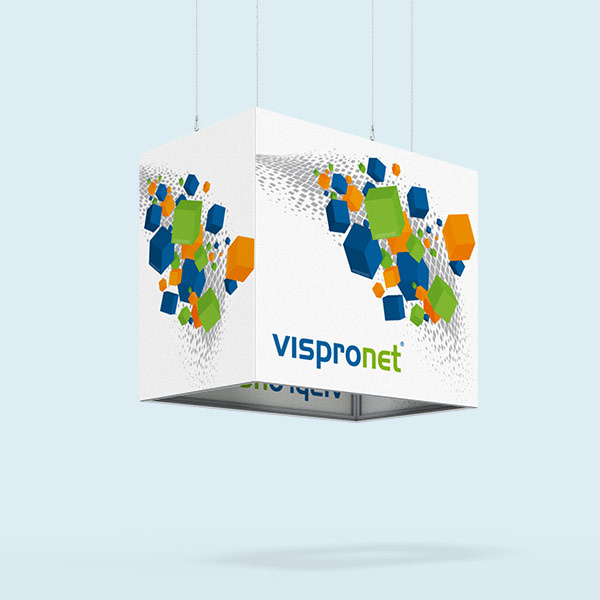

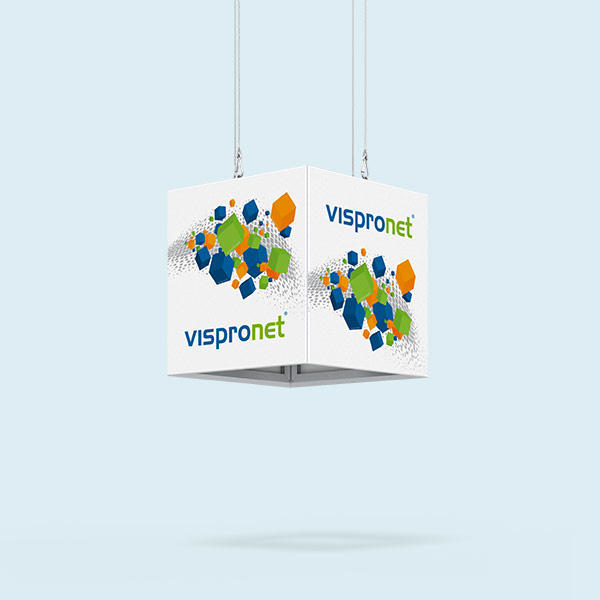

Ceiling Hanger Q-Frame® in Cuboid Shape
The three-dimensional ceiling hanger made of sturdy aluminum Q-Frame® frames and secure BGV-C1-compliant 4-point suspension impresses with striking presence in large rooms. Present your brand with high-quality textile print motifs on up to six side surfaces and ensure maximum visibility from all viewing angles.
Versions - Print Parts

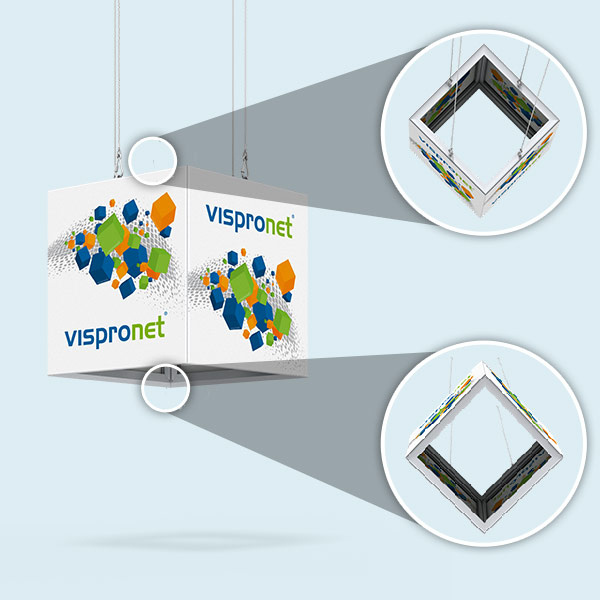

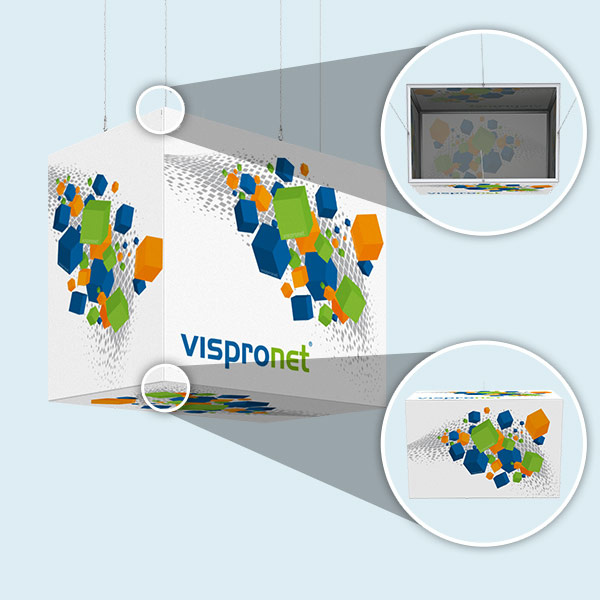

- optionally 4, 5, or 6 side surfaces
- each print surface cut all around
- side edges with flat piping for attachment in the frame’s piping groove

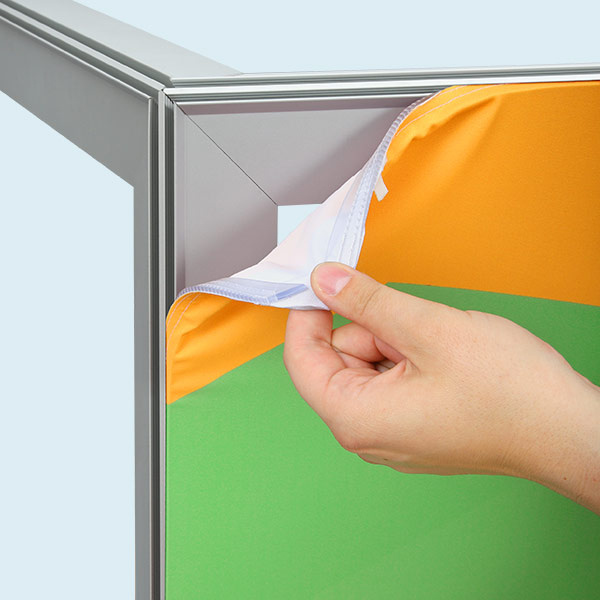

- all 4 corners cut at approx. 2 cm x 45°, with sewn-in tab for easy removal

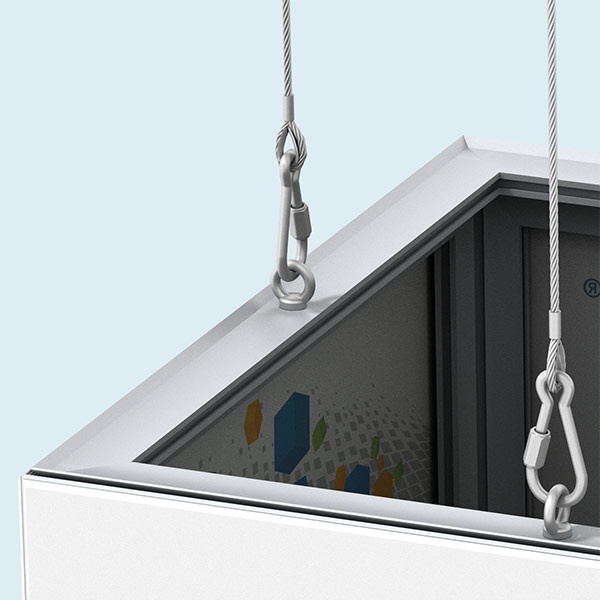

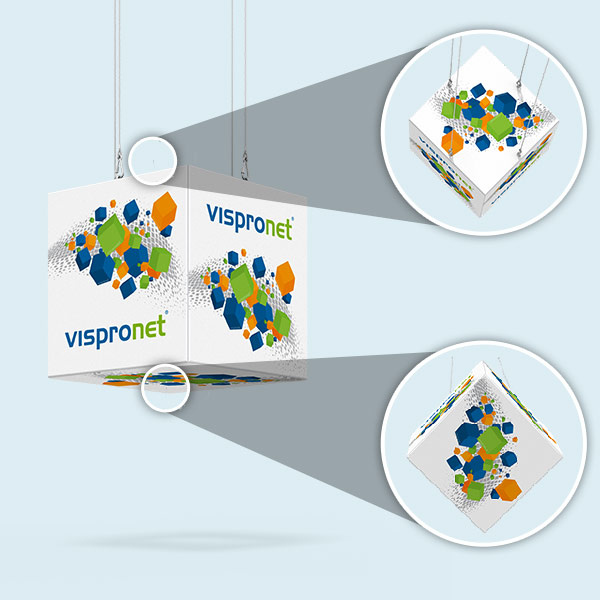

- for 6 side surfaces, the upper part (lid) is reinforced with 4 eyelets for attaching the suspension device
- optimally tensioned print motifs for a wrinkle-free presentation
- each side individually customizable
- easy and quick replacement of print parts for sustainable use
Dimensions
-
individual, freely selectable sizes:
- Width: 59 cm – 240 cm
- Height: 59 cm – 240 cm
- Depth: 59 cm – 240 cm
- various standard sizes selectable
Standard Sizes and Weights
| System Size (W x H x D) |
Weight (without print parts) |
| 80 x 80 x 80 cm |
9.8 kg |
| 100 x 100 x 100 cm |
12 kg |
| 150 x 100 x 150 cm |
15 kg |
| 150 x 150 x 150 cm |
18 kg |
| 200 x 100 x 150 cm |
16.5 kg |
| 200 x 200 x 200 cm |
23.5 kg |
| 240 x 200 x 150 cm |
23.5 kg |
*All dimensions are approximate; technical changes and tolerances reserved.
Material
- Multisol® X SE: crease-resistant material with high opacity and brilliant color reproduction
Version - System

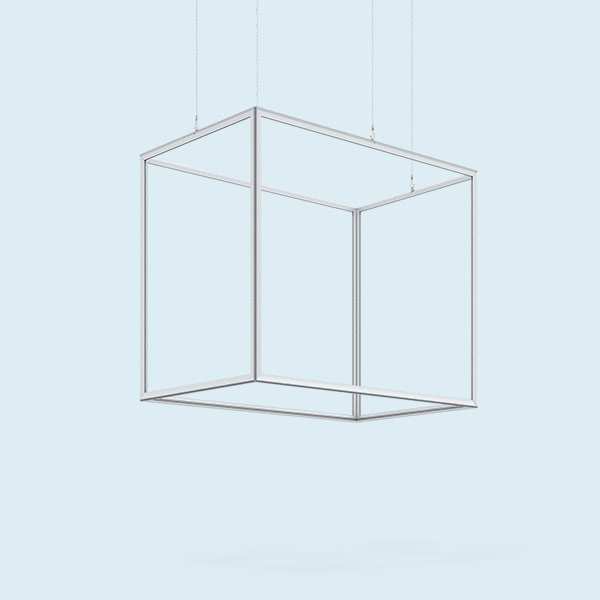

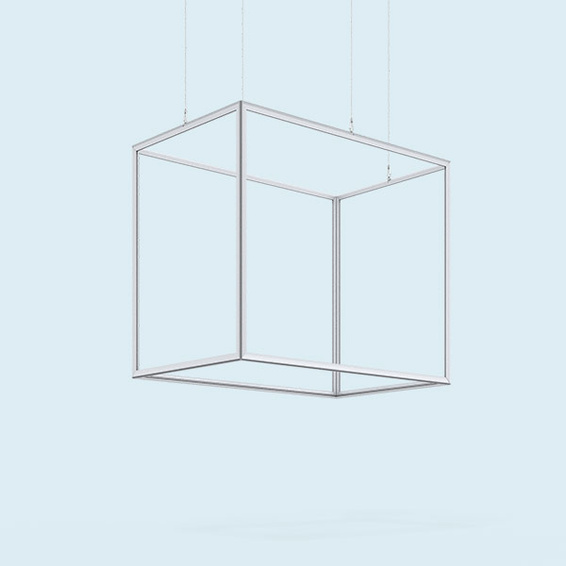

- Ceiling hanger Q-Frame® in 3D form
- 6 high-quality aluminum frames, silver anodized
- Frame depth: 50 mm each

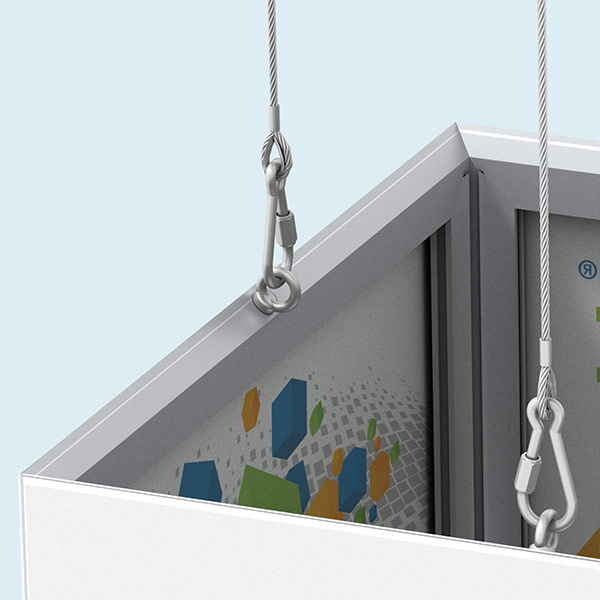

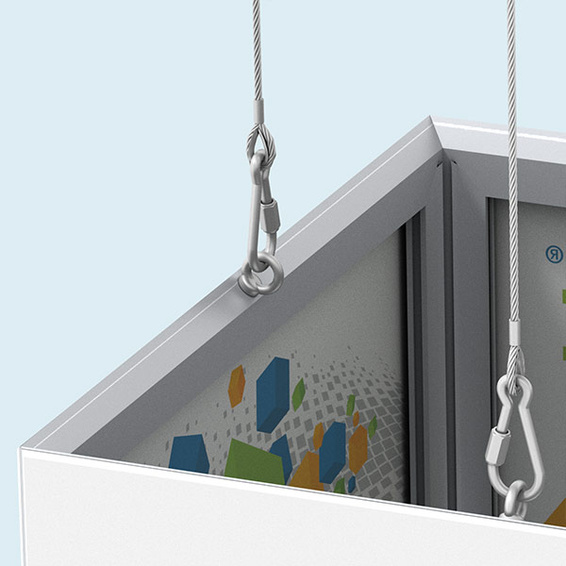

- Suspension: with 4 eye bolts and 4 wire suspension cables with 1 screw carabiner (BGV C1-compliant)
Cable Lengths
Depending on the selected system size, the lengths of the wire suspension cables for hanging the ceiling hanger vary.
| System Width |
System Height |
System Depth |
Cable Length |
| 59 - 100 cm |
59 - 240 cm |
59 - 100 cm |
2 meters |
| 101 - 200 cm |
59 - 240 cm |
59 - 100 cm |
3 meters |
| 200 - 240 cm |
59 - 240 cm |
101 - 240 cm |
4 meters |
*All dimensions are approximate; technical changes and tolerances reserved.
Scope of Delivery
- Complete set: Q-Frame® rectangular profiles, pre-assembled with corner connectors, 4-point suspension, print parts (depending on selected variant) - for self-assembly
- Print part: 4 to 6 print motifs, depending on the selected number of side surfaces (without system)
- System: Q-Frame® rectangular profiles, pre-assembled with corner connectors, 4-point suspension, print parts (depending on selected variant) - for self-assembly (without print parts)
