- Description
-
Print Details
- Brilliant sublimation or UV printing
- UV-resistant, high lightfastness
- Individually designable on one or both sides
Lightbox click Exhibition Wall

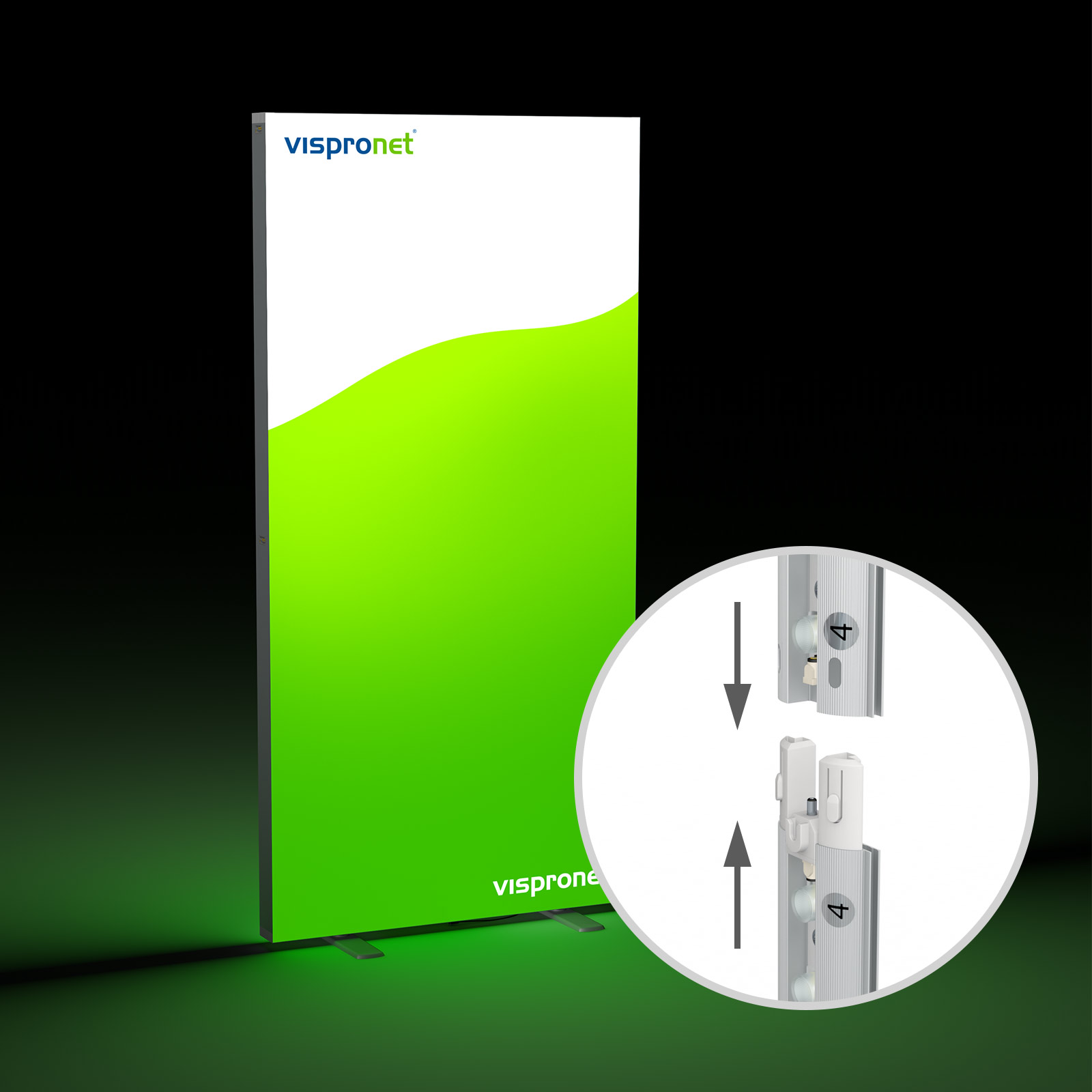

High-luminosity LED exhibition wall with click-connection system for mobile use: This innovative system combines lightweight aluminum frames with energy-efficient LED lighting and tightly stretched textile prints. Thanks to integrated magnets, multiple walls can be flexibly connected to create straight or angled trade show stands.
Version – Print
- Cut all around and equipped with sewn-on flat keder for mounting in the aluminum frame
- The keder system ensures perfectly taut and wrinkle-free graphics
- Print options:
- Double-sided: identical or different designs on front and back
- Single-sided: front with custom design, back optionally white or black
- Note: When graphics extend across multiple frames, slight image misalignment between walls may occur
Materials
- Lighttex SE: matte polyester fabric, flame-retardant
- Sublimation print: color penetrates the material, vibrant and detailed, long-lasting
- Specially designed for optimal backlit advertising
- Variotex® Z SE: matte polyester fabric, UV-resistant with high lightfastness (rating 6–7), flame-retardant
- UV printing: color stays on the surface, high color intensity, razor-sharp details, durable
- Note: Recommended only for long-term installations (not suitable for frequent setup and dismantling)*
- Materials for rear paneling with single-sided printing:

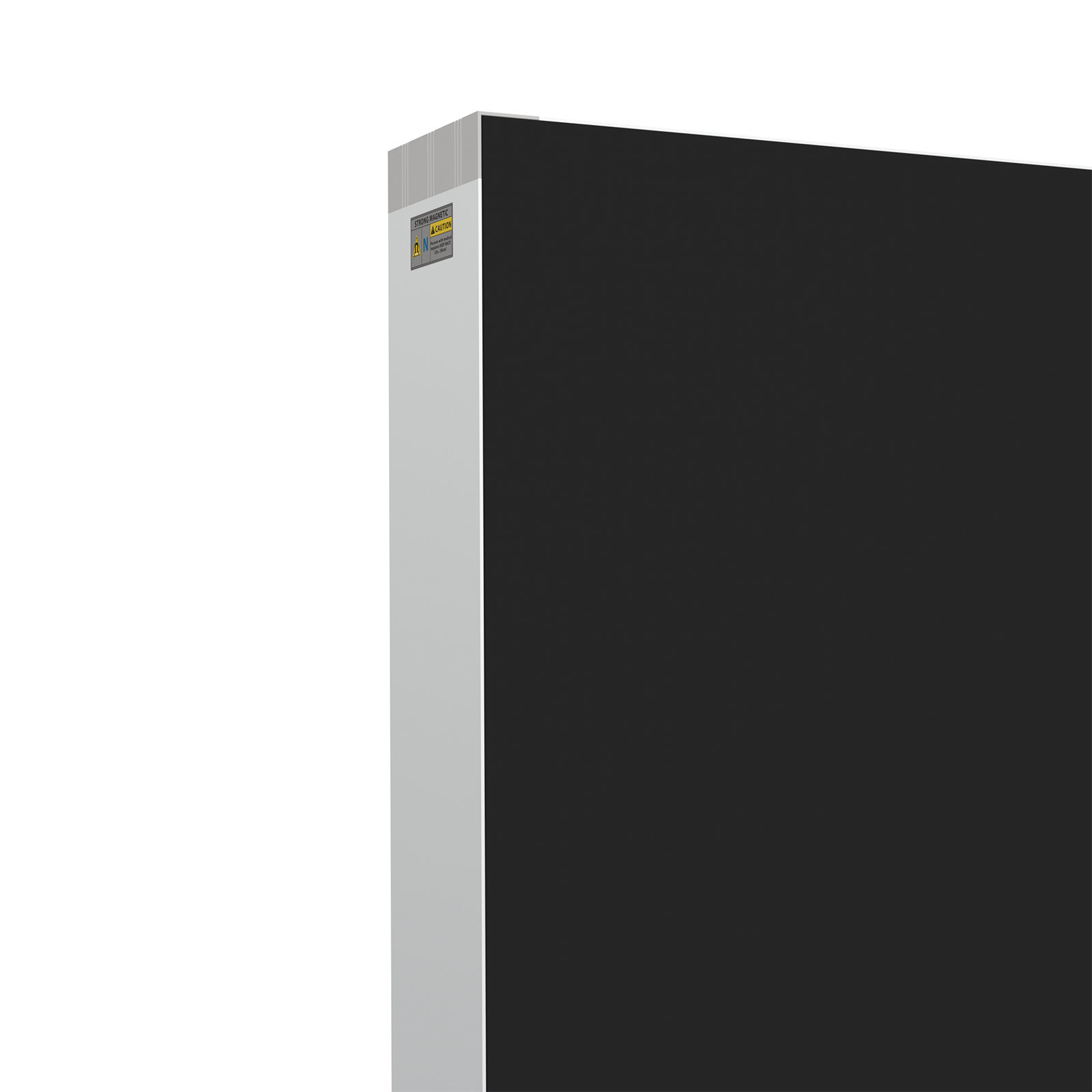

- Black back: Multisol® X Opak SE, matte glossy polyester knit with black PU coating, 100% opaque

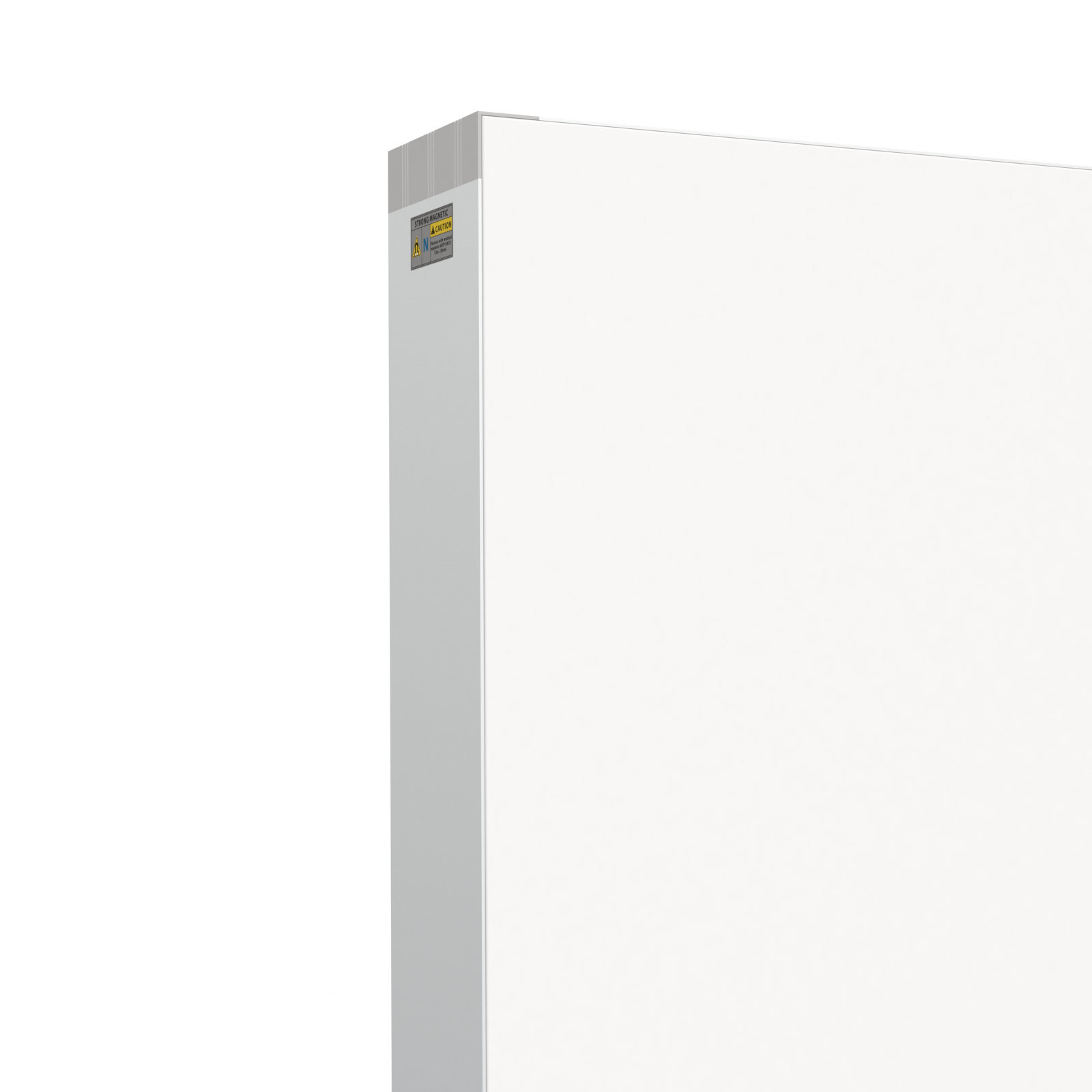

- White back: Multisol® X Opak SE, matte glossy polyester knit with white PU coating, 100% opaque
Version – System
- Innovative frame system with registered design (utility model: 20 2019 103 837)

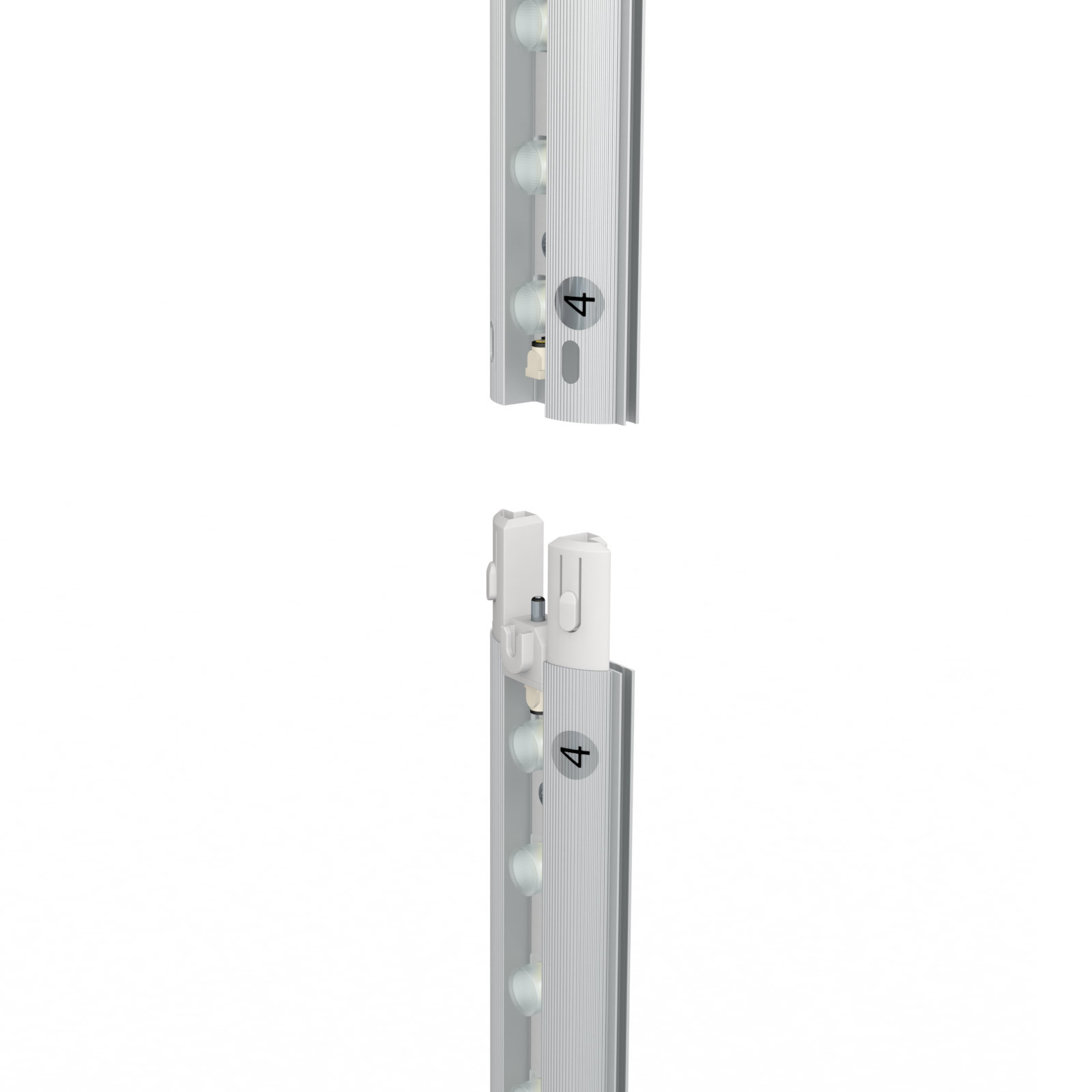

- Trade show wall with plug-in frame elements and click-locking system
- Material: aluminum
- System size per wall (W x H): approx. 100 x 200 cm
- Frame depth: 85 mm

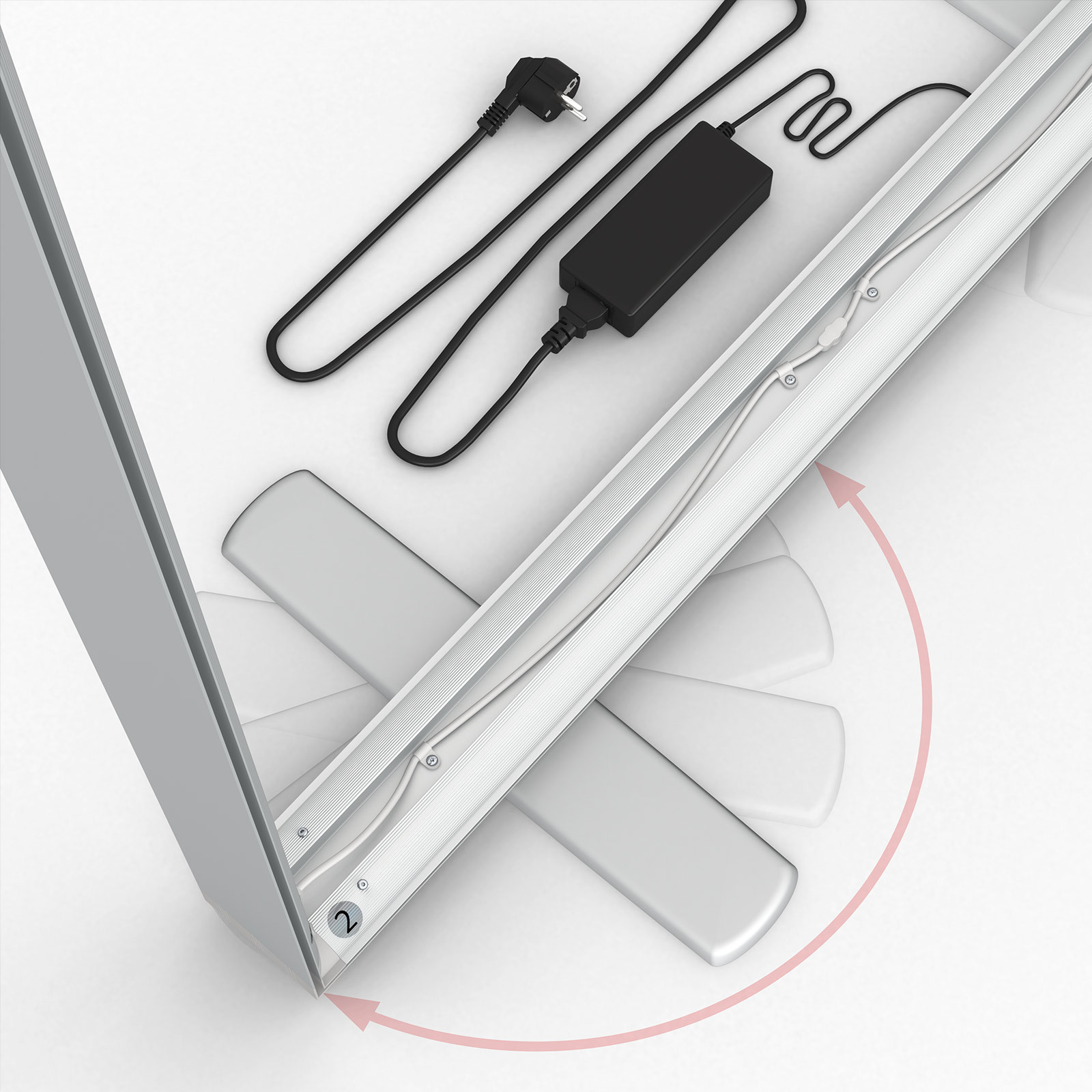

- Rotatable feet (length: 40 cm) for stable setup

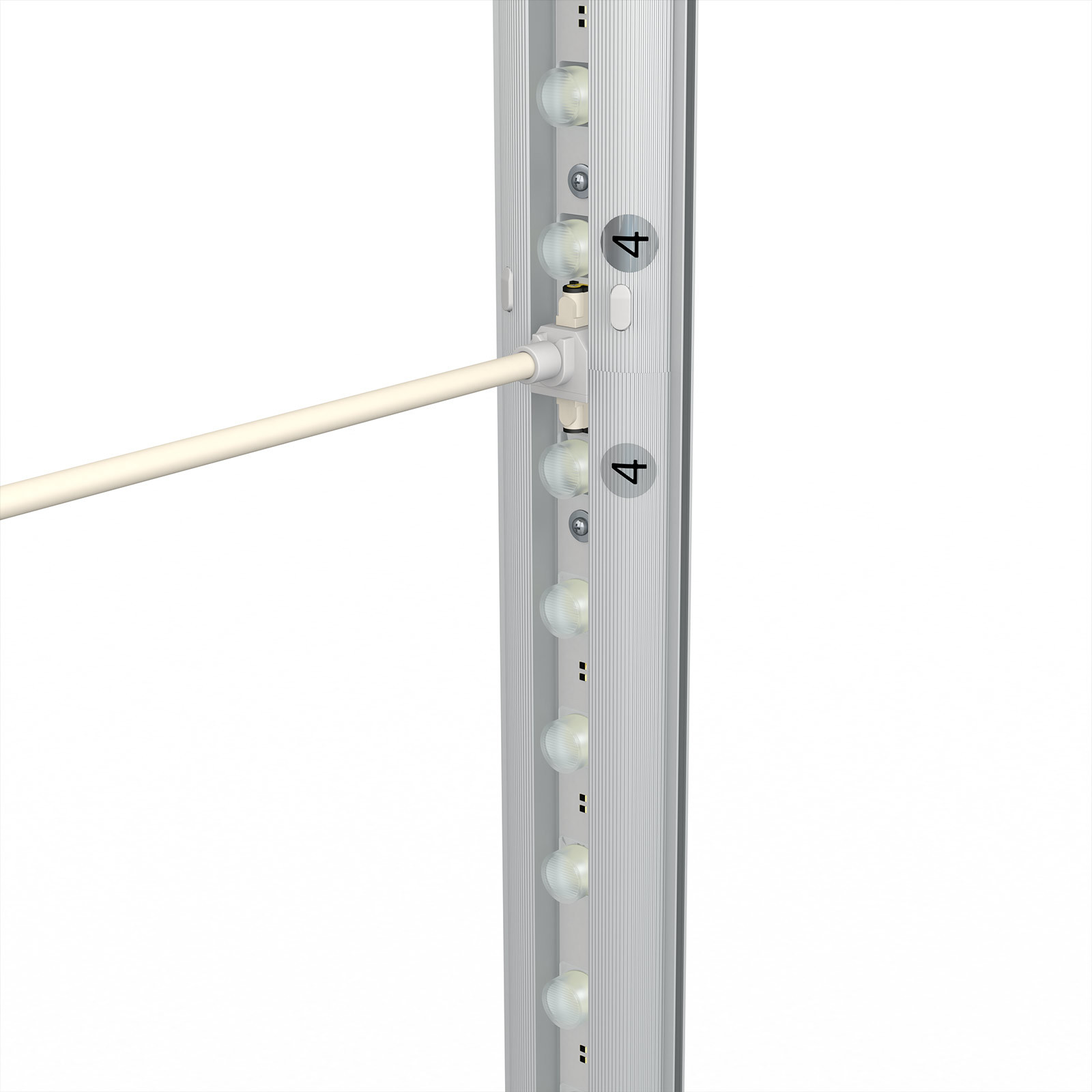

- Central support bar for additional stability

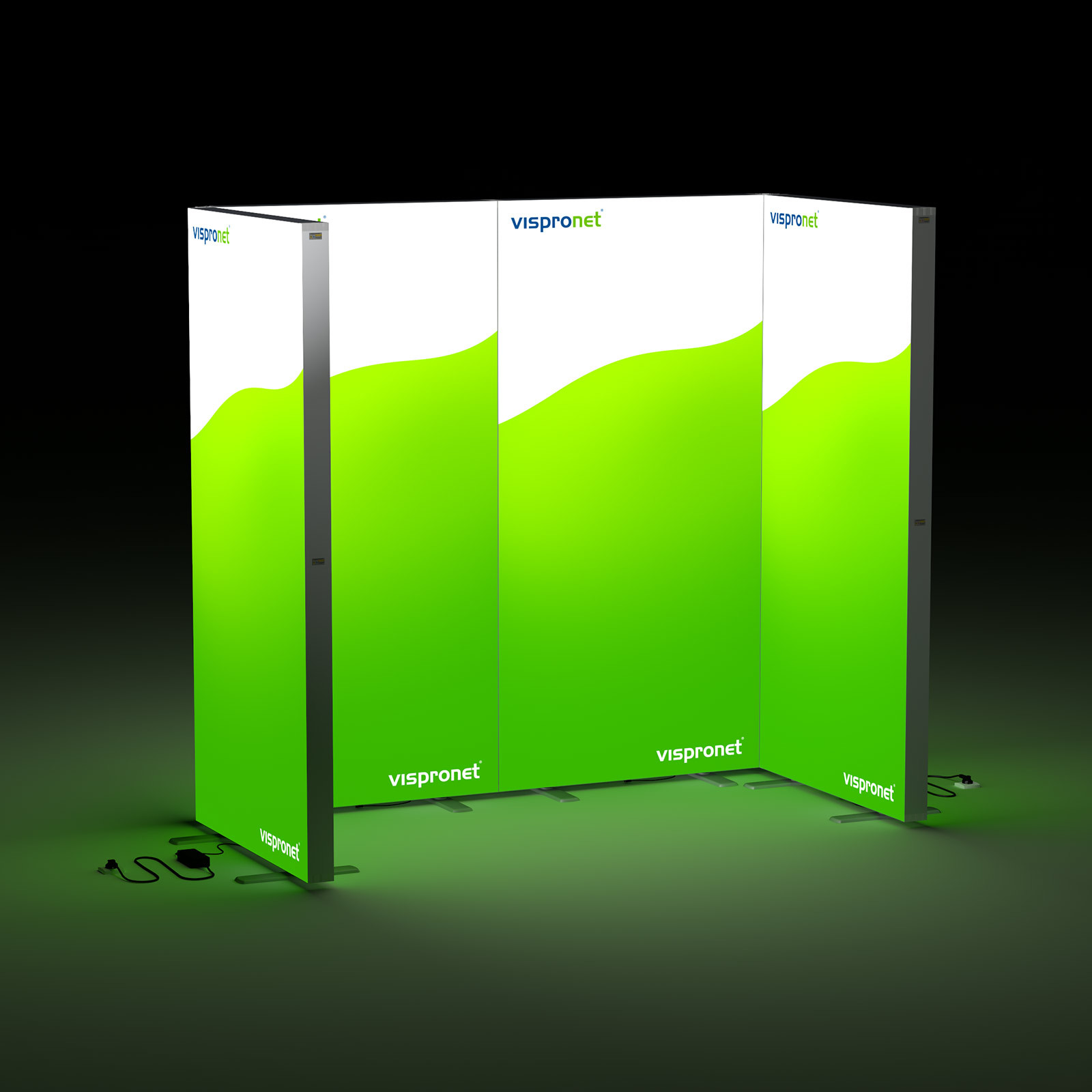

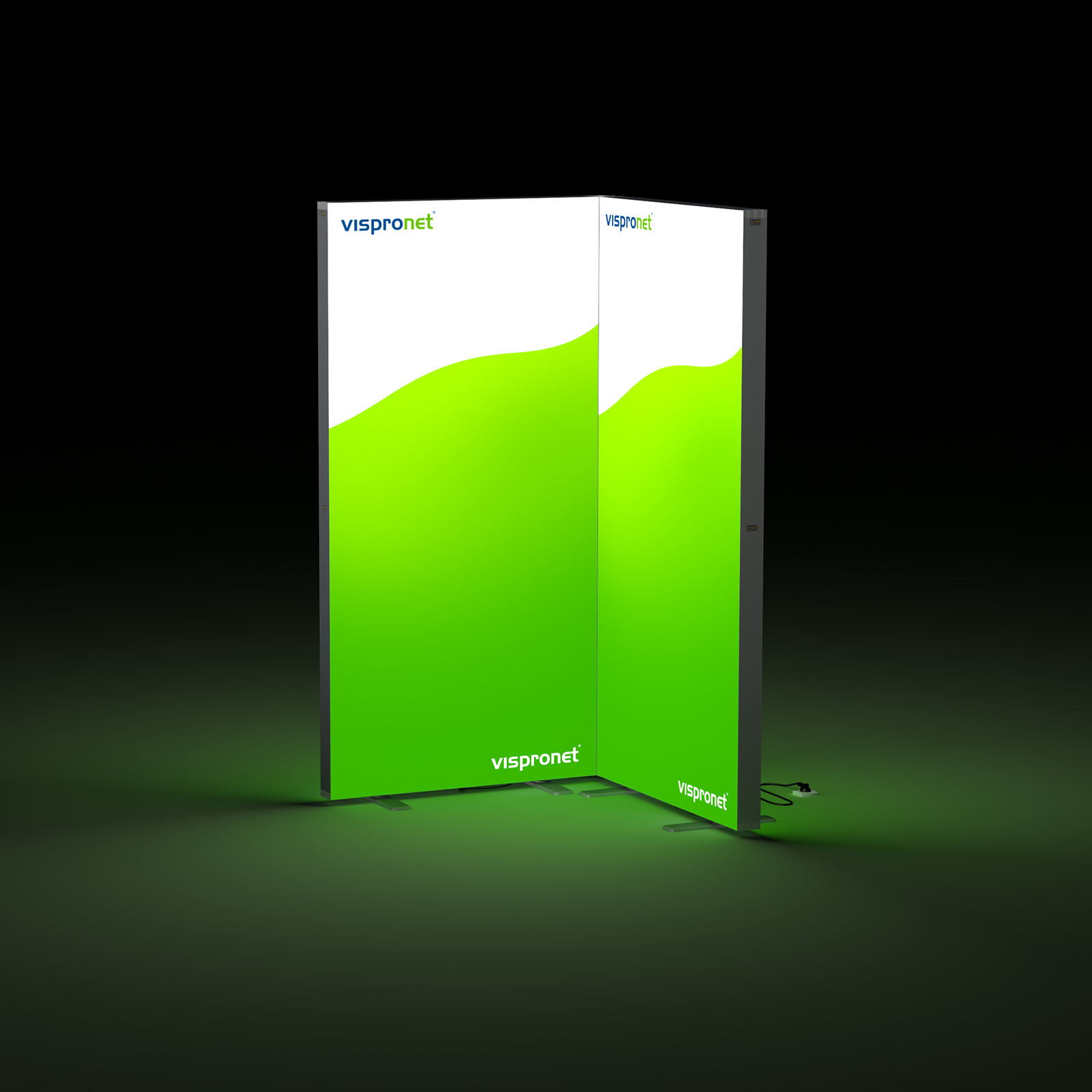

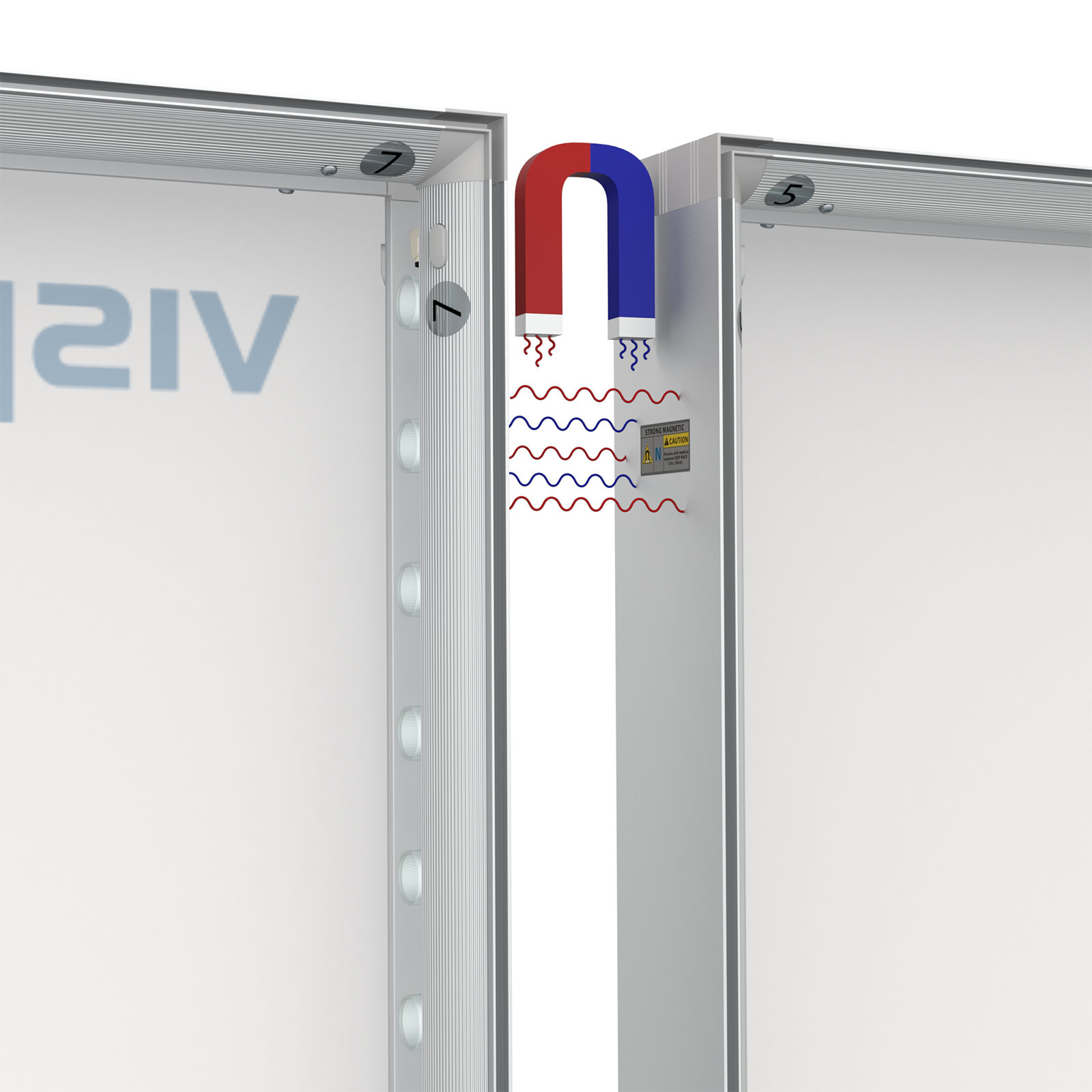

- 1 system – multiple possibilities: integrated magnets on both sides for connecting multiple walls

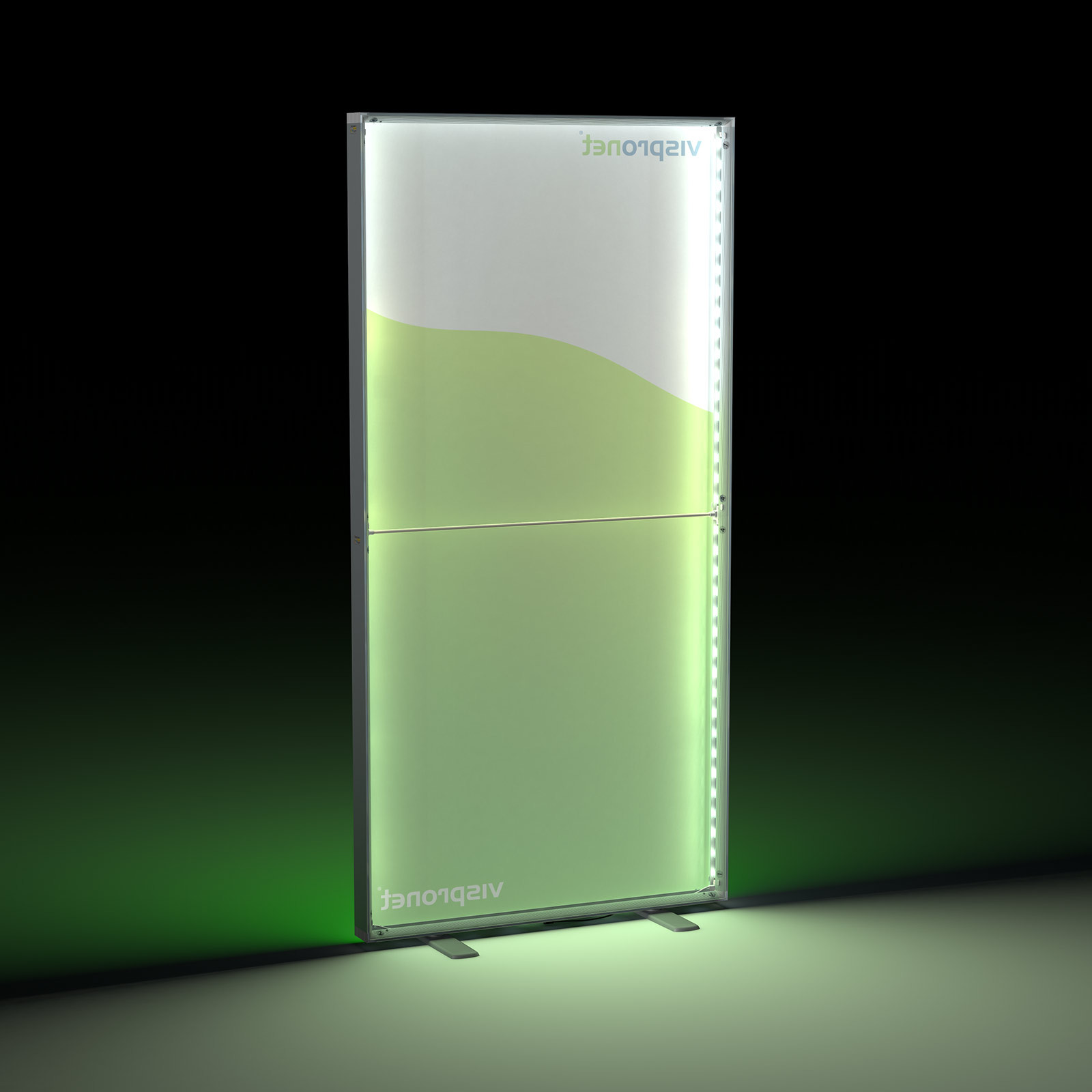

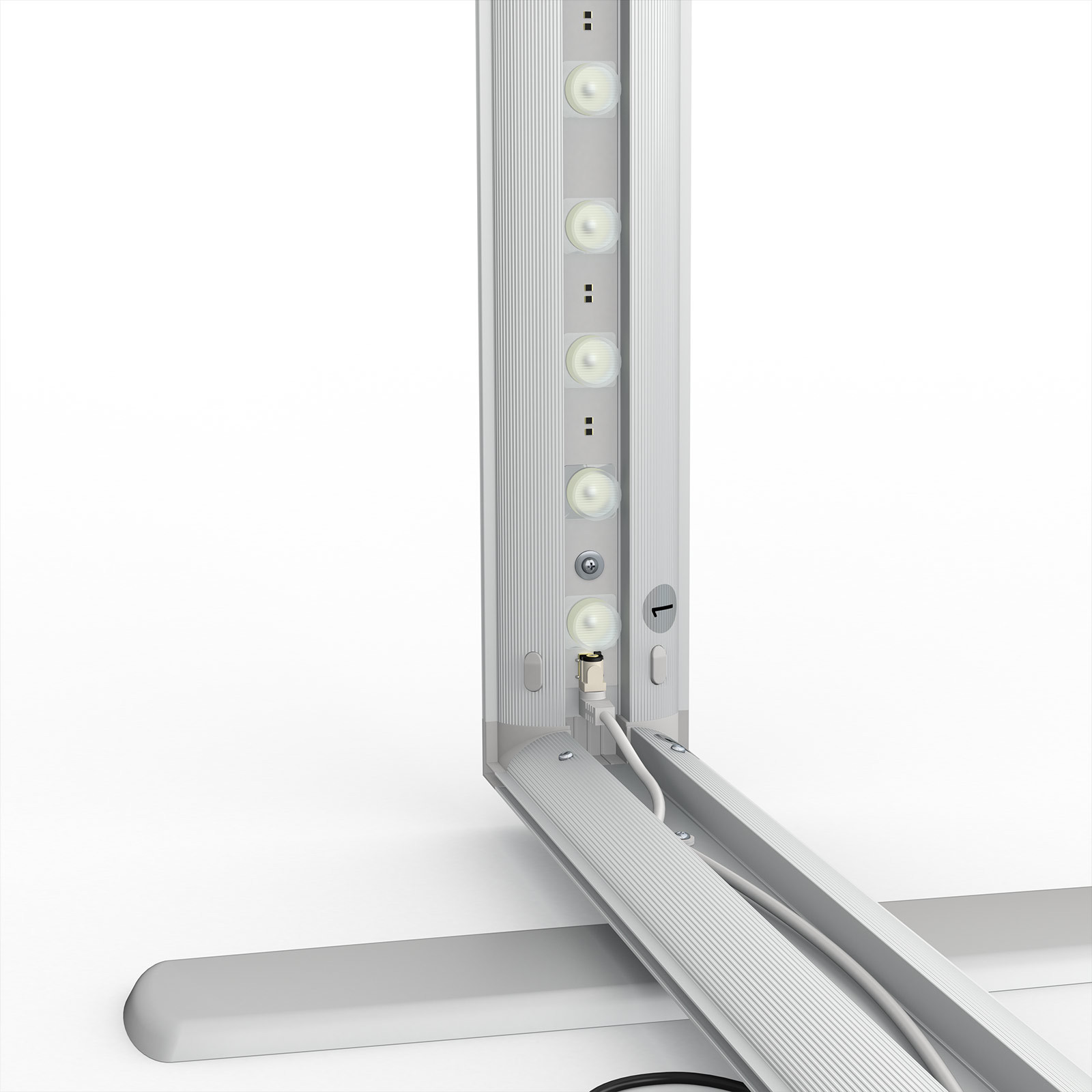

- Pre-mounted LED modules with low heat emission
- Power adapter and 260 cm power cable with plug
- Tool-free setup: align feet, connect frame elements via click system, insert support bar, connect power – done
Technical Specifications
- Voltage: 24V
- Power: 96W
- Current: 4A
- Luminous flux: 4000 lumens
- Light color: cool white
- Service life: up to 20,000 hours
Tip: Can be operated without a power outlet using a portable power station (e.g., AC 500 Wh, approx. 5 hours runtime). (Not included)
Sizes & Weights
Number of Exhibition Walls System
(W × H)System Weight Packaging Dimensions
(W × H × D)Total Weight 1 100 × 200 cm 8,15 kg 105 × 33 × 17 cm 9,65 kg 2 200 × 200 cm 2 × 8,15 kg 2 packages, each 105 × 33 × 17 cm 2 × 9,65 kg 3 300 × 200 cm 3 × 8,15 kg 3 packages, each 105 × 33 × 17 cm 3 × 9,65 kg 4 400 × 200 cm 4 × 8,15 kg 4 packages, each 105 × 33 × 17 cm 4 × 9,65 kg *All values are approximate

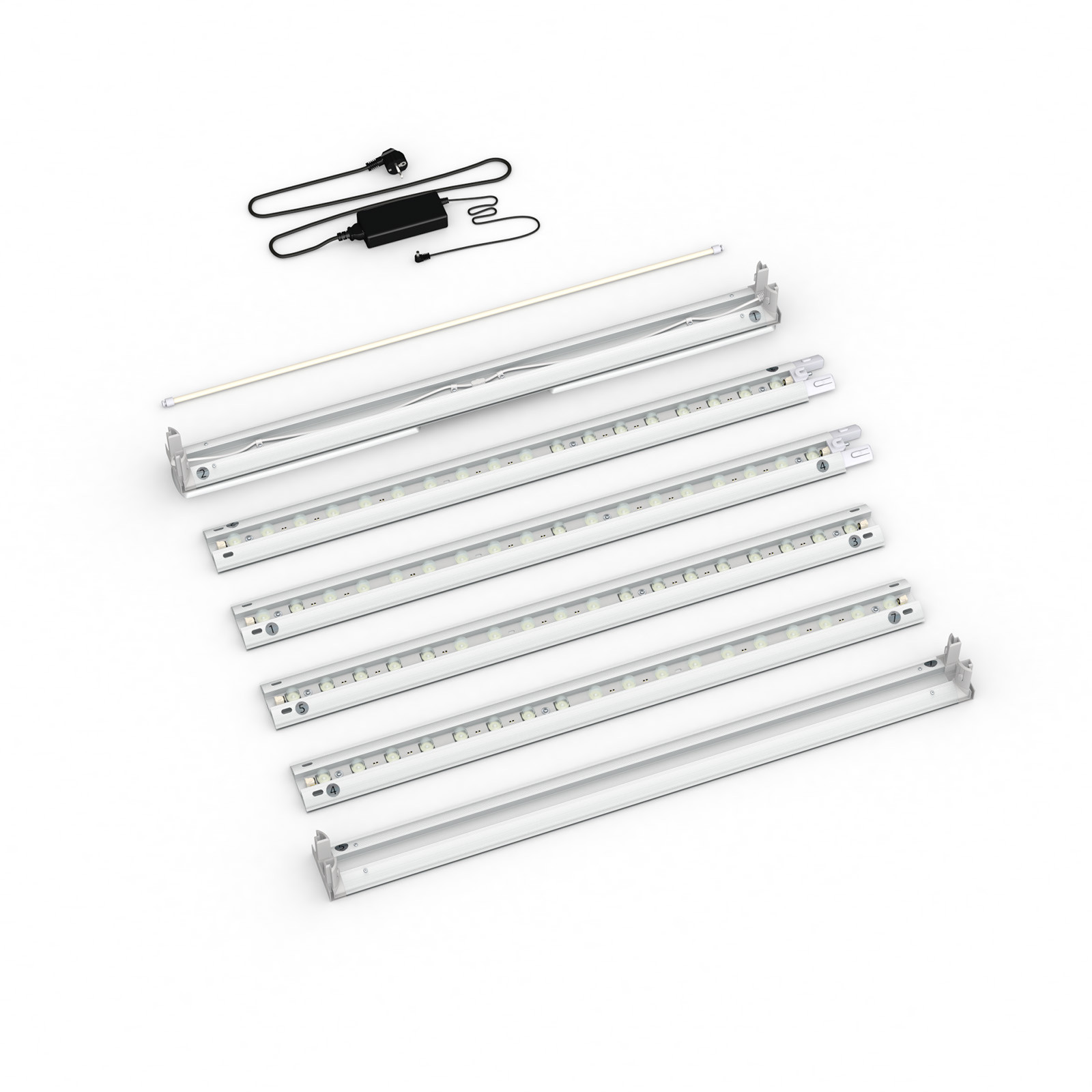

Scope of delivery

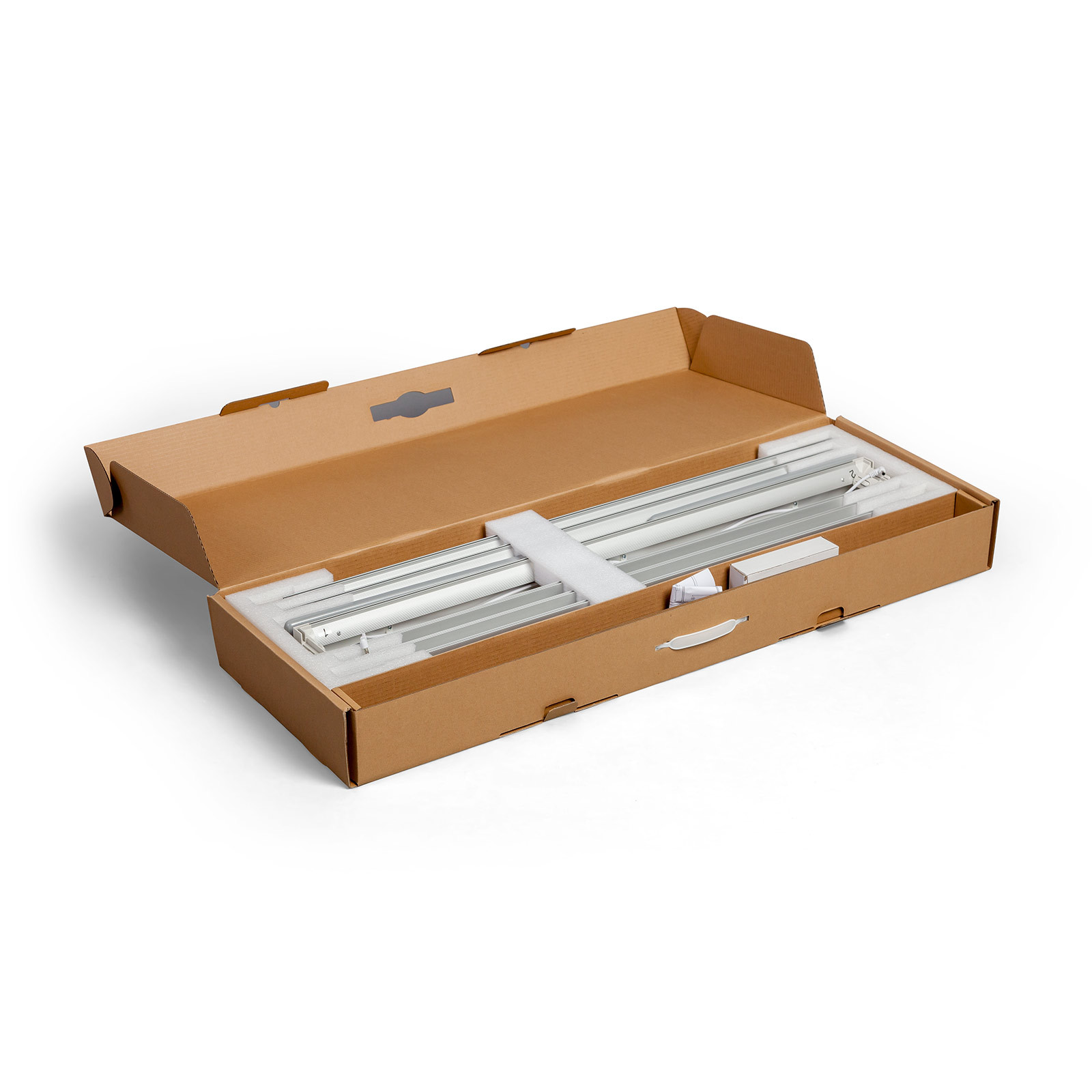

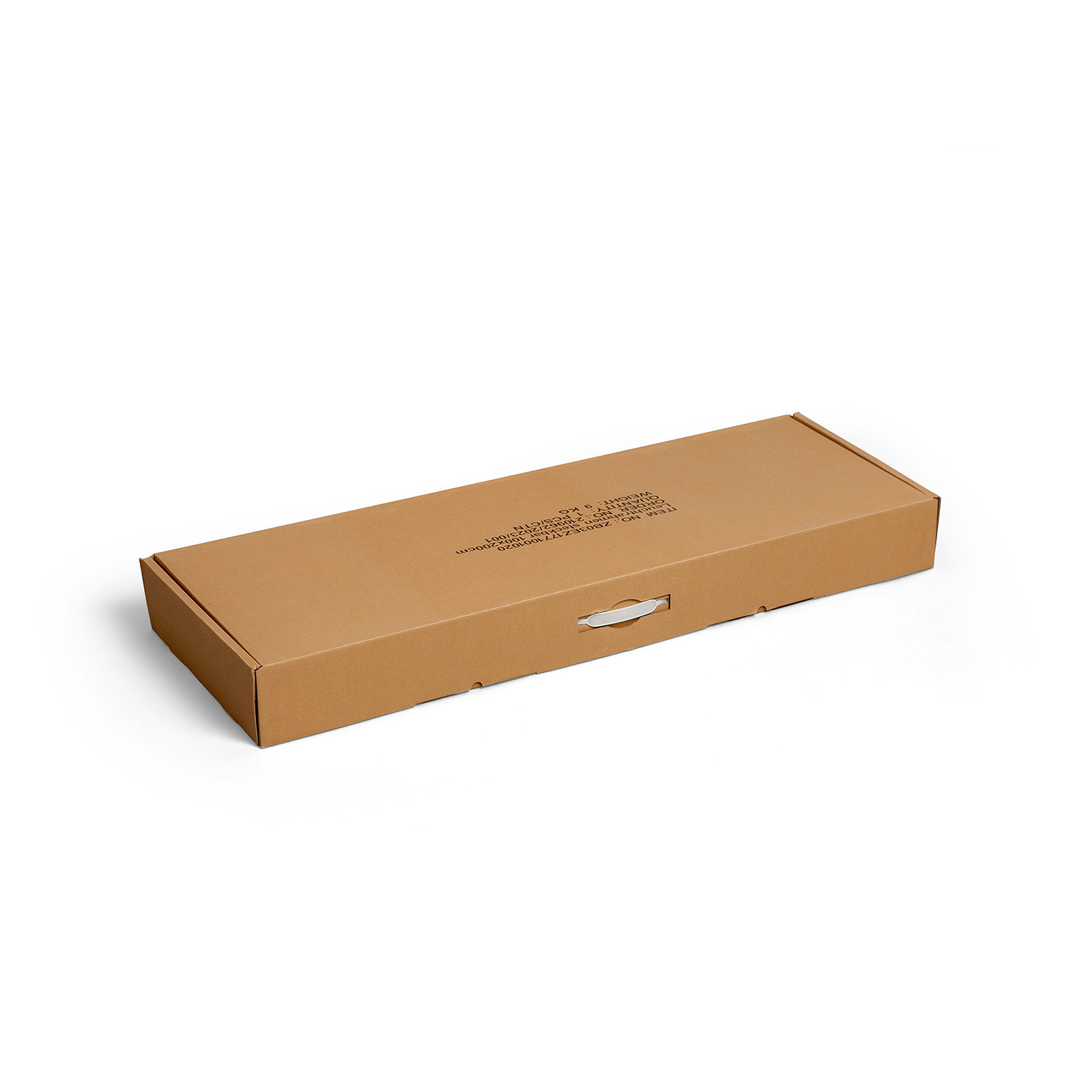

- Complete set: Lightbox click frame system, printed graphics or solid rear covering, folding box
- Print part only: Printed graphic(s) or rear panel depending on option (without frame system)
- System only: Lightbox click frame system and folding box (without textile covering)
Application
- For indoor use
- Please observe the safety instructions for this product.
- * Notes on using Variotex® Z:
- Cost-effective alternative to Lighttex SE, but requires careful handling
- Recommended only for permanent use; not suitable for frequent setup and dismantling
- Always roll flat and crease-free onto a cardboard core with foam layer for storage/transport
- Creases in the material may result in visible cracks, especially in backlit use
