- Description
-
Print Details
- Brilliant textile printing using sublimation or UV printing process
- UV-resistant with high lightfastness
- Customizable on one or both sides

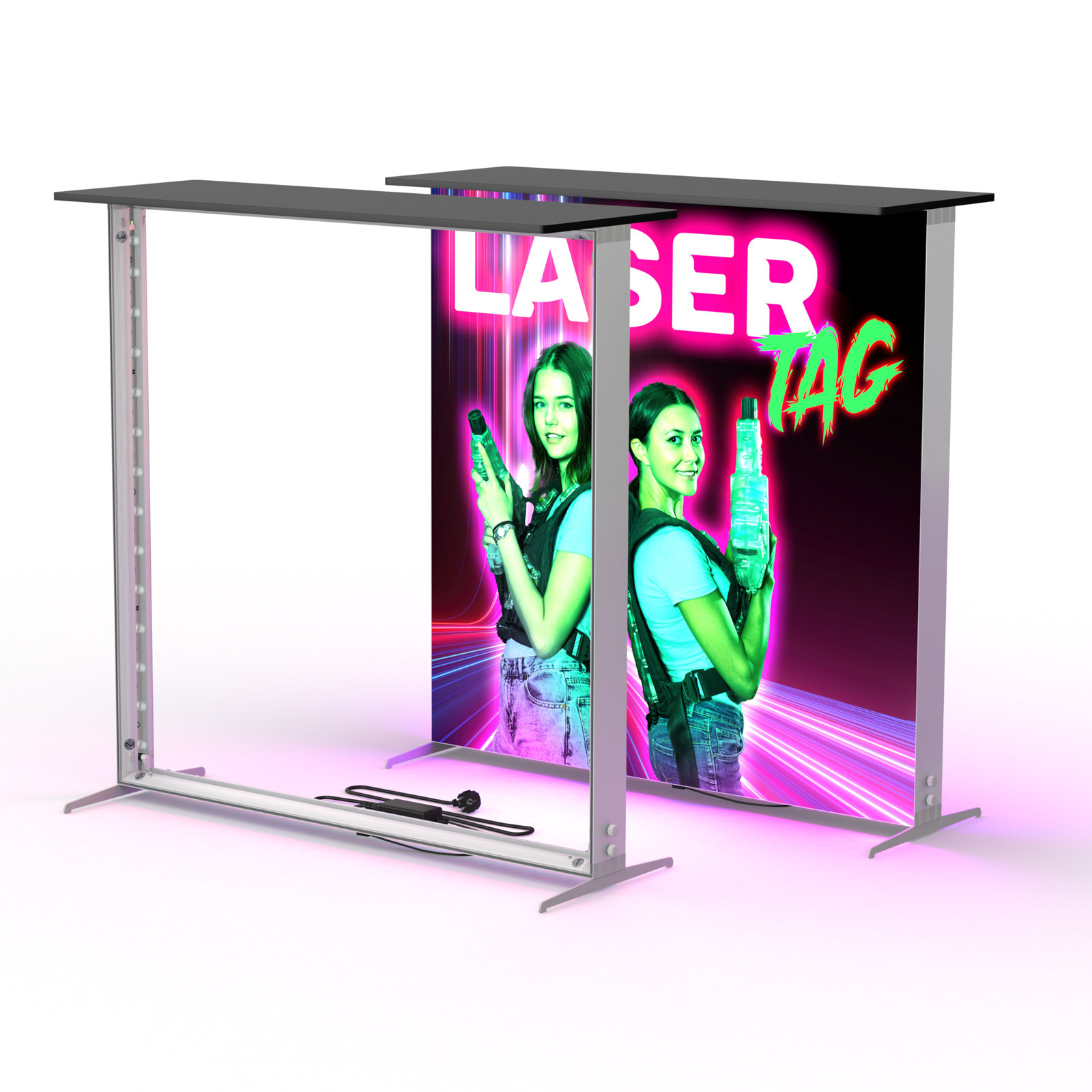

Lightbox Click Exhibition Counter
The portable trade show counter made of aluminum can be set up quickly and without tools, thanks to a simple plug-in system with click-locking. Powerful and energy-efficient LEDs put your advertising message clearly in the spotlight.
Version – Print
- Trimmed all around and equipped with a sewn-on flat welt for mounting in the system
- The welt system ensures perfect, wrinkle-free tension of the graphic
- Printing options:
- Double-sided: front and back with identical or different designs
- Single-sided: front with custom design, back optionally white or black
- Quick and easy graphic exchange
Material
- Lighttex SE: matte polyester knit, approx. 260 g/m2, flame-retardant
- Sublimation print: ink penetrates the fabric, vivid colors with high detail fidelity, long-lasting
- Specifically designed for optimally backlit advertising graphics
- Variotex® Z SE*: polyester fabric, approx. 200 g/m2
- UV print: ink stays on the surface, color-intense with razor-sharp details
- Cost-effective alternative to Lighttex SE
- Back panel materials for single-sided printing:
- Black back: Multisol® X Opak SE, matte-glossy polyester knit with one-sided black PU coating, 100% opaque

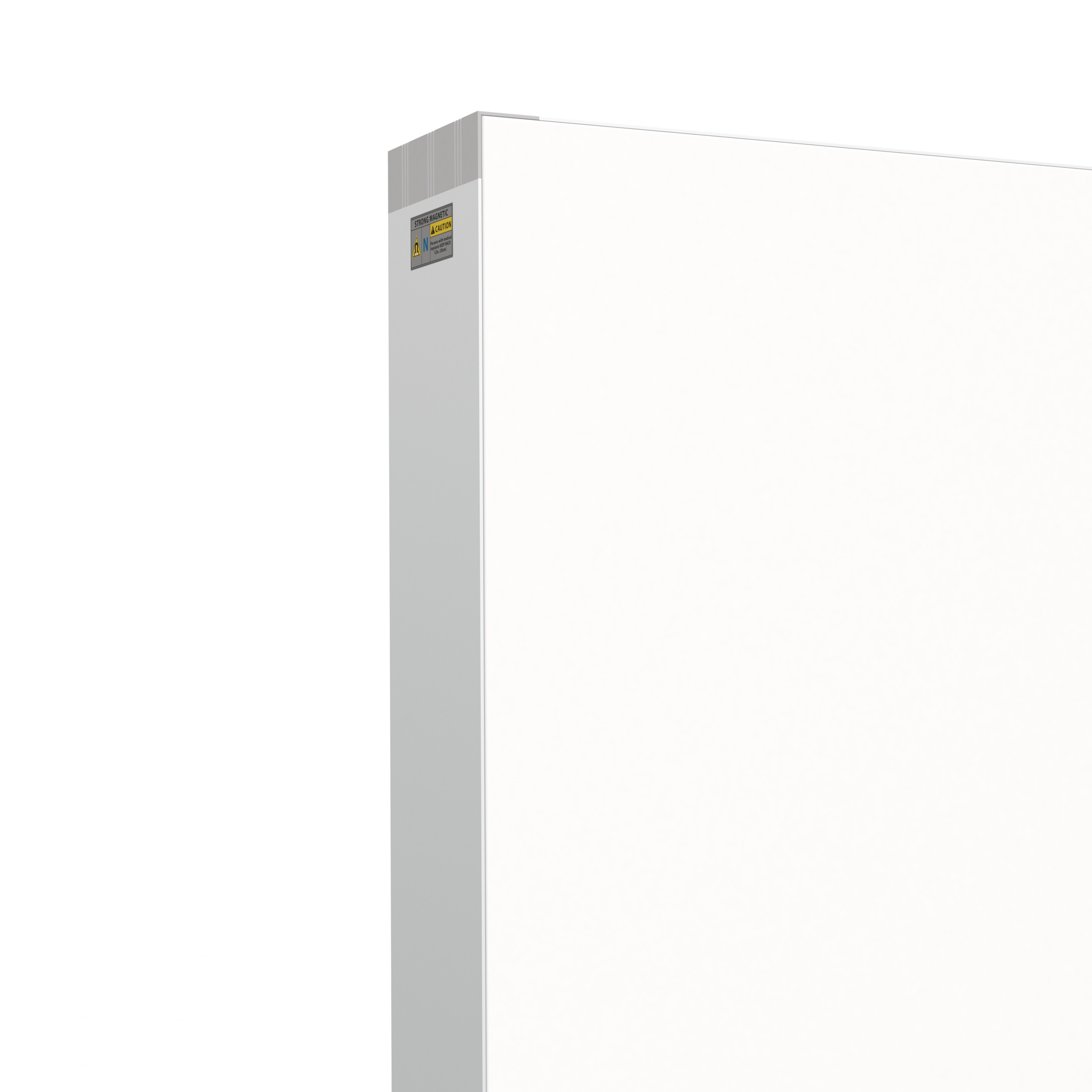

- White back: Multisol® X Opak SE, matte-glossy polyester knit with one-sided white PU coating, 100% opaque
- Print finishing: all-around flat welt for mounting in the frame’s groove
Version – System

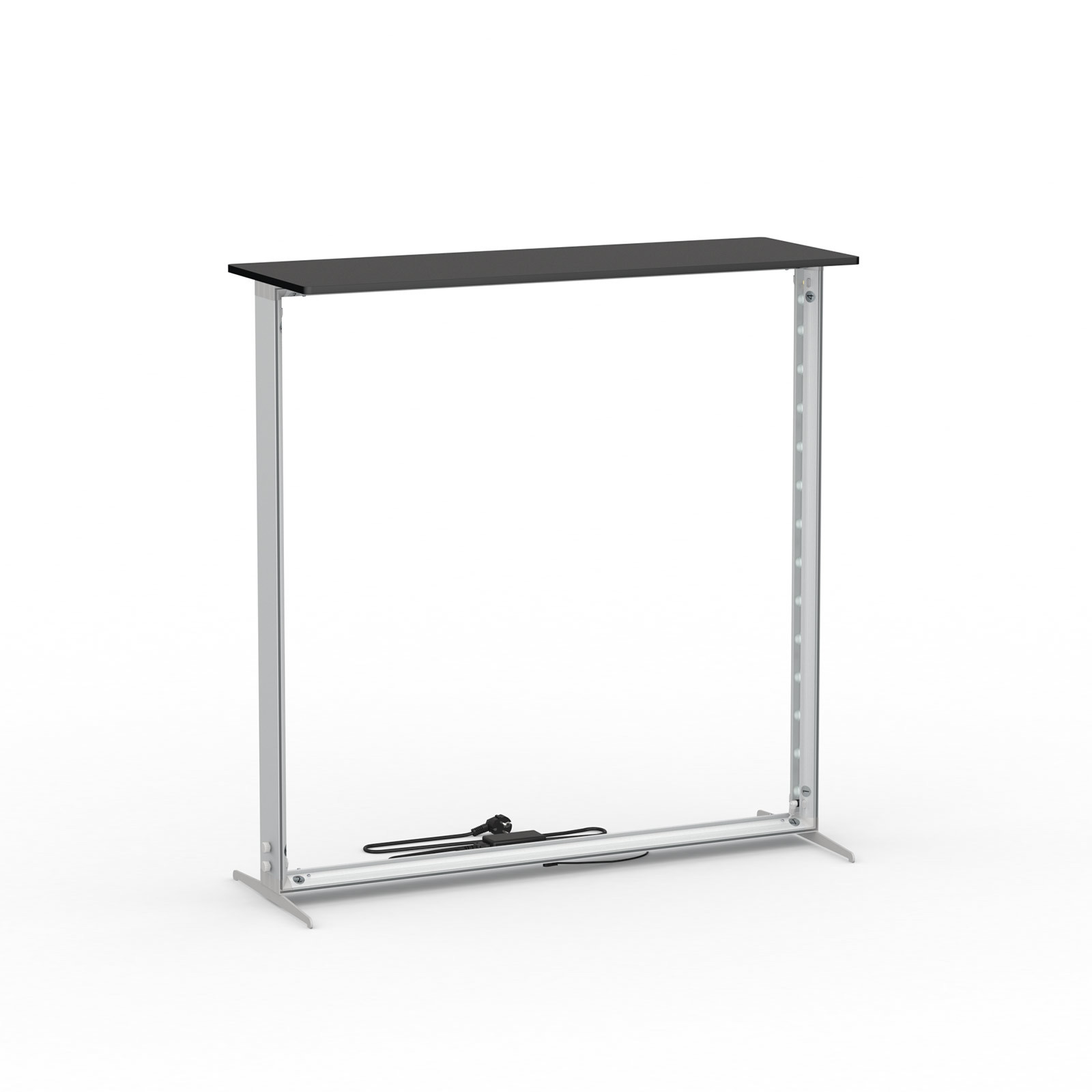

- Portable, lightweight counter with powerful LED lighting
- Innovative frame system with registered design (GM: 20 2019 103 837)

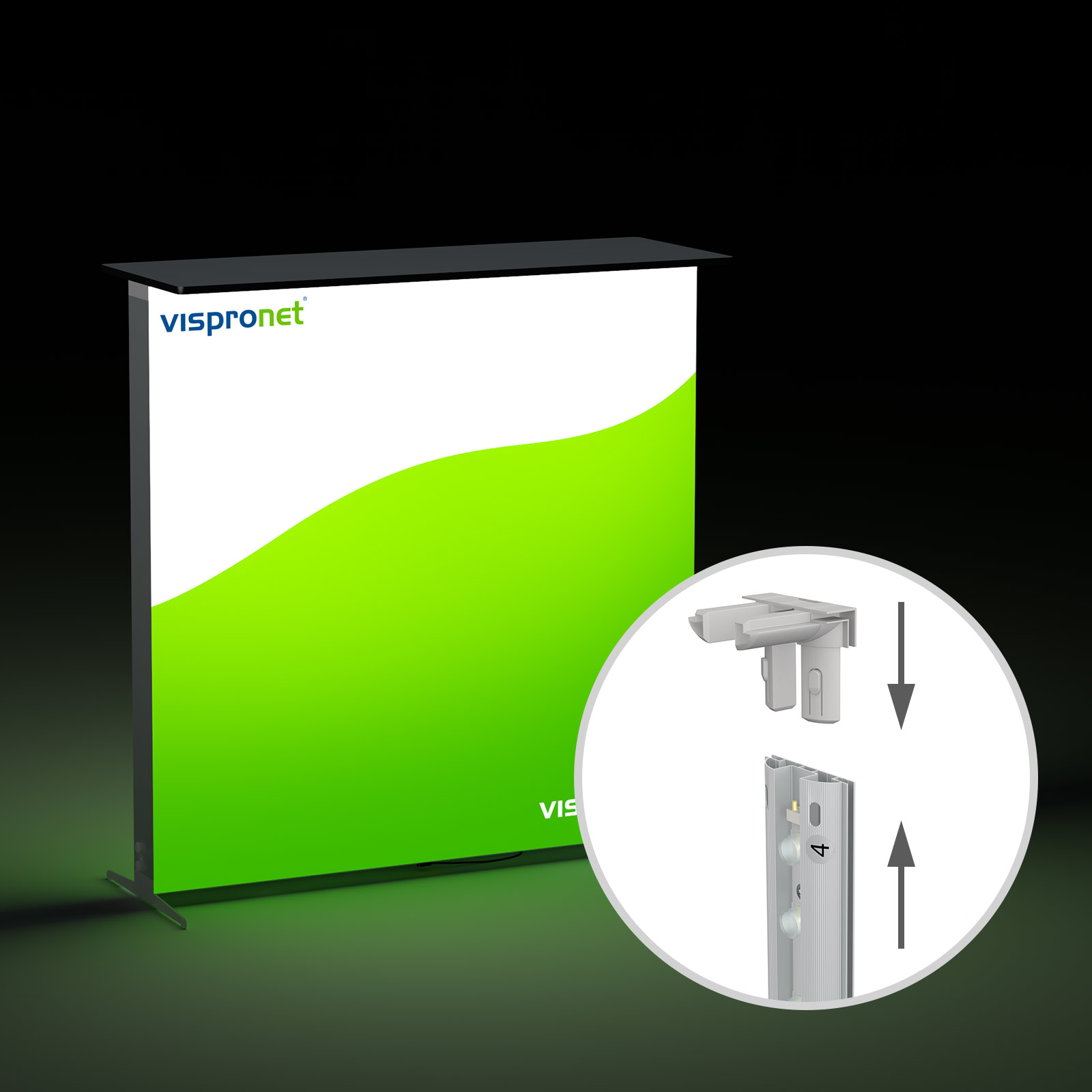

- Modular frame with click-lock connection
- Material: anodized aluminum
- Frame depth: 85 mm
- Plug-in feet for secure stand

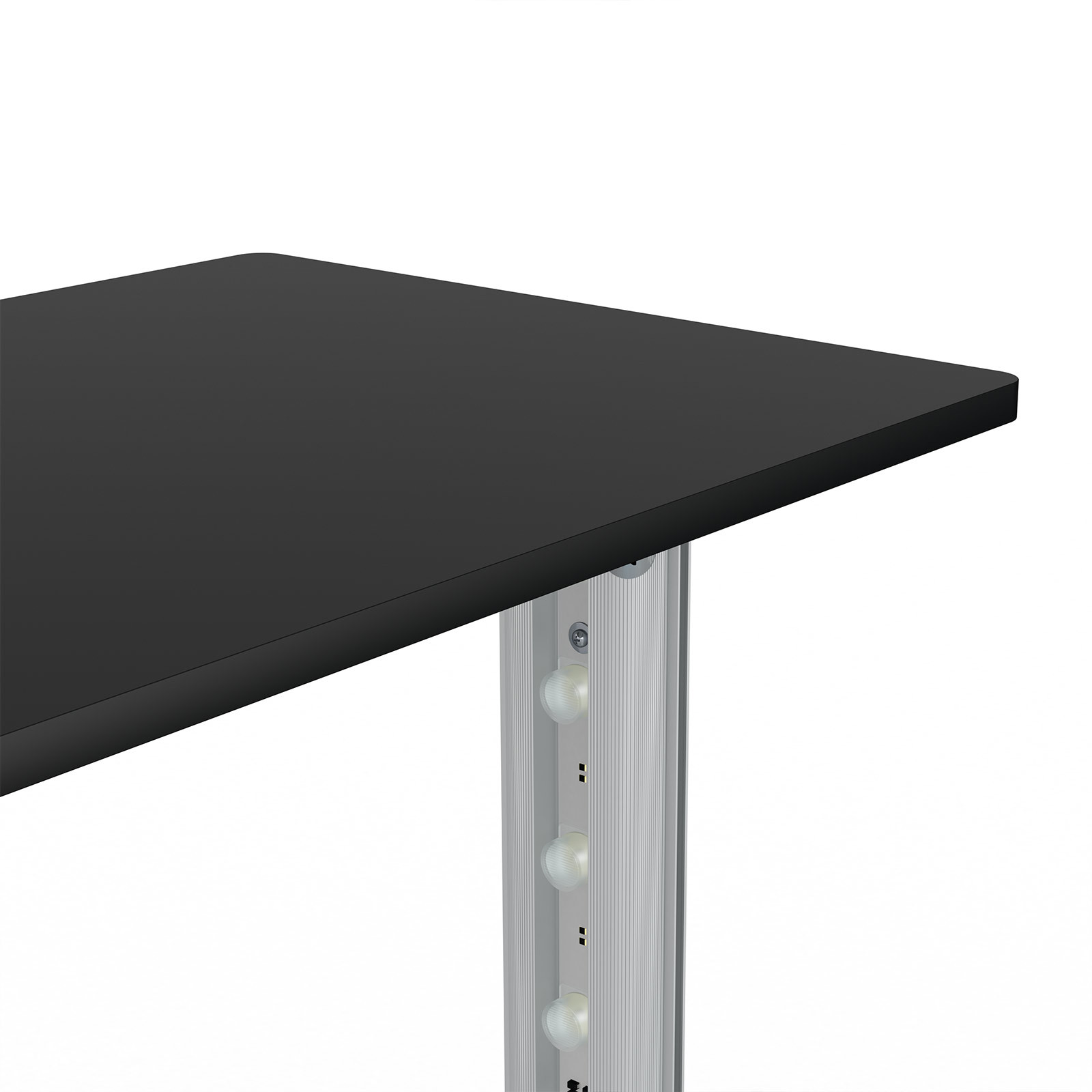

- Countertop made of black MDF wood panel
- Powerful LED modules with low heat emission, pre-assembled at factory
- Power supply and connection cable with plug (cable length approx. 300 cm)
- Tool-free setup: simply plug in frame parts – done
Technical Data
- Voltage: 24 V
- Power: 48 W
- Current: 2 A
- Luminous flux: 4000 lumens
- Light color: cool white
- Lifespan: up to approx. 20,000 hours
Tip: Can also be operated without a power outlet using a portable power station, e.g., with Powerstation AC 500 Wh – enough for approx. 10 hours of operation. (not included)
Sizes & Weights
System (W x H): 100 x 100 cm Countertop (W x L x H): 100 x 35 x 1.3 cm System weight: 8.6 kg Packing dimensions (W x H x D): 113 x 42.5 x 18 cm *All values are approximate.
Scope of delivery
- Complete set: Lightbox Click Counter with LED components, printed graphic(s) or back panel, incl. transport bag
- Print only: Printed graphic(s) or back panel (without counter system)
- System only: Lightbox Click Counter with transport bag (no graphic or back panel)
Application
- For indoor use
- Please refer to the Safety Instructions for this product.
- * Notes on using Variotex® Z:
- Cost-effective alternative to Lighttex SE, but requires careful handling
- Recommended only for permanent use – not suitable for frequent assembly and disassembly
- Always roll flat and wrinkle-free around a cardboard core with foam interleaf during transport and storage
- Wrinkles in the material can lead to creases, which may become visible when backlit
