Rectangular Ceiling Hanger

  incl. VAT, excl. Shipping
  excl. VAT, excl. Shipping
Configure
Quantity
Price list incl. VAT excl. VAT
  • from x piecesxx € / piecexx € / piece
  • from x piecesxx € / piecexx € / piece
  • from x piecesxx € / piecexx € / piece
Show all price tiers

Configure product now

Select your desired product step by step

Size


Selection


Material


Side surfaces


Mounting


Print Files
Ready print files
  • Use artwork template
Preparing print files Here you will find all the guidelines and requirements for your print files.
Show specifications
Design Now
  • Design online in Visprodesign®
Design online with Visprodesign® Design your product directly in your browser – it’s quick and easy.
Graphic check


Print sample (Optional)


Label on print part


Details

  • Quickly determine the estimated delivery date and shipping costs for your order.

  • Calculate delivery date

  • Offer
    Calculate delivery date and shipping costs for your desired product.

  • Save offer

Product not suitable?
Would you like personalised advice? Together, we will develop the right solution for you.

Our accessory recommendations

    • Product Details

      • Three-dimensional ceiling hanger made of round aluminum profile ø 25 x 1,5 mm
      • 1-point suspension or 4-point suspension - optionally also available BGV C1-compliant
      • Print on one side, motif appears mirrored on the reverse side
      • Selectable design - 4, 5, or 6 side panels with print
      • Radiant colors with very good lightfastness
      • Scope of delivery: printed part, system components made of round aluminum profile ø 25 mm including 4-point suspension (optionally BGV C1-compliant)
      • Cable lengths for 4-point suspension
        Standard: stainless steel cable length corresponds to the length of the largest side edge
        BGV C1-compliant: cable suspension wire lengths

        Width
        Ceiling Hanger         		Height
        Ceiling Hanger         		Depth
        Ceiling Hanger         		Cable Length
        Wire Suspension Cable
        50 cm 50 - 290 cm 50 cm 1 meter
        51 - 100 cm 50 - 290 cm 51 - 100 cm 2 meters
        101 - 150 cm 50 - 290 cm 101 - 150 cm 3 meters
        151 - 300 cm 50 - 290 cm 151 - 300 cm 4 meters

      Sizes

      • Individually freely selectable sizes
        Width: 50 - 300 cm
        Height: 50 - 290 cm
        Depth: 50 - 300 cm
      • Various standard sizes selectable:

        Size (W x H x D) Weight (without printed parts) approx.
        100 x 100 x 100 cm 4.1 kg
        150 x 100 x 150 cm 5.9 kg
        150 x 150 x 150 cm 5.9 kg
        200 x 100 x 150 cm 5,9 kg
        200 x 200 x 200 cm 7,7 kg
        250 x 100 x 150 cm 6,5 kg
        250 x 100 x 250 cm 7,7 kg
        250 x 250 x 250 cm 9,5 kg
        300 x 100 x 150 cm 7,1 kg
        300 x 150 x 300 cm 9,5 kg
        300 x 250 x 300 cm 10,7 kg

      Design

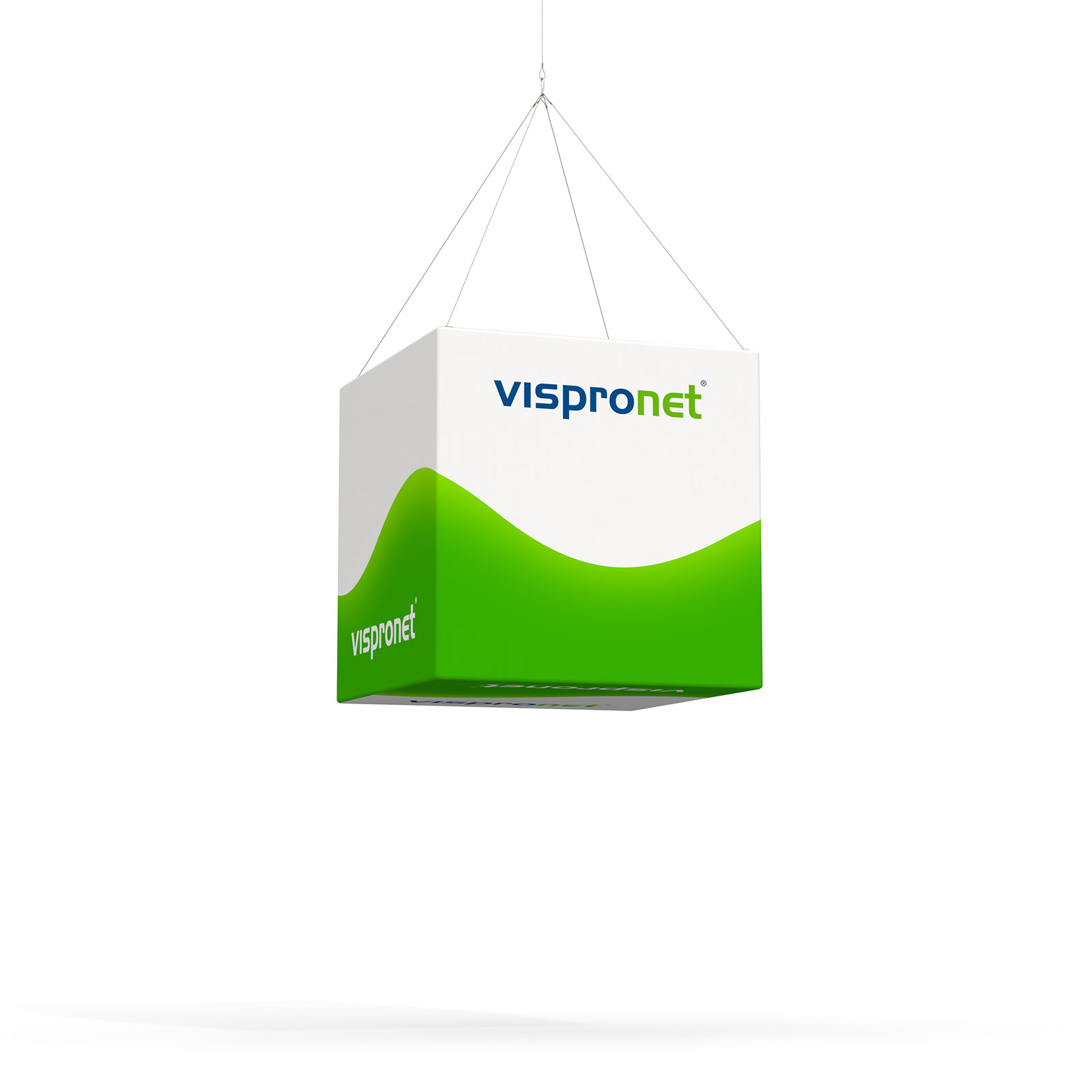

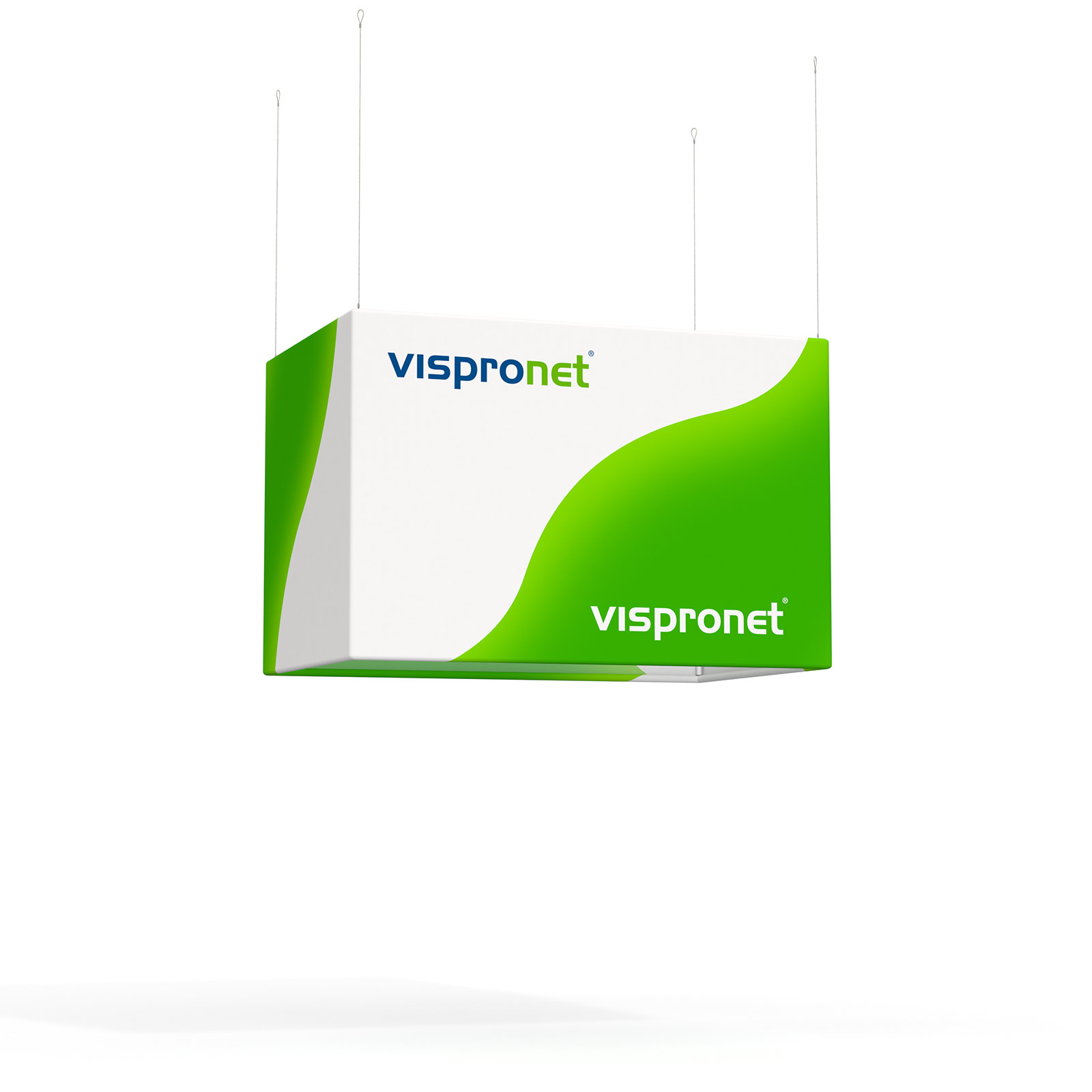

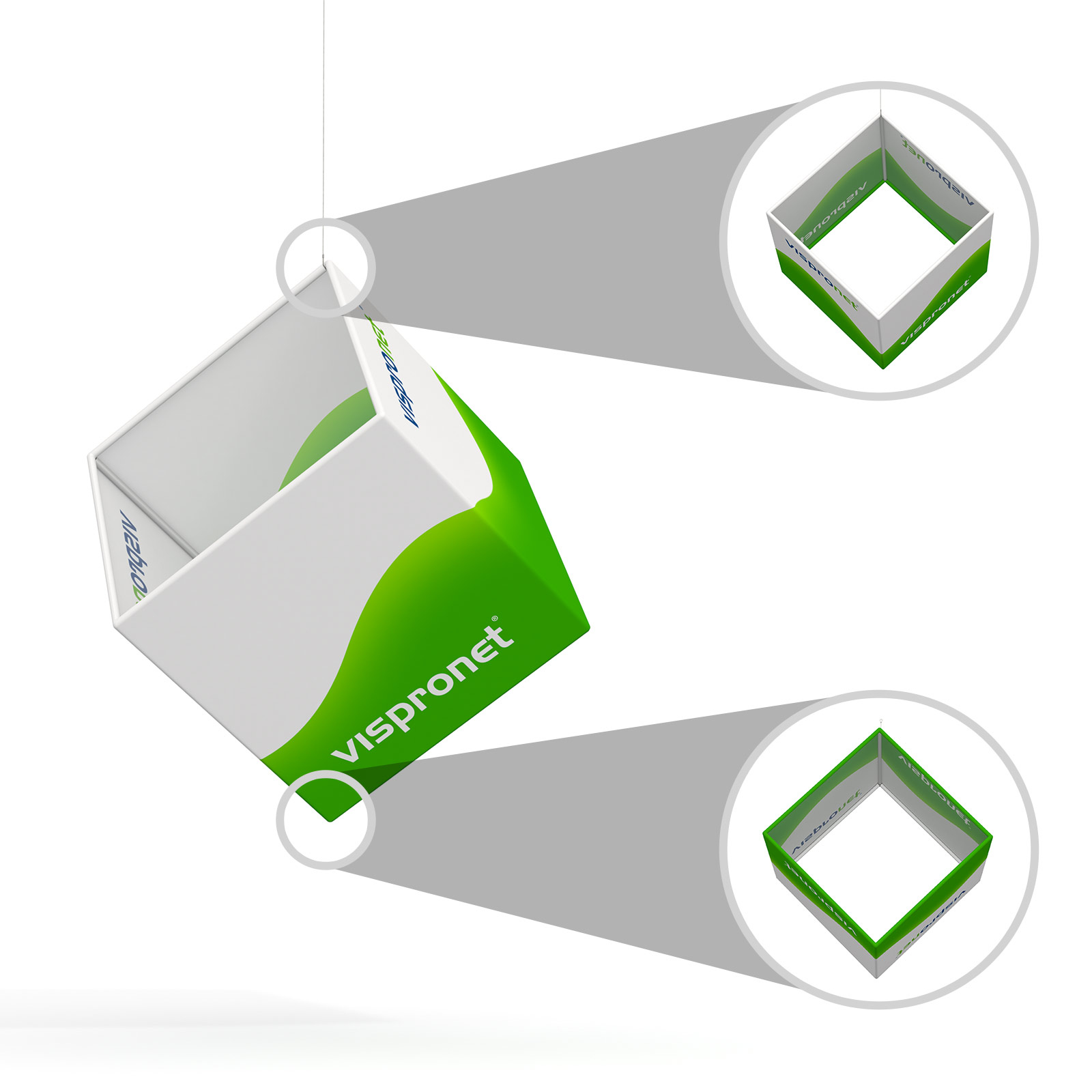

      • 4 side panels with printed part and 4-point suspension:
        one side closed with double safety seam, top and bottom edges with hem and each with 4 cuts, hook-and-loop fastener sewn on the back at top and bottom edges as well as included self-adhesive hook fastener tape

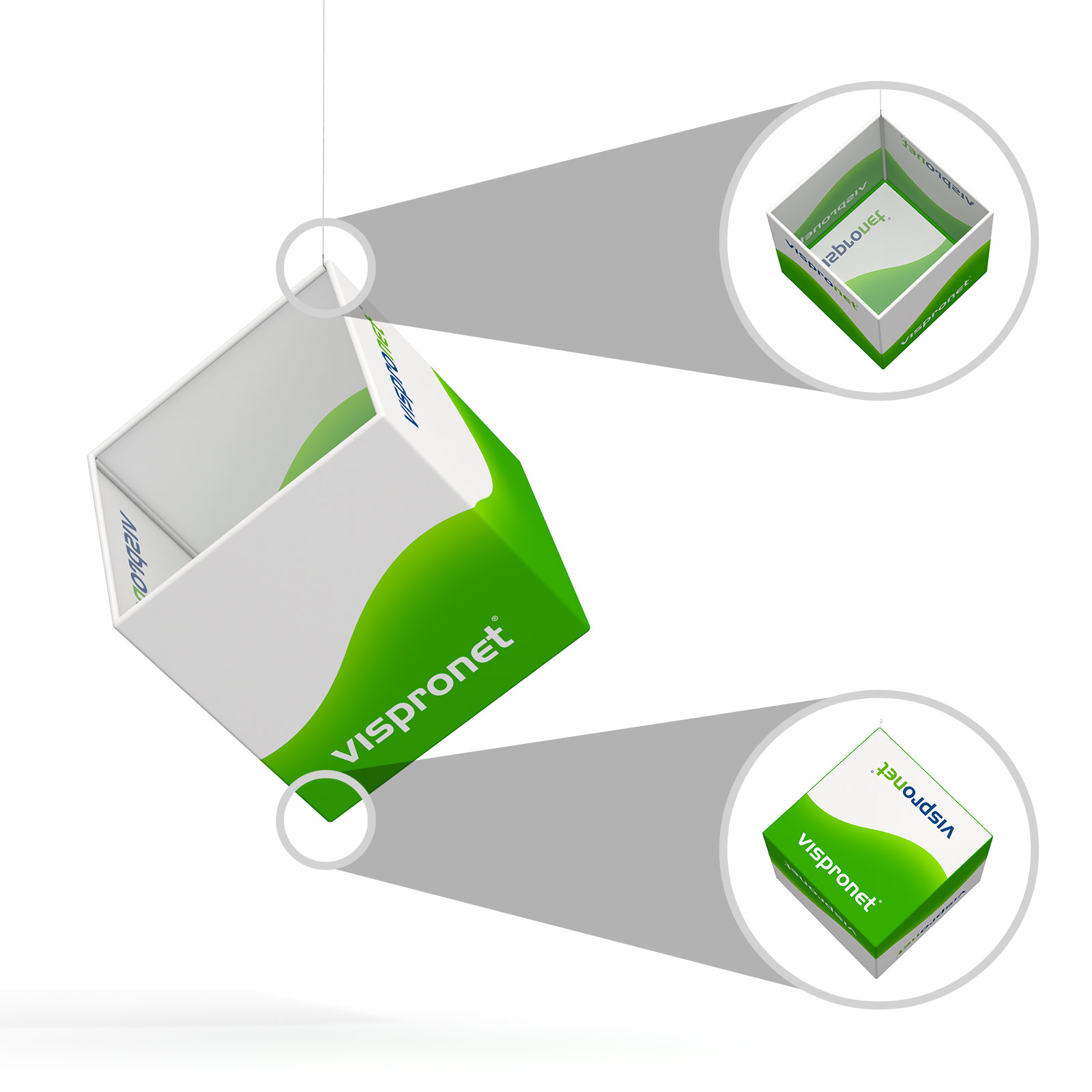

      • 5 side panels with printed part and 4-point suspension:
        one side closed with double safety seam, top with hem, 4 cuts and sewn-on hook-and-loop fastener for attachment to the tubes, bottom edge with sewn-in base and included self-adhesive hook fastener tape

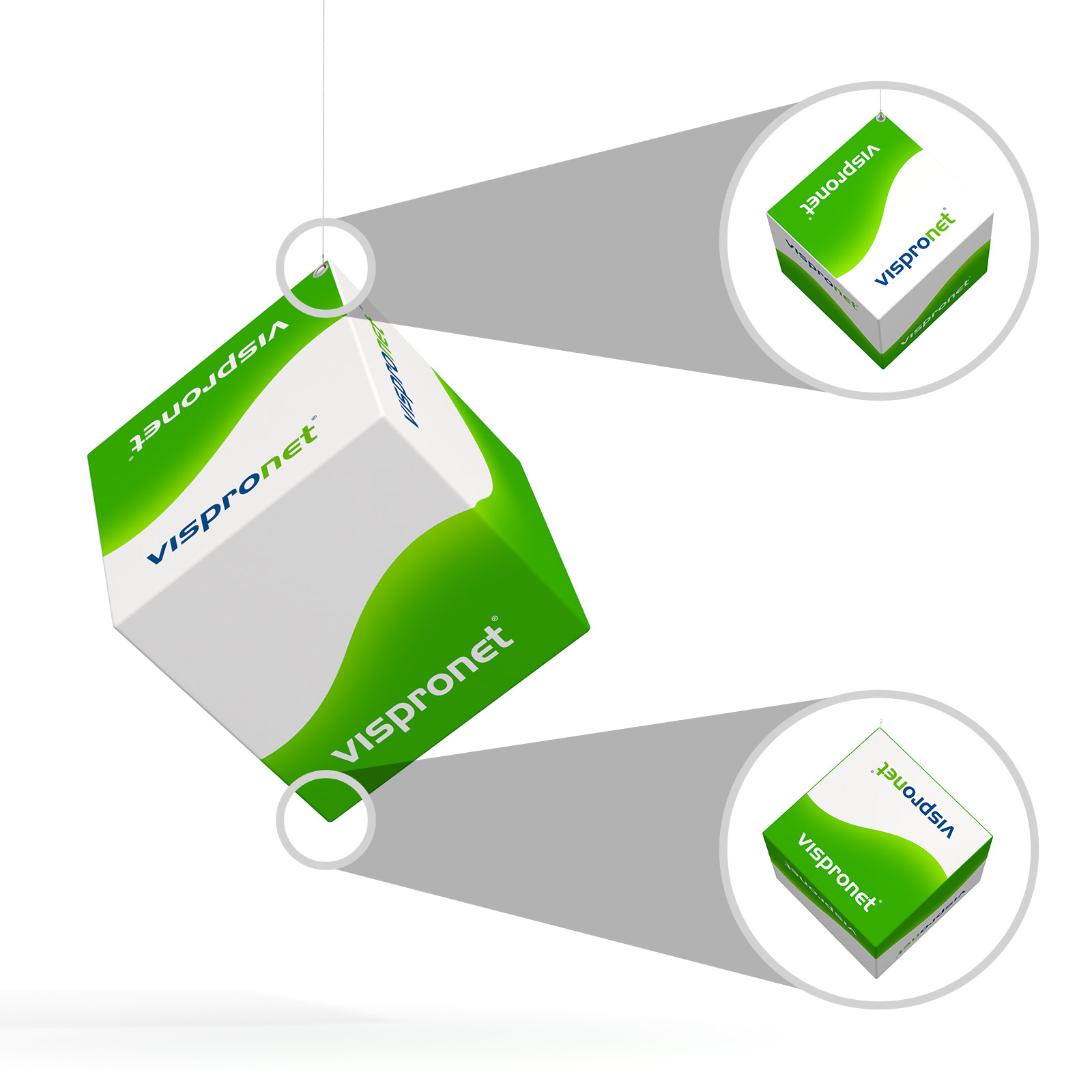

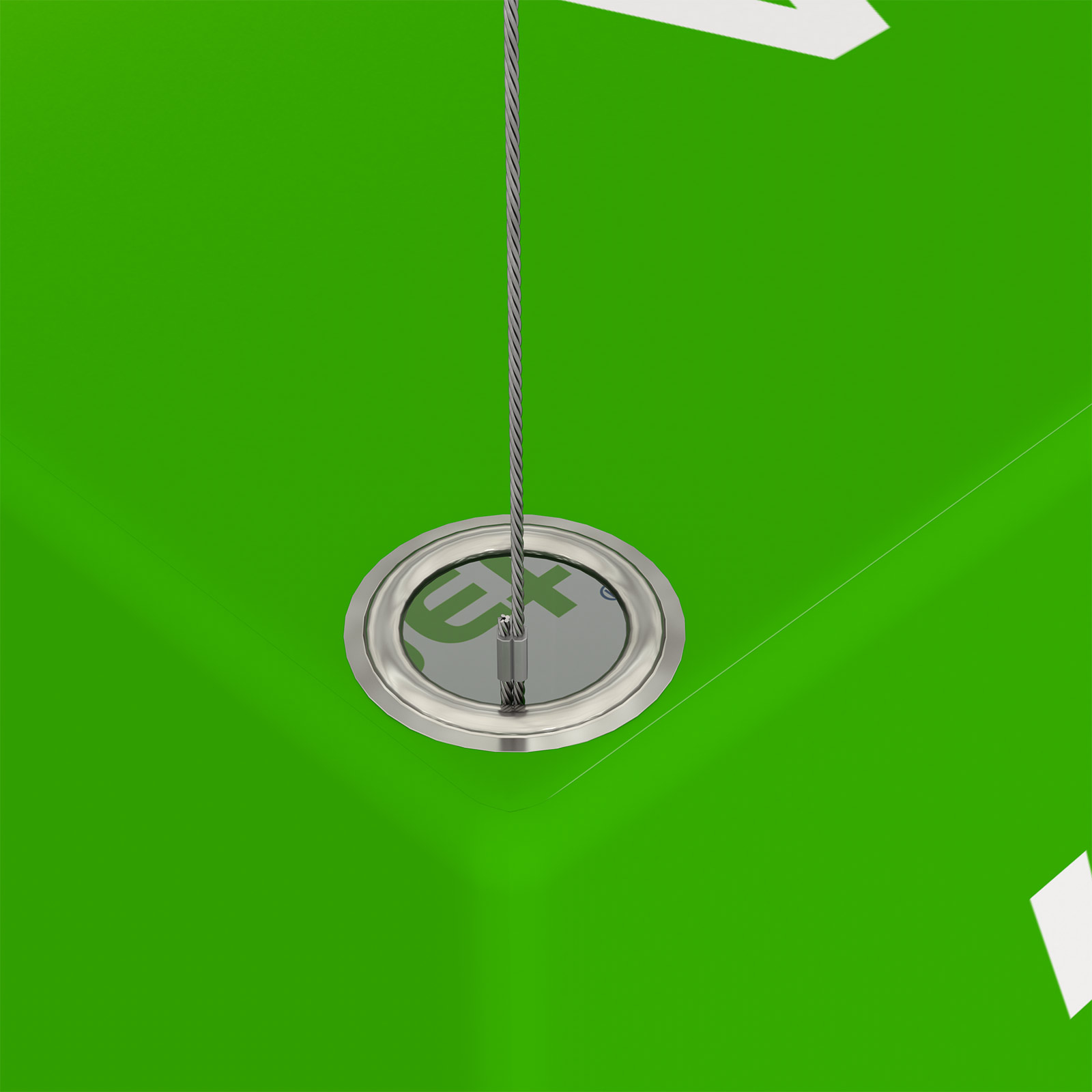

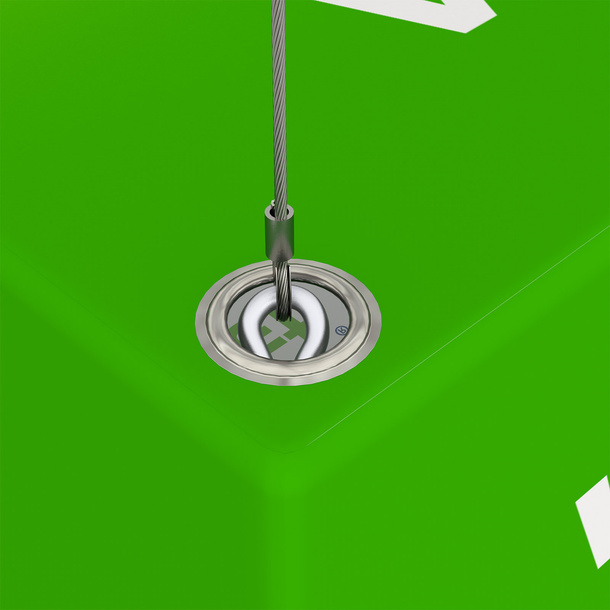

      • 6 side panels with printed part and 4-point suspension:

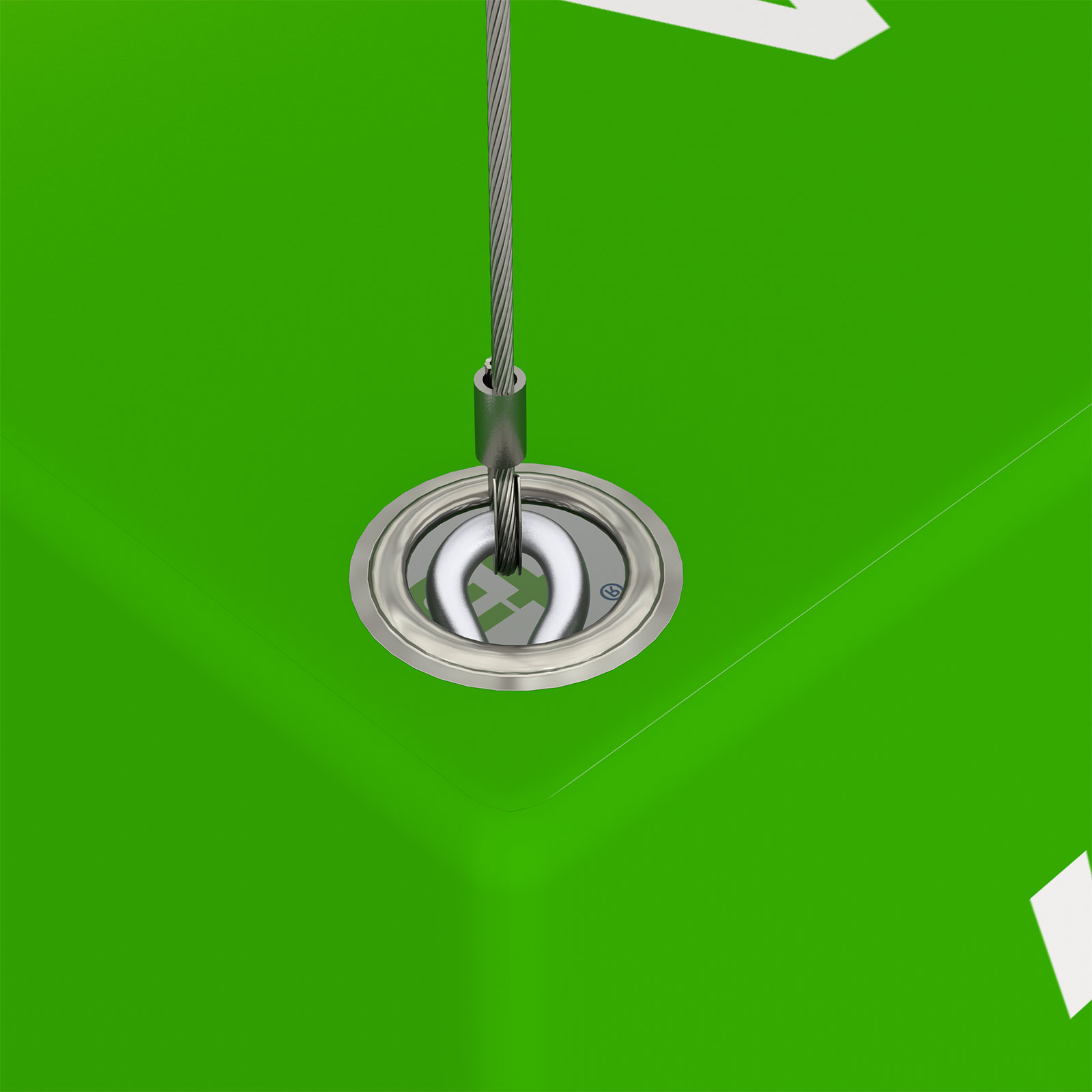

        one side closed with double safety seam, bottom with sewn-in base, hook-and-loop fastener on three sides at the top edge, three sides of hook-and-loop fastener on the roof, fourth side of the roof sewn to the main body, equipped with 4 eyelets for suspension

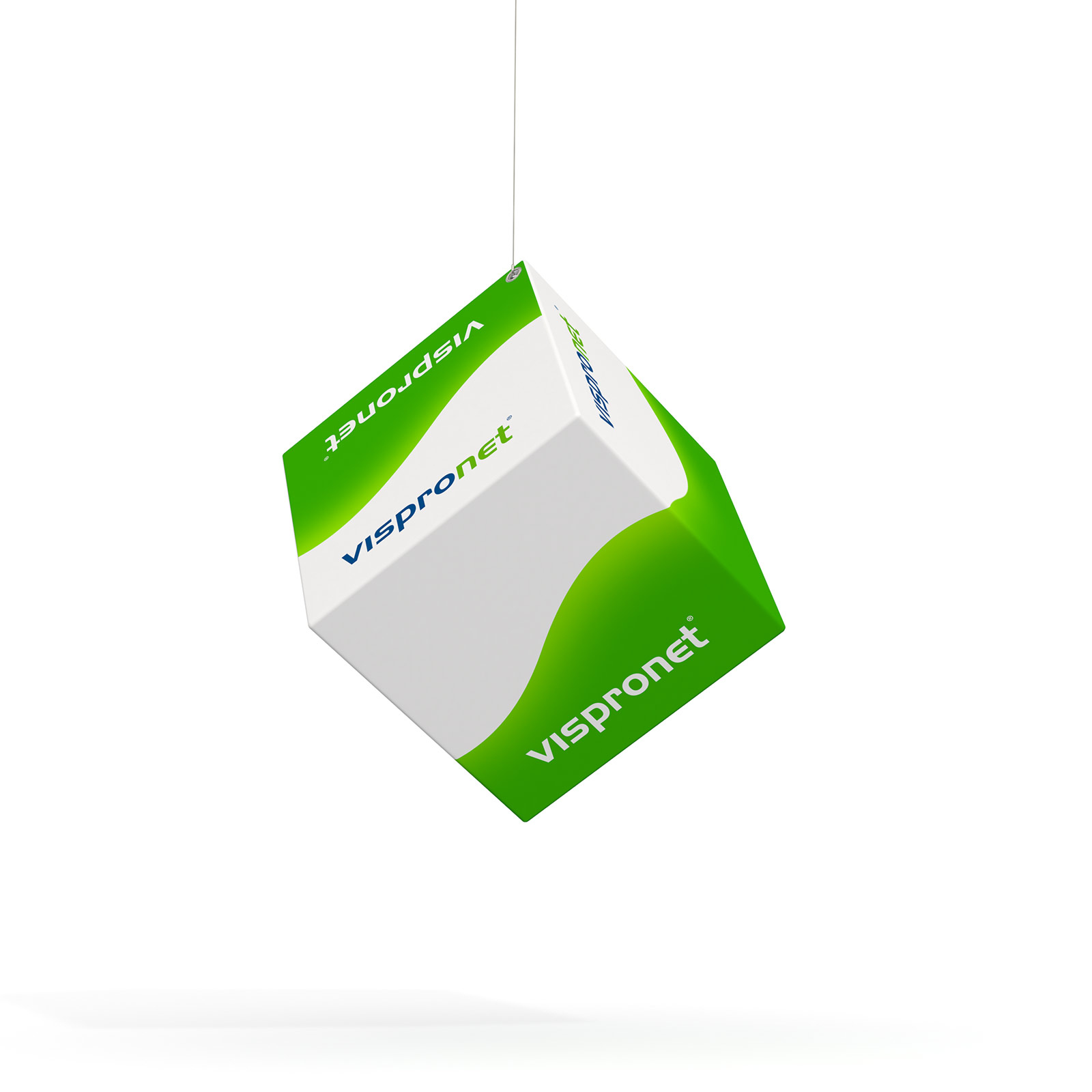

      • 6 side panels with printed part and 1-point suspension:
        one side closed with double safety seam, bottom with sewn-in base, hook-and-loop fastener on three sides at the top edge, three sides of hook-and-loop fastener on the roof, fourth side of the roof sewn to the main body, equipped with one eyelet for suspension

      Material

      • Polyester knit Multisol® X SE, approx. 200 g/m2

      Accessories (optional)

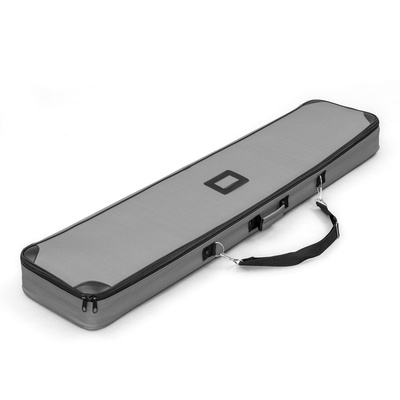

      • Universal bags
      • Stainless steel cable
      • Wire suspension cable with screw carabiner
