Individually printable star tent Ø 12 m
The purchase of the star tent Ø 12 m offers more covered area for promotion, events and brand appearances with stronger long-distance effect. With individually printable tent roof and the choice between open version or attachment of up to 6 side walls, it is suitable for versatile uses outdoors.
Tent roof
- Star-shaped canopy with 6 passage arches
-
Variants:
- Canopy variant: passage arches equipped with trimming tape; use as canopy without side walls
- Tent variant: passage arches equipped with zippers; for use as tent with side walls
The tent variant can be used both with and without side walls. In the canopy variant, retrofitting with side walls is not possible.
Side walls
- For tent variant (with zippers)
- Selection of 1 to 6 side walls
- Size per side wall: approx. 595 × 335 cm
- Curved upper edge with zipper for attachment to the star tent
- Bottom edge hemmed, with loops made of webbing
- Printed side walls:

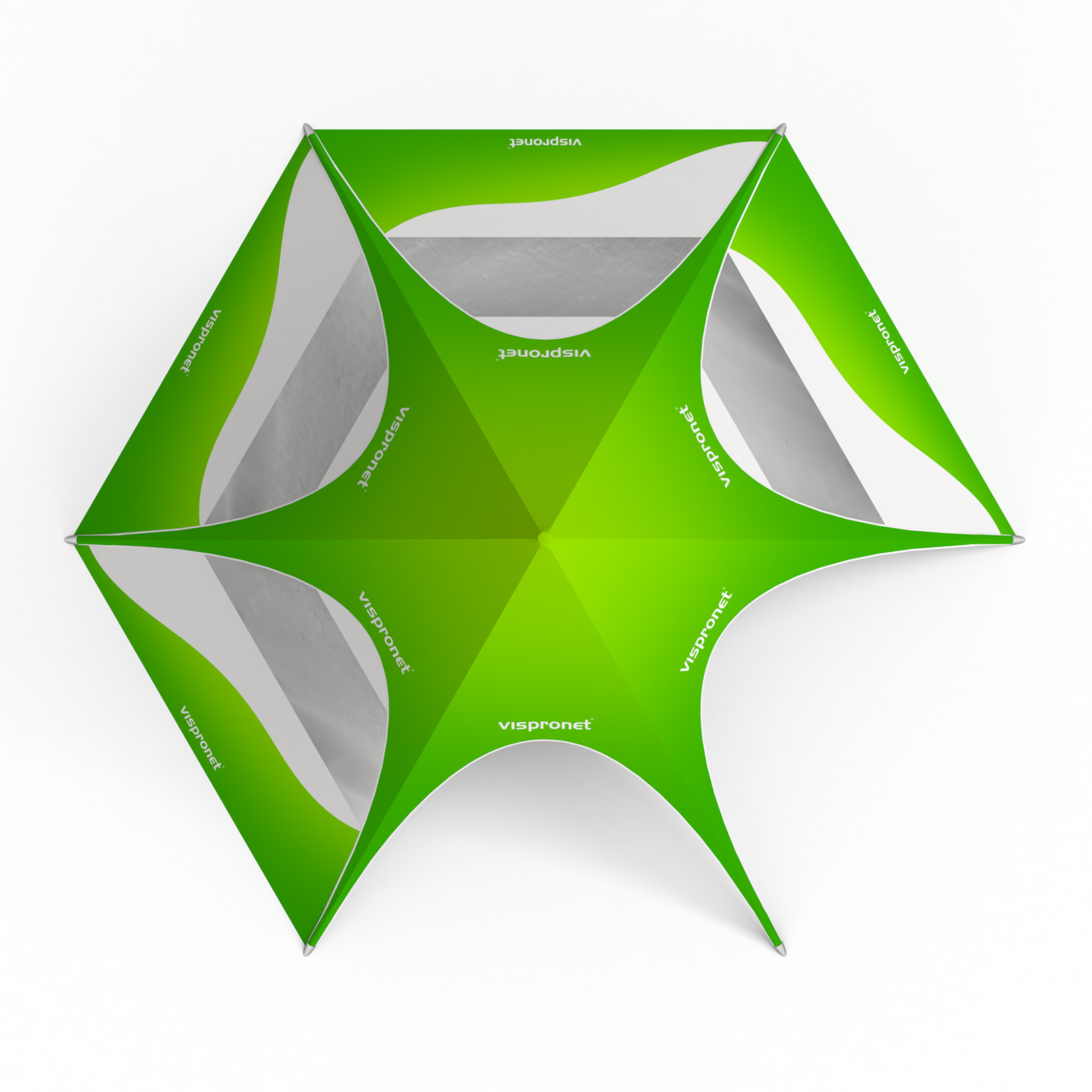

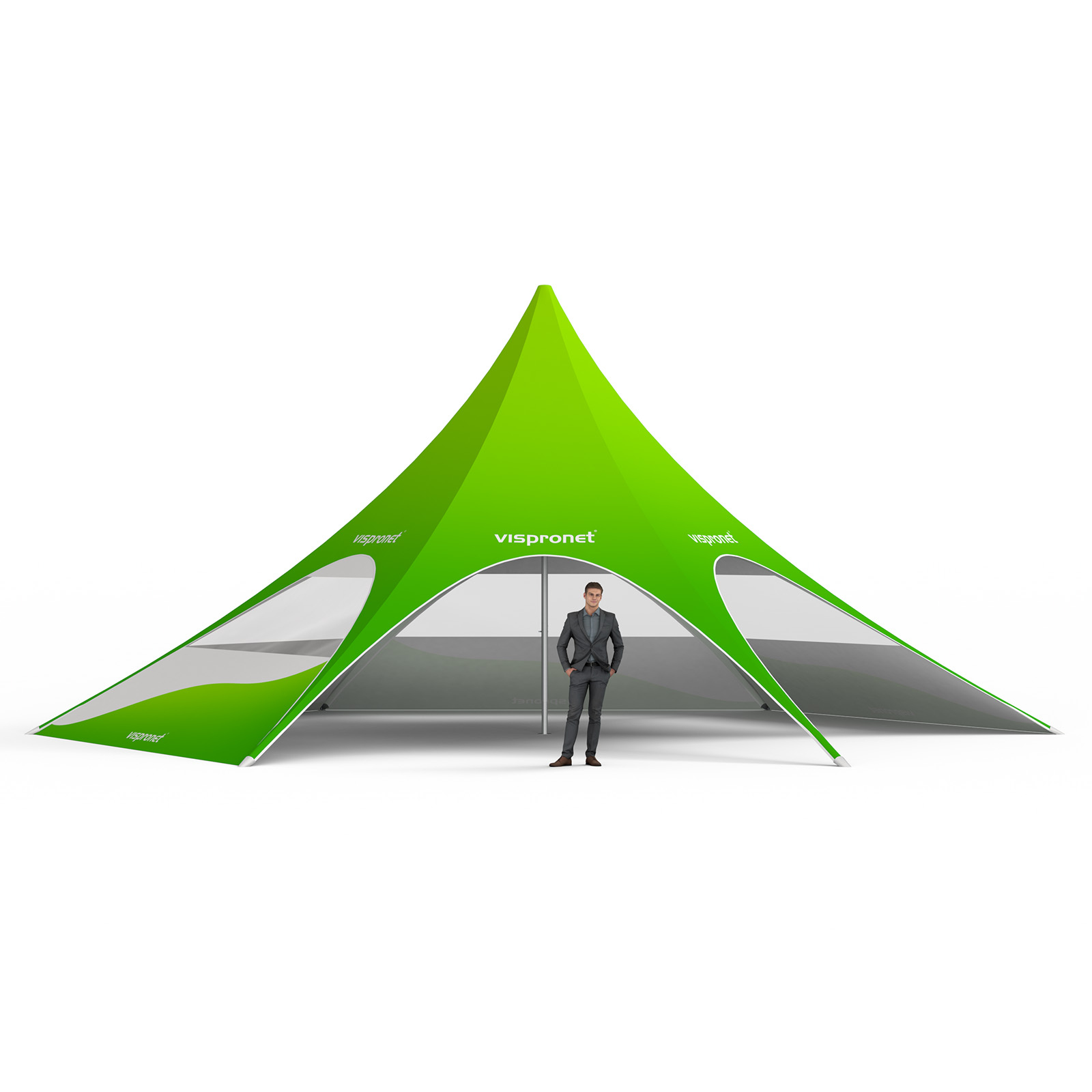

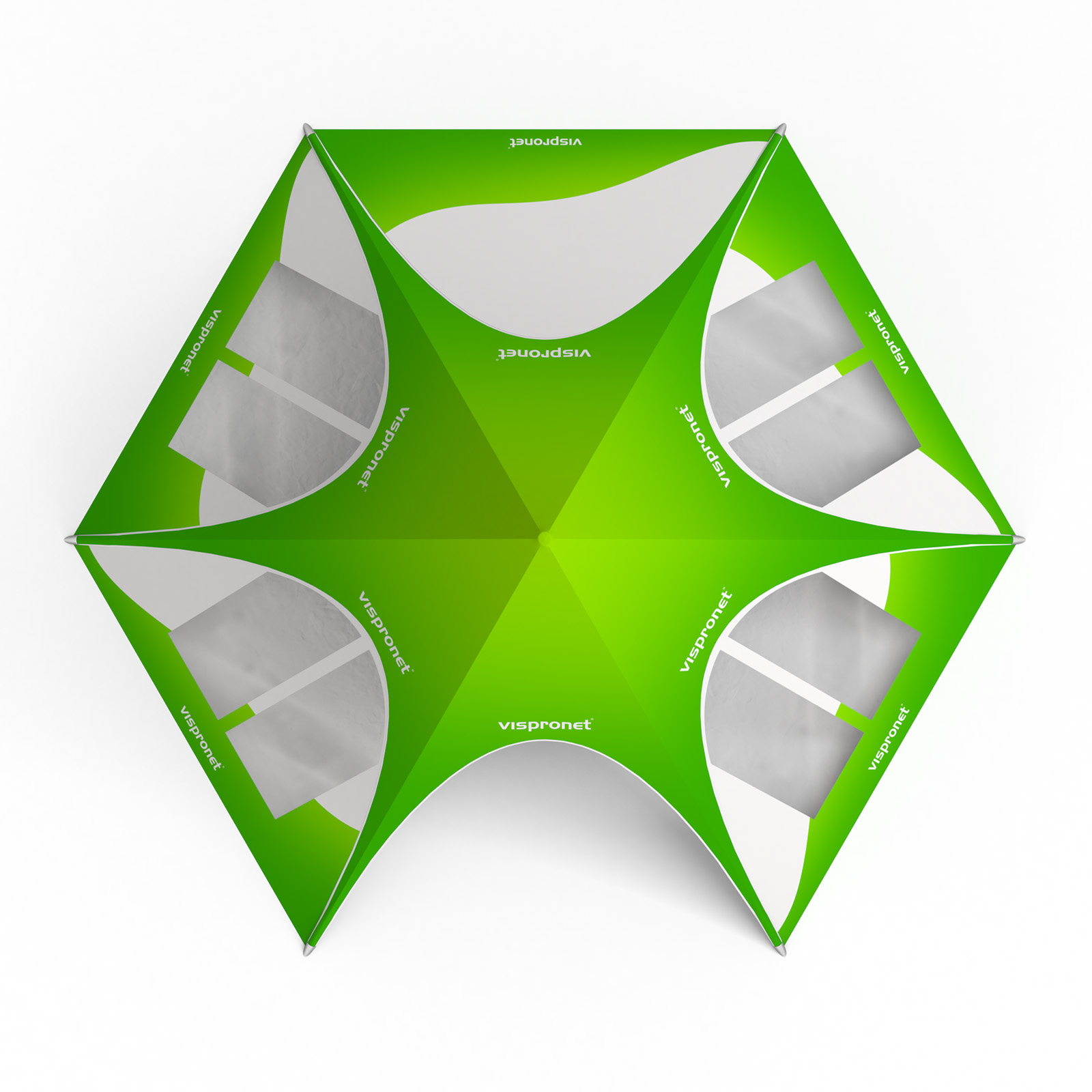

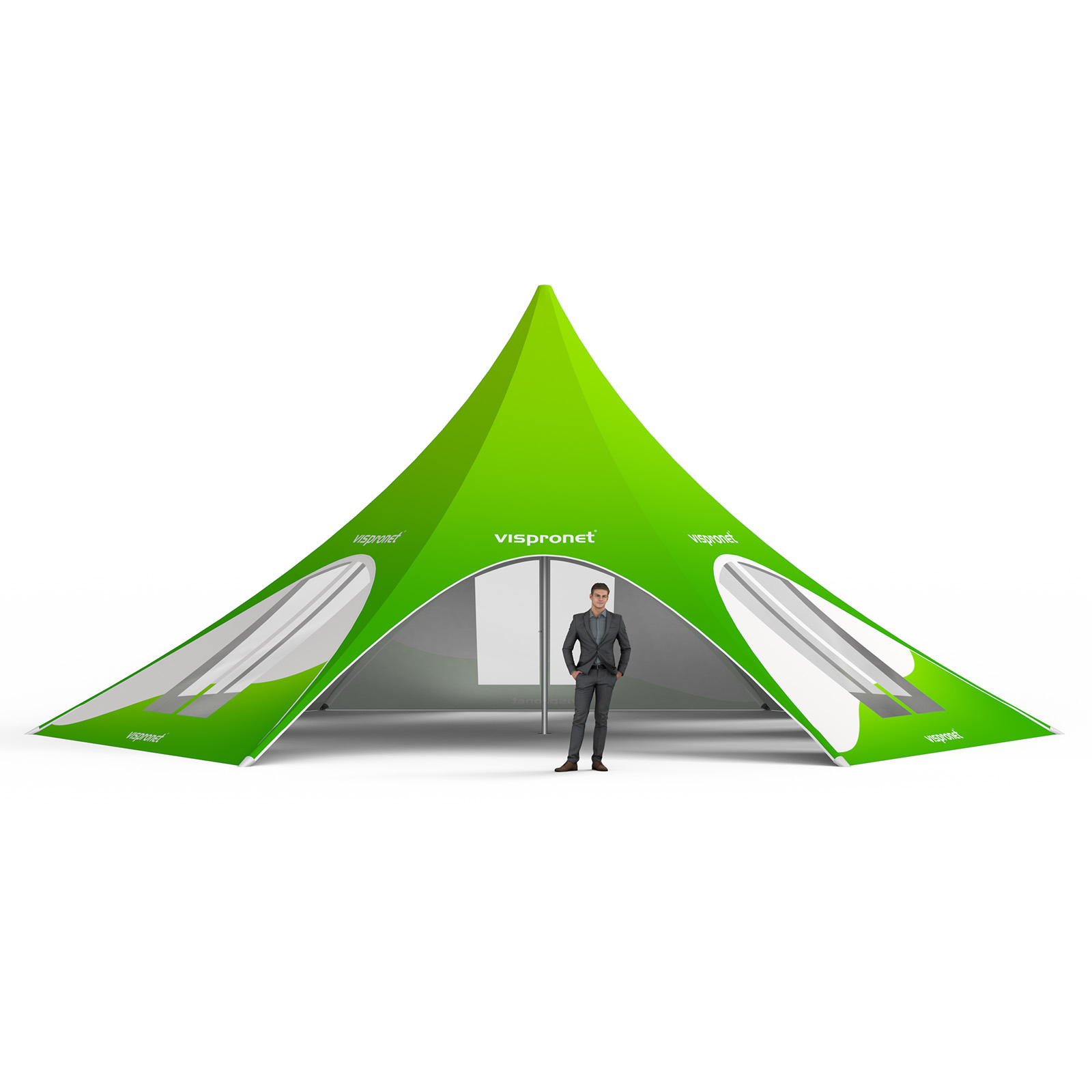

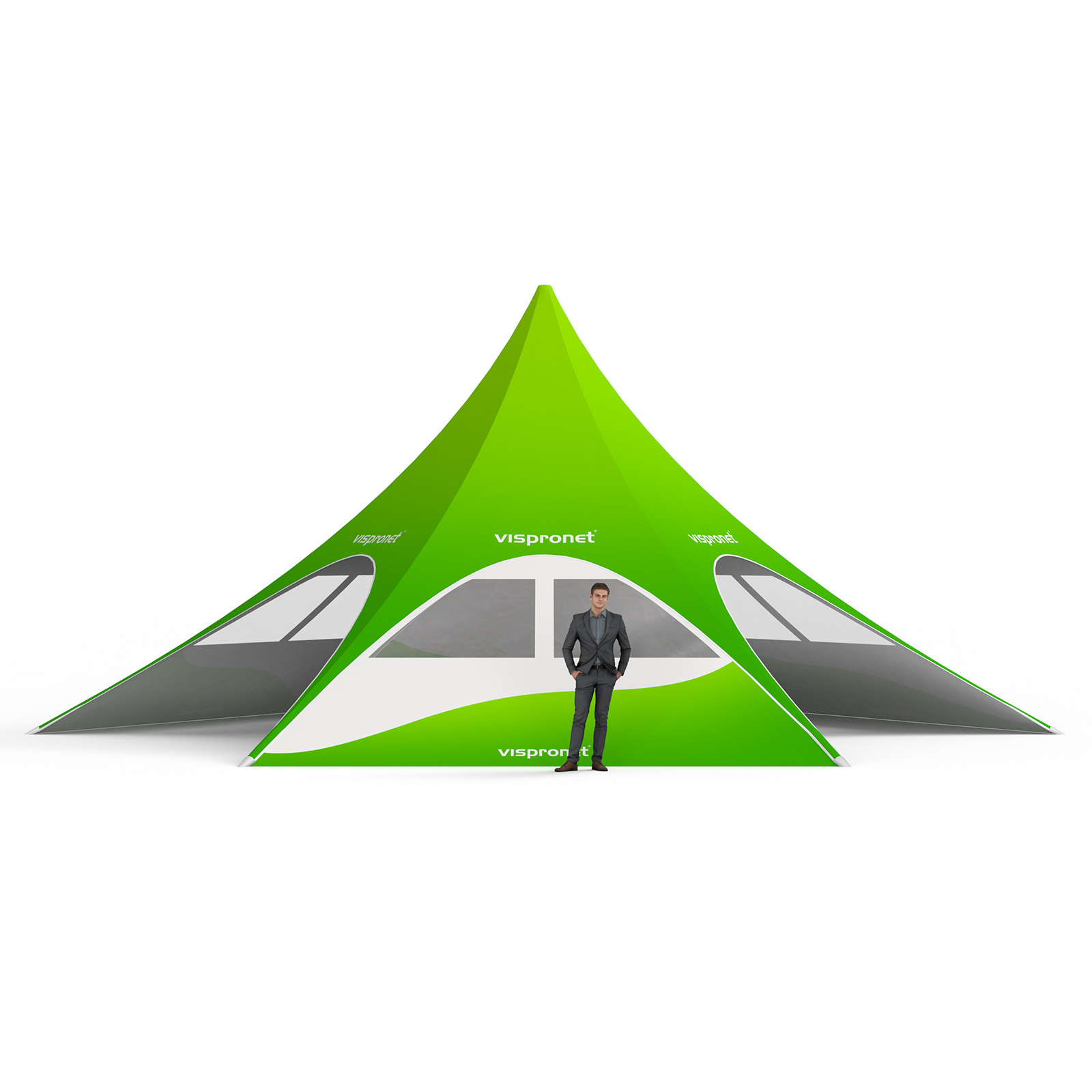

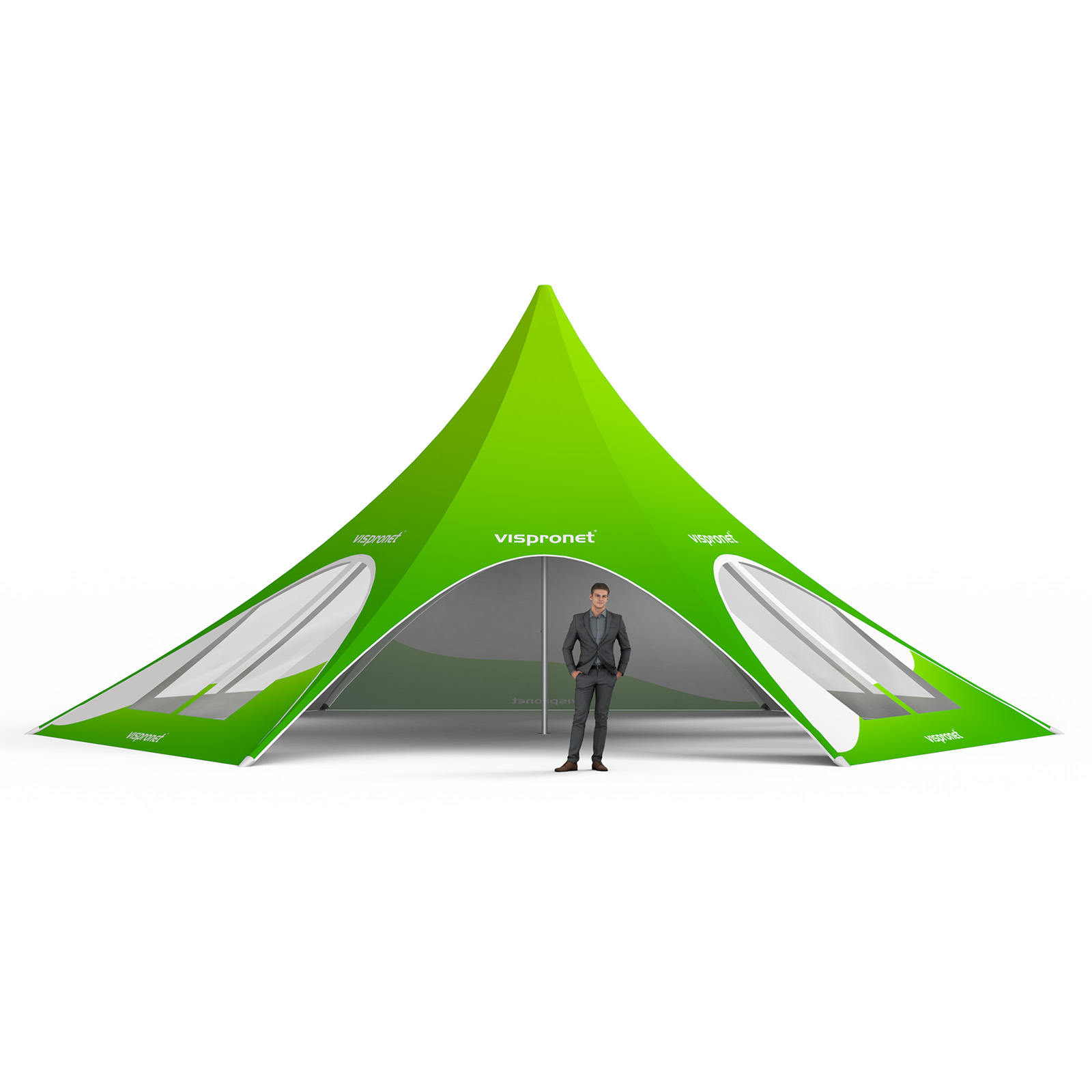

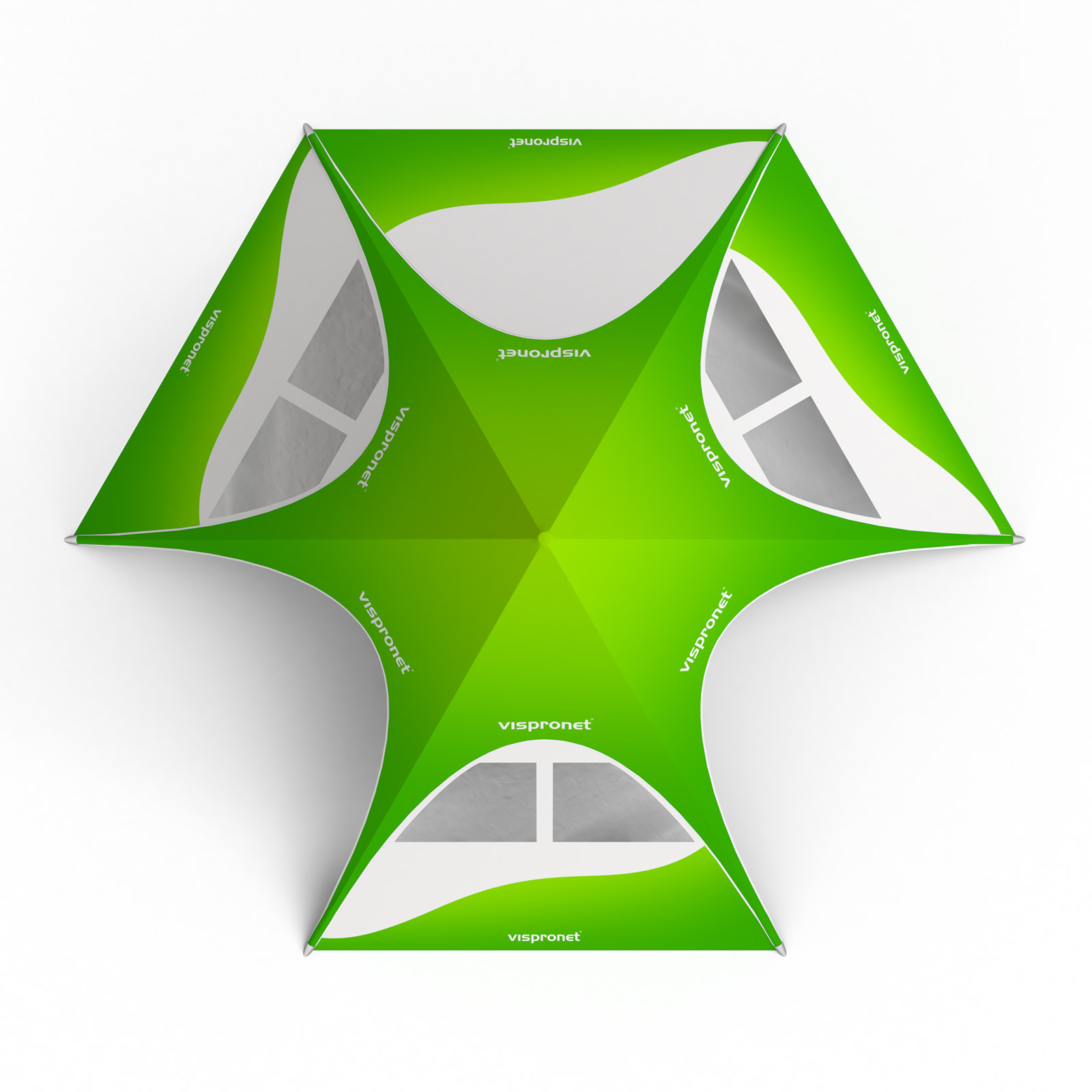

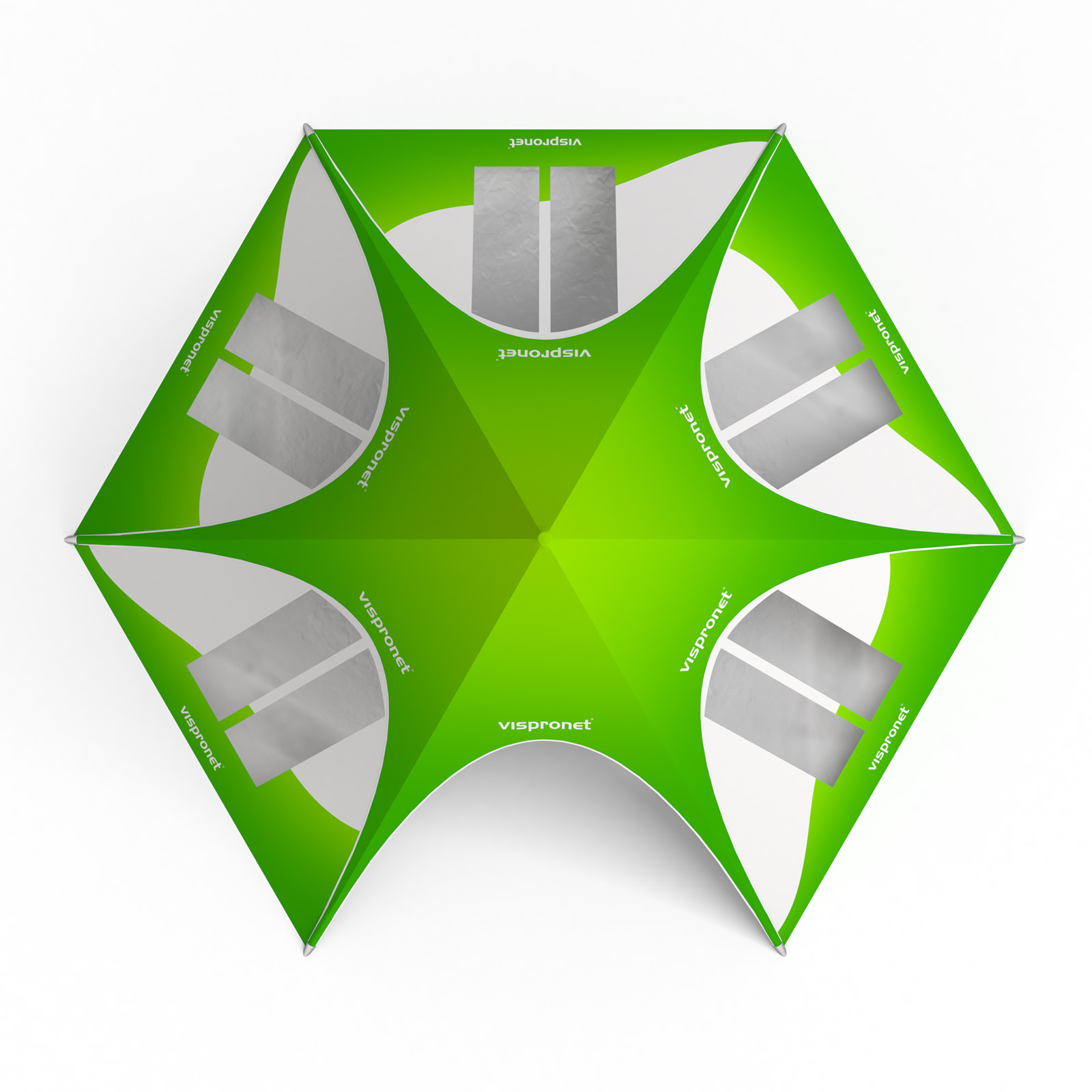

- Full wall or side walls with different window variants or entrance
- Completely individually printable (except window areas)
- Transparent side wall:
- Full wall made of transparent clear film (without print)
- Made of three welded panels
- Further side walls can be found in our category Side walls for star tent.
Materials
- Variotex® Z SE: matte polyester fabric, UV-resistant (lightfastness 6-7), waterproof (water column 2,000 mm), seams rainproof, flame-retardant (EN 13501-1 / B-s1, d0)
- Without lamination, approx. 200 g/m2: recommended for medium- to longer-term uses; printed parts without lamination please handle carefully to avoid scratches
- With lamination, approx. 220 g/m2: recommended for longer-term use and frequently changing locations; the additional protective laminate ensures a very scratch-resistant, dirt-repellent and particularly durable surface, can be wiped with a damp cloth
- Clear film, approx. 360 g/m2: transparent PVC film, UV-resistant and waterproof, can be wiped with a damp cloth, unprinted
System
- 5-part aluminium mast (Ø 76 mm) with base plate and fastening accessories
- Crank system for fine adjustment and for perfect tensioning of the roof
- End cap made of cast aluminium
- Base plate made of aluminium
- 6 ground pegs, Ø 18 mm, length approx. 550 mm, for anchoring the covering in the ground
- Transport bag made of vinyl tarpaulin with pull loop
- Pre-assembled on the tent roof: steel ring for fixing the tent tip and shoes made of cast aluminium for lower fixing of the covering
Sizes & weights
| Feature |
Value |
| Size |
Ø 12 m |

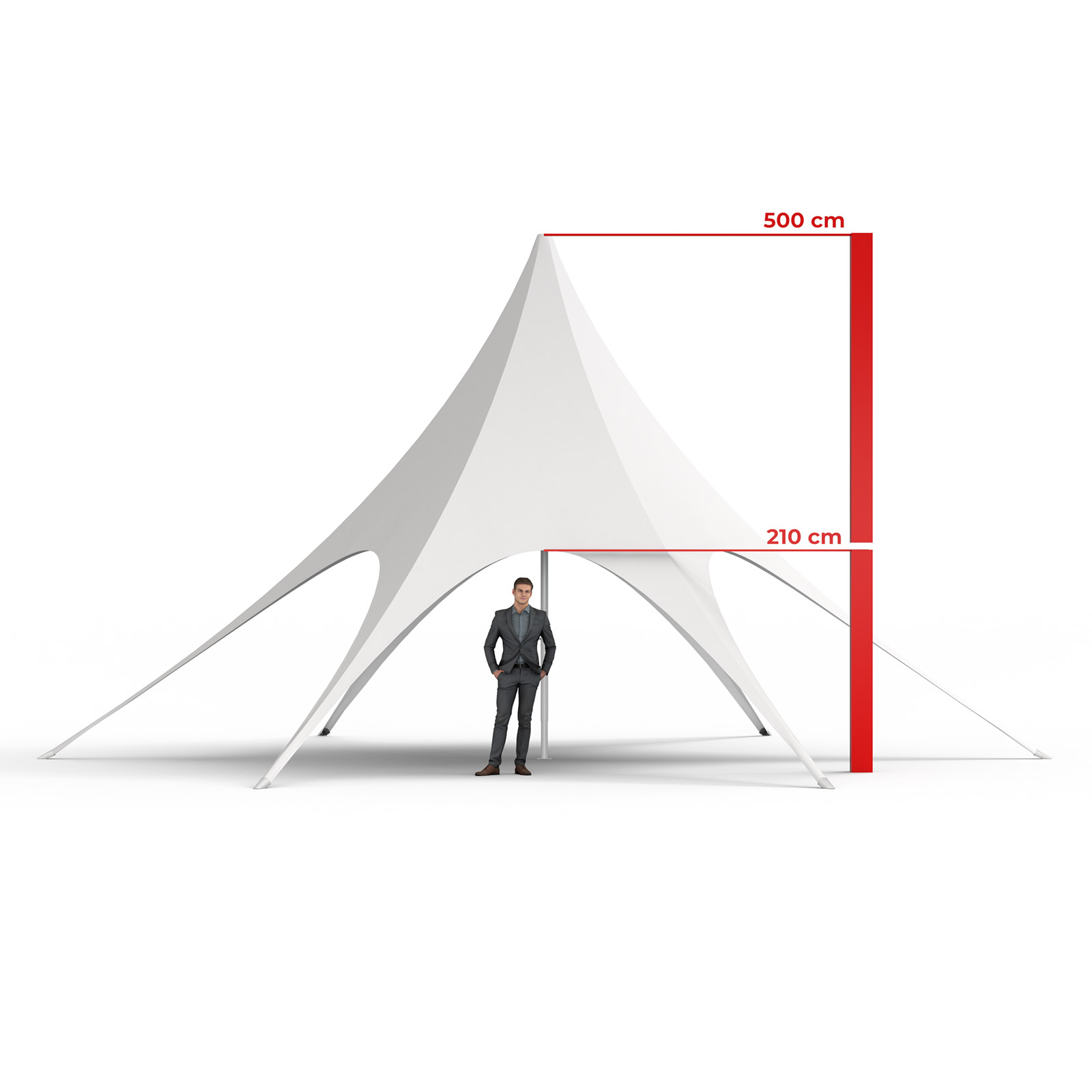

| Total height |
500 cm |
| Passage height |
210 cm |
| Base area |
113.10 m2 |
| Weight frame |
14 kg |
| Weight tent roof (with shoes) |
18 kg |
| Weight per side wall |
2.5 kg |
| Wall size per side wall |
595 × 335 cm |
All dimensions and weights are approximate values; technical changes and tolerances reserved.
Scope of delivery
- Complete set:
- Aluminium mast (Ø 76 mm) incl. base plate and fastening accessories, packed in a transport bag made of vinyl tarpaulin with pull loop
- 2 measuring tapes
- Ground peg puller
- Tent roof and selected side walls
- 6 tent shoes made of cast aluminium
- Roof only:
- Printed tent roof
- 6 tent shoes made of cast aluminium
- Tent frame only:
- Aluminium mast (Ø 76 mm) incl. base plate and fastening accessories
- Packed in a transport bag made of vinyl tarpaulin with pull loop
Use
- Suitable for events and uses outdoors
Safety instructions
- Star tents and star canopies must always be securely anchored to the ground
- Not tested for wind and snow loads; do not use in adverse weather conditions such as strong wind, rain or snow
- Open fire as well as heating devices with open flames must not be used
- Star tents and star canopies count as temporary structures; for use, an execution permit from the responsible building authority is required
- Please note the complete safety instructions for this product.
