Star canopy Ø 17 m
The star canopy Ø 17 m is the right choice when you want to buy a particularly impressive roofing for large events and extensive event areas. Its imposing height, the open effect and the characteristic star silhouette create a representative atmosphere with reliable weather protection.
Tent roof
- Star-shaped canopy with 6 passage arches
-
Variants:
- Canopy variant: passage arches equipped with trimming tape; use as canopy without side walls
- Tent variant: passage arches equipped with zippers; for use as tent with side walls
- Matching side walls can be found in our category tent walls for star tent.
The tent variant can be used both with and without tent walls. In the canopy variant, a later equipping with side walls is not possible.
Material
- Variotex® Z SE: matte polyester fabric
- UV-resistant
- Waterproof (water column 2,000 mm), seams rainproof
- Flame-retardant (EN 13501-1 / B-s1, d0)
- Cleaning with a damp cloth possible
System
- 6-part aluminium mast (Ø 76 mm) with base plate and fastening accessories
- Crank system for fine adjustment and for perfect tensioning of the roof
- End cap made of aluminium cast
- Base plate made of aluminium (80 × 80 mm)
- 6 ground pegs, Ø 18 mm, length approx. 550 mm, for anchoring the covering in the ground
- Transport bag made of tarpaulin with pull loop
- Preassembled on the tent roof: steel ring for fixing the tent top and shoes made of aluminium cast for lower fixing of the covering
Sizes & weights
| Feature |
Value |
| Size |
Ø 17 m |

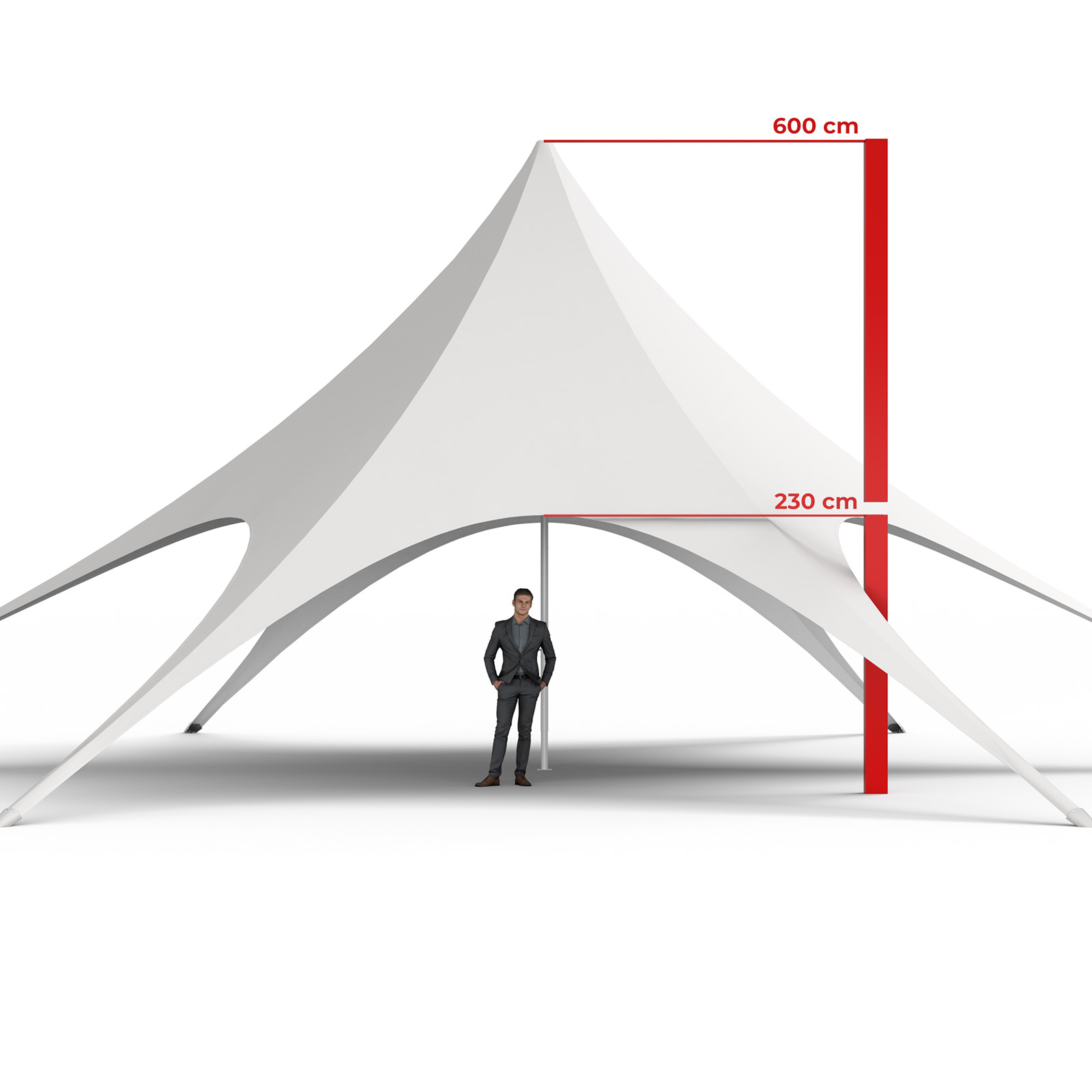

| Total height |
600 cm |
| Passage height |
230 cm |
| Base area |
226.98 m2 |
| Weight frame |
16 kg |
| Weight tent roof (with shoes) |
26 kg |
All dimensions and weights are approximate values; technical changes and tolerances reserved.
Scope of delivery
- Complete set:
- Aluminium mast (Ø 76 mm) incl. base plate and fastening accessories, packed in a transport bag made of tarpaulin with pull loop
- 2 measuring tapes
- Ground peg puller
- Tent roof
- 6 tent shoes made of aluminium cast
- Roof only:
- White tent roof
- 6 tent shoes made of aluminium cast
- Tent frame only:
- Aluminium mast (Ø 76 mm) incl. base plate and fastening accessories
- Packed in a transport bag made of tarpaulin with pull loop
Use
- Suitable for events and uses in the outdoor area
Safety instructions
- Star tents and star canopies must always be securely anchored to the ground
- Not tested for wind and snow loads; do not use in adverse weather conditions such as strong wind, rain or snow
- Open fire as well as heating devices with open flames must not be used
- Star tents and star canopies belong to the temporary structures; for use, an execution permit from the responsible building authority is required
- Please note the complete safety instructions for this product.
