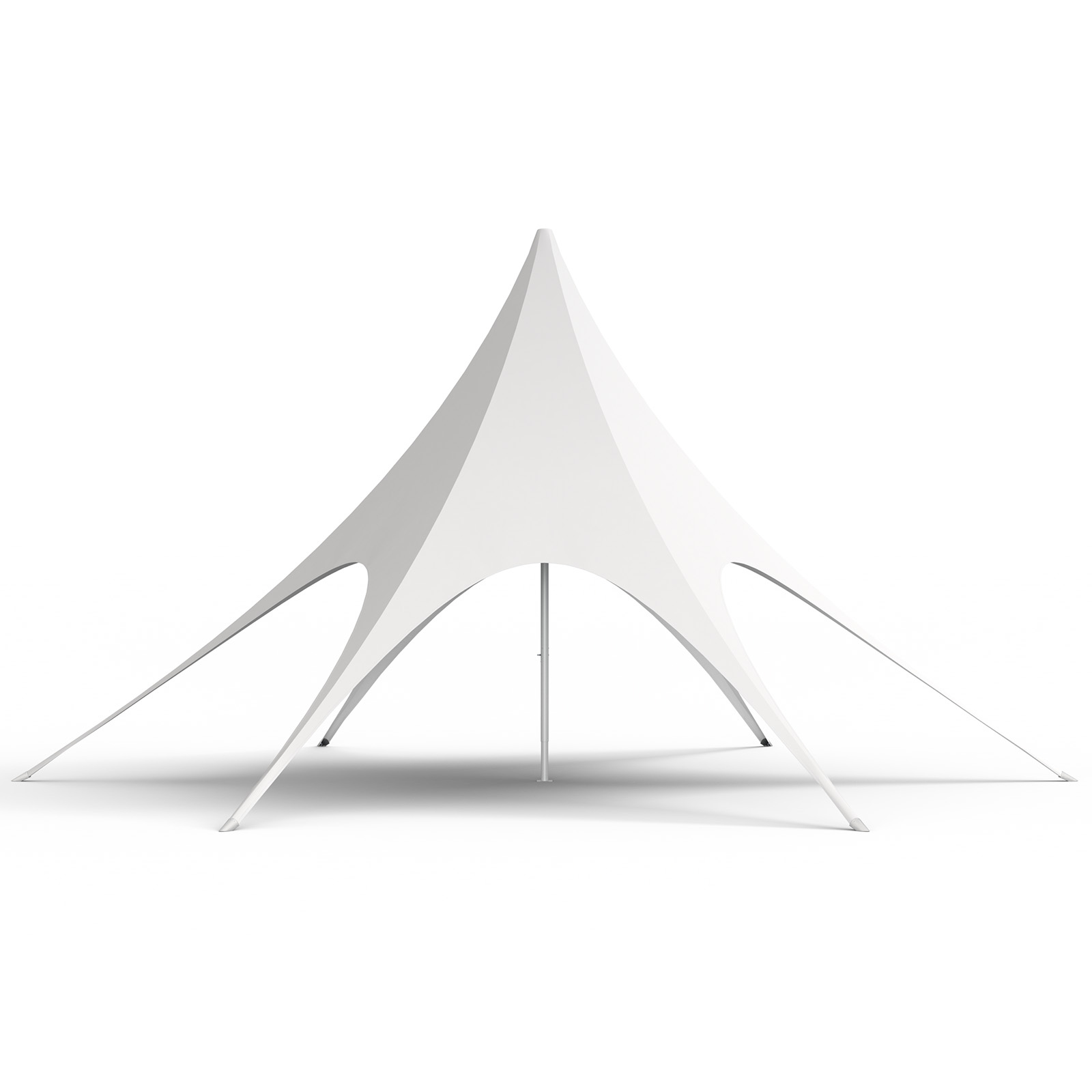

Star canopy Ø 14 m - White, generous, representative
The star canopy Ø 14 m is recommended when you want to buy a widely visible and generous roofing for larger events, outdoor areas or gastronomic spaces. The large span, the elegant white roof and the weatherproof design combine strong presence with reliable function outdoors.
Tent roof
- star-shaped canopy with 6 passage arches
-
Variants:

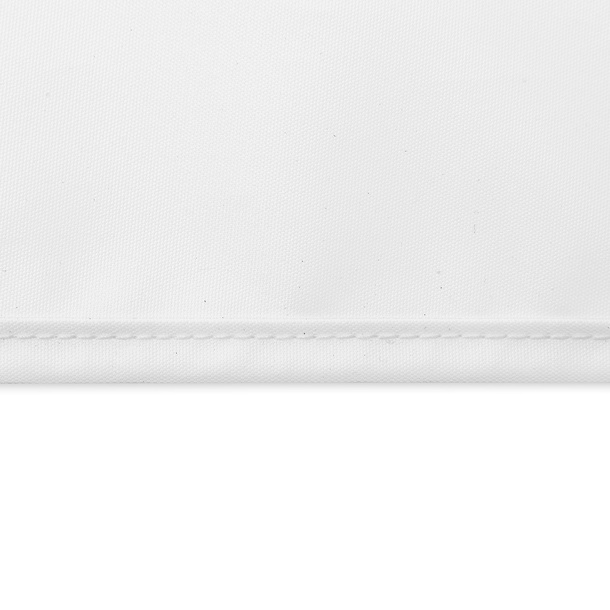

- Canopy variant: passage arches equipped with trimming tape; use as canopy without side walls

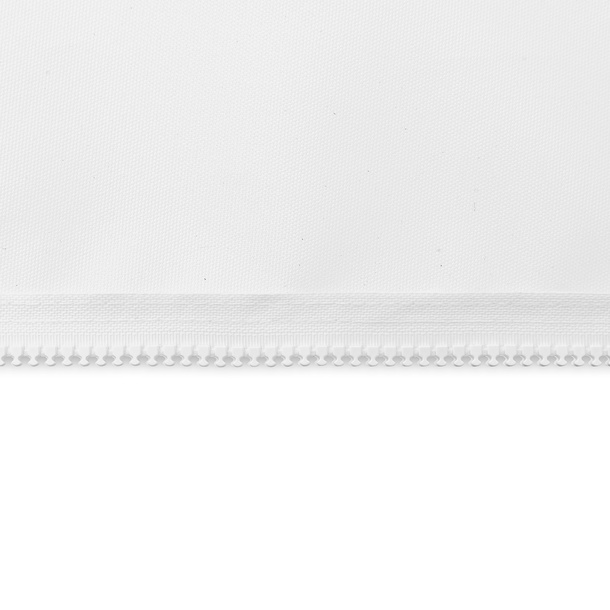

- Tent variant: passage arches equipped with zippers; for use as tent with side walls
- Matching side walls can be found in our category tent walls for star tent.
The tent variant can be used both with and without tent walls. In the canopy variant, a later equipping with side walls is not possible.
Material
- Variotex® Z SE: matte polyester fabric
- UV-resistant
- Waterproof (water column 2,000 mm), seams rainproof
- Flame-retardant (EN 13501-1 / B-s1, d0)
- Cleaning with a damp cloth possible
System
- 5-part aluminium mast (Ø 76 mm) with base plate and fastening accessories

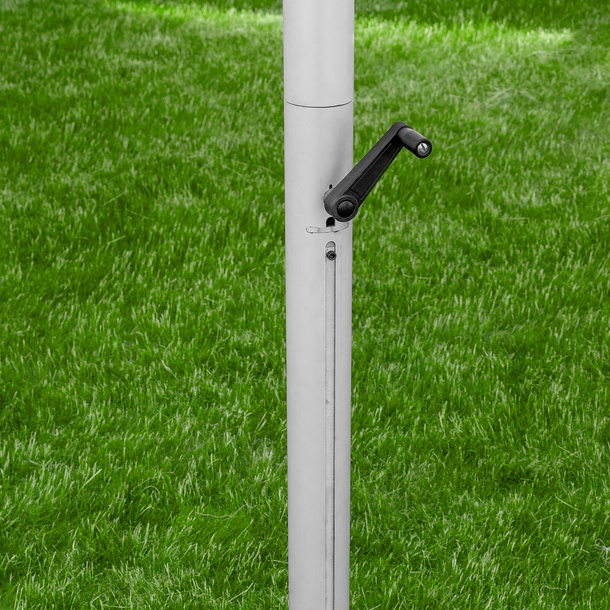

- Crank system for fine adjustment and for perfect tensioning of the roof
- End cap made of aluminium cast
- Base plate made of aluminium (80 × 80 mm)

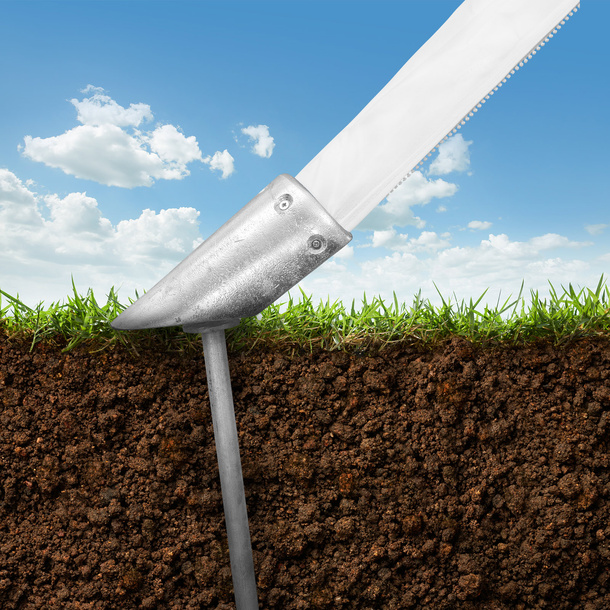

- 6 ground pegs, Ø 18 mm, length approx. 550 mm, for anchoring the covering in the ground
- Transport bag made of tarpaulin with pull loop

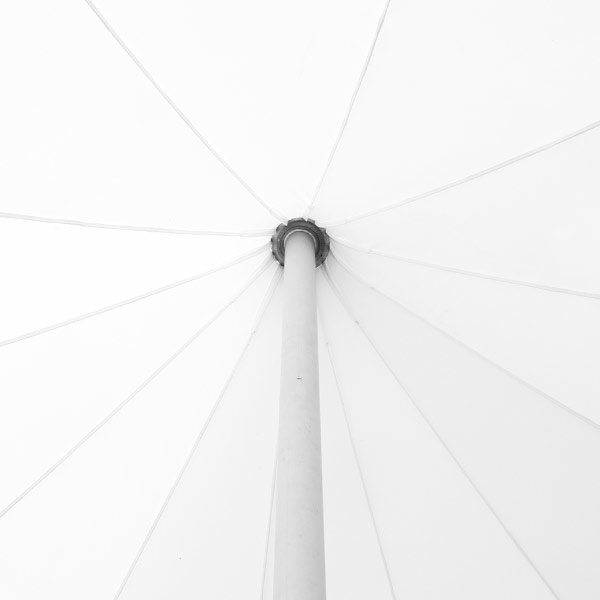

- Preassembled on the tent roof: steel ring for fixing the tent top and shoes made of aluminium cast for lower fixing of the covering
Sizes & weights
| Feature |
Value |
| Size |
Ø 14 m |

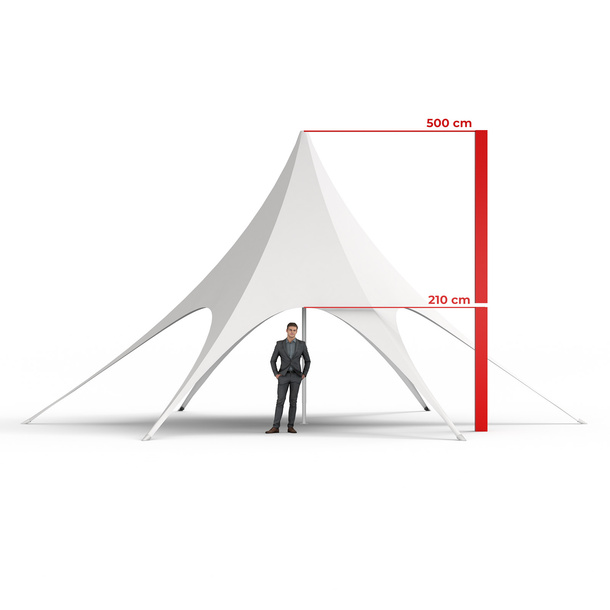

| Total height |
500 cm |
| Passage height |
210 cm |
| Base area |
153.94 m2 |
| Weight frame |
14 kg |
| Weight tent roof (with shoes) |
21 kg |
All dimensions and weights are approximate values; technical changes and tolerances reserved.
Scope of delivery

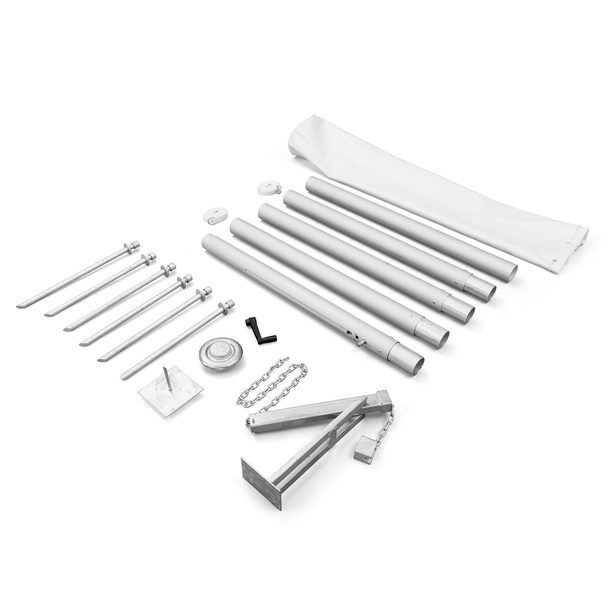

- Complete set:
- Aluminium mast (Ø 76 mm) incl. base plate and fastening accessories, packed in a transport bag made of tarpaulin with pull loop
- 2 measuring tapes
- Ground peg puller
- Tent roof
- 6 tent shoes made of aluminium cast
- Roof only:
- White tent roof
- 6 tent shoes made of aluminium cast
- Tent frame only:
- Aluminium mast (Ø 76 mm) incl. base plate and fastening accessories
- Packed in a transport bag made of tarpaulin with pull loop
Use
- Suitable for events and uses in the outdoor area
Safety instructions
- Star tents and star canopies must always be securely anchored to the ground
- Not tested for wind and snow loads; do not use in adverse weather conditions such as strong wind, rain or snow
- Open fire as well as heating devices with open flames must not be used
- Star tents and star canopies belong to the temporary structures; for use, an execution permit from the responsible building authority is required
- Please note the complete safety instructions for this product.
