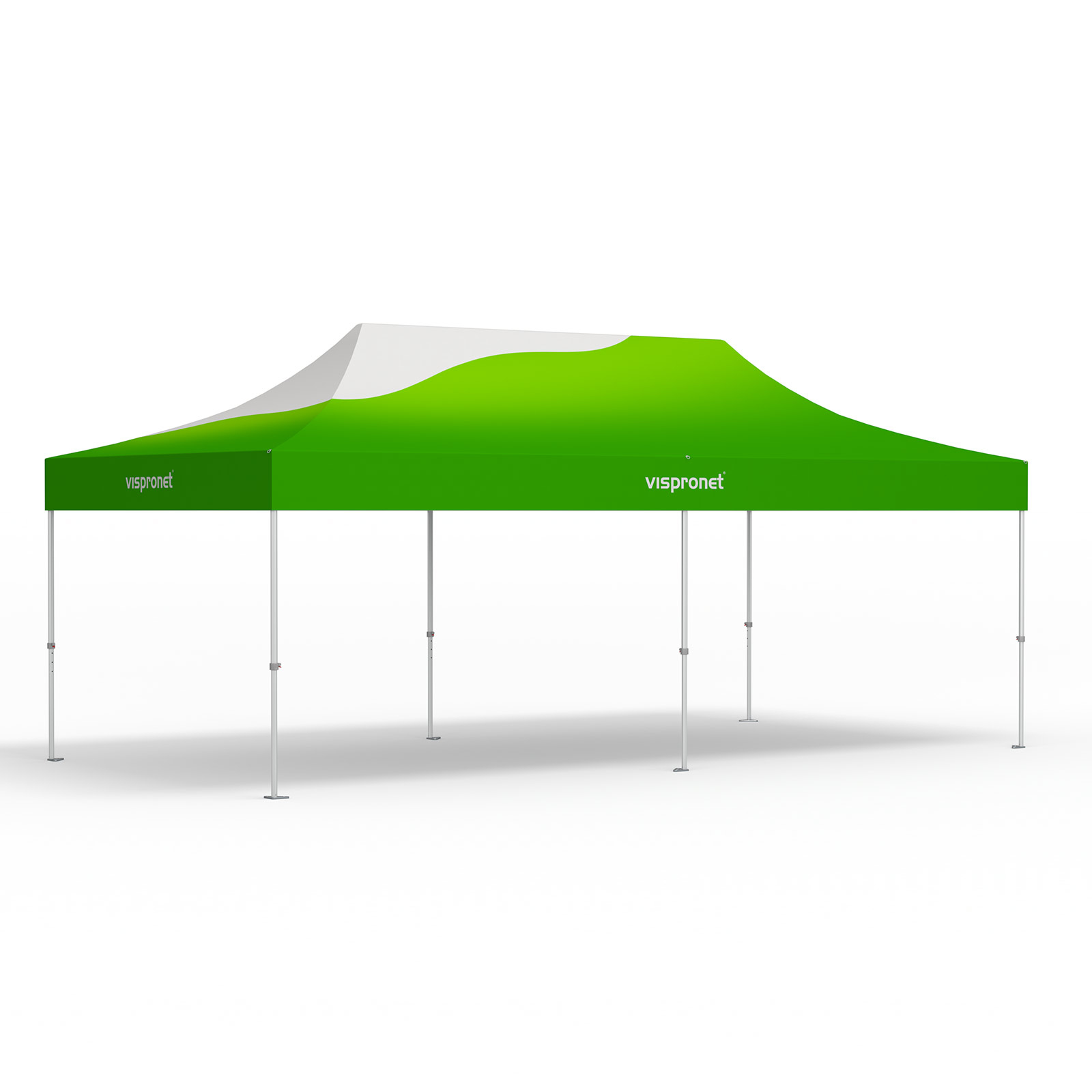

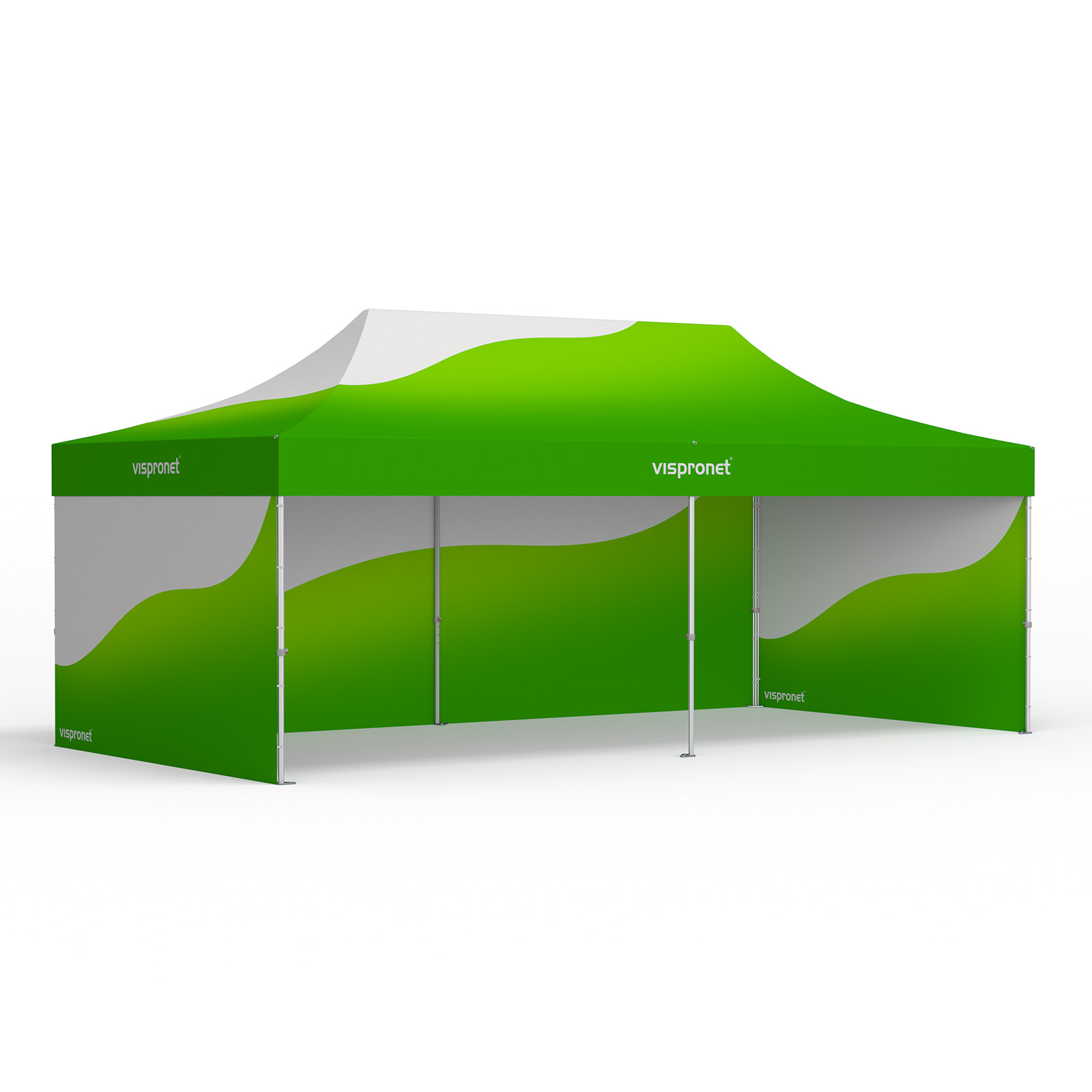

Pop up tents 4 x 8
Individually printable folding tents with high-quality processed tent roof and optional tent walls. Choose the tent variant, side walls and version suitable for your use.
Tent roof
- Full-surface individually printable in digital printing
- UV-resistant, brilliant and high-contrast color reproduction, very good lightfastness (6–7)
- Special colors realizable
- Optionally available with tape-sealed seams: highest weather protection, 100 % waterproof
Tent walls
- Selection of up to 4 tent walls possible
- Selectable wall variants: solid wall, half-height wall, walls with doors and windows
-
Versions solid wall, walls with doors and windows:

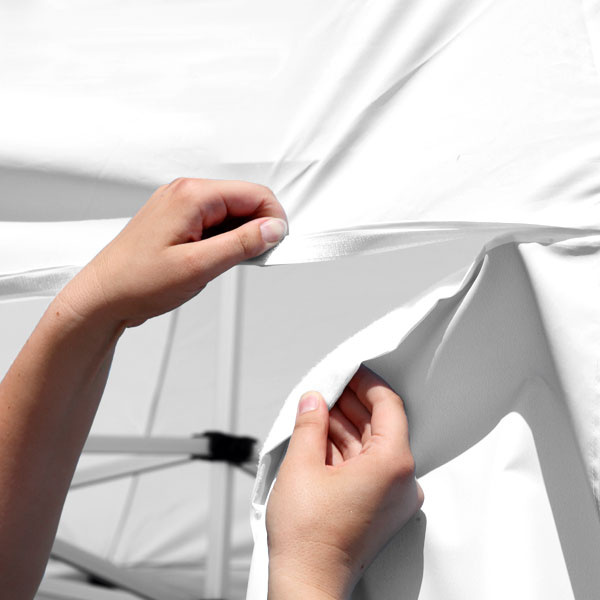

- Hemmed all around, on the upper edge on both sides with hook-and-loop tape for attachment to the valance

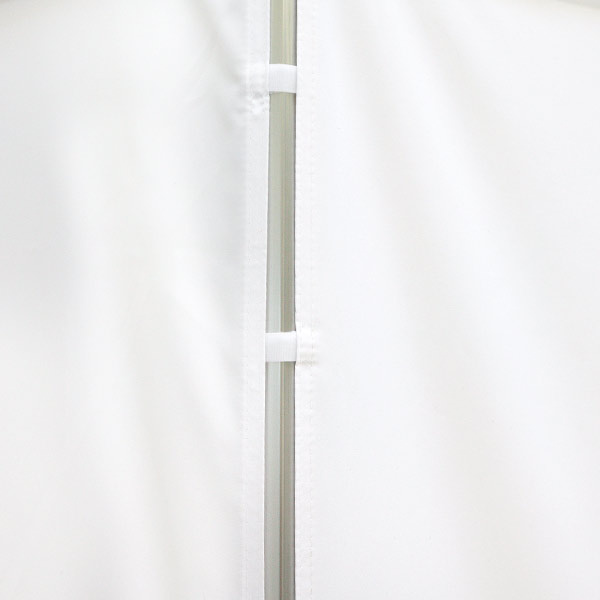

- Side edges each with 5 fastening loops or

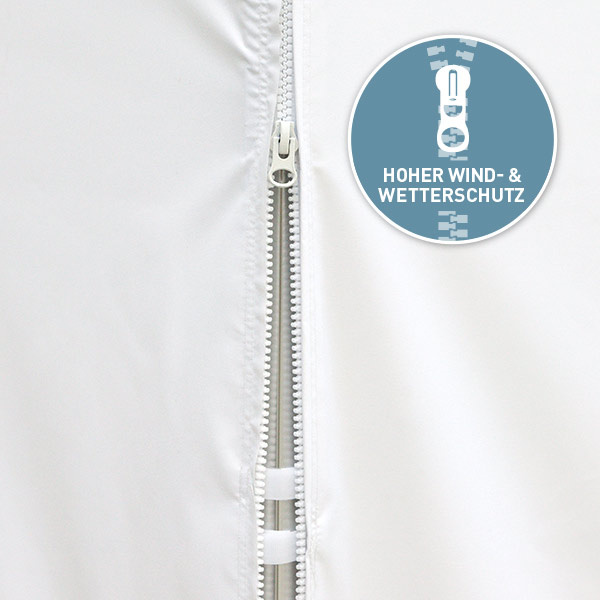

- Side edges each equipped with 5 fastening loops and zipper (high wind and weather protection)
-
Version half-height wall:
- Hemmed all around
- Side edges with fastening loops
- Single-sided printed: motif shows through on the back side in mirror image
- Attachment of the walls with motif facing inward or outward
Note: When using multiple tent walls with zipper, the motifs can only be aligned uniformly inward or outward.
Material
Matte polyester fabrics in 2 qualities are used. Both materials ensure very good color reproduction.
| Feature |
Variotex® Z SE |
Variotex® S SE |
| Surface weight |
200 g/m² (without lamination)
220 g/m² (with lamination) |
270 g/m² (without lamination)
290 g/m² (with lamination) |
| Flame-retardant according to |
EN 13501-1 / B-s1, d0 |
EN 13501-1 / B-s2, d0 |
| Maximum tensile force |
lengthwise 1200 N, crosswise 1000 N |
lengthwise 2000 N, crosswise 1200 N |
| Water column |
2,000 mm |
2,000 mm |
| Texture |
dense, fine-threaded |
heavy, robust |
All measurements are approximate values; technical changes and tolerances reserved.
- Without lamination: recommended for medium- to longer-term uses; please handle print parts without lamination very carefully and gently to avoid scratches
- With lamination: additional protective lamination after printing for highest scratch resistance, dirt-repellent and particularly durable; recommended for longer-term use and frequently changing locations

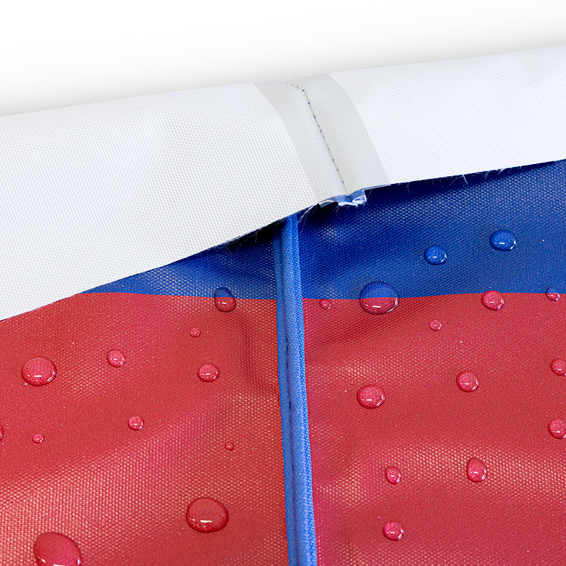

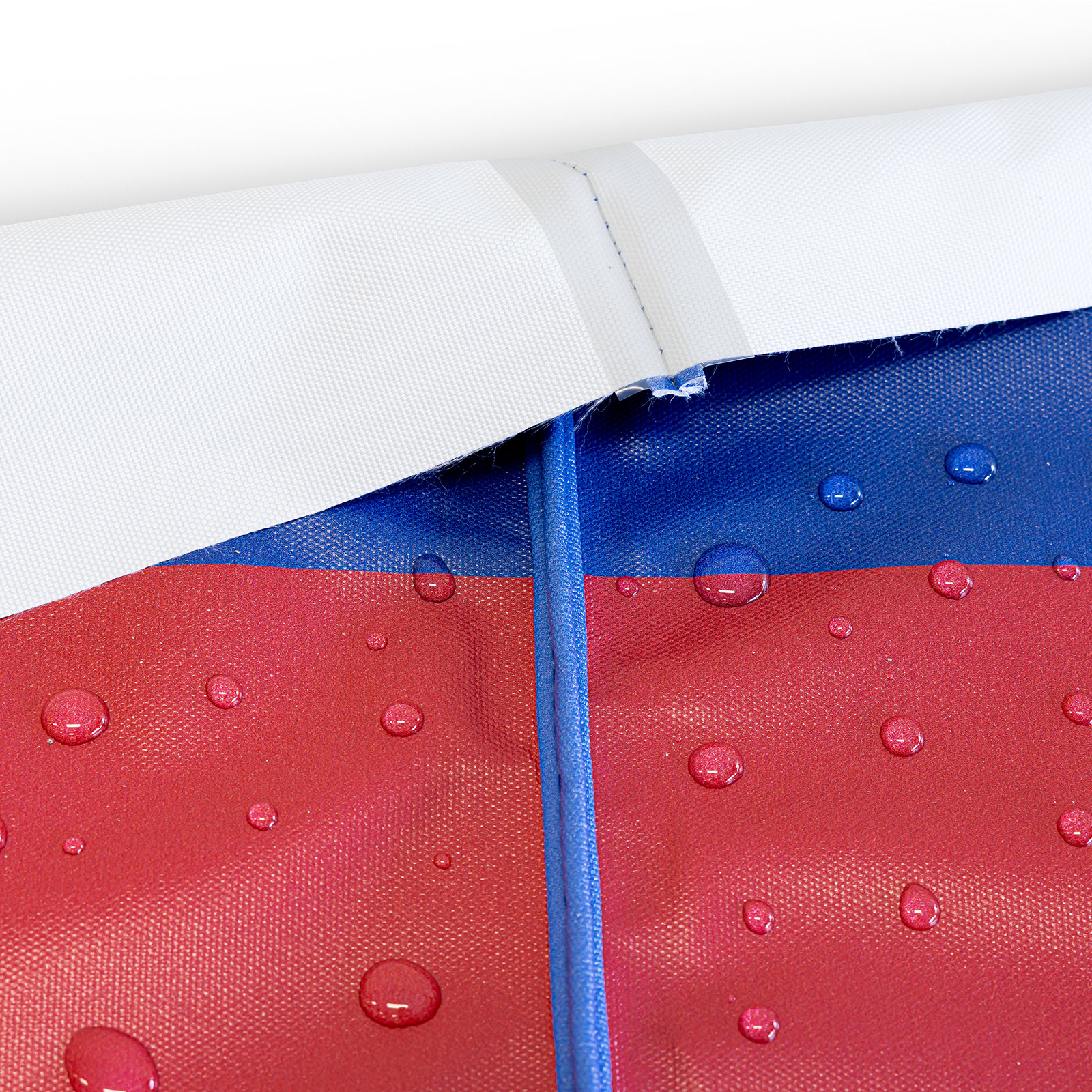

- Optional waterproof seams: 100 % waterproof due to tape-sealed seams (highest weather protection)
Tent frame
- High-quality aluminum frame

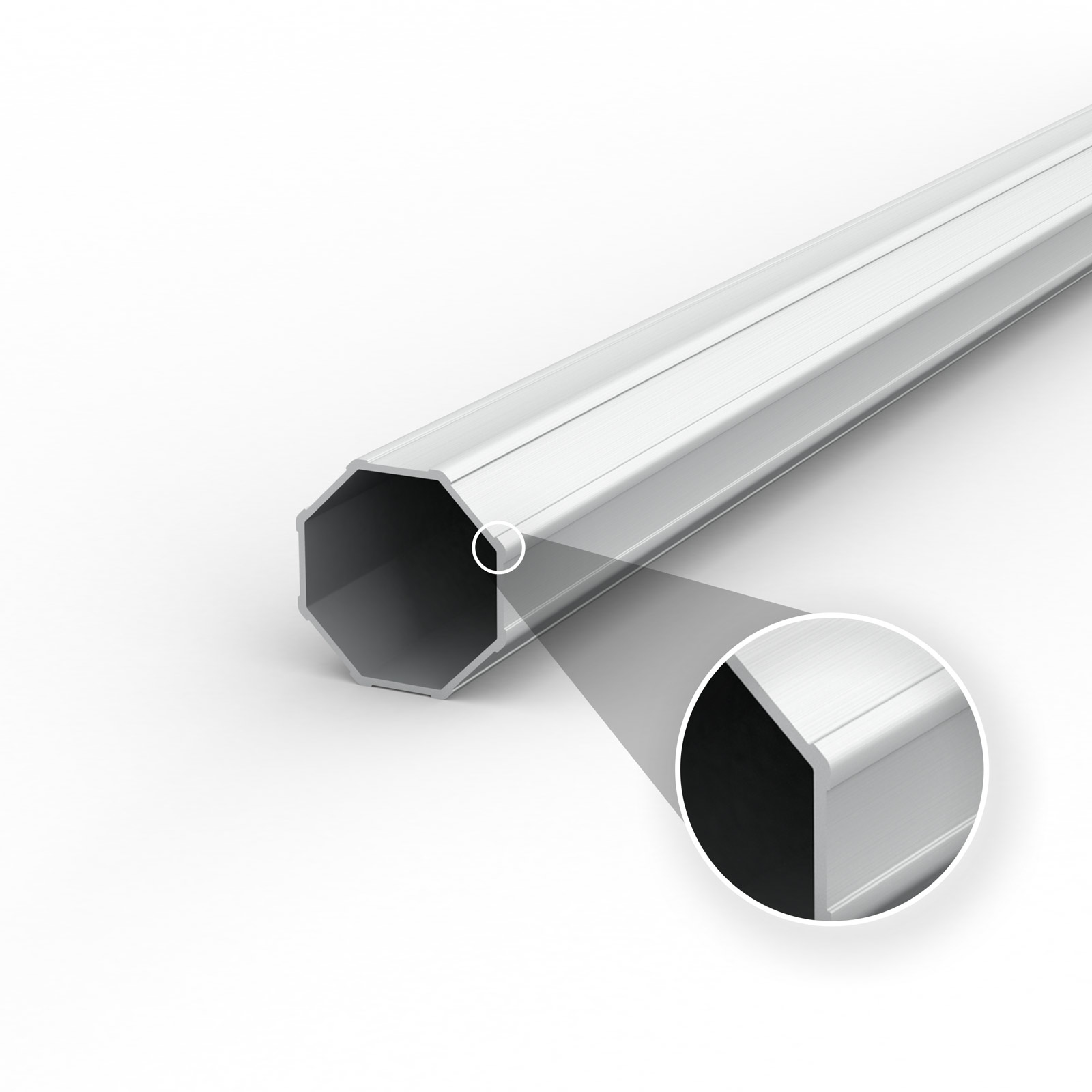

- Posts made of extremely stable octagonal profiles (top: Ø 52 mm, bottom: Ø 45 mm, wall thickness 1.5 mm)
- Robust, stable feet made of aluminum

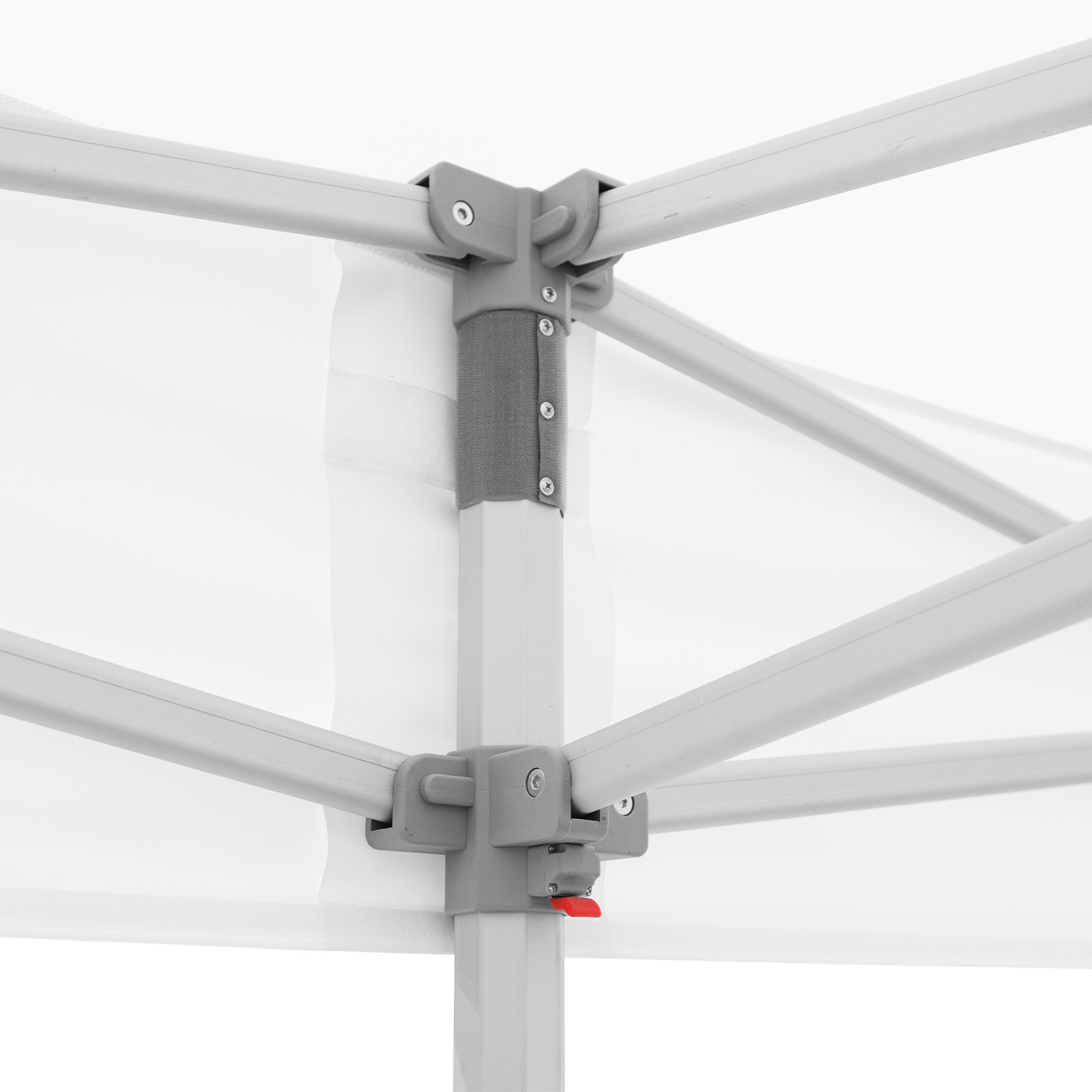

- Connectors made of robust, glass fiber-reinforced plastic (high-strength, weather-resistant, frost-proof)

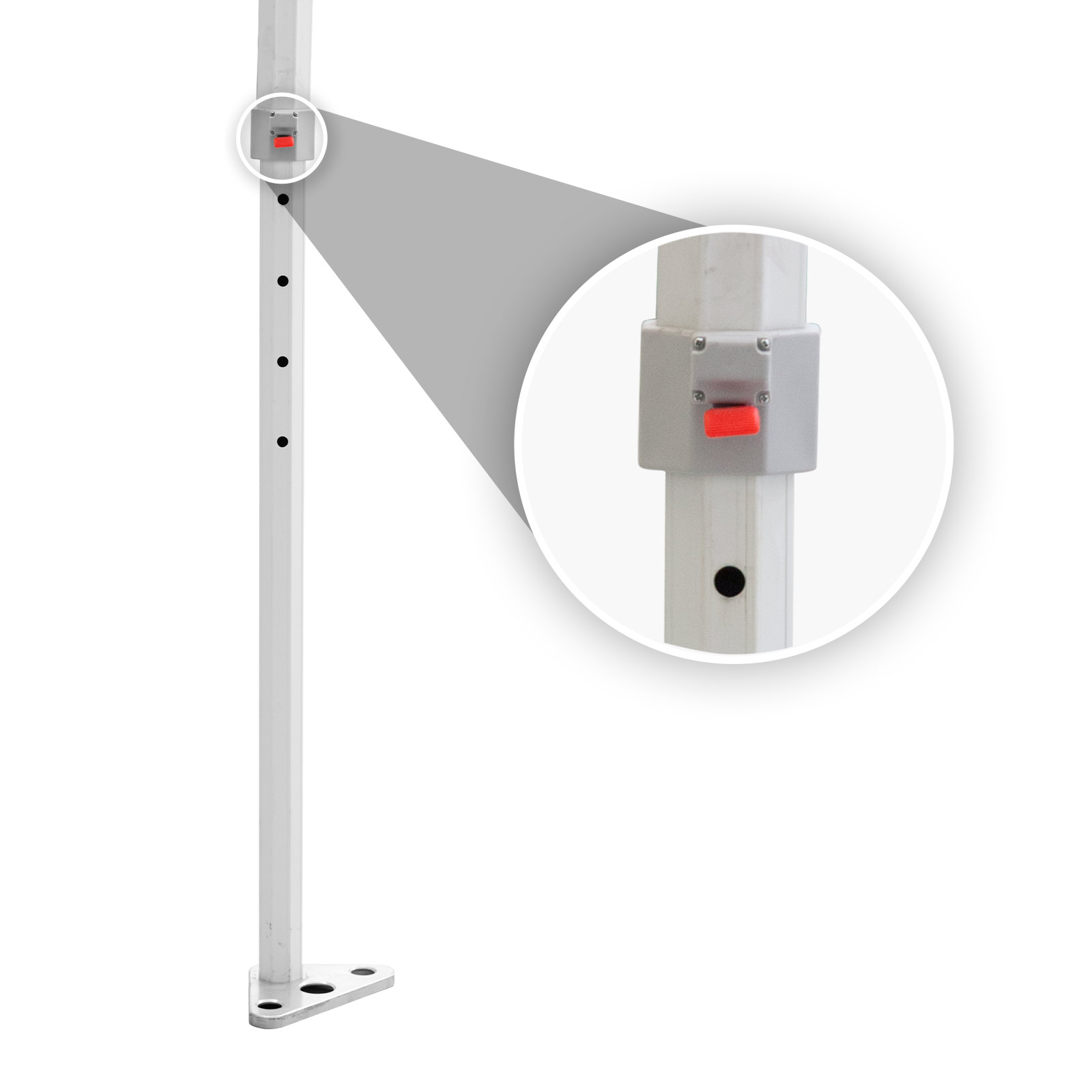

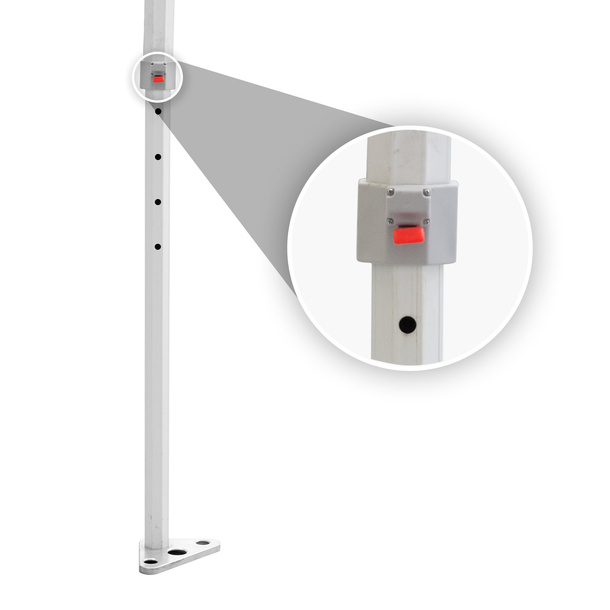

- Clearance height adjustable in 5 levels (220 cm, 228 cm, 236 cm, 244 cm, 252 cm)

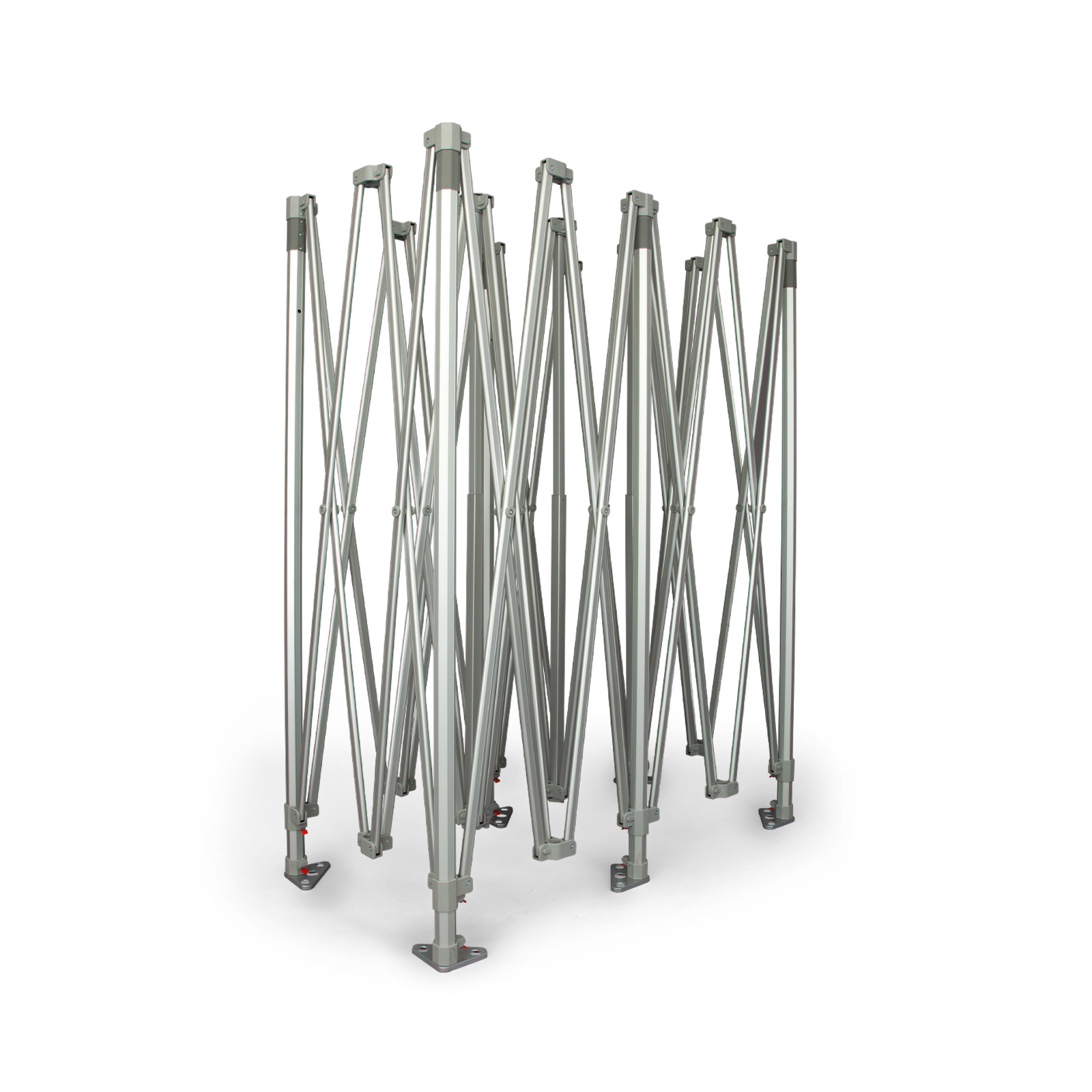

- Particularly stable, foldable scissor lattice system, locking with lever

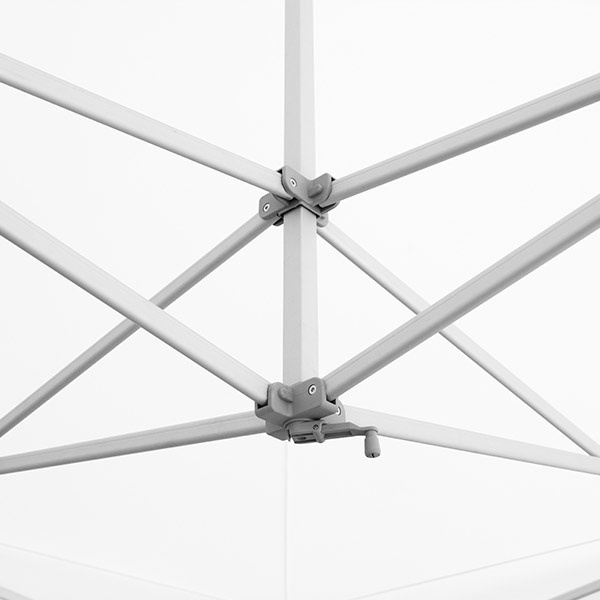

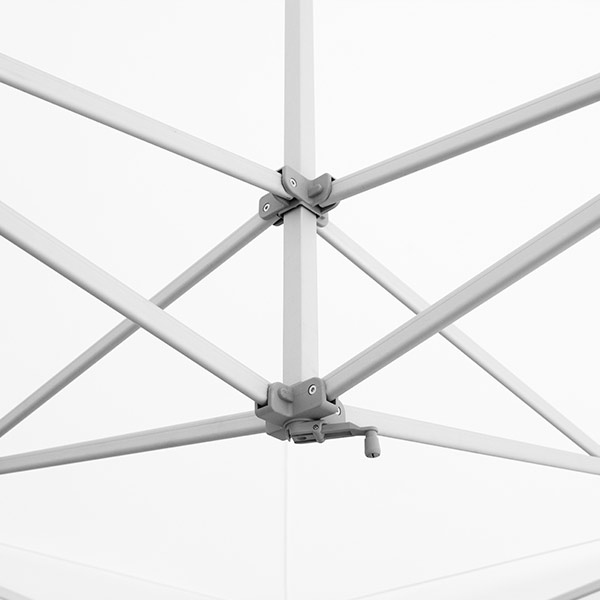

- Crank mechanism for fine adjustment and perfect tensioning of the roof
- Total height 420 cm
- Heights when used with walls (height adjustment level 1): clearance height approx. 220 cm
- Weight (without print parts): 58 kg
Scope of delivery
- Complete set: pop up tent frame incl. tent roof as well as (depending on selection) tent walls
- Print part: tent roof and/or tent walls (without frame)
- System: pop up tent frame (without print parts)
Use
- Can be used indoors and outdoors
- For transport and storage, tent roof and walls must be removed from the frame
- When used outdoors, secure ground anchoring is absolutely required (e.g. guying sets as well as weighting plates/weights/ground stakes)
- Not suitable for long-term unattended outdoor use
- Pop up tents are not tested for wind and snow loads
Accessories (optional)

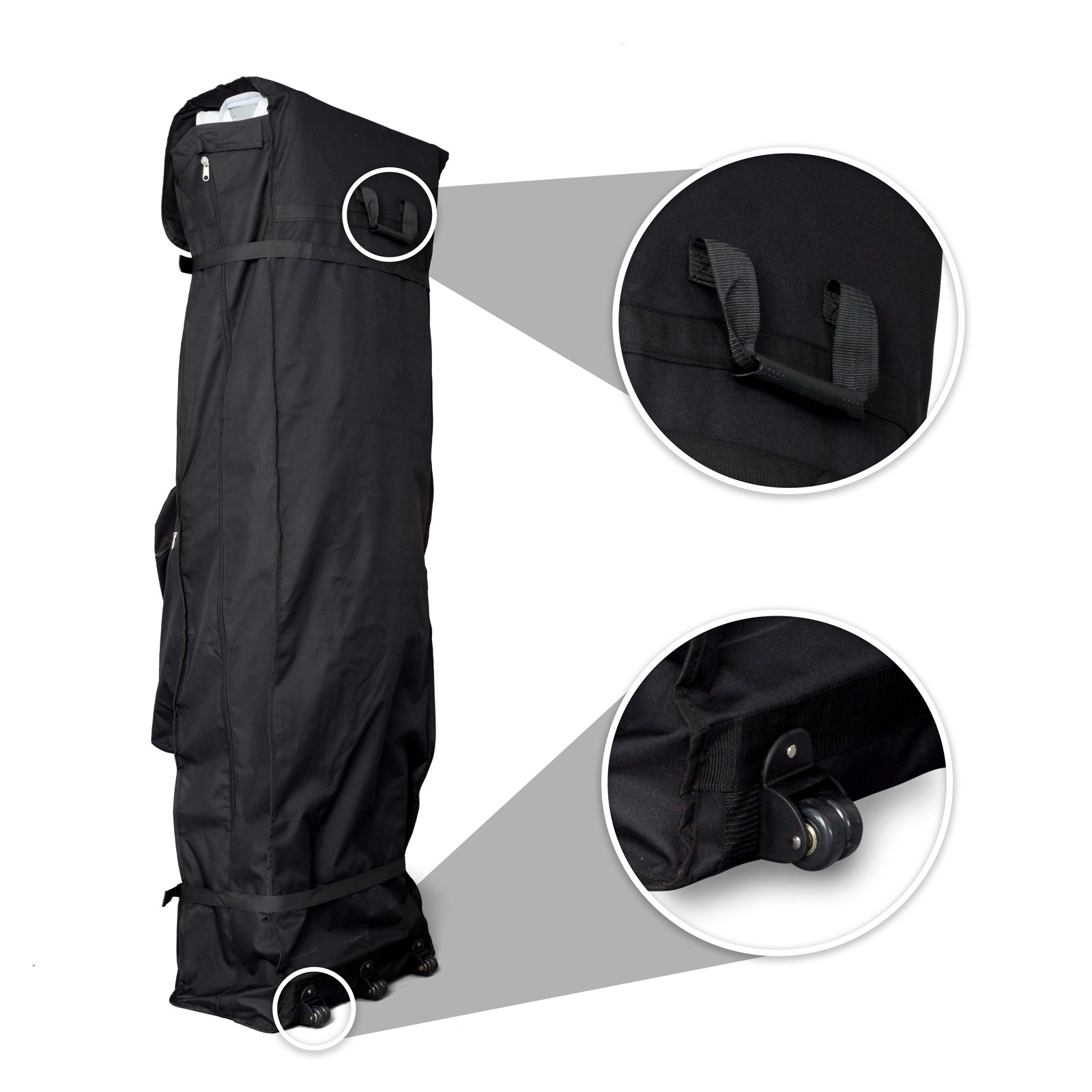

Further accessories such as holders for Bowflag® and flags,

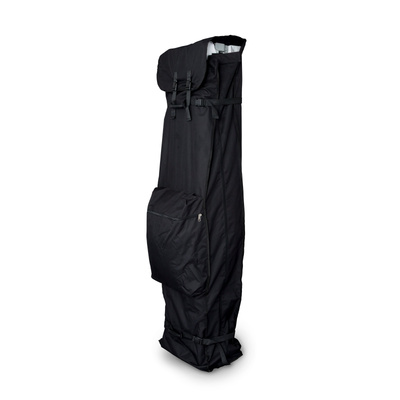

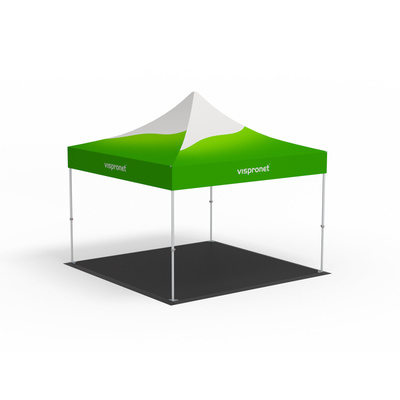

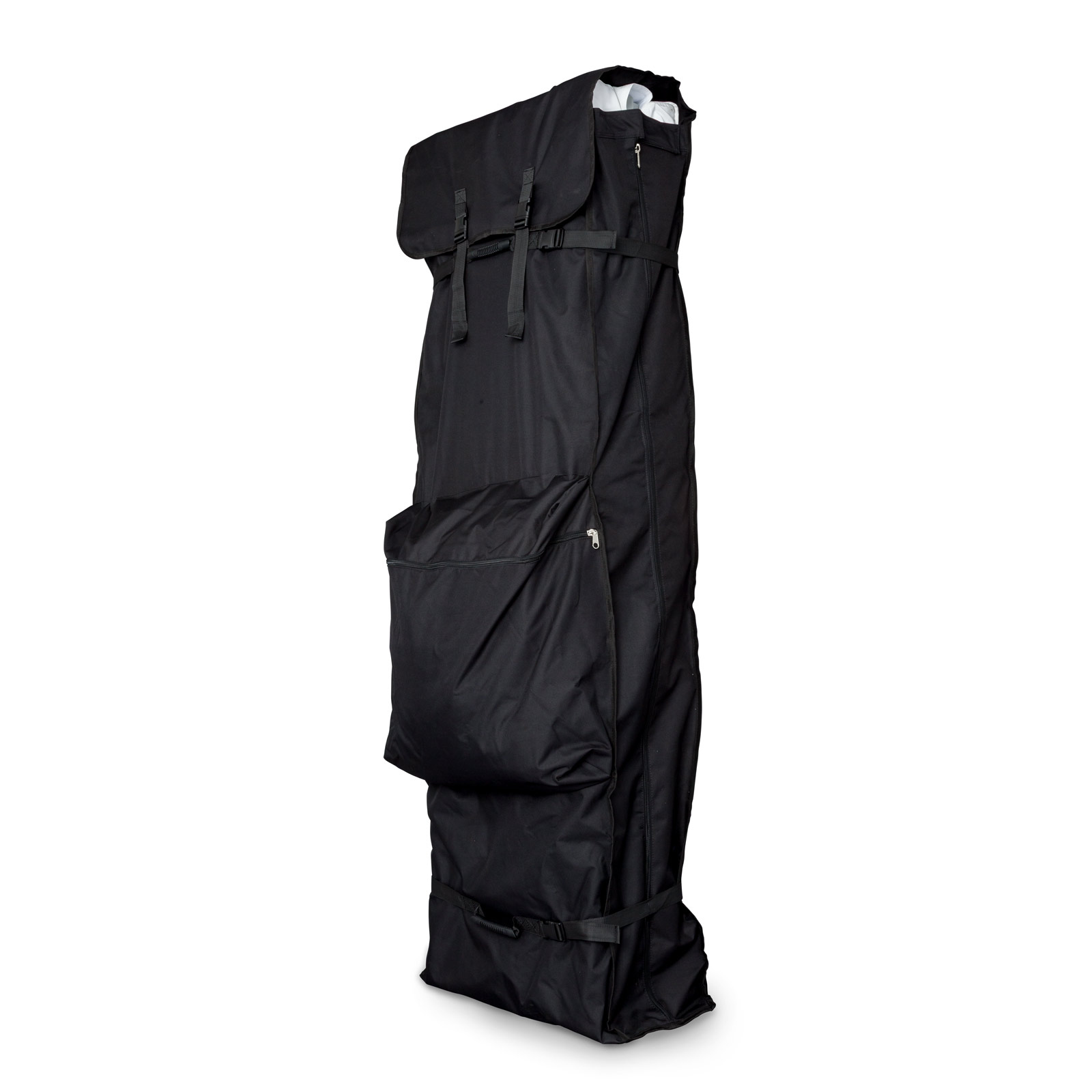

weighting and base plates, trolley bags and guying sets can be found
in our extensive
accessories assortment for pop up tents and gazebos
.
