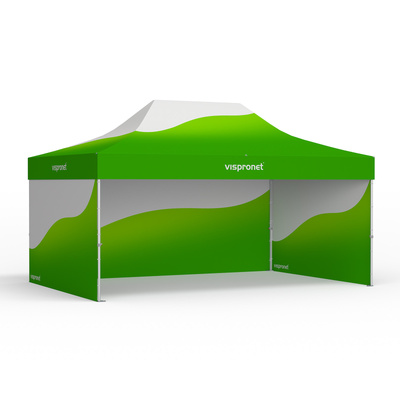

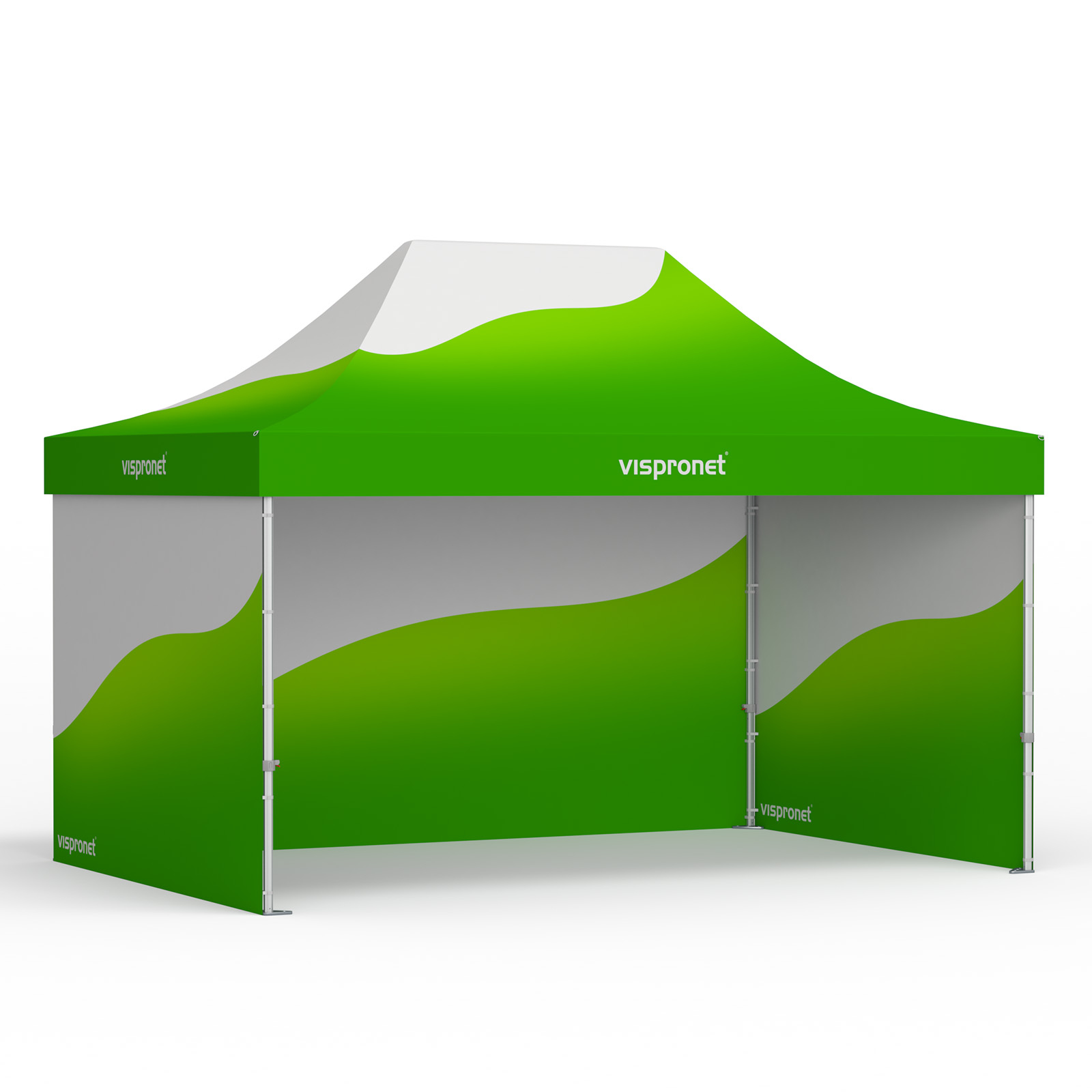

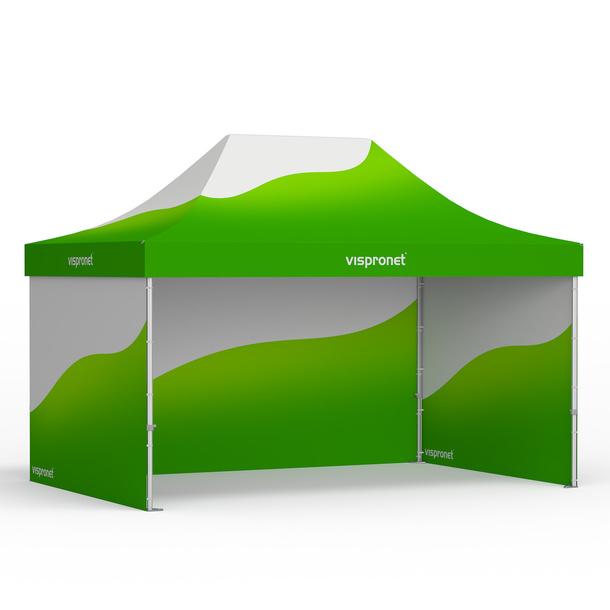

Pop up tents 3 x 4,5
Individually printable folding tents with high-quality processed tent roof and optional tent walls. Choose the tent variant, side walls and version suitable for your use – ideal for flexible uses with reliable weather protection.

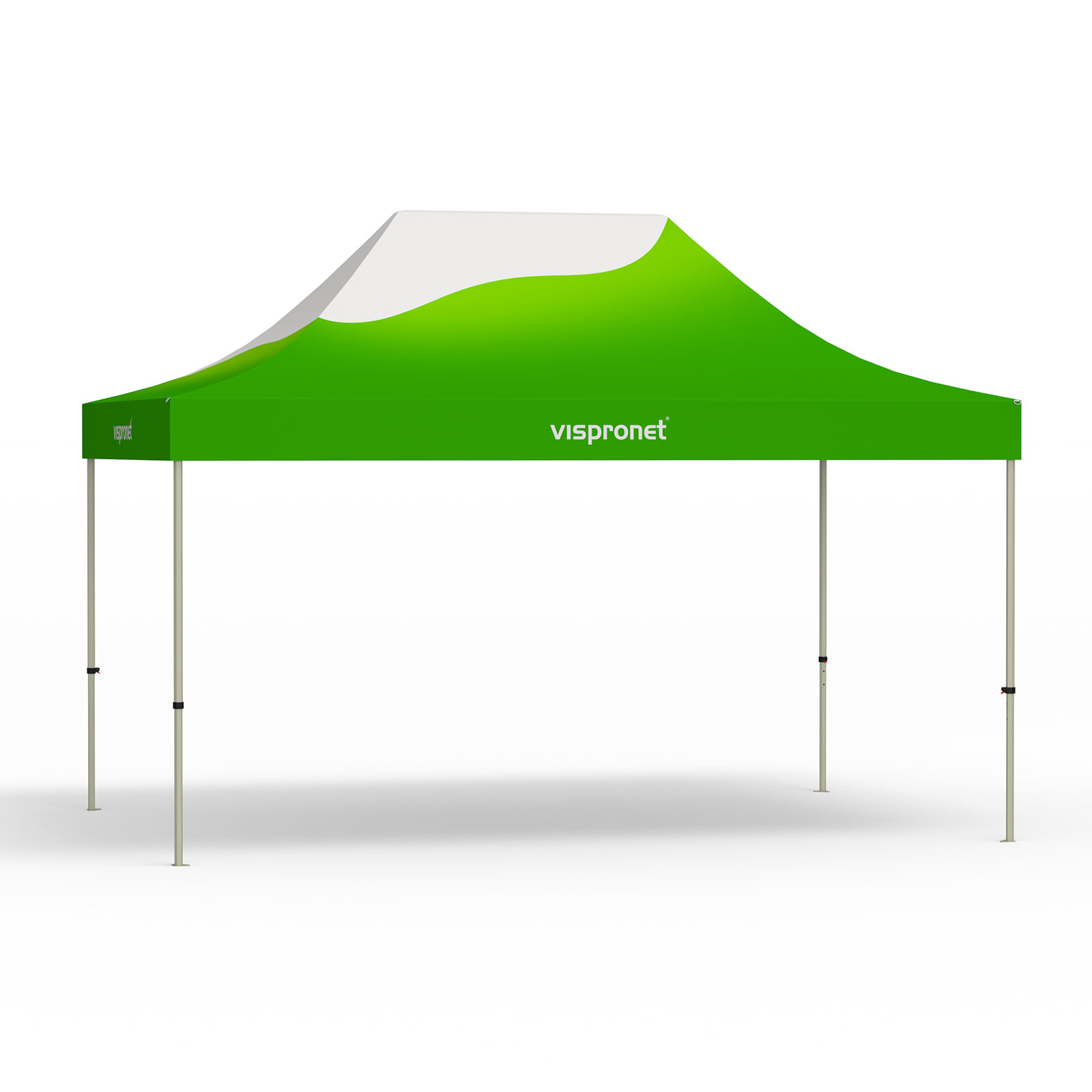

Tent roof
- High-quality processed tent roof with circumferential valance
- Waterproof up to a water column of 2000 mm (depending on material)
- Optionally available with tape-sealed seams: highest weather protection, 100 % waterproof
Tent walls
- Selection of up to 4 tent walls
- Solid walls and half-height walls can also be ordered with double-sided printing (double-layered: 2 print layers with opaque barrier layer, sewn together)
-
Versions solid wall, walls with doors and windows:

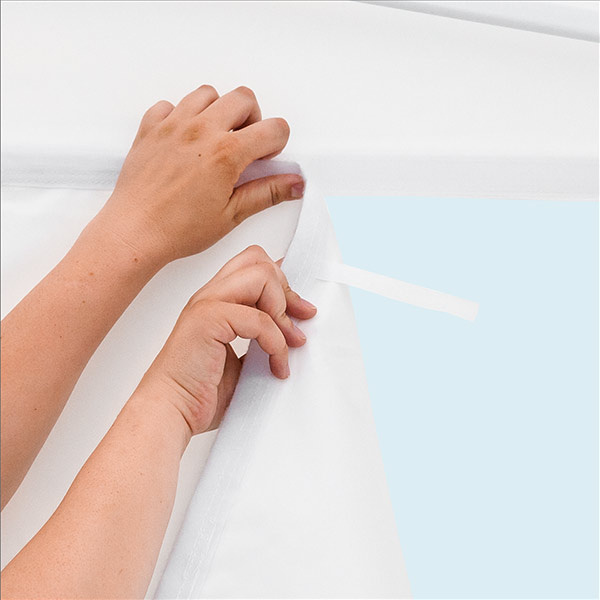

- Hemmed all around, on the upper edge on both sides with hook-and-loop tape for attachment to the valance

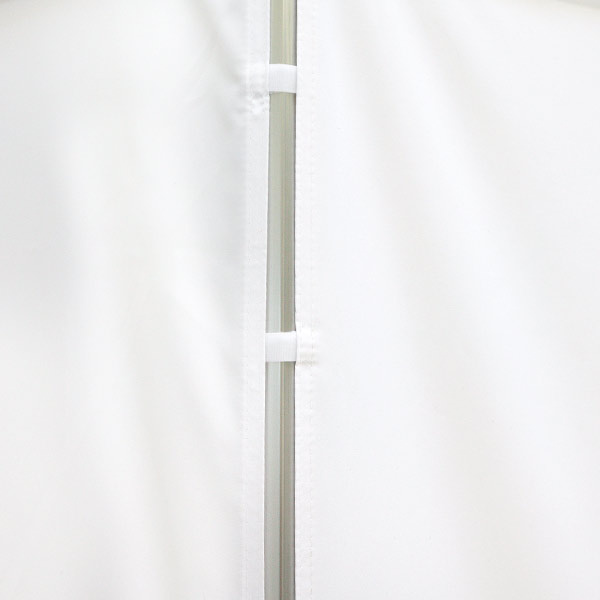

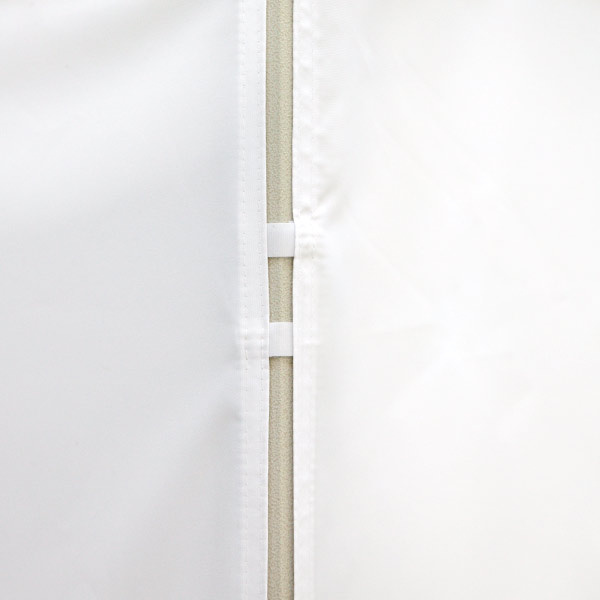

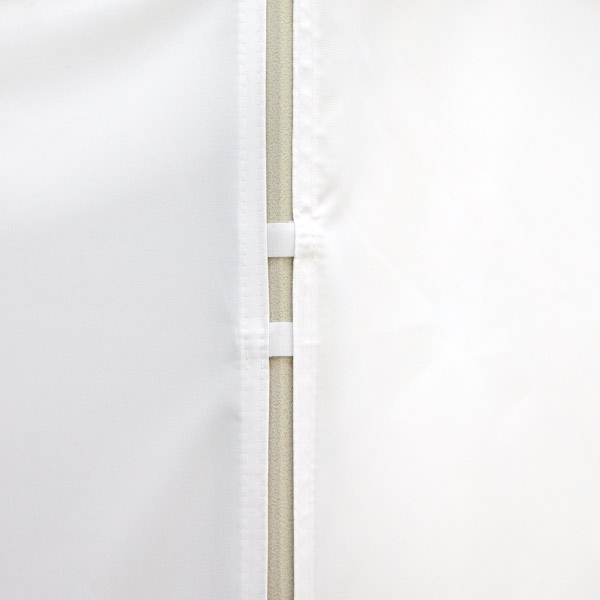

- Side edges each with 5 fastening loops or

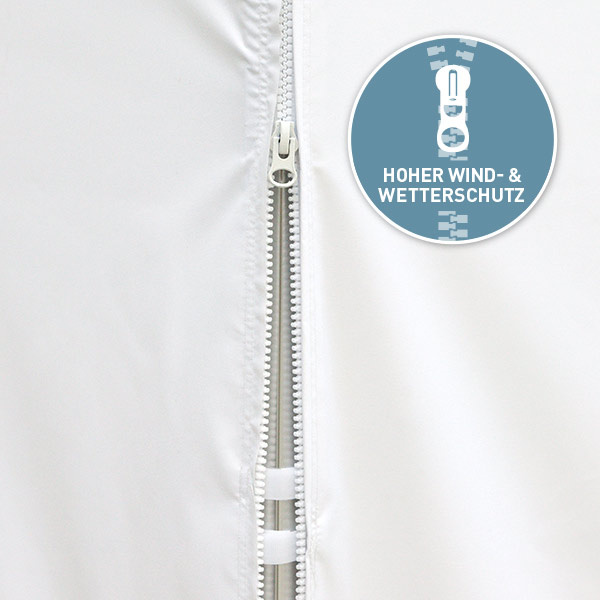

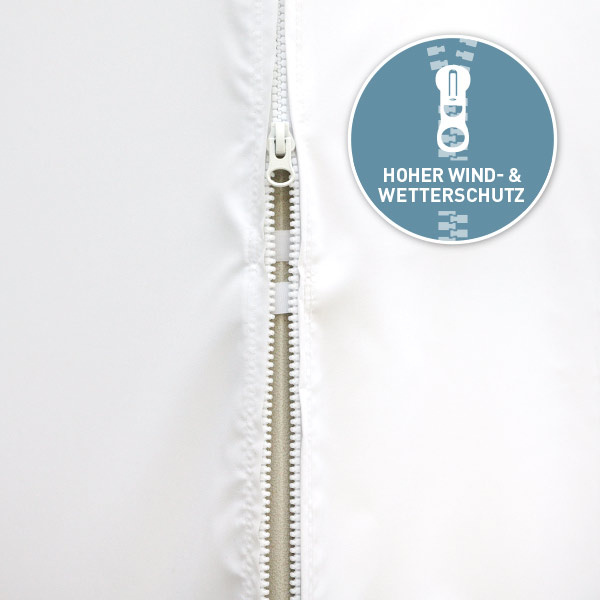

- Side edges each equipped with 5 fastening loops and zipper (high wind and weather protection)
-
Version half-height wall:
- Hemmed all around
- Side edges with fastening loops
- Solid walls and half-height walls can also be ordered with double-sided printing (double-layered: 2 print layers with opaque barrier layer, sewn together)
- Single-sided printed: motif shows through on the back side in mirror image
- Attachment of the walls with motif facing inward or outward
Note: When using multiple tent walls with zipper, the motifs can only be aligned uniformly inward or outward.

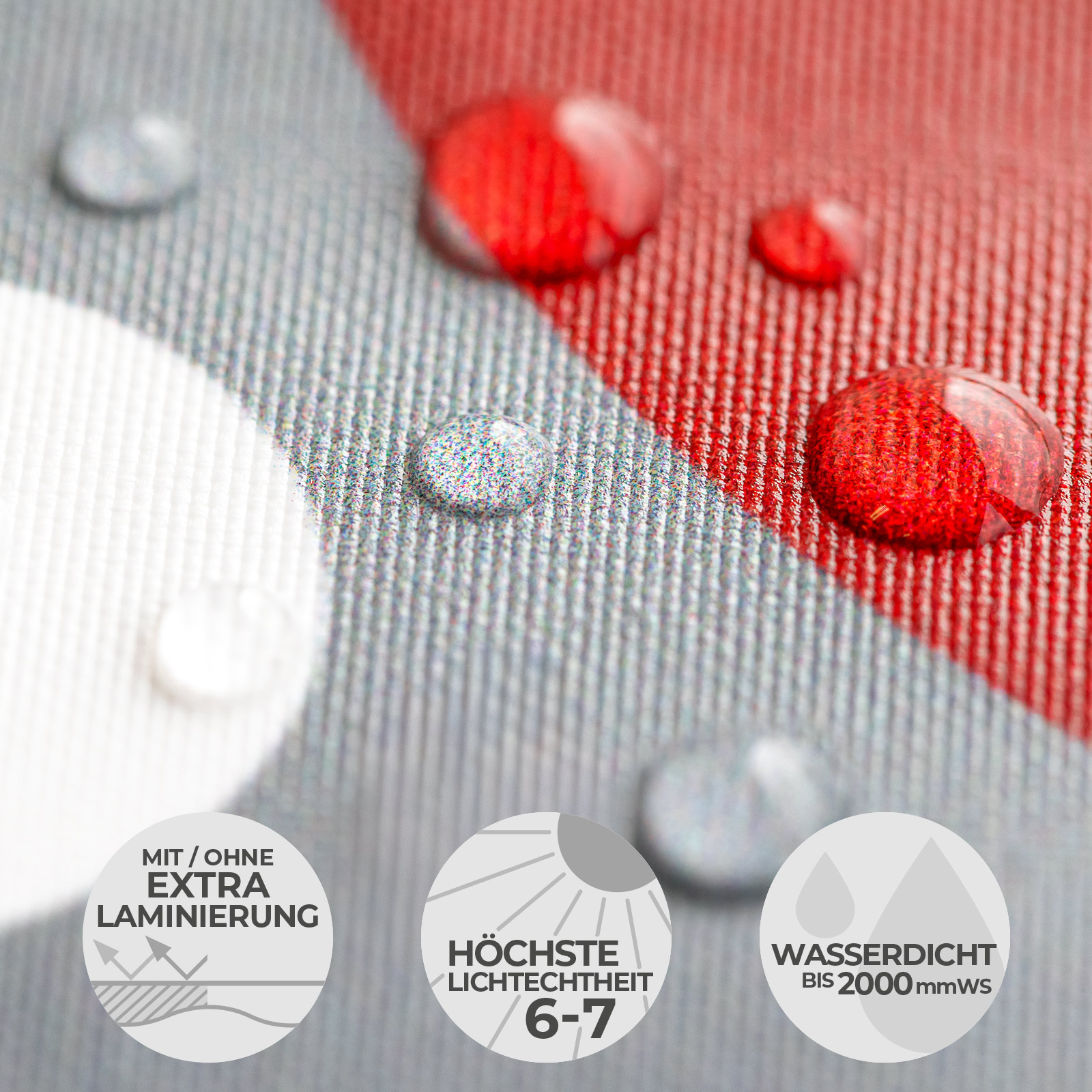

Material
Both matte polyester fabrics used ensure very good color reproduction.
| Feature |
Variotex® Z SE |
Variotex® S SE |
| Surface weight |
200 g/m² (without lamination)
220 g/m² (with lamination) |
270 g/m² (without lamination)
290 g/m² (with lamination) |
| Flame-retardant according to |
EN 13501-1 / B-s1, d0 |
EN 13501-1 / B-s2, d0 |
| Maximum tensile force |
lengthwise 1200 N, crosswise 1000 N |
lengthwise 2000 N, crosswise 1200 N |
| Water column |
2,000 mm |
2,000 mm |
| Texture |
dense, fine-threaded |
heavy, robust |
All measurements are approximate values; technical changes and tolerances reserved.
- Without lamination: recommended for medium- to longer-term uses; please handle print parts without lamination very carefully and gently to avoid scratches
- With lamination: recommended for longer-term use and frequently changing locations; the additional protective lamination after printing ensures a very scratch-resistant, dirt-repellent and particularly durable surface

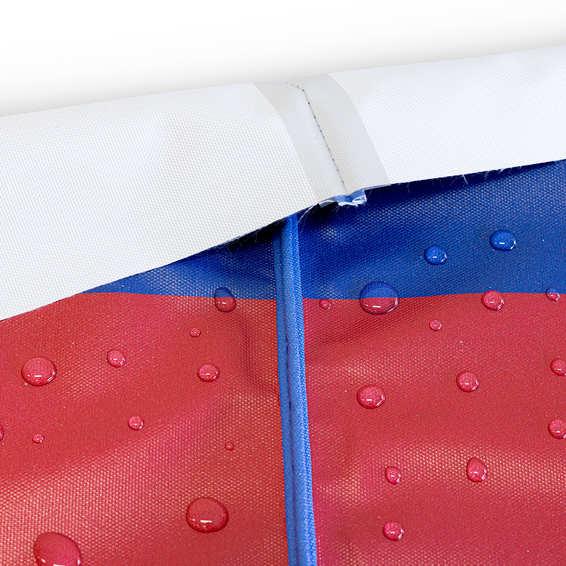

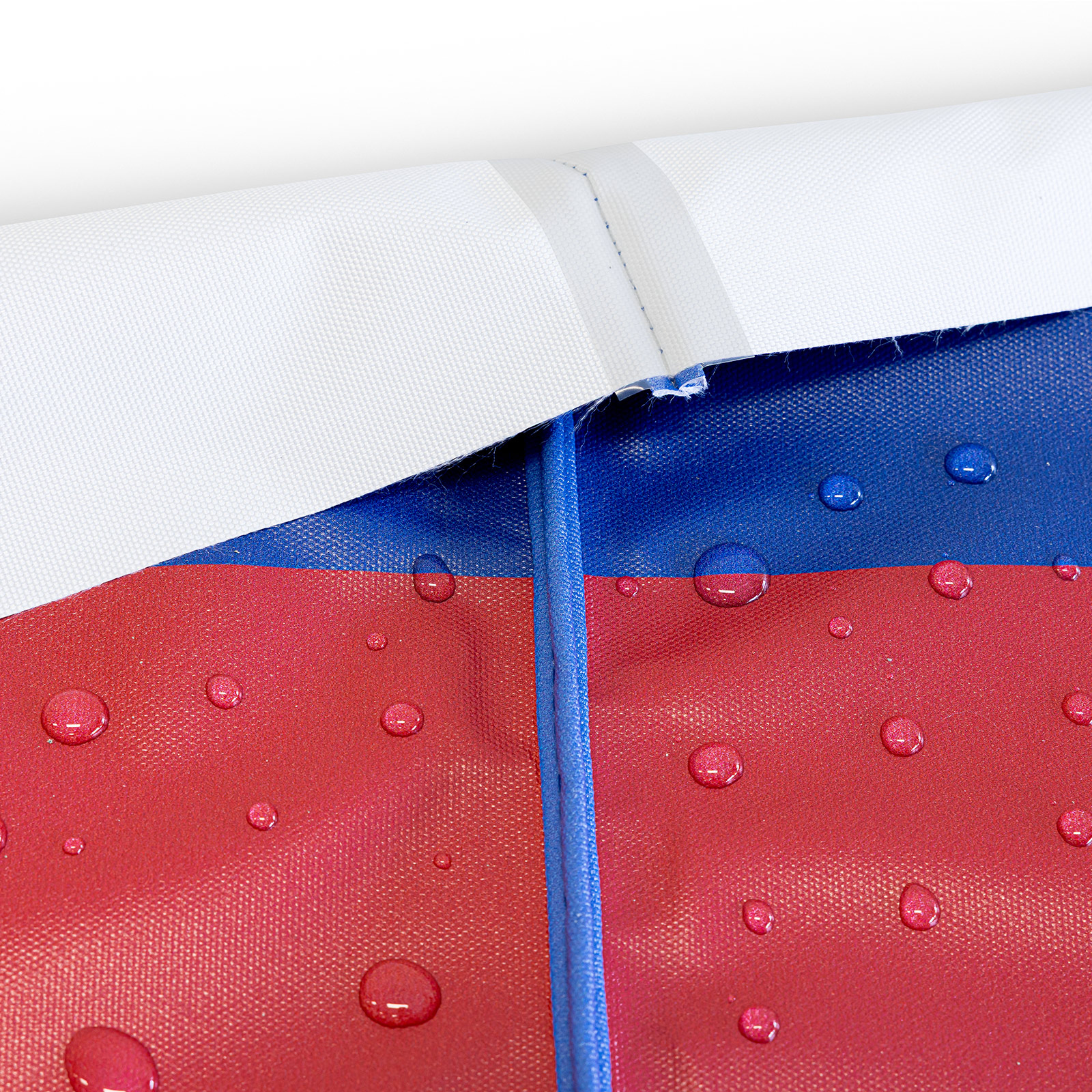

- Optional waterproof seams: 100 % waterproof due to tape-sealed seams (highest weather protection)

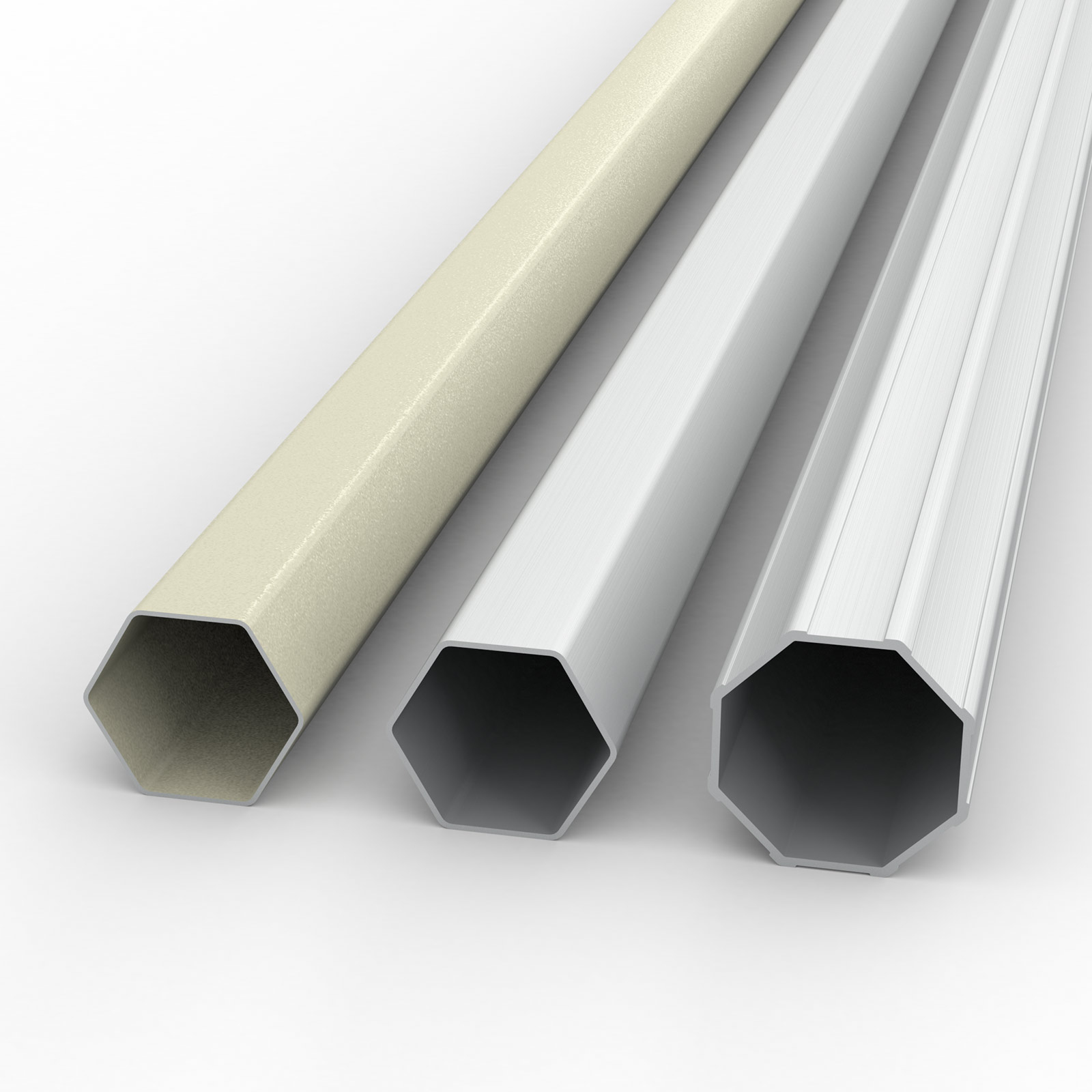

System quality at a glance
Choose the system quality suitable to the frequency of your use and the planned place of use. The technical details can be found in the respective selection areas.
| Quality |
Material / Profile |
Weight (without print parts) |
Recommendation |
| Eco |
Steel, square profile |
20 kg |
occasional uses |
| Basic |
Steel, hexagonal profile |
24 kg |
regular use |
| Select |
Aluminum, hexagonal profile |
17 kg |
frequent use & easy transport |
| Premium |
Aluminum, octagonal profile |
30 kg |
professional continuous use |
Tent frames
Basic
- Posts made of high-quality, stable hexagonal profiles made of powder-coated steel, beige with hammered look (top: Ø 40 mm, bottom: Ø 36 mm, wall thickness 1 mm)

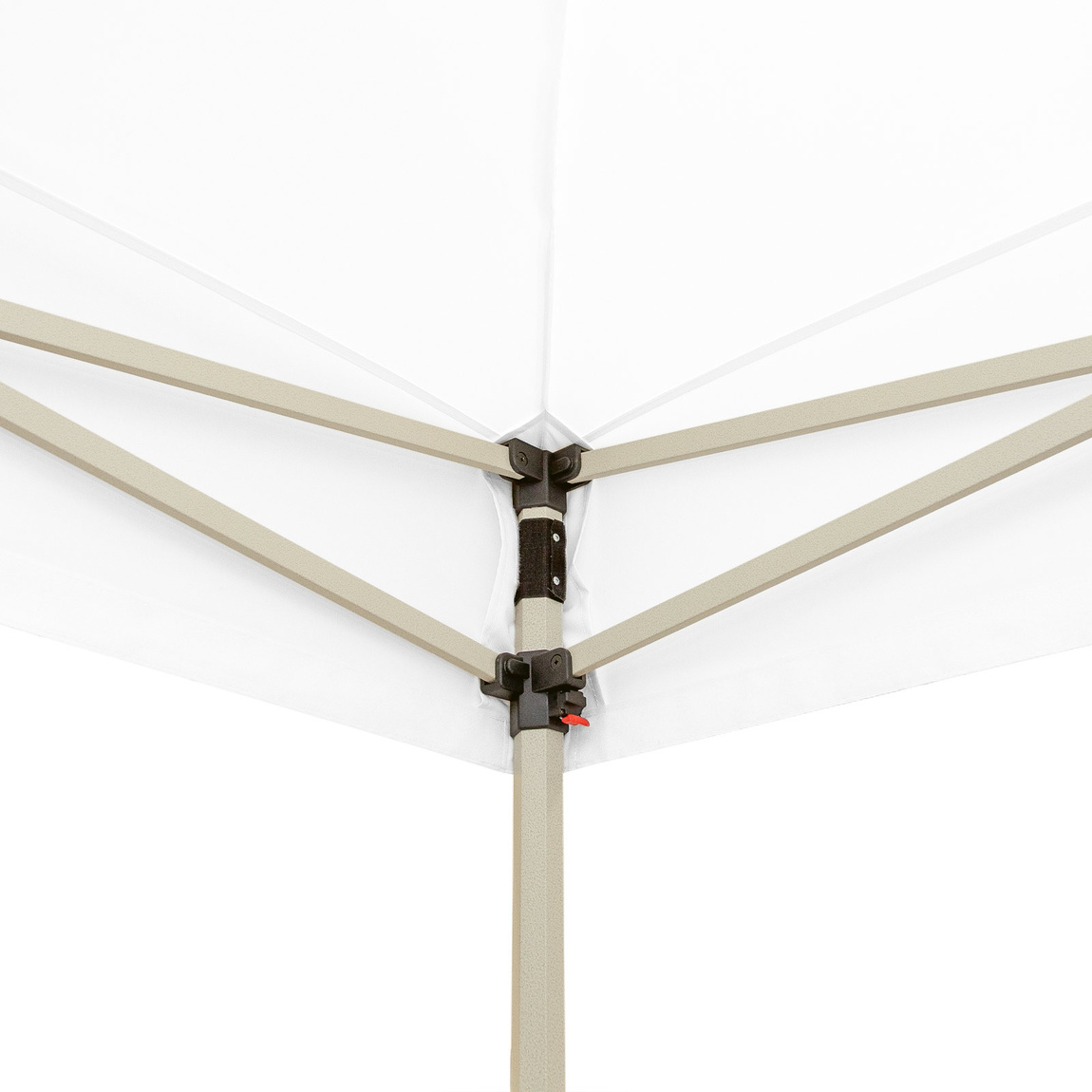

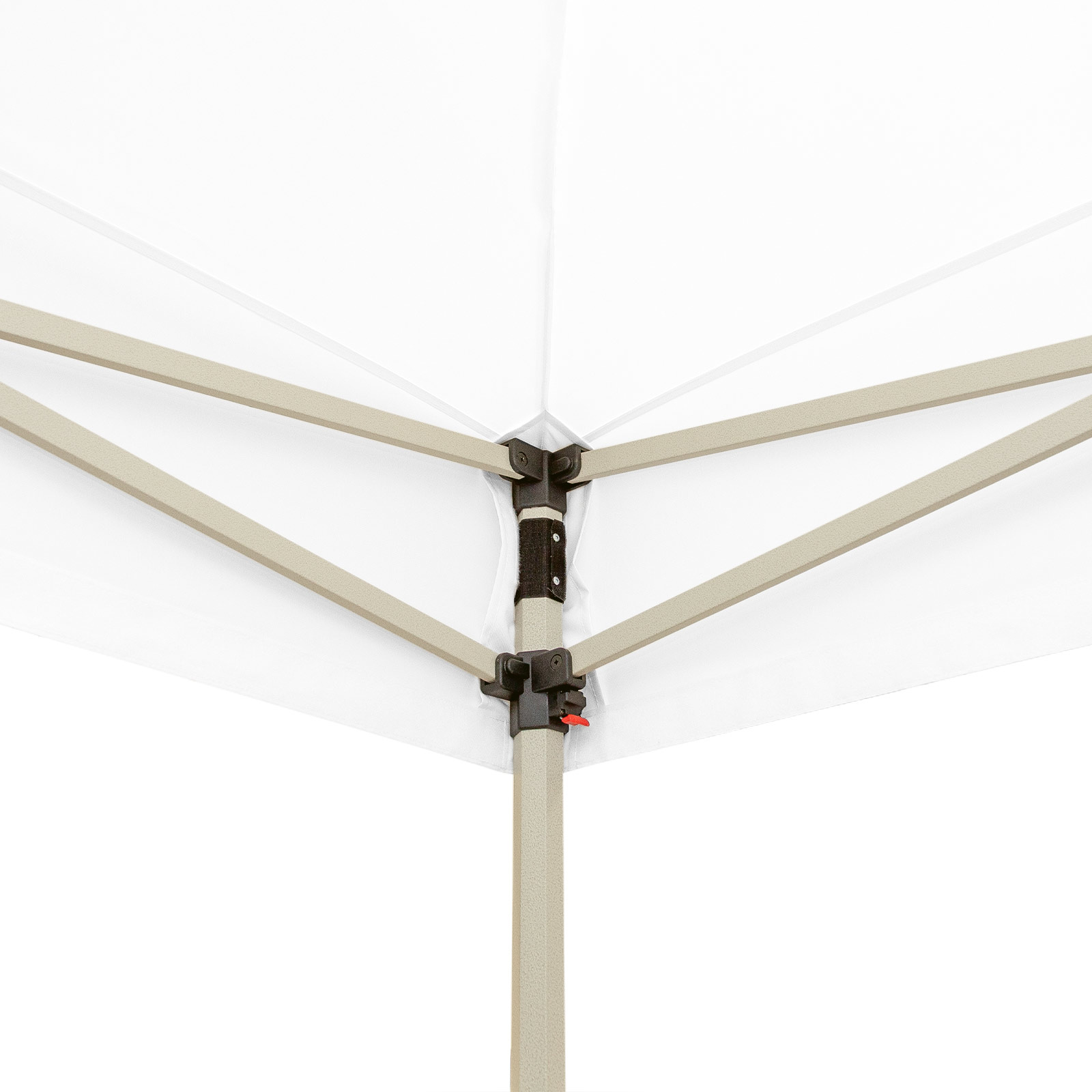

- Joint connectors made of glass fiber-reinforced plastic (high-strength, weather-resistant, frost-proof)
- Feet made of robust steel

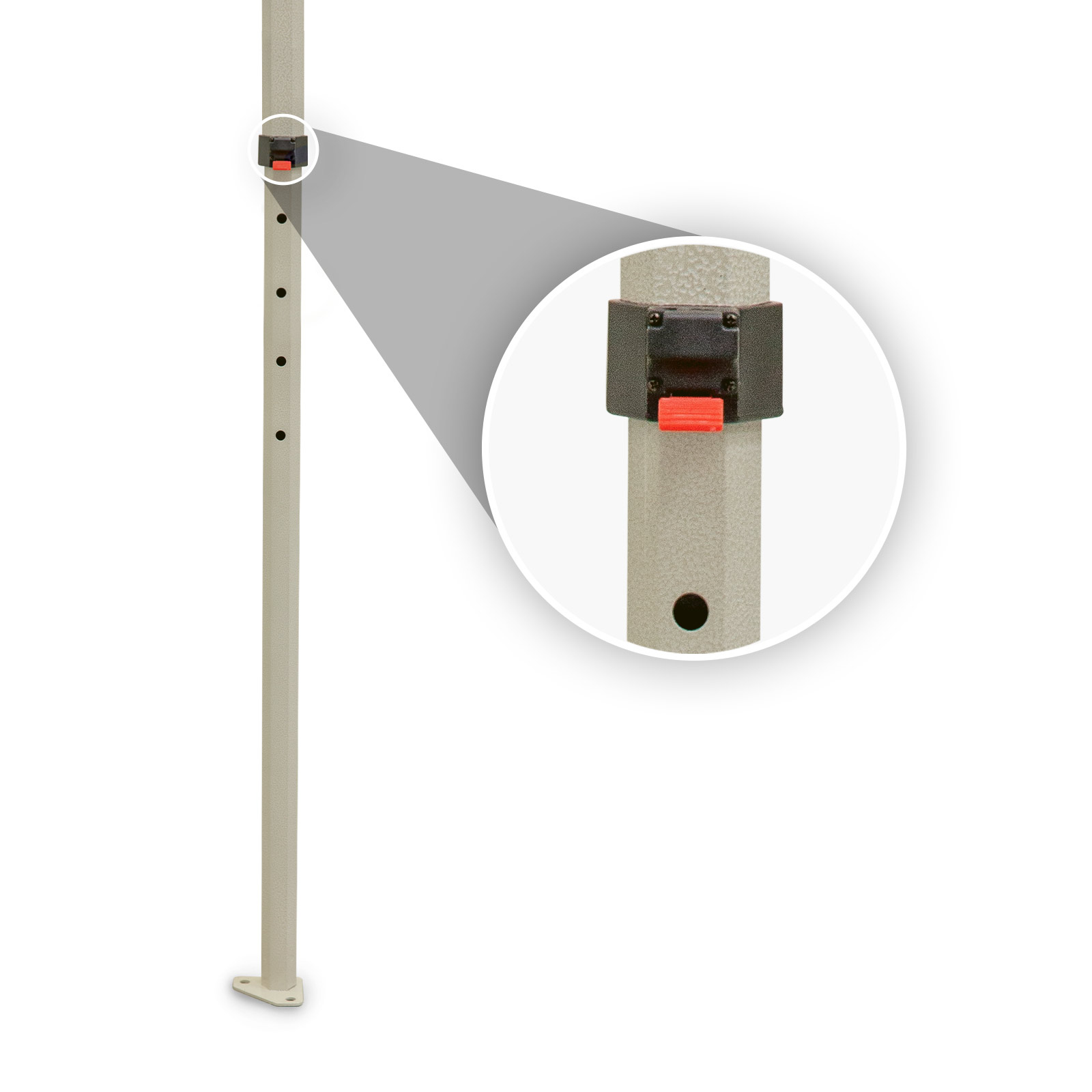

- Clearance height adjustable in 4 levels (189 cm, 197 cm, 205 cm, 213 cm)

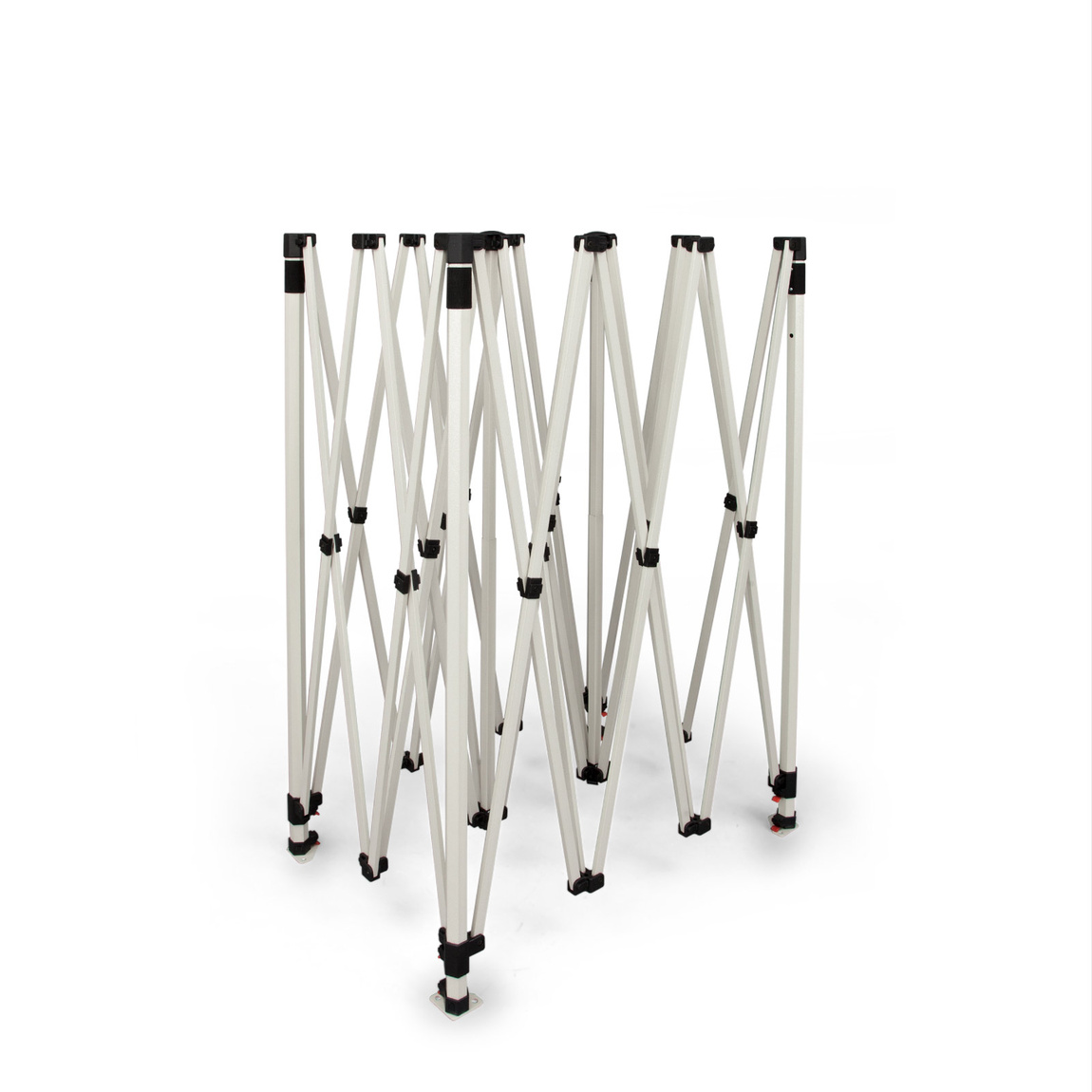

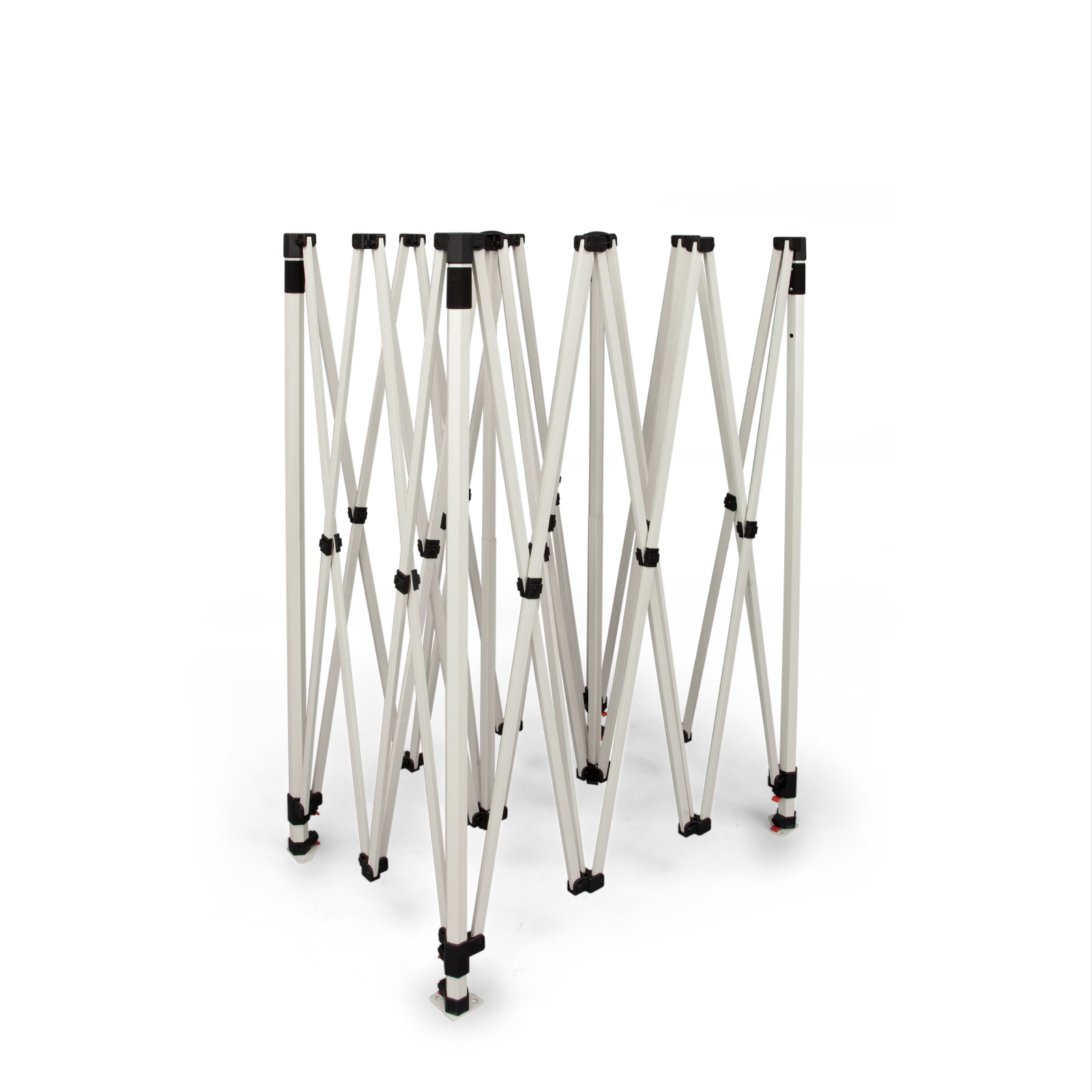

- Particularly stable, foldable scissor lattice system made of steel, locking with lever

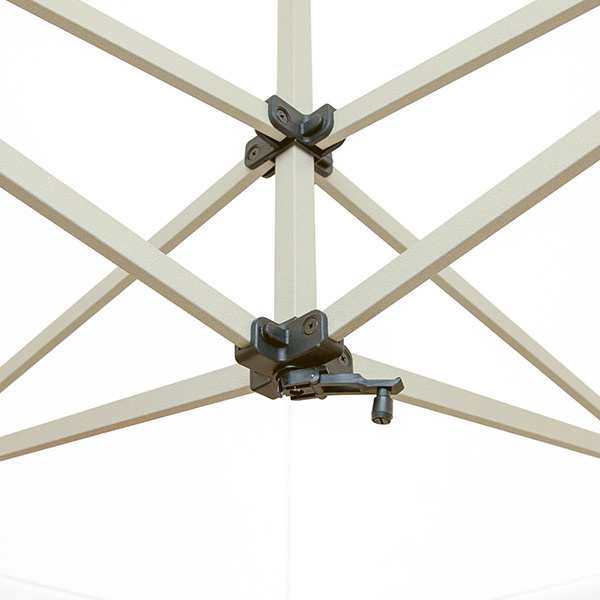

- Crank mechanism for fine adjustment and for perfect tensioning of the roof
- Total height approx. 335 cm (height adjustment level 3)
- Weight (without print parts): 31 kg
Select
- Posts made of high-quality hexagonal profiles made of aluminum (top: Ø 40 mm, bottom: Ø 36 mm, wall thickness 1.2 mm)

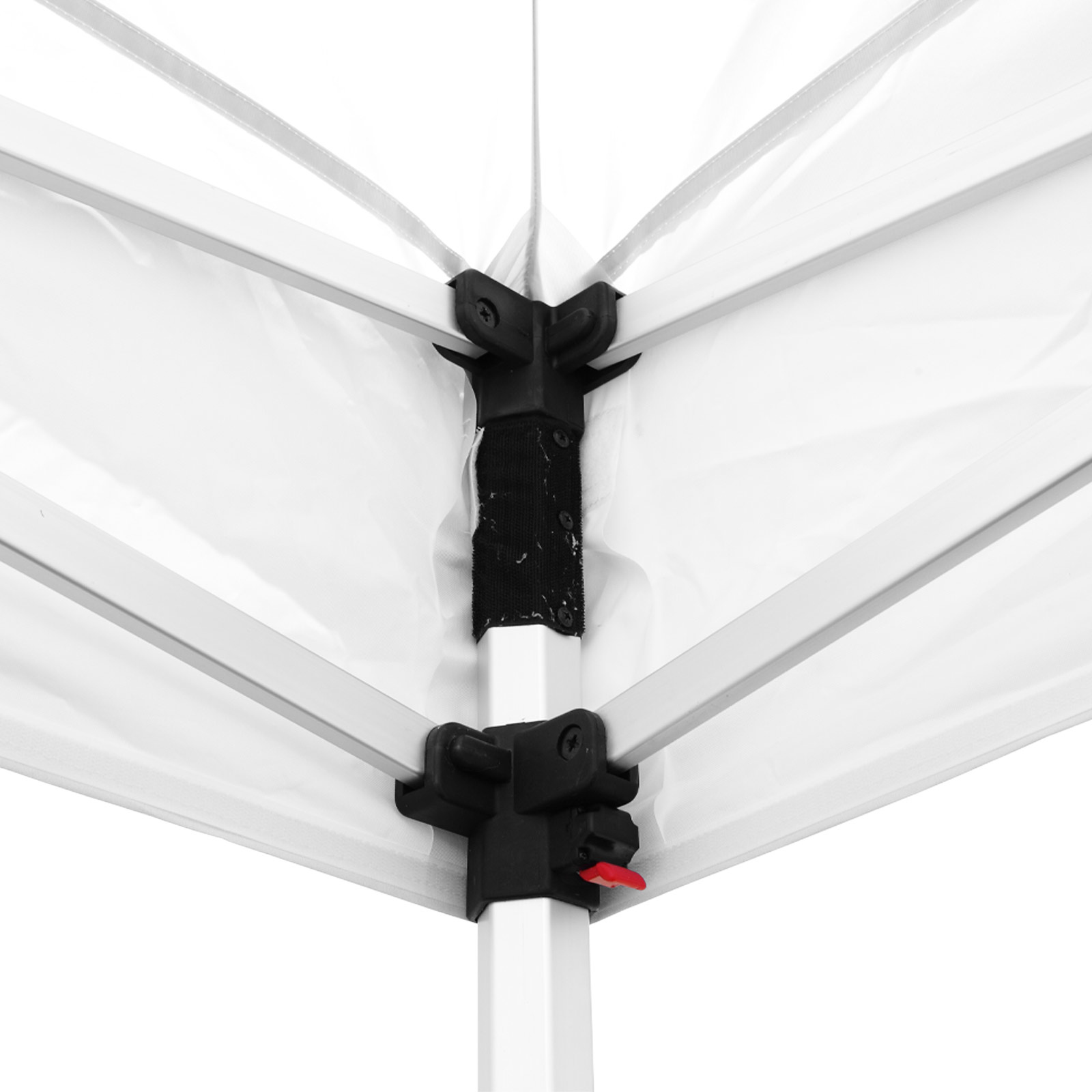

- Joint connectors made of glass fiber-reinforced plastic (high-strength, weather-resistant, frost-proof)
- Robust, stable feet made of aluminum

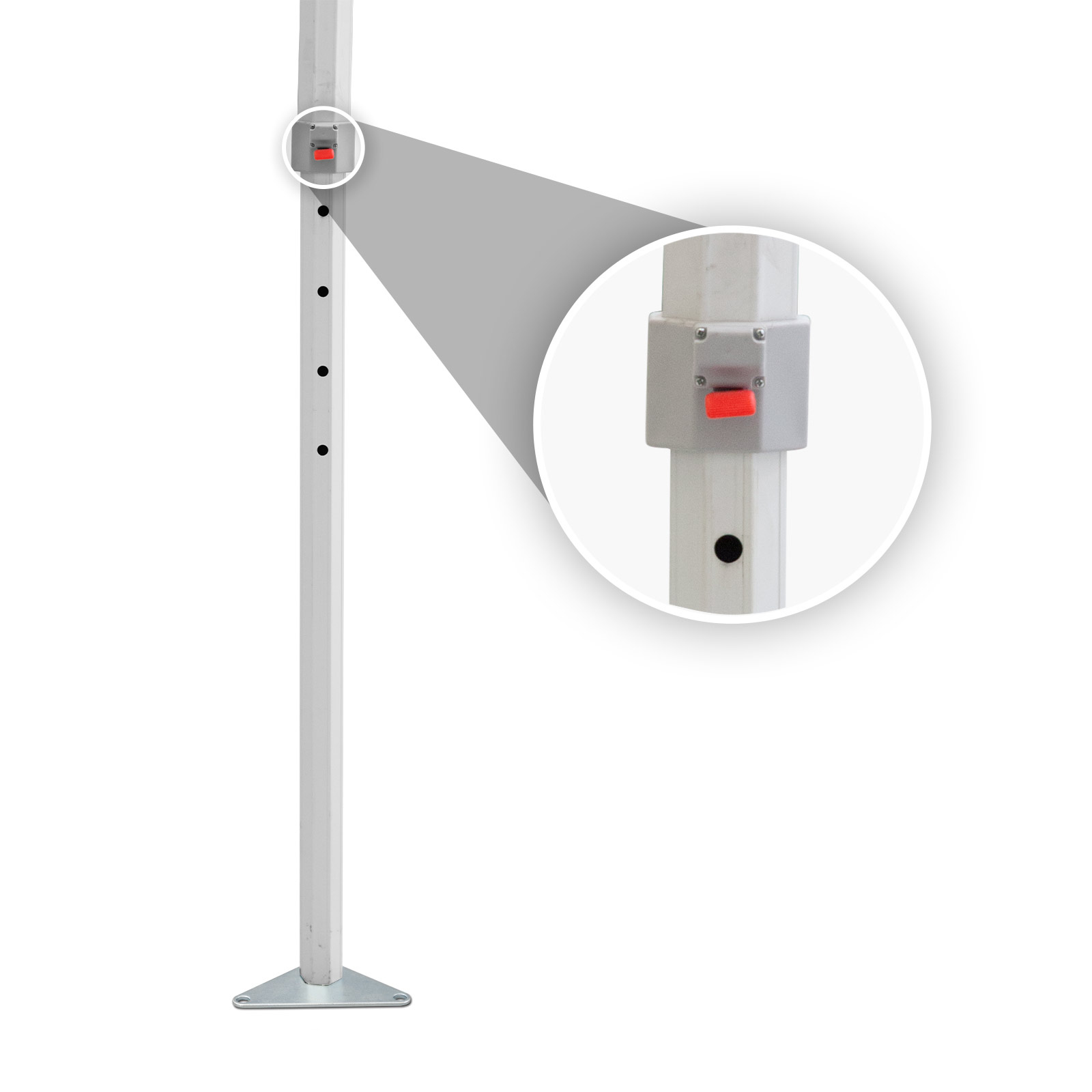

- Clearance height adjustable in 4 levels (189 cm, 197 cm, 205 cm, 213 cm)

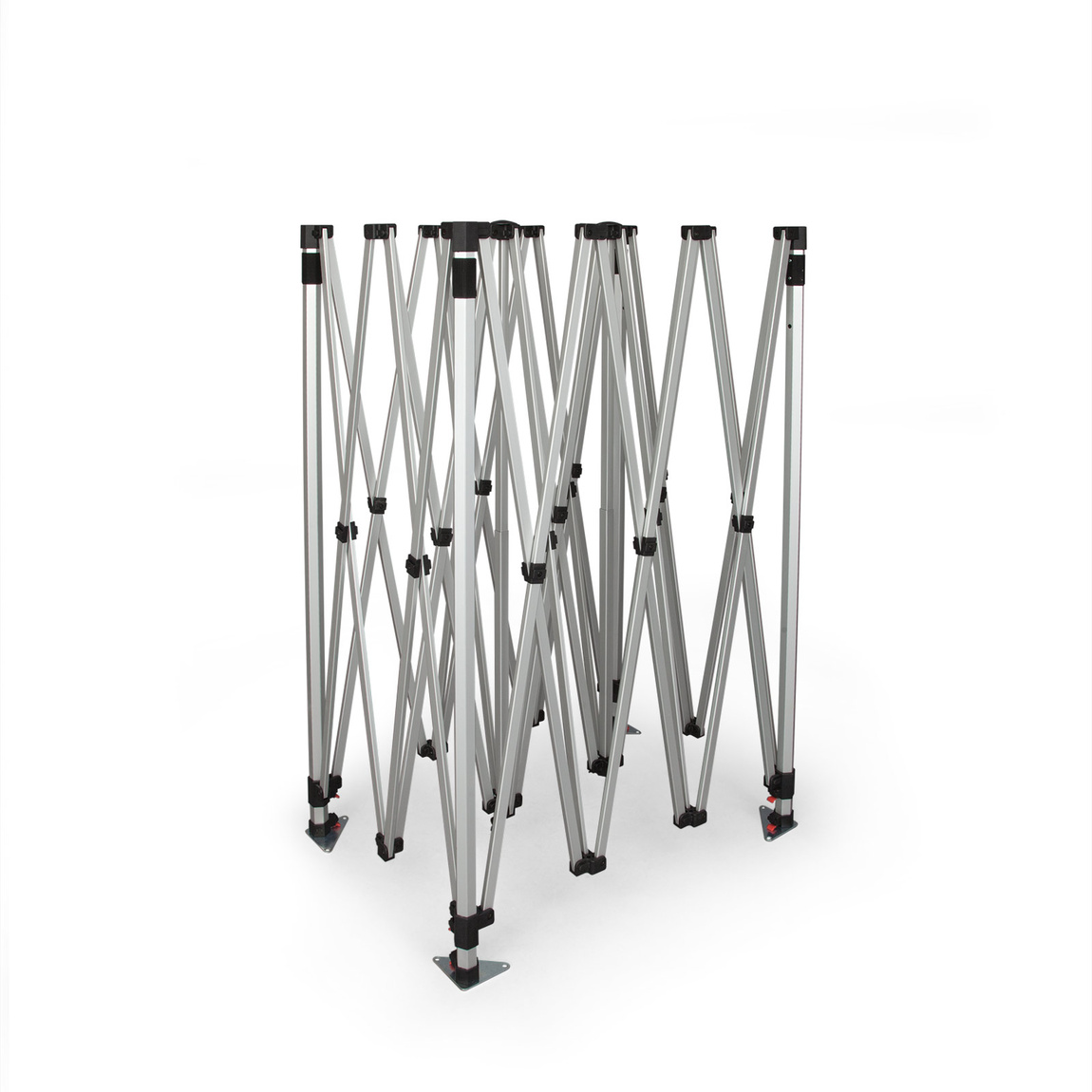

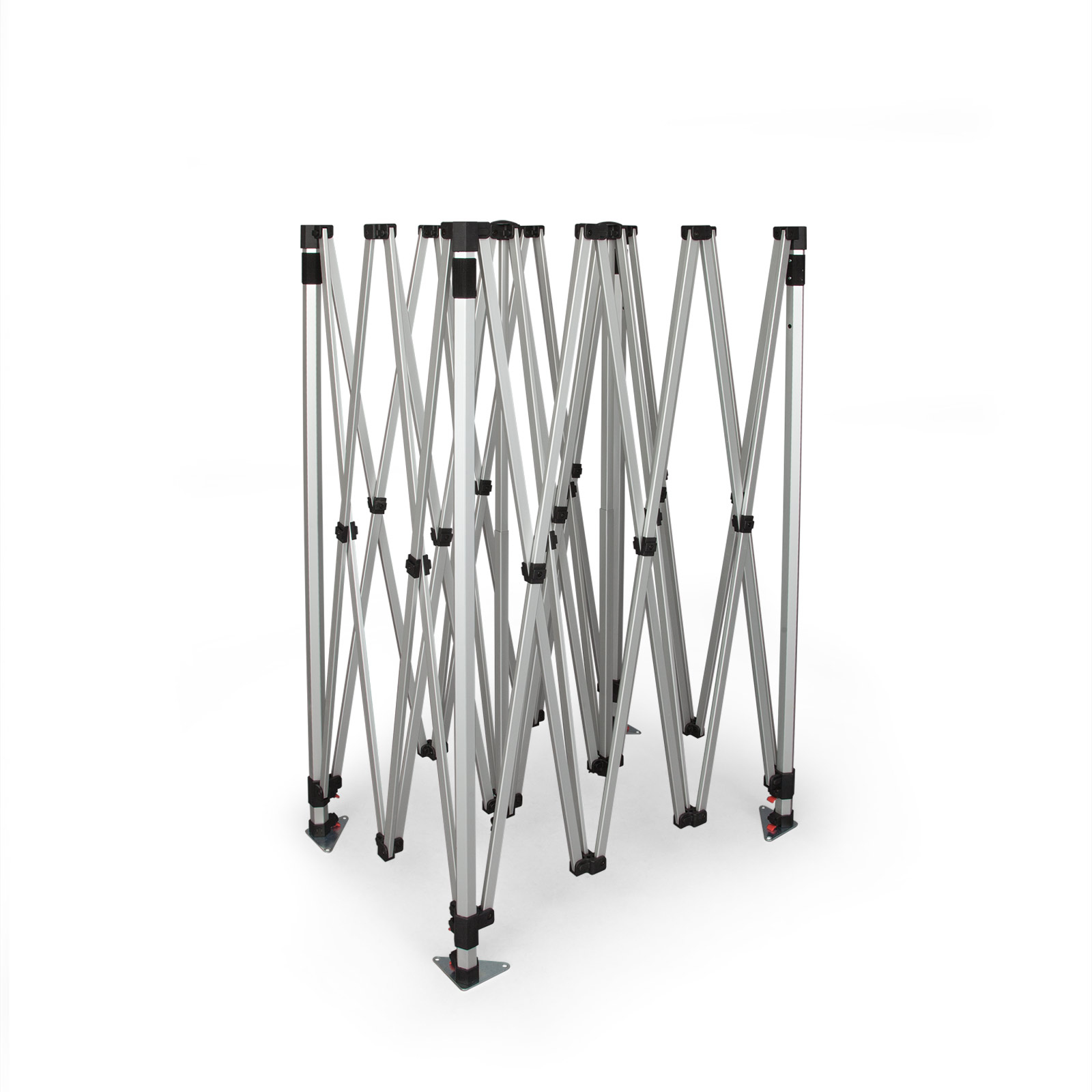

- Particularly stable, foldable scissor lattice system made of aluminum, locking with lever

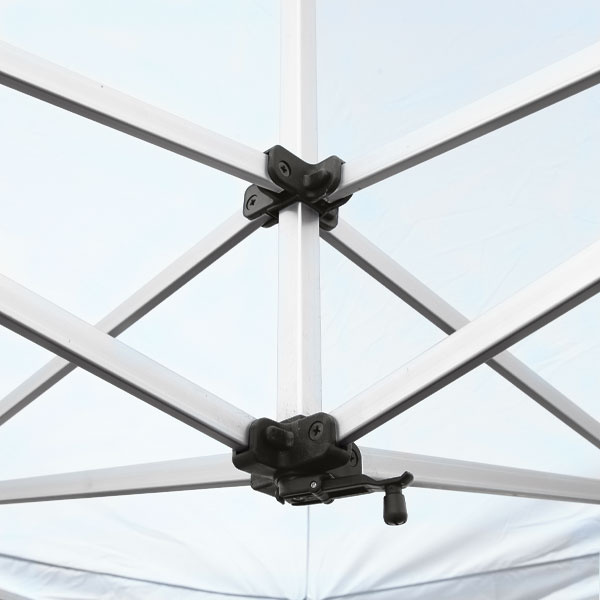

- Crank mechanism for fine adjustment and for perfect tensioning of the roof
- Total height 335 cm (height adjustment level 3)
- Weight (without print parts): 22 kg
Premium
- High-quality aluminum frame
- Posts made of extremely stable octagonal profiles (top: Ø 52 mm, bottom: Ø 45 mm, wall thickness 1.5 mm)
- Robust, stable feet made of aluminum

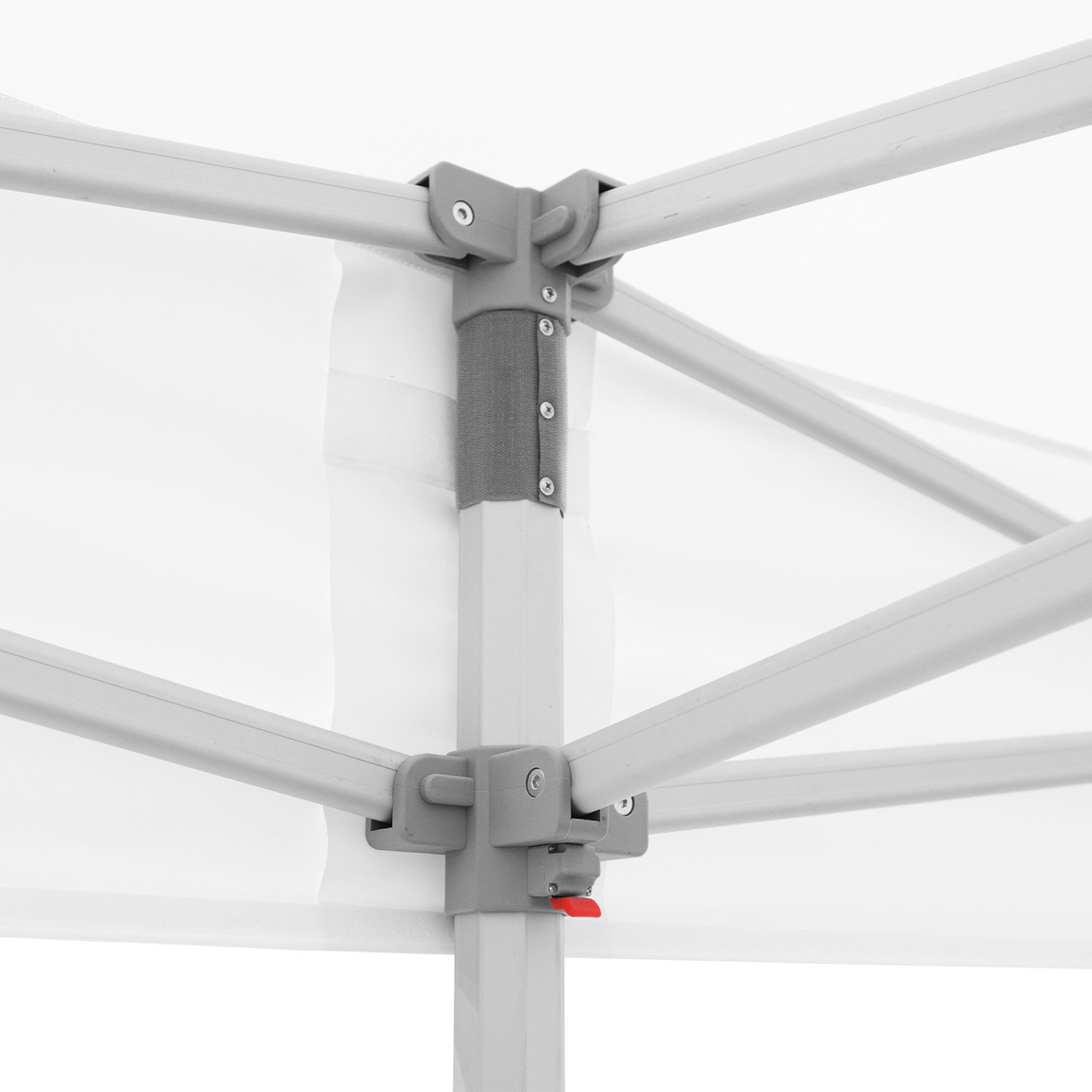

- Connectors made of robust, glass fiber-reinforced plastic (high-strength, weather-resistant, frost-proof)

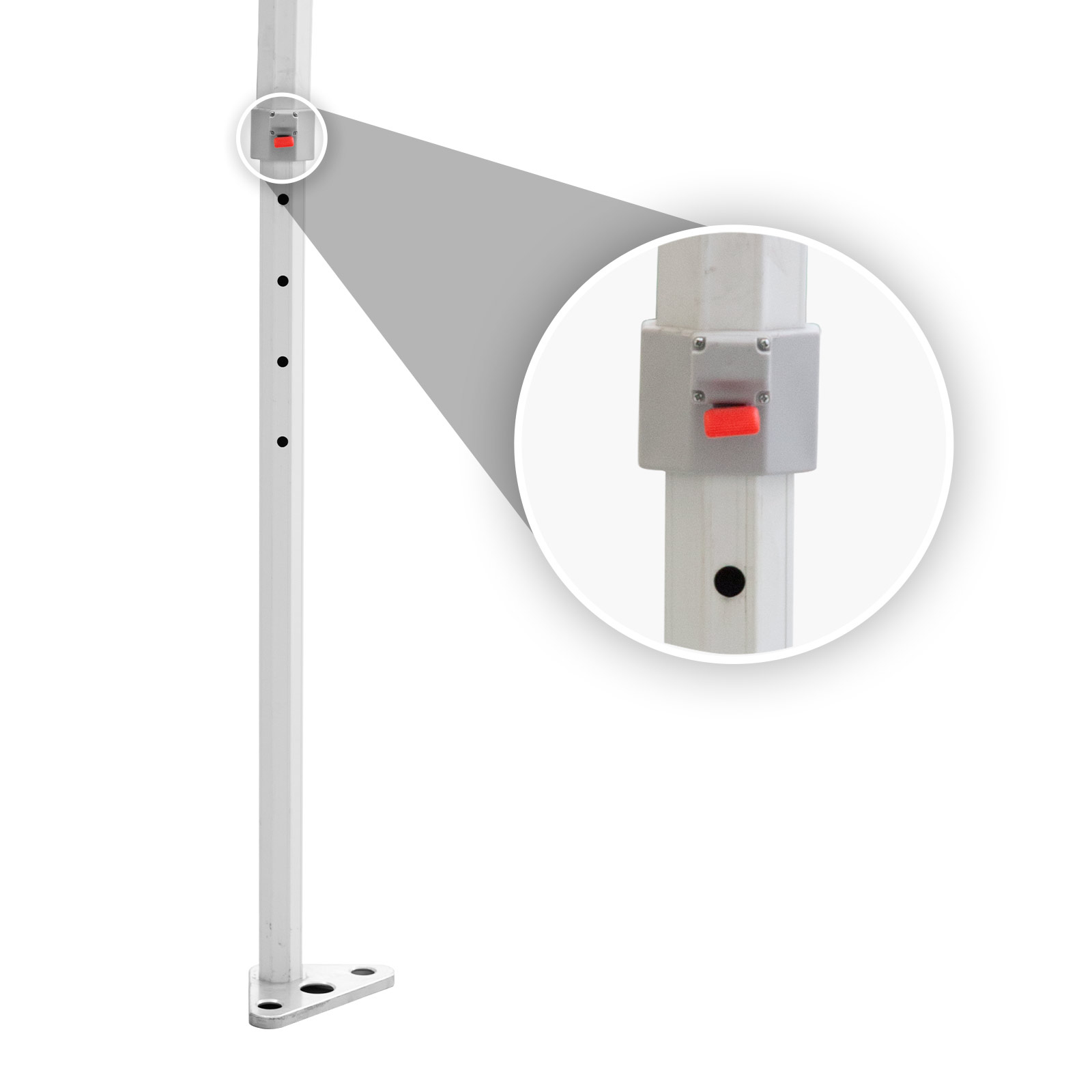

- Clearance height adjustable in 5 levels (189 cm, 197 cm, 205 cm, 213 cm, 221 cm)

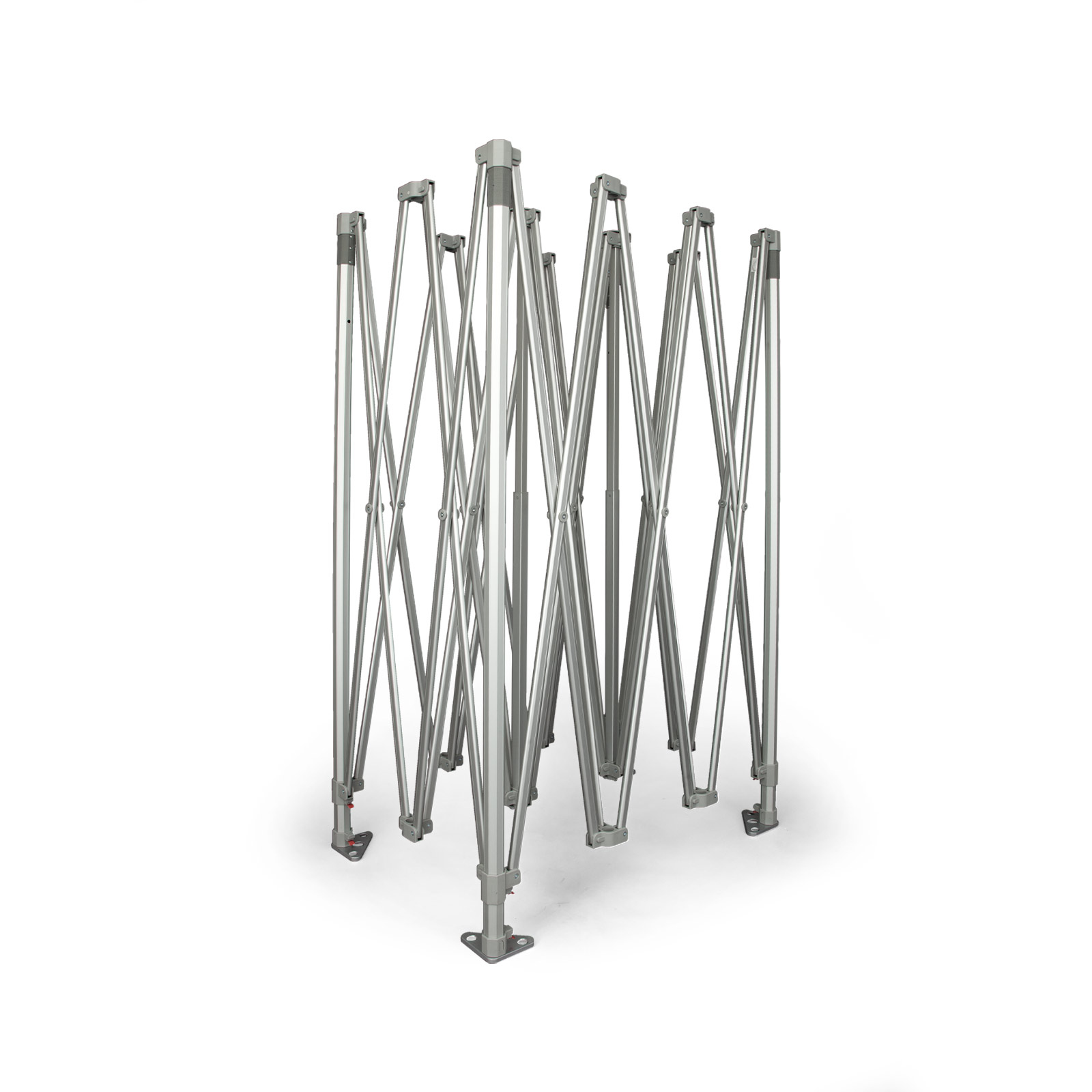

- Particularly stable, foldable scissor lattice system, locking with lever

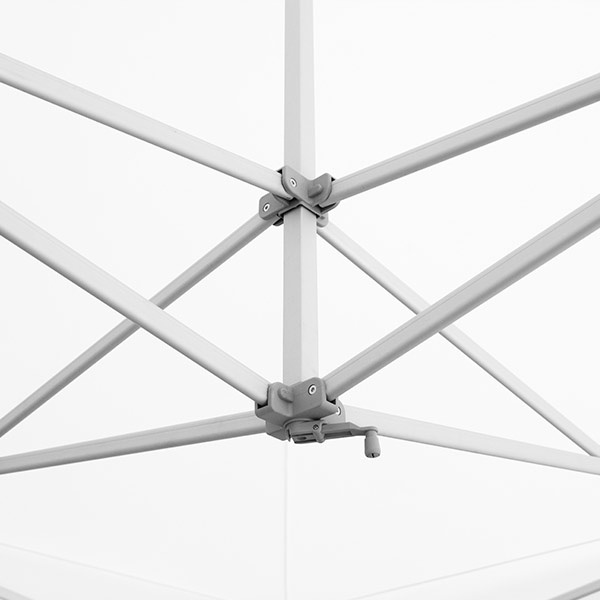

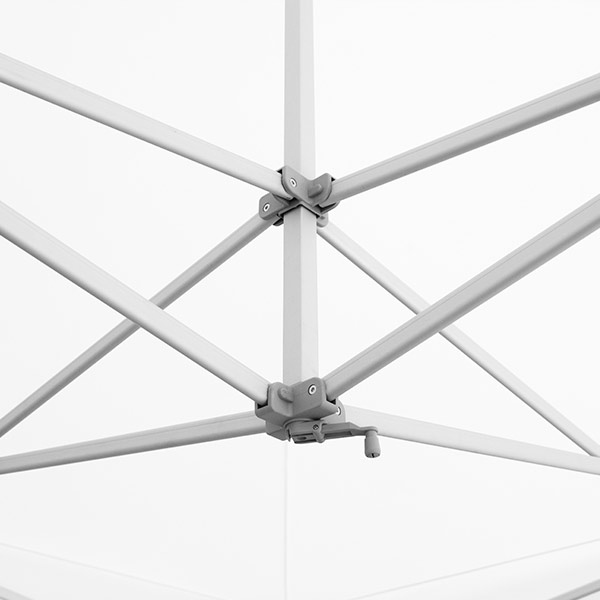

- Crank mechanism for fine adjustment and perfect tensioning of the roof
- Total height 335 cm
- Weight (without print parts): 30 kg
Scope of delivery
- Complete set: folding tent frame incl. tent roof as well as (depending on selection) tent walls
- Print part: tent roof and/or tent walls (without frame)
- System: folding tent frame (without print parts)
Use
- Can be used indoors and outdoors
- When used outdoors, secure ground anchoring is absolutely required
- Not suitable for long-term unattended outdoor use
- Pop up tents are not tested for wind and snow loads
- For transport and storage, tent roof and walls must be removed from the frame
Accessories (optional)
Further accessories such as holders for Bowflag® and flags,

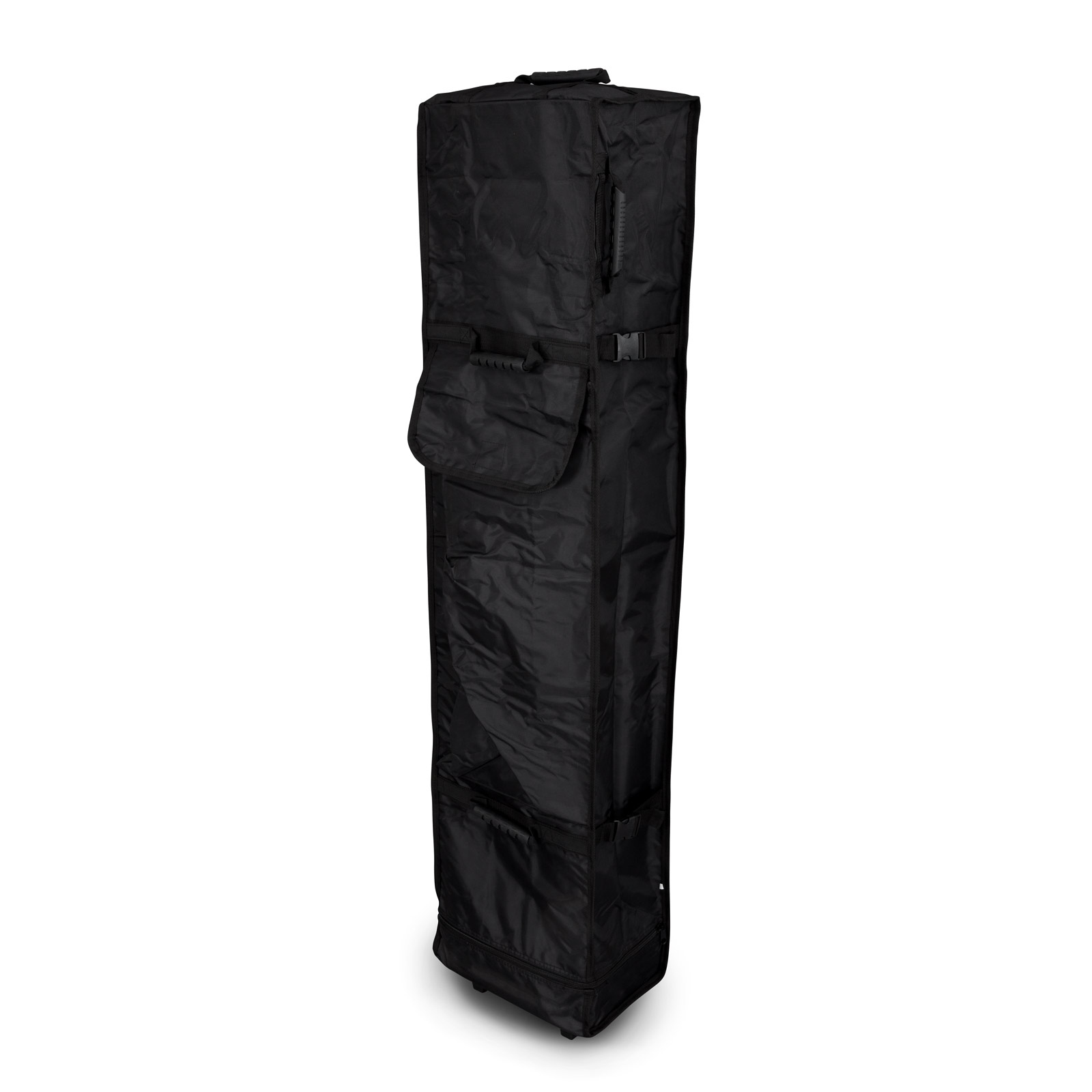

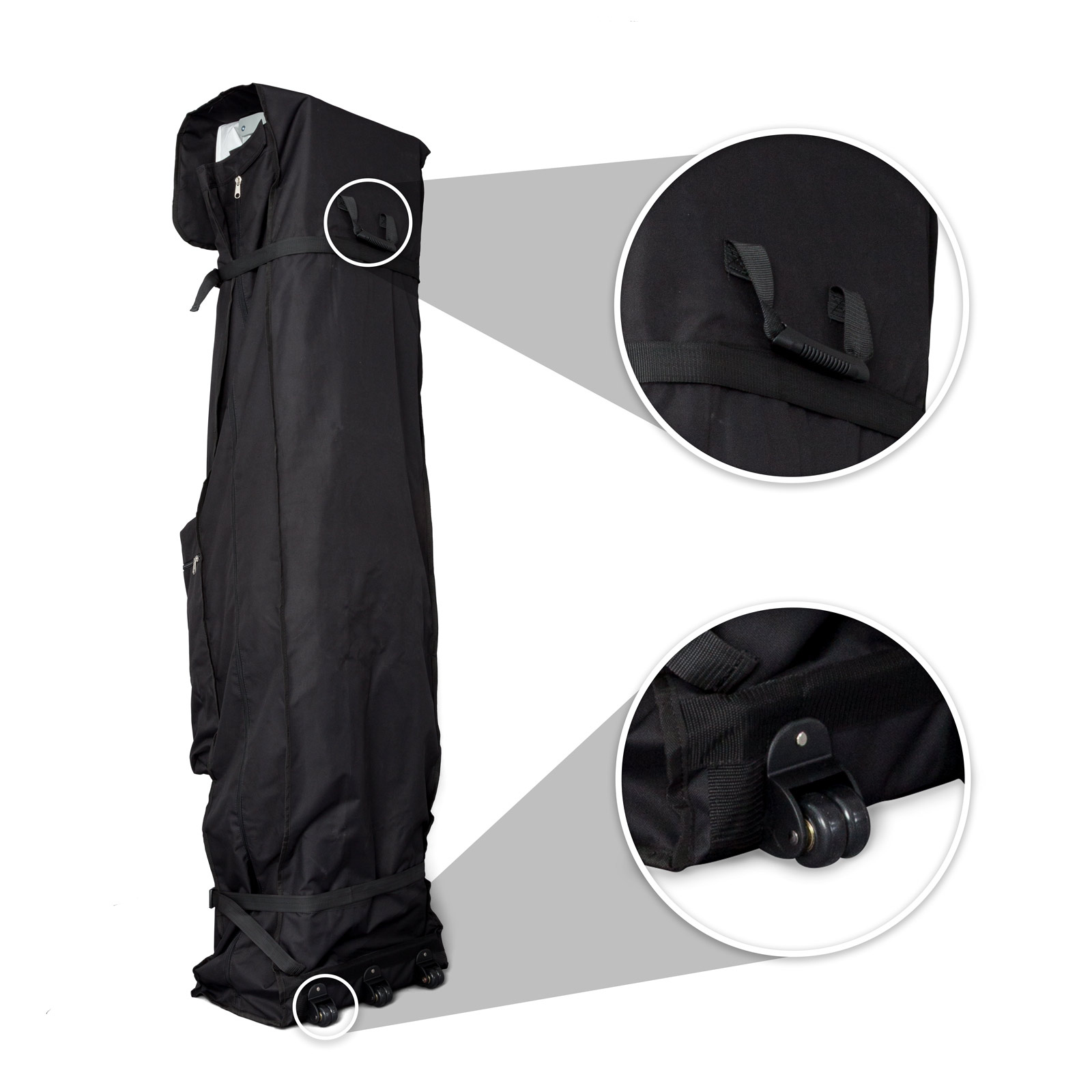

weighting and base plates, trolley bags and guying sets can be found
in our extensive
accessories assortment for pop up tents and gazebos
.
