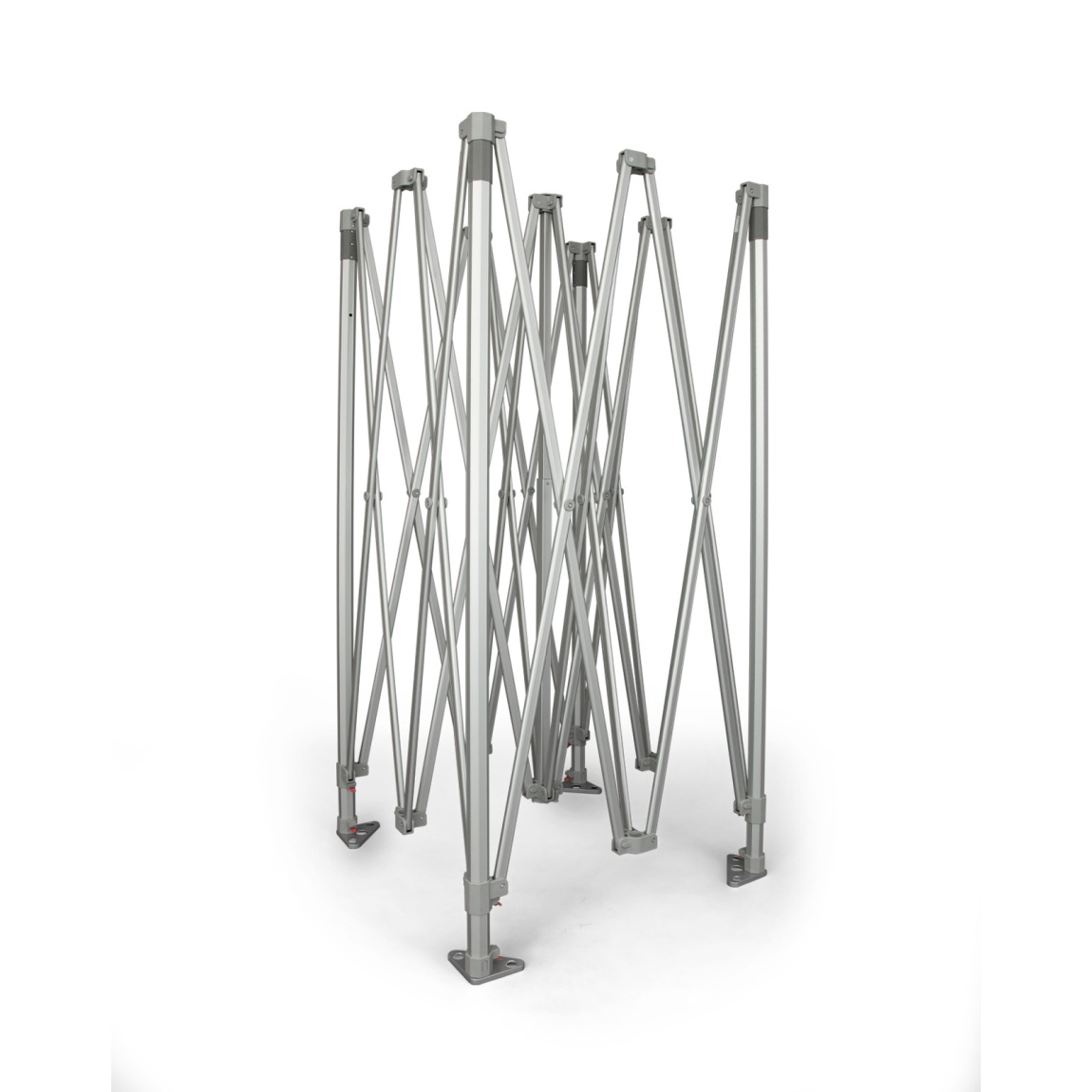

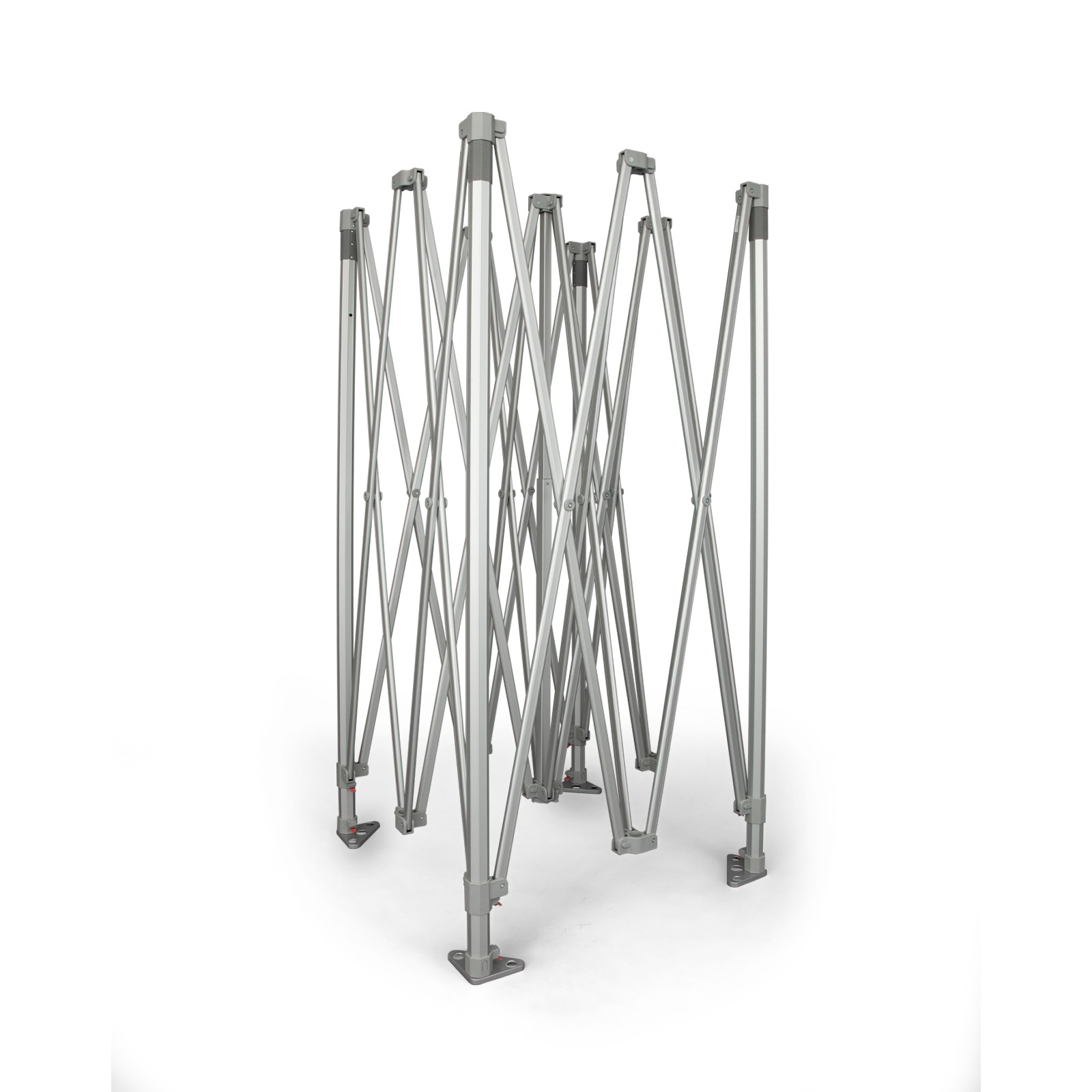

foldable scissor lattice system made of aluminum, locking with lever

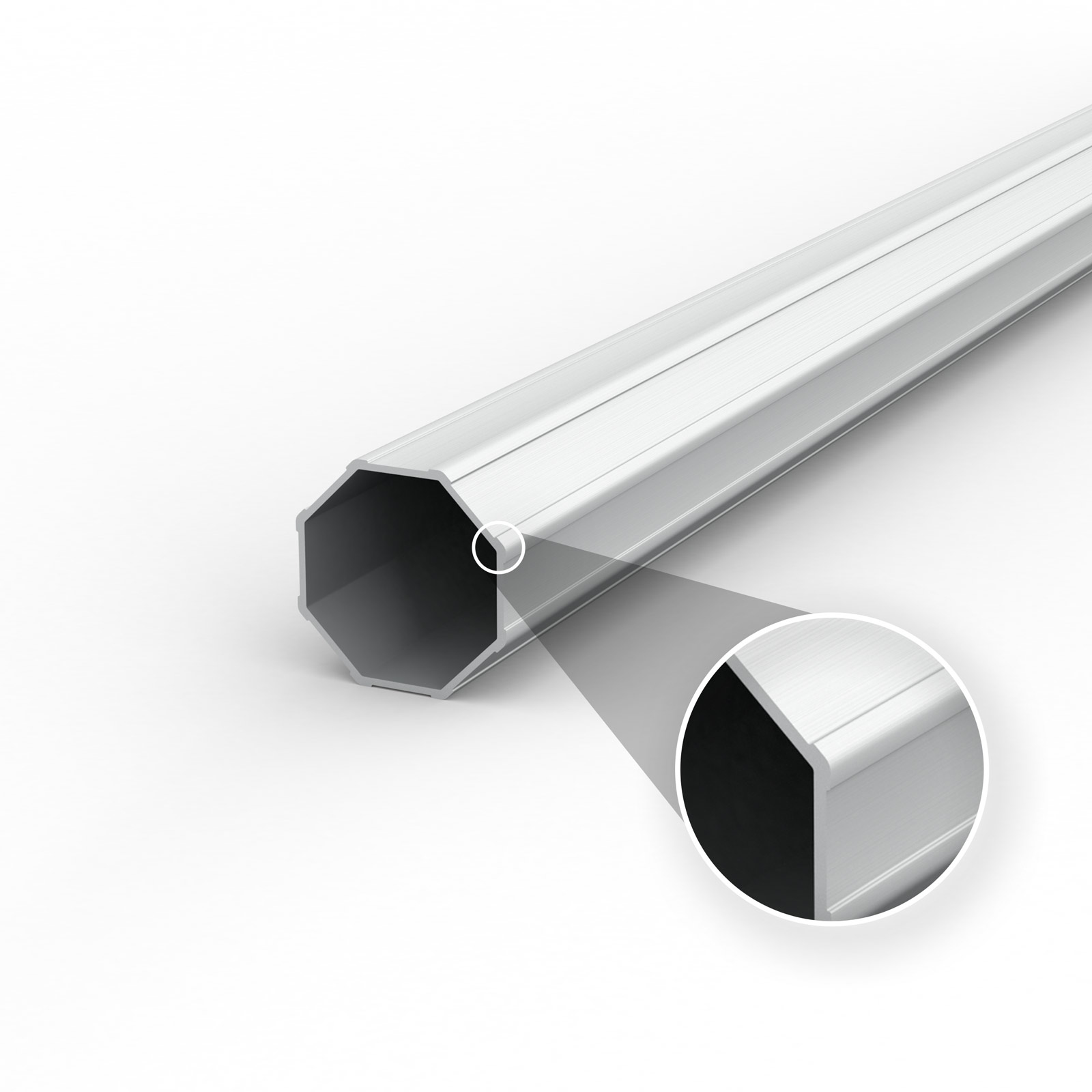

posts made of very stable octagonal profiles (top: ø 52 mm, bottom: ø 45 mm, wall thickness: 1,5 mm)

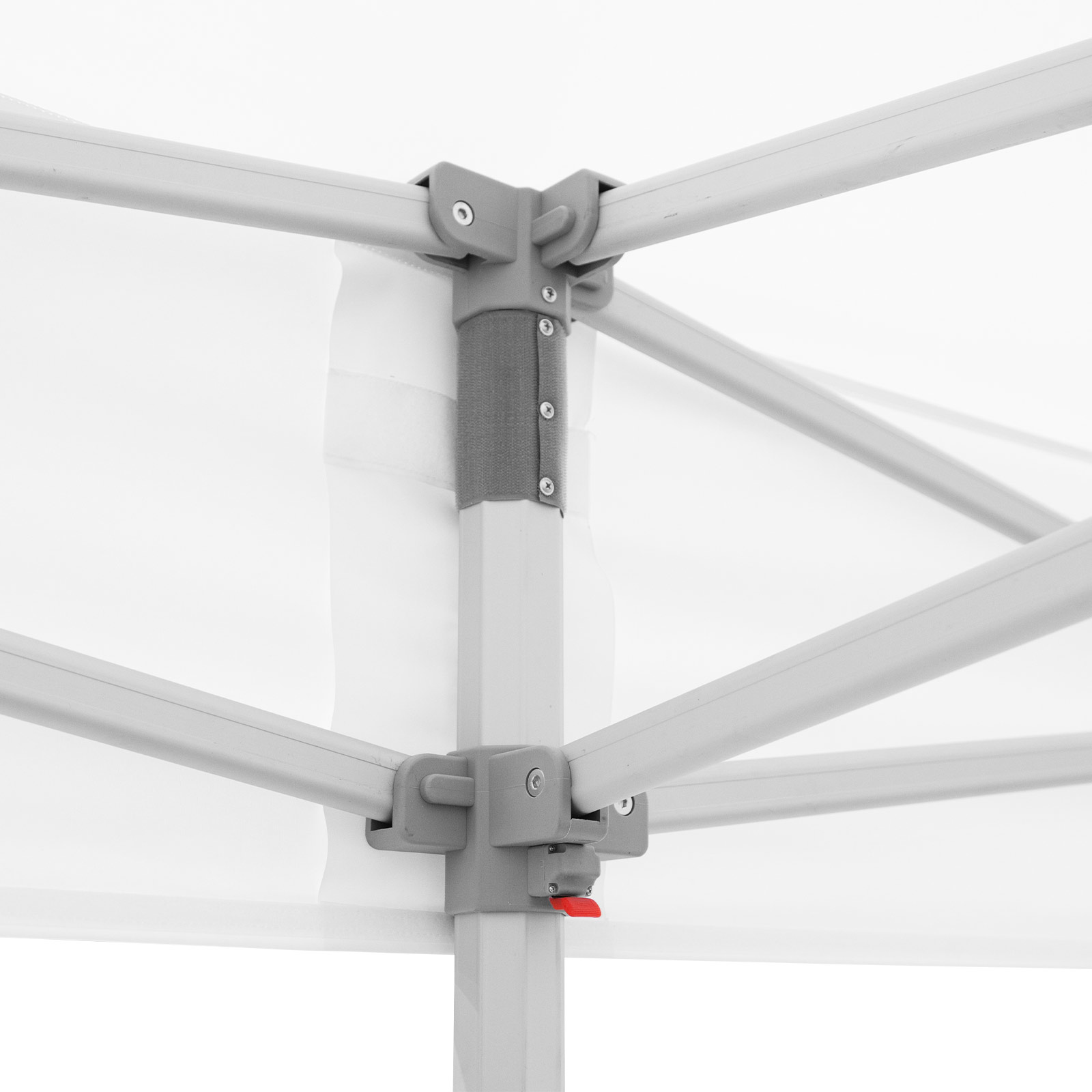

connectors made of robust, glass fiber reinforced plastic
feet made of steel

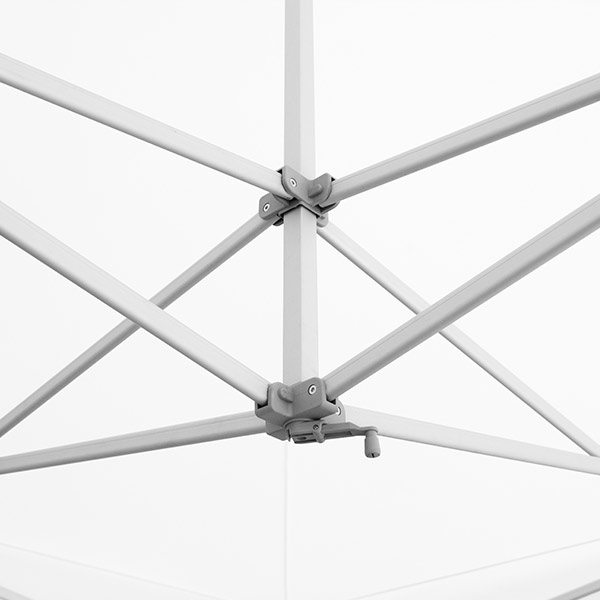

crank mechanism for fine adjustment and perfect tensioning of the roof

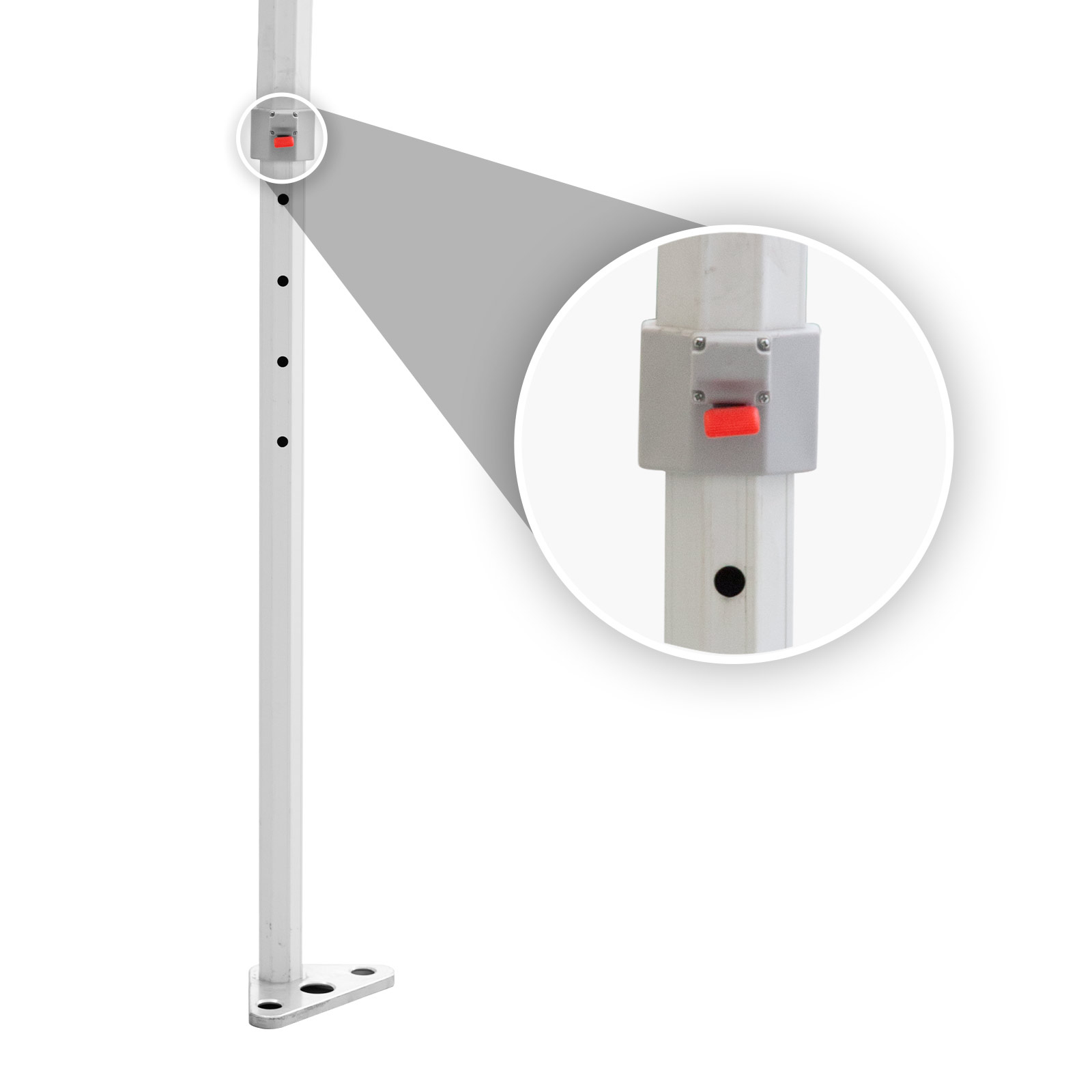

passage height adjustable in 5 steps (212 cm, 220 cm, 228 cm, 236 cm, 244 cm)

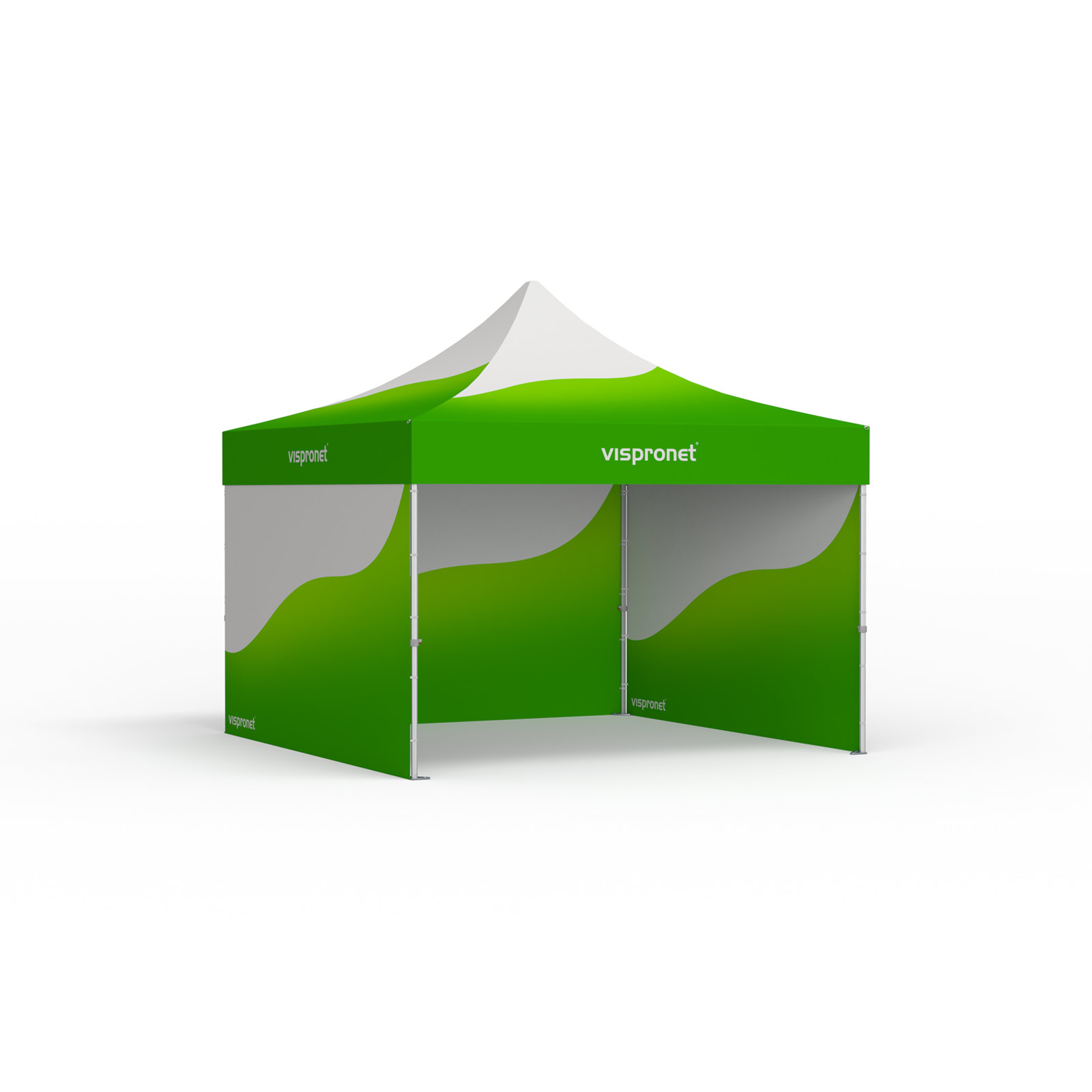

heights when used with walls (height setting level 1):
total height 420 cm, passage height approx. 220 cm
weight (without printed parts): 33 kg
transport dimensions approx.: 32 x 32 x 211 cm
Notes:
For transport and storage of pop-up tents, the tent roofs must always be removed from the frame.
When used outdoors, pop-up tents and pop-up pavilions must always be securely anchored to the ground.
Use the additionally available guying sets as well as the stackable ballast plates, weights, and ground anchors to stabilize the tent posts.
