Tent wall with door and window for folding tents

Product Details
Print Data
Documents

Print details

Digital printing in brilliant colors
UV-resistant, excellent lightfastness (6–7)
Spot colors possible

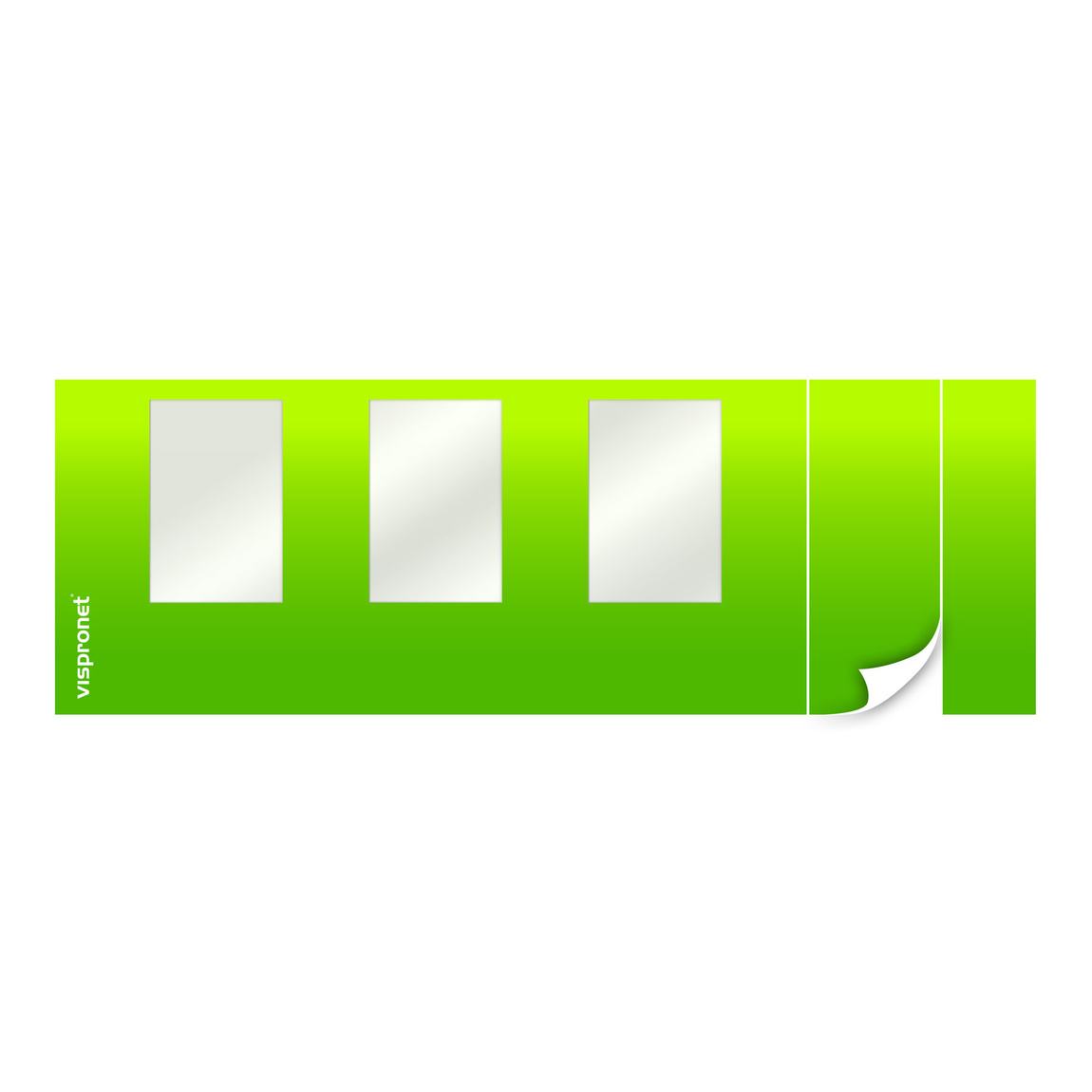

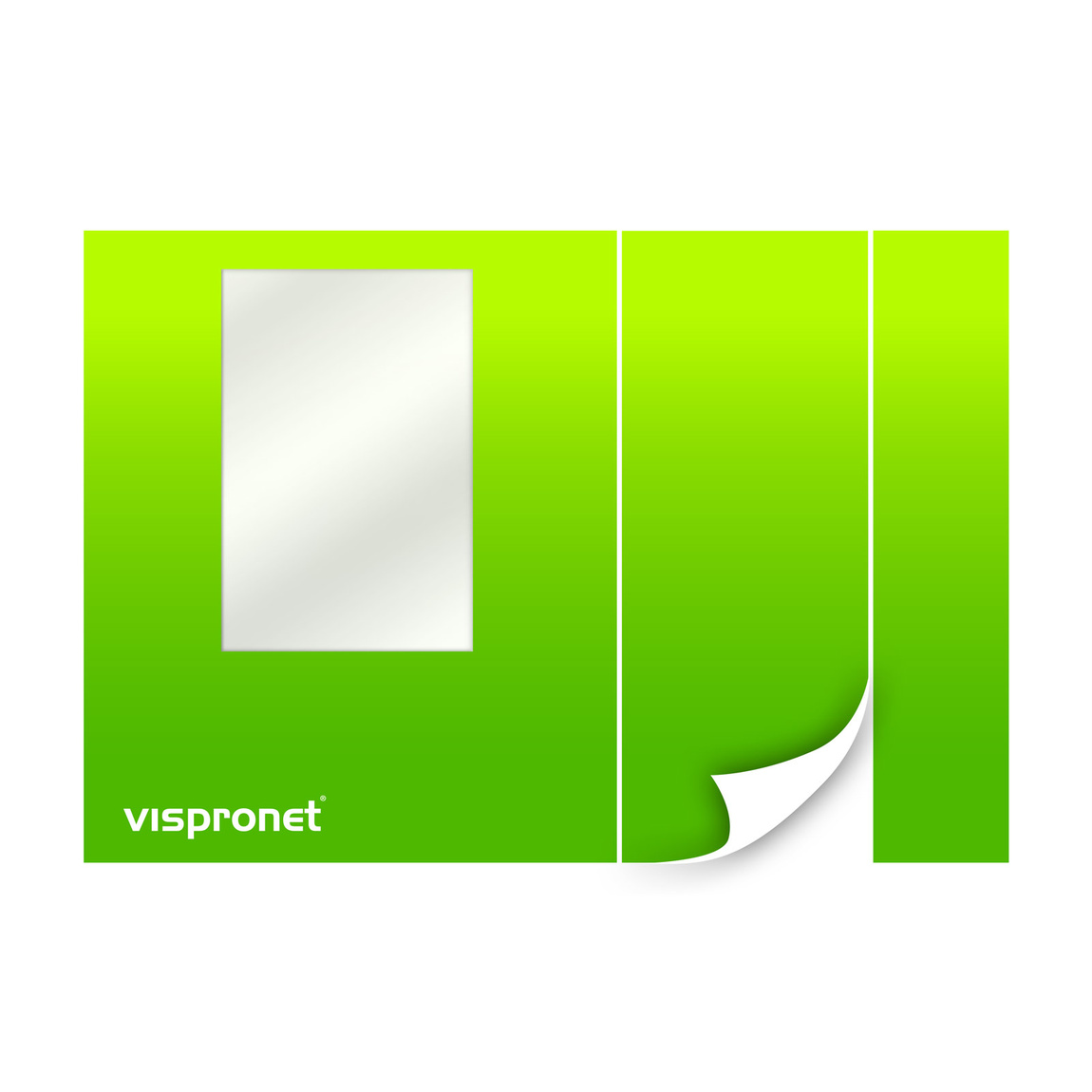

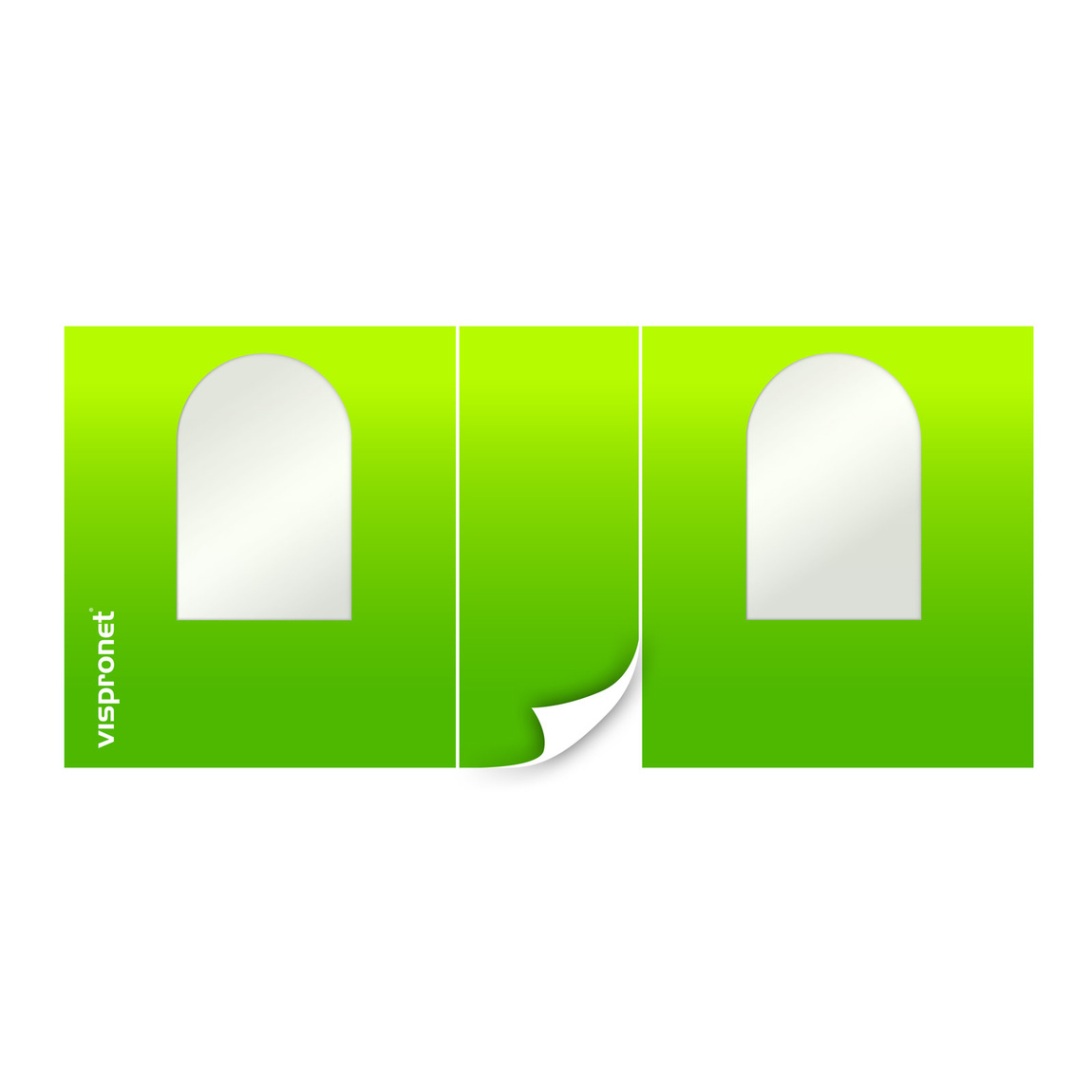

Tent wall with door & window

Side wall with roll-up door and window: Fully printable and ideal as an advertising space – the window allows more light and visibility, the door offers convenient access.

Compatible with:

Folding tent Eco, Basic, Select and Premium

Material

Matte polyester fabrics in two quality levels are used. Both materials offer excellent color reproduction.

Feature	Variotex^® Z SE	Variotex^® S SE
Fabric weight	200 g/m² (unlaminated) 220 g/m² (laminated)	270 g/m² (unlaminated) 290 g/m² (laminated)
Flame retardancy	EN 13501-1 / B-s1, d0	EN 13501-1 / B-s2, d0
Max. tensile strength	longitudinal 1200 N, transverse 1000 N	longitudinal 2000 N, transverse 1200 N
Water column	2,000 mm	2,000 mm
Texture	dense, fine-threaded	heavy, robust

All dimensions are approximate; technical changes and tolerances reserved.

Unlaminated: Recommended for medium to long-term use; please handle unlaminated prints carefully to avoid scratches
Laminated: Recommended for long-term use and frequent relocation; the added protective lamination after printing ensures a highly scratch-resistant, dirt-repellent and durable surface

Design Features

Hemmed all around

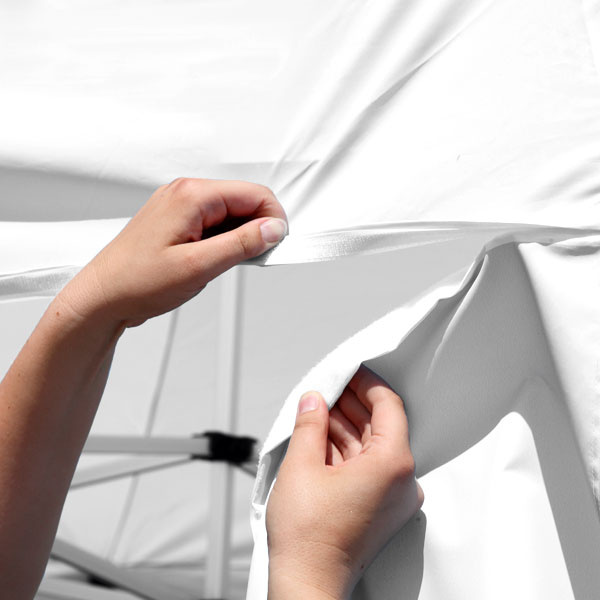

Top edge with hook-and-loop tape on both sides for double-sided attachment to the valance
Side edges optional:

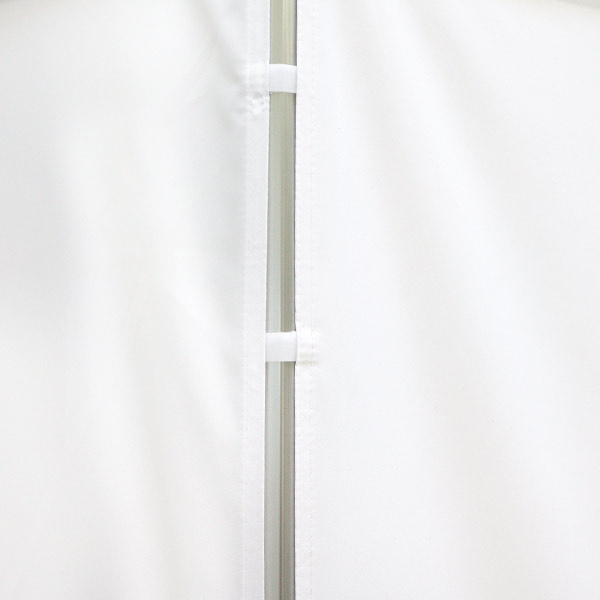

- with 5 fastening loops each
- with 5 fastening loops each and zipper – for high wind and weather protection
Window made from transparent, clear and tear-resistant foil

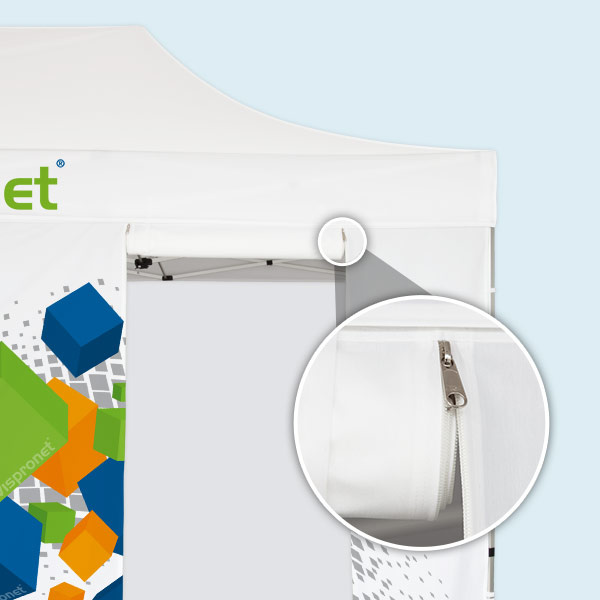

Roll-up door made of tent fabric, opens and closes via two double-sided zippers
The wall can be mounted with the design facing inwards or outwards. (Note: For multiple tent walls with zippers, only one uniform orientation is possible.)

Sizes & variants

Dimensions (W × H)

300 × 205 cm: fits tent sizes 3 × 3 m; 3 × 4.5 m; 3 × 6 m
450 × 205 cm: fits tent size 3 × 4.5 m
600 × 205 cm: fits tent size 3 × 6 m
400 × 220 cm: fits tent sizes 4 × 4 m; 4 × 6 m; 4 × 8 m
600 × 220 cm: fits tent size 4 × 6 m
800 × 220 cm: fits tent size 4 × 8 m

Your print data – prepared simply and correctly

We provide you with suitable layout templates and helpful tips for creating print data so that your desired product is created exactly according to your ideas. Please observe the respective specifications in order to prepare your data correctly for production and achieve optimum printing results.
- › Layout template for: Tent wall with door and window - with print (current configuration)
Upload print data

Please upload your print data to your customer account after placing your order.
Good to know: You can cancel your order online free of charge until production begins.
