UV-resistant, brilliant and high-contrast color reproduction, very good lightfastness (6-7)
special colors are feasible
optionally available with tape-sealed seams: highest weather protection, 100% waterproof
Canopy Walls
2 canopy walls included
selectable wall variants: full wall, half-height wall, walls with doors and windows
Versions full wall, walls with doors and windows:

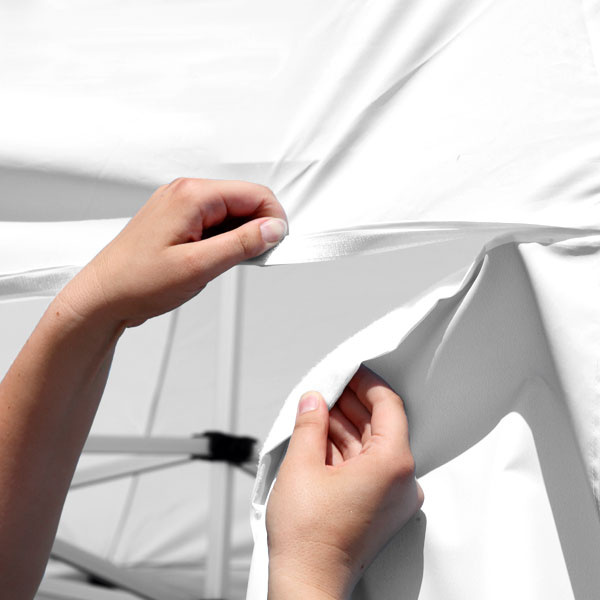

- hemmed all around, with hook-and-loop tape on both sides at the upper edge for attachment to the valance

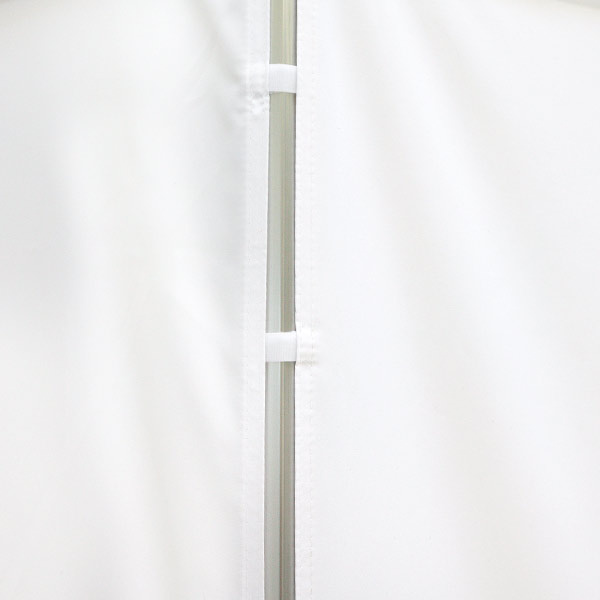

- side edges each with 5 attachment loops or
- side edges each with 5 attachment loops and zipper equipped (high wind and weather protection)
Version half-height wall:
- hemmed all around
- side edges with attachment loops
single-sided printed:
- design appears mirror-inverted on the reverse side
- attachment of the wall with the design facing inward or outward.
Note: When using multiple canopy walls with zippers, the designs can only be uniformly attached facing inward or outward.
Material
Canopy Fabric: Polyester fabric Variotex® Z SE
- flame retardant (DIN EN 13501-1)
- waterproof up to a water column of 2000 mm
- cleaning possible with a damp cloth
Professional Canopy Fabric: extra heavy polyester fabric Variotex® S SE
- flame retardant (DIN EN 13501-1:2018)
- waterproof up to a water column of 2000 mm
- particularly robust and extra durable
- cleaning possible with a damp cloth

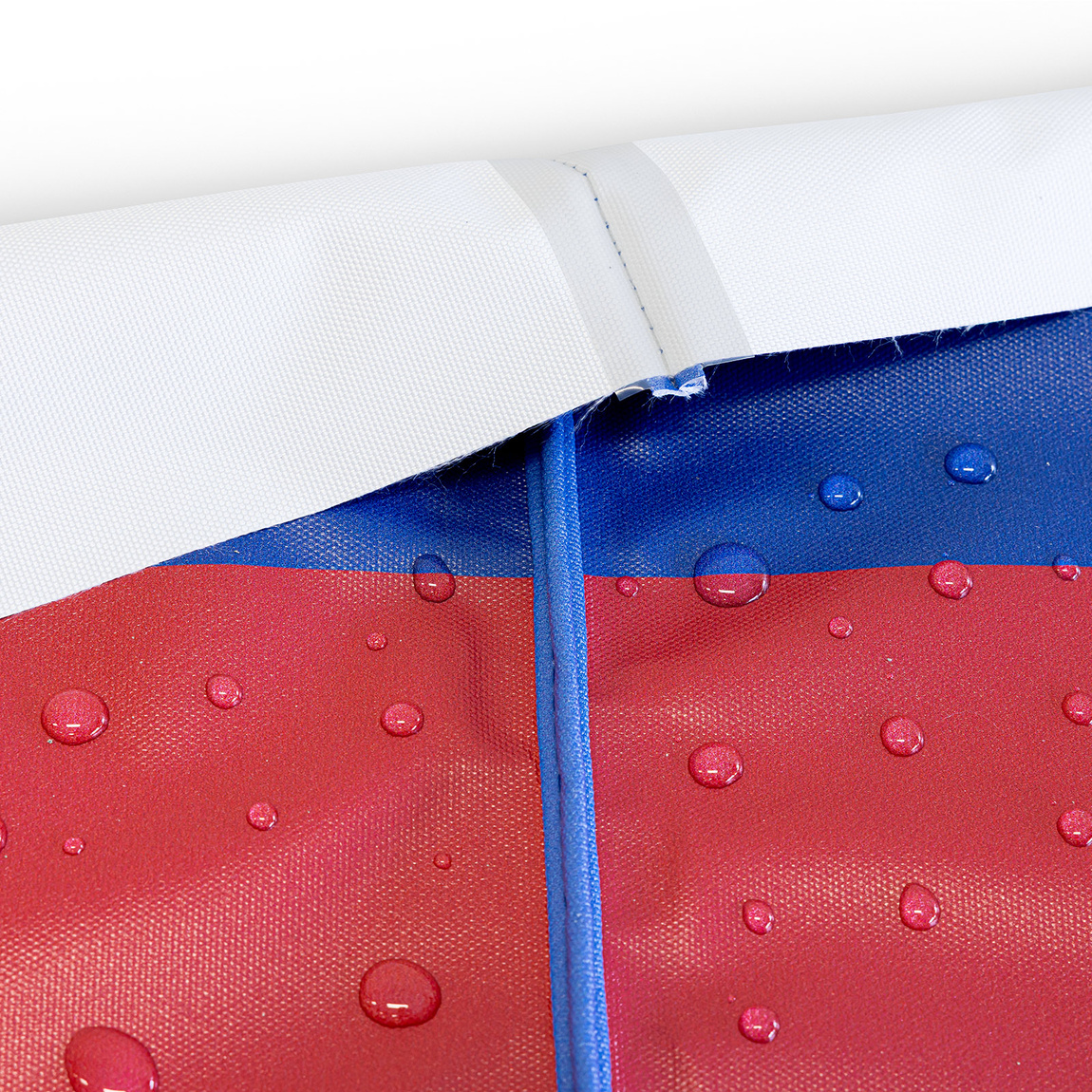

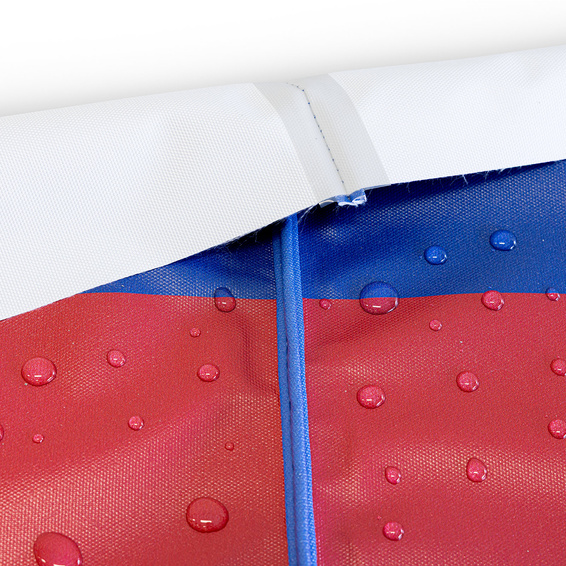

- optional waterproof seams: 100% waterproof due to tape-sealed seams, highest quality & additional weather protection
Lamination: without lamination: printed parts without lamination must be handled carefully to avoid scratch marks, recommended for medium- to long-term use with lamination: additional protection through special protective lamination after printing - highest scratch resistance, dirt-repellent, especially long durability; recommended for long-term use, use at frequently changing locations.
Frame
high-quality aluminum frame

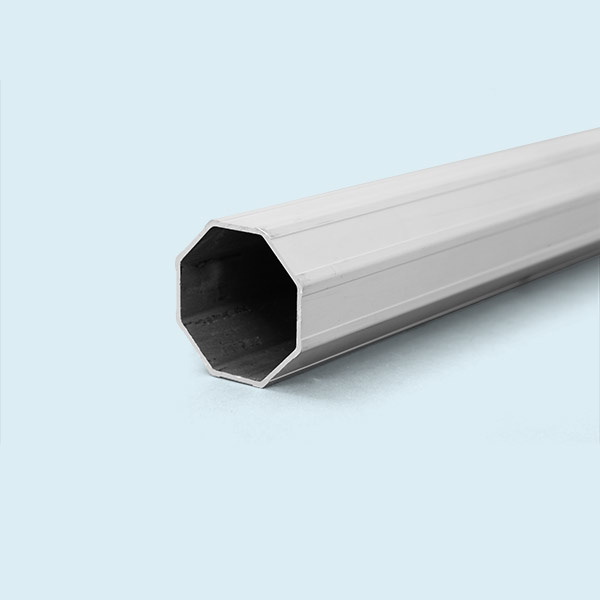

posts made of extremely stable octagonal profiles (top: ø 52 mm, bottom: ø 45 mm, wall thickness: 1,5 mm)

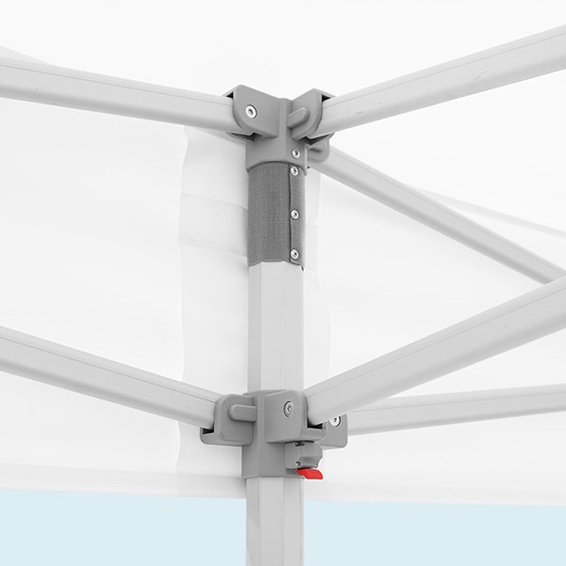

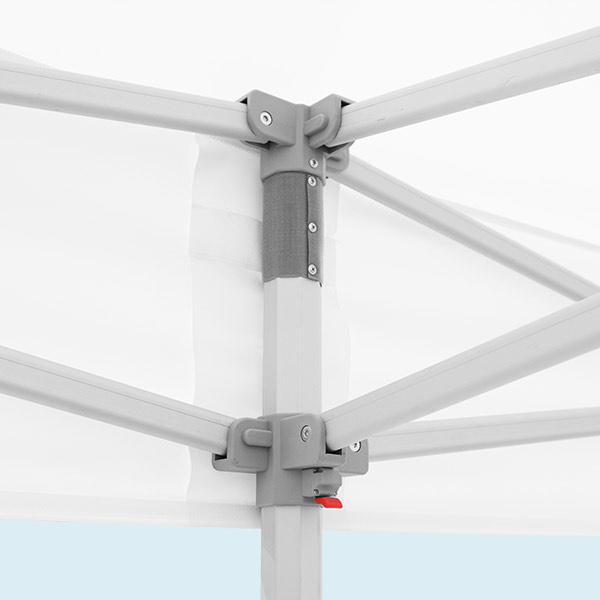

joint connectors made of robust, glass fiber reinforced plastic (high strength, weather resistant, frost-proof)

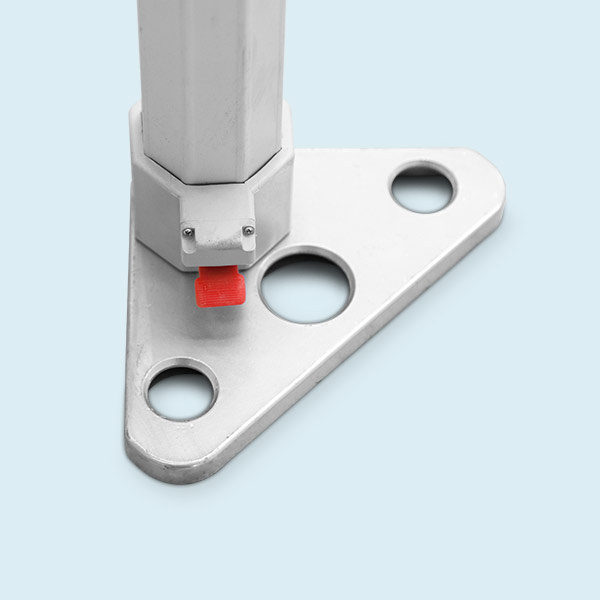

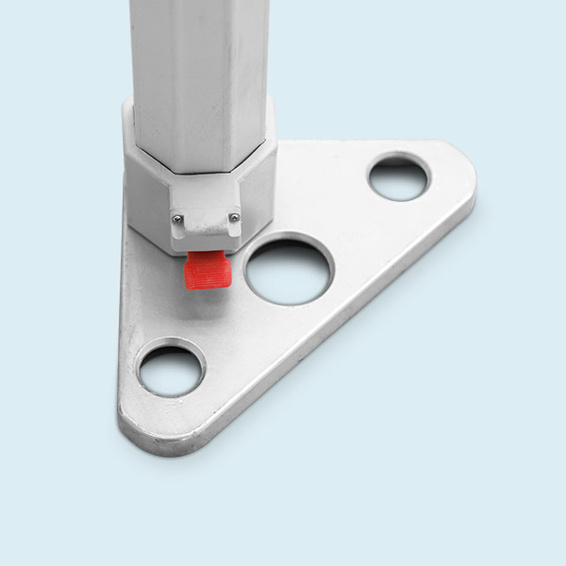

robust, stable feet made of aluminum
passage height adjustable in 5 steps (189 cm, 197 cm, 205 cm, 213 cm, 221 cm)
particularly stable, foldable scissor lattice system, locking with lever

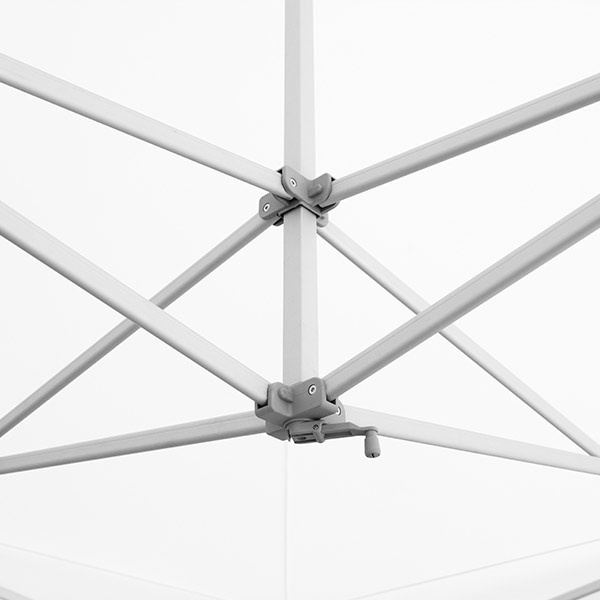

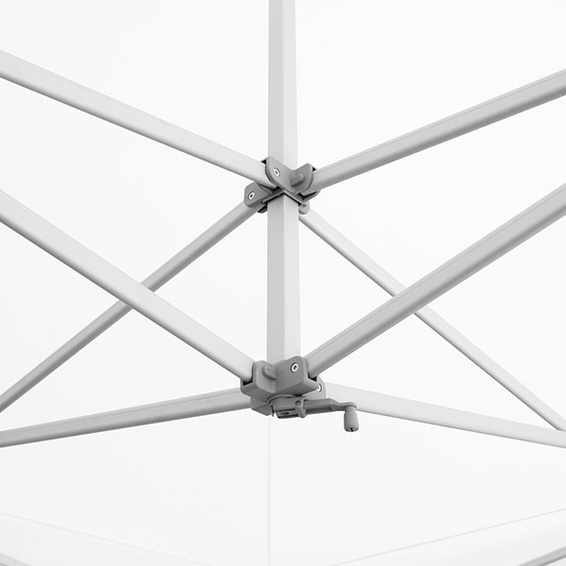

crank mechanism for fine adjustment and perfect tensioning of the roof
heights when used with walls (height setting level 3):
- total height 335 cm,
- passage height approx. 205 cm
footprint 300 x 600 cm (18 m²)
weight (without printed parts): 50 kg
Notes:
For transport and storage of pop-up canopies, the canopy roofs must always be removed from the frame.
When used outdoors, pop-up canopies and pop-up pavilions must always be securely anchored to the ground.

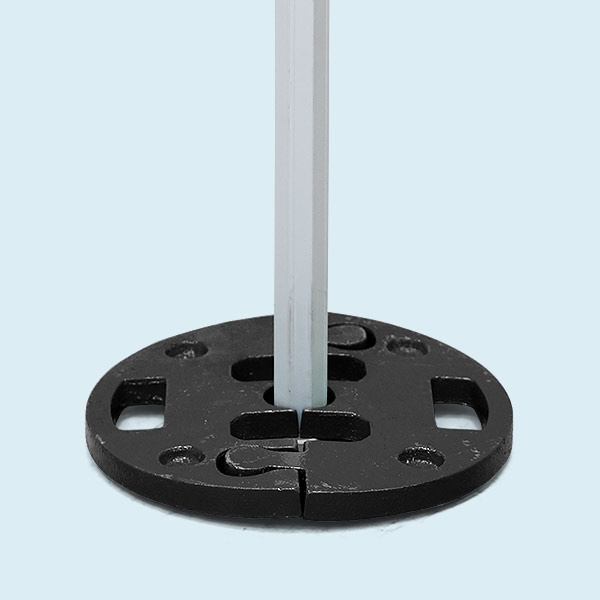

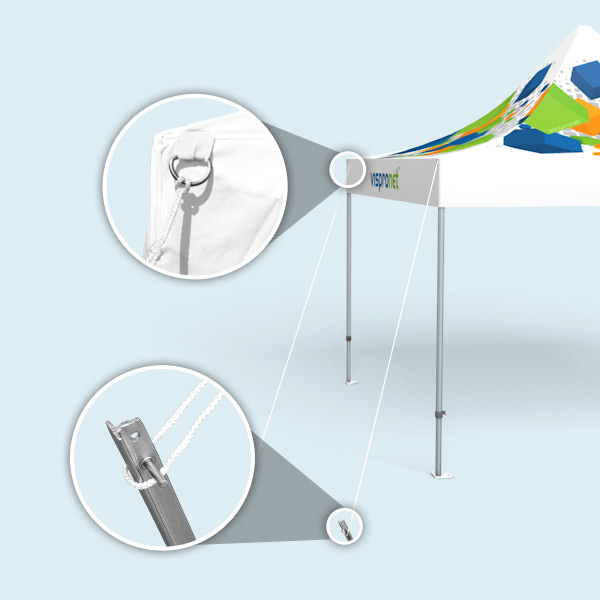

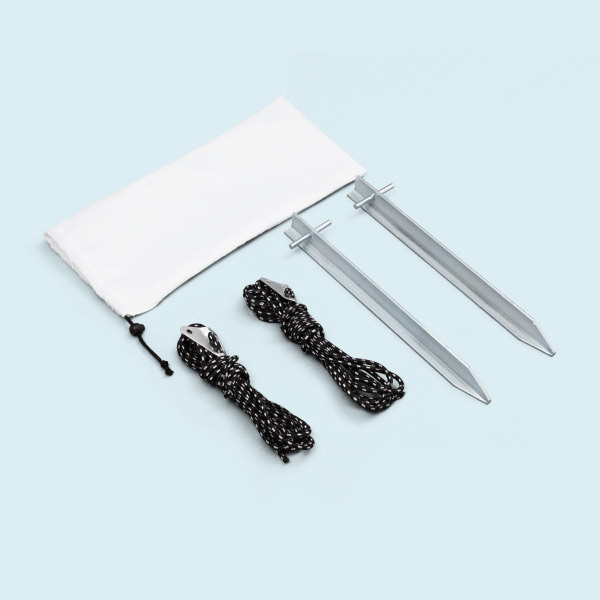

Use the additionally available guying sets as well as stackable ballast plates, weights, and ground anchors to stabilize the canopy posts.
Pop-up canopies and pop-up pavilions are not suitable for long-term use and unattended long-term outdoor use.
Pop-up canopies and pop-up pavilions are not tested for wind and snow loads.
We provide you with suitable layout templates and helpful tips for creating print data so that your desired product is created exactly according to your ideas. Please observe the respective specifications in order to prepare your data correctly for production and achieve optimum printing results.
Please upload your print data to your customer account after placing your order.
Good to know: You can cancel your order online free of charge until production begins.
