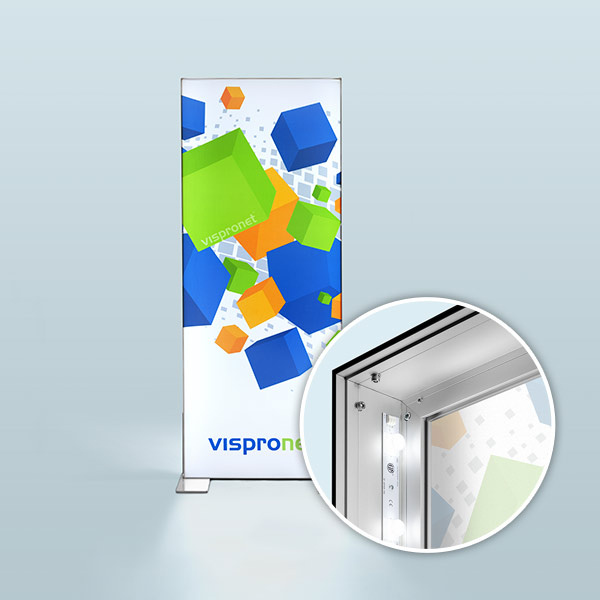

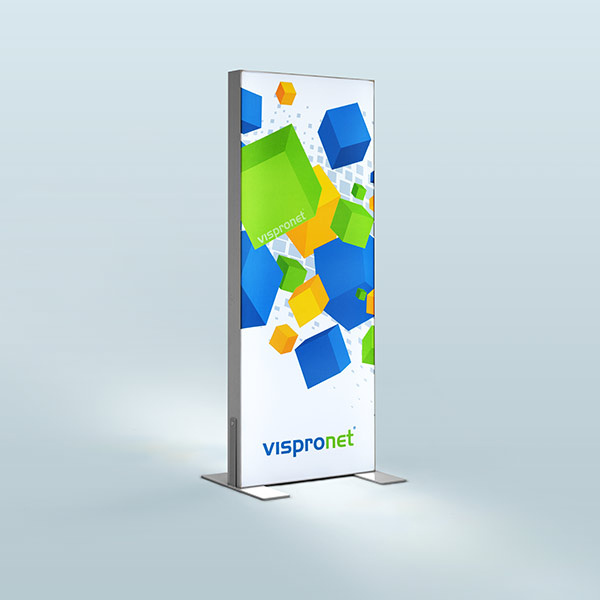

Display Wall Q-Frame® LED – Portrait
Portrait-format advertising wall with backlit textile covering: The Q-Frame® LED display wall combines a 120 mm deep aluminum frame, energy-efficient power LEDs, and double-sided textile prints to showcase your visuals on both front and back.
Version – Print components
- 2 textile prints: front and back
- Can feature identical or different designs
- Trimmed all around and equipped with flat keder for mounting in the aluminum frame
- Flat keder ensures secure fit and tightly stretched, wrinkle-free prints

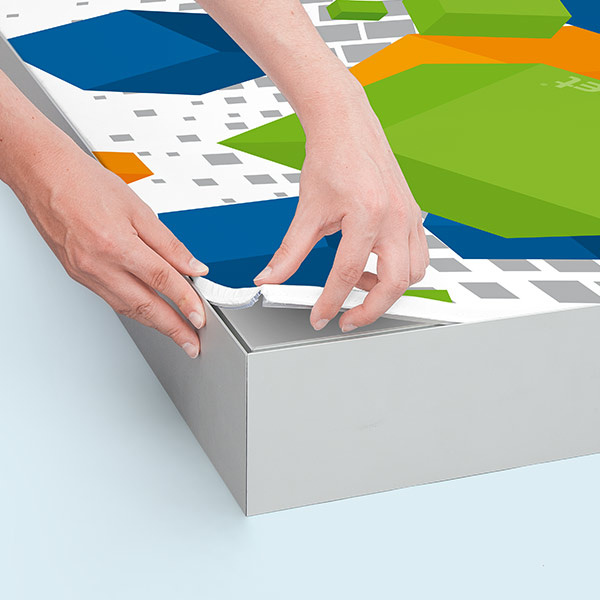

- Easy graphic change by sliding the keder into the system groove
Materials
- Lighttex SE: flame-retardant polyester fabric, specially developed for optimal backlit display
Version – System

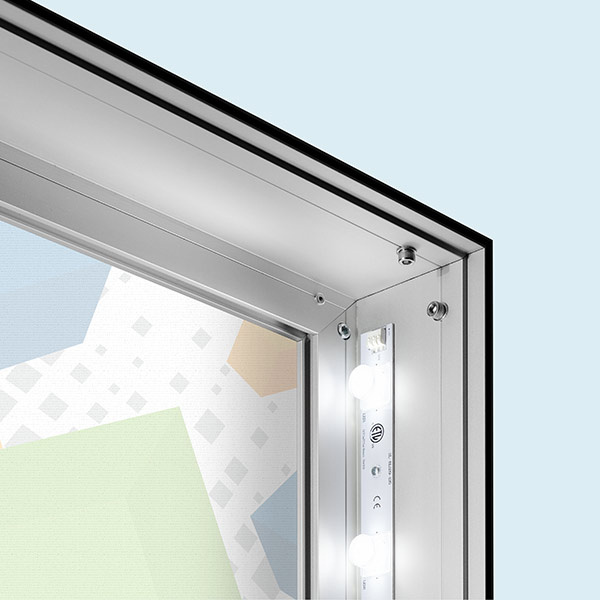

- High-quality aluminum frame, silver anodized, free-standing
- Frame depth: 120 mm
- Includes 2 side feet for stable support

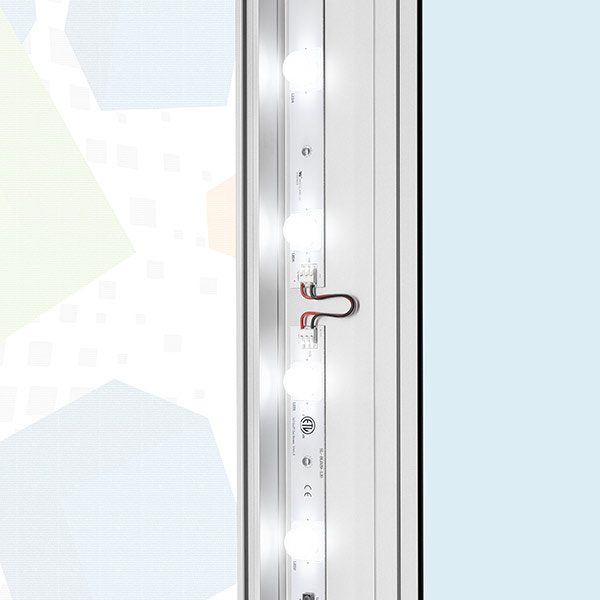

- Energy-efficient power LEDs with homogeneous and uniform illumination
- Low-heat LED components, pre-assembled at the factory
- LED lifespan: up to approx. 22,000 hours
Sizes*
| Specification |
Custom Sizes |
| System width |
40 – 300 cm |
| System height |
40 – 310 cm |
In addition, a selection of proven standard portrait formats is available.
*All dimensions are approximate; subject to technical changes and tolerances.
Important Notes

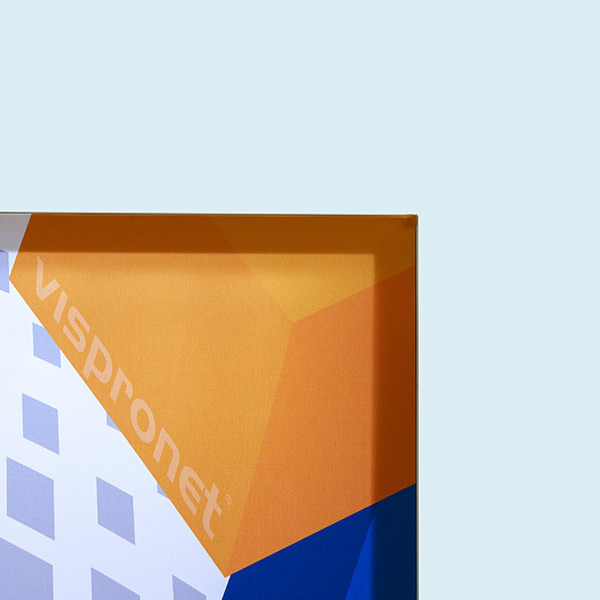

- On the reverse side, a technically required unlit border of approx. 4 cm (shadow edge) is visible.
- The LED color temperature (approx. 6,000 – 7,000 K) may cause slight color variations when illuminated compared to the unlit appearance.
Scope of delivery
- Complete Set: Q-Frame® LED display wall – pre-assembled frame profiles including LED components and corner connectors, 2 side feet (for self-assembly), and 2 textile prints
- Print components: 2 textile prints (without frame system)
- System: Q-Frame® LED – pre-assembled frame profiles including LED components and corner connectors, 2 side feet (without print components)
- Frames are delivered unassembled – ideal for space-saving storage and low logistics costs
