Display Wall Q-Frame® LED – Landscape

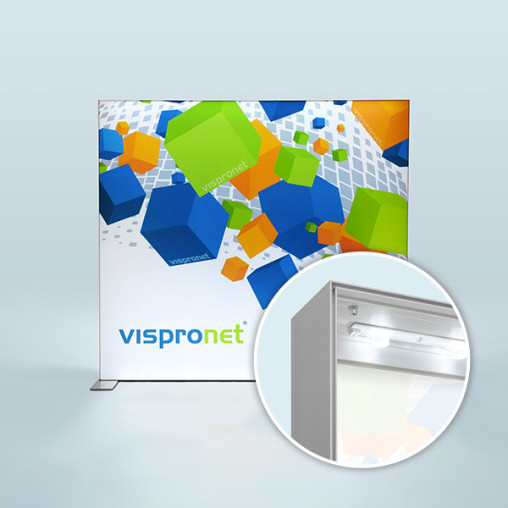

Landscape-format advertising wall with backlit textile cover: The Q-Frame® LED display wall combines a 120 mm deep aluminum frame, energy-efficient power LEDs, and double-sided textile printing for eye-catching visuals on both front and back.
Version – Printed components
- 2 textile prints: front and back
- Can be printed with the same or different designs
- Trimmed all around and equipped with flat keder for mounting into the aluminum frame
- Flat keder ensures secure tension and a wrinkle-free, tight display surface
- Quick graphic change by inserting the keder into the frame groove
Materials
- Lighttex SE: flame-retardant polyester fabric designed specifically for optimally backlit graphics
Version – System
- High-quality silver anodized aluminum frame, free-standing
- Frame depth: 120 mm
- Includes 2 side feet for stable setup
- Energy-efficient power LEDs with homogeneous and very even illumination
- Low-heat LED components, preassembled at the factory
- LED lifespan: up to approx. 22,000 hours
Sizes*
| Specification |
Custom Sizes |
| System width |
40 – 350 cm |
| System height |
40 – 250 cm |
Additionally, you can choose from a range of proven standard sizes in landscape format.
*All dimensions are approximate; technical modifications and tolerances reserved.
Important Notes
- A technically required unlit border (shadow edge) of approx. 4 cm will appear on the reverse side.
- The LED color temperature (approx. 6,000 – 7,000 K) may cause slight color variations compared to the unlit view.
Scope of delivery
- Complete Set: Q-Frame® LED display wall including preassembled frame profiles with LED components and corner connectors, 2 side feet (for self-assembly), and 2 textile prints
- Printed Components: 2 textile prints (without frame system)
- System: Q-Frame® LED with preassembled frame profiles, LED components and corner connectors, 2 side feet (without printed components)
- The frame systems are delivered disassembled – ideal for space-saving storage and low transport costs.
